Product Introduction
A lighting scheme may need colourful effects for an evening setting and white light for everyday use. This WS2805 RGB CCT LED strip brings both functions into one flexible lighting product.
The strip operates on DC24V and combines red, green, blue, warm white and cool white channels. With a compatible addressable controller, it can produce colour sequences and transitions along the strip. The dedicated white channels provide an adjustable white-light range listed as 2700K–6500K.

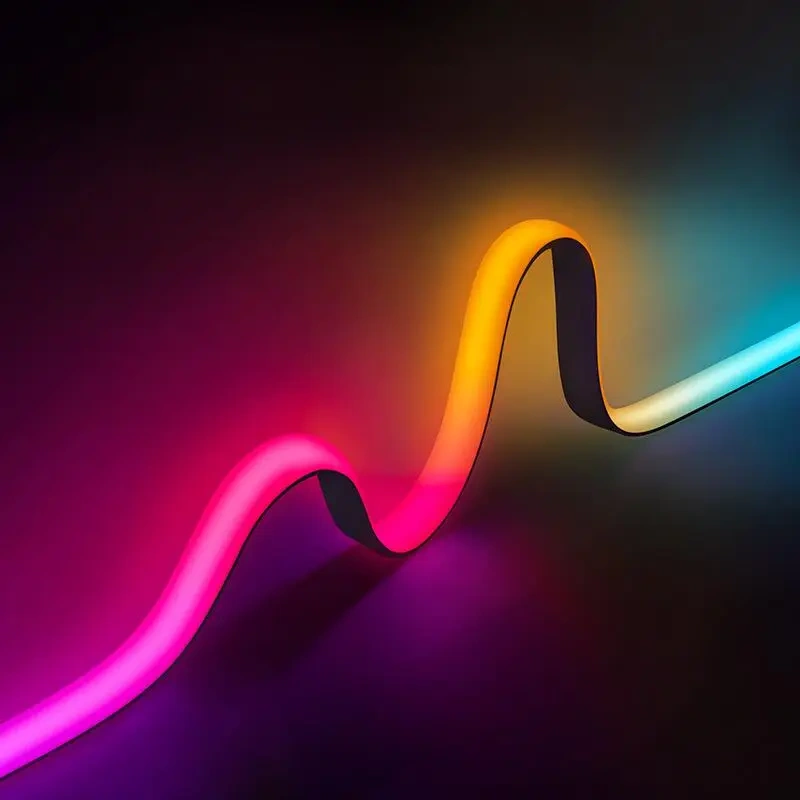

A silicone-covered COB construction creates a continuous illuminated appearance for ceiling coves, display features and other decorative lighting details. The listed standard length is 5 metres.
Design
The flexible strip combines a high-density COB light source with a silicone light-emitting surface. This construction helps soften the appearance of individual light points when the illuminated strip is visible.

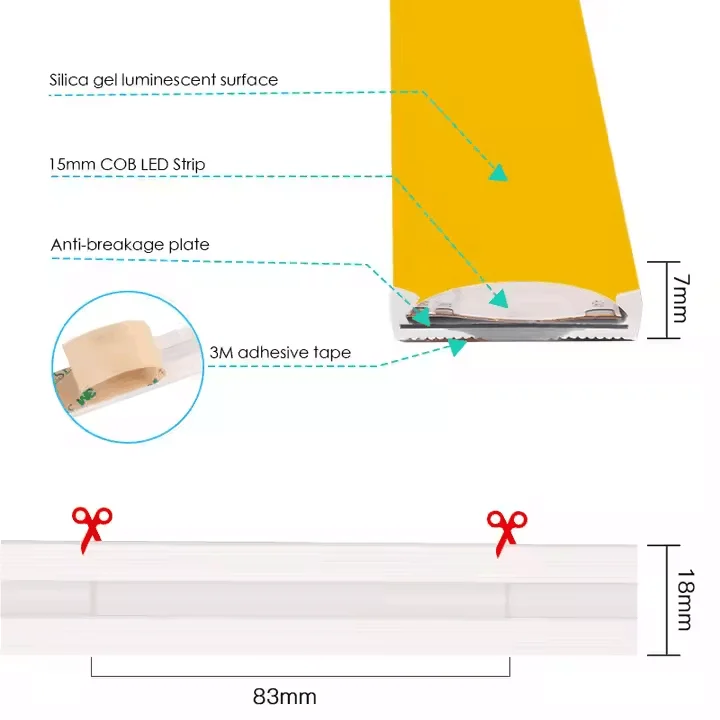

The PCB is listed as 15mm wide. The product drawing shows an overall covered profile of approximately 18mm wide and 7mm high. Use the finished dimensions when checking space inside a mounting channel or architectural recess.

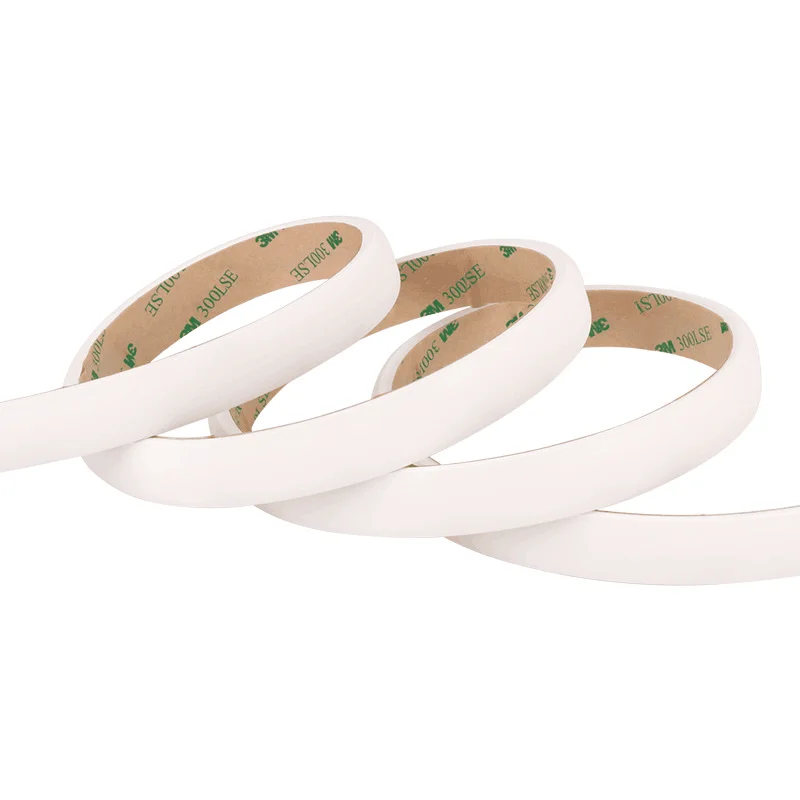

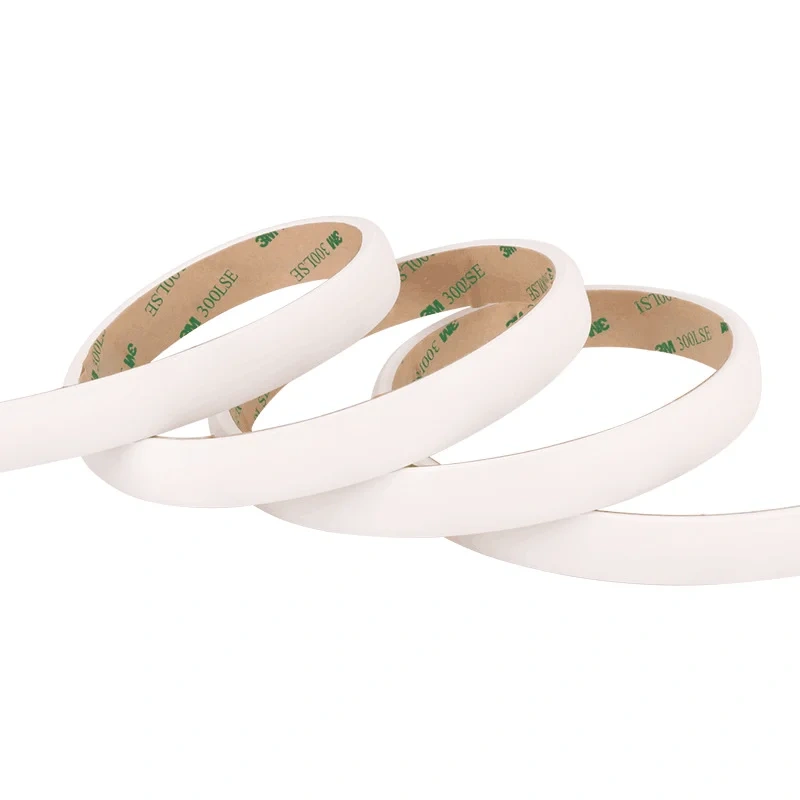

An adhesive backing is shown for attachment to a suitable mounting surface. Plan the installation around the strip’s permitted bending direction and avoid sharp folds or twisting.
Main Features
- RGB+CCT lighting: Red, green, blue, warm white and cool white channels in one strip.

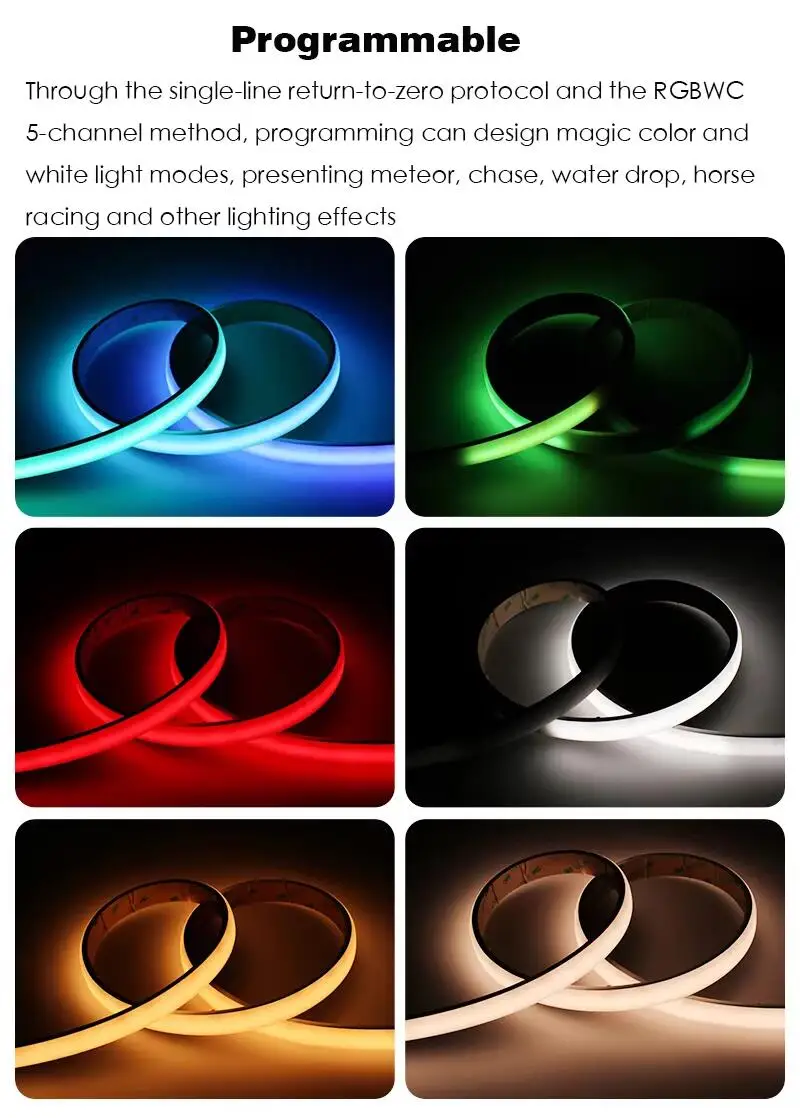

- Addressable effects: Supports programmed colour movement and transitions through a compatible controller.
- Adjustable white light: Listed colour-temperature range of 2700K–6500K.
- DC24V operation: Designed for a compatible constant-voltage power supply.
- Silicone-covered COB construction: Provides a continuous illuminated appearance for decorative details.
- 5m standard length: Suitable for sample evaluation and project planning.
- Adhesive backing: Assists installation on clean, suitable surfaces.

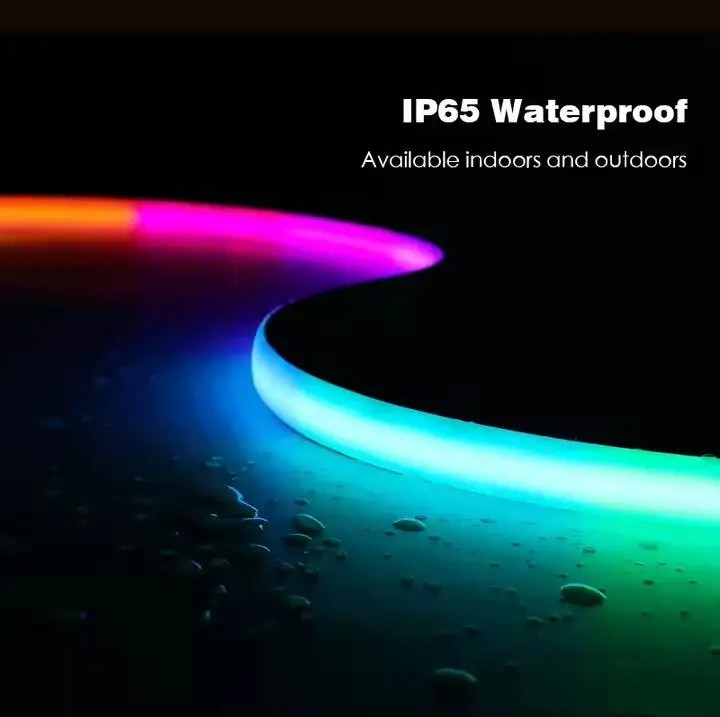

- IP65-listed version: Requires appropriate sealing of cut ends, joints and electrical connections.

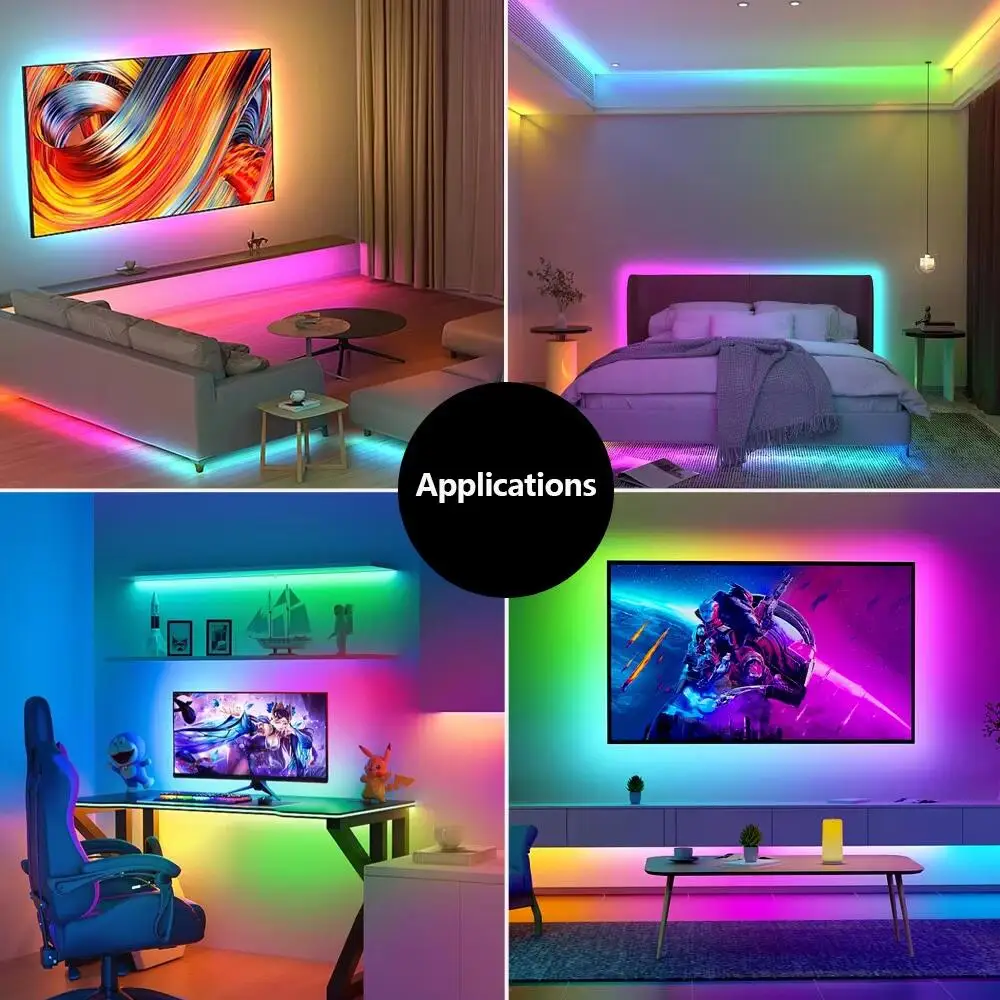

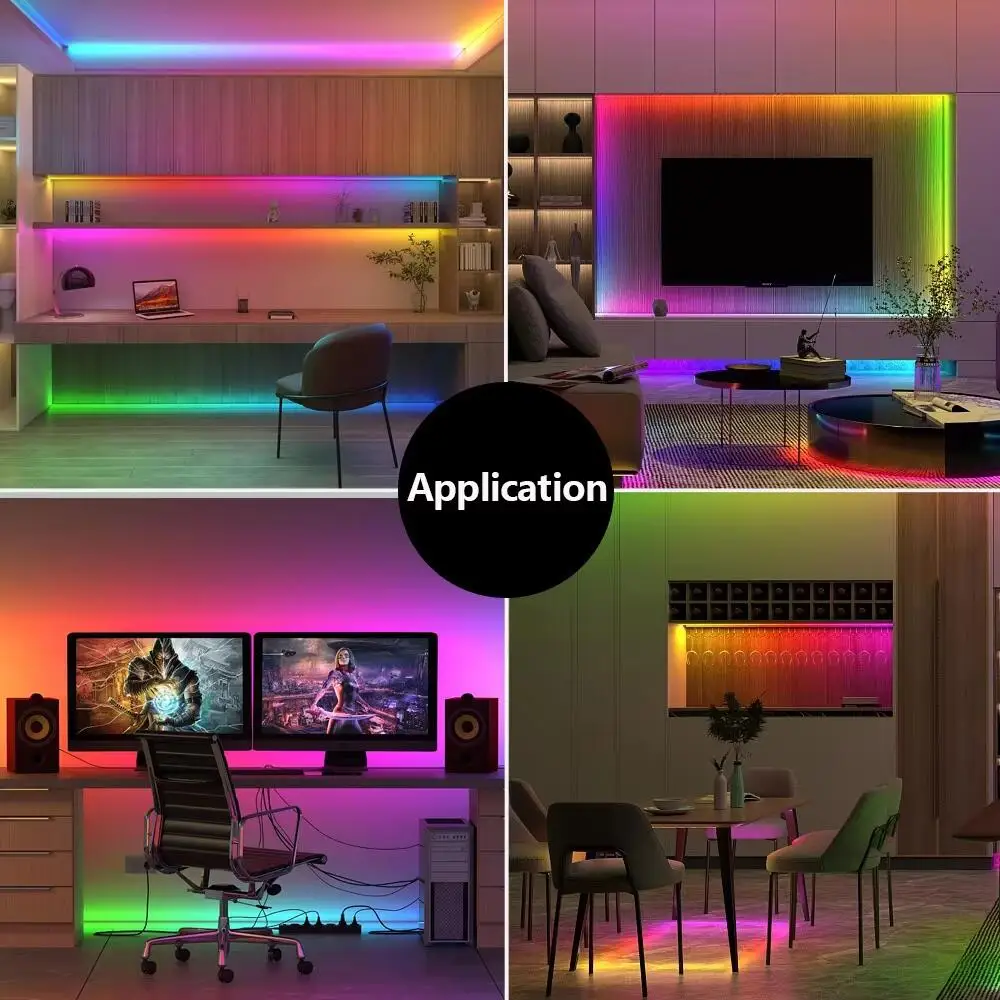

Application
This RGB+CCT LED neon strip is suitable for decorative and ambient lighting concepts such as:
- Ceiling coves and perimeter lighting
- Retail shelves and display surrounds
- Hotel reception features and lounge interiors
- Restaurant and bar accent lighting
- Gaming rooms and entertainment spaces
- TV backgrounds and media walls
- Exhibition displays and promotional installations
Use adjustable white light for a more restrained appearance, then select colour effects when the space calls for a different atmosphere.
Size / Options
The current listing shows the following configuration:
- Supply voltage: DC24V
- Light colour: RGB + warm white + cool white
- Listed IC option: WS2805
- Standard length: 5m
- PCB width: 15mm
- Covered profile shown: Approximately 18 × 7mm
- Listed protection rating: IP65
Confirm the finished dimensions, cut interval and controller requirements for the selected order configuration before installation.
Lighting Options

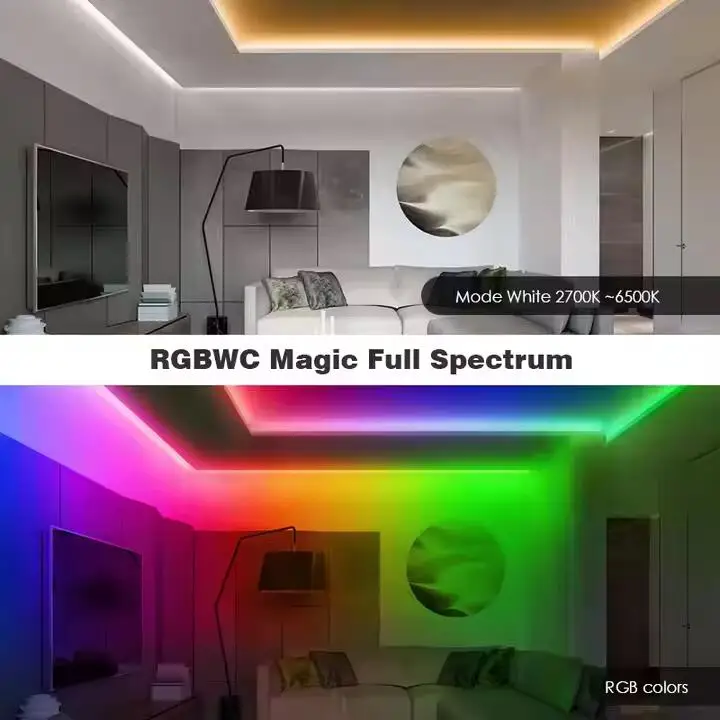

The RGB channels provide colour mixing and animated effects. Dedicated warm white and cool white channels allow white-light adjustment across the listed 2700K–6500K range.
Addressable control allows different sections of the strip to display different outputs within the controller’s capabilities. The available patterns, dimming functions and scene settings depend on the controller and software used.

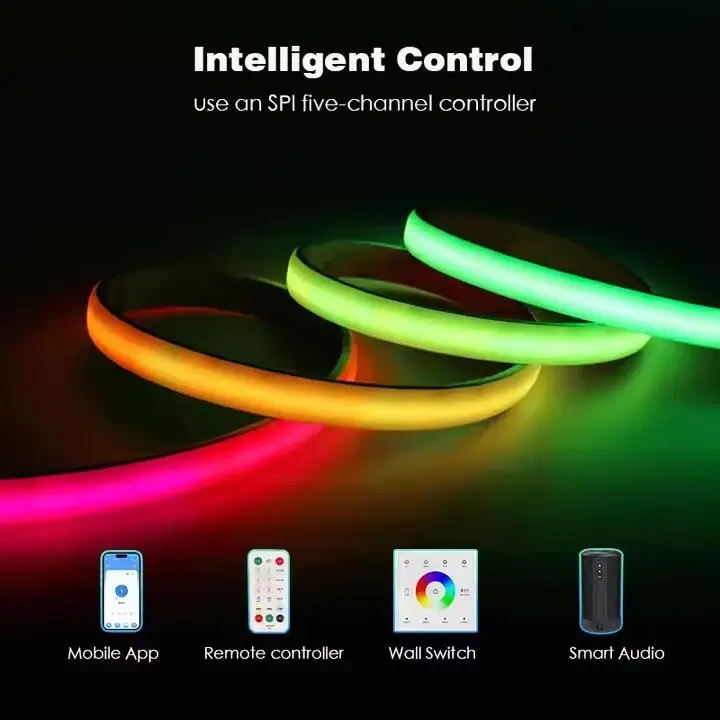

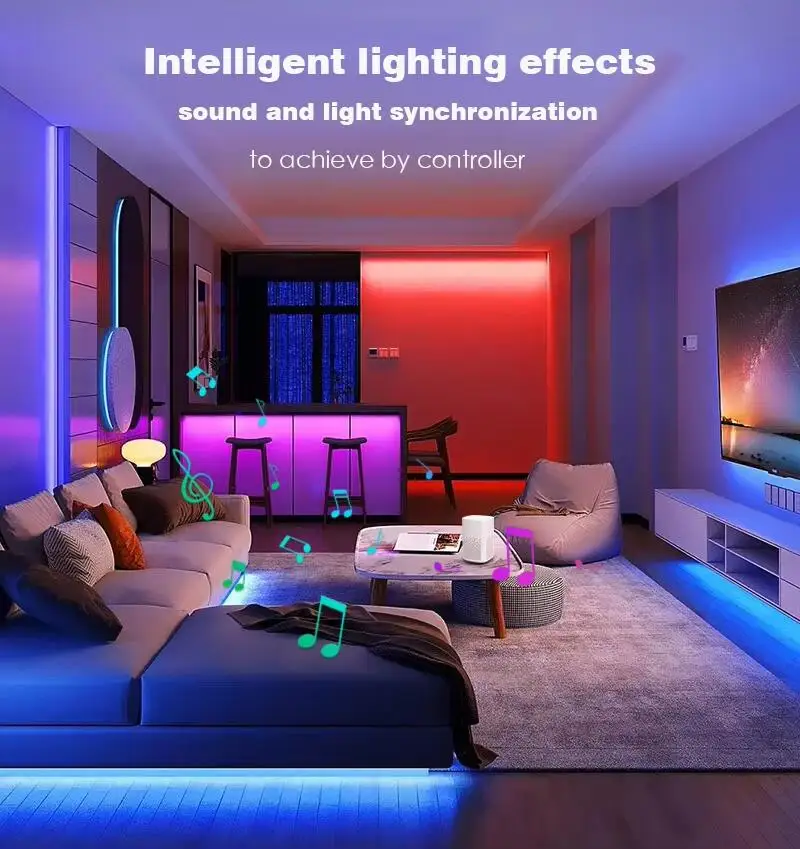

App control, remote operation, voice integration and music response require a compatible controller with those features. These functions are not provided by the strip alone.
Installation
Use a regulated DC24V constant-voltage power supply and a controller confirmed to support the selected WS2805 RGB+CCT strip configuration.
Before mounting, connect a short test section and check RGB colour order, warm white operation, cool white operation and programmed effects. Follow the product wiring labels and controller instructions.
Size the power supply, wiring and power-feed arrangement using the confirmed maximum wattage and total installed length. Longer runs may require additional power feeds; the required arrangement depends on load, cable length and allowable voltage drop.
Mount the strip on a clean, dry, suitable surface with adequate heat dissipation. Cut only at the designated marks. For installations requiring moisture protection, seal all cut ends and connections using components appropriate for the strip.
Confirm whether the controller, power supply, connectors and mounting accessories are included in the quotation.
Technical Specifications
| Parameter |
Specification |
| Product type |
Addressable RGB+CCT LED neon strip |
| Product reference |
1005009348251205 |
| Input voltage |
DC24V |
| Listed IC option |
WS2805; verify final configuration before ordering |
| Lighting channels |
RGB + warm white + cool white |
| Listed white-light range |
2700K–6500K |
| Light-source construction |
COB strip with silicone covering |
| PCB width |
15mm |
| Overall profile shown |
Approximately 18mm wide × 7mm high |
| Standard length |
5m |
| Listed IP rating |
IP65; installation sealing required |
| Control requirement |
Compatible five-channel SPI addressable controller |
| Mounting feature |
Adhesive backing shown |
| Rated power per metre |
Confirm for selected configuration |
| Addressable pixels per metre |
Confirm for selected configuration |
| Minimum order quantity |
1 piece |
| Sample order lead time |
3–7 days |
| Mass order lead time |
7–15 days |
Project Applications
For retail and hospitality projects, RGB+CCT combines decorative colour effects with adjustable white light in a single installation. It can support different lighting scenes for daytime presentation, evening ambience or promotional displays.
For distributors and installers, sample testing is useful before a larger purchase. Check controller compatibility, colour consistency, finished dimensions and the power-feed arrangement under the intended operating conditions.
When requesting a project quotation, provide the total length, individual run lengths, installation environment and preferred control method. These details help define a suitable strip, controller and power-supply combination.
OEM/ODM
Contact USKYLED to discuss requirements for project lengths, connectors, labelling, packaging or controller combinations.
Customisation availability, minimum quantities, costs and production schedules require confirmation for the requested specification. The standard listed product has an MOQ of one piece, with sample lead time of 3–7 days and mass order lead time of 7–15 days.
Request a Sample or Project Quotation
Send USKYLED your required quantity, installation lengths, control preferences and delivery destination. Request a sample to evaluate the RGB+CCT lighting effects and controller operation before placing a bulk order.
MOQ: 1 piece | Sample lead time: 3–7 days | Mass order lead time: 7–15 days
