Product Introduction
The USKYLED PIR motion sensor LED strip brings automatic lighting and flowing light effects to stairways, corridors and room entrances. When movement is detected, the controller activates the strip according to the selected operating mode, creating a moving light sequence along the installation.

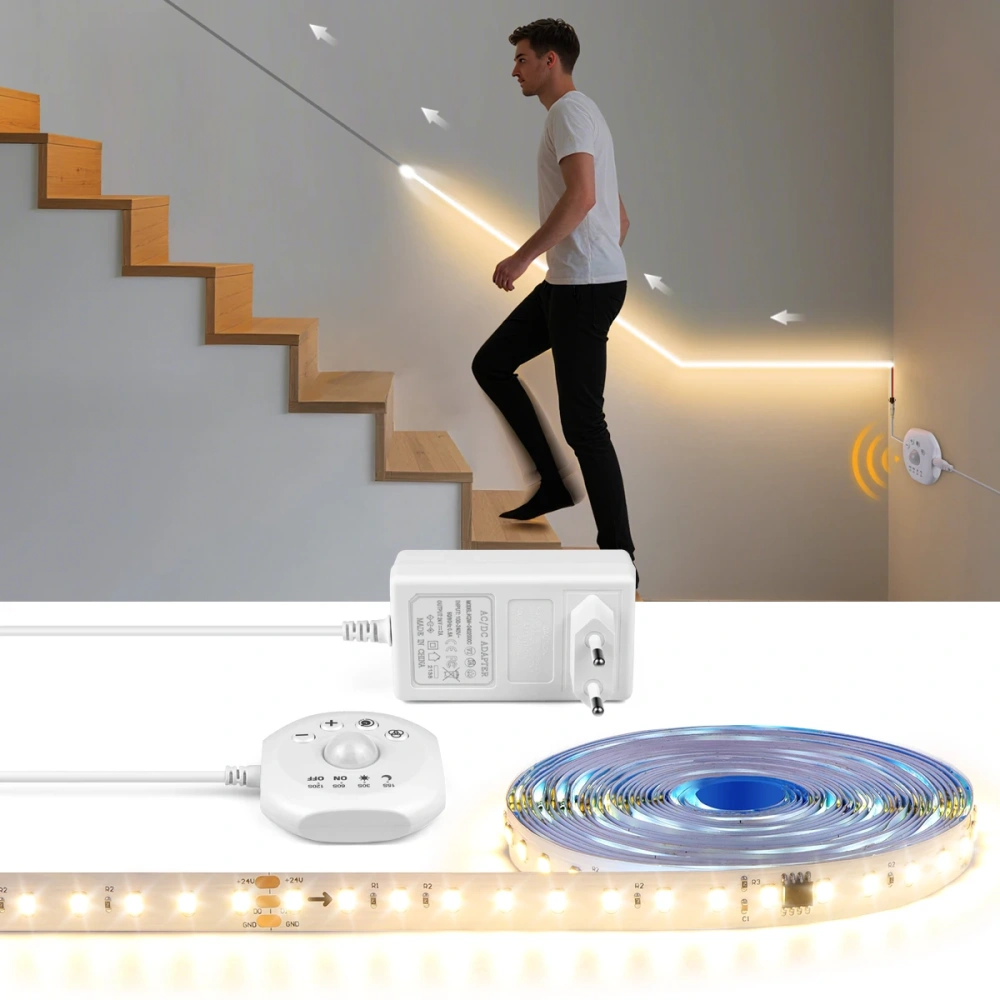

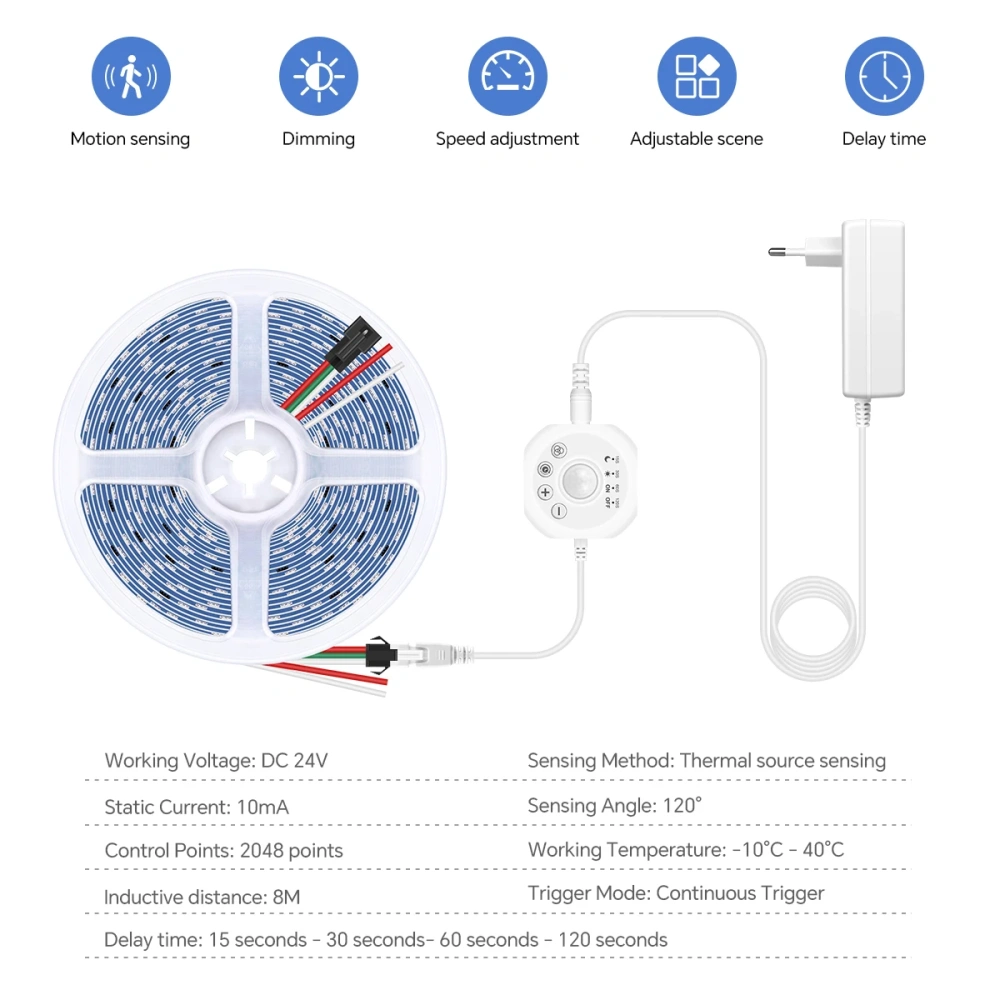

The kit combines a DC24V WS2811 addressable LED strip with a PIR sensor controller and an EU-plug power adapter, as shown in the product images. Available lengths are 5m and 10m, with warm white, natural white or cool white light.
Adjustable brightness, chasing speed and switch-off delay allow the lighting to suit different interior layouts and everyday routines.
Design
The flexible strip uses SMD2835 LEDs at a density of 120 LEDs per meter. WS2811 control enables sequential lighting effects along the strip, while the compact sensor controller provides access to the main operating settings.

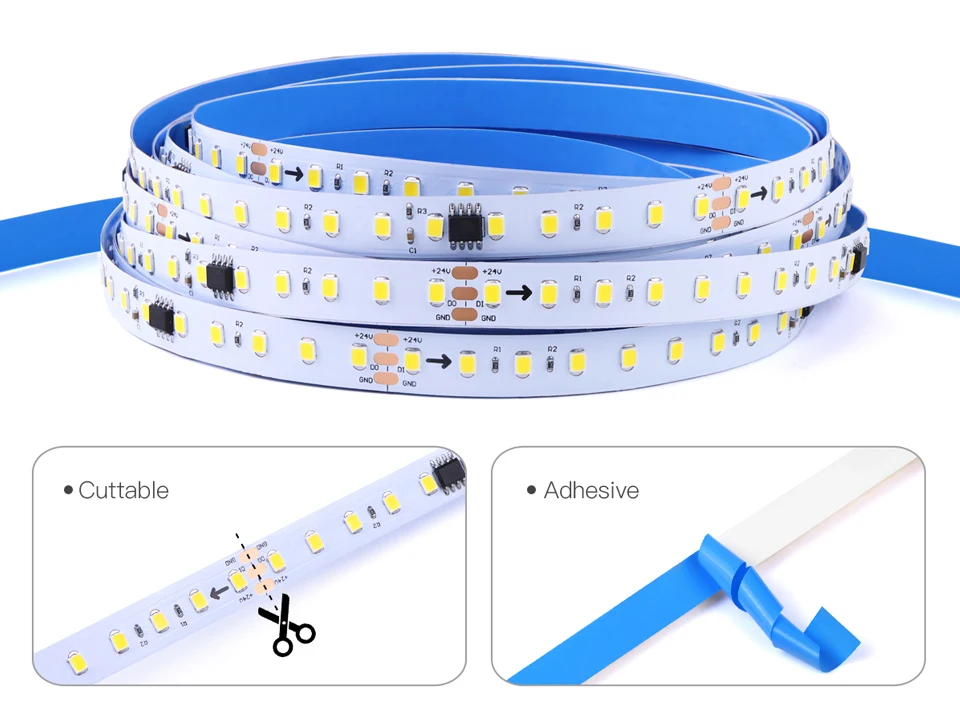

Product images show an adhesive backing and marked cutting positions. This format can be used along suitable stairway walls, skirting lines and decorative ceiling edges.
The strip is supplied in a selected white-light color. Its addressable control creates movement within that color rather than RGB color-changing effects.
Main Features
- PIR motion activation: Triggers the lighting when movement is detected.
- WS2811 chasing effects: Creates flowing and sequential light patterns.
- DC24V LED strip: Designed for use with a matching power supply.
- 120 LEDs per meter: Uses SMD2835 LED packages.
- 5m and 10m kits: Available with an EU-plug power adapter.
- Three white-light options: Warm white, natural white and cool white.
- Four operating modes: Night, daylight, always on and off.
- Adjustable delay: Select 15, 30, 60 or 120 seconds.
- 10 brightness levels: Adjust the output using the controller.
- 10 speed levels: Set the pace of the chasing effect.

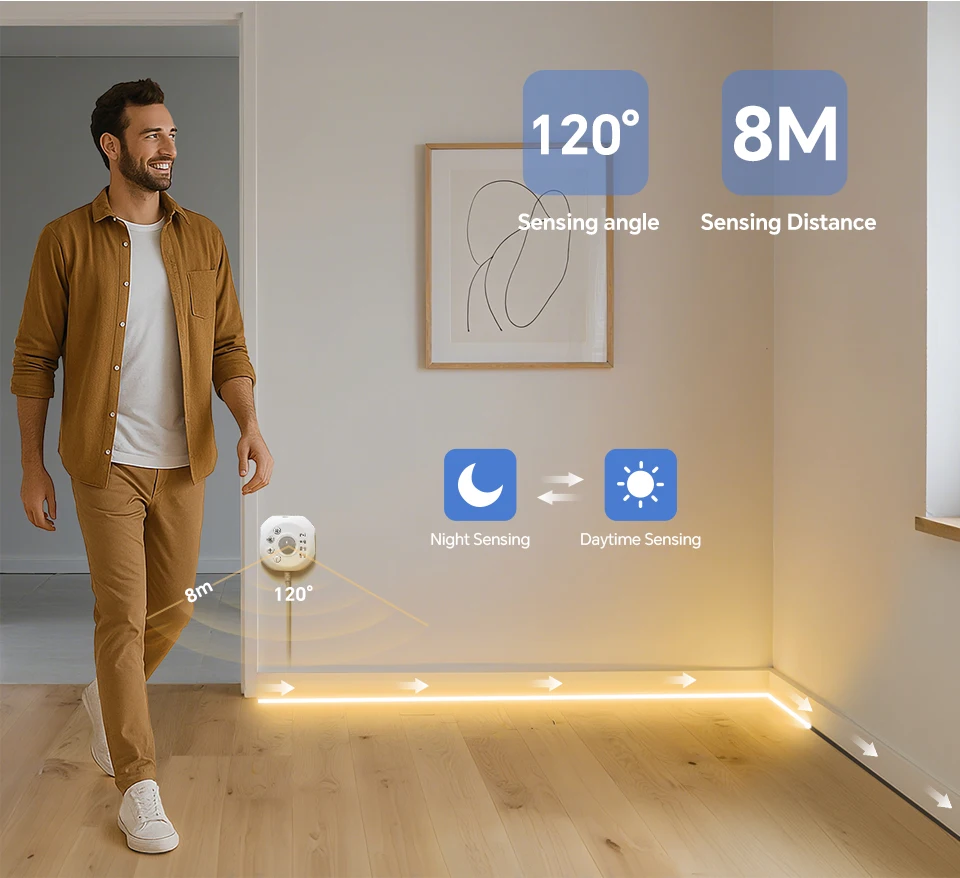

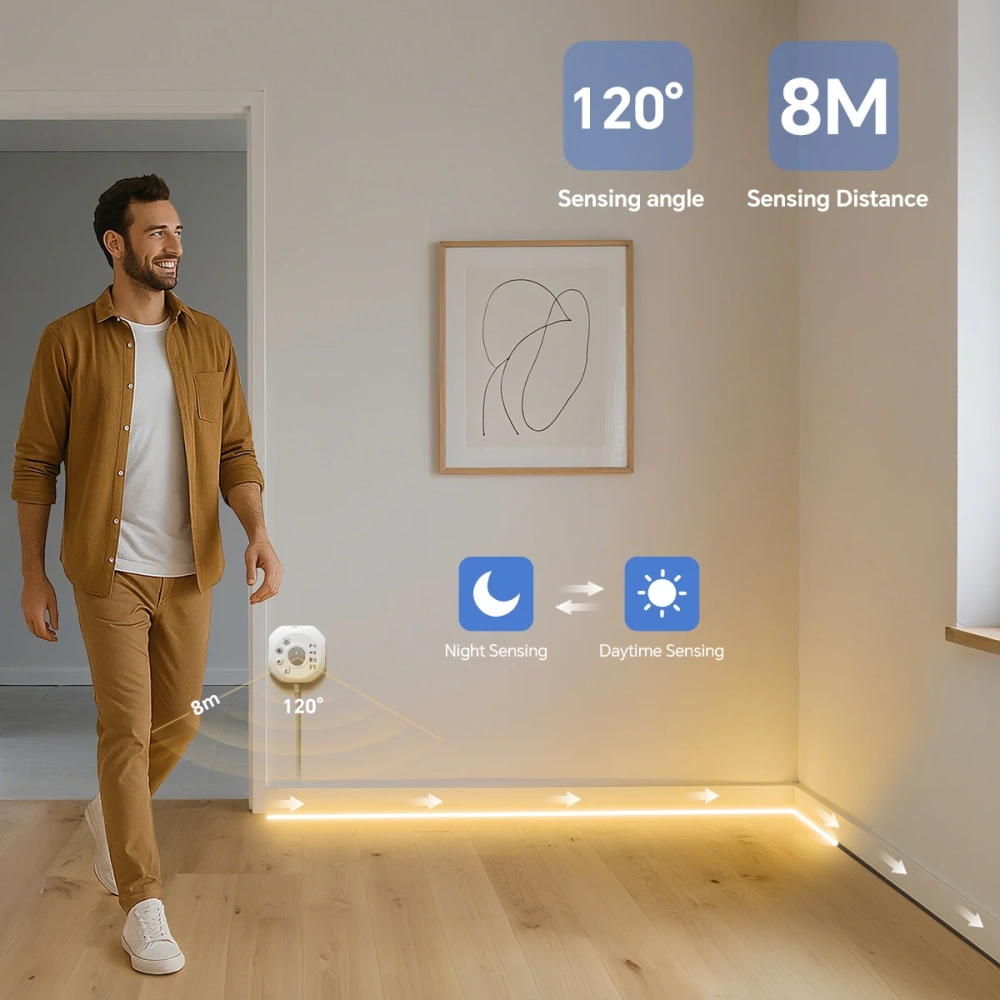

- Listed sensing coverage: 120° sensing angle and up to 8m detection distance, subject to installation conditions.

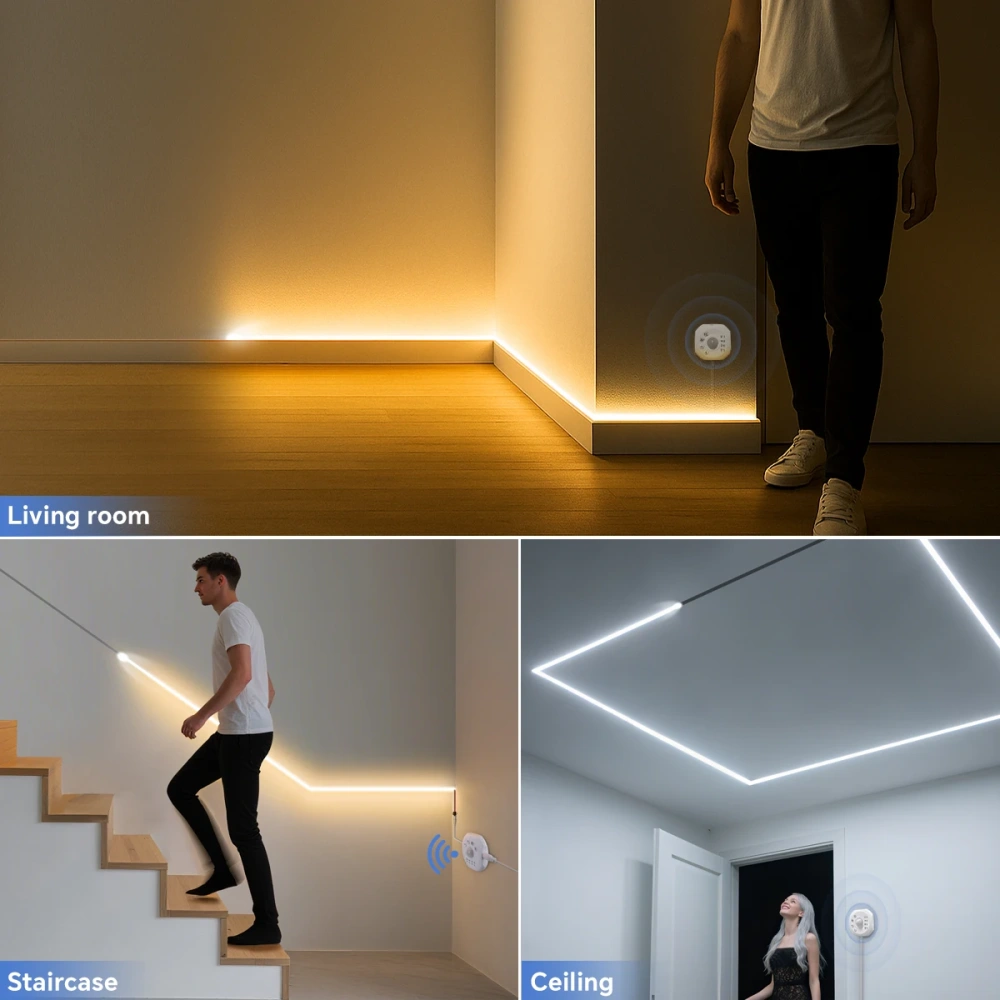

Application
This motion-activated LED strip is suitable for interior accent and night-lighting applications, including:
- Stairway wall lighting
- Corridor and hallway lighting
- Entrance lighting
- Bedroom perimeter lighting
- Living room skirting lighting

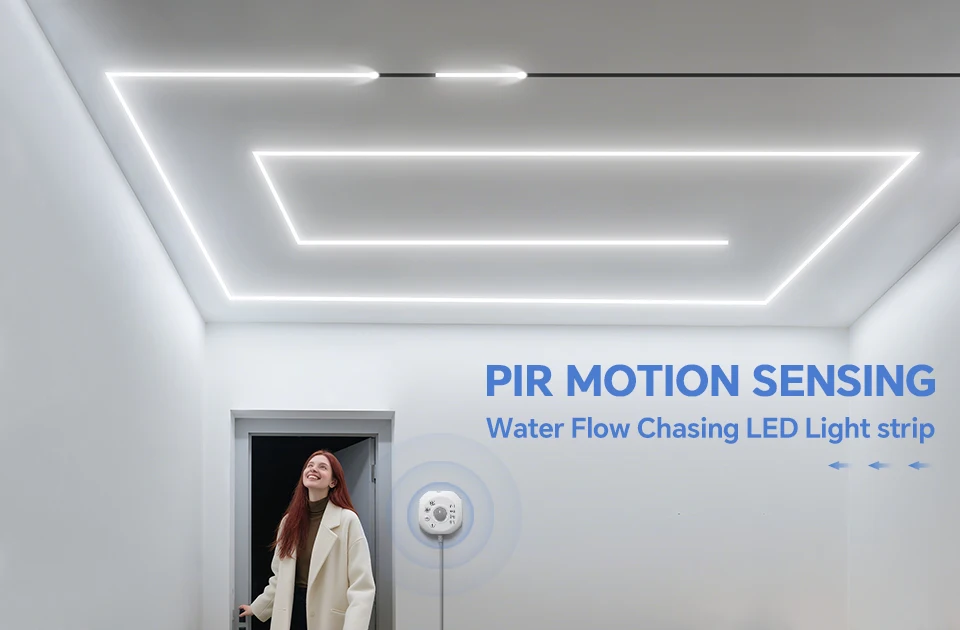

- Decorative ceiling outlines
- Residential circulation areas

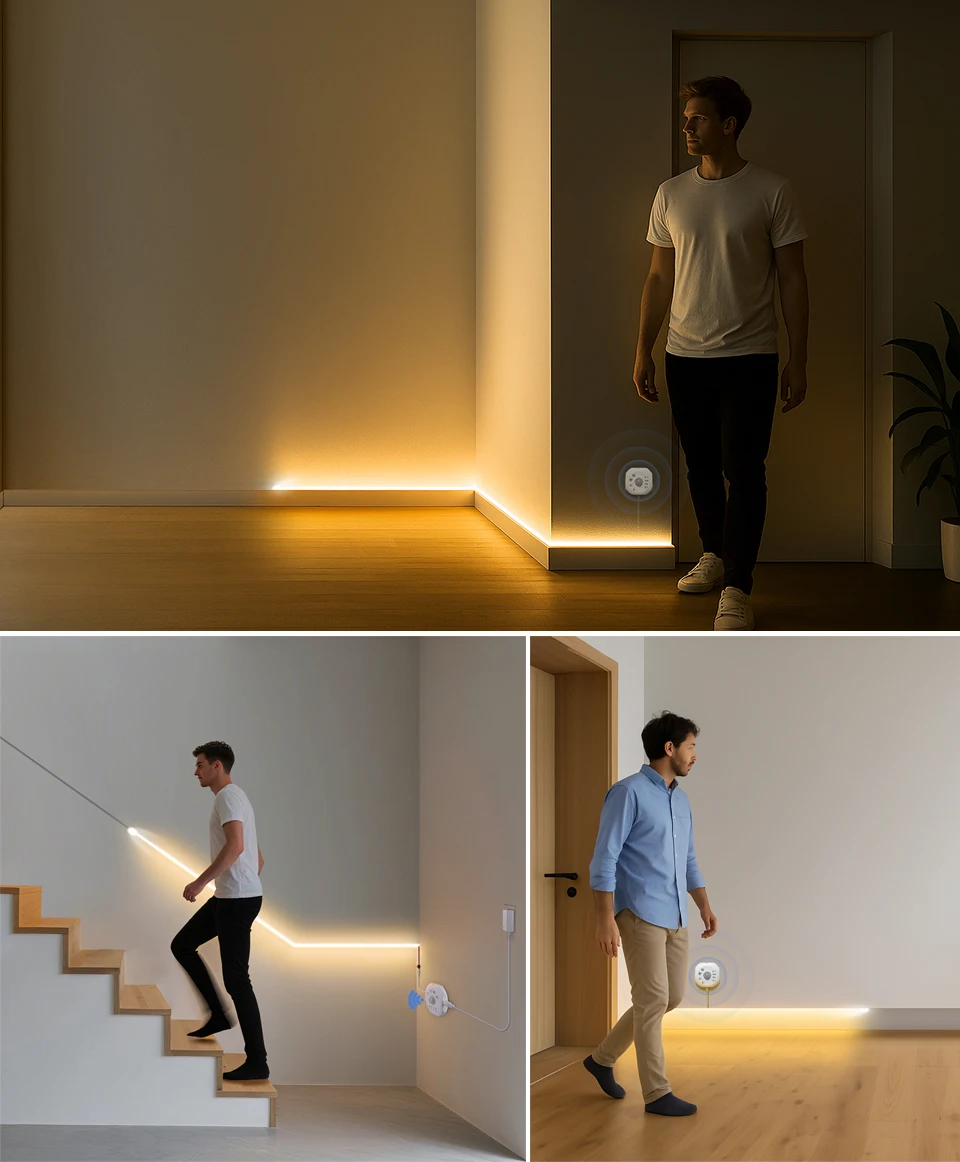

For staircase projects, plan the strip route and sensor position around the actual walking path. The illustrated application follows a continuous lighting route beside the stairs.
Confirm the control arrangement separately if your project requires independent lighting of individual stair treads or sensors at both ends of a staircase.
Size / Options
| Option |
Available Selection |
| Kit Length |
5m / 10m |
| Plug Type |
EU plug |
| Strip Voltage |
DC24V |
| LED Density |
120 LEDs/m |
| Light Color |
Warm White / Natural White / Cool White |
The product images show the LED strip, PIR controller and plug-in power adapter. Confirm the adapter rating, connection leads and final packing list for the selected kit.

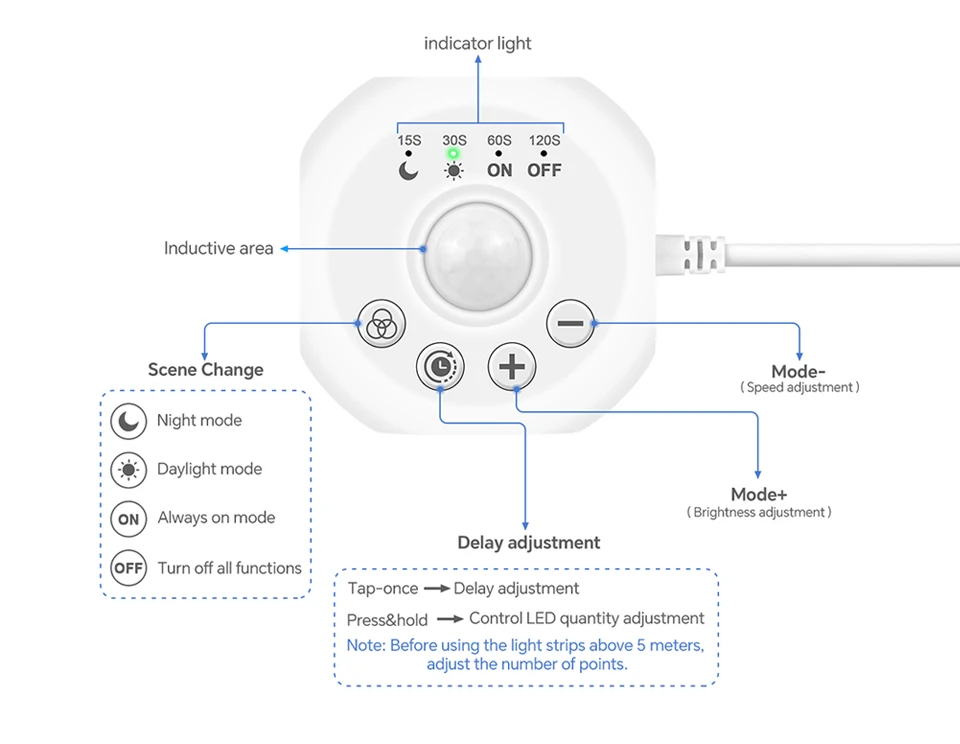

The controller instructions state that strips longer than 5m require adjustment of the control-point setting before use.
Lighting Options

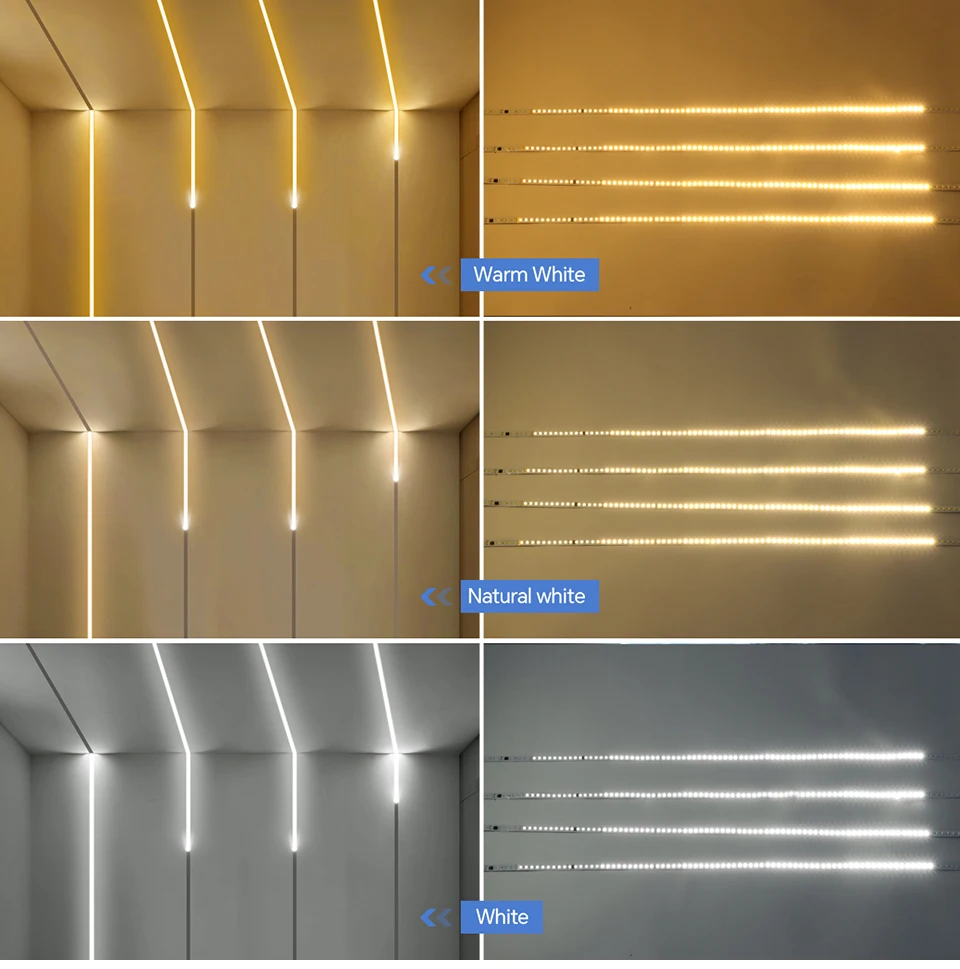

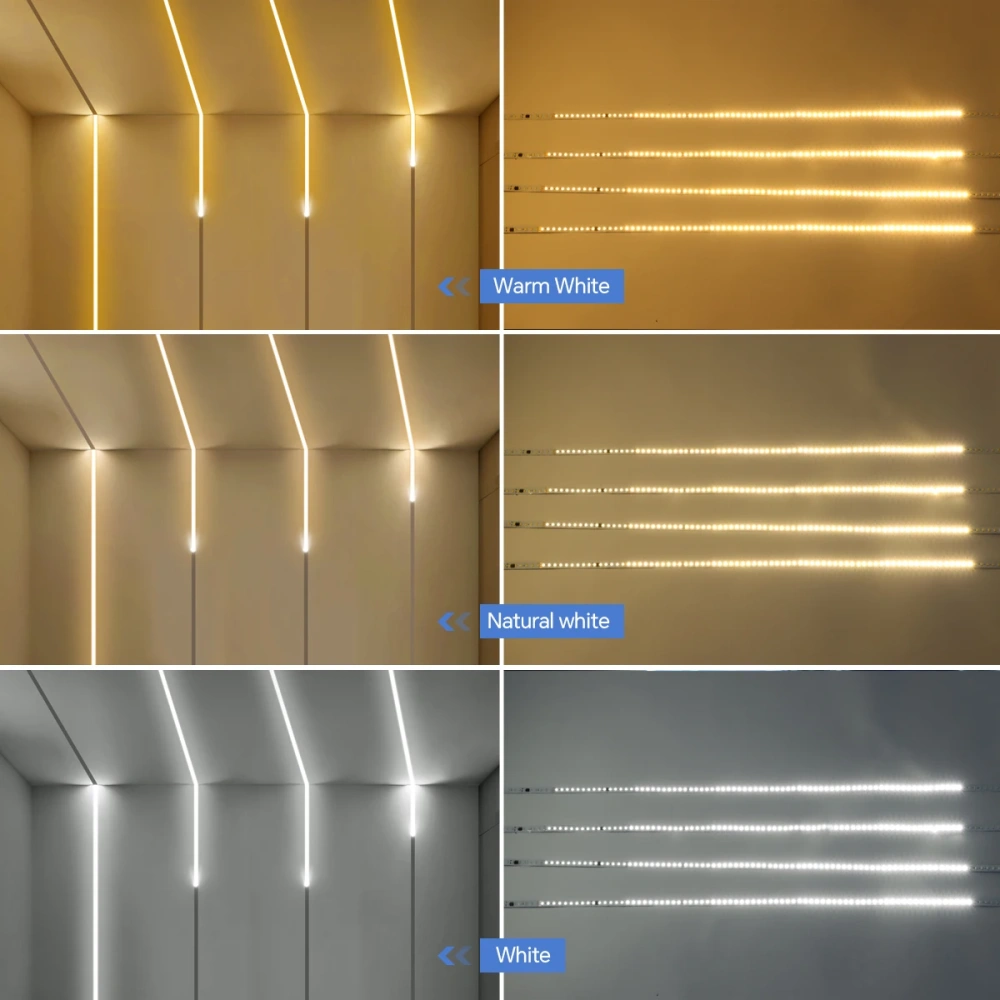

White-light selections
| Light Color |
Color Temperature |
Suggested Use |
| Warm White |
3000–3200K |
Bedrooms, residential stairs and relaxed ambient lighting |
| Natural White |
4000–4500K |
Hallways, entrances and general interior accents |
| Cool White |
6000–6500K |
Contemporary interiors and cool-toned decorative lighting |
Select the light color when ordering. The listed versions do not provide adjustable color temperature.

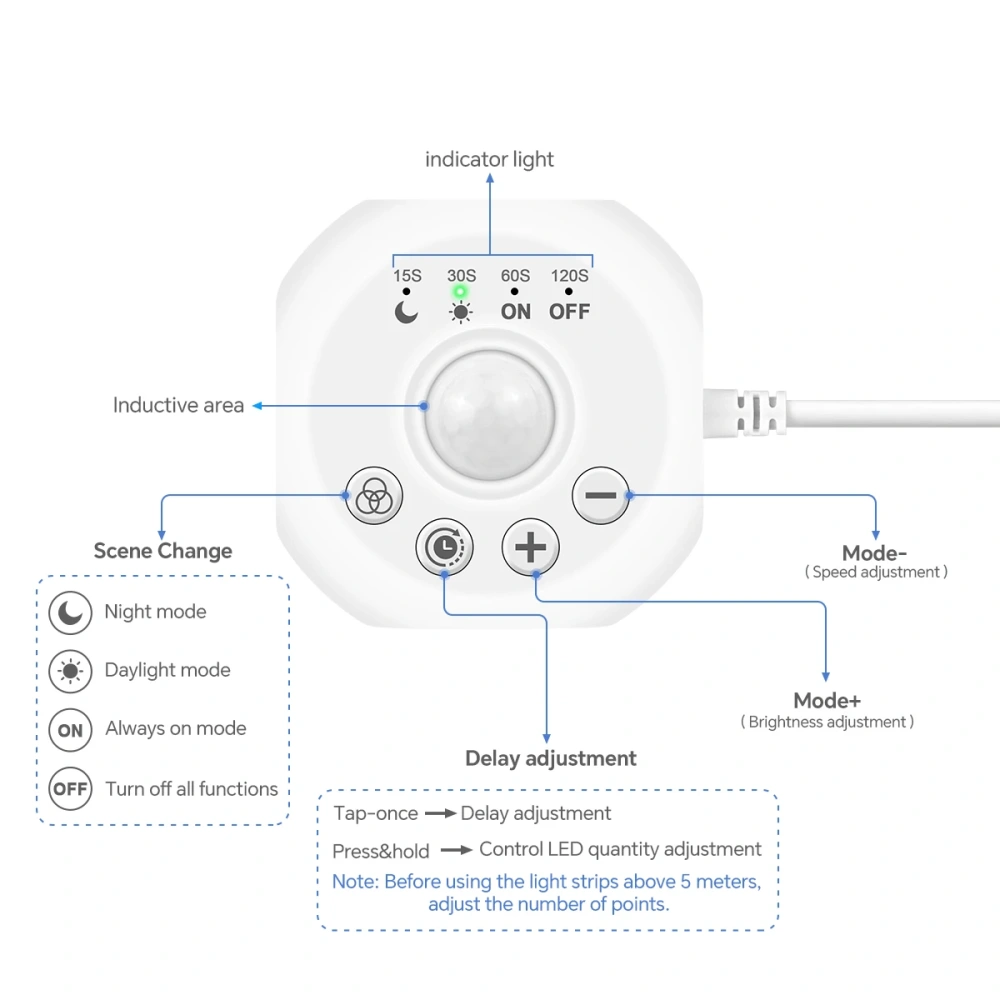

Operating modes
| Mode |
Function |
| Night Mode |
Motion activation under low ambient-light conditions |
| Daylight Mode |
Motion activation during both daytime and nighttime |
| Always On |
Keeps the light on without the automatic delay-off function |
| Off |
Turns the light off |
Dynamic effects and adjustments

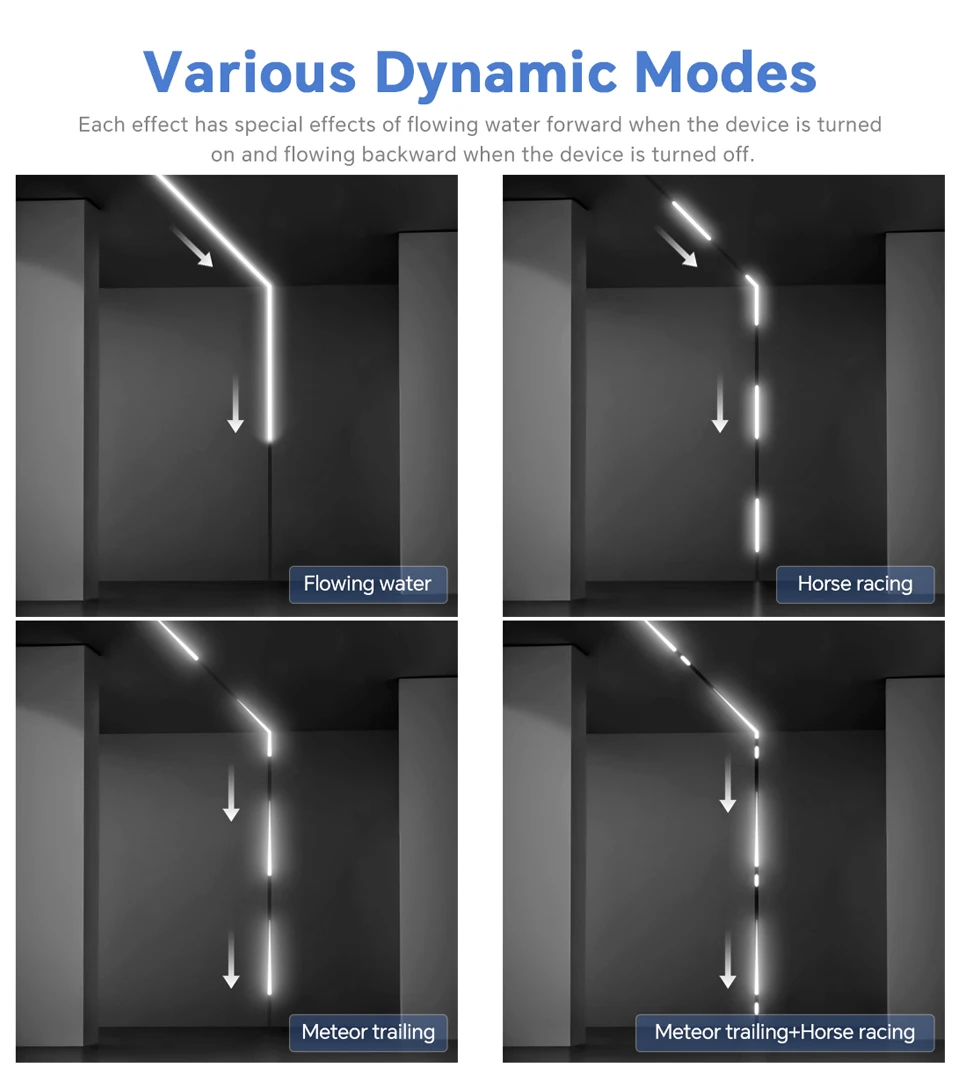

The product images illustrate flowing-water, chasing, meteor-trailing and combined effects. The controller also provides 10 brightness levels and 10 speed levels.
Delay settings are 15, 30, 60 and 120 seconds. Final motion-trigger and retrigger behavior should be checked during installation.
Installation
- Plan the lighting route. Measure the installation length and select the appropriate kit.
- Position the PIR controller. Keep the sensing area unobstructed and test detection along the intended walking route.
- Test the kit before mounting. Check the strip, controller and power adapter together.
- Prepare the mounting surface. Use a clean, dry and suitable surface for the adhesive backing.
- Follow marked cutting positions. Disconnect power before cutting. Confirm the cutting interval and reconnection method before modifying the strip.
- Check polarity and data direction. Follow the supplied connection instructions and directional markings.
- Set the control-point quantity. For lengths above 5m, follow the controller’s point-setting instructions.
- Adjust and test. Select the operating mode, brightness, speed and delay, then test under the expected ambient-light conditions.
The LED strip operates at DC24V and must not be connected directly to AC mains. Confirm that the supplied adapter’s input rating is suitable for the destination.
For extended or modified installations, confirm the total load, controller capacity and any additional power-feed requirements.
Technical Specifications
| Parameter |
Specification |
| Product Type |
PIR Motion Sensor LED Strip Kit |
| Brand |
USKYLED |
| LED Type |
SMD2835 |
| LED Density |
120 LEDs/m |
| Control IC |
WS2811 |
| Strip Operating Voltage |
DC24V |
| Controller Input Range |
DC5–24V, as listed for the controller |
| Kit Operating Voltage |
DC24V |
| Kit Length |
5m / 10m |
| Plug Type |
EU plug |
| Warm White CCT |
3000–3200K |
| Natural White CCT |
4000–4500K |
| Cool White CCT |
6000–6500K |
| Sensor Type |
PIR motion sensor with ambient-light sensing |
| Listed Sensing Angle |
120° |
| Listed Detection Distance |
Up to 8m; installation conditions affect coverage |
| Controller Capacity |
Up to 2048 control points, as listed |
| Delay Settings |
15s / 30s / 60s / 120s |
| Brightness Adjustment |
10 levels |
| Speed Adjustment |
10 levels |
| Operating Modes |
Night / Daylight / Always On / Off |
| Controller Working Temperature |

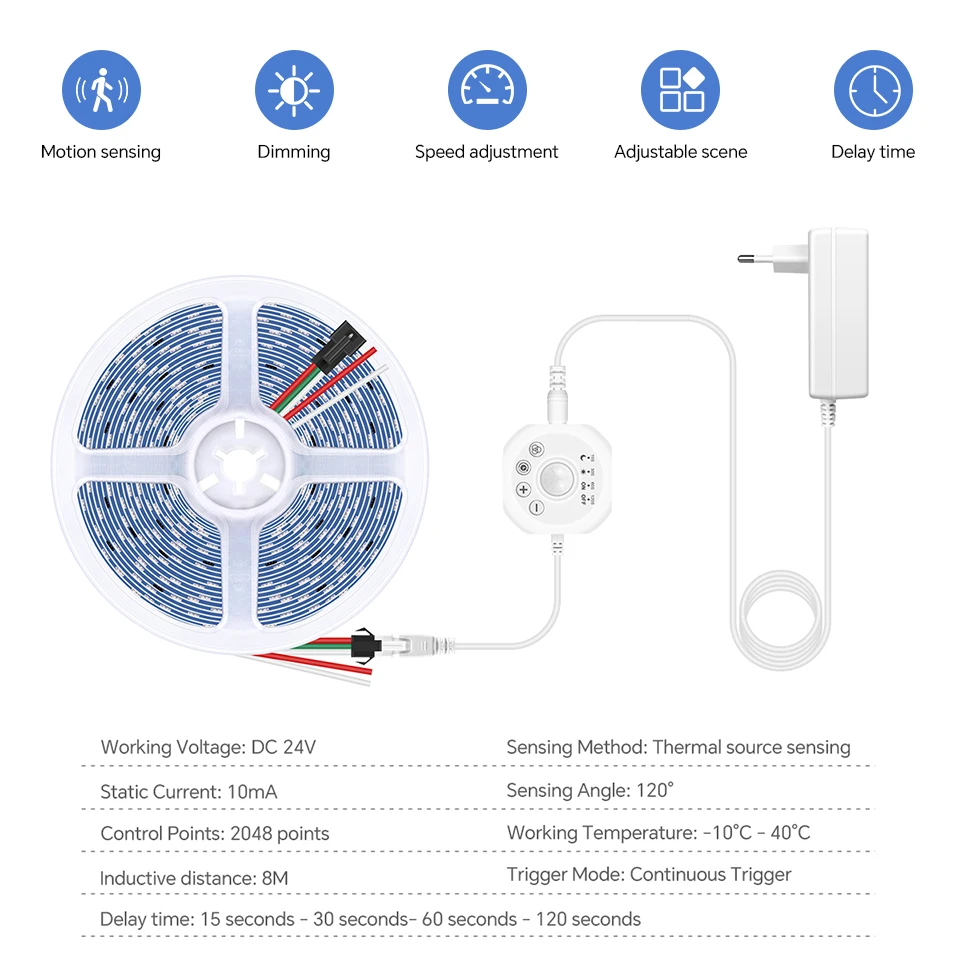

−10°C to +40°C, as shown in the controller specification image |
| Strip Mounting |
Adhesive backing shown |
| Cutting |
At designated cutting positions |
| MOQ |
1 pc |
| Sample Order Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |
The LED density describes the number of LED packages per meter. It does not specify the number of independently addressable control points per meter.
Project Applications
Residential staircase lighting
Add a flowing light effect along a stairway wall or adjacent linear feature. Test the sensor location to confirm that movement is detected before the user reaches the intended illuminated section.
Corridor and entrance lighting
Use motion activation where lighting is needed during passage. Select night mode for low-light operation or daylight mode when motion activation is required throughout the day.
Interior decorative lighting
Use the chasing effects along ceiling edges, room perimeters or skirting details. Adjust brightness and speed to suit the scale of the space.
Sample and bulk orders
For project evaluation, provide the installation length, preferred light color, sensor location and required operating behavior. Approve a sample configuration before ordering multiple kits for a repeated installation.
OEM/ODM
Contact USKYLED to discuss OEM/ODM requirements for motion-sensor LED strip projects.
Provide the required kit length, light color, plug specification, quantity and any labeling or packaging requirements. Custom configurations are subject to technical review and quotation.
For applications requiring different sensor arrangements or control behavior, submit the project requirements for compatibility assessment before ordering.
CTA
Contact USKYLED for PIR motion sensor LED strip samples, wholesale pricing and project quotations. Tell us your required kit length, light color, quantity and delivery destination.
MOQ: 1 pc
Sample order lead time: 3–7 days
Mass order lead time: 7–15 days
