Product Introduction
The USKYLED free-cut COB LED strip is designed for cabinet, cove, shelf and decorative display lighting where installation lengths need to fit the available space. Its cut-anywhere construction allows installers to trim the strip to suit individual lighting details.

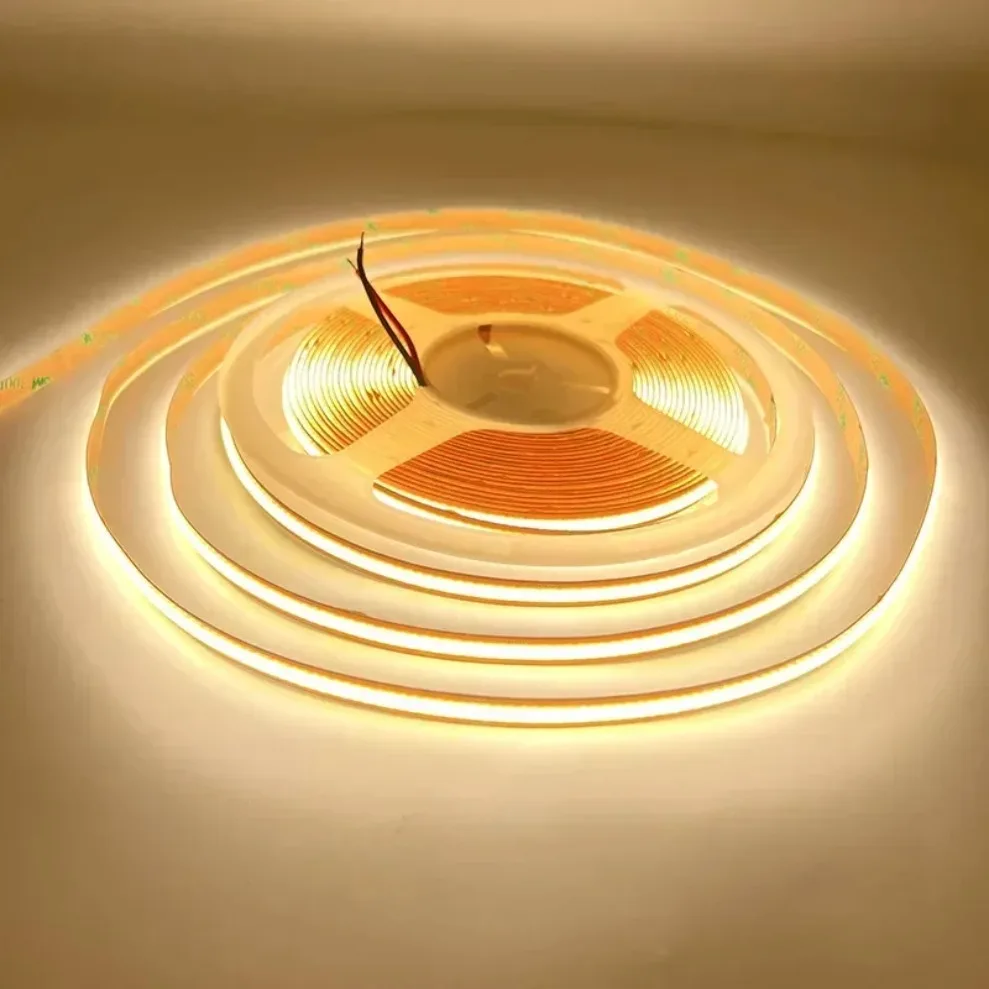

Available in DC12V and DC24V versions, this 8mm COB LED tape offers 400 or 528 LEDs per meter and a continuous illuminated appearance. A color rendering index above 90 helps maintain natural-looking colors in furniture finishes, merchandise and interior materials.
Choose the voltage, LED density, white-light color and connection type to match your project.
Design

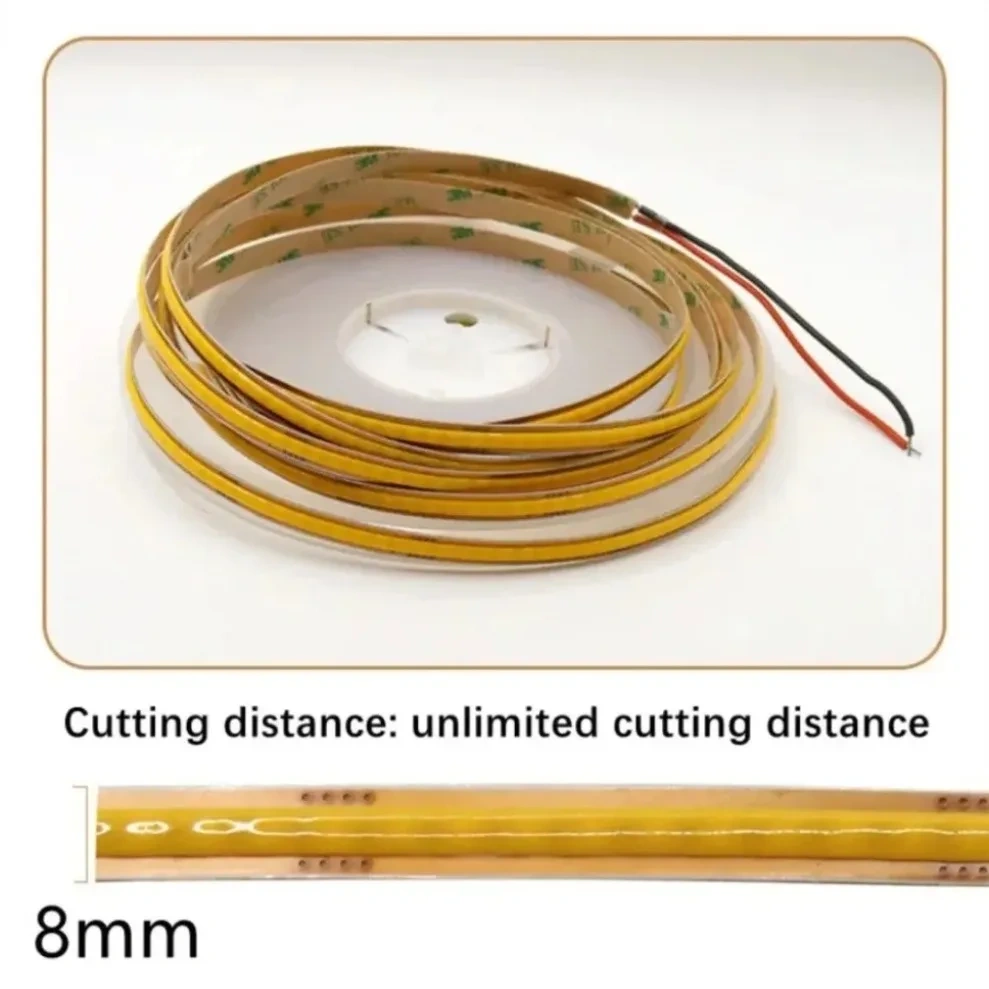

The narrow 8mm PCB fits compact furniture details and appropriately sized lighting profiles. Its flexible construction follows gentle curves, making it useful for both straight runs and curved decorative features.

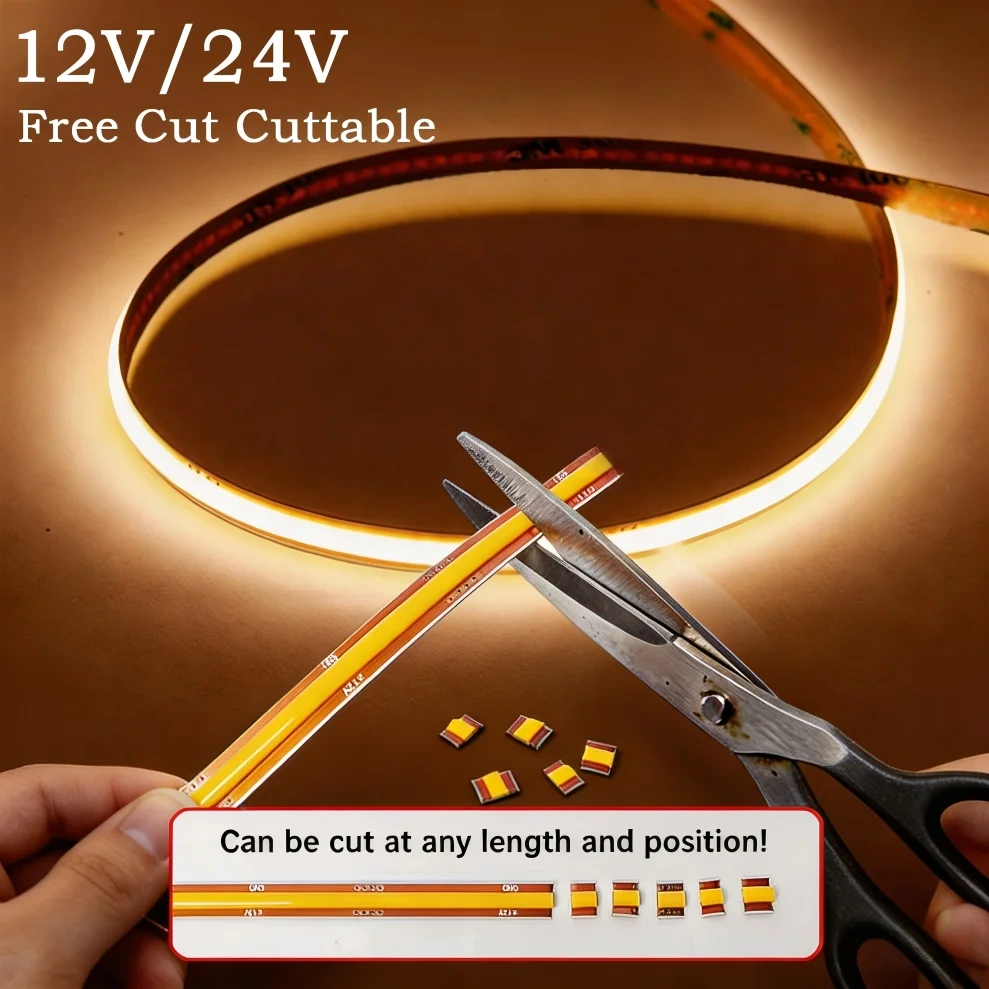

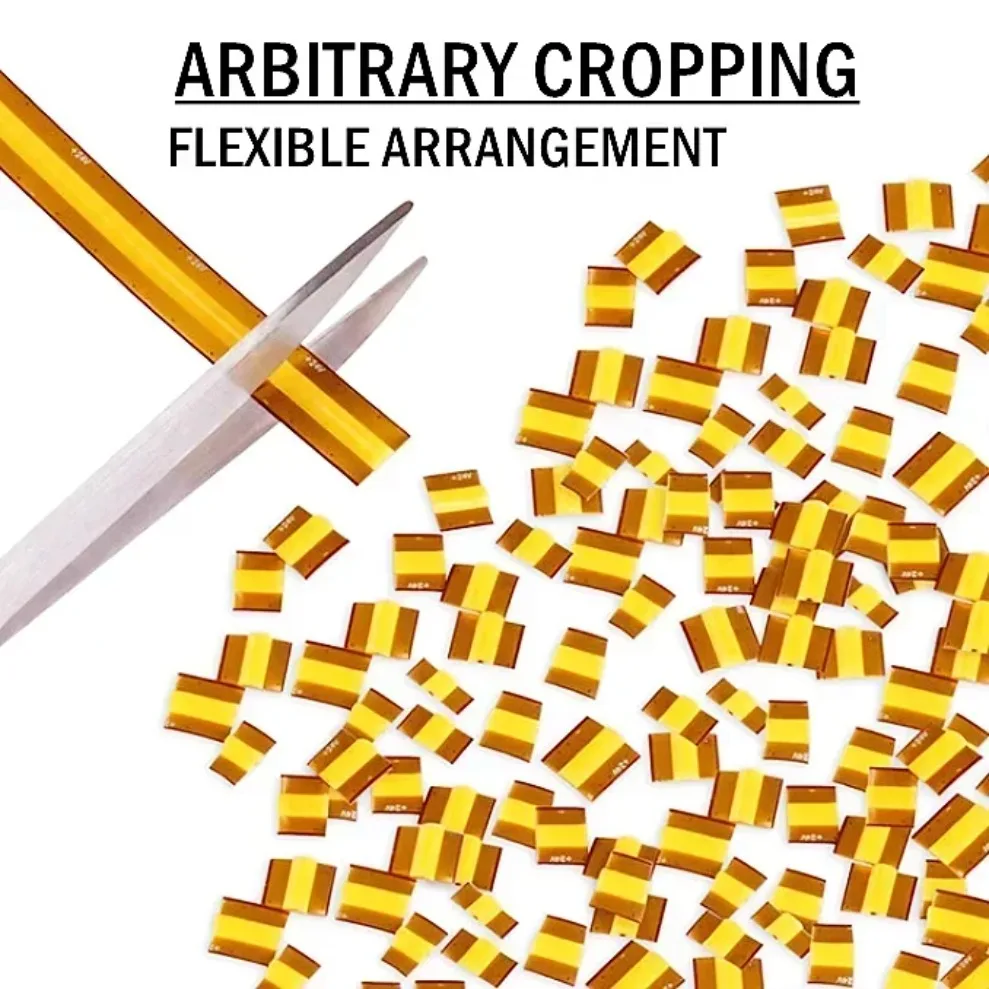

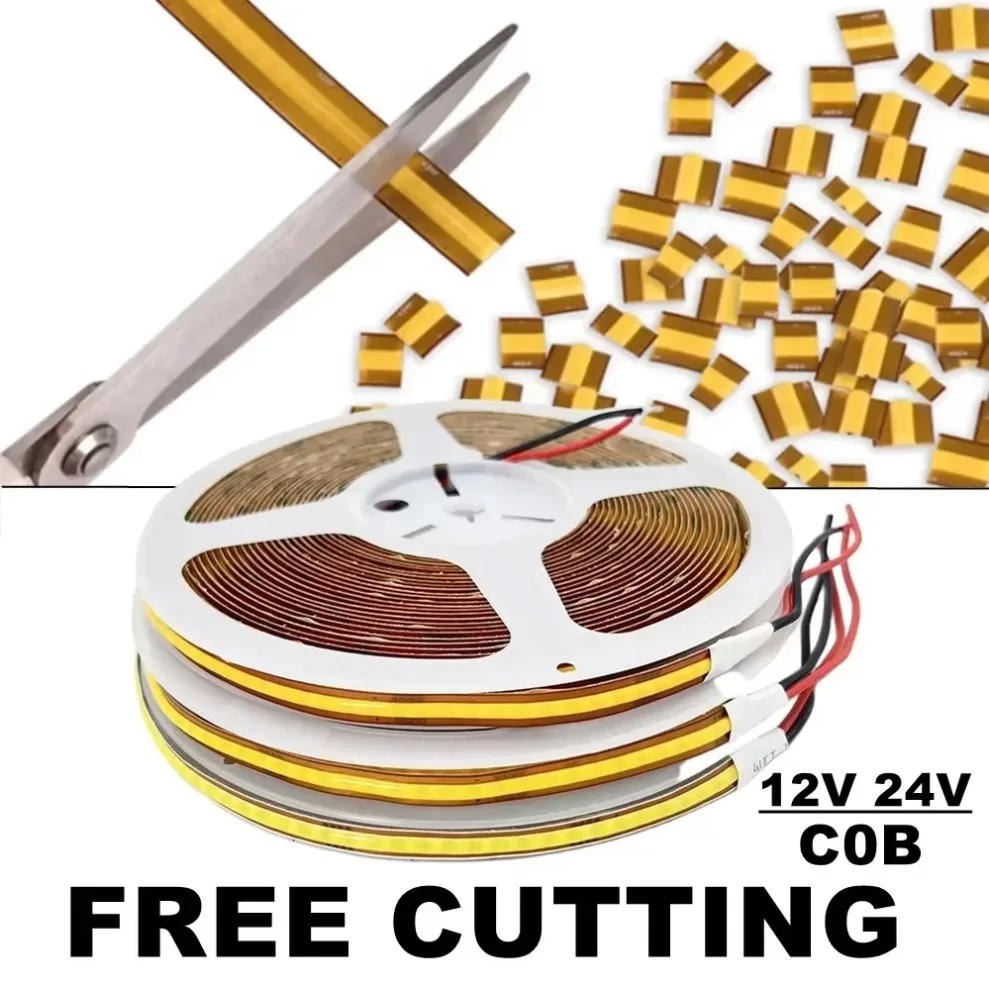

The free-cut design allows length adjustment beyond conventional fixed cutting intervals. Cut sections require suitable electrical reconnection before use; confirm the cutting and soldering method for the selected version.

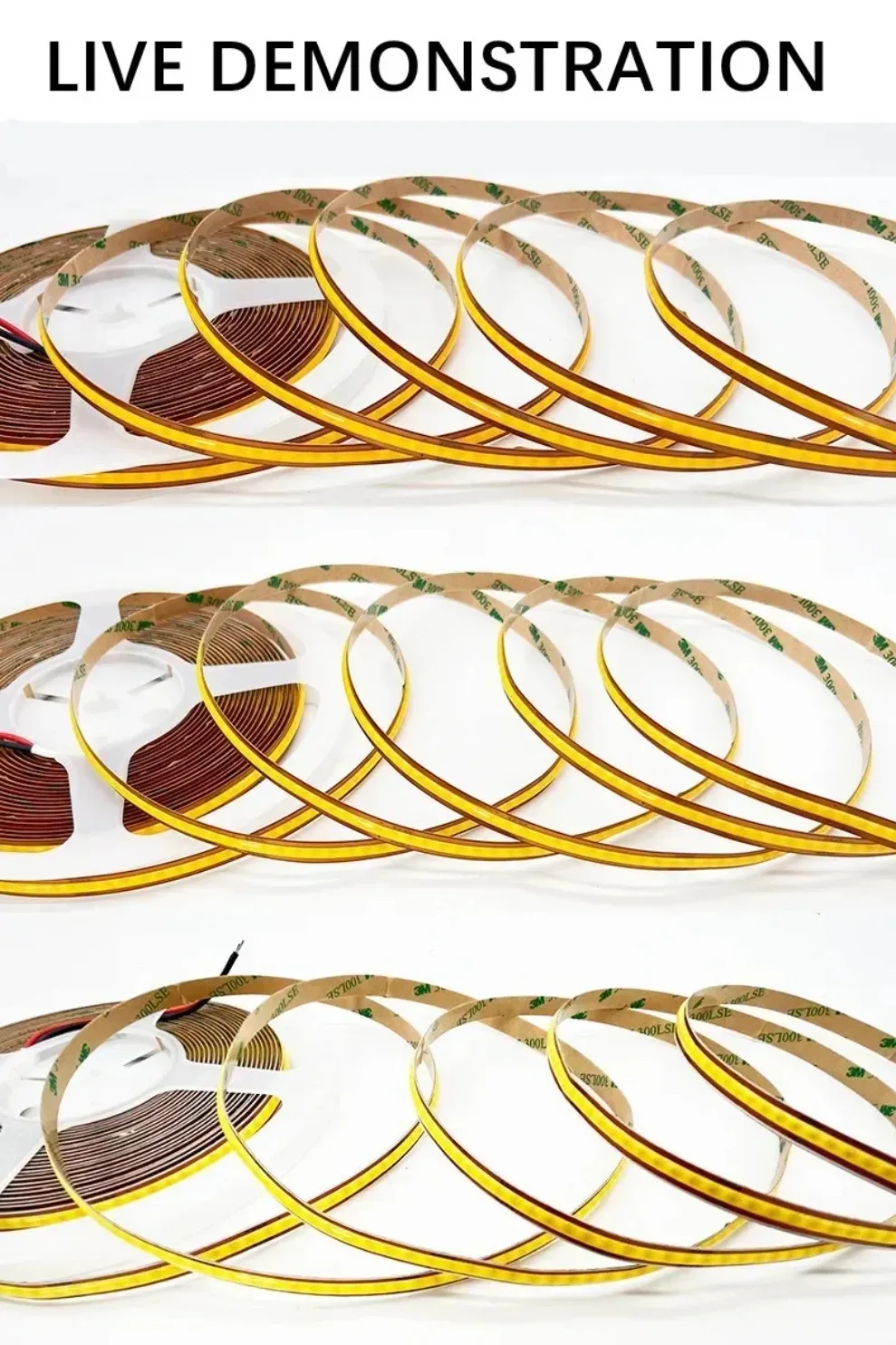

The strip is assembled from 0.5m sections, so solder joints may be visible along its length. These joints are part of its construction.
Main Features
- Free-cut construction: Trim the strip to match custom installation lengths.
- 8mm PCB width: Suitable for compact cabinet and profile installations.

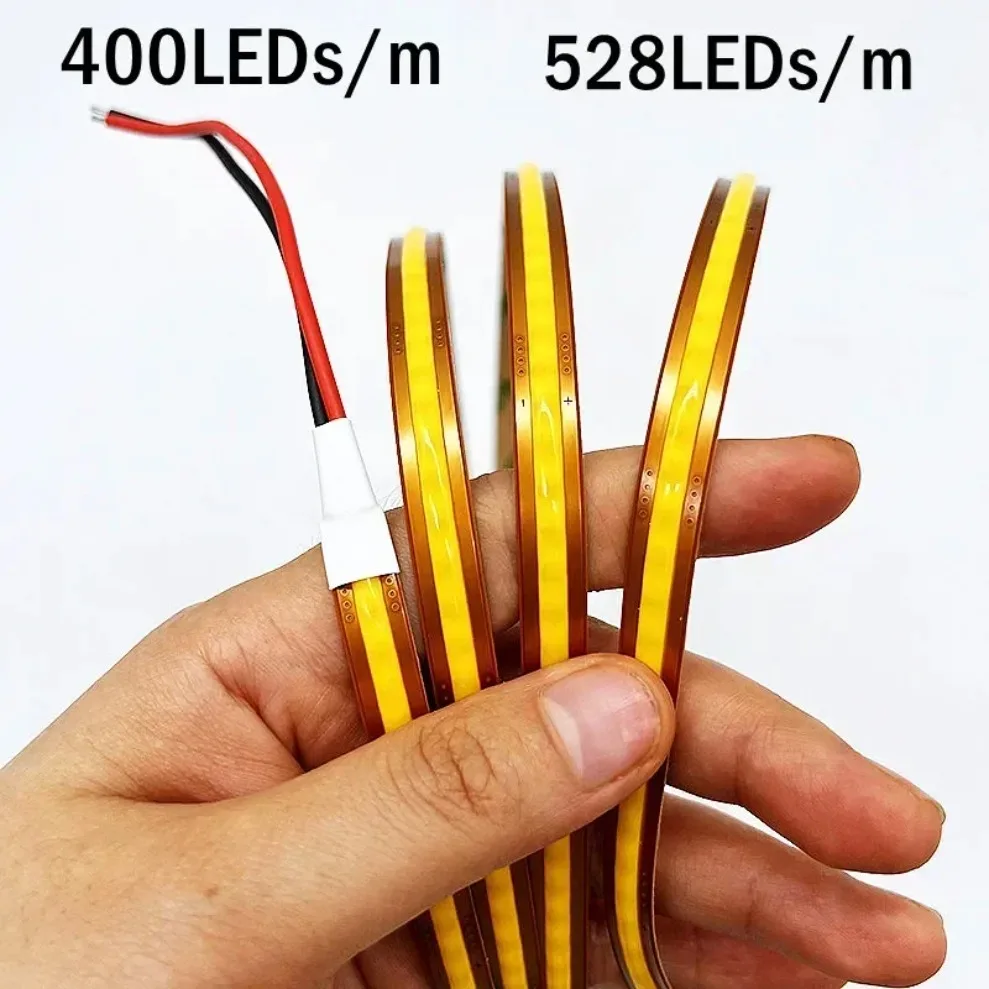

- Two LED densities: Choose 400 or 528 LEDs per meter.
- DC12V or DC24V versions: Match the strip to the correct low-voltage power supply.
- CRI >90: Supports natural-looking colors in interior and display applications.
- Three white-light options: Warm white, natural white and cool white.
- Dimmable operation: Requires a compatible external dimmer, supplied separately.

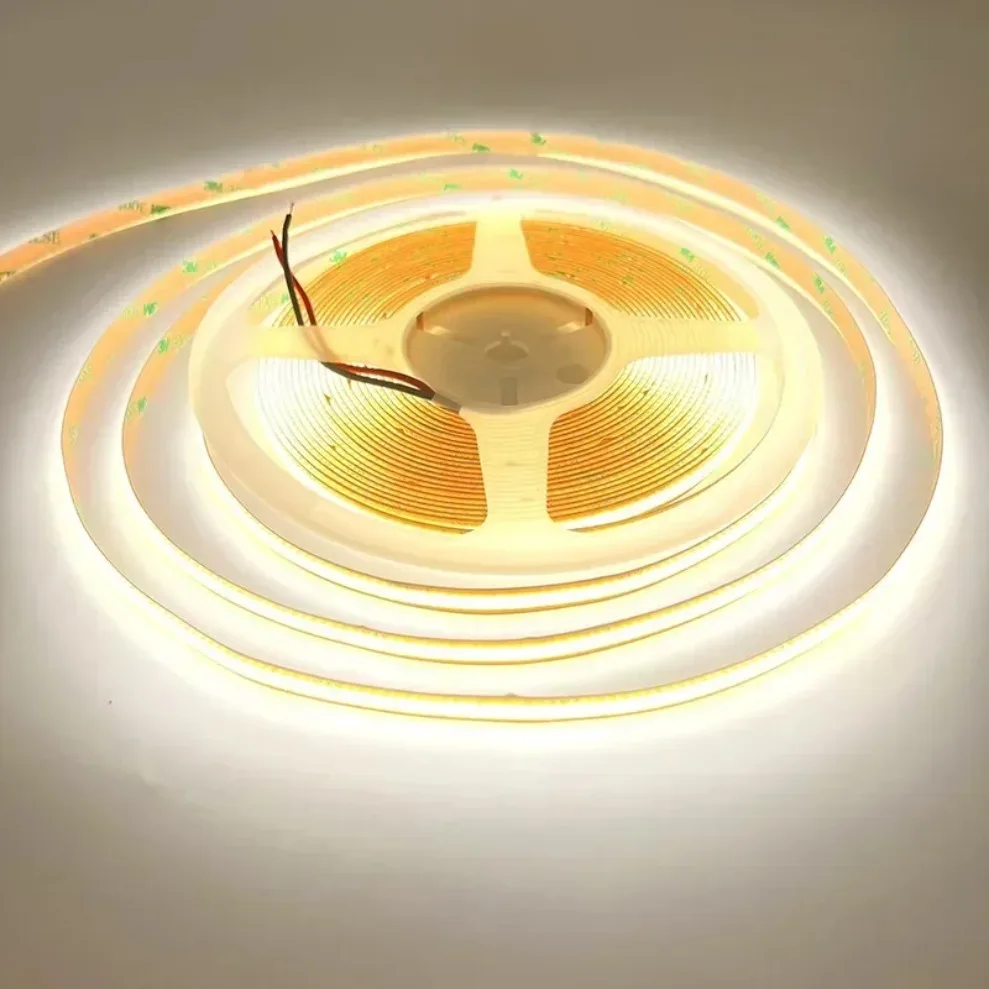

- 180° beam angle: Provides broad light distribution.

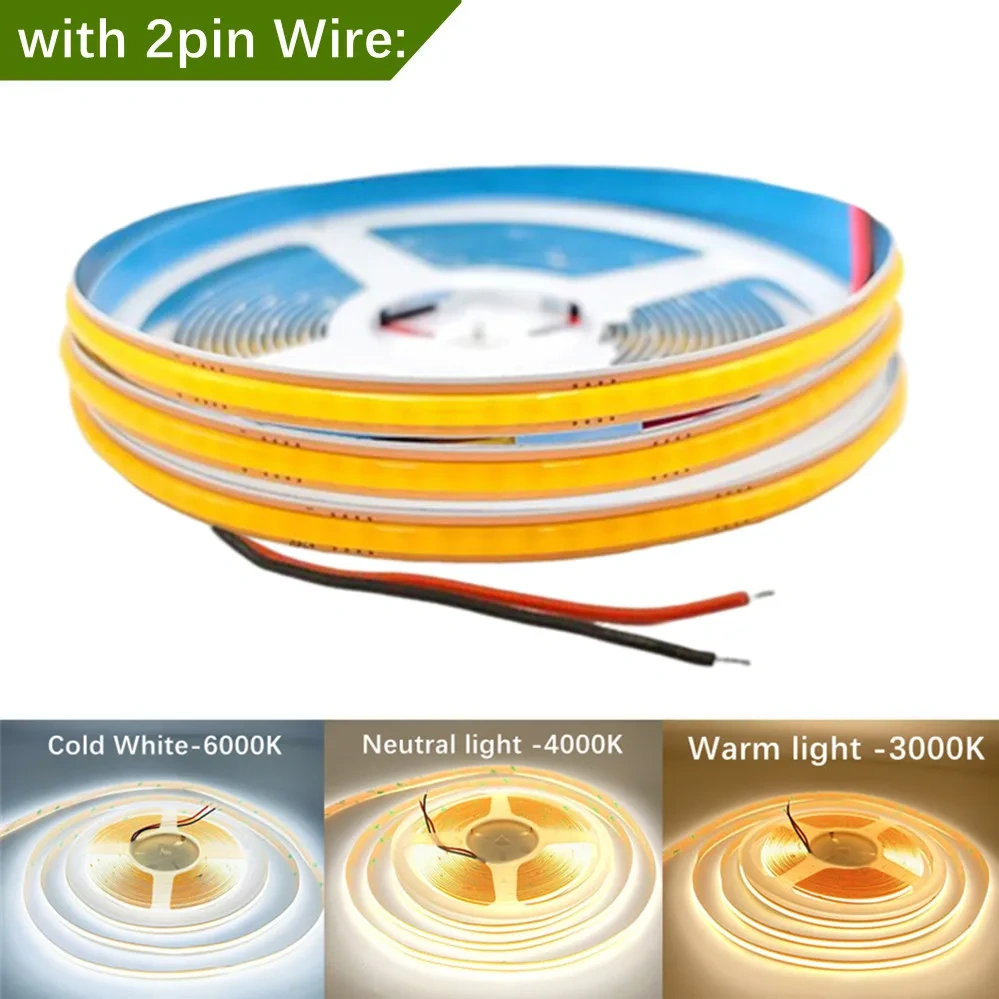

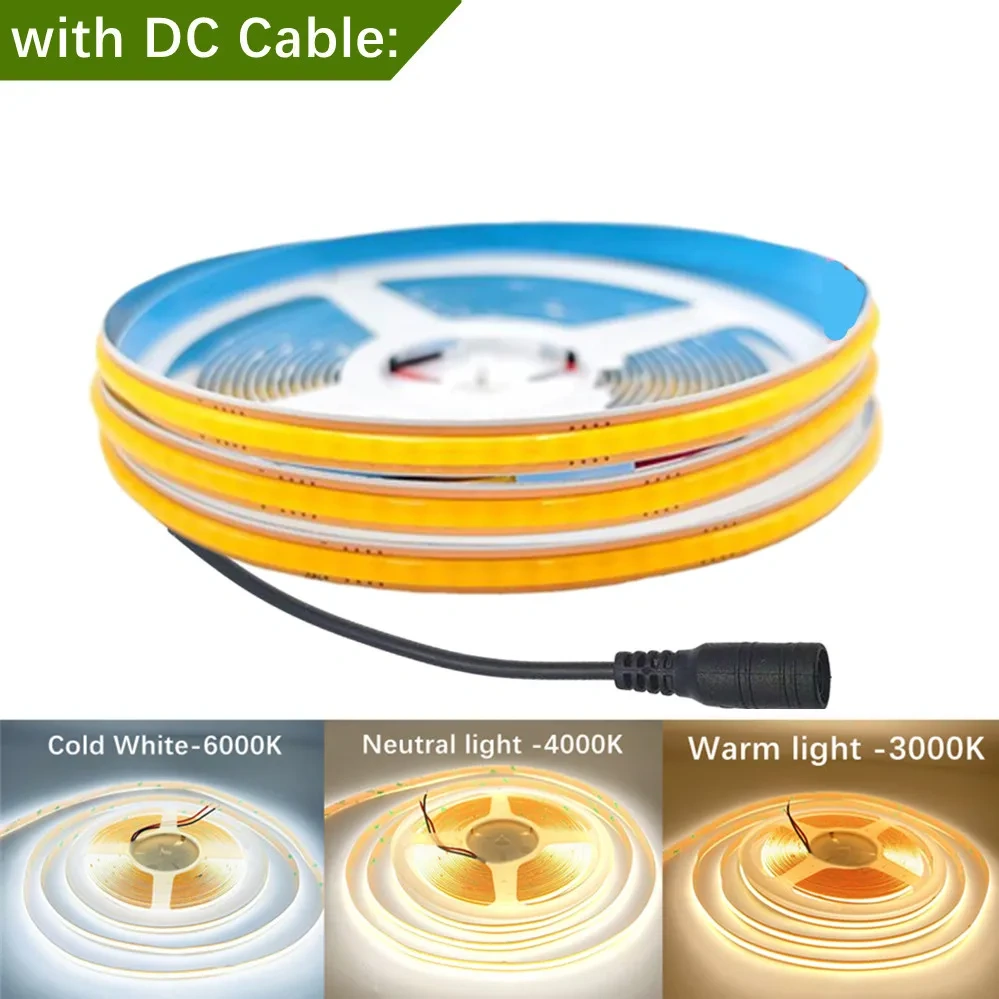

- Connection options: Available with a 2-pin wire or DC plug.
- Multiple order lengths: Listed selectable lengths range from 0.5m to 10m.
Application
This free-cut COB LED strip is suitable for interior lighting details such as:
- Under-cabinet lighting
- Wardrobe and shelf lighting
- Ceiling coves
- Display cabinets
- Decorative lightboxes
- Furniture accent lighting
- TV backlighting
- Interior feature lighting
The adjustable cutting length is useful where the illuminated section needs to end close to the edge of a cabinet, shelf or display.
For damp or exposed locations, confirm the required protection rating before selecting the strip.
Size / Options
PCB width: 8mm
LED density:
Input voltage:
Selectable lengths:
0.5m, 1m, 2m, 3m, 4m, 5m, 6m, 7m, 8m and 10m.
Connection options:
Select the configuration according to the available installation space, required length and power arrangement. Confirm the selected combination before ordering.

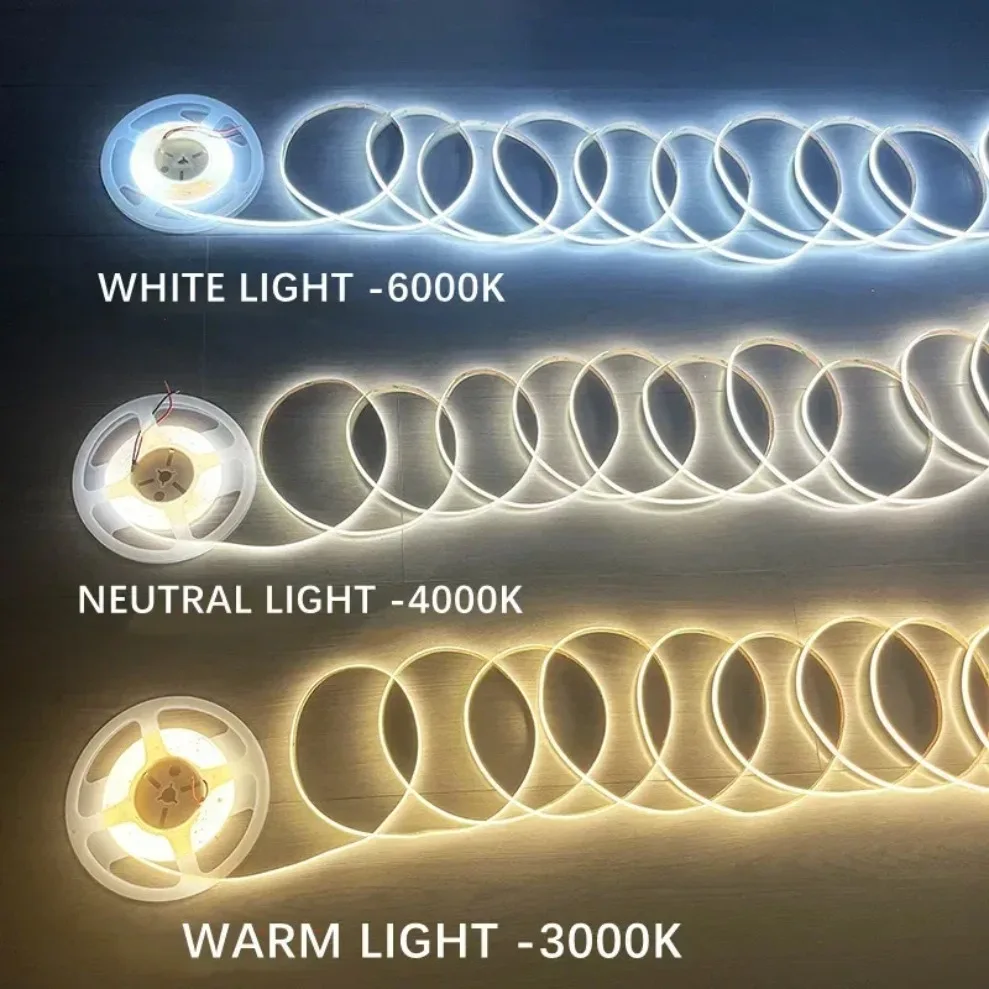

Lighting Options

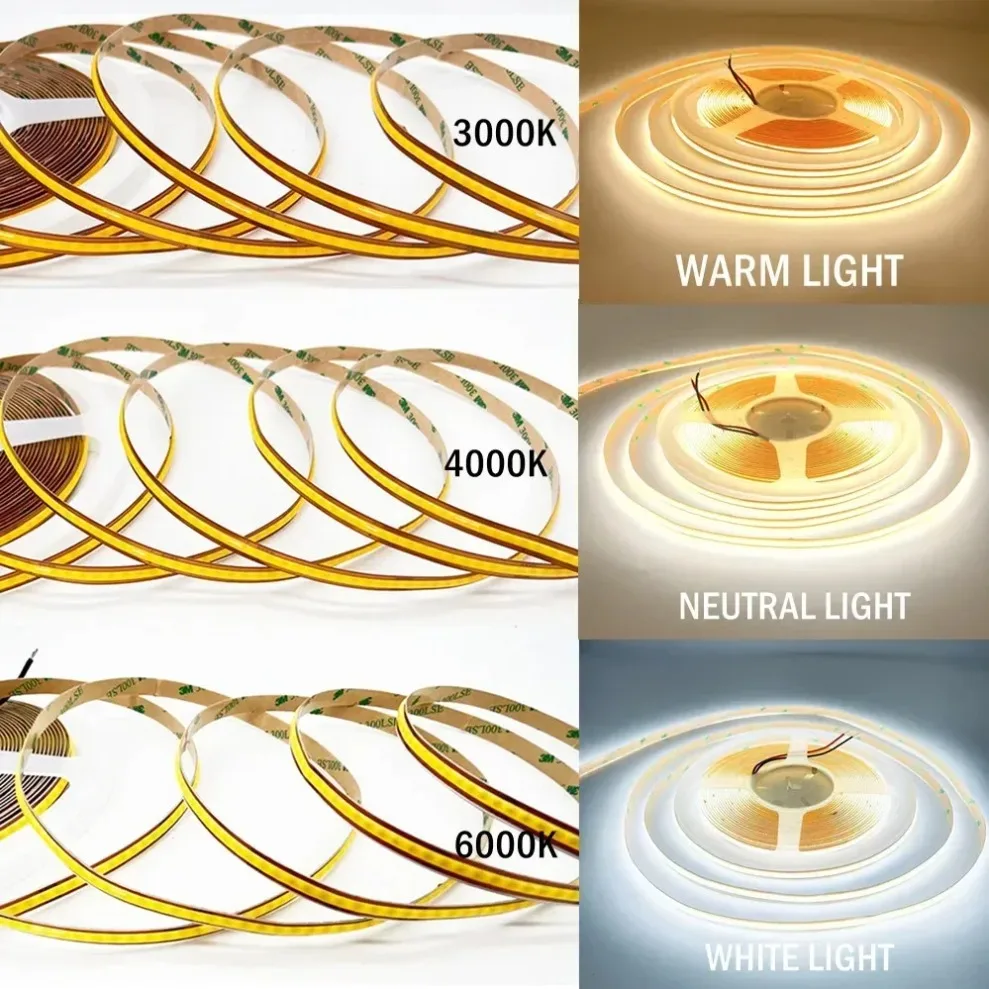

Three fixed white-light options are available:
| Light Color |
Color Temperature |
Typical Use |

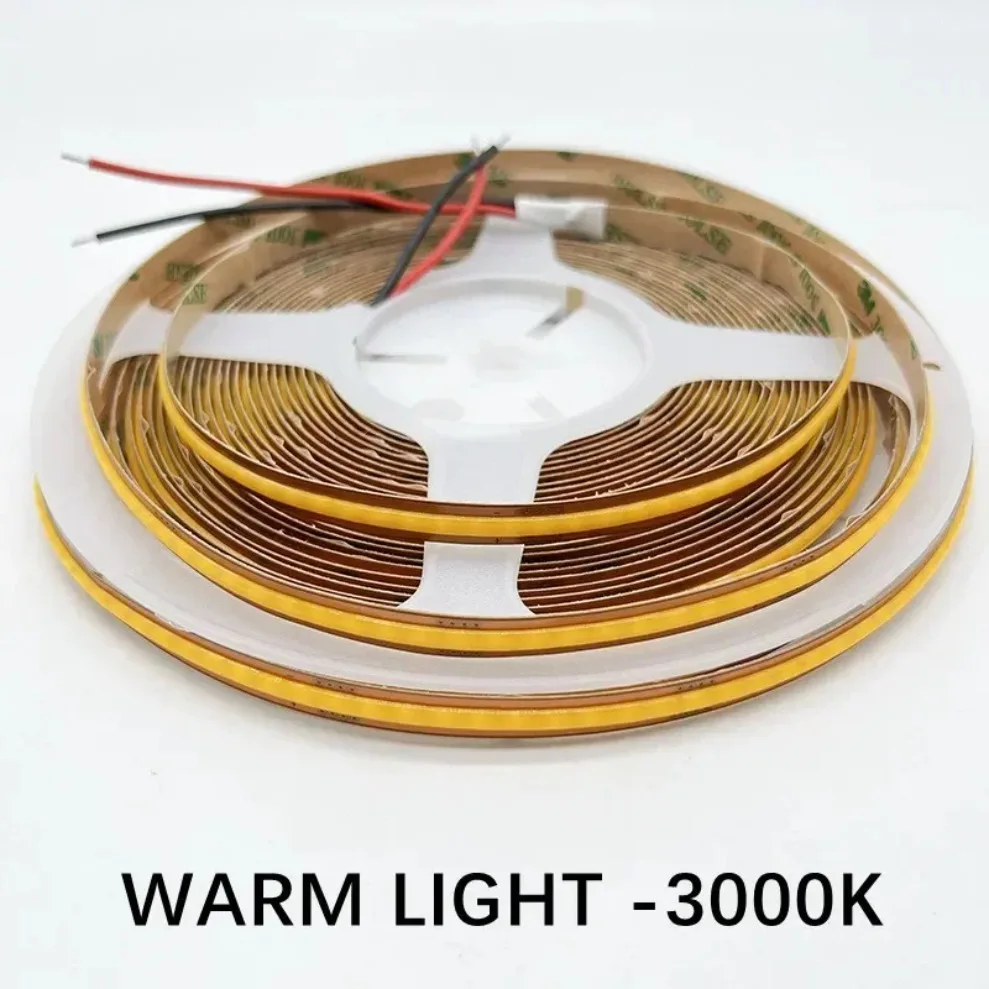

| Warm White |
3000–3500K |
Bedrooms, hospitality interiors and ambient lighting |

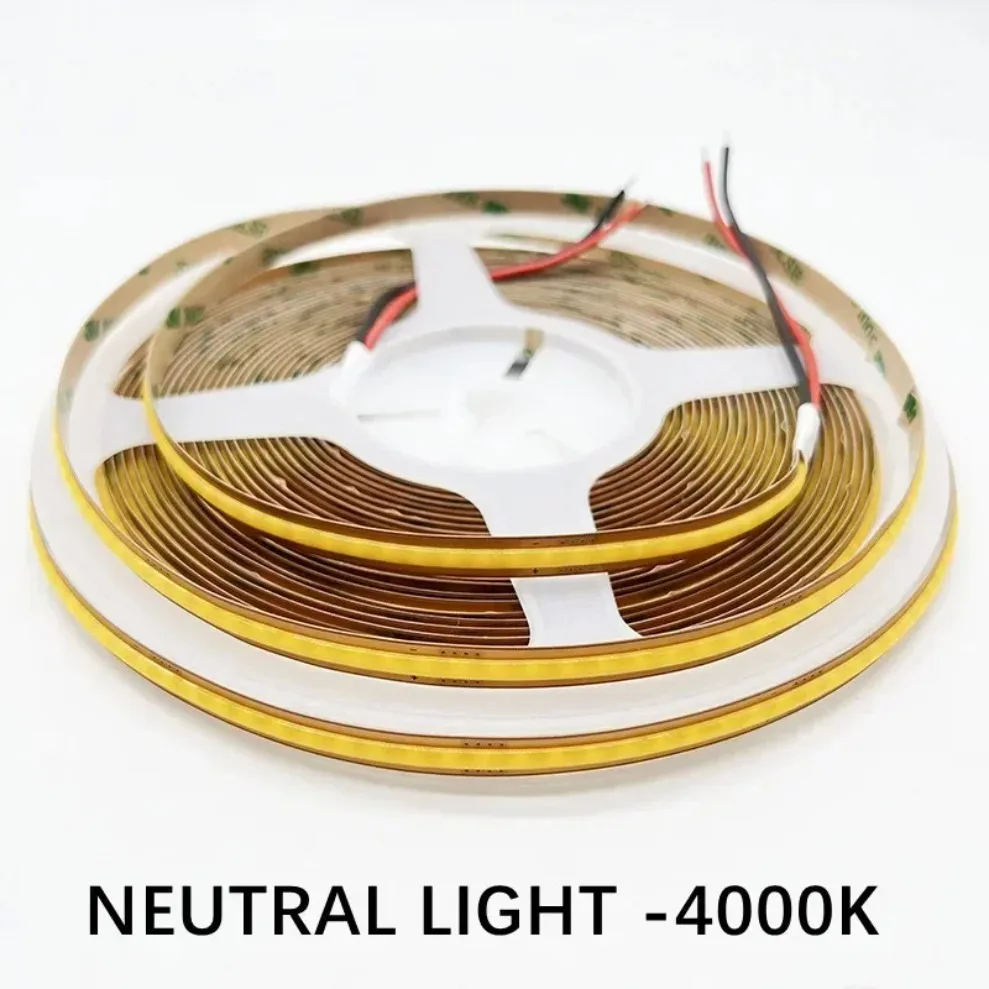

| Natural White |
4000–4500K |
Cabinets, shelves and general interior lighting |

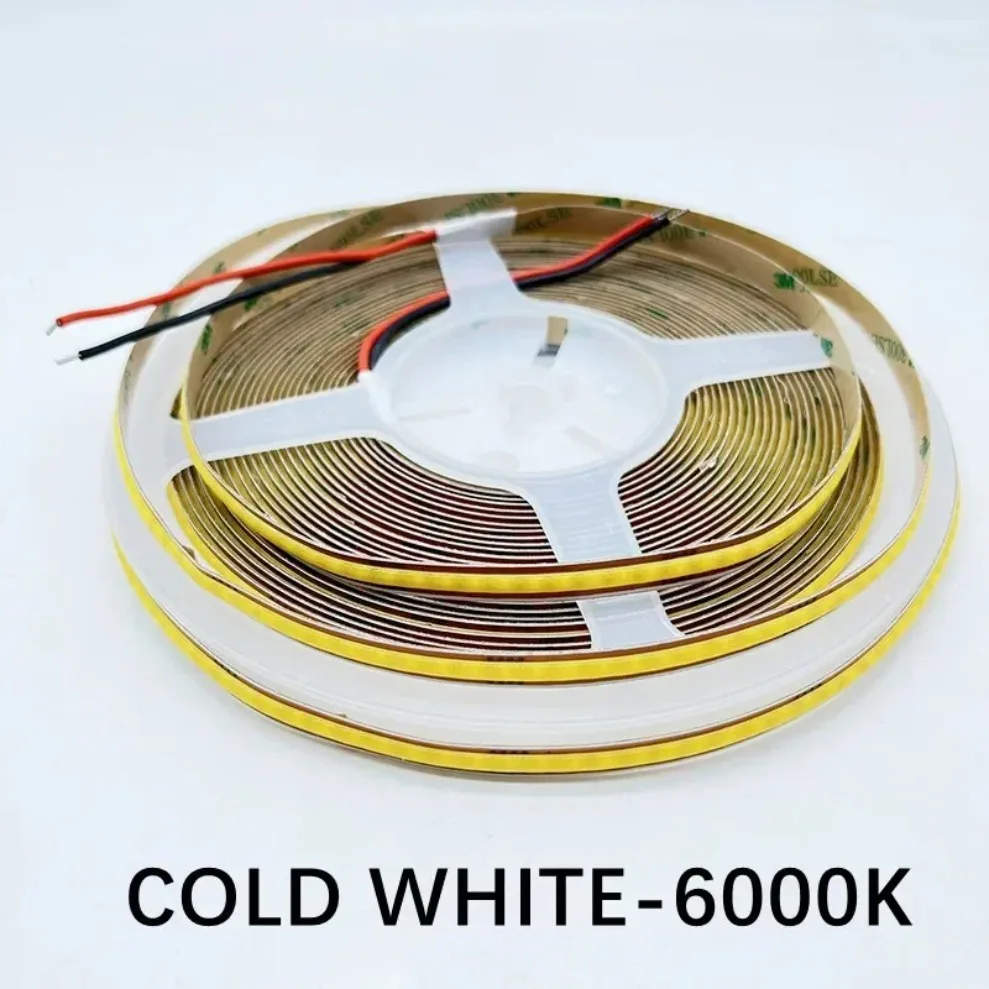

| Cool White |
6000–6500K |
Displays and cool-toned decorative lighting |
These are separate color-temperature options. Select the required version when ordering.
Brightness adjustment is available with a compatible external dimmer. The dimmer is not included. Confirm controller compatibility with the selected voltage and total connected load.

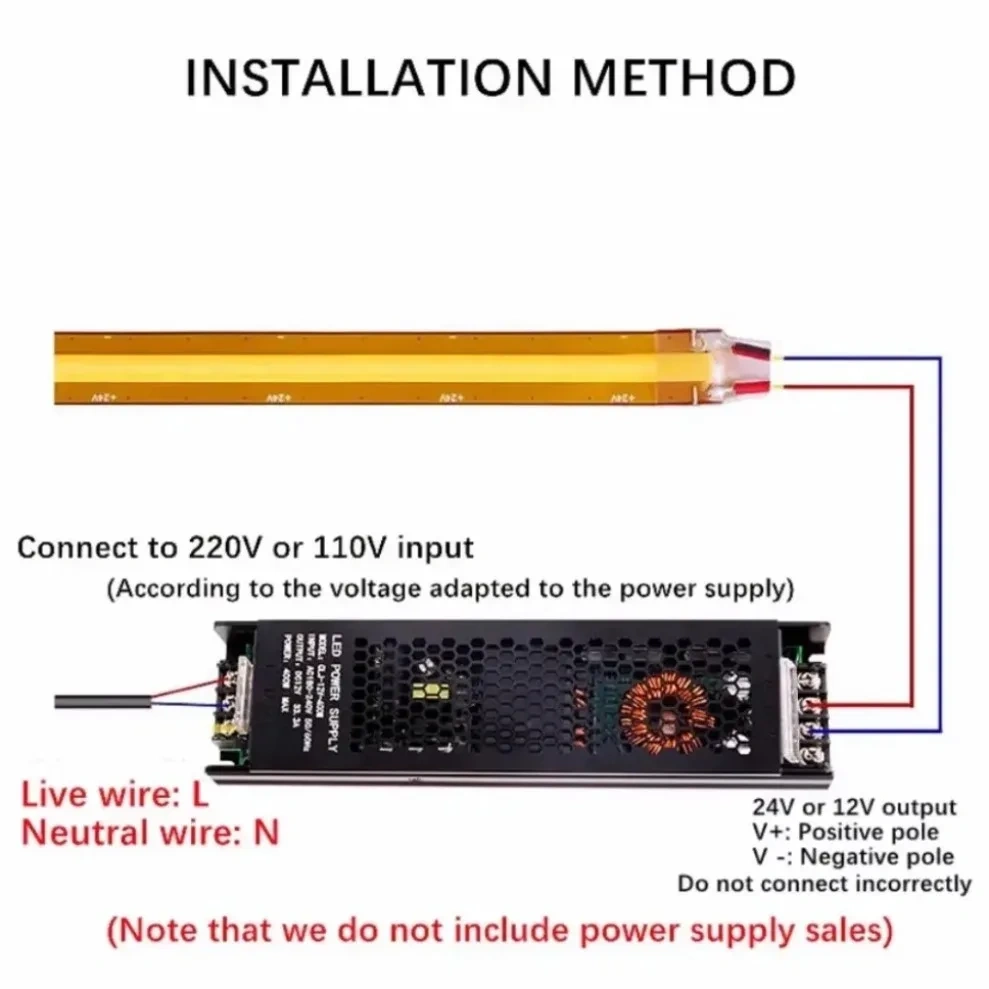

Installation
- Confirm the voltage. Use a DC12V power supply for a 12V strip or a DC24V power supply for a 24V strip.
- Check the actual load. Confirm the wattage per meter of the selected version before sizing the power supply and wiring.
- Measure and trim. Disconnect power before cutting. Follow the cutting and reconnection instructions for the supplied strip.
- Prepare the mounting surface. Use a suitable clean surface or an appropriately sized LED profile, with thermal management suited to the installation.
- Connect and test. Check polarity, electrical connections and lighting operation before completing installation.
- Plan power feeds for longer runs. Additional feeds may be needed to maintain consistent brightness.
Do not connect this strip directly to AC110V or AC220V. A compatible low-voltage DC power supply is required and is not included.
For longer 12V installations, confirm a suitable dual-end feed or power-injection arrangement. Required feed spacing depends on strip load, cable size and installation conditions.
Technical Specifications
| Parameter |
Specification |
| Product Type |
Free-Cut COB LED Strip Light |
| Brand |
USKYLED |
| LED Technology |
COB |
| Input Voltage |
DC12V or DC24V, depending on version |
| PCB Width |
8mm |
| LED Density |
400 or 528 LEDs/m |
| Cutting Design |
Free-cut / cut-anywhere design |
| CRI |
Ra >90 |
| Warm White CCT |
3000–3500K |
| Natural White CCT |
4000–4500K |
| Cool White CCT |
6000–6500K |
| Beam Angle |
180° |
| Dimming |
Supported with a compatible external dimmer |
| Connection |
2-pin wire or DC plug |
| Selectable Lengths |
0.5m, 1m, 2m, 3m, 4m, 5m, 6m, 7m, 8m, 10m |
| Power Consumption |
Confirm for the selected configuration before ordering |
| Operating Temperature |
−10°C to +60°C |
| Storage Temperature |
−10°C to +60°C |
| Strip Construction |
Joined 0.5m sections |
| Package Contents |
1 × COB LED strip |
| Power Supply |
Not included |
| Dimmer |
Not included |
| MOQ |
1 pc |
| Sample Order Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |
Project Applications
Cabinet and furniture projects
Fit lighting to shelves, wardrobes and furniture recesses where standard cutting intervals may leave unwanted gaps.
Retail and display projects
Use the high-CRI strip in display cabinets, shelving and lightboxes where both product visibility and color appearance matter.
Hospitality and residential projects
Add indirect lighting to bedroom furniture, ceiling coves and decorative interior features. Select the white-light color to coordinate with surrounding lighting and finishes.
For project quotations, provide the voltage, LED density, color temperature, individual run lengths, connection type and total quantity.
OEM/ODM
For OEM/ODM enquiries, send USKYLED your required strip configuration, connection details, packaging requirements and estimated order quantity.
Custom lengths, labeling and packaging requests are subject to feasibility confirmation and quotation. Confirm any customization requirements before sample approval or bulk production.
CTA
Contact USKYLED for free-cut COB LED strip samples, wholesale pricing and project quotations. Tell us your required voltage, LED density, white-light color, connector type, length and quantity.
MOQ: 1 pc
Sample order lead time: 3–7 days
Mass order lead time: 7–15 days
