Recessed LED Handrail Light IP68 for Outdoor Stair Railings

Product Introduction

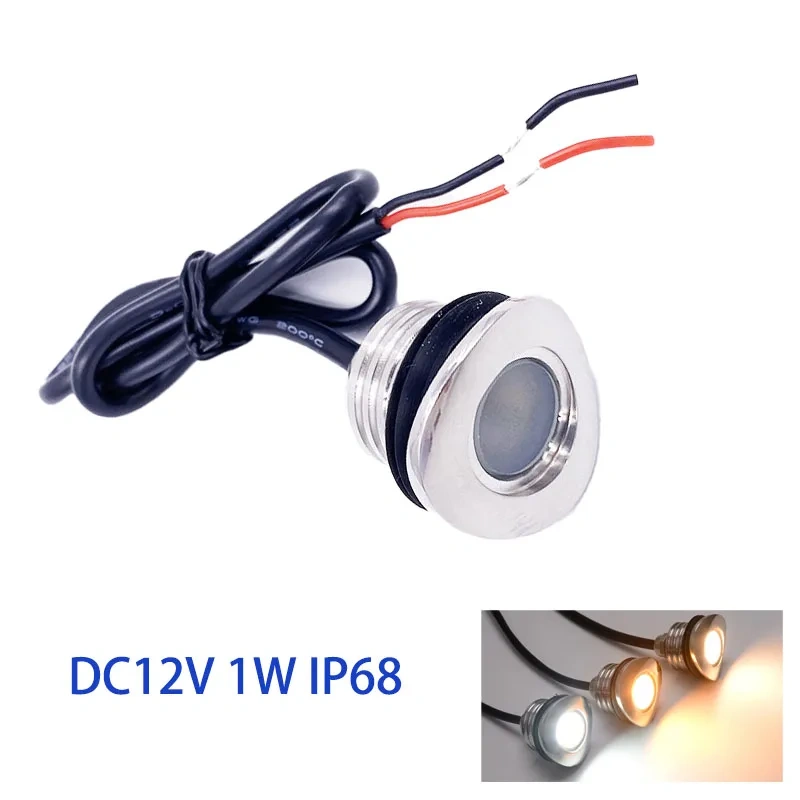

The USKYLED 1W recessed LED handrail light brings compact lighting to outdoor stair railings, terrace handrails and pedestrian walkway rails. Its small recessed body keeps the installation visually discreet, making it suitable for projects where the lighting needs to fit within the railing design.

The 61SH model features a 304 stainless steel body, an IP68 protection rating and PWM dimming support. Separate 12V DC and 24V DC versions are available, with three white-light color temperature options.

For contractors, distributors and lighting designers, the 1-piece minimum order makes it practical to test a sample in the intended handrail before specifying a larger installation.

Design

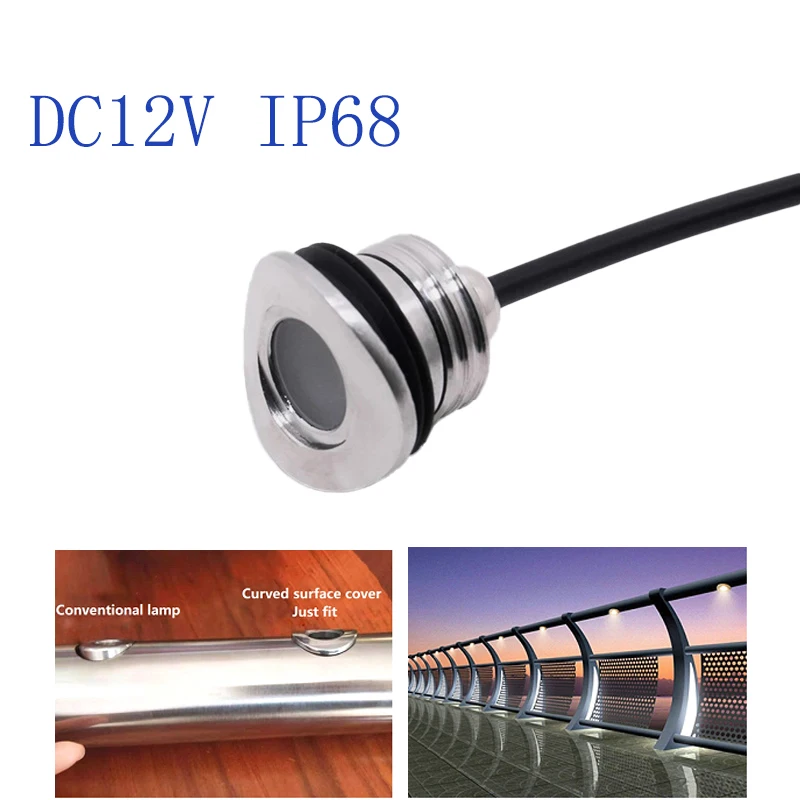

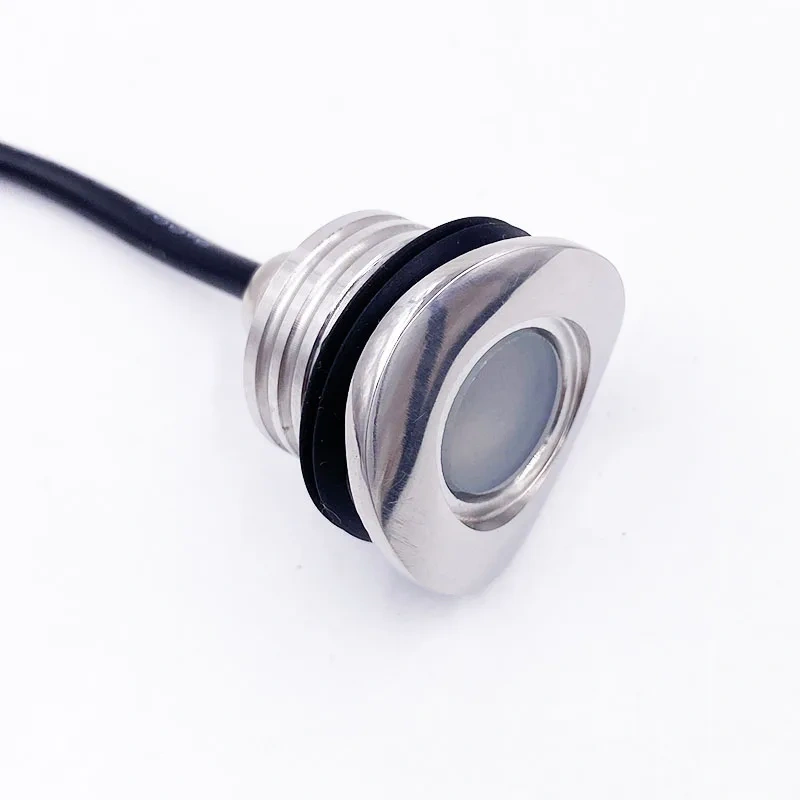

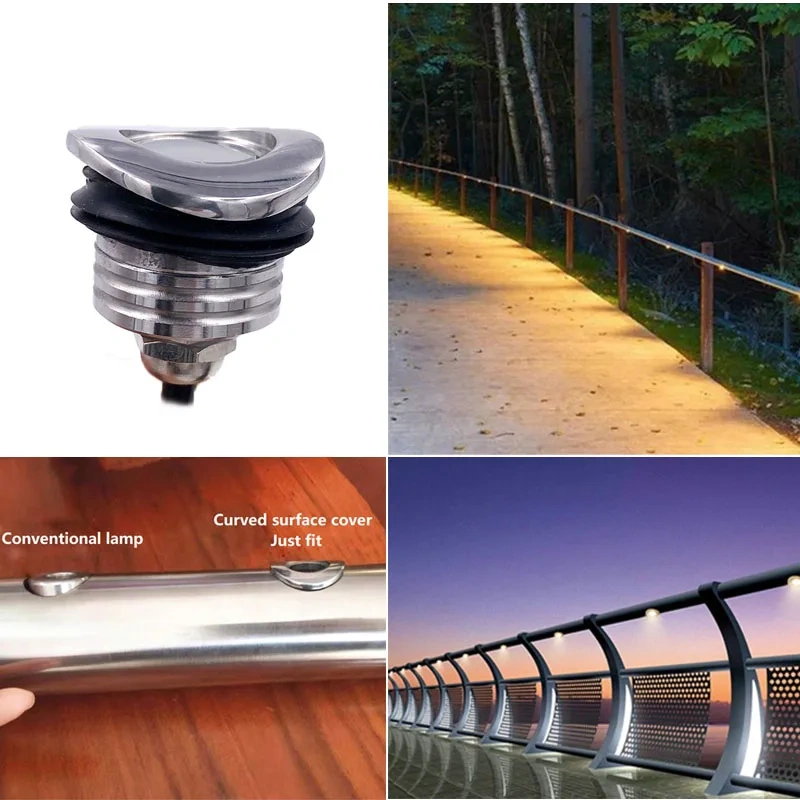

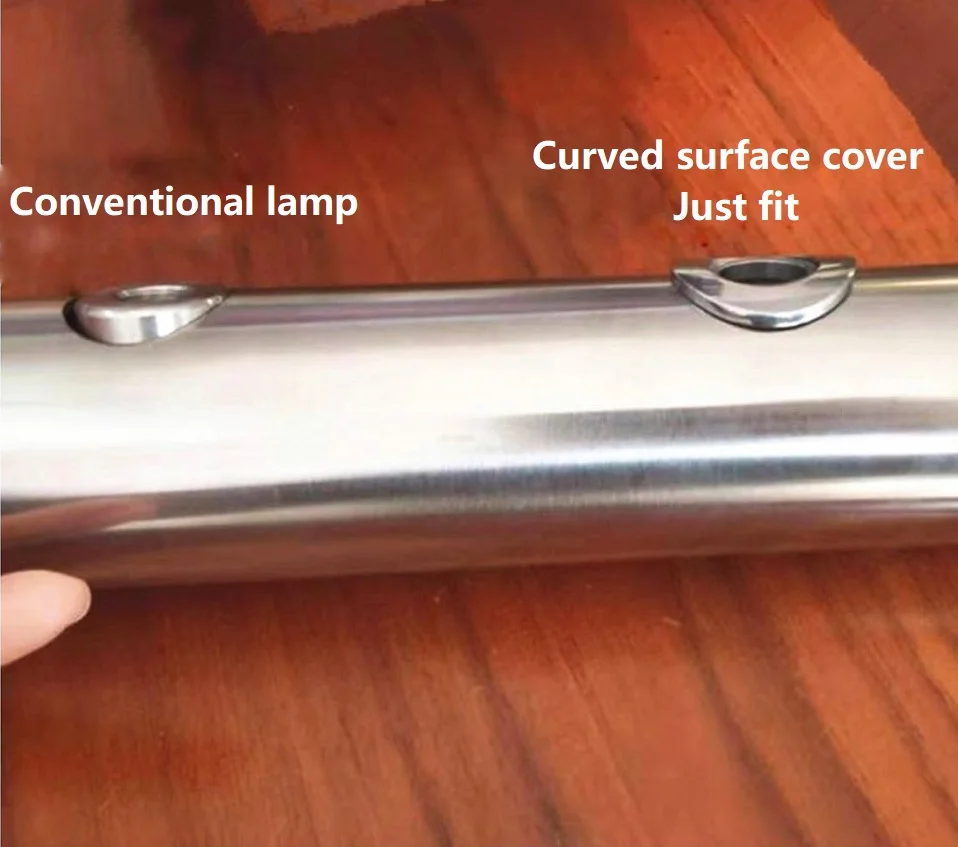

A curved front profile helps the light integrate with suitable rounded handrails. The visible face measures 32mm in diameter, while the body height is 31mm. Installation requires a 25mm cutout.

The stainless steel finish works with a range of architectural railing designs. Check the rail diameter, wall thickness and internal clearance before ordering, as compatibility depends on the actual handrail profile.

Main Features

• 1W LED light source: Compact accent lighting for handrails and stair railings.

• IP68 protection rating: Suitable for outdoor installations within the product’s specified installation conditions.

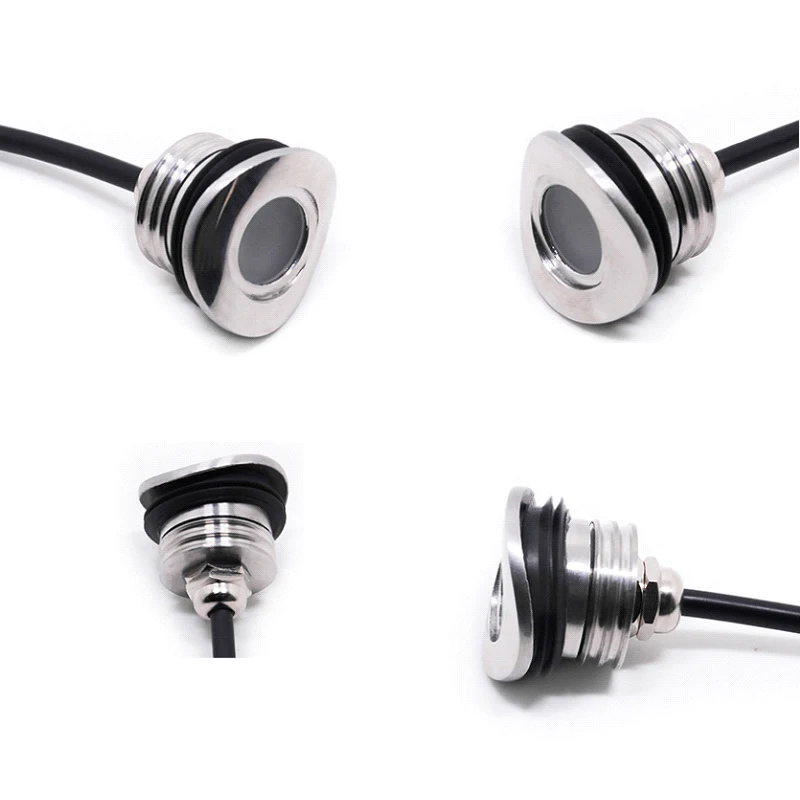

• 304 stainless steel body: A metal housing for architectural railing applications.

• 12V DC or 24V DC versions: Select the model that matches the project’s power supply.

• PWM dimming support: Adjust brightness with a compatible PWM dimming system.

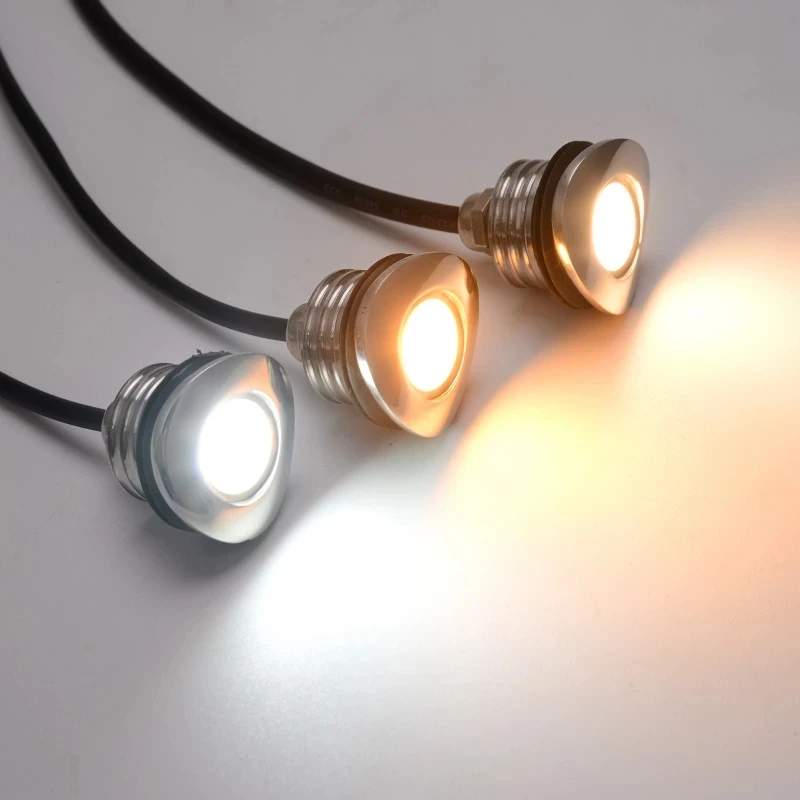

• Three white-light options: Warm white, neutral white and cool white.

• Compact recessed installation: Ø32 × H31mm body with a Ø25mm cutout.

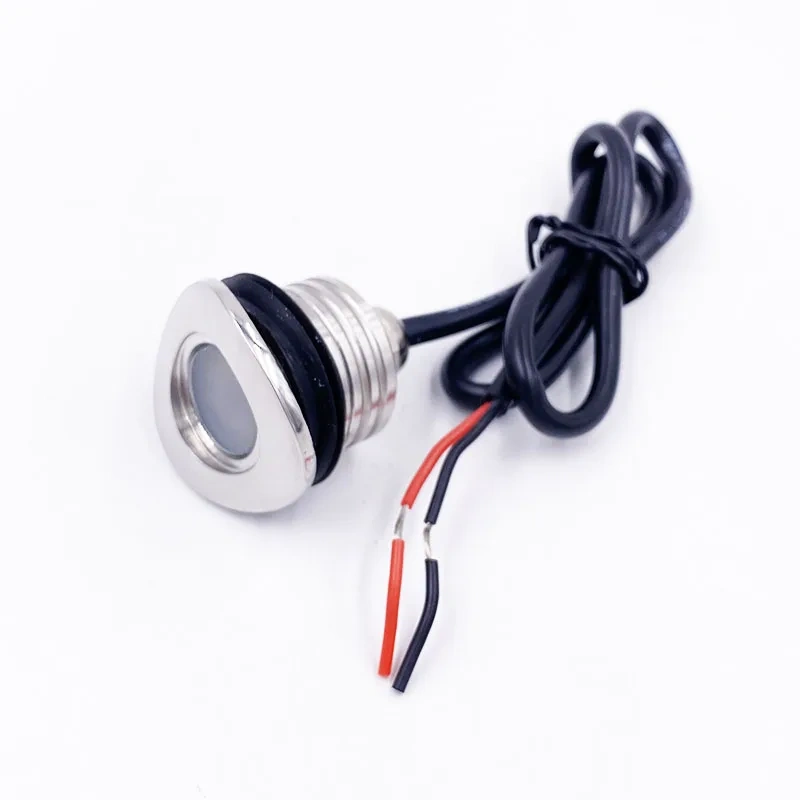

• 500mm silicone cable: Provides a connection lead for installation within the railing.

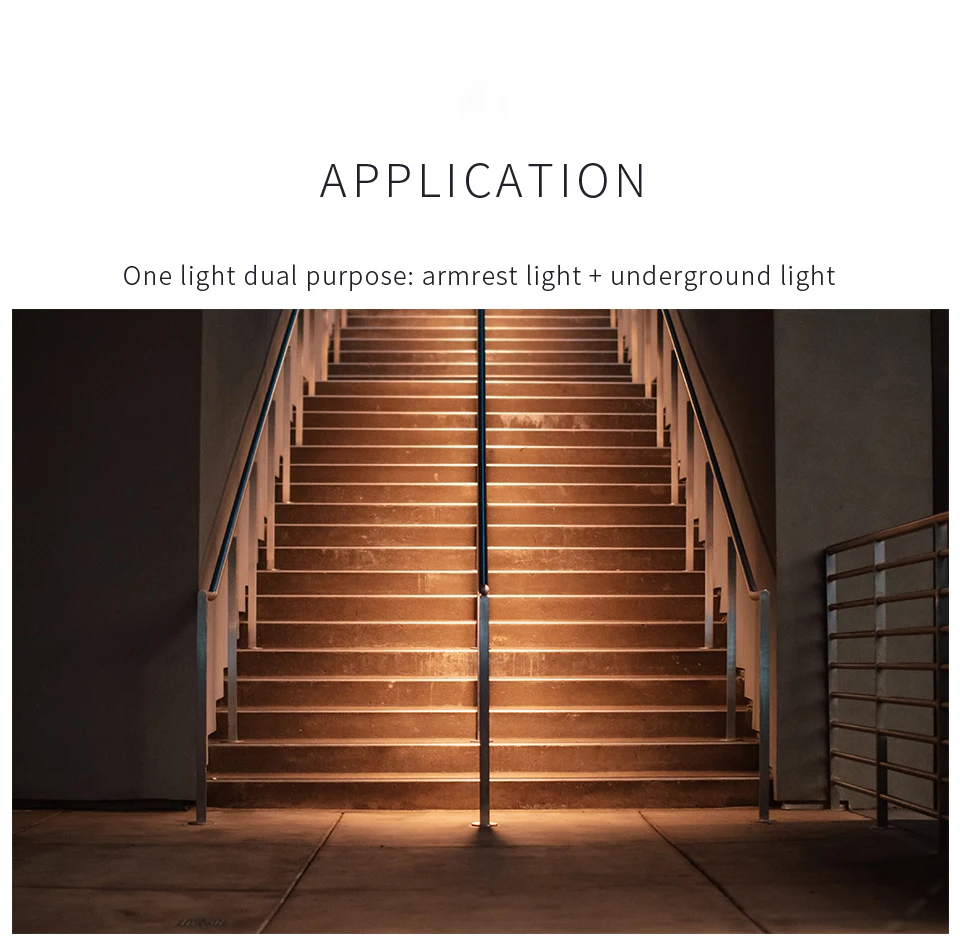

Application

This recessed LED handrail light is designed for integration into suitable handrail and railing profiles. Applications include:

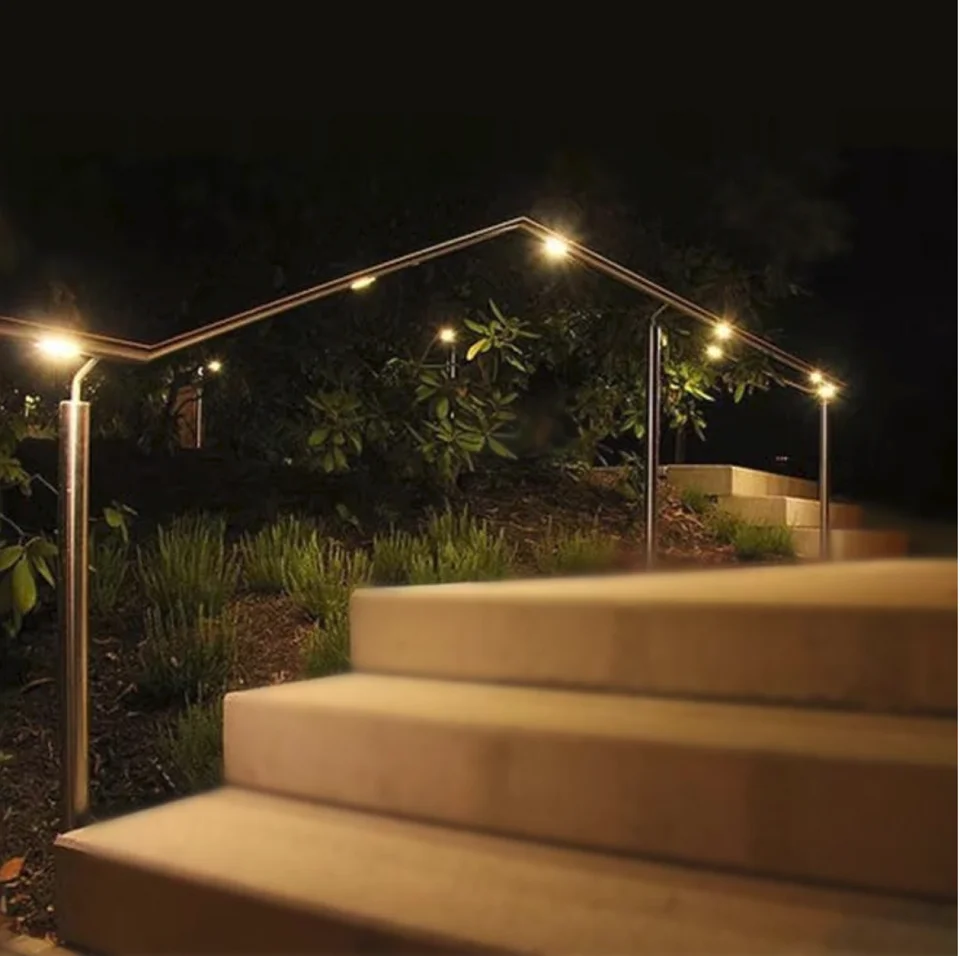

• Outdoor stair handrails

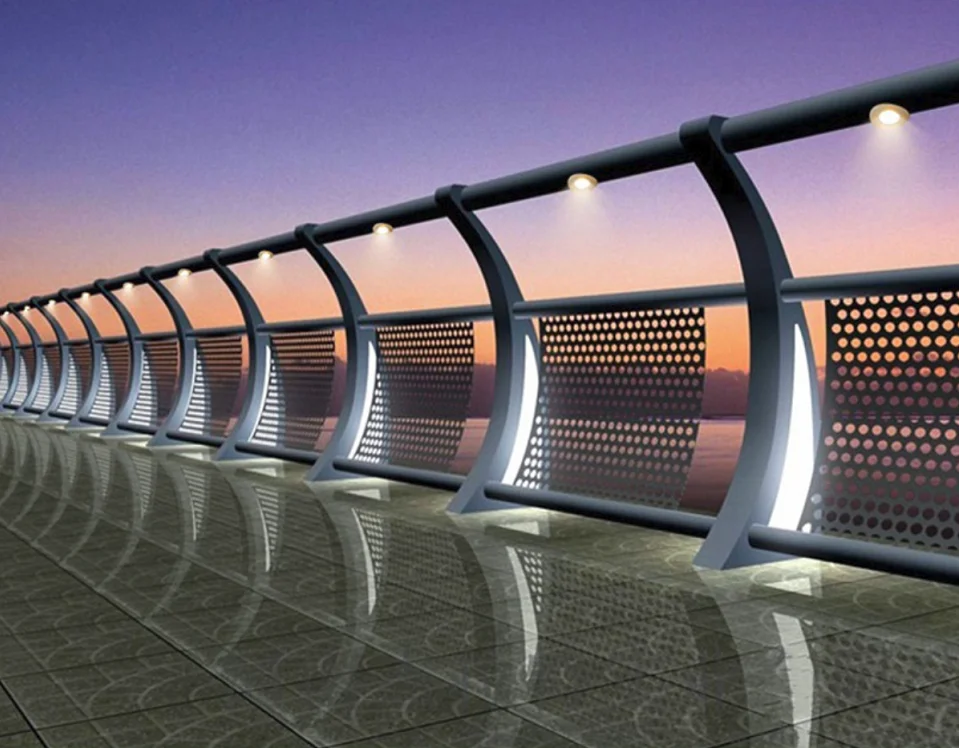

• Terrace and balcony railings

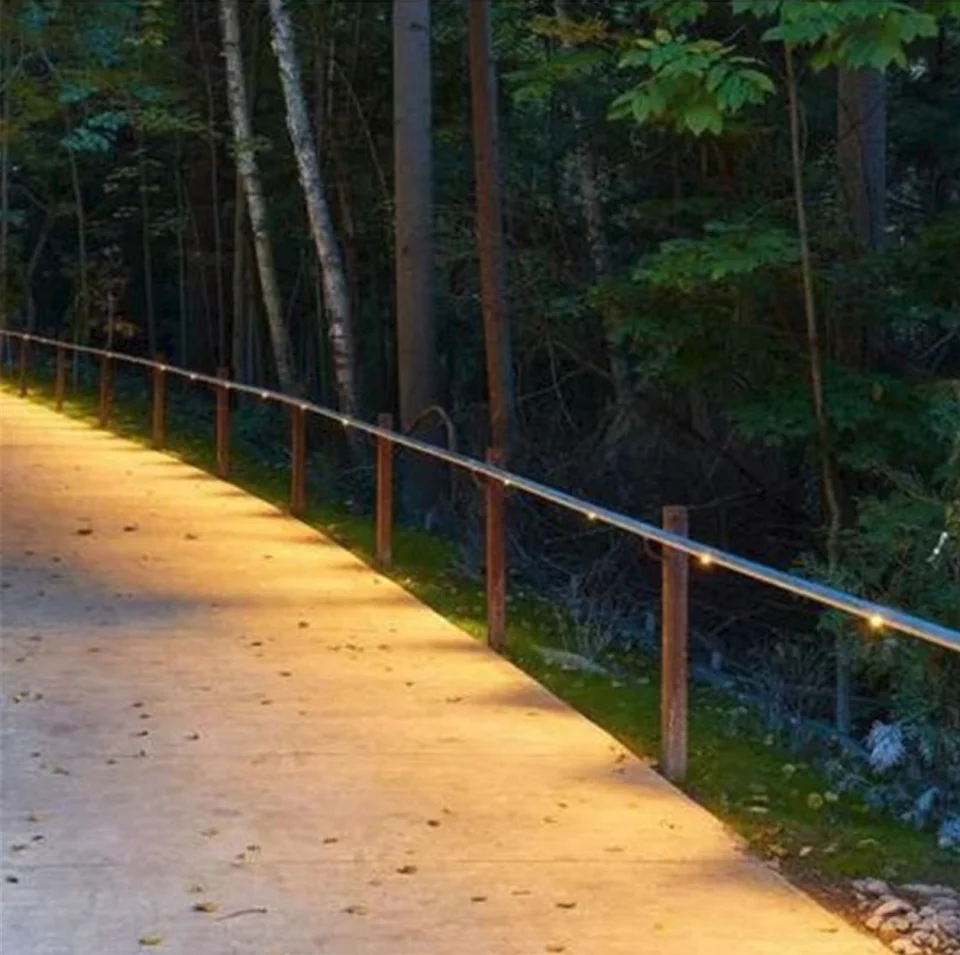

• Garden walkway handrails

• Hotel and resort exterior stair railings

• Residential entrance staircases

• Commercial pedestrian railing installations

Plan fixture spacing around the mounting height, rail geometry and required lighting effect. Test a sample on site before finalizing the quantity for a long railing run.

Size / Options

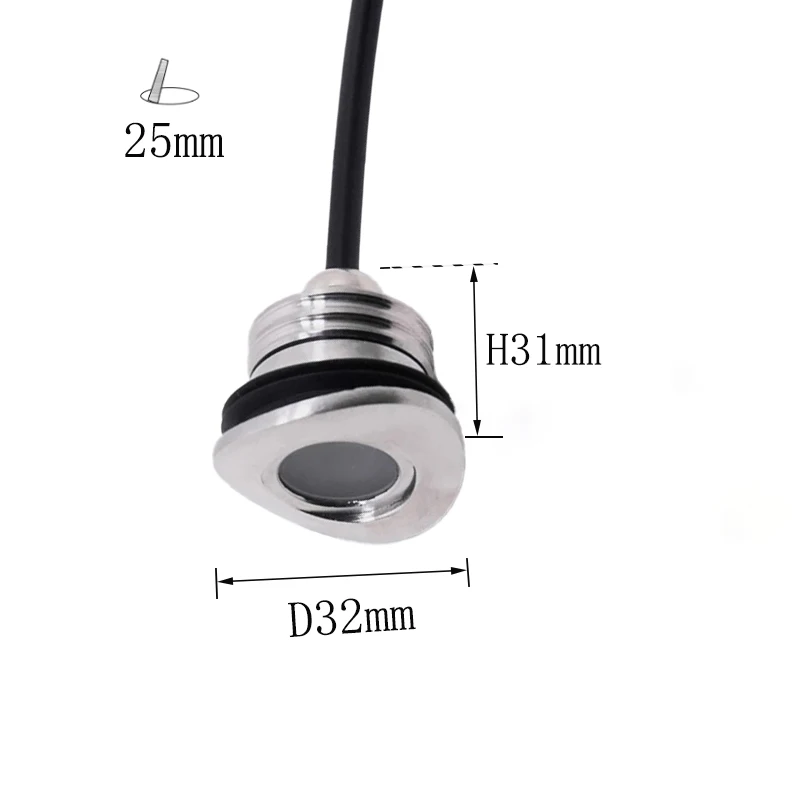

The light measures Ø32 × H31mm and requires a Ø25mm installation opening. Allow sufficient space inside the handrail for the recessed body, cable routing and connections.

Available electrical versions:

• DC12V, 1W

• DC24V, 1W

Available light colors:

• Warm white: 2700–3000K

• Neutral white: 4000–4500K

• Cool white: 5500–6500K

Choose the voltage and color temperature when ordering. Confirm fit with the actual handrail profile before preparing installation holes.

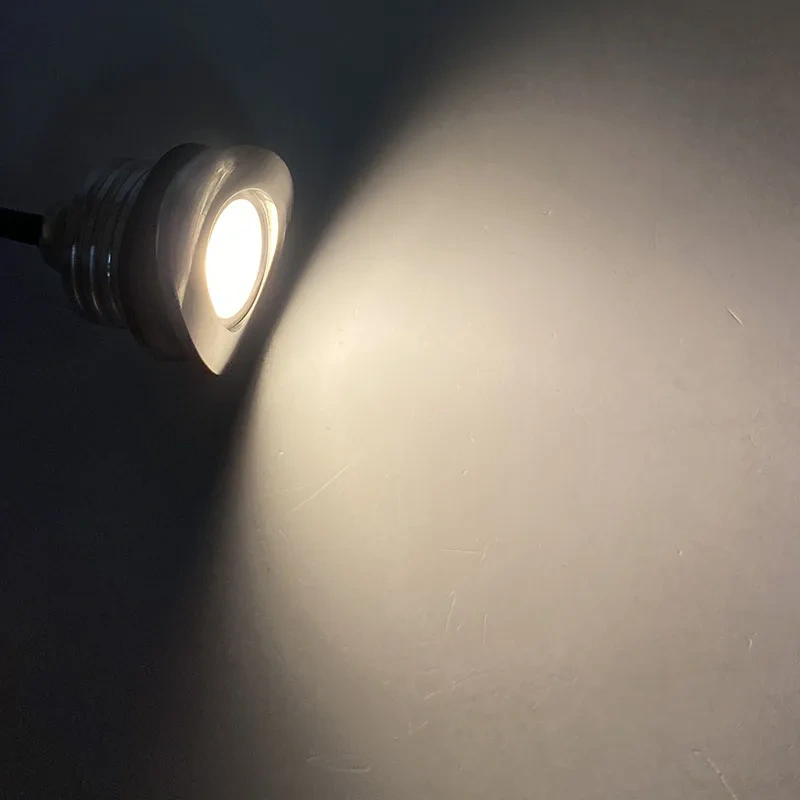

Lighting Options

Warm white at 2700–3000K suits residential terraces and hospitality spaces where a softer evening appearance is preferred.

Neutral white at 4000–4500K provides a balanced white-light appearance for contemporary stairways and walkway railings.

Cool white at 5500–6500K is available for projects that call for a cooler lighting appearance.

The product specification lists a luminous flux of 100lm and CRI above 80. PWM dimming is supported; confirm the controller and power supply combination before installation.

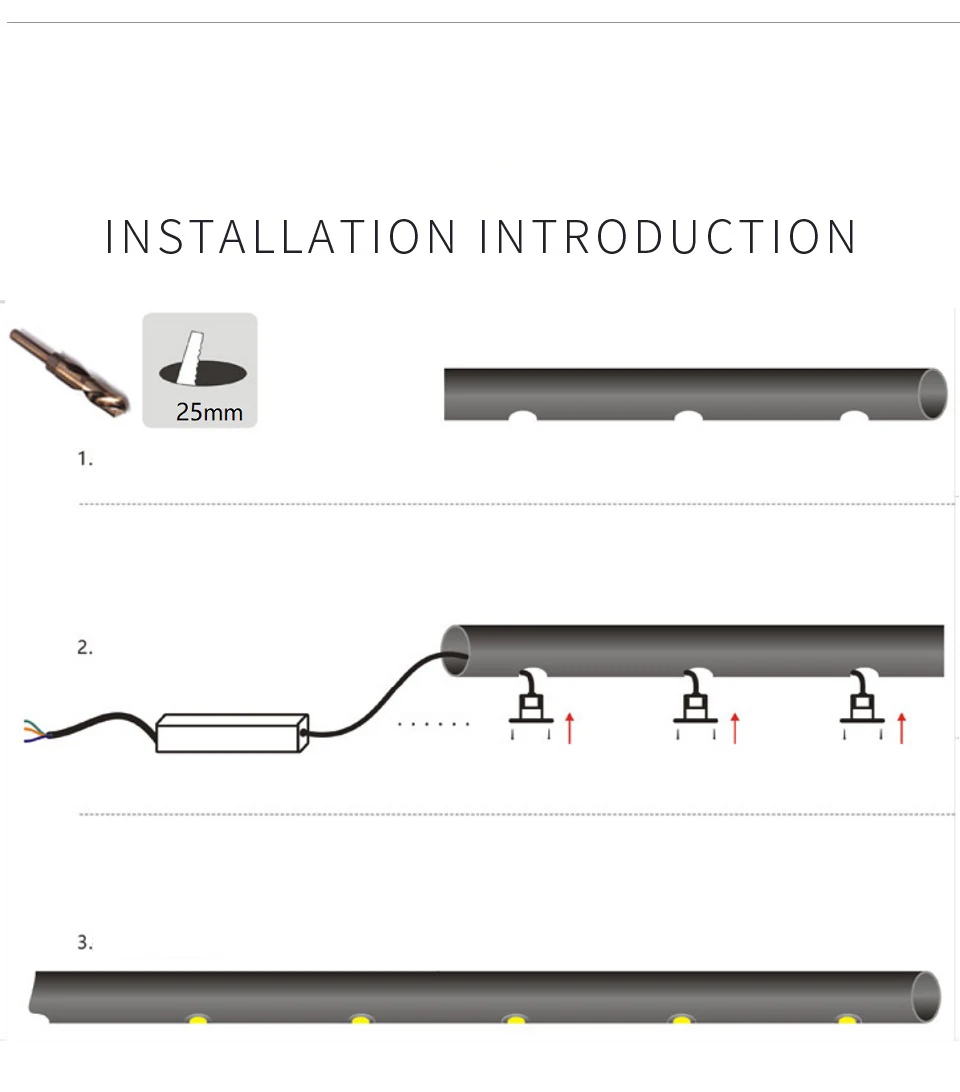

Installation

1. Check the handrail profile, wall thickness and internal clearance against the product dimensions.

2. Prepare a Ø25mm cutout at the planned mounting position.

3. Route the cable through the railing and position the light in the opening.

4. Connect the selected model to a matching 12V DC or 24V DC power supply.

5. If dimming is required, use a compatible PWM controller and verify operation before completing the installation.

6. Protect cable joints and power equipment appropriately for the installation environment.

7. Test the lighting effect before repeating the installation along the full railing.

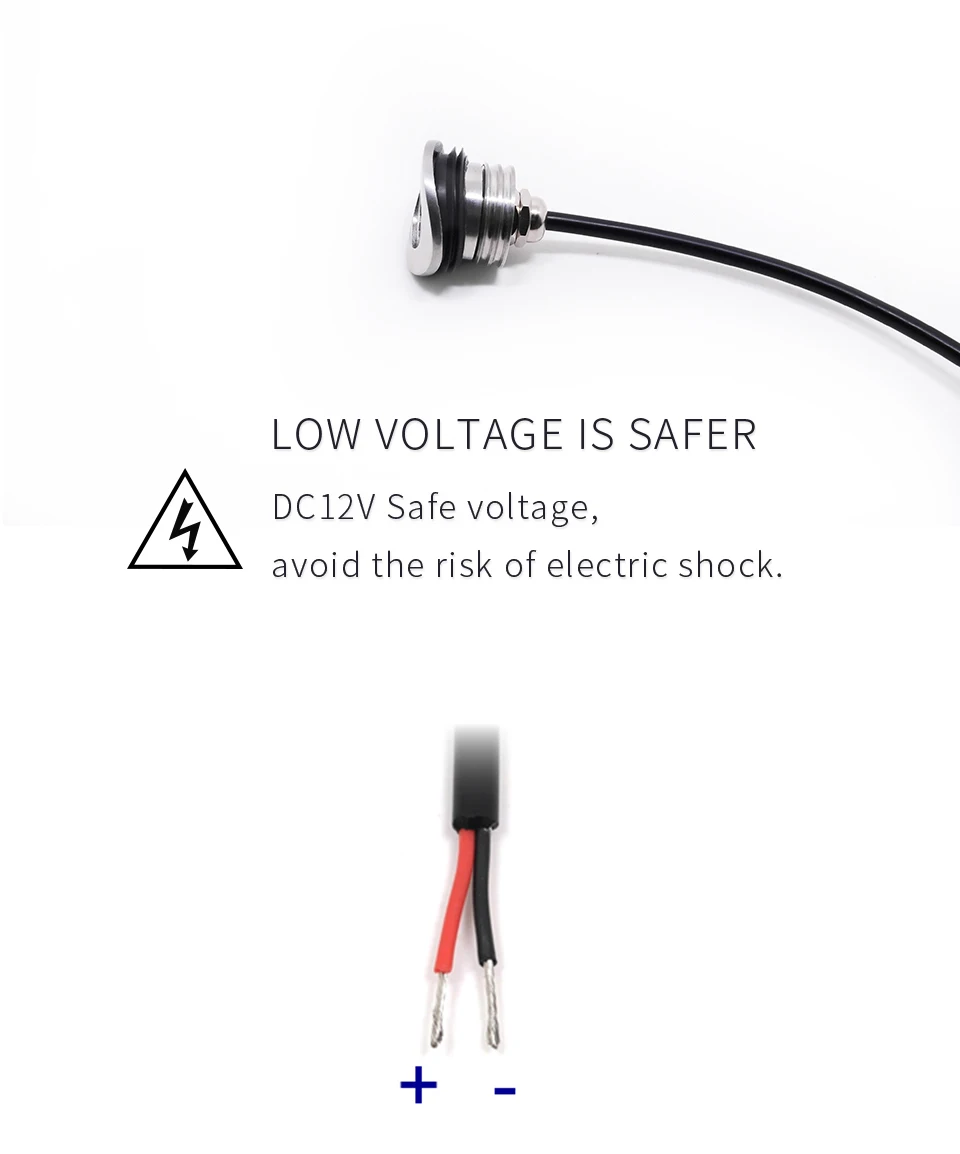

Do not connect the light directly to mains voltage. The product’s IP68 rating does not automatically apply to field-made cable joints, controllers or power supplies.

The listed package contains one LED mini spotlight. Confirm any required power supply, dimmer and installation accessories separately.

Technical Specifications

The 61SH handrail light uses a 1W 2835 LED source in a 304 stainless steel body. It is available in separate 12V DC and 24V DC versions and supports PWM dimming.

Key dimensions are Ø32 × H31mm, with a Ø25mm cutout. The standard cable length is 500mm. The product specification lists IP68 protection, 100lm luminous flux and CRI above 80.

Project Applications

For hotel terraces, residential stairs and commercial walkways, a sample installation helps establish the right color temperature and mounting arrangement before a bulk purchase.

For project quotations, send the handrail profile drawing, required quantity, preferred voltage and color temperature. Include the planned wiring layout and dimming requirements so the electrical configuration can be checked.

MOQ is 1 pc. Sample order lead time is 3–7 days, and bulk order lead time is 7–15 days. Confirm the production schedule for the selected configuration when placing the order.

OEM/ODM

Contact USKYLED to discuss OEM/ODM requirements for your handrail lighting project. Include the handrail drawing, target dimensions, electrical requirements, cable needs and packaging preferences.

Customization feasibility, minimum quantities and lead times are subject to project review. Standard product specifications should be confirmed before any customized version is ordered.

Request a Sample or Project Quotation

Planning an outdoor stair or terrace railing project? Send USKYLED your handrail dimensions, quantity, voltage and preferred light color for a quotation.

Start with a 1-piece sample to check the fit and lighting effect.

• MOQ: 2pc

• Sample order lead time: 3–7 days

• Bulk order lead time: 7–15 days
