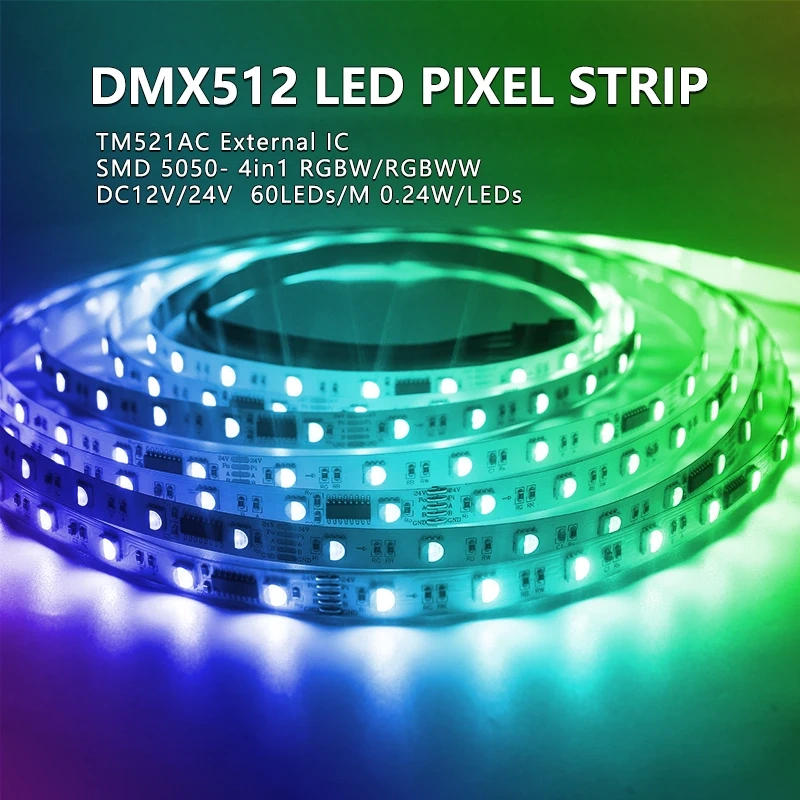

DMX512 Addressable LED Pixel Strip RGBW/RGBWW for Architectural Lighting

Product Introduction

The USKYLED DMX512 Addressable LED Pixel Strip is a professional digital LED strip designed for architectural lighting, commercial interiors, event production, decorative installations and programmable linear lighting projects.

The product uses SMD5050 RGBW or RGBWW LEDs in a 4-in-1 configuration, with a density of 60 LEDs/m and a TM512AC external IC for addressable DMX512 control. It is available in DC12V and DC24V configurations and supports different IC packages, PCB widths and waterproof options depending on the selected variant.

Unlike conventional RGB LED strips that change the entire strip to one color, an addressable DMX512 pixel strip allows lighting designers and system integrators to create programmable color sequences, dynamic effects and pixel-controlled animations.

The product is therefore suitable for professional applications where synchronized and individually controlled lighting effects are required.

Design

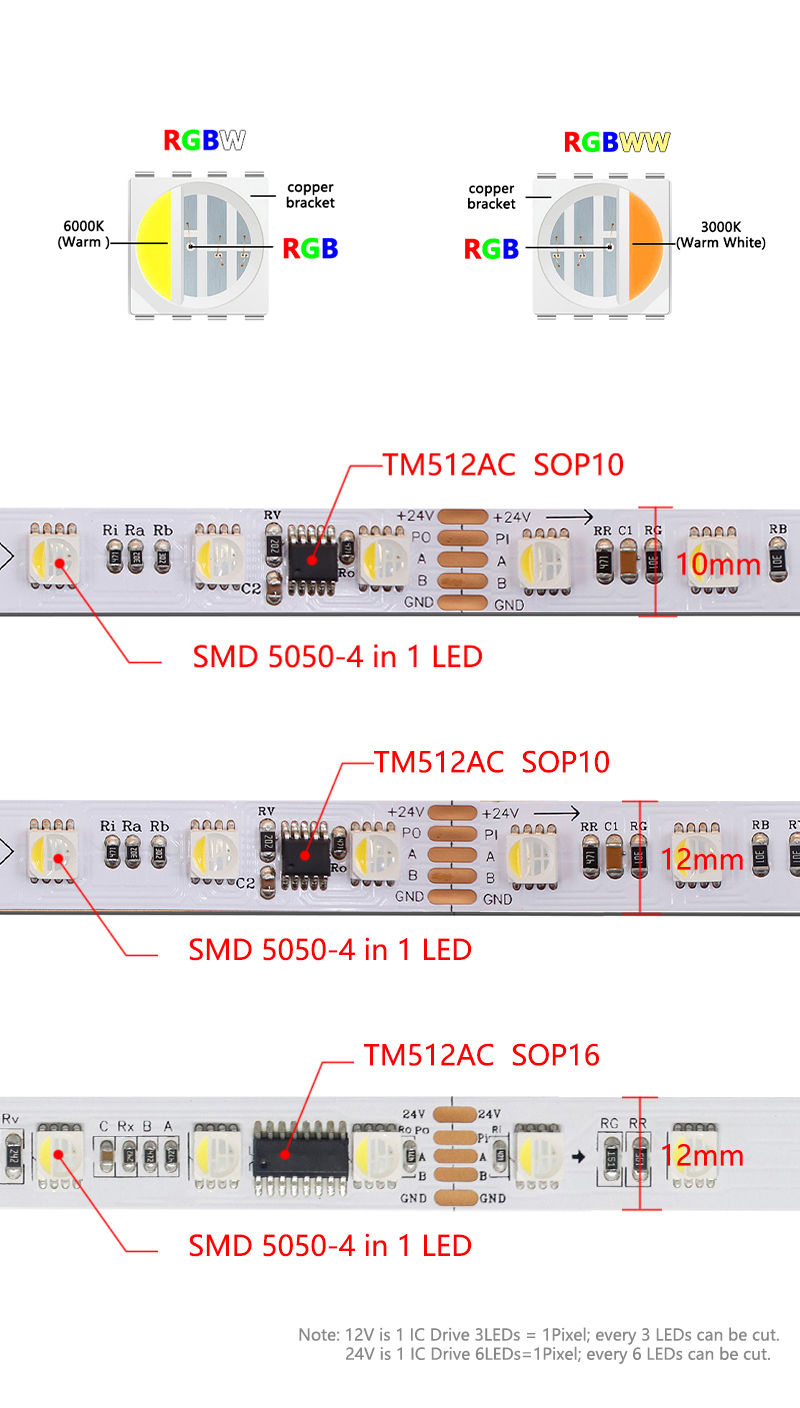

The strip uses a flexible white PCB with a nominal width of 10mm or 12mm, depending on the selected configuration.

The SMD5050 RGBW/RGBWW 4-in-1 LED arrangement integrates four LED channels into one package, providing a flexible combination of color effects and white-light output.

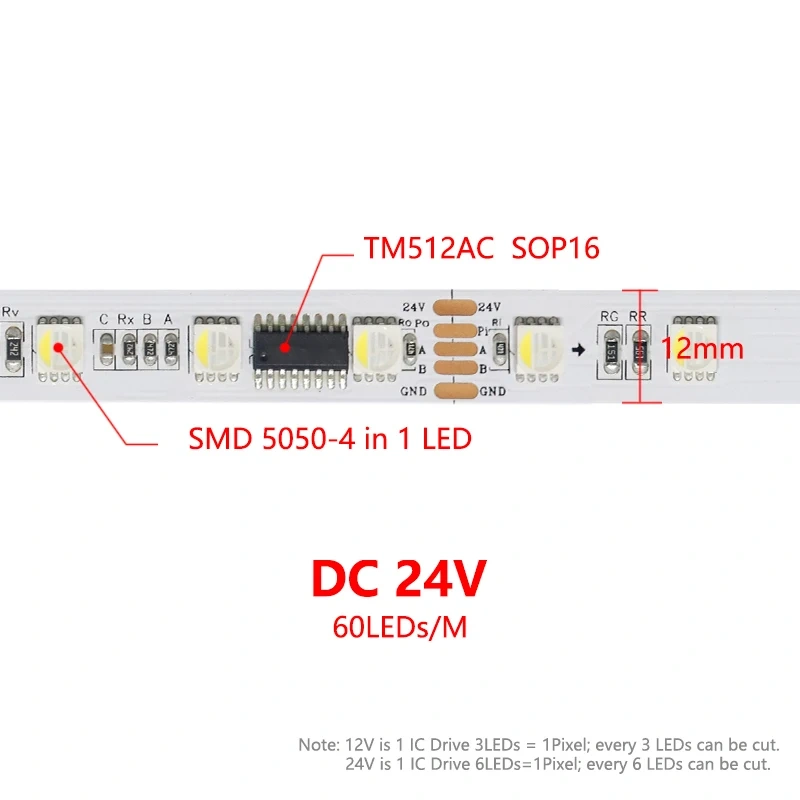

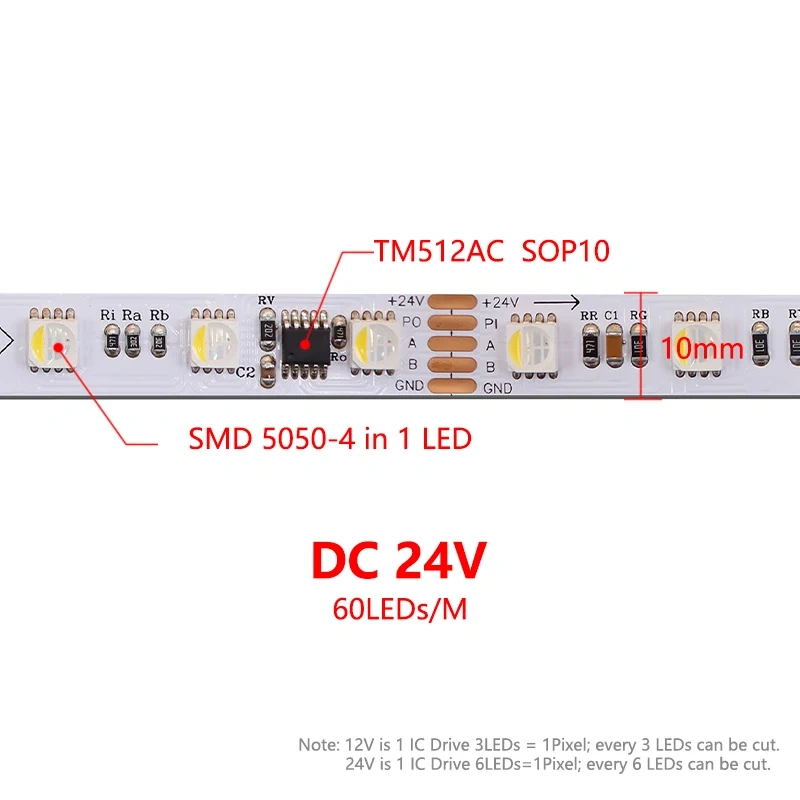

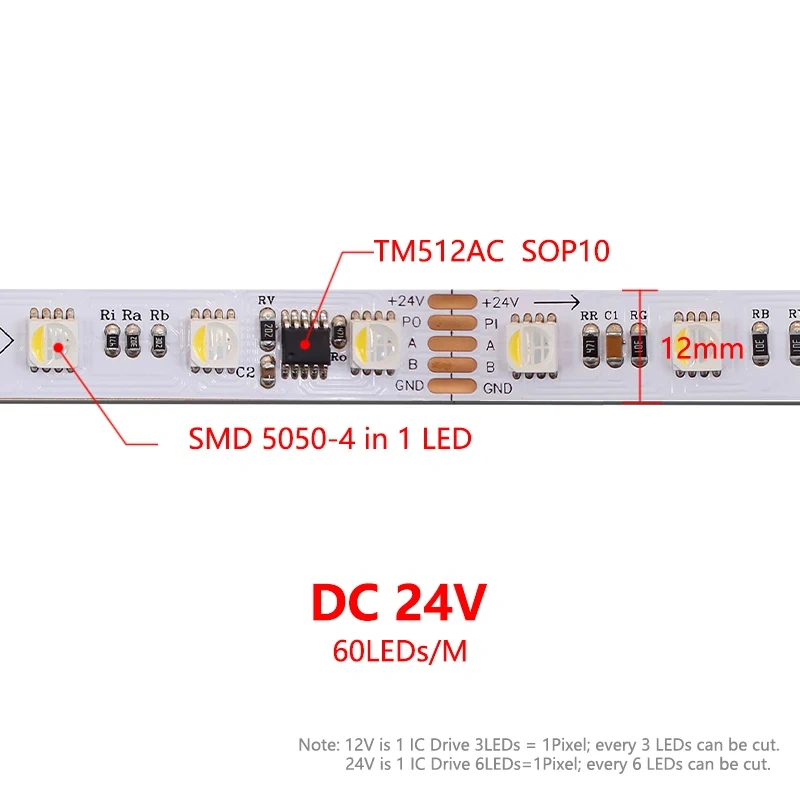

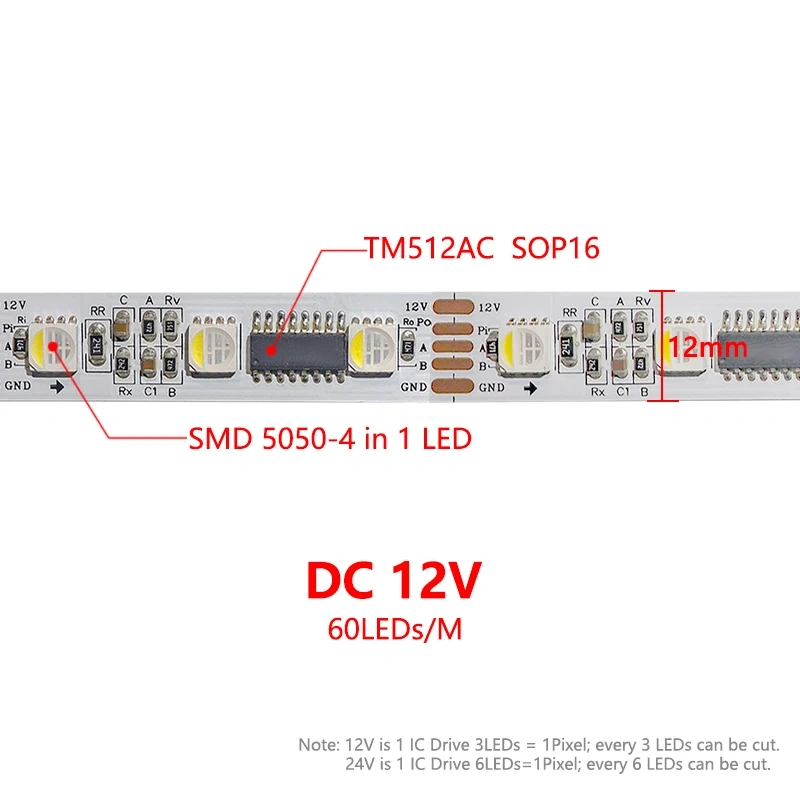

The external TM512AC-SOP10 or TM512AC-SOP16 IC enables digital addressing and programmable control through DMX512-compatible lighting systems. The product description also specifies 10 or 20 pixels/m configurations.

The strip uses a five-wire, four-channel configuration and is designed for integration with professional control equipment.

Main Features

• DMX512 Addressable Control – Supports programmable digital lighting effects and pixel-controlled color sequences.

• RGBW / RGBWW 4-in-1 LEDs – Combines RGB color channels with a white-light channel in one SMD5050 package.

• 60 LEDs/m – High-density LED arrangement for continuous linear lighting.

• TM512AC External IC – Available with TM512AC-SOP10 or TM512AC-SOP16 configurations.

• DC12V / DC24V Options – Suitable for different low-voltage lighting system designs.

• 10 or 20 Pixels/m – Allows different pixel-control resolutions according to project requirements.

• Breakpoint Continue Function – The product specification identifies breakpoint continuation as a feature.

• Multiple IP Options – IP30 non-waterproof and IP65/IP67/IP68 waterproof configurations are available.

• 120° Viewing Angle – Provides broad light distribution for linear and decorative applications.

• 5-Wire / 4-Channel Configuration – Designed for professional RGBW/RGBWW control systems.

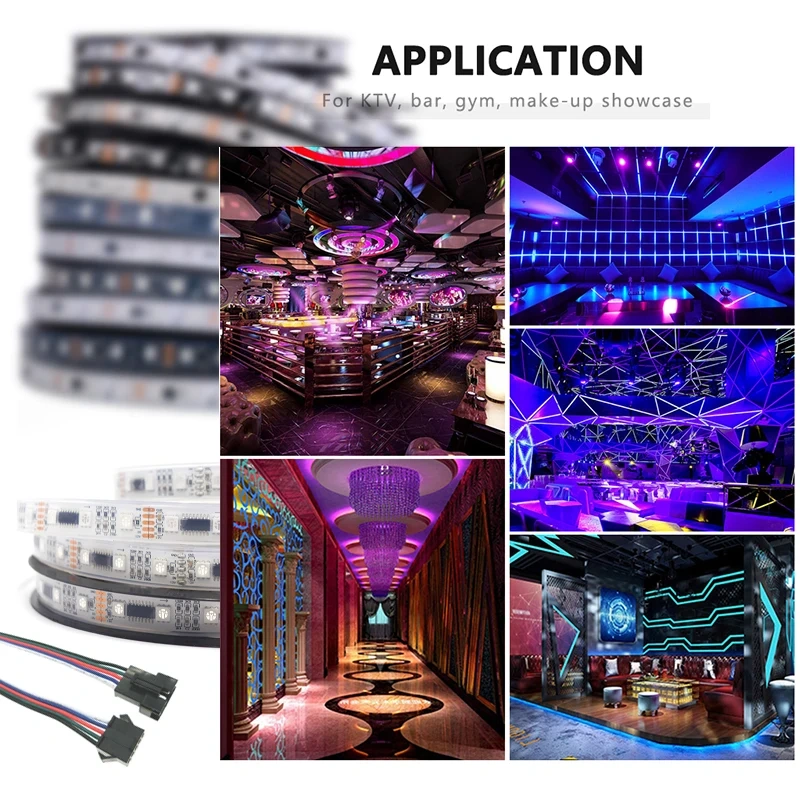

Application

The DMX512 addressable LED strip is designed for professional lighting applications including:

• Architectural lighting

• Building facade lighting

• Commercial interior lighting

• Hotel lighting

• Shopping mall lighting

• Club and entertainment lighting

• Stage and event lighting

• Exhibition lighting

• Background lighting

• Concealed lighting

• Channel letter lighting

• Advertising signage

• Border and contour lighting

• Holiday and festival decoration

• Automobile and bicycle decoration

The current product page specifically identifies hotels, clubs, shopping malls, architectural decorative lighting, background lighting, concealed lighting, channel letters, advertising signs, exhibitions and event decoration.

Size / Options

The product supports multiple configurations to accommodate different lighting system requirements.

LED Type

• SMD5050 RGBW 4-in-1

• SMD5050 RGBWW 4-in-1

LED Density

• 60 LEDs/m

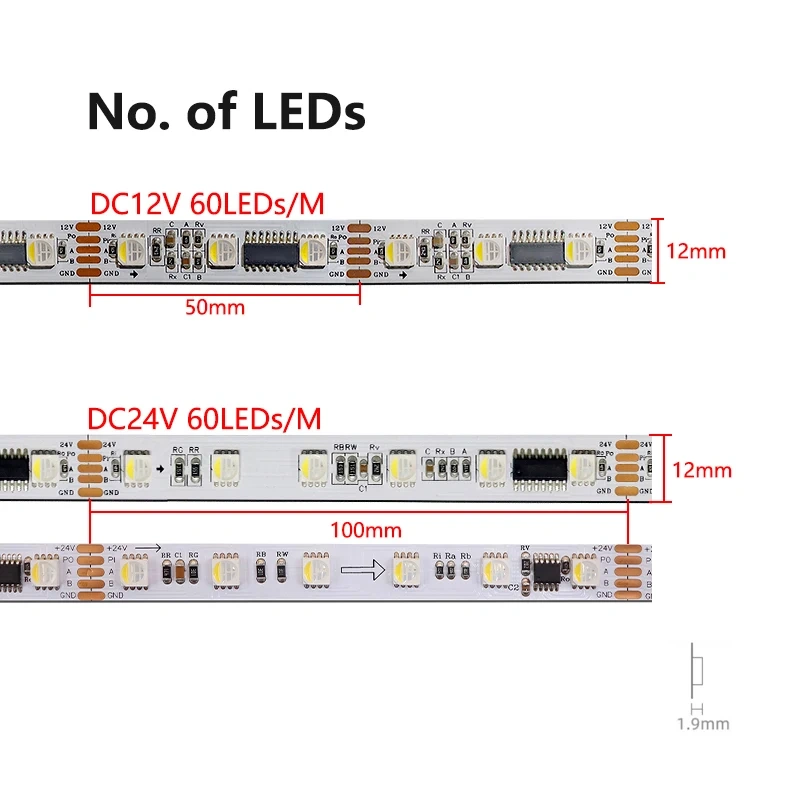

Pixel Density

• 10 pixels/m

• 20 pixels/m

Voltage

• DC12V

• DC24V

IC

• TM512AC-SOP10

• TM512AC-SOP16

PCB Width

• 10mm

• 12mm

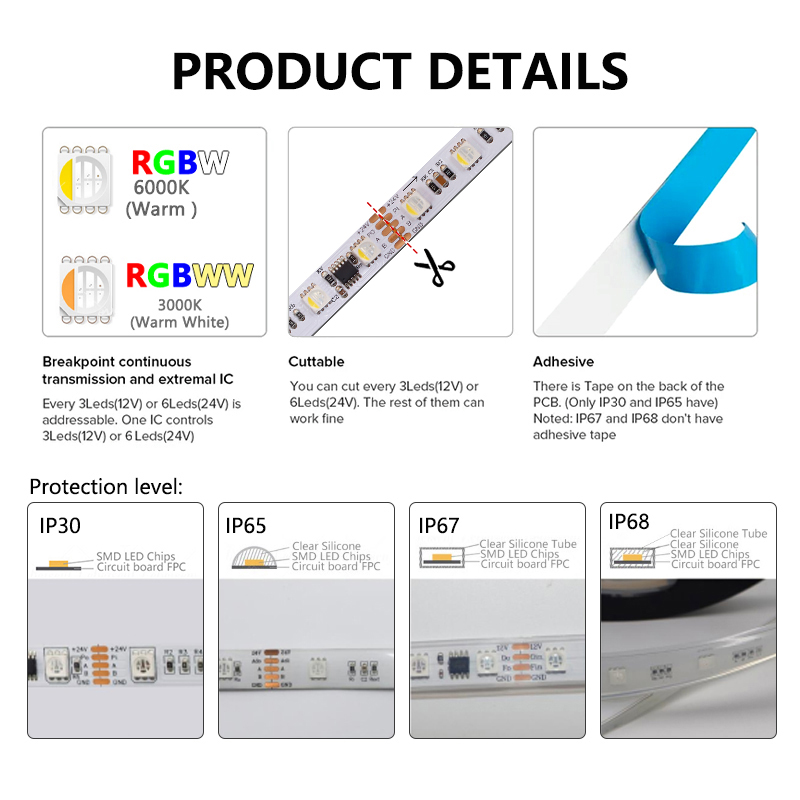

Waterproof Options

• IP30 Non-Waterproof

• IP65 Waterproof

• IP67 Waterproof

• IP68 Waterproof

Standard Packing

The product description specifies 5 meters/roll as standard packing, while the current Variant selector shows 10M (600 LEDs). The final listing should therefore be corrected to clearly distinguish standard packing from the selectable variant.

Lighting Options

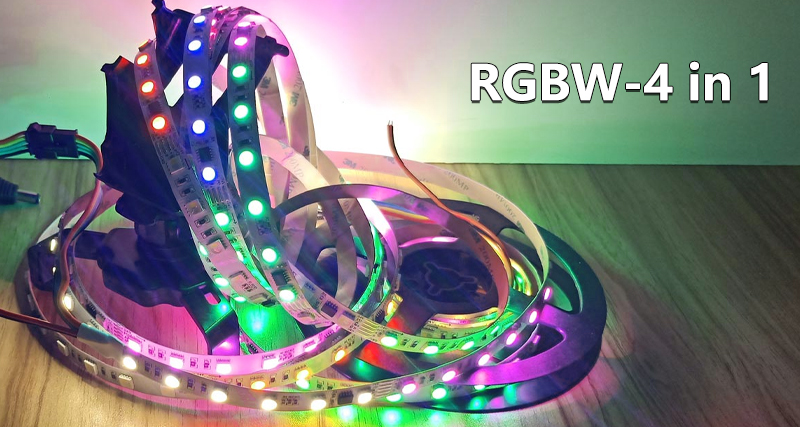

RGBW 4-in-1

The RGBW version combines red, green, blue and white channels in a single SMD5050 package.

It is suitable for applications requiring both dynamic RGB effects and dedicated white-light output.

Recommended for:

• Architectural lighting

• Hospitality lighting

• Retail displays

• Event lighting

• Decorative installations

RGBWW 4-in-1

The RGBWW version provides RGB color effects with a warm-white channel, making it suitable for projects where colorful effects and warmer ambient lighting need to be combined.

Recommended for:

• Hotels

• Restaurants

• Clubs

• Entertainment venues

• Luxury commercial interiors

DMX512 Pixel Effects

With addressable DMX512 control, lighting designers can create:

• Color chasing

• Pixel animations

• Sequential effects

• Dynamic gradients

• Synchronized lighting

• Programmable scenes

The TM512AC system also supports digital addressing through a single code-writing signal line and EEPROM address storage.

Installation

The LED strip should be installed according to the selected IP protection level and project environment.

Recommended installation process:

1. Select the correct DC12V or DC24V version.

2. Match the power supply voltage to the LED strip voltage.

3. Install the strip in an appropriate aluminum profile or mounting surface.

4. Connect the power supply according to the strip polarity.

5. Connect the DMX512 signal line and compatible controller/decoder.

6. Configure the DMX address and pixel settings.

7. Test RGBW/RGBWW channels and dynamic effects.

8. Secure the strip and complete the final wiring.

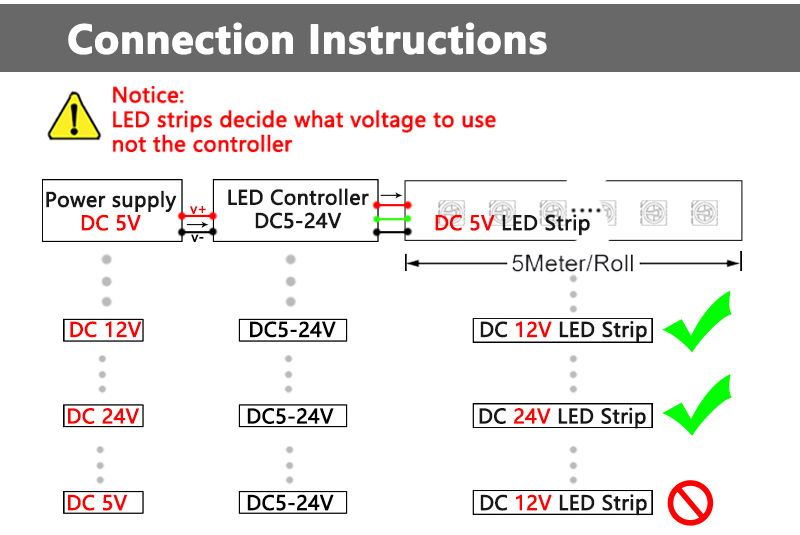

The product page specifically warns users to select a power supply with the same voltage as the LED strip rather than matching the controller voltage.

For outdoor or moisture-exposed applications, the IP65/IP67/IP68 version should be selected according to the actual installation environment.

Technical Specifications

Project Applications

Architectural Facade Lighting

DMX512 pixel strips can be used to outline building facades, architectural edges and structural features with programmable color effects.

Hotel & Hospitality Lighting

RGBW/RGBWW addressable strips can create dynamic decorative lighting for hotel lobbies, restaurants, bars, clubs and hospitality spaces.

Shopping Mall & Retail Projects

The programmable control system can be integrated into storefronts, display areas, corridors and commercial architectural features.

Stage & Event Lighting

DMX512 control allows lighting designers to synchronize LED pixel effects with professional lighting consoles and event control systems.

Advertising & Signage

The flexible strip format is suitable for channel letters, advertising signs, contour lighting and illuminated architectural branding.

Exhibition & Show Lighting

Addressable pixel effects can be used to create dynamic backgrounds, display installations and exhibition environments.

Holiday & Decorative Lighting

RGBW/RGBWW control enables programmable effects for seasonal decorations, festivals, entertainment venues and temporary installations.

OEM/ODM

USKYLED provides OEM/ODM DMX512 addressable LED strip solutions for lighting distributors, wholesalers, architectural lighting contractors, system integrators and commercial lighting projects.

Customization can include:

• RGBW or RGBWW configuration

• DC12V or DC24V

• TM512AC IC selection

• 10 or 20 pixels/m

• 10mm or 12mm PCB width

• IP30/IP65/IP67/IP68 protection

• Custom strip length

• Custom connector and wiring

• Custom packaging

• OEM branding

• Project-specific DMX configuration

• Bulk production

For architectural and entertainment projects, USKYLED can help match the LED strip configuration with the required voltage, pixel density, waterproof level and control system.

CTA

Looking for a DMX512 addressable RGBW or RGBWW LED strip for your next architectural lighting project?

Contact USKYLED for:

• Product samples

• Bulk pricing

• DC12V / DC24V options

• RGBW / RGBWW configurations

• IP65/IP67/IP68 waterproof versions

• OEM/ODM production

• Custom project solutions

Request a Quote for Your DMX512 LED Pixel Lighting Project →
