Product Introduction

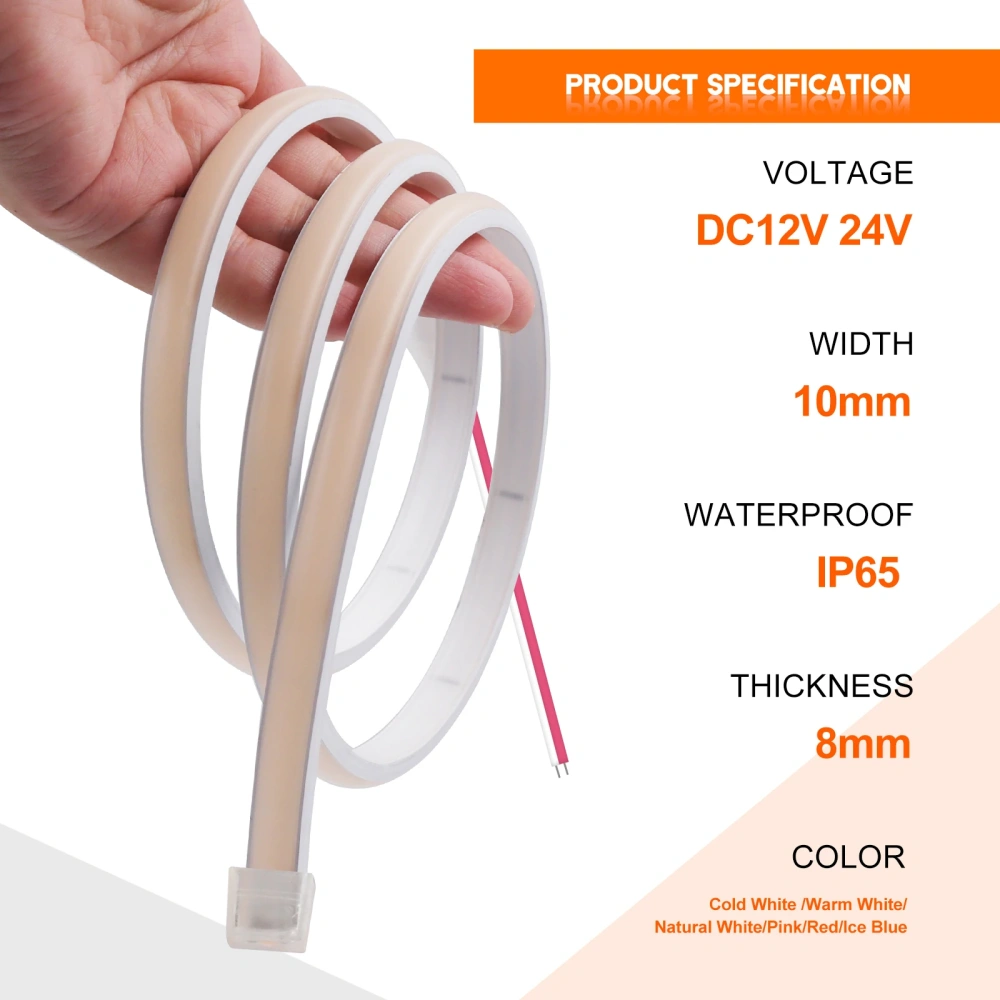

USKYLED Waterproof COB LED Strip Light is designed for projects requiring smooth, continuous linear illumination in indoor and outdoor environments. Using COB LED technology with a density of 320 LEDs/m, the strip produces a uniform light line with reduced visible LED spotting and dark areas.
The strip is available in DC12V and DC24V versions and can be supplied in different lengths according to project requirements. The current product options include 12V 5m, 12V 10m, 24V 10m and 24V 20m configurations.

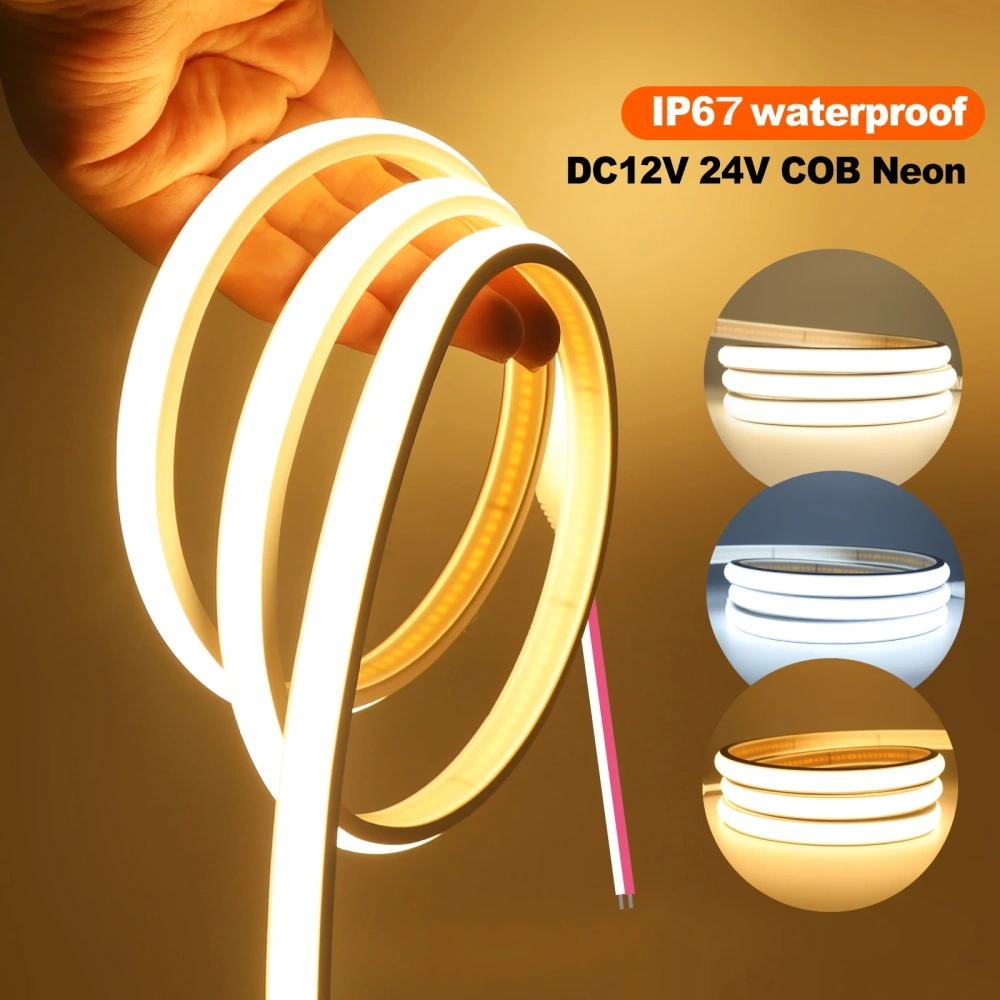

With IP65/67 waterproof protection specified for the LED strip itself, this product can be used for selected outdoor, architectural and decorative lighting projects where flexible linear illumination is required.
H3 Design
The COB LED strip uses a flexible linear construction that allows the lighting to follow curves, corners and architectural surfaces.
Its high-density LED arrangement helps create a smoother light output than conventional low-density LED strips. The strip measures approximately 11–12 mm in width and 7 mm in height, making it suitable for installation in compact linear lighting spaces.
The design also supports cutting and joining for customized installation lengths.
H3 Main Features
- High-density 320 LEDs/m COB LED technology
- Smooth and continuous illumination
- Reduced visible LED spotting and dark areas
- Flexible construction for curved and linear installations
- DC12V and DC24V options
- IP65/67 waterproof protection for the LED strip
- CRI Ra>90
- 180° viewing angle

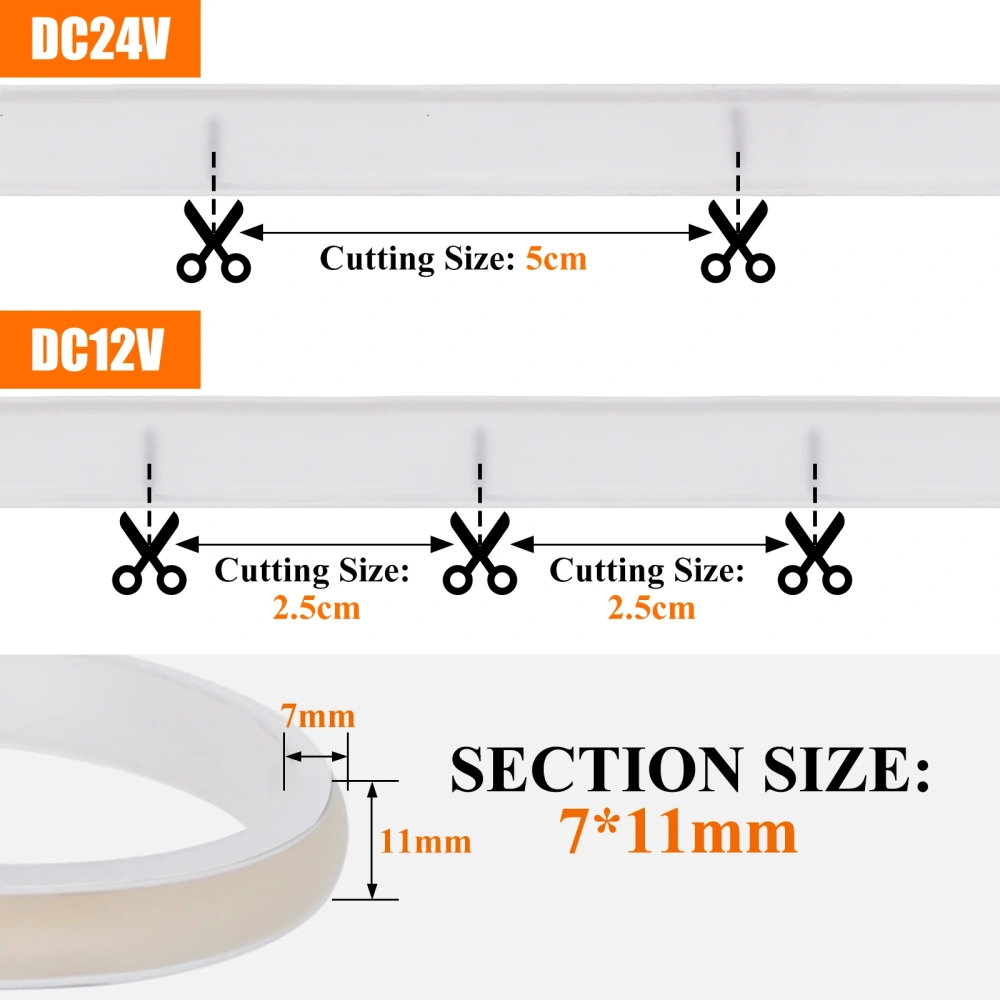

- Cuttable design for customized lengths
- 12V cutting interval: 25 mm
- 24V cutting interval: 50 mm
- Warm White, Natural White and White options
- Suitable for indoor and selected outdoor applications
H3 Application
This waterproof COB LED strip can be used for a wide range of architectural, commercial and decorative lighting applications, including:
- Architectural linear lighting
- Cove lighting
- Ceiling and wall illumination
- Cabinet and furniture lighting
- Retail store lighting
- Hotel and hospitality lighting
- Restaurant and bar lighting
- Commercial interior lighting
- Decorative outdoor lighting
- Outdoor architectural accents
- Signage and display lighting
- Residential ambient lighting
For outdoor installations, the waterproof rating applies to the LED strip itself. The product page specifies that the 2-pin wire and DC wire are not waterproof and require suitable protection from water.
H3 Size / Options
Available configurations include:
| Item |
Available Option |
| Voltage |
DC12V / DC24V |
| LED Density |
320 LEDs/m |
| Strip Width |
11–12 mm |
| Strip Height |
7 mm |
| 12V Length Options |
5m / 10m |
| 24V Length Options |
10m / 20m |
| 12V Cutting Interval |
25 mm |
| 24V Cutting Interval |
50 mm |
| Waterproof Rating |
IP65/67 |
| Viewing Angle |
180° |
For long installations, power-feed configuration should be planned according to strip voltage and total length.
H3 Lighting Options

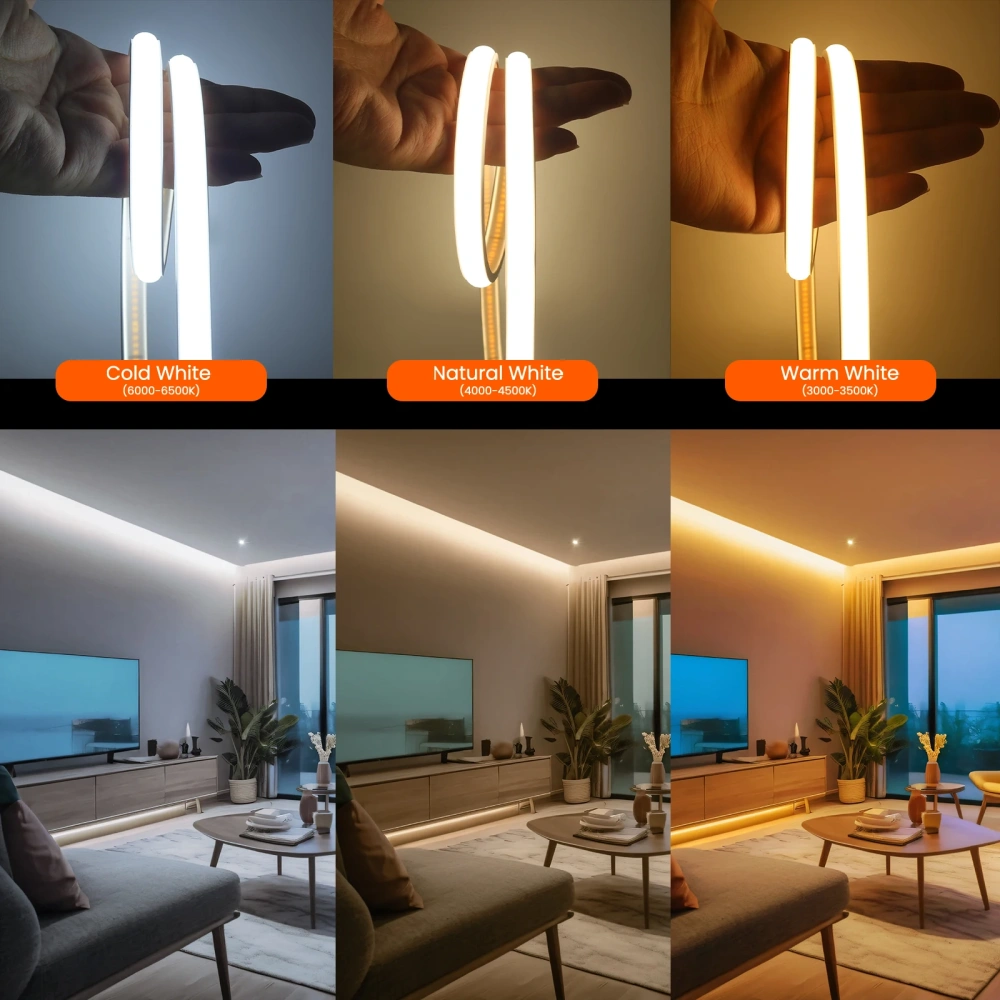

The product is available in three white-light options:
- Warm White: 3000–3500K
- Natural White: 4000–4500K
- White: 6000–6500K
Warm white is suitable for residential, hospitality and decorative environments.
Natural white is suitable for commercial, retail and general architectural lighting.
White/cool white is suitable for applications requiring a brighter and cooler visual appearance.
H3 Installation
The LED strip operates only with the corresponding DC power supply.
- DC12V strip → use a DC12V power supply
- DC24V strip → use a DC24V power supply
- Power supply is not included
- Connector is not included
- 12V strips up to 5m can be powered from one side according to the product instructions
- 12V strips from 6–10m require power feeding from both sides to help reduce voltage drop
- 24V strips up to 10m can be powered from one side according to the product instructions
- 24V strips from 11–20m require power feeding from both sides
For outdoor projects, the wiring and connection points should be properly protected because the waterproof specification applies to the LED strip, not the exposed connection wires.
H3 Technical Specifications
| Specification |
Details |
| Product Type |
Waterproof COB LED Strip Light |
| LED Technology |
COB |
| LED Density |
320 LEDs/m |
| Input Voltage |
DC12V / DC24V |
| Color Options |
Warm White / Natural White / White |
| Warm White |
3000–3500K |
| Natural White |
4000–4500K |
| White |
6000–6500K |
| Waterproof Rating |
IP65/67 |
| Width |
11–12 mm |
| Height |
7 mm |
| Viewing Angle |
180° |
| CRI |
Ra>90 |
| 12V Cutting Interval |
25 mm |
| 24V Cutting Interval |
50 mm |
| Operating Temperature |
-20°C to +45°C |
| Storage Temperature |
-20°C to +60°C |
| Power Supply |
Not included |
| Connector |
Not included |
| Package |
1 × LED Strip |
Project Applications
The Waterproof COB LED Strip Light is suitable for B2B lighting projects such as:
Retail & Commercial
- Display shelving
- Retail stores
- Shopping areas
- Commercial counters
- Brand stores
- Product displays
Hospitality
- Hotels
- Restaurants
- Bars
- Cafés
- Reception areas
- Decorative architectural lighting
Residential
- Kitchen and cabinet lighting
- Living room cove lighting
- Bedroom ambient lighting
- Stair and corridor lighting
- Furniture lighting
Architectural & Outdoor
- Architectural edges
- Building accents
- Outdoor decorative lighting
- Landscape structures
- Signage and linear illumination
For outdoor projects, designers and contractors should separately specify waterproof connectors, power supplies and protected cable connections.
H3 OEM/ODM
USKYLED supports OEM and ODM cooperation for lighting distributors, importers, contractors, project suppliers and lighting brands.
Customization can be discussed for:
- Strip length
- Voltage configuration
- Color temperature
- Packaging
- Product labeling
- Project quantities
- Custom specifications
- OEM branding
- Bulk production requirements
For project orders, buyers can contact USKYLED with required voltage, length, color temperature, installation environment and estimated quantity for technical and commercial evaluation.
