Product Introduction
The USKYLED mini RGB LED spotlight adds colored accent lighting to display cabinets, showcases, shelves and dollhouse scenes. Its compact housing fits small display spaces, while USB 5V power provides a convenient connection to a suitable USB power source.
Choose a 1W or 3W model and select either button control or remote control to suit the installation. Both options provide RGB color adjustment and dimming for decorative displays.
This spotlight is intended for colored lighting effects. It does not produce pure white light, so displays that require accurate product color presentation should use a separate white-light source.
Design

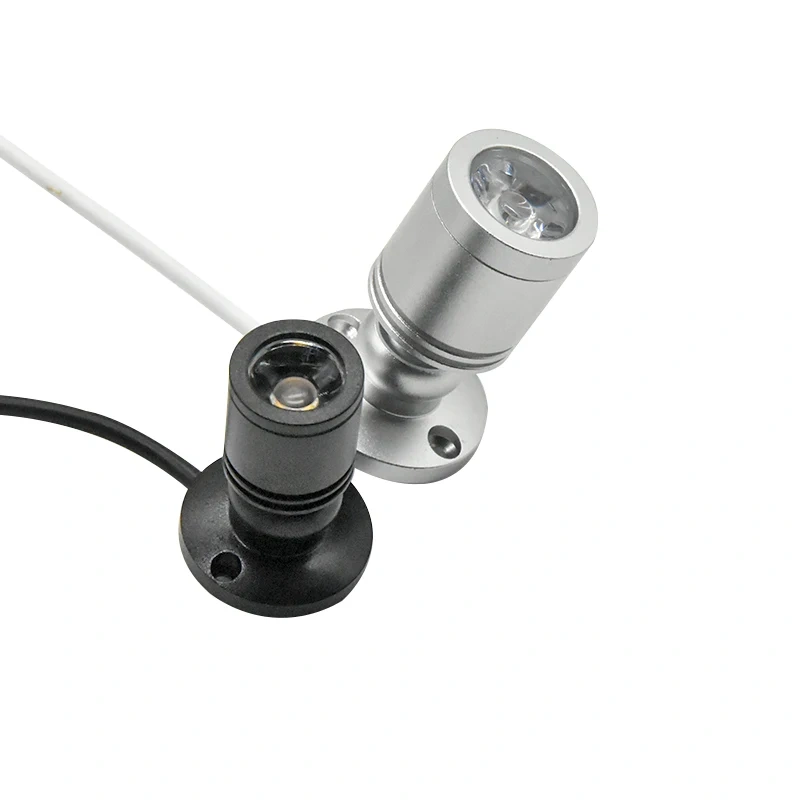

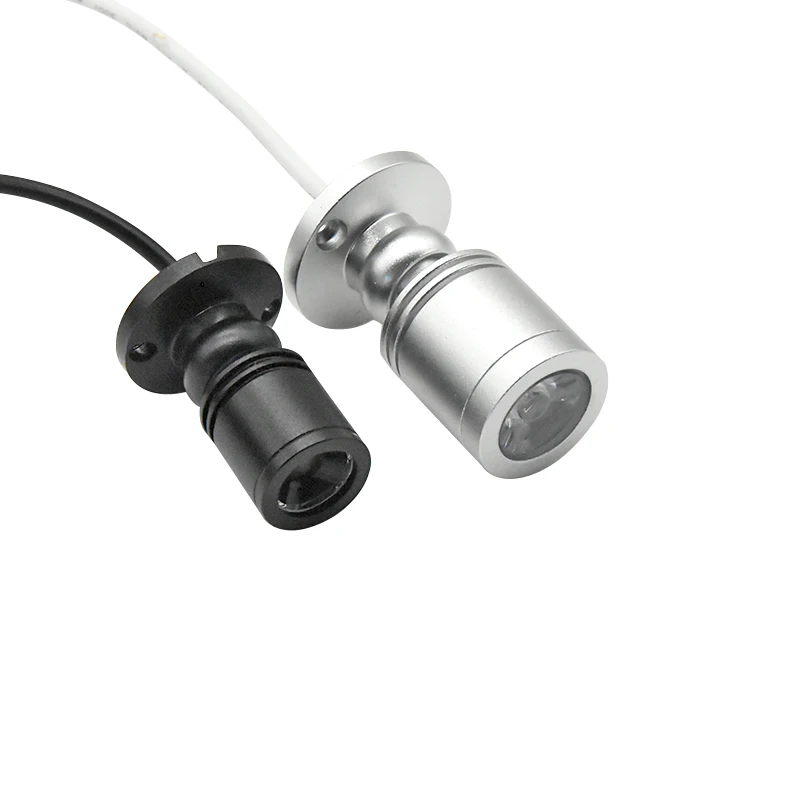

The aluminum housing has a compact cylindrical design and is available in silver, black or white. These finish options make it easier to coordinate the light with cabinet interiors, display stands and model settings.

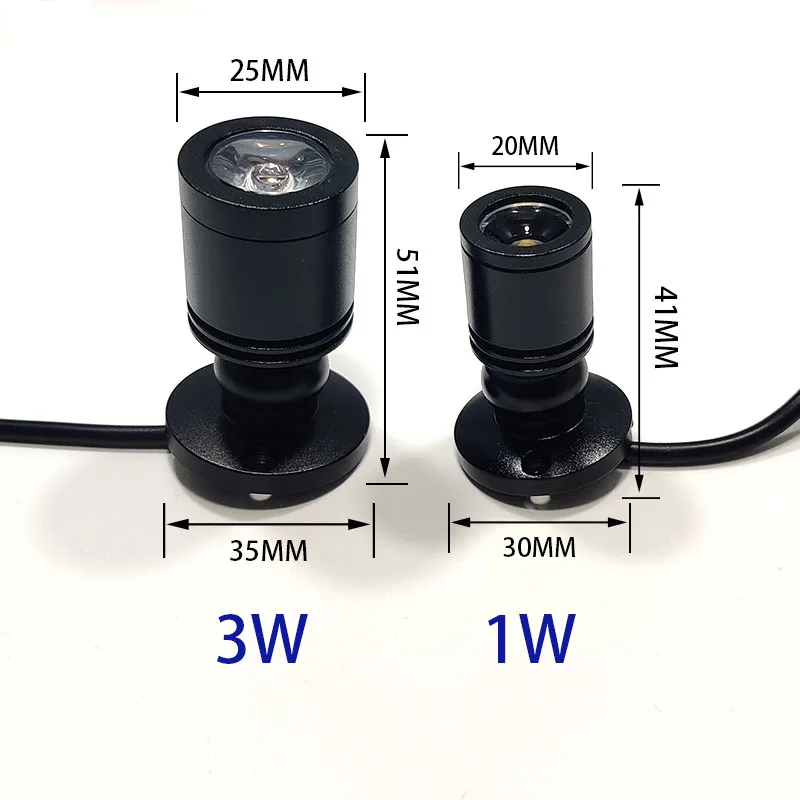

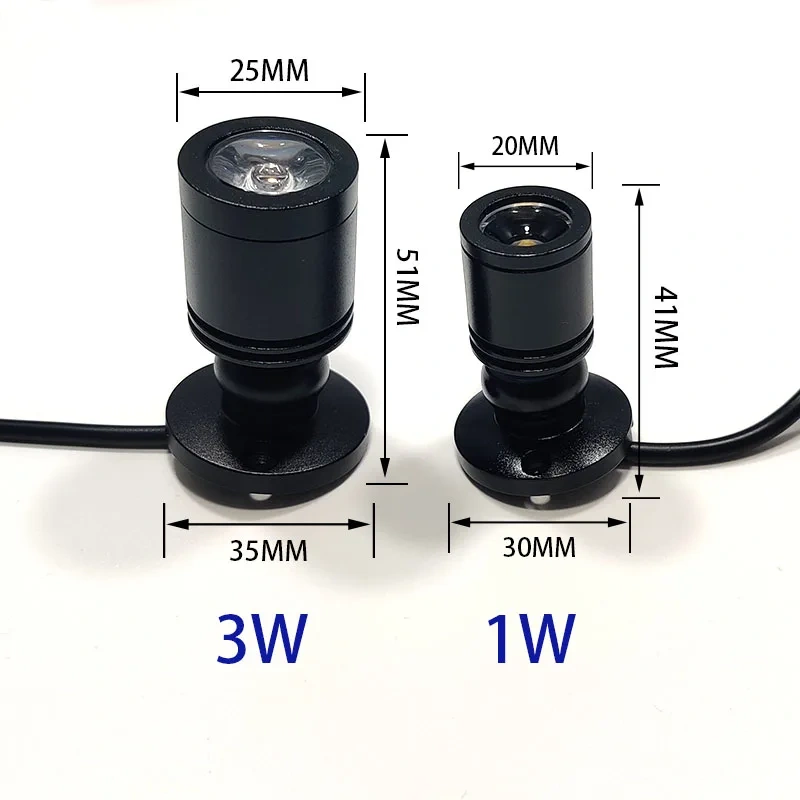

The 1W model measures Ø20 × H41 mm, while the 3W model measures Ø25 × H51 mm. Both models use a surface-mounted design, avoiding the need for a recessed installation cutout.
A 1,500 mm USB cable provides flexibility when positioning the spotlight near a suitable power connection.
Main Features
- USB 5V input: Connect to a suitable regulated 5V USB power source.
- Two power options: Choose 1W or 3W according to the display layout.
- RGB color effects: Add static colors or changing effects to decorative scenes.
- Two control options: Select button dimming or remote dimming when ordering.
- Compact aluminum housing: Available in silver, black and white.
- 30° beam angle: Create a localized accent within a small display.
- Surface-mounted installation: No recessed cutout is required.
- 1.5 m USB cable: Position the light with convenient access to power.
- MOQ of 1 piece: Order a sample before selecting quantities for a larger project.
Application

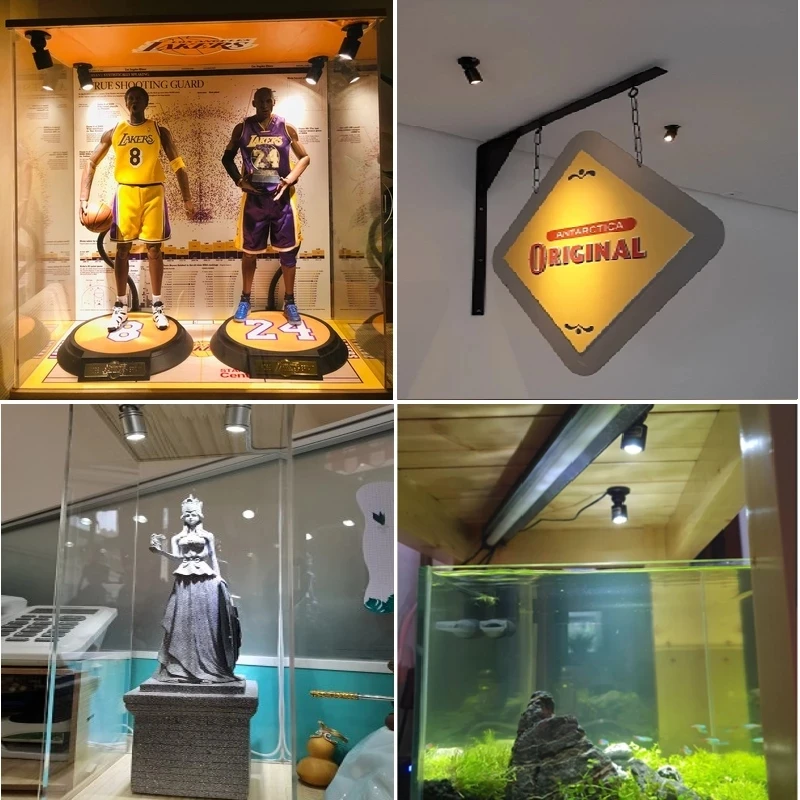

Use this mini RGB spotlight for:
- Display cabinet and shelf accents.
- Collectible and figurine showcases.
- Dollhouses and miniature interiors.
- Model scenes and themed displays.
- Decorative lighting in bar shelves and KTV interiors.
- Seasonal merchandising and small exhibition displays.
For jewelry showcases, use RGB lighting as a decorative accent around the display. Use a suitable white-light fixture where accurate gemstone, metal or merchandise color is important.
Size / Options
| Option |
Available Selection |
| Power |
1W / 3W |
| 1W dimensions |
Ø20 × H41 mm |
| 3W dimensions |
Ø25 × H51 mm |
| Housing finish |
Silver / Black / White |
| Control type |
Button dimming / Remote dimming |
| Mounting type |
Surface-mounted |
| Cable length |
1,500 mm |
Select the power, housing finish and control type before placing your order. Confirm the contents of the selected package if your installation requires specific mounting accessories or a USB power adapter.
Lighting Options

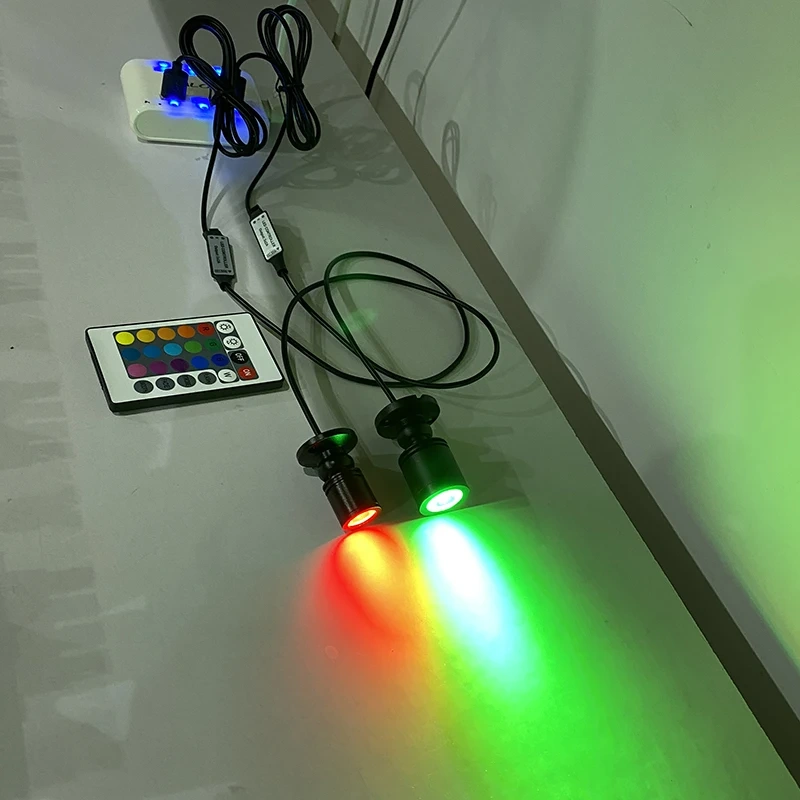

The RGB light source combines red, green and blue to create decorative colors. Select a static color for a consistent display or a dynamic effect for a changing lighting scene.

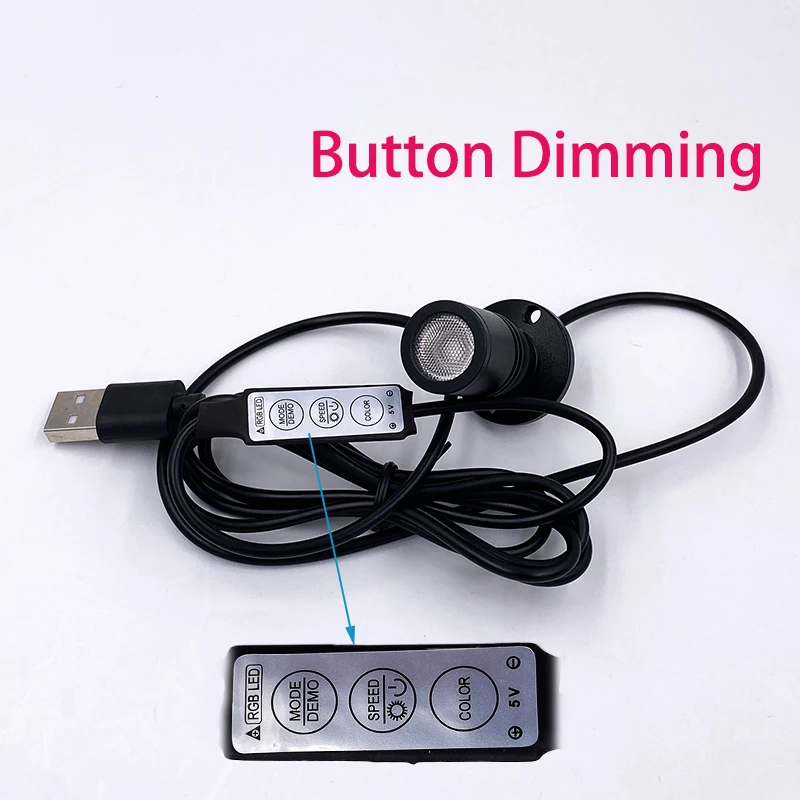

Button-controlled version
Use the controller buttons to select colors, change modes and adjust brightness or effect speed.

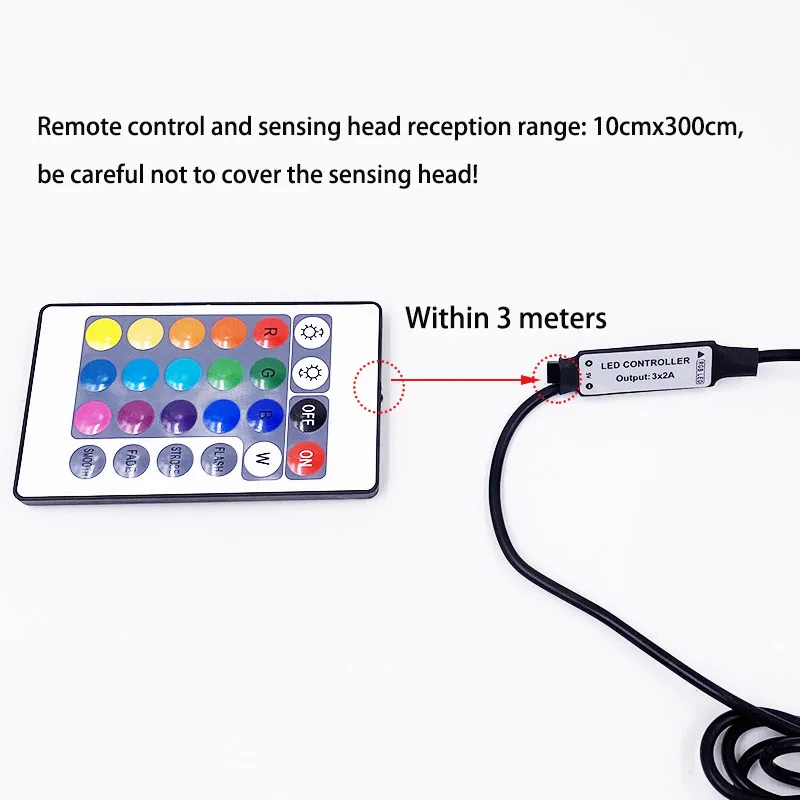

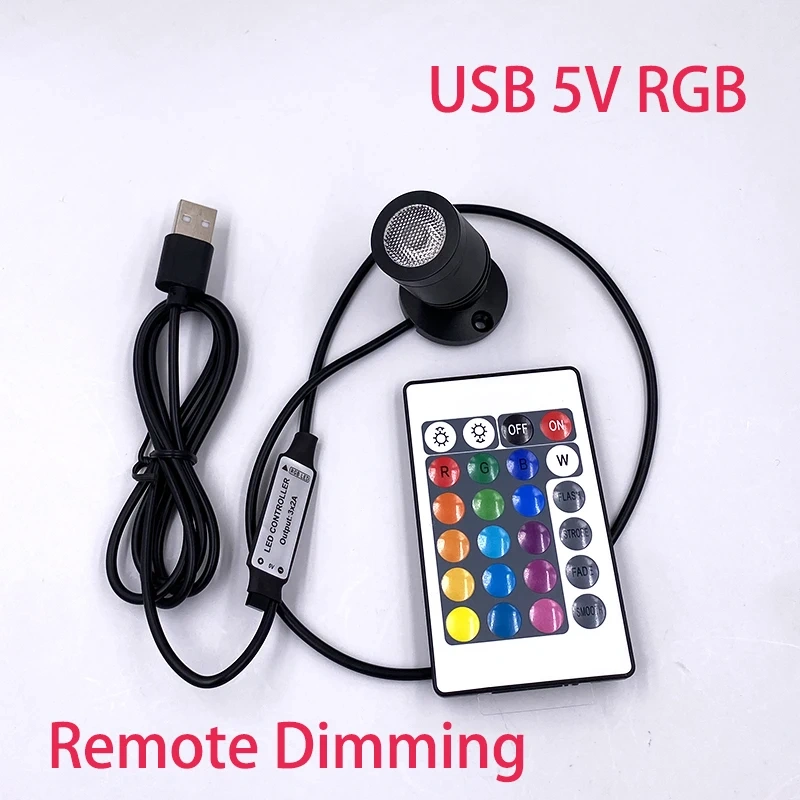

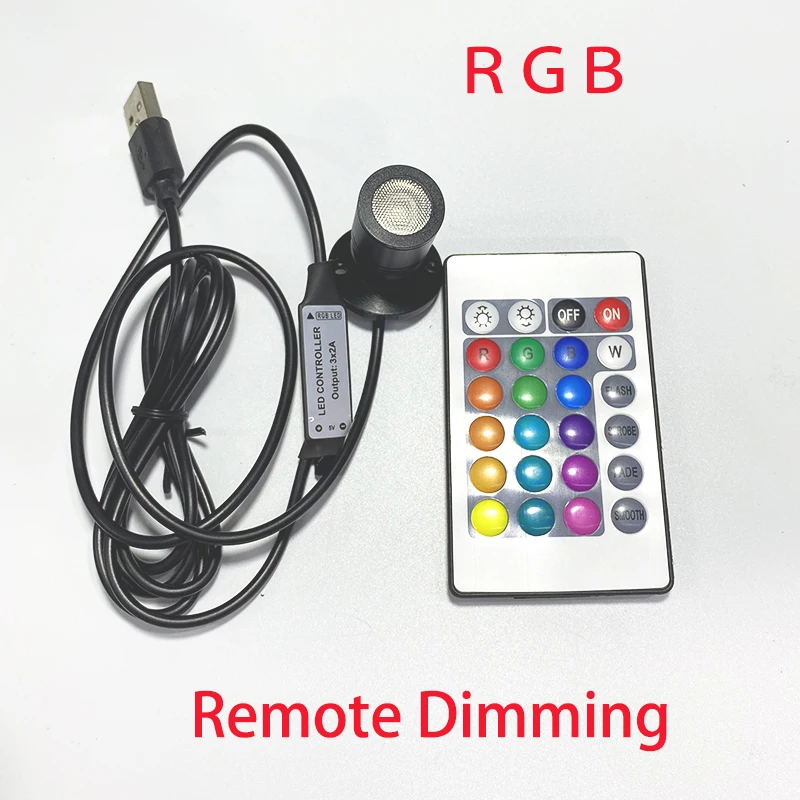

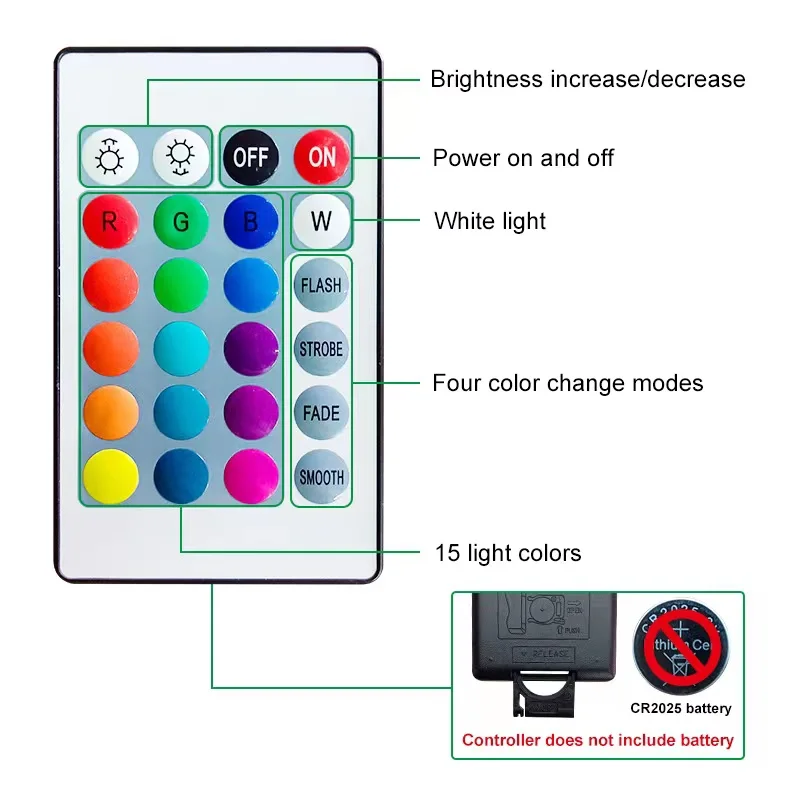

Remote-controlled version
Use the remote to adjust the selected lighting functions without reaching the light itself. The listed remote requires one 3V CR2025 battery, which is not included.
Control functions depend on the selected version. RGB color mixing does not provide pure white light.

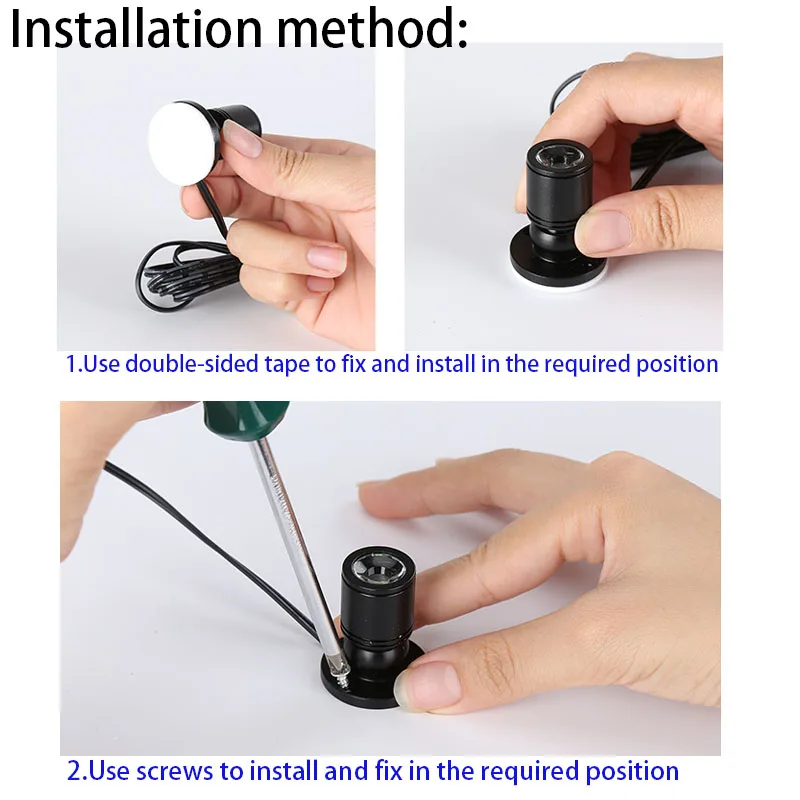

Installation
- Choose a mounting position that directs the light toward the display.
- Check that the selected spotlight dimensions fit the available space.

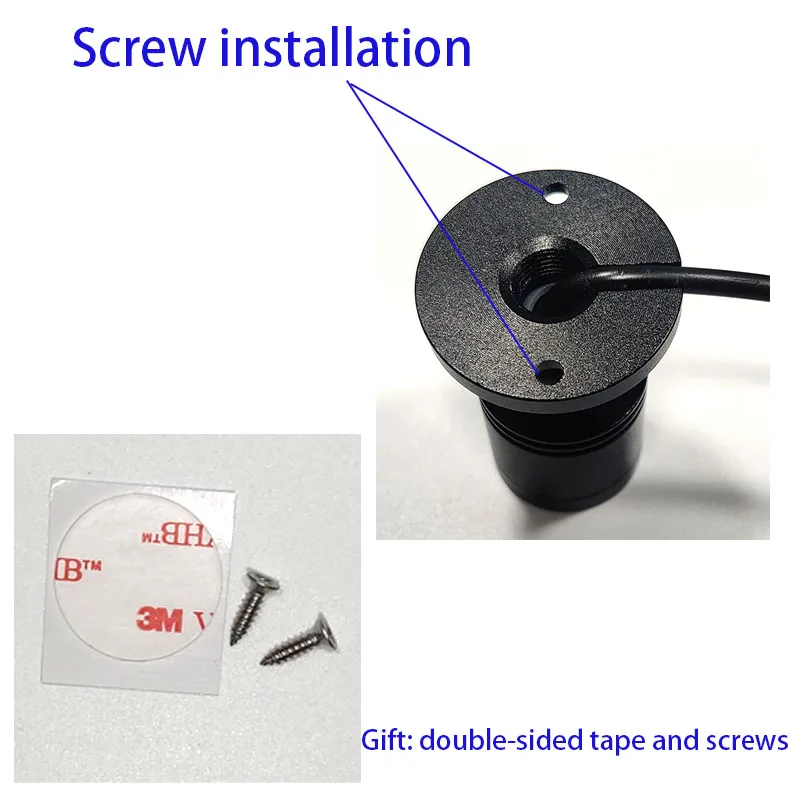

- Secure the fixture using the mounting arrangement supplied with the selected version.
- Route the USB cable to a suitable regulated DC 5V USB power source.
- Keep the controller and power connection accessible.
- Test the selected colors, brightness and effects before completing the display.
No recessed cutout is required, although fixing holes may be needed depending on the supplied mounting hardware.
Do not connect the spotlight directly to AC mains or a 12V/24V supply. Confirm the USB source capacity before powering multiple lights.
Technical Specifications
| Parameter |
Specification |
| Product type |
Mini RGB LED spotlight |
| Input voltage |
DC 5V via USB |
| Rated power options |
1W / 3W |
| Light output |
RGB color-changing |
| Control options |
Button dimming / Remote dimming |
| Housing material |
Aluminum |
| Housing finishes |
Silver / Black / White |
| Beam angle |
30° |
| 1W dimensions |
Ø20 × H41 mm |
| 3W dimensions |
Ø25 × H51 mm |
| Cable length |
1,500 mm |
| Installation |
Surface-mounted |
| Recessed cutout |
Not required |
| Pure white light |
Not available |
| Remote battery |
1 × CR2025, 3V; not included |
| Minimum order quantity |
1 piece |
| Sample order lead time |
3–7 days |
| Bulk order lead time |
7–15 days |
Project Applications
For display builders, retailers and model makers, the small housing and USB supply make this spotlight an option for compact decorative installations.
A sample can help confirm the beam coverage, selected RGB colors, controller operation and cable routing before the product is specified across multiple displays. Choose between the 1W and 3W versions based on the available space and a practical lighting test.
For repeat projects, include the selected power, housing finish and controller version in the purchasing specification.
OEM/ODM
Contact USKYLED to discuss OEM/ODM requirements for your display lighting project. Share the required quantity, preferred finish, cable requirements, packaging details and intended application.
Customization availability, minimum quantities and lead times must be confirmed separately. The standard product MOQ and lead times do not automatically apply to customized orders.
Request a Sample or Project Quote
Planning a cabinet, showcase or miniature display? Contact USKYLED with your preferred wattage, finish, control type and quantity for a quotation.
MOQ: 1 piece. Sample order lead time: 3–7 days. Bulk order lead time: 7–15 days.
