Product Introduction

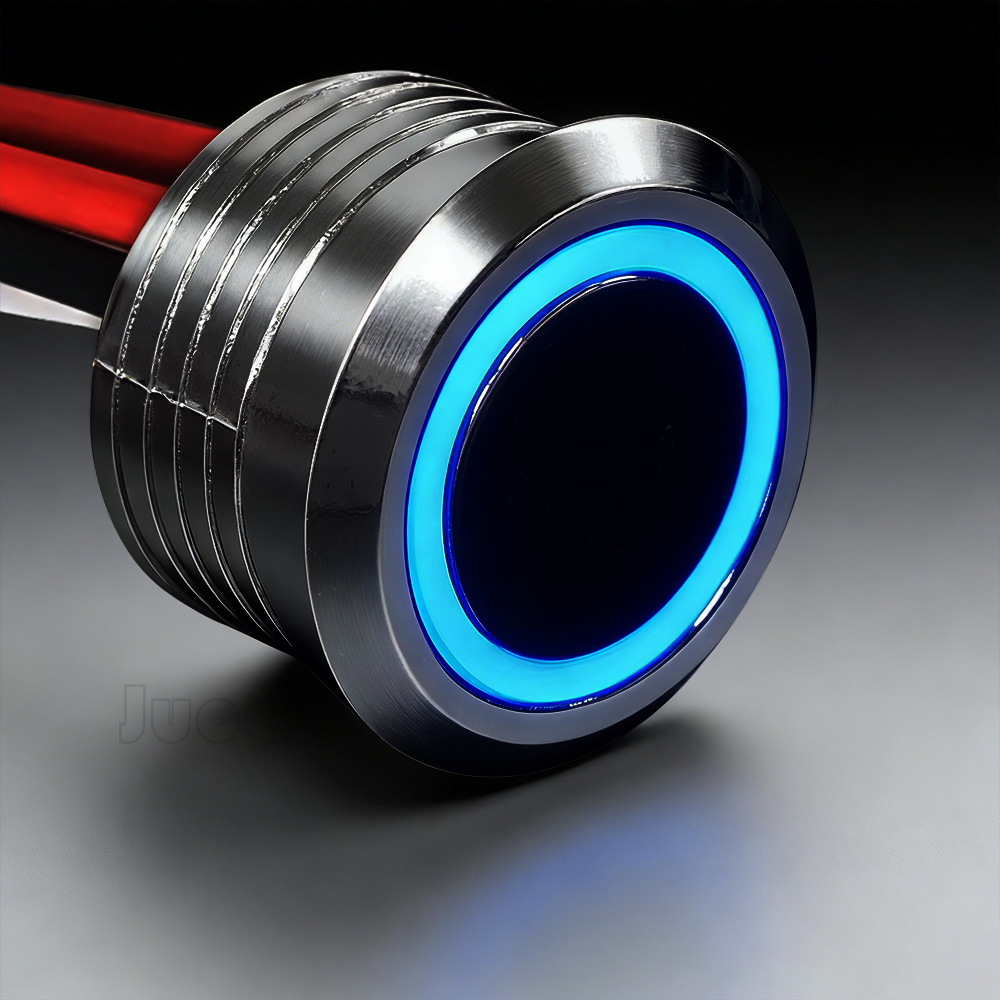

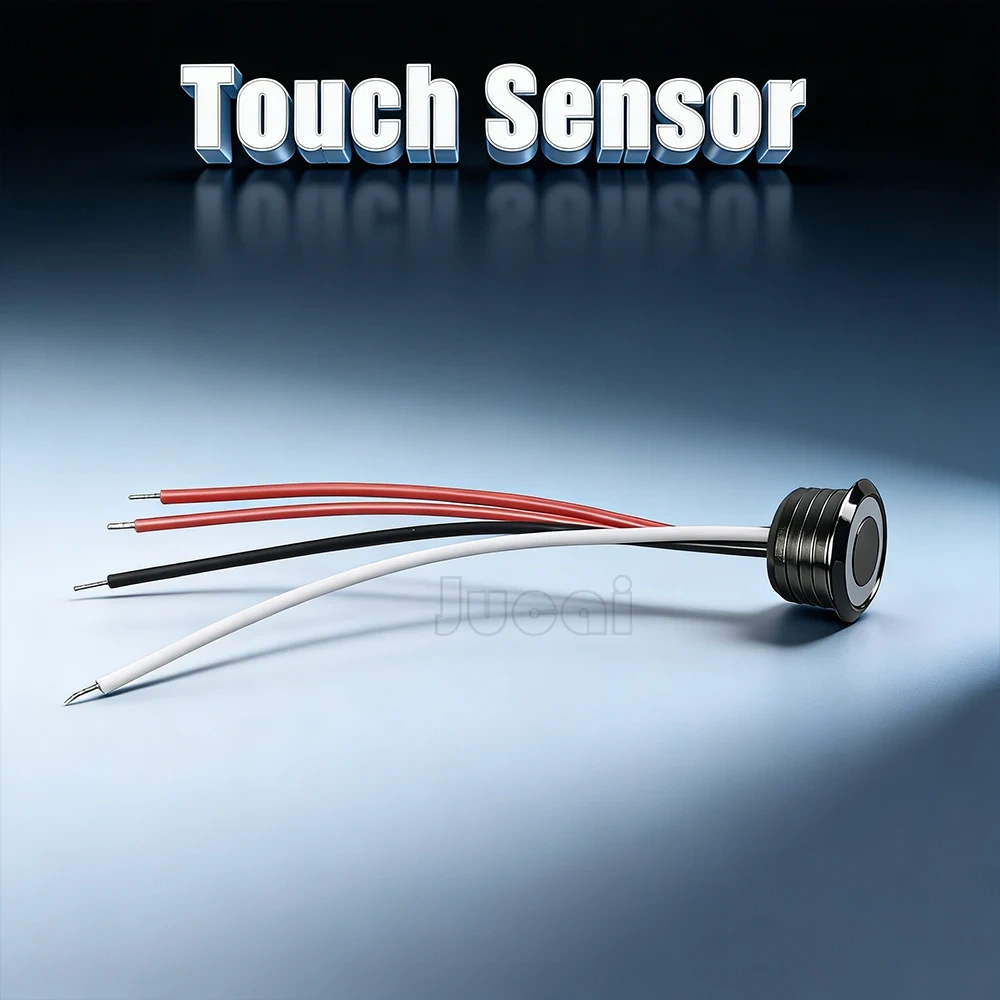

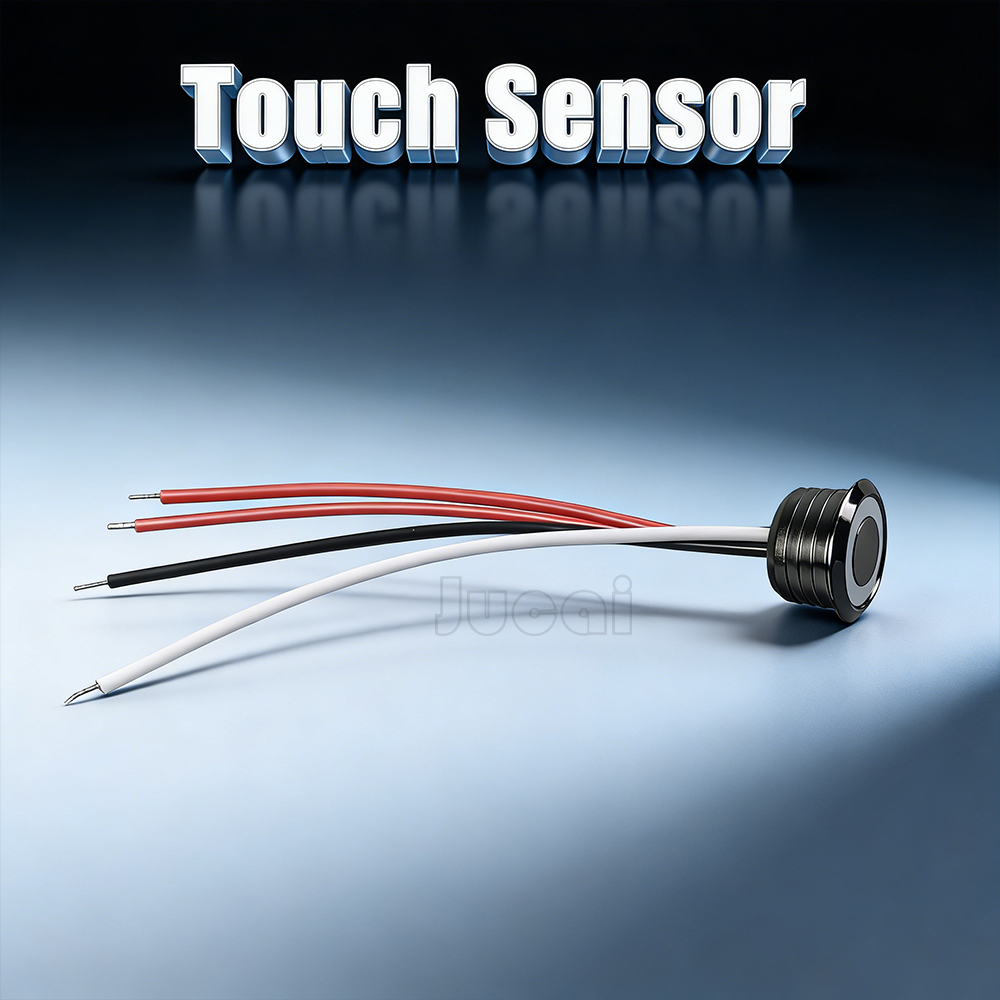

The USKYLED Touch Sensor LED Dimmer Switch is a compact low-voltage LED control solution designed for 5V–24V constant-voltage LED lighting systems.
It combines touch on/off control, smooth stepless dimming and dual memory functions in one compact switch. The controller is particularly suitable for LED strip lighting, cabinet lighting, furniture lighting, wardrobe lighting and bedside applications where users need convenient manual lighting control.
The switch supports short-touch and long-touch operation. A short touch turns the connected LED light on or off, while a long touch provides smooth and continuous dimming. The product also includes two memory modes and a two-touch indicator-light function.
Design

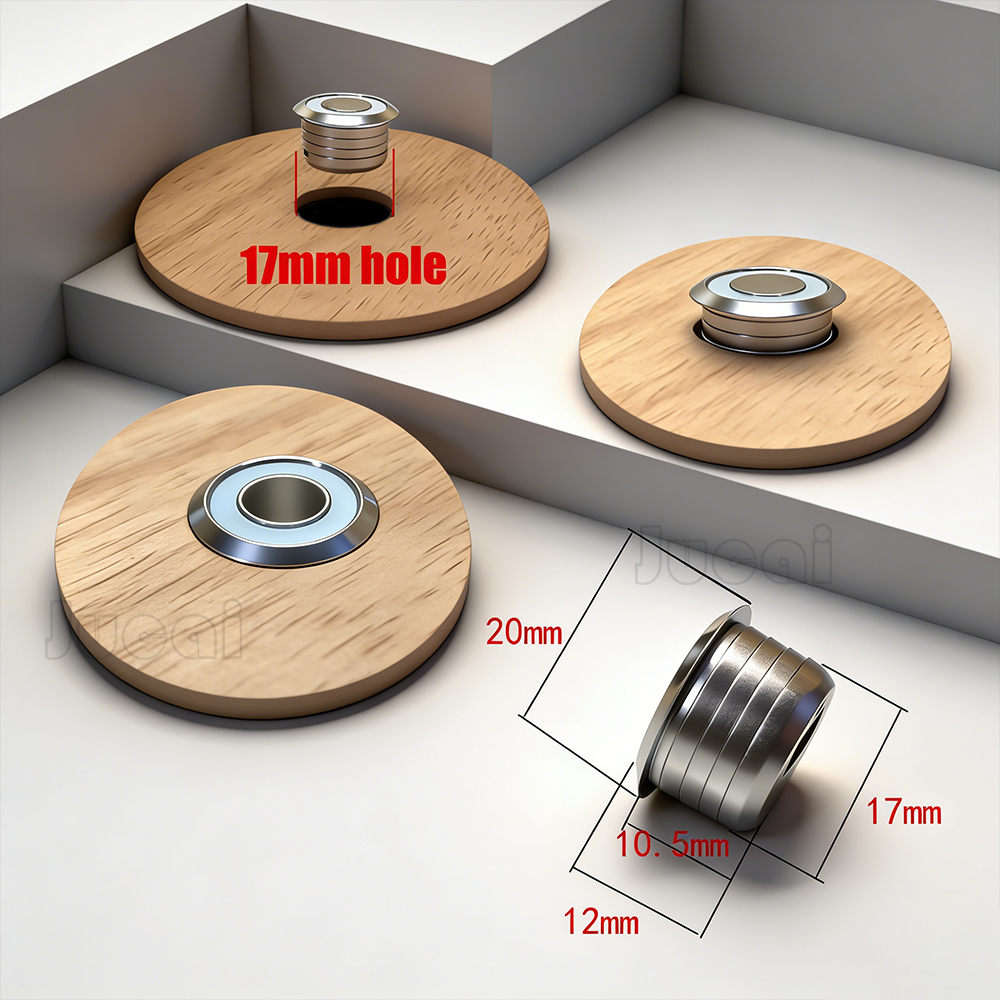

The touch sensor is designed for embedded installation, requiring a Ø17mm mounting hole.
Its compact touch-control format allows the switch to be integrated into:
- Cabinets
- Wardrobes
- Furniture
- Bedside panels
- Wall panels
- Shelving systems
- Custom LED lighting fixtures
The product is designed for low-voltage constant-voltage lighting and should be used with a compatible constant-voltage adapter, rather than a constant-current power supply.
Main Features

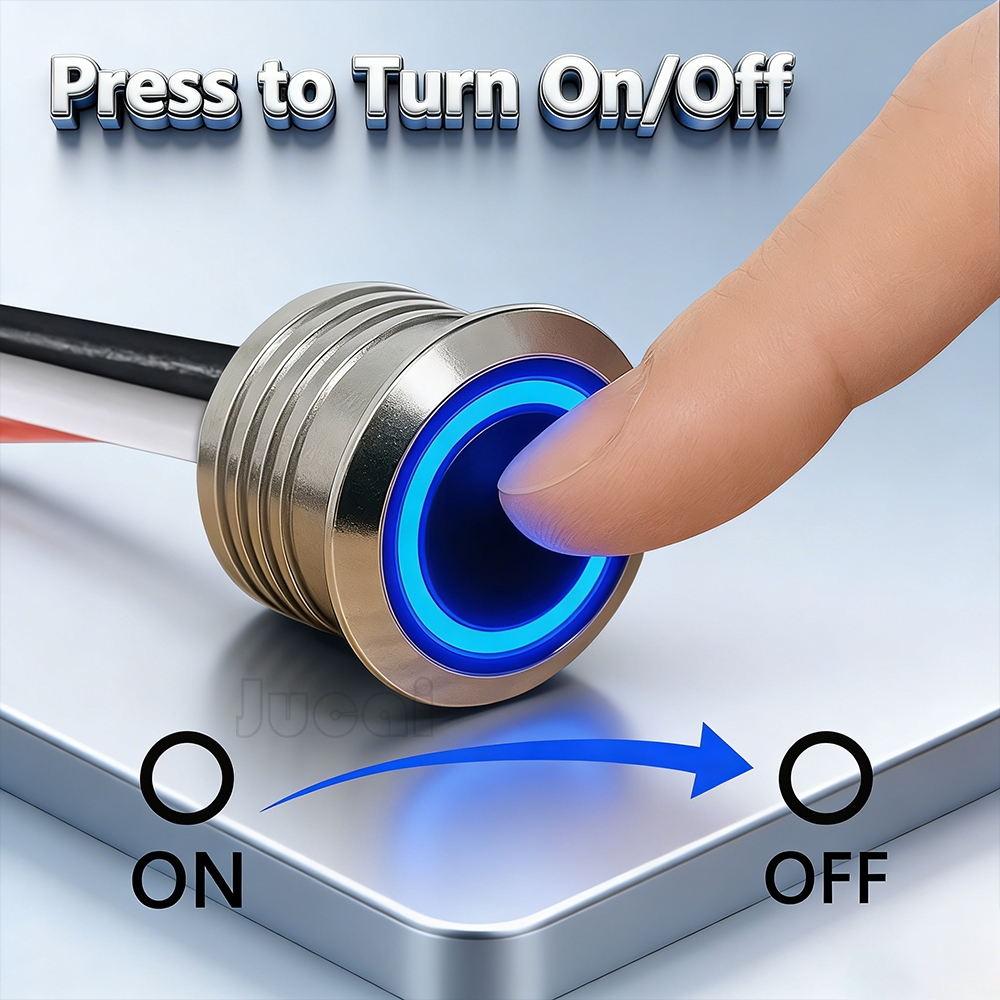

Touch On/Off Control
A short touch turns the connected LED lighting system on or off.

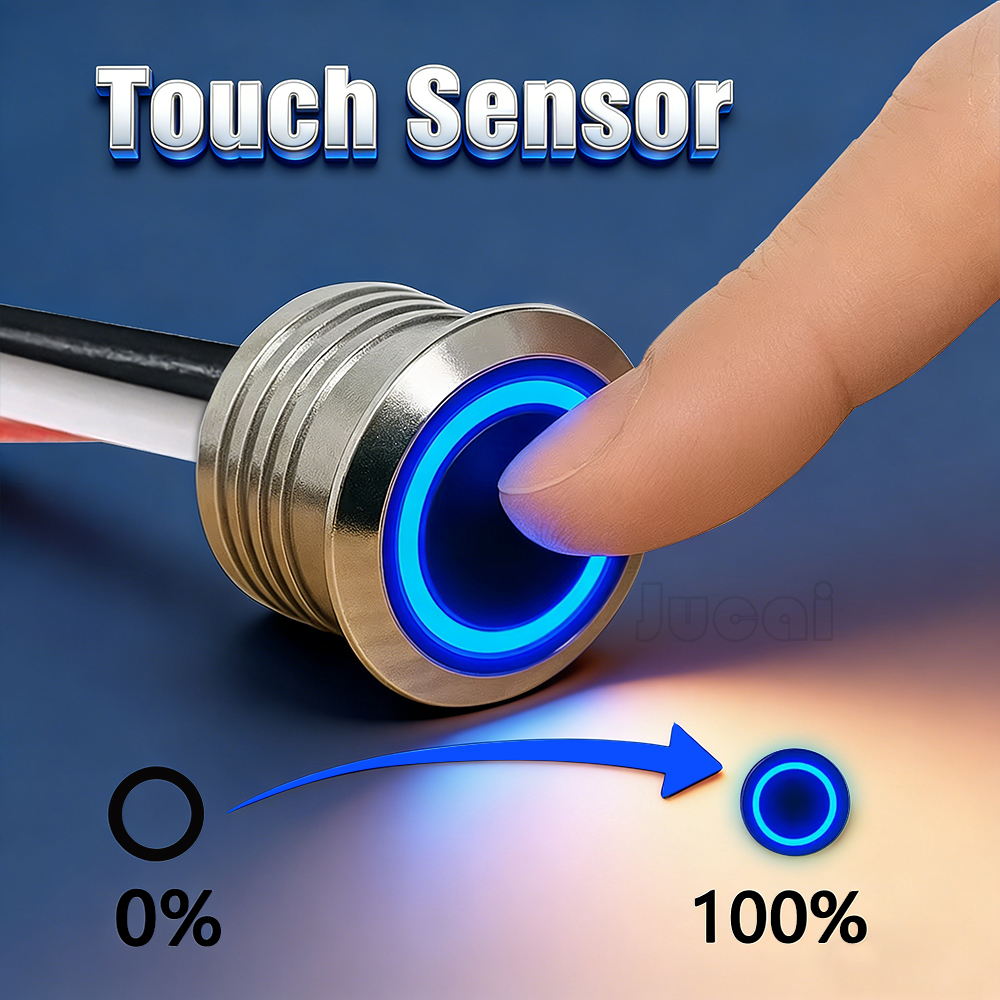

Stepless Dimming
A long touch provides smooth, continuous dimming, allowing users to adjust the brightness without fixed brightness steps.

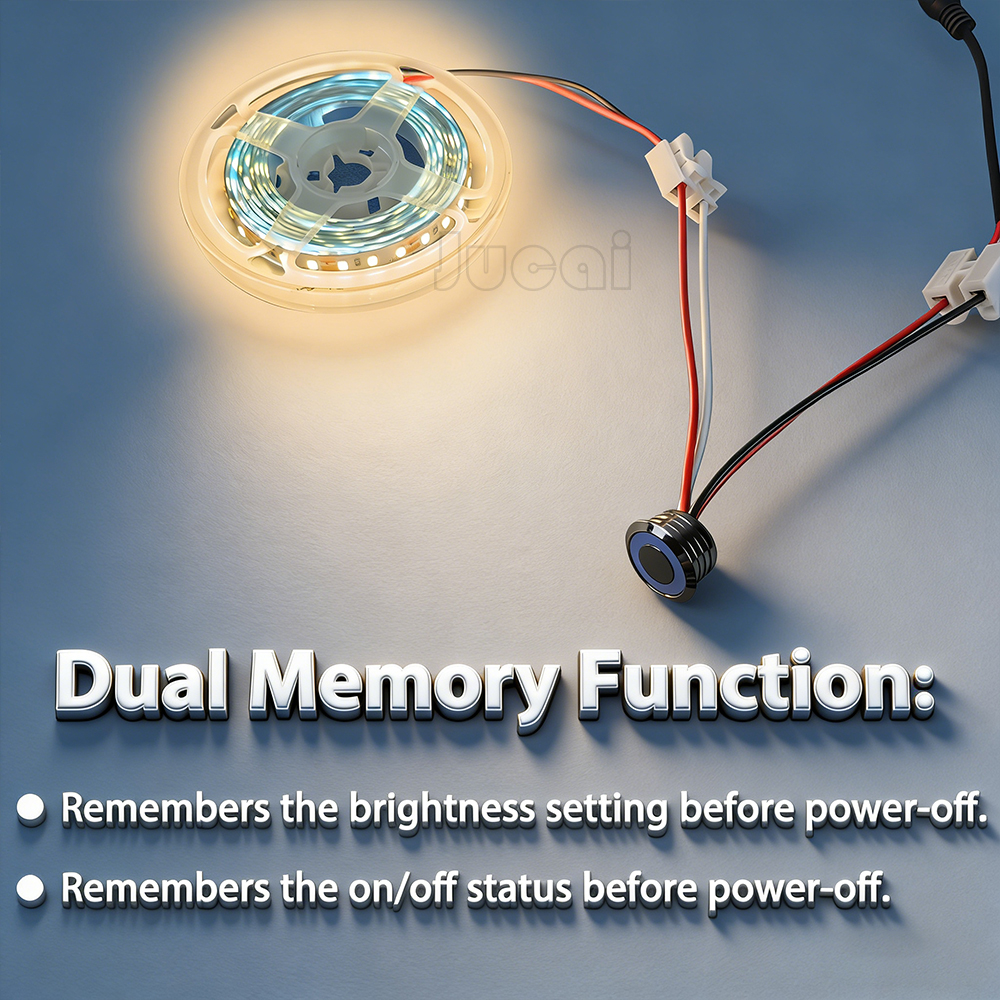

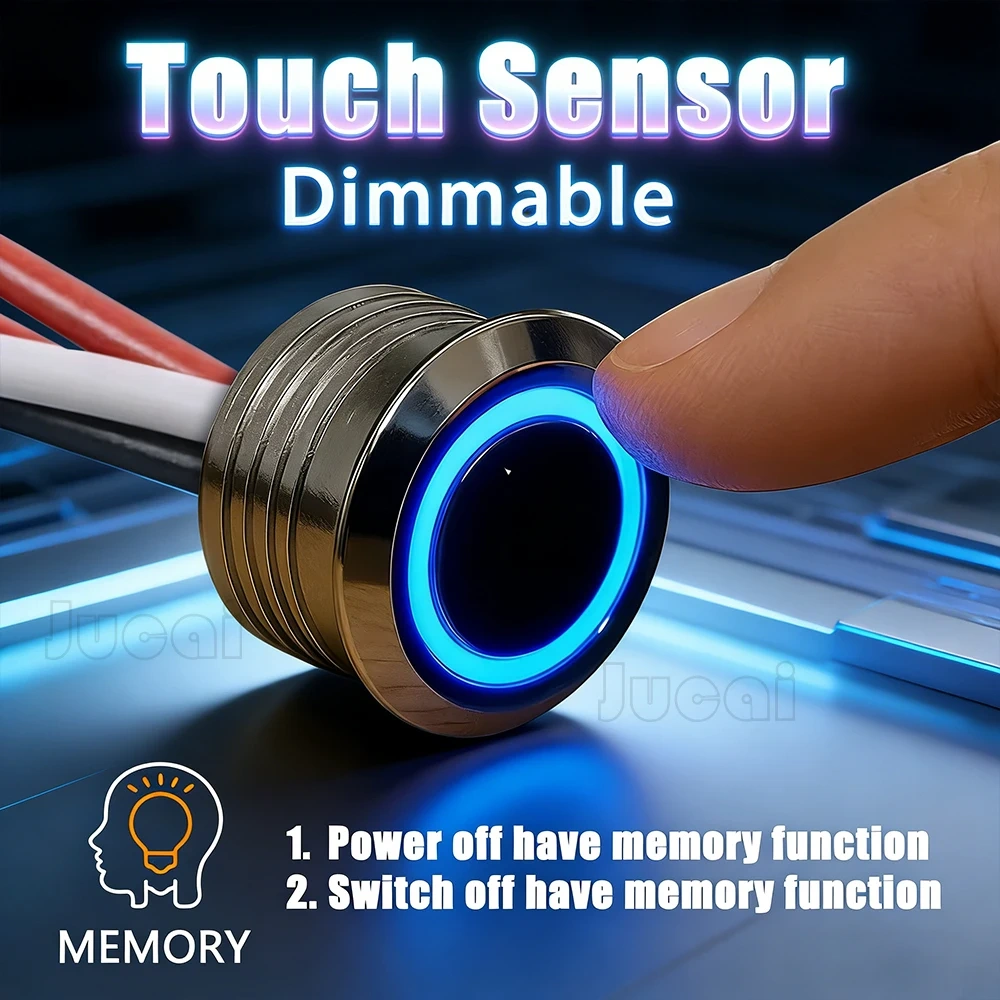

Dual Memory Function

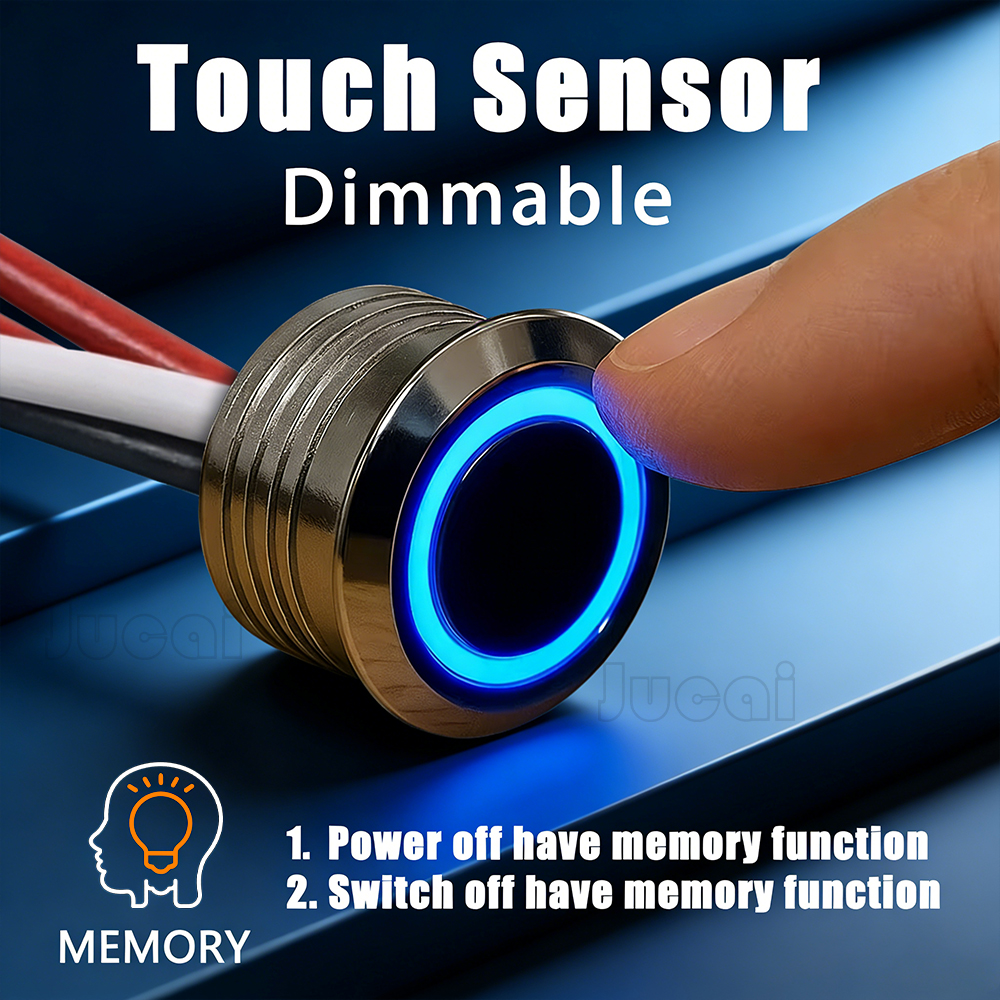

The controller provides two memory modes:
- Power-off memory
- Switch-off memory
This allows the lighting system to retain the appropriate lighting state according to the selected memory mode.
5V–24V Low-Voltage Compatibility
The controller is designed for DC 5–24V constant-voltage LED systems, covering common low-voltage LED applications.

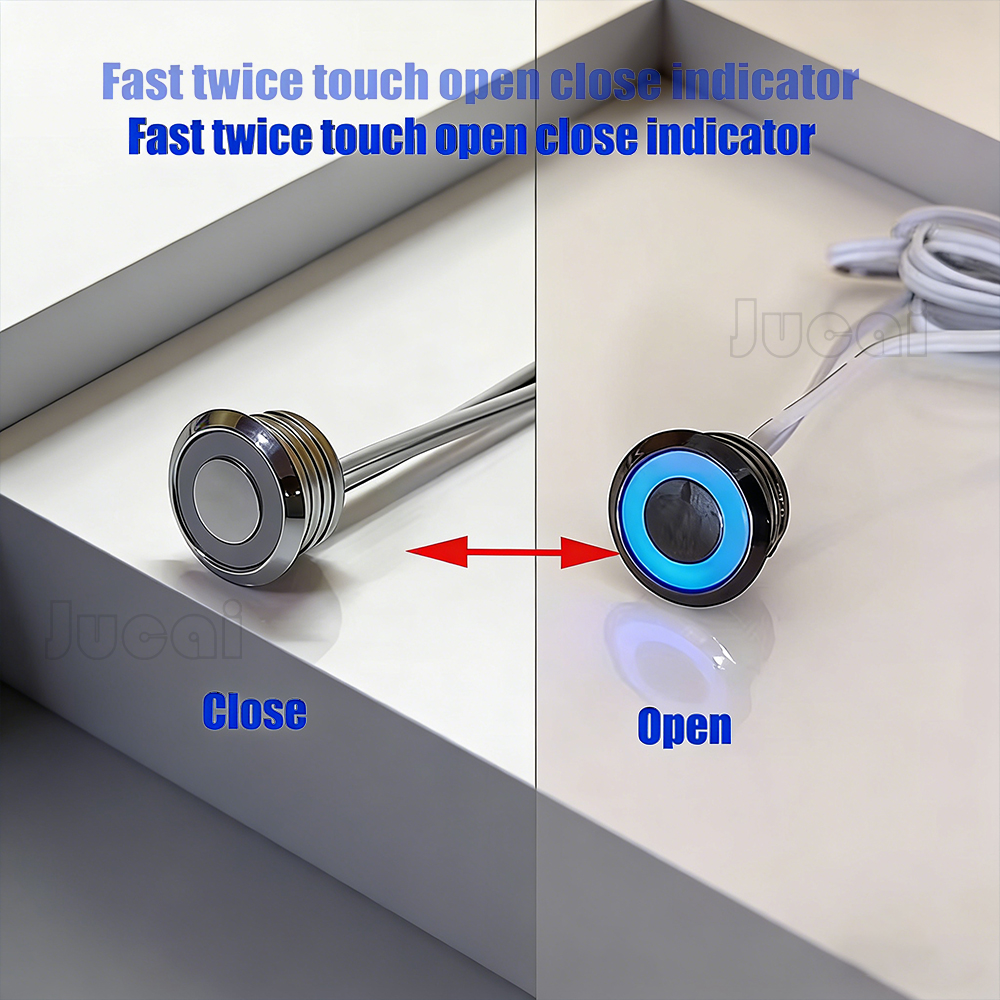

Indicator Light Control
The indicator light can be turned on or off with two quick touches, providing additional flexibility during product integration.
Multiple Power Options
The page lists maximum power ratings according to operating voltage:
- 5V: <15W
- 12V: <30W
- 24V: <40W
The product page also contains a 3.7V specification of <9W, but because the same specification section states DC 5–24V working voltage, this 3.7V figure should be verified with the supplier before publishing it as a supported operating voltage.

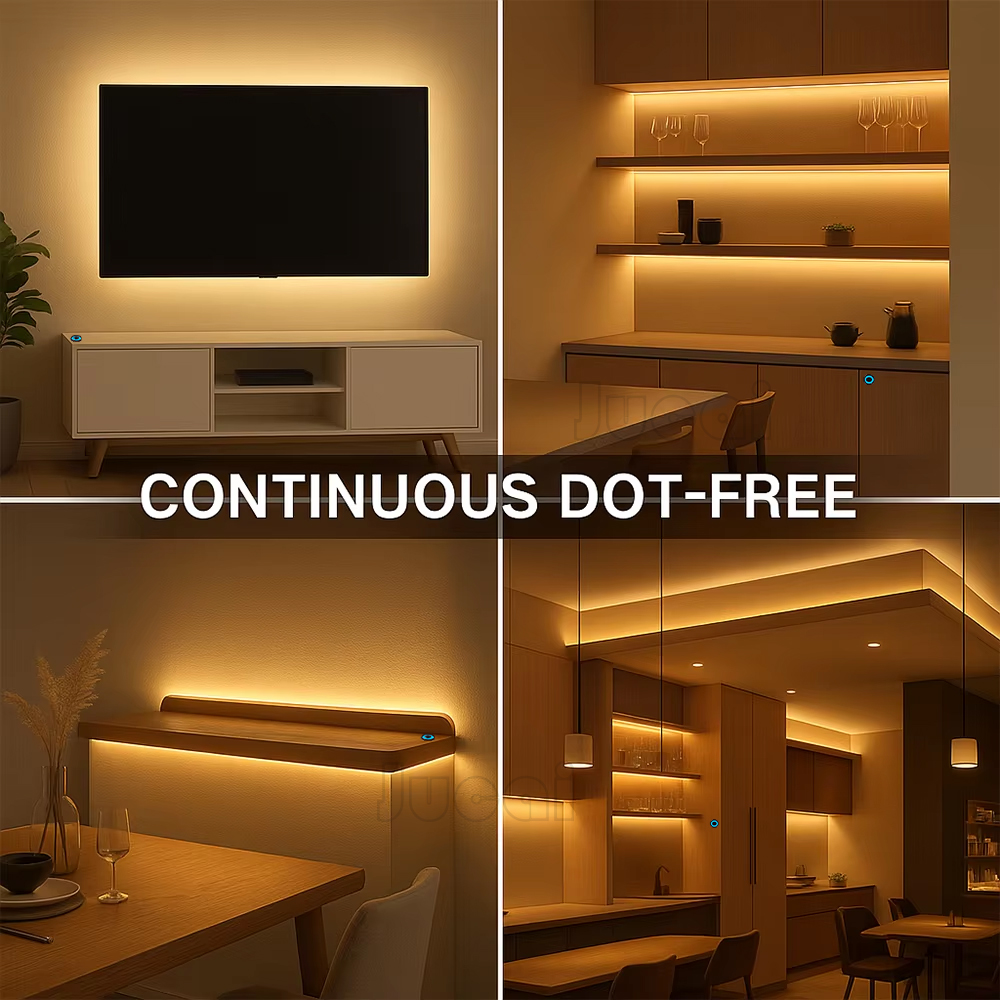

Application
The Touch Sensor LED Dimmer Switch is suitable for:
- LED strip lighting
- Cabinet lighting
- Wardrobe lighting
- Furniture lighting
- Bedside lighting

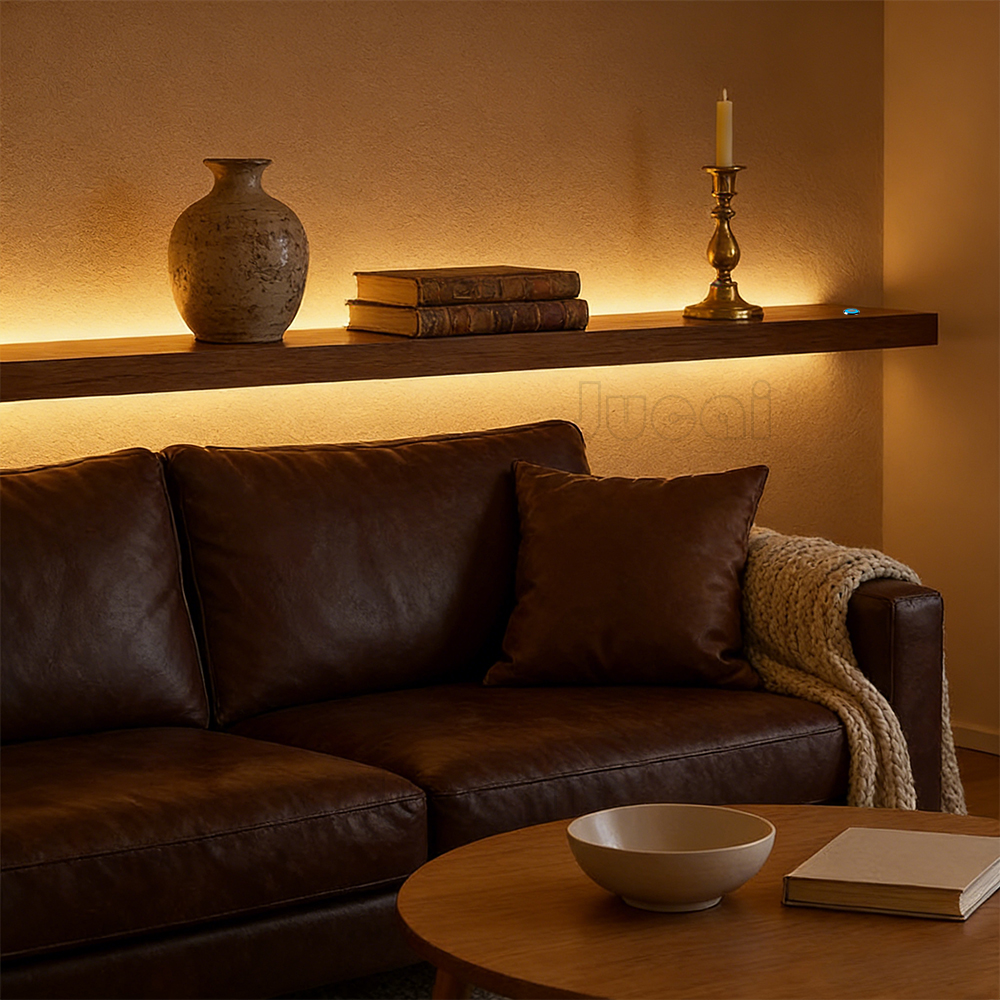

- Shelf lighting
- Kitchen cabinet lighting
- Bedroom lighting
- Display furniture
- Decorative interior lighting
- Custom LED fixtures
It is especially useful for furniture and cabinet applications where users need a simple touch interface without installing a conventional wall switch.
Size / Options
The current product specification identifies a required:
Cutout Diameter: Ø17mm

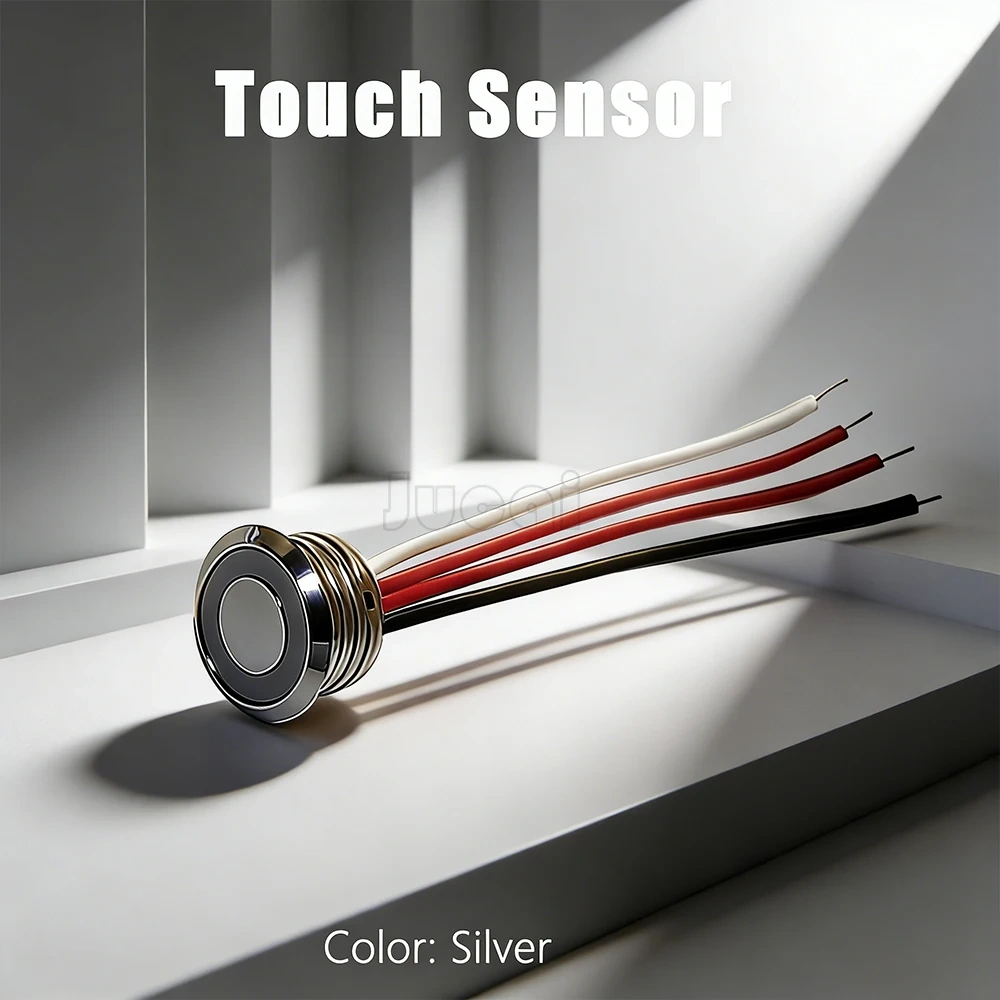

The product page also shows two color options:
These options allow the switch to better match different furniture and interior finishes.
| Option |
Details |
| Working Voltage |
DC 5–24V |
| Installation |
Ø17mm Cutout |
| Color Option |
Silver / Brown |
| Control |
Touch Sensor |
| Dimming |
Stepless |
| Memory |
Dual Memory |
Lighting Options
This product is a low-voltage LED dimmer switch, rather than a standalone LED light.
It can be used to control compatible constant-voltage:
- Single-color LED strips
- Cabinet LED strips
- Furniture LED lighting
- Wardrobe LED lighting
- Bedside LED lighting
- Shelf LED lighting
- Linear LED lighting
The connected LED lighting system should match the controller's DC 5–24V constant-voltage requirement.
Installation
The controller is designed for embedded touch-sensor installation.
Recommended installation process:
- Confirm that the LED lighting system uses DC 5–24V constant voltage.
- Select a suitable constant-voltage LED power adapter.
- Prepare a Ø17mm mounting hole.
- Install the touch sensor into the mounting position.
- Connect the controller to the LED power supply and compatible LED load.
- Check the polarity and wiring before powering the system.
- Test short-touch on/off operation.
- Test long-touch stepless dimming.
- Configure the desired memory mode.
- Test the indicator-light function if required.
Important: The product page explicitly states that the controller is compatible with constant-voltage adapters and not compatible with constant-current adapters.
Technical Specifications
| Specification |
Details |
| Product Type |
Touch Sensor LED Dimmer Switch |
| Working Voltage |
DC 5–24V |
| Power Type |
Constant Voltage |
| 5V Maximum Power |
<15W |
| 12V Maximum Power |
<30W |
| 24V Maximum Power |
<40W |
| Control Method |
Touch Sensor |
| Short Touch |
ON / OFF |
| Long Touch |
Stepless Dimming |
| Memory Function |
Dual Memory |
| Memory Mode 1 |
Power-Off Memory |
| Memory Mode 2 |
Switch-Off Memory |
| Indicator Light |
ON / OFF via Two Quick Touches |
| Cutout Diameter |
Ø17mm |
| Color Options |
Silver / Brown |
| Application |
LED Strip / Cabinet / Furniture Lighting |
| Constant Current Adapter |
Not Compatible |
| MOQ |
1 Piece |
| Sample Lead Time |
3–7 Days |
| Mass Order Lead Time |
7–15 Days |
| OEM/ODM |
Available |
Project Applications

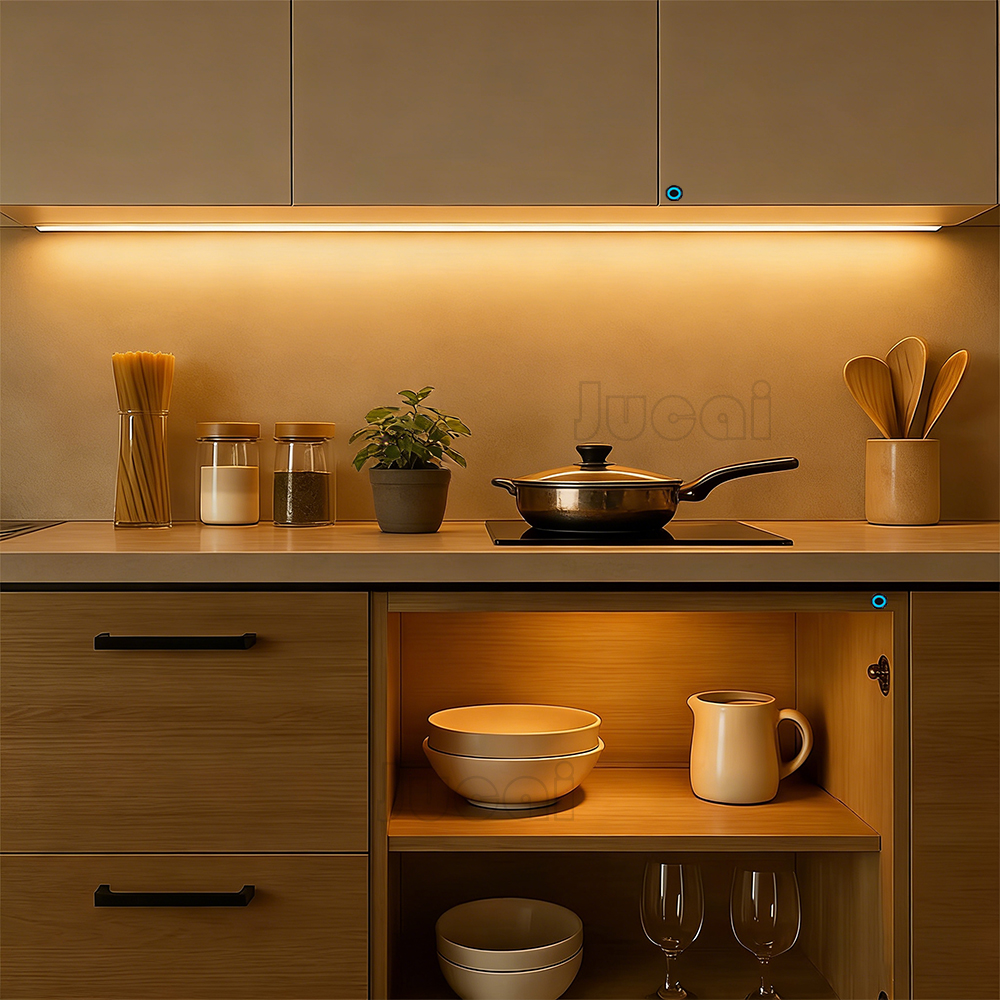

Kitchen Cabinet Lighting
The touch dimmer can be integrated into under-cabinet LED strips for convenient lighting control without a traditional wall switch.
Wardrobe Lighting
The compact Ø17mm touch sensor is suitable for furniture and wardrobe lighting systems where a discreet control interface is required.
Bedroom & Bedside Lighting
The switch can provide convenient on/off and dimming control for bedside LED strips and furniture lighting.
Furniture Lighting
Furniture manufacturers can integrate the touch sensor into cabinets, shelves, display units and custom furniture products.
Commercial Display Lighting
The controller can be used for display furniture, retail cabinets and other low-voltage LED lighting applications.
Custom Lighting Projects
Its low-voltage design and embedded installation format make it suitable for customized LED lighting systems.
OEM/ODM
USKYLED supports OEM and ODM LED control solutions for:
- Cabinet lighting manufacturers
- Furniture manufacturers
- LED lighting brands
- Lighting distributors
- Wholesalers
- Project contractors
- Interior lighting companies
OEM/ODM discussions can cover:
- Product color
- Branding
- Packaging
- Cable configuration
- Connector requirements
- Product labeling
- Customized furniture lighting systems
- Project-specific requirements
For bulk projects, customers can provide the LED strip voltage, wattage, installation method and application requirements so USKYLED can recommend the appropriate configuration.
Mass Order & Sample Lead Time
Mass Order Lead Time: 7–15 Days
Sample Order Lead Time: 3–7 Days
MOQ: 1 Piece
The 1-piece MOQ allows customers to test the touch dimmer before placing a larger order.
Suitable for:
- Product development
- Prototype testing
- Furniture lighting testing
- Cabinet lighting samples
- Project evaluation
- Pre-production testing
