Product Introduction
USKYLED Smart LED Grille Downlight combines a recessed architectural design with flexible smart lighting control for commercial and residential applications.
The fixture is designed with an aluminum housing and SMD LED light source to provide efficient and stable illumination. Depending on the selected configuration, the product supports Tuya Bluetooth, Zigbee 3.0 or DALI DT8 control, allowing lighting systems to be integrated into different smart building and lighting management environments.
The grille-style optical structure provides a clean, directional lighting appearance while helping control direct glare. The product is available in 10W, 20W and 30W versions, with black or white housing options.
For projects requiring adjustable color temperature, the smart versions support a tunable range from 2700K to 6500K. The non-smart version provides 5 selectable CCT settings: 2700K, 3000K, 4000K, 5000K and 6500K.
This flexibility makes the product suitable for hotels, retail stores, offices, restaurants, showrooms, residential interiors and other architectural lighting projects.
Design
The smart LED grille downlight uses a recessed linear grille structure with a minimalist aluminum housing.

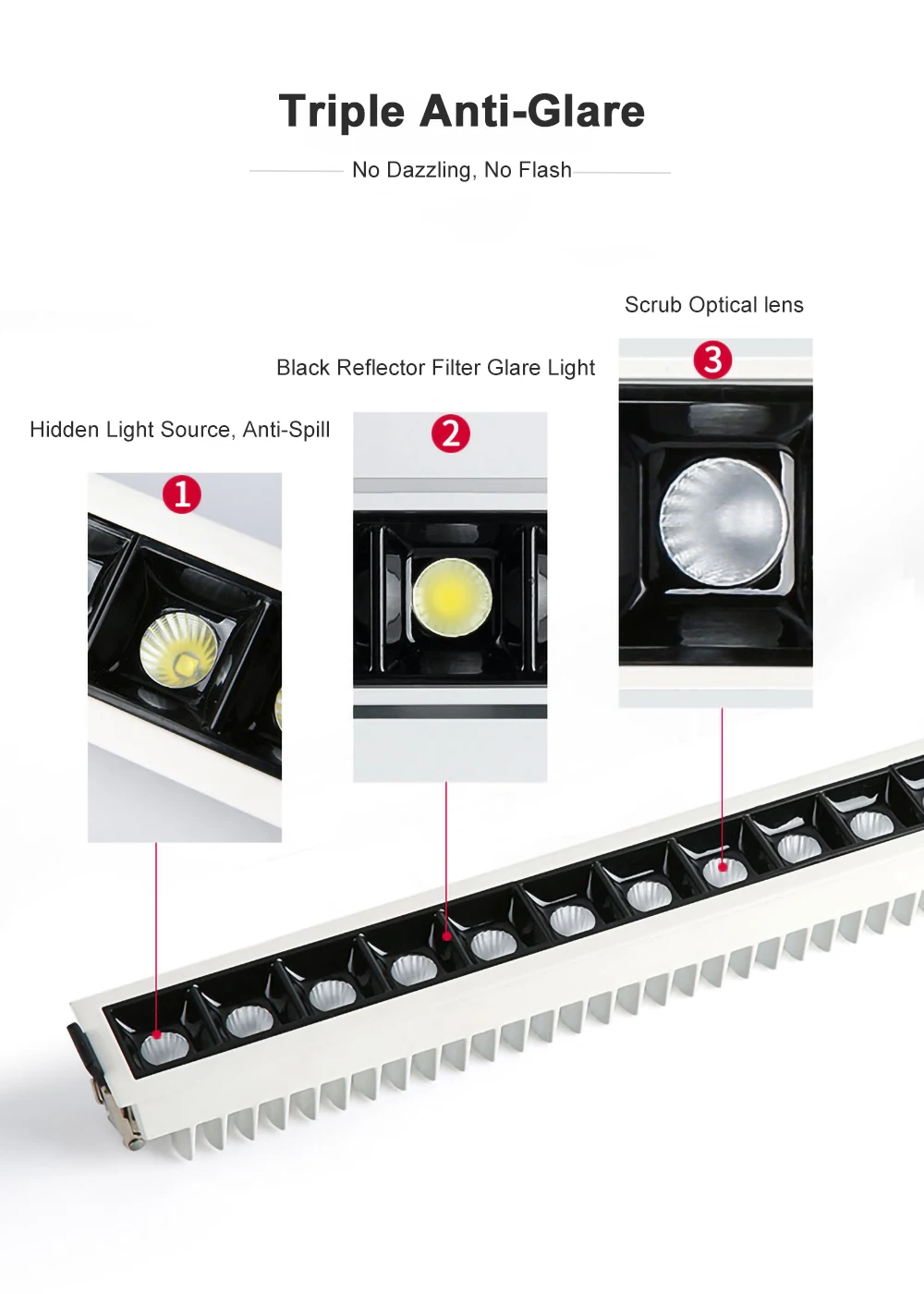

The recessed installation creates a clean ceiling appearance while the grille optical design helps control the direction of light and reduce direct visual discomfort.

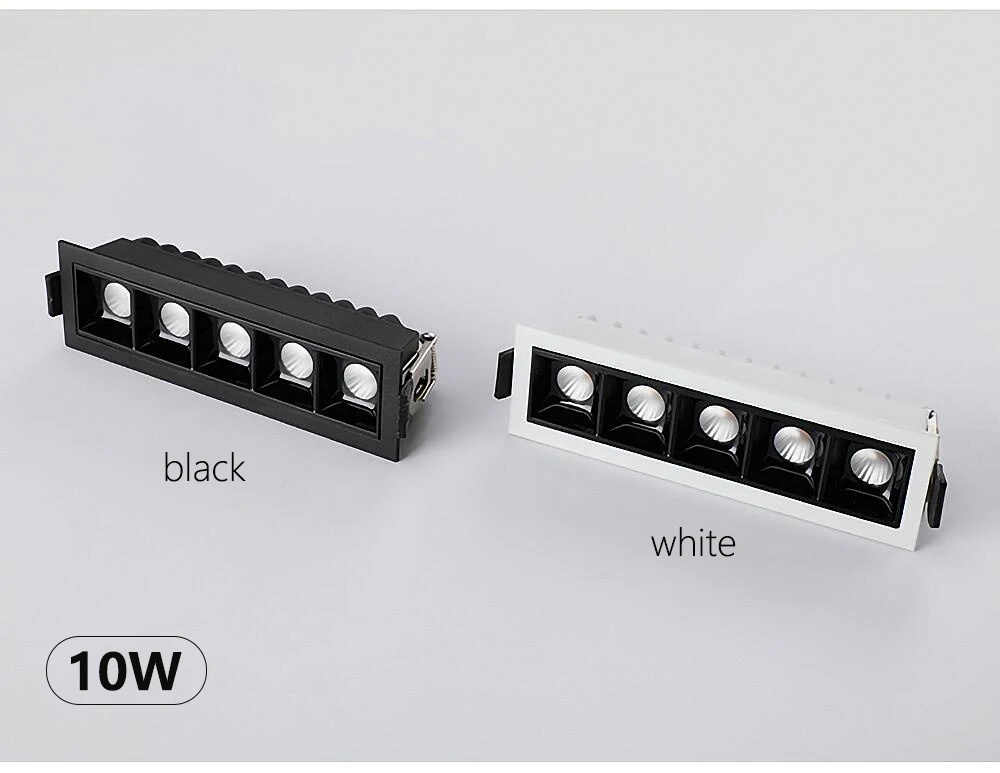

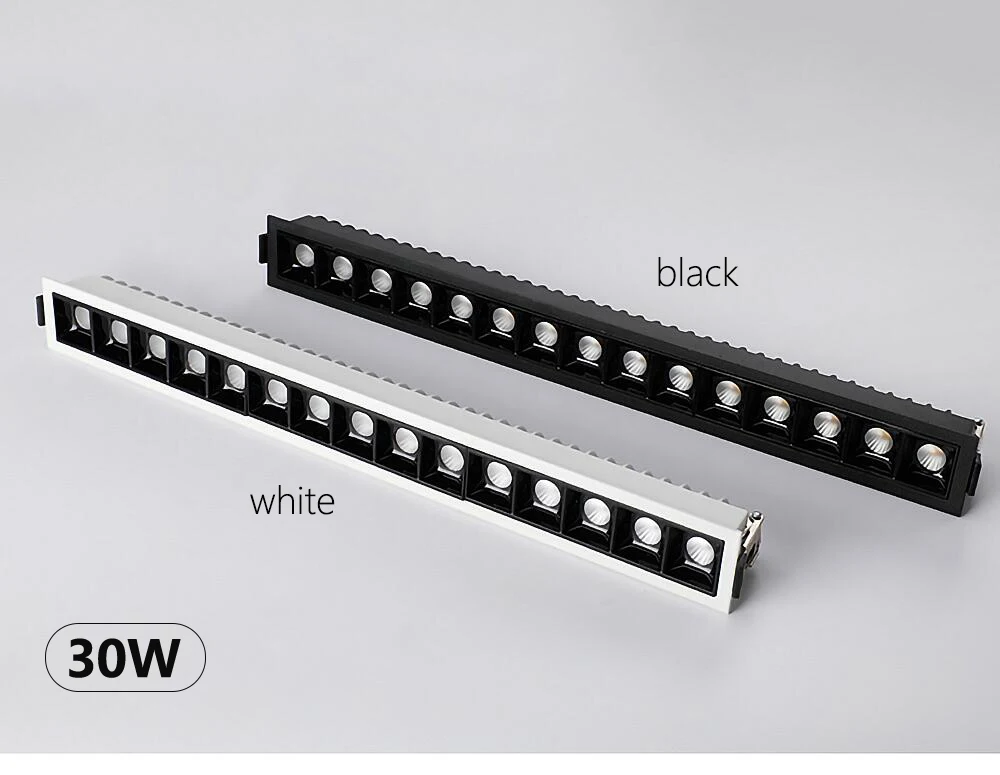

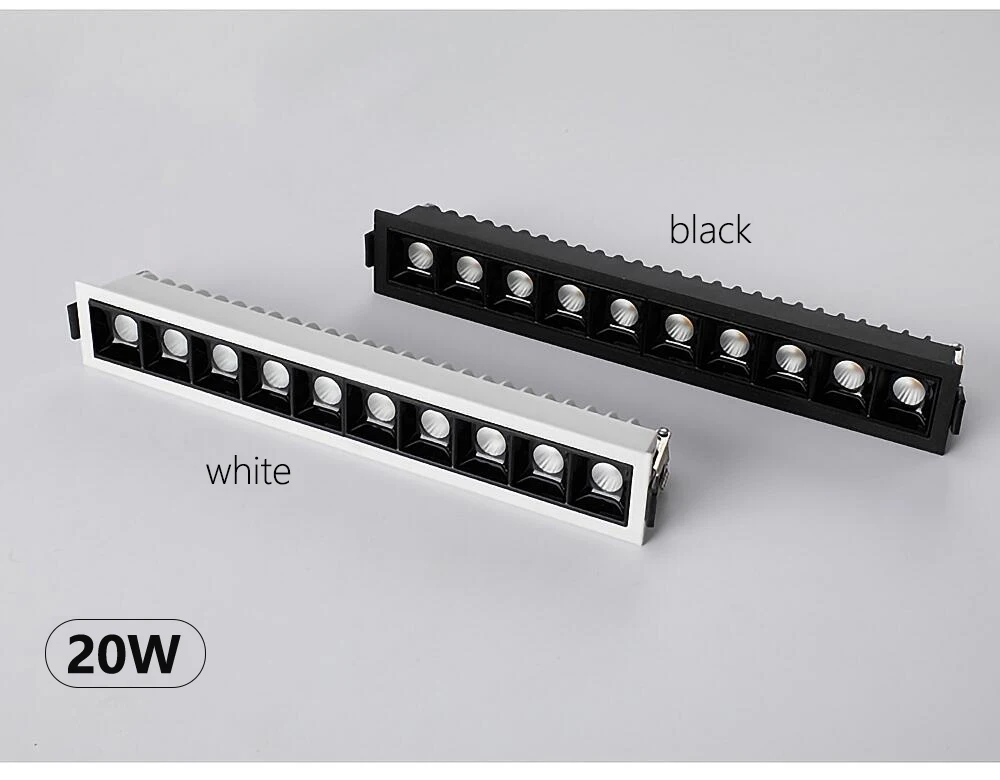

Housing Options
Housing Material
The aluminum body also helps provide efficient heat dissipation for long-term indoor lighting applications.
Main Features

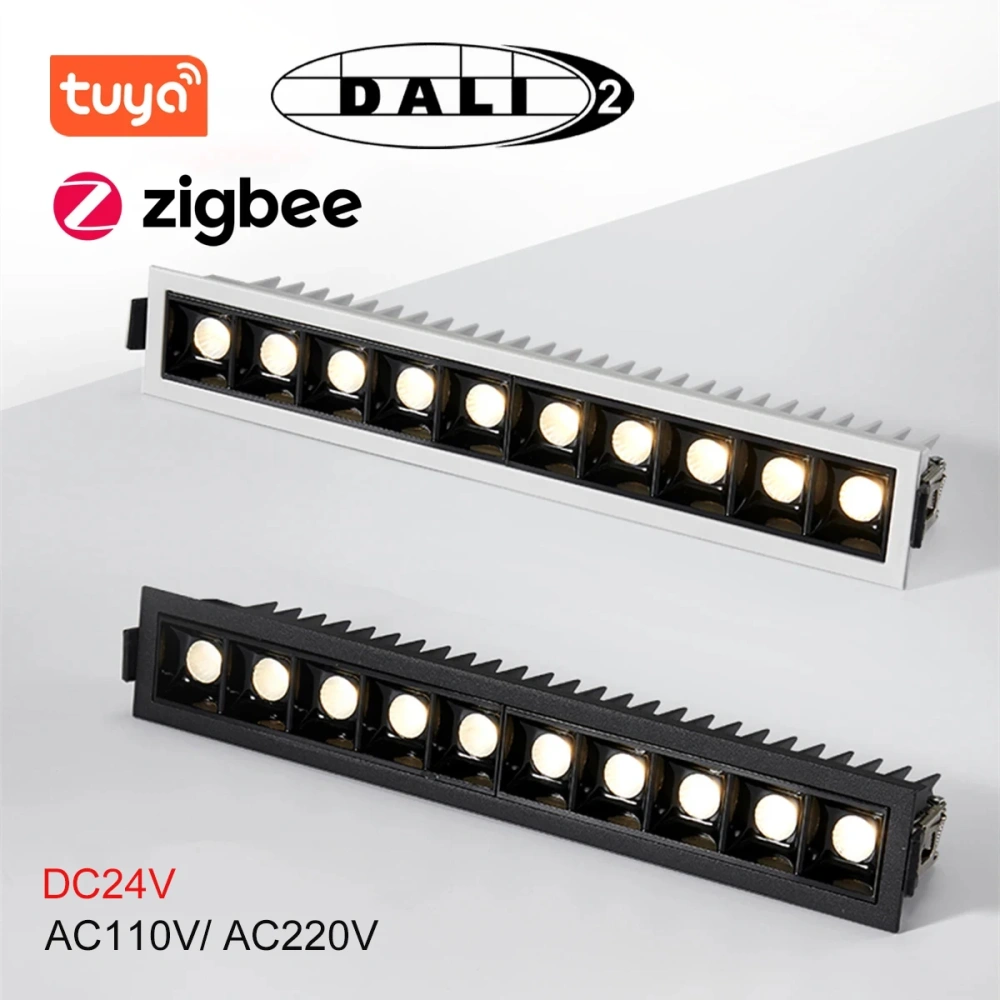

Multiple Smart Control Options
The product is available with different control configurations:
- Tuya Bluetooth / BLE
- Zigbee 3.0
- DALI DT8
- 5 CCT non-smart version

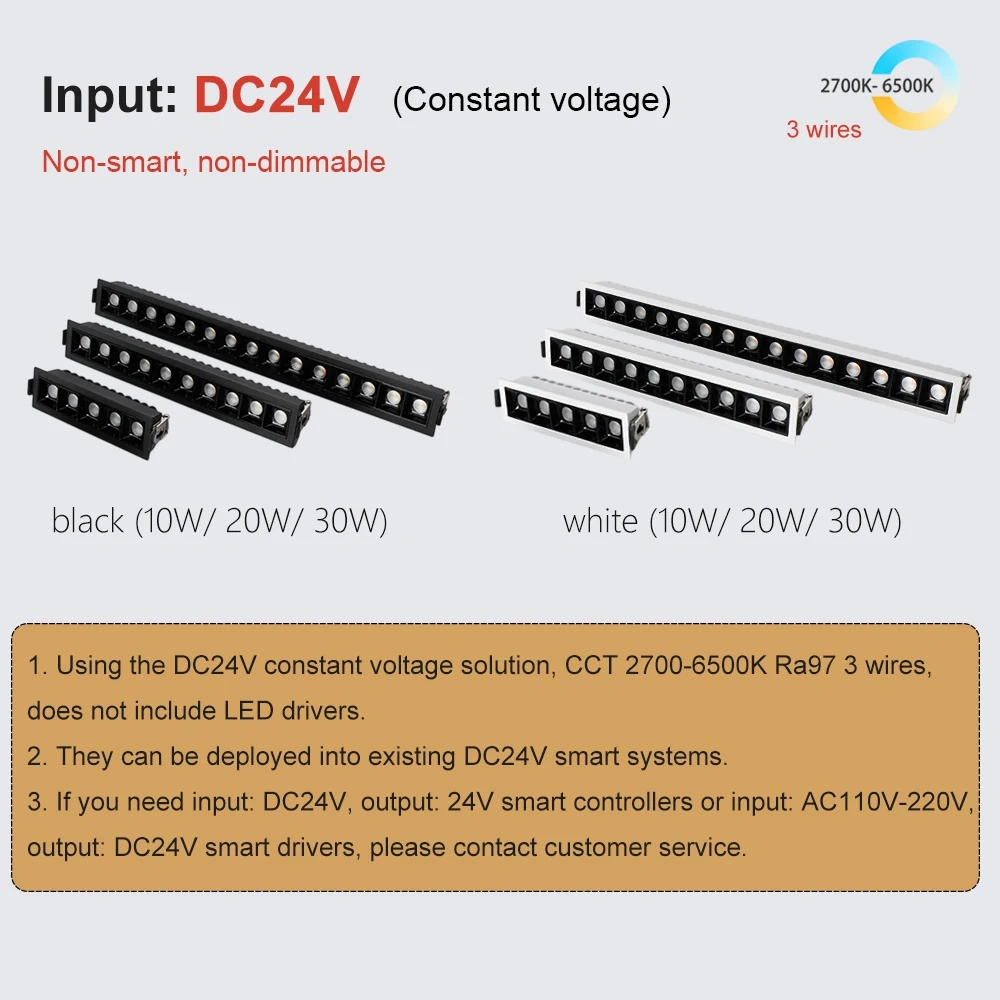

- DC24V constant-voltage version

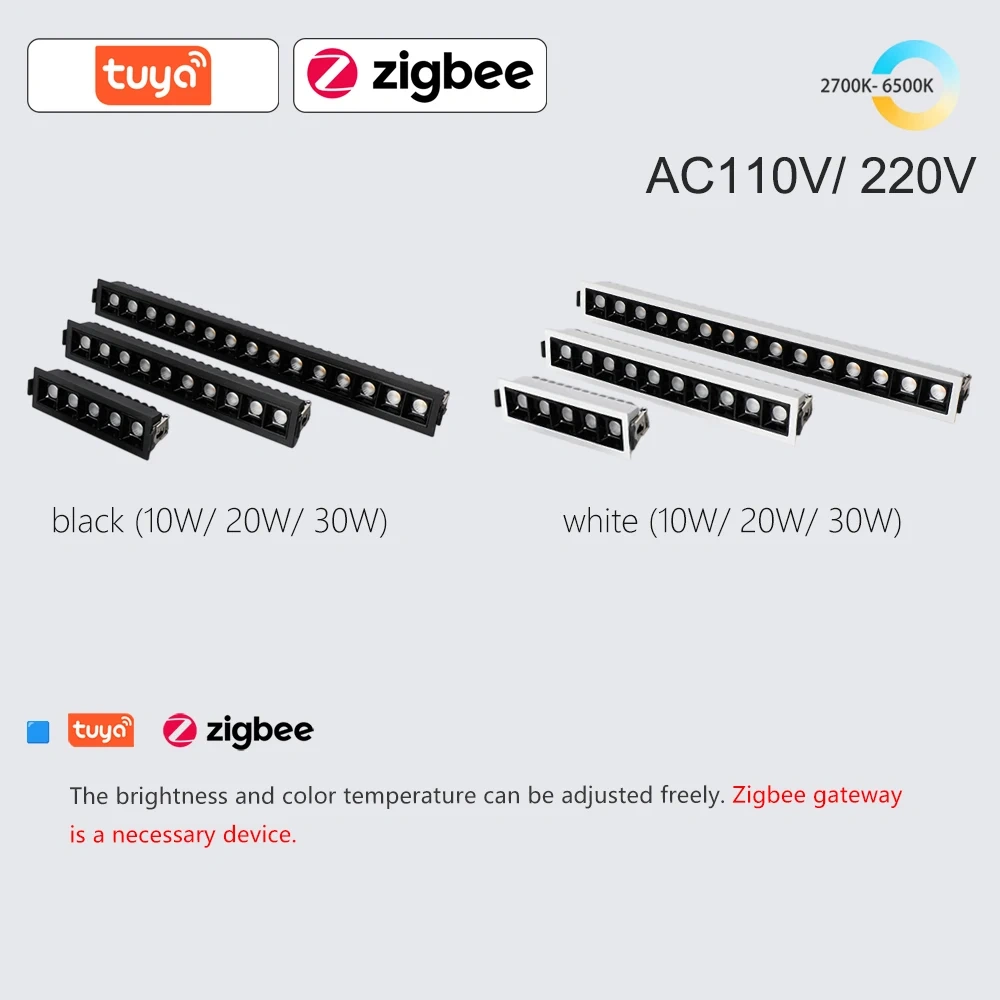

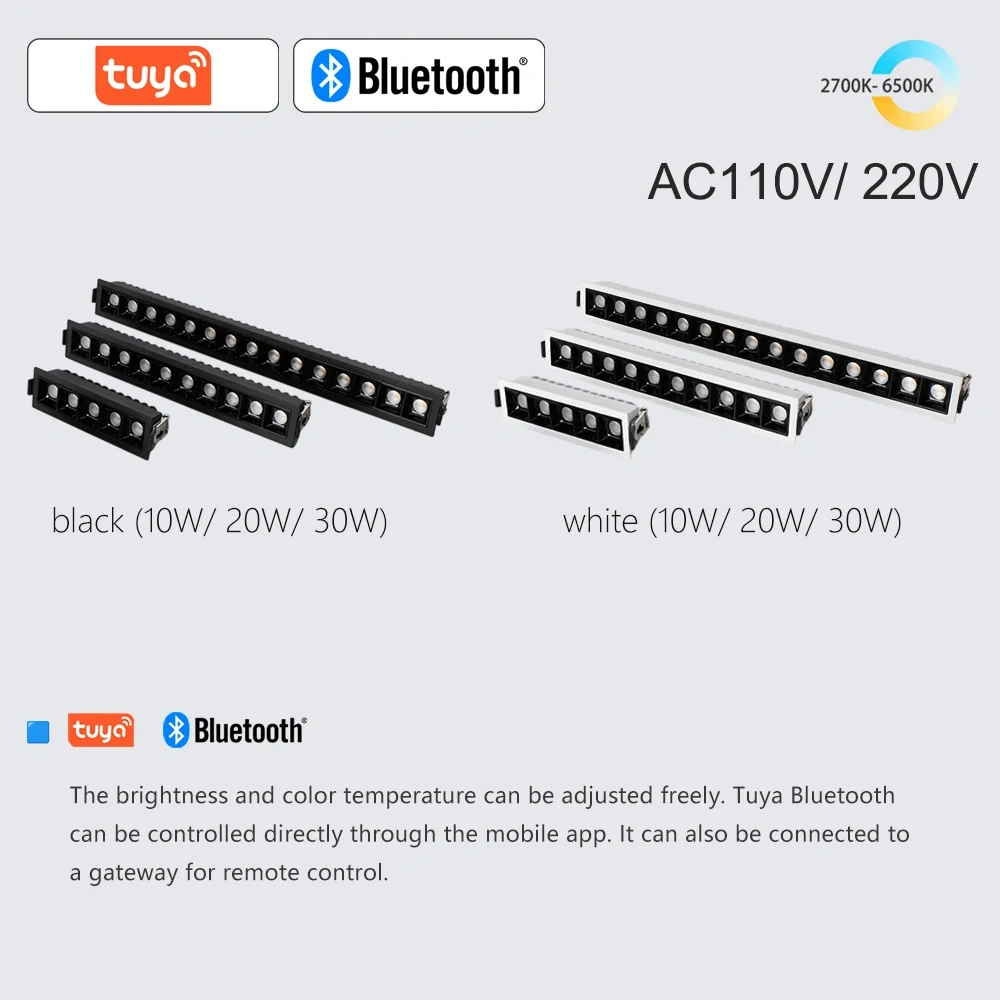

Tuya BLE versions can connect with the Tuya ecosystem for lighting control.
Zigbee 3.0 versions can be integrated with a compatible Zigbee gateway.

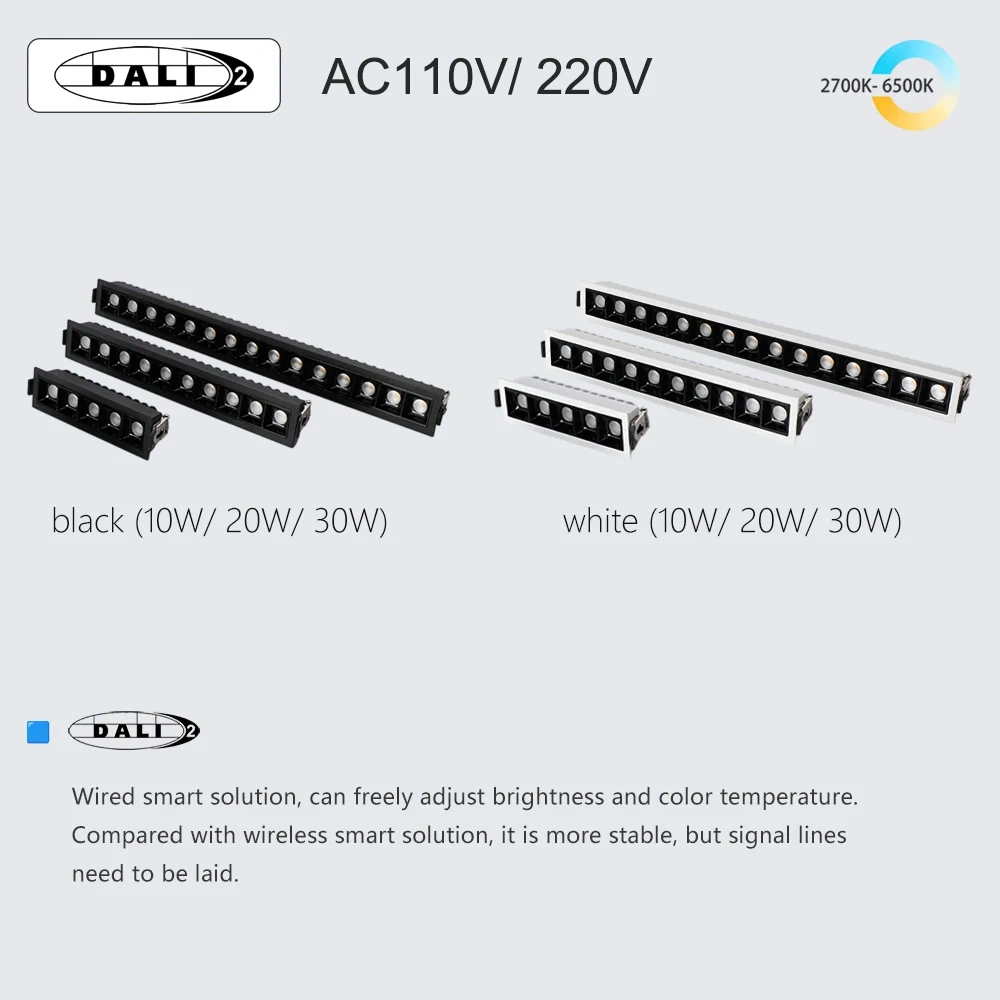

DALI DT8 versions are designed for professional wired lighting control systems and support independent adjustment of brightness and color temperature.
Dimmable Lighting
The smart Tuya, Zigbee and DALI versions support adjustable brightness.
Depending on the selected control system, users can adjust lighting levels to suit different activities and spaces.
The non-smart 5 CCT version is designed for fixed color-temperature selection rather than smart dimming.

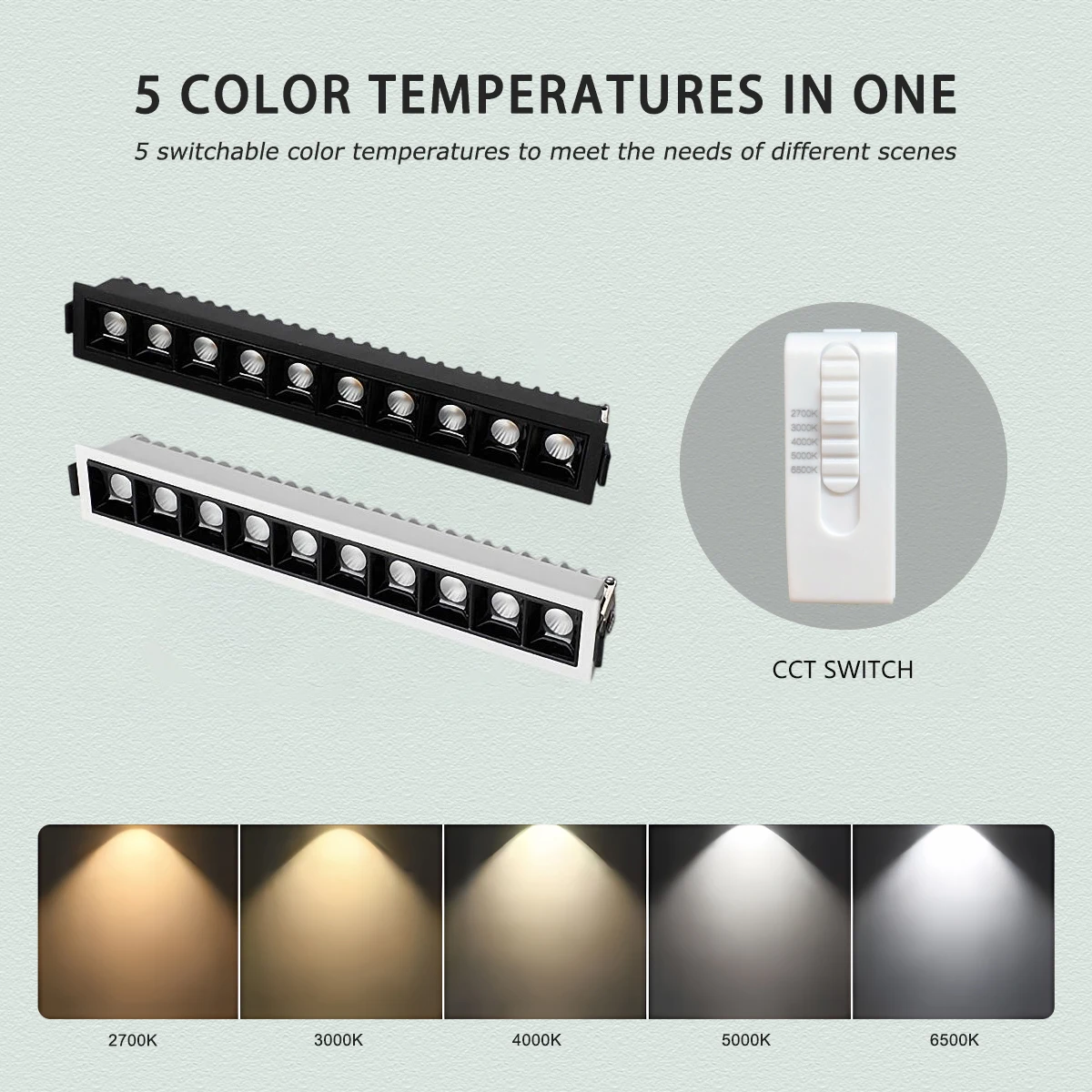

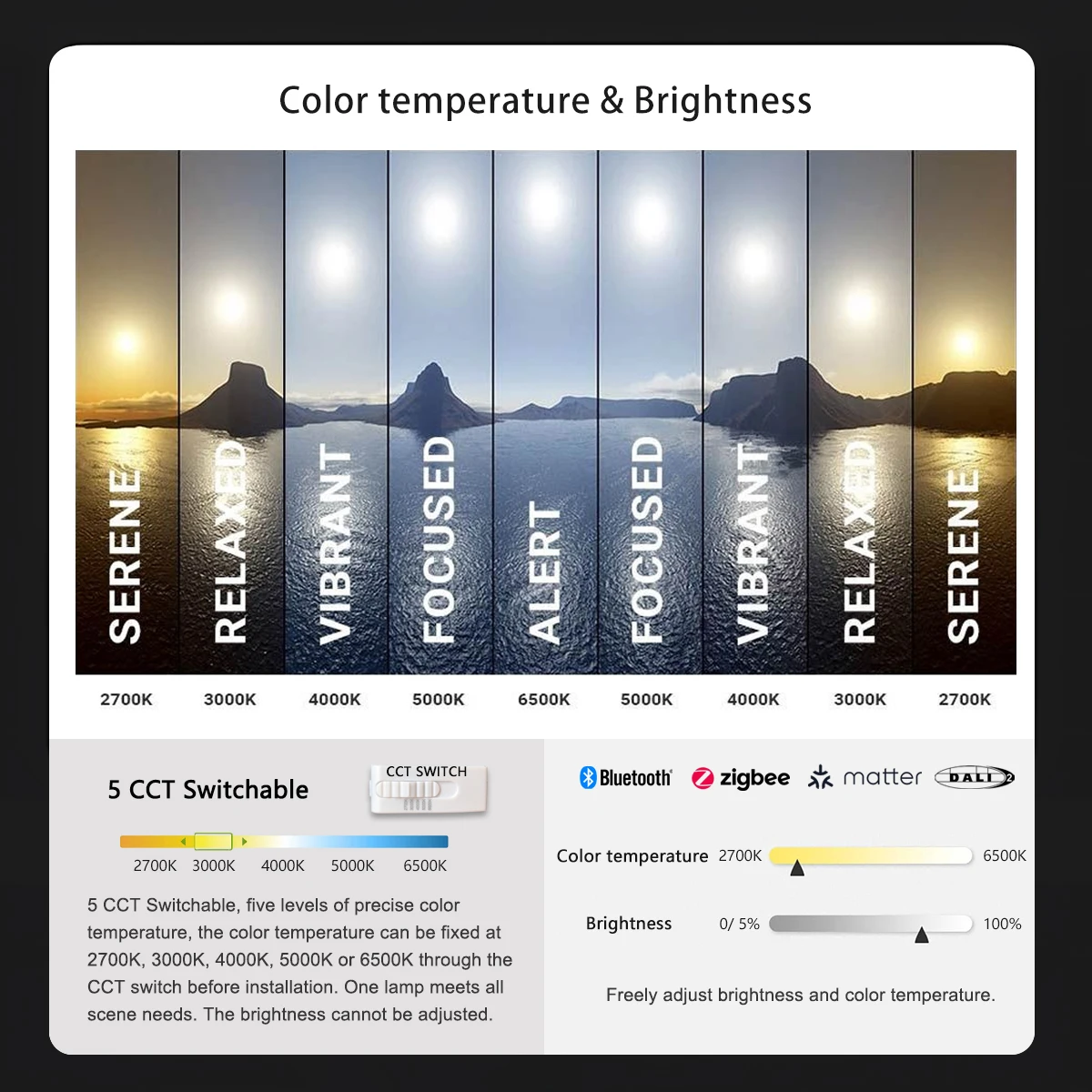

5 CCT / Tunable White Options
The product supports different color-temperature configurations.
Non-smart version:
- 2700K
- 3000K
- 4000K
- 5000K
- 6500K
Smart versions:
- 2700K–6500K tunable white
This allows lighting designers and contractors to select warmer or cooler light according to the project environment.

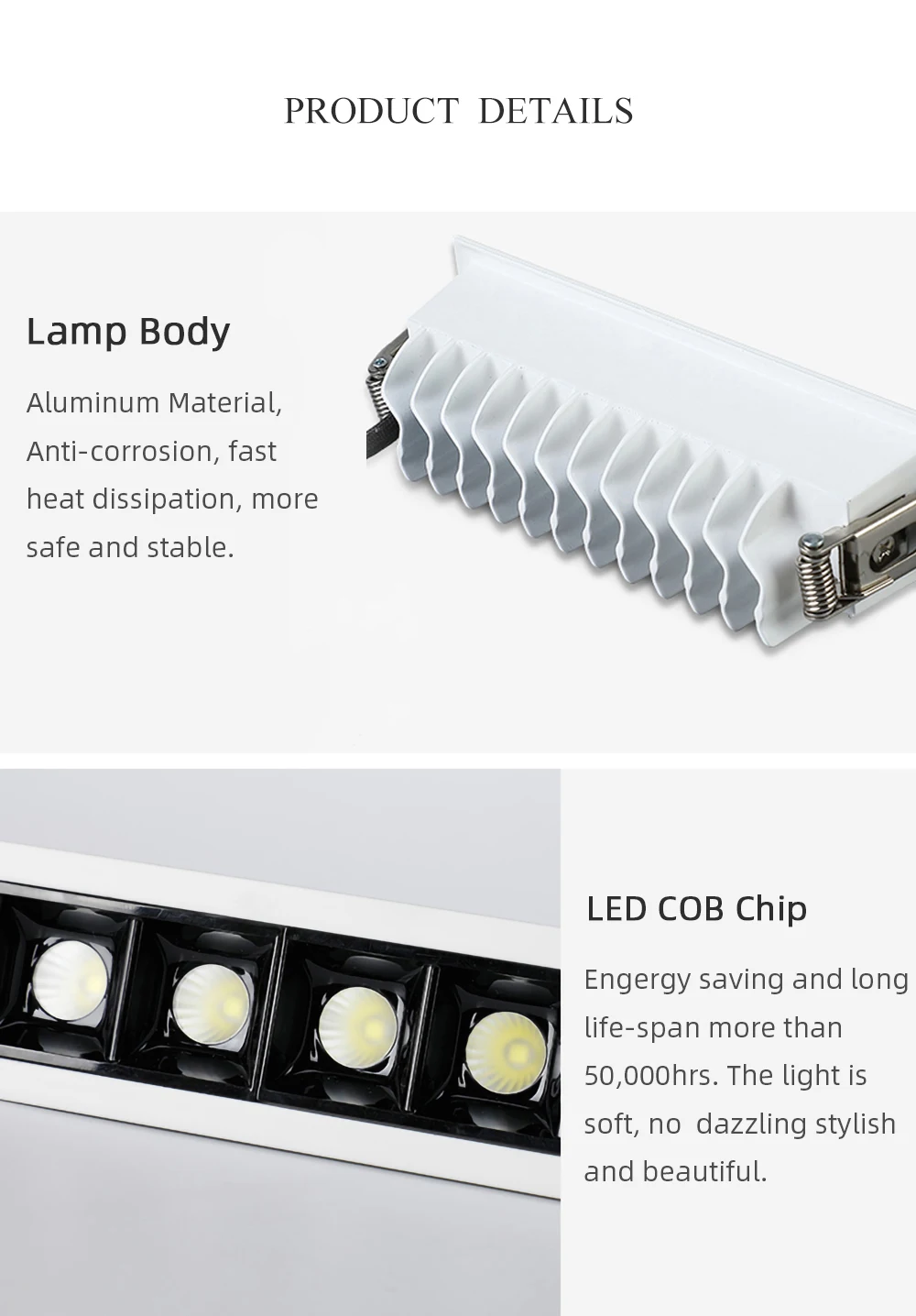

Aluminum Housing
The aluminum body provides:
- Efficient heat dissipation
- Durable construction
- Clean architectural appearance
- Suitable performance for indoor commercial projects
High Color Rendering
The product specification indicates a color rendering index of Ra≥92.
This makes the fixture suitable for applications where accurate color presentation is important, including:
- Retail stores
- Showrooms
- Galleries
- Restaurants
- Hospitality interiors
Application
Hotel Lighting
Suitable for:
- Hotel rooms
- Hotel corridors
- Reception areas
- Lobbies
- Restaurants
- Hospitality interiors
Smart control options allow lighting scenes to be adjusted according to different hotel environments.
Retail Store Lighting
The recessed LED grille downlight can be used for:
- Fashion stores
- Jewelry stores
- Boutiques
- Shopping malls
- Brand stores
- Product displays
The directional grille design helps create focused architectural illumination.
Office Lighting
Suitable for:
- Open-plan offices
- Meeting rooms
- Reception areas
- Corridors
- Executive offices
- Commercial interiors
Restaurant Lighting
The adjustable lighting configurations can be used to create different atmospheres for:
- Dining areas
- Bars
- Cafés
- Hotel restaurants
- Fine dining interiors

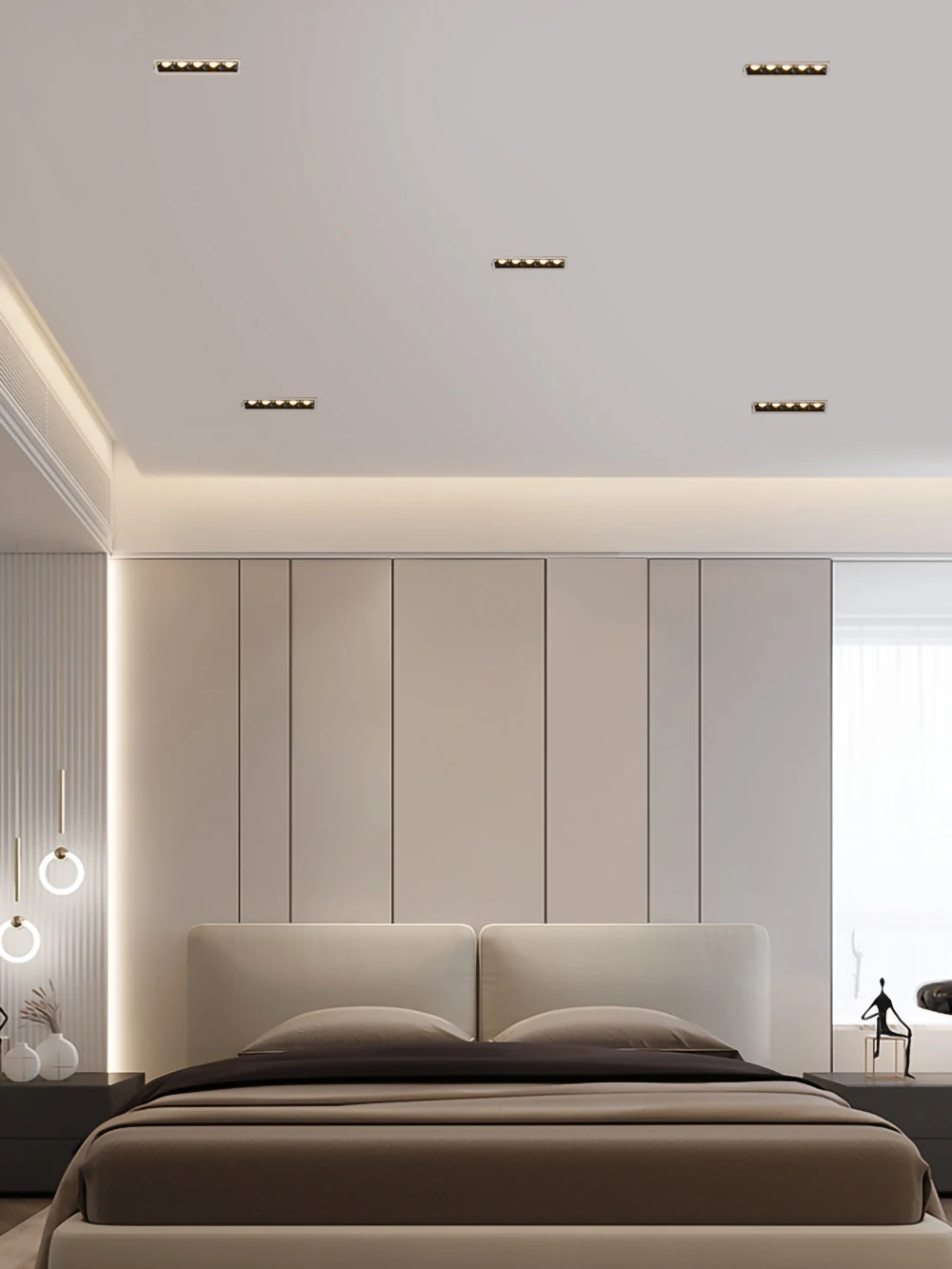

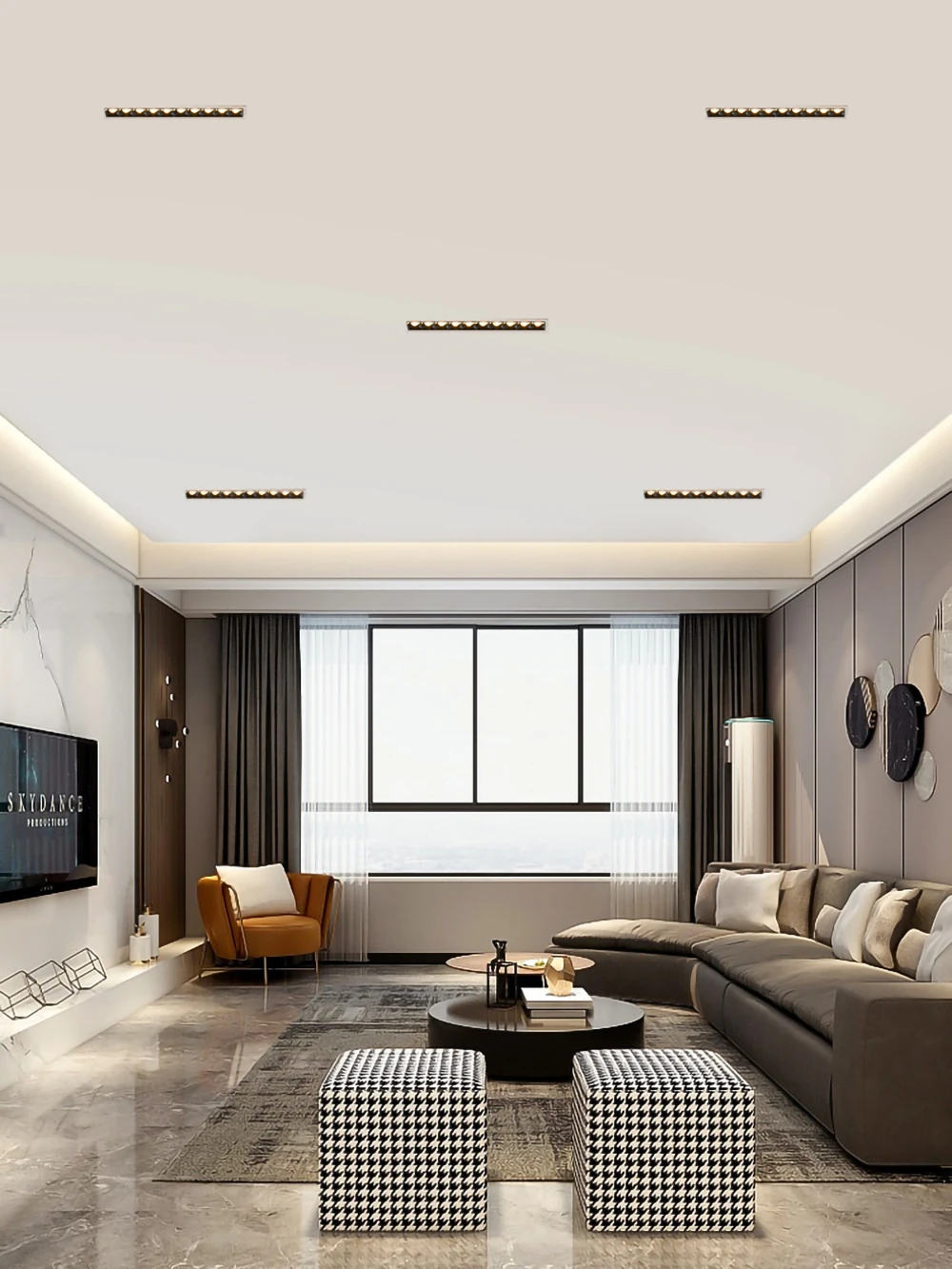

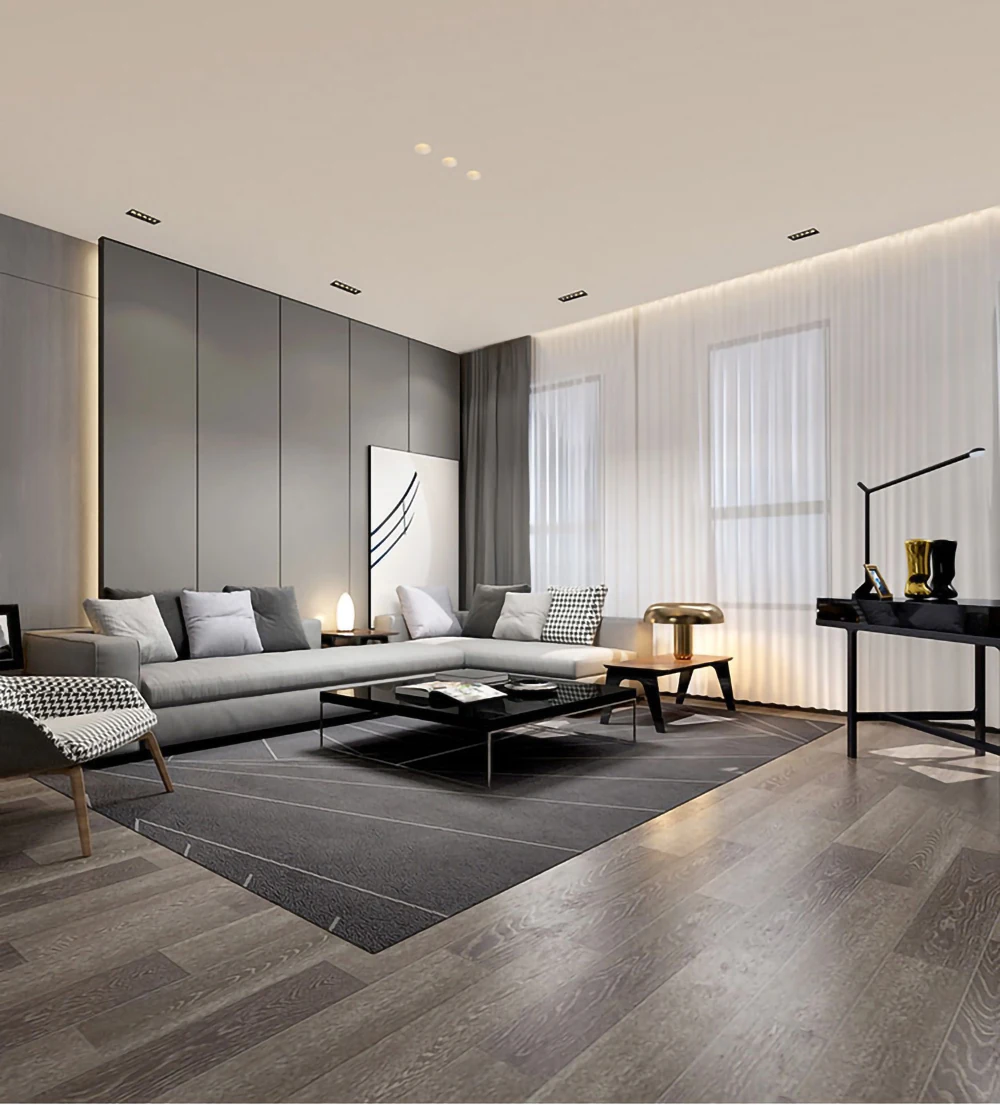

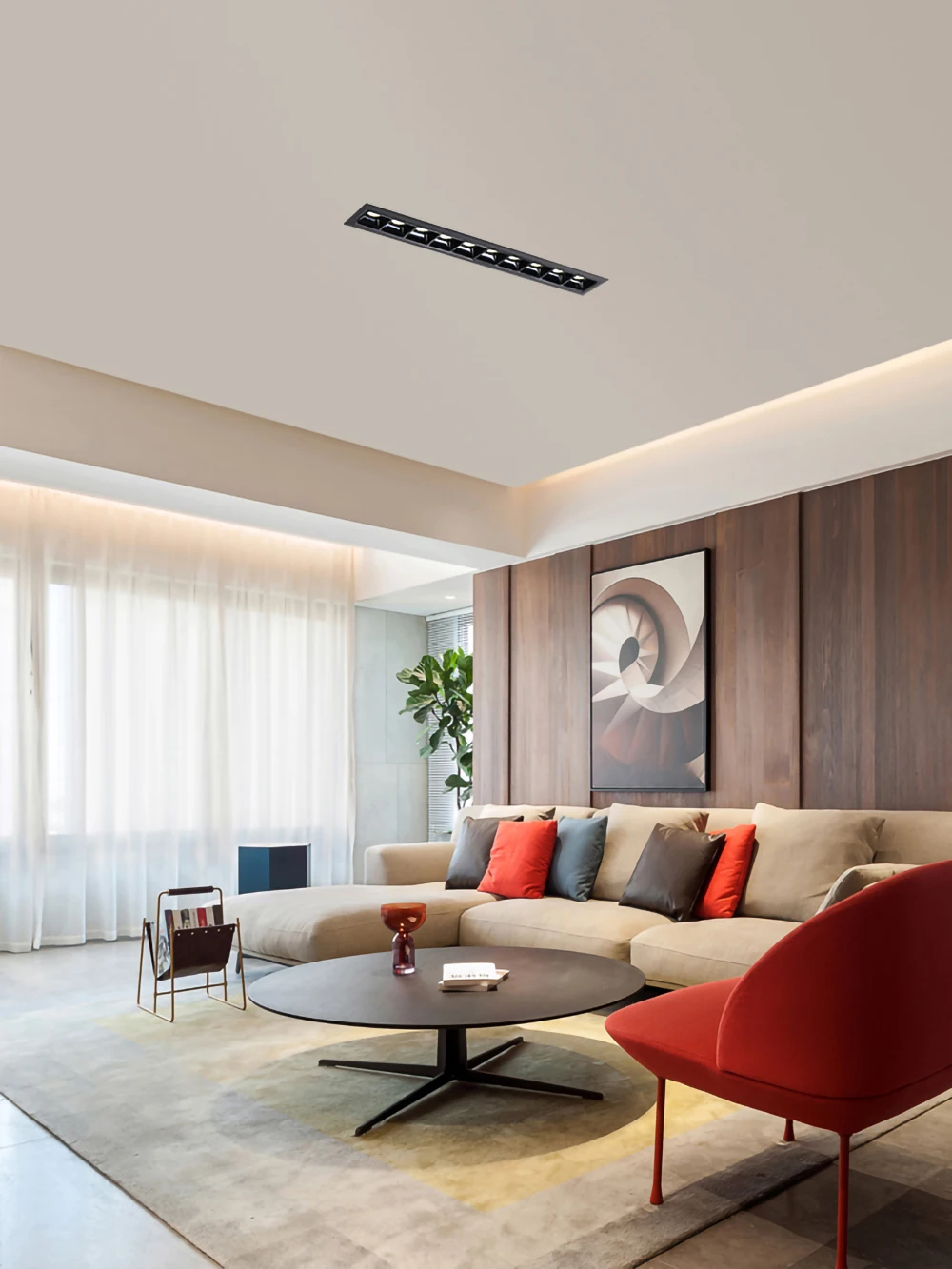

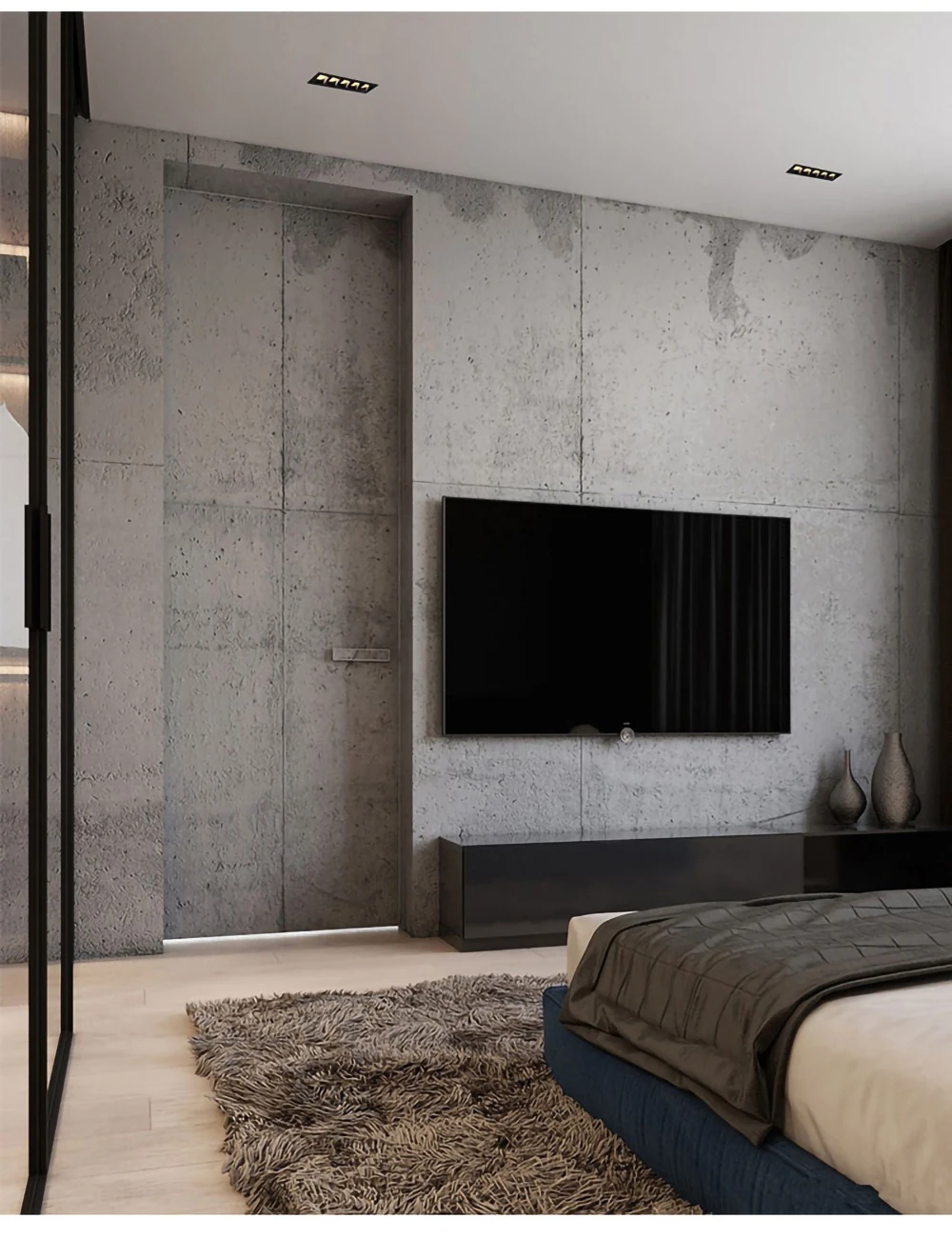

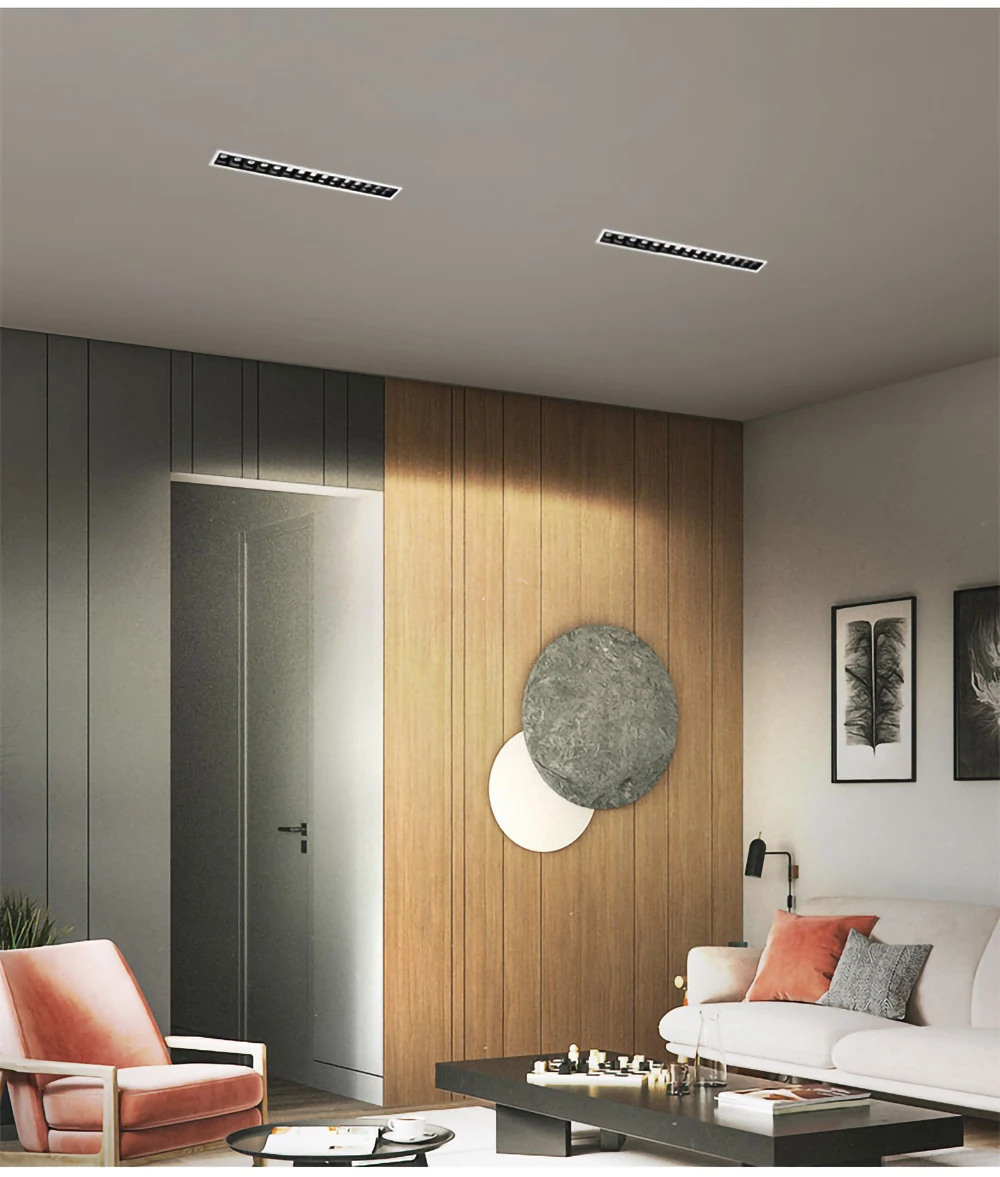

Residential Lighting
Suitable for:
- Living rooms
- Bedrooms
- Kitchens
- Dining rooms
- Hallways
- Smart homes
- Luxury apartments
Showroom & Gallery Lighting
The high color-rendering version can be considered for:
- Product showrooms
- Art galleries
- Exhibition spaces
- Furniture stores
- Display areas

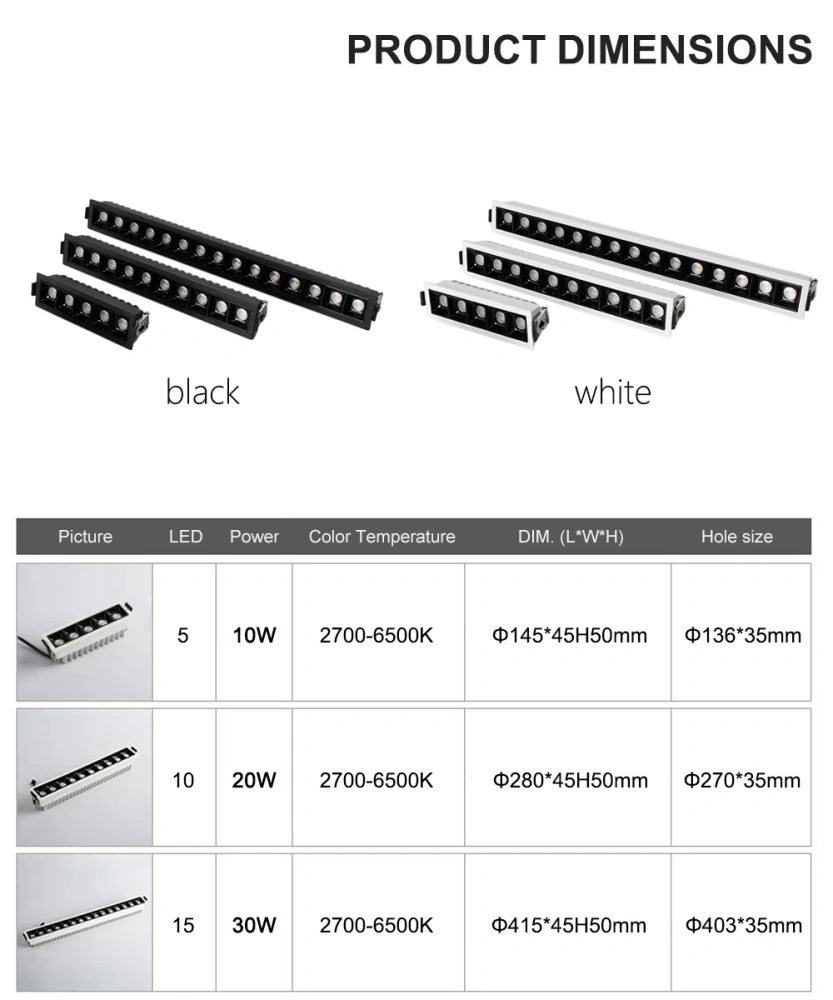

Size / Options
Power Options

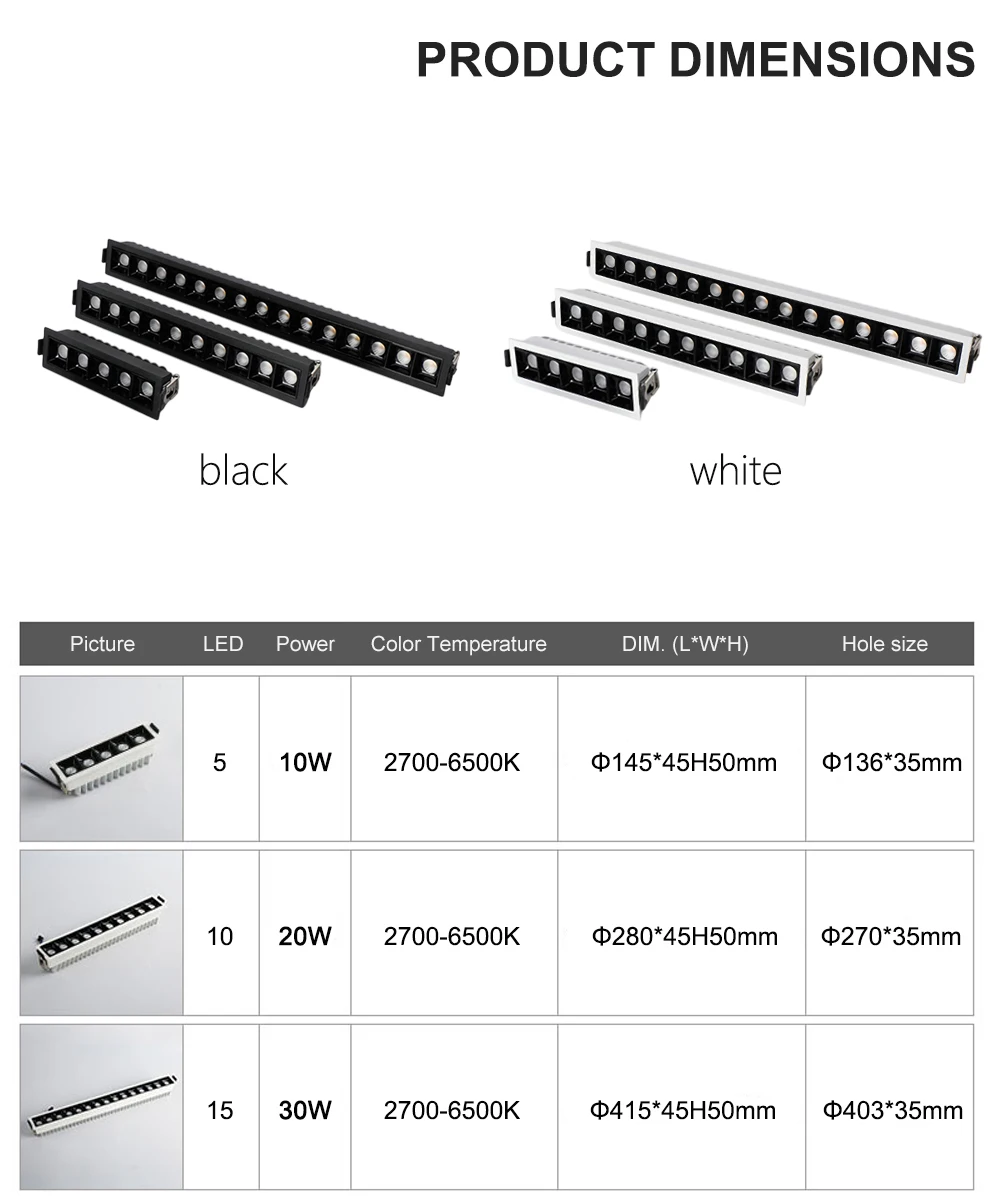

Cut-Out Dimensions
10W
136mm × 35mm
20W
270mm × 35mm
30W
403mm × 35mm
Housing Colors
Input Voltage
Configuration depends on the selected product version.
Lighting Options
Color Temperature
The product is available with different CCT configurations.

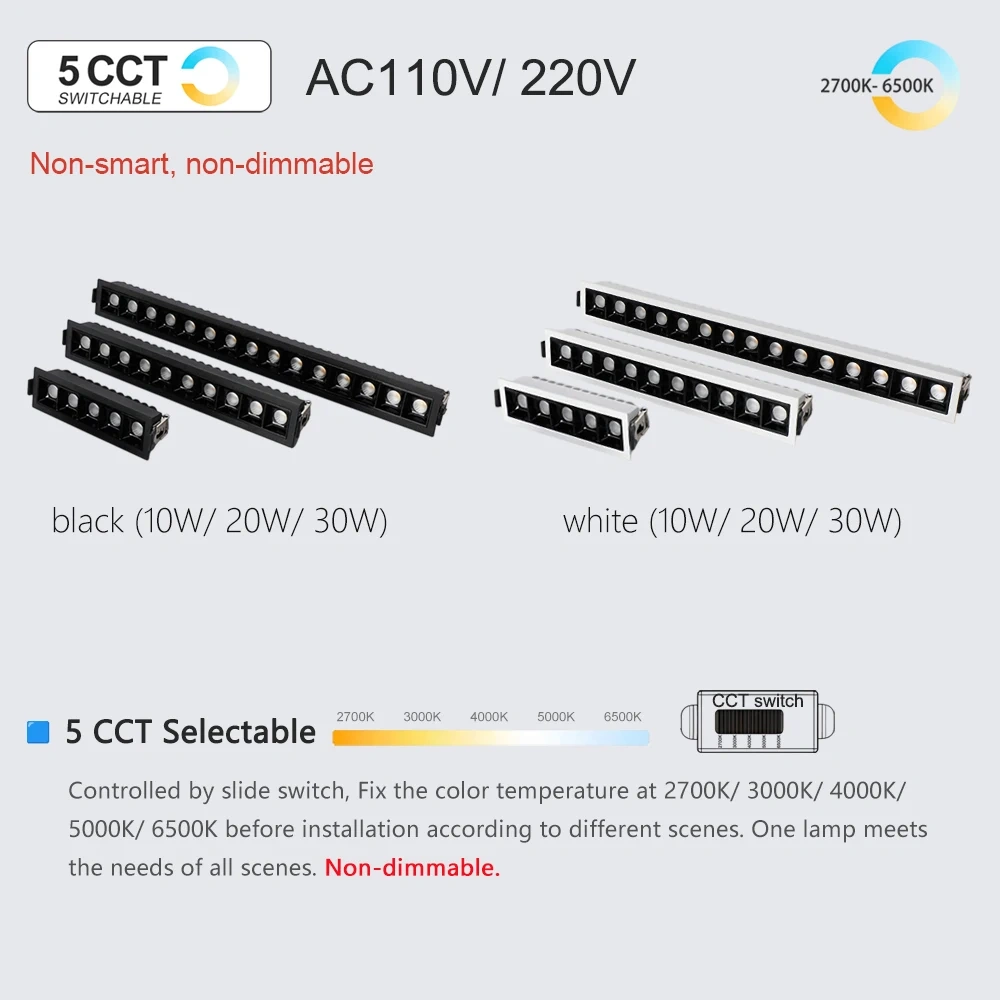

5 CCT Non-Smart Version
- 2700K
- 3000K
- 4000K
- 5000K
- 6500K
Smart Version
- 2700K–6500K tunable white
Beam Angle
Standard beam angle:
Other optical configurations can be discussed for project requirements.
Light Source
Luminous Efficiency
Up to approximately:
120–135 lm/W
Actual luminous output depends on the selected wattage and configuration.
Installation
The Smart LED Grille Downlight is designed for recessed ceiling installation.
Installation Process
- Confirm the required cut-out dimensions.
- Cut the ceiling opening according to the selected wattage.
- Connect the appropriate power supply.
- Connect the Tuya, Zigbee or DALI control system when applicable.
- Install the recessed fixture into the ceiling.
- Check the lighting direction and operation.
- Configure the smart lighting system if required.
Suitable Projects
- New commercial construction
- Hotel renovation
- Retail renovation
- Office renovation
- Smart home projects
- Interior architectural lighting projects
-
Technical Specifications
| Specification |
Details |
| Product Type |
Smart LED Grille Downlight |
| Main Application |
Commercial & Residential Lighting |
| Light Source |
SMD LED |
| Power |
10W / 20W / 30W |
| Input Voltage |
AC110V / AC220V / DC24V |
| Material |
Aluminum |
| Housing Color |
Black / White |
| Color Rendering Index |
Ra≥92 |
| Beam Angle |
30° Standard |
| CCT |
2700K / 3000K / 4000K / 5000K / 6500K |
| Tunable White |
2700K–6500K on smart versions |
| Control |
Tuya BLE / Zigbee 3.0 / DALI DT8 |
| Dimming |
Available on smart versions |
| Luminous Efficiency |
120–135 lm/W |
| Working Temperature |
-25°C to +50°C |
| Installation |
Recessed Ceiling |
| Product Structure |
Grille LED Downlight |
| Warranty |
5 Years |
| Certifications |
CE / CCC as listed on the current product page |
-
Project Applications
Commercial Lighting Projects
USKYLED Smart LED Grille Downlight is suitable for commercial lighting projects where recessed installation, flexible CCT selection and smart lighting control are required.
Typical projects include:
- Hotels
- Retail stores
- Shopping malls
- Restaurants
- Offices
- Showrooms
- Commercial buildings
- Smart buildings
Hospitality Projects
The product can be used to create adjustable lighting scenes in:
- Hotel rooms
- Lobbies
- Corridors
- Restaurants
- Reception areas
Retail & Display Projects
The recessed grille structure and high CRI option make the product suitable for retail environments where product appearance and visual comfort are important.
Residential Projects
Smart versions can be integrated into modern residential lighting systems for:
- Smart homes
- Luxury apartments
- Villas
- Modern residential interiors
OEM/ODM
USKYLED provides OEM and ODM LED lighting solutions for distributors, contractors, lighting designers, wholesalers and project buyers.
Customization options can include:
- Wattage
- Housing color
- CCT
- Beam angle
- Smart control protocol
- Driver solution
- Product dimensions
- Packaging
- Project-specific specifications
For larger lighting projects, USKYLED can support:
- Sample development
- Product customization
- Lighting solution consultation
- Project specifications
- Bulk production
- OEM branding
- ODM development
Contact USKYLED to discuss your required smart recessed LED downlight configuration.
