Recessed LED Downlight with 14mm Ultra-Thin Profile for Kitchen & Cabinet Lighting

Product Introduction

Limited installation space can make a conventional recessed light difficult to fit. The USKYLED ultra-thin LED downlight provides a compact alternative, with a body height of just 14mm and a 55mm cutout.

Designed for kitchen, cabinet and hotel interior lighting, this mini recessed light combines a round stainless steel face with a wide 120° beam. It is available in 3W and 5W versions, with separate 12V DC and 24V DC options.

Choose warm white, neutral white or cool white to match the room and surrounding lighting. A minimum order of one piece makes it practical to check the physical fit and lighting effect before ordering for a larger project.

Design

The circular face measures 72mm in diameter and sits over a 55mm installation opening. Its 14mm body height helps accommodate shallow recesses in suitable cabinet panels, soffits and ceiling details.

A 304 stainless steel housing and polished metal appearance suit contemporary kitchen cabinetry and interior finishes. The broad light-emitting surface provides a different effect from a narrow-beam accent spotlight, making this model useful where wider coverage is preferred.

The 14mm measurement refers to the lamp body. Allow additional space for cable routing, connections and any installation clearance required by the mounting arrangement.

Main Features

• 14mm ultra-thin body: A compact profile for installations with limited recess depth.

• 55mm cutout: Suitable for projects designed around a small circular installation opening.

• 3W and 5W options: Select the output level for the application.

• 12V DC or 24V DC versions: Match the selected light to the correct low-voltage power supply.

• 120° beam angle: Wide light distribution for cabinet and interior lighting.

• 304 stainless steel housing: A metal construction with a polished appearance.

• IP65 rating: For installations requiring the stated level of protection, subject to correct fitting.

• Three color temperatures: 3000K warm white, 4000K neutral white and 6000K cool white.

Application

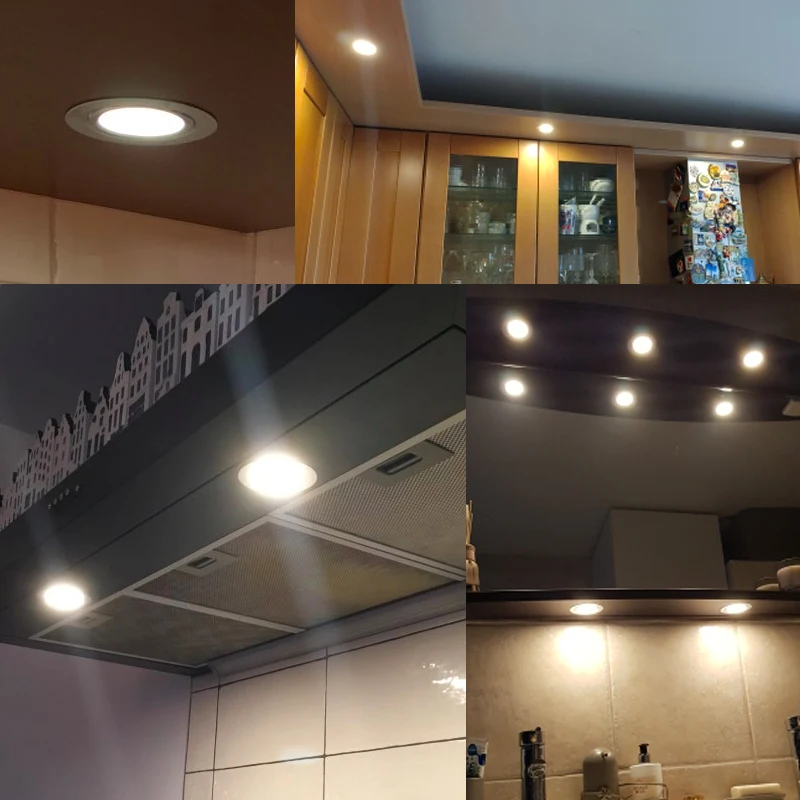

This slim recessed LED downlight can be considered for:

• Kitchen cabinet and under-cabinet lighting

• Display cabinet and shelf lighting

• Hotel room cabinetry and interior details

• Residential kitchen and living room lighting

• Suitable shallow ceiling or soffit installations

• Built-in furniture lighting

For worktops and display surfaces, test the mounting position and spacing before completing the installation. The required number of lights depends on the mounting height, surface finish and desired illumination.

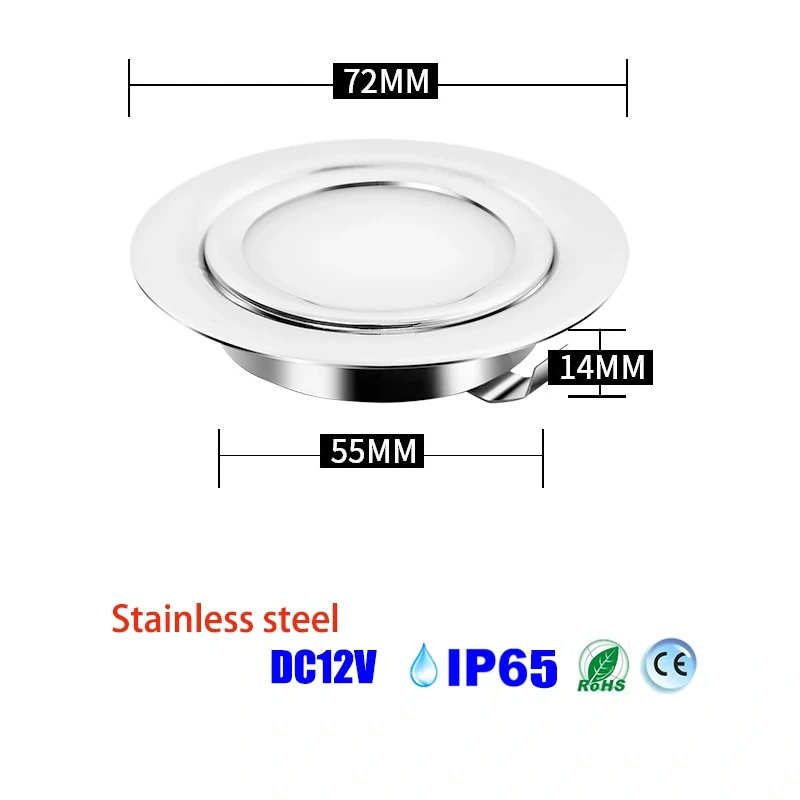

Size / Options

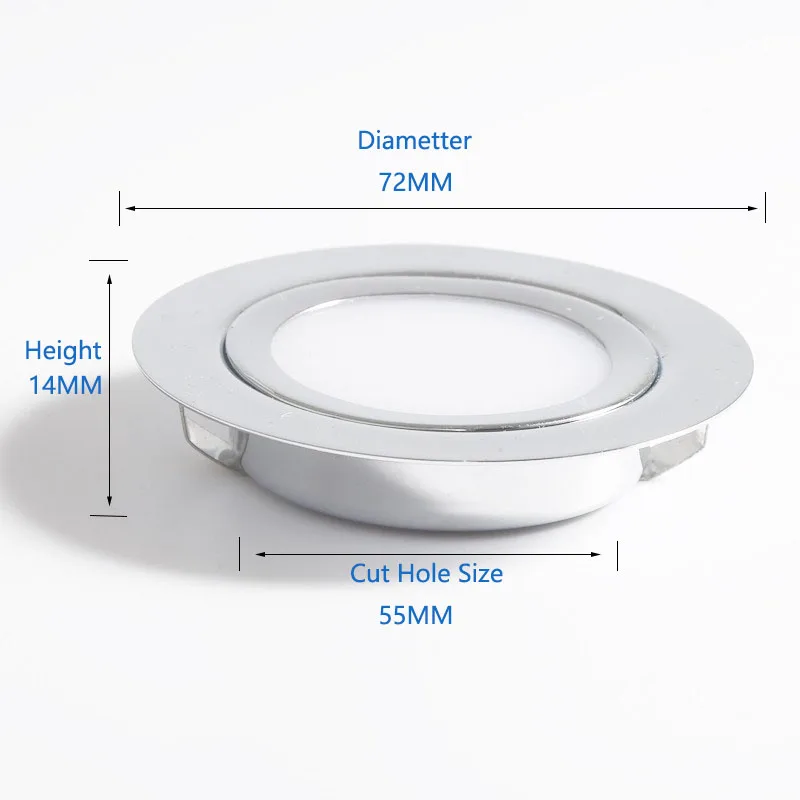

The standard dimensions are:

• Face diameter: 72mm

• Body height: 14mm

• Cutout diameter: 55mm

• Cable length: 17cm

Available selections include:

• Power: 3W or 5W

• Input voltage: 12V DC or 24V DC

• Light color: 3000K, 4000K or 6000K

The voltage options are separate product selections. Choose the correct version for the project rather than assuming one light can operate across both voltages.

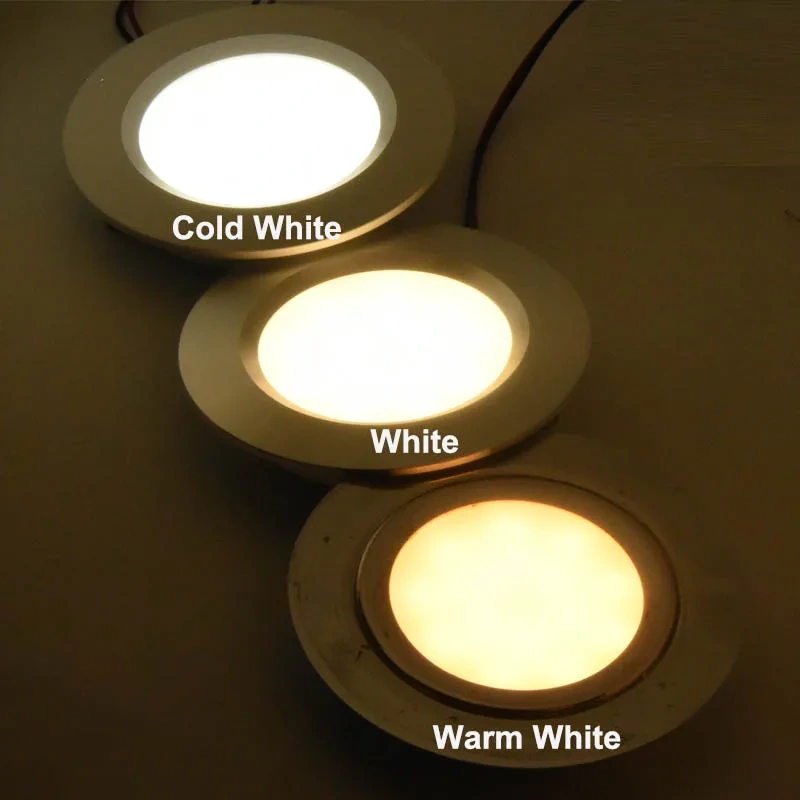

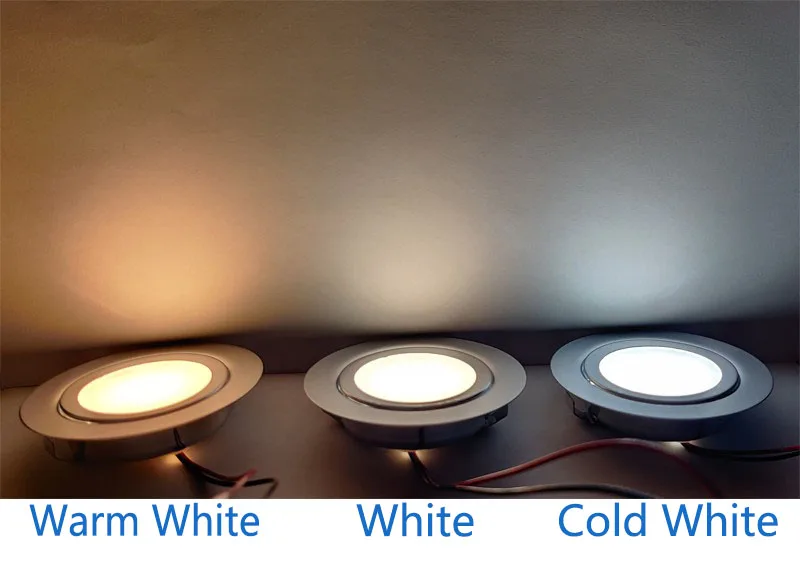

Lighting Options

3000K warm white provides a warmer appearance for hospitality interiors, residential cabinetry and evening ambient lighting.

4000K neutral white offers a balanced white-light appearance for kitchens, cabinets and general interior applications.

6000K cool white provides a cooler appearance for projects specified with cool white lighting.

The product specification lists luminous outputs of 280lm and 480lm for the 3W and 5W options respectively. The 120° beam spreads light over a wider area than a narrow-beam spotlight.

Dimming is described on the product page. Confirm the dimming method and compatible control equipment with USKYLED before ordering a dimmable installation.

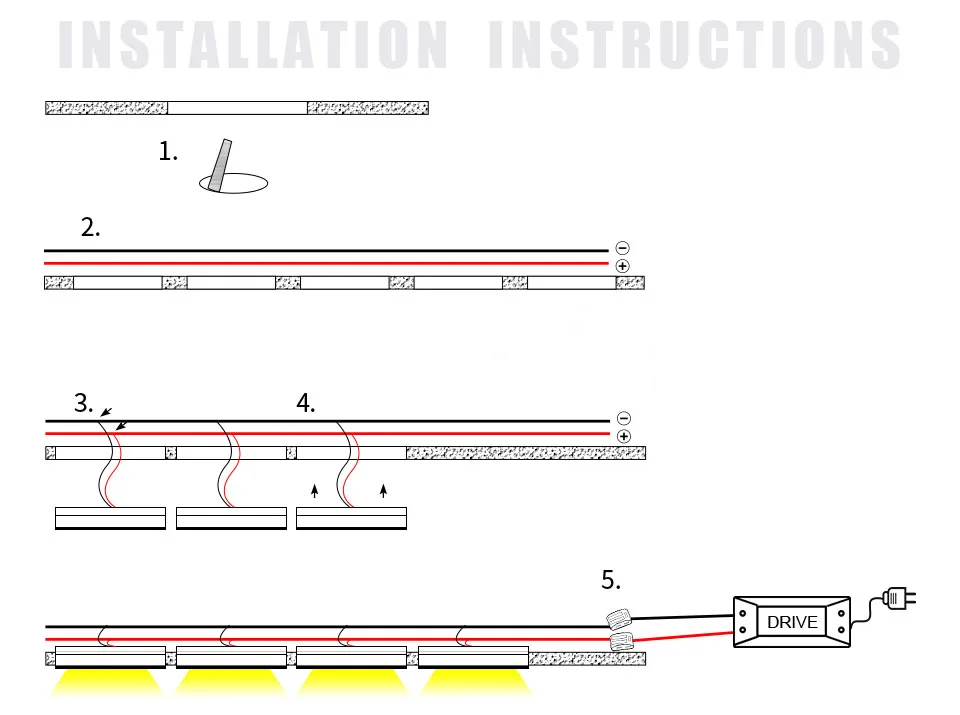

Installation

1. Confirm the mounting panel is suitable and provides sufficient clearance for the light and wiring.

2. Prepare a 55mm circular cutout.

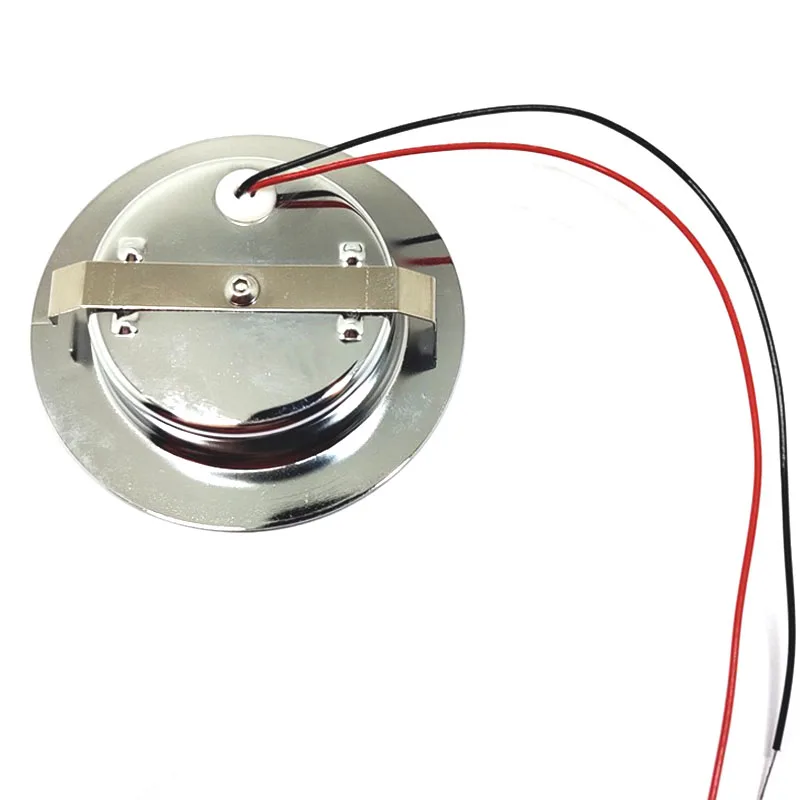

3. Route the connection cable and fit the light using its supplied retaining arrangement.

4. Connect the selected model to a matching 12V DC or 24V DC power supply, observing polarity.

5. Position power equipment and connections where they can be accessed for inspection.

6. Test the installation before fitting the remaining lights.

Do not connect the light directly to mains voltage. Confirm power supply and accessory requirements when ordering.

For locations exposed to moisture, protect electrical connections and maintain the required installation sealing. The light’s IP65 rating does not automatically apply to a separate power supply or field-made cable joints.

Technical Specifications

Project Applications

For contractors and cabinet makers, the key selection points are recess depth, cutout size, voltage and light output. Check these details against the cabinetry or ceiling drawing before specifying the light.

For hotel and residential projects, compare a sample with the surrounding lighting to select the preferred color temperature. A sample installation also helps establish fixture spacing and reveal reflections from polished worktops or display surfaces.

For a project quotation, send the required quantity, power, voltage and color temperature, together with the installation drawing and any dimming requirements.

OEM/ODM

Contact USKYLED to discuss OEM/ODM requirements for your cabinet or interior lighting project. Provide the target dimensions, electrical specifications, cable requirements and packaging preferences.

Customization availability, minimum quantities and production schedules are subject to project review. Confirm any customized specification before placing an order.

Request a Sample or Project Quotation

Need a slim recessed light for a kitchen, cabinet or hotel project? Send USKYLED your required power, voltage, color temperature and quantity for a quotation.

Start with one sample to check the 55mm cutout fit and lighting effect.

• Minimum order quantity: 1 pc

• Sample order lead time: 3–7 days

• Bulk order lead time: 7–15 days

Lead times exclude shipping. Confirm the schedule for your selected configuration when ordering.
