Size:06mm*12mm Horizontal Bending Neon LED Pixel Strip WS2811/WS2812B 5V12V/24V,84/96/100LEDs/m Black Frosted Silicon

Input voltage:..............               DC5V DC12V;DC24V

Power:........................               0.2W/LED

LED resource:.............              5050/3535 SMD RGB

Q'ty of LED and Pixels:             12V 96LEDs per Meter WS2811 IC(3 LEDs as one pixel) 32 Pixels/m

                                                  24V 84LEDs per Meter WS2811 IC(6 LEDs as one pixel) 14 Pixels/m

                                                  5V Addressable WS2812B 100LEDs;100 Pixels/m

                                                 12V Addressable SKC6809MINI 96LEDs;96 Pixels/m

IC Type: .....................              WS2811 IC/WS2812B/SKC6809MINI

Grey scale:                               256;

Bits/color:                                  8-bits/color;24bit for RGB

neon size:.....................            06mm*12mm

neon material:..............            100% silicon;very soft

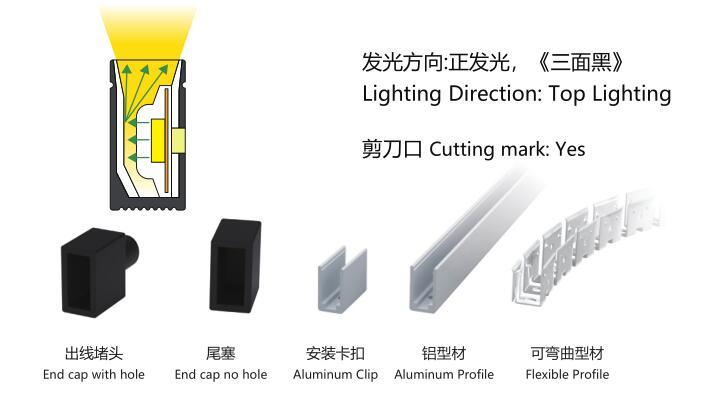

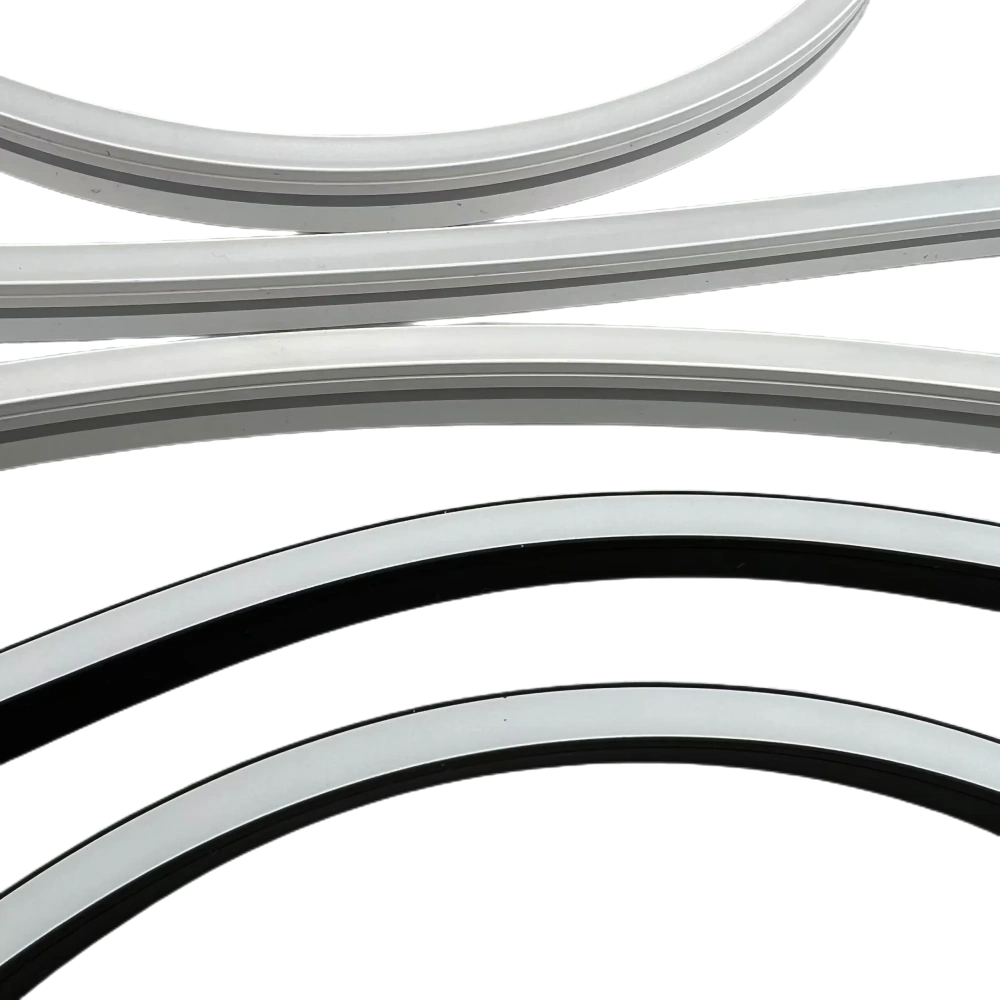

beam angle:.................            120 degre,Horizontal Bending

Protection rate..............            waterproof in frosted silicon tube

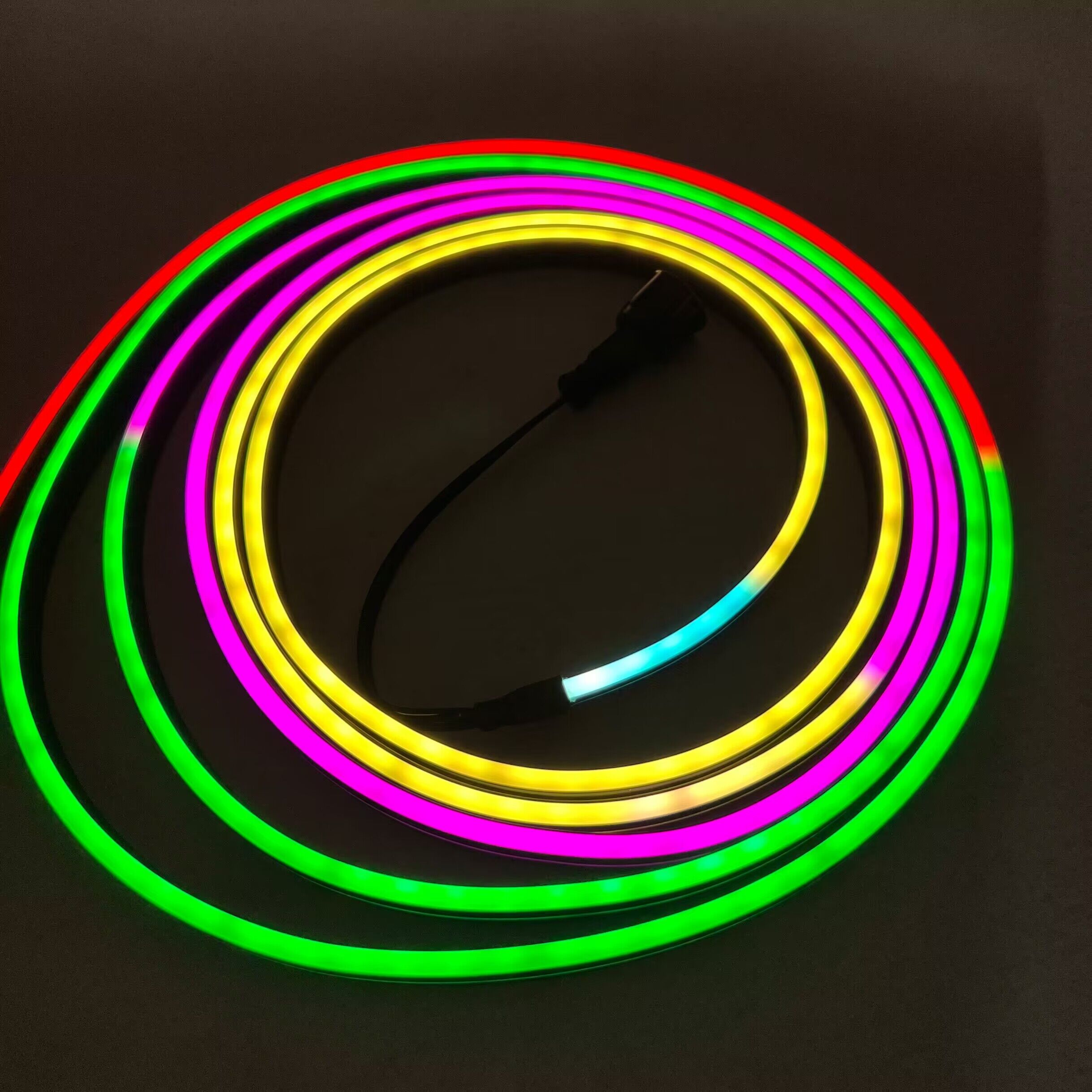

Colors:........................              Full color RGB, dream color changing;

Cuttable:......................             every 1,3 or 6 LEDs is cuttable;

Package:.....................              2/3//4/5 meters/reel in anti-static bag

Product options( pixel strip PCBA inside the neon tube):

12V 96LEDs per Meter WS2811 IC(3 LEDs as one pixel) 32 Pixels/m:

5m DC12V WS2811 LED digital pixel strip;96leds/m;32pixels/m,8mm wide PCB,white PCB;3535 SMD RGB smart strip

24V 84LEDs per Meter WS2811 IC(6 LEDs as one pixel) 14 Pixels/m:

5m 24V WS2811 84LEDsper meter, WHITE PCB led digital strip;IP20;non-waterproof;8mm wide PCB

5V Addressable WS2812B 100LEDs;100 Pixels/m:

Addressable 100LEDs/m DC5V WS2813 RGB full color led pixel strip,NON-waterproof,with 100pixels/M;BLACK PCB

12V Addressable SKC6809MINI 96LEDs;96 Pixels/m:

Mini-3535 12V Addressable RGB Pixel Strip Light 5MM PCB Wide 96 LEDs/m IP20 IP65 IP67 Digital Magic Dream Color

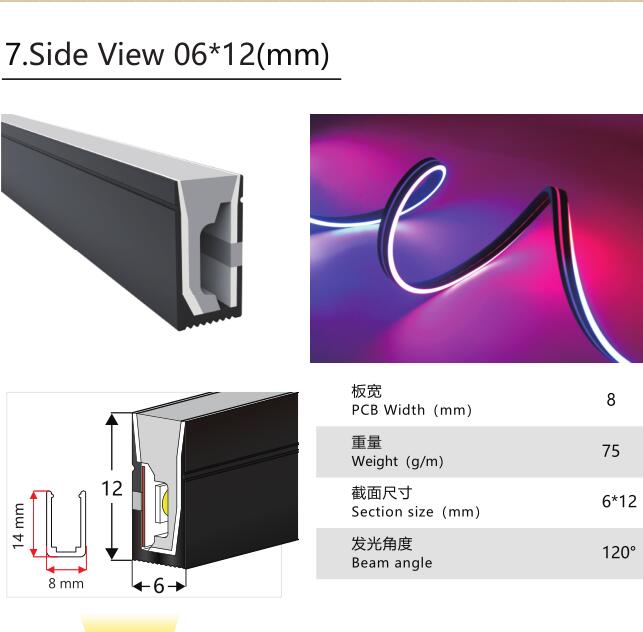

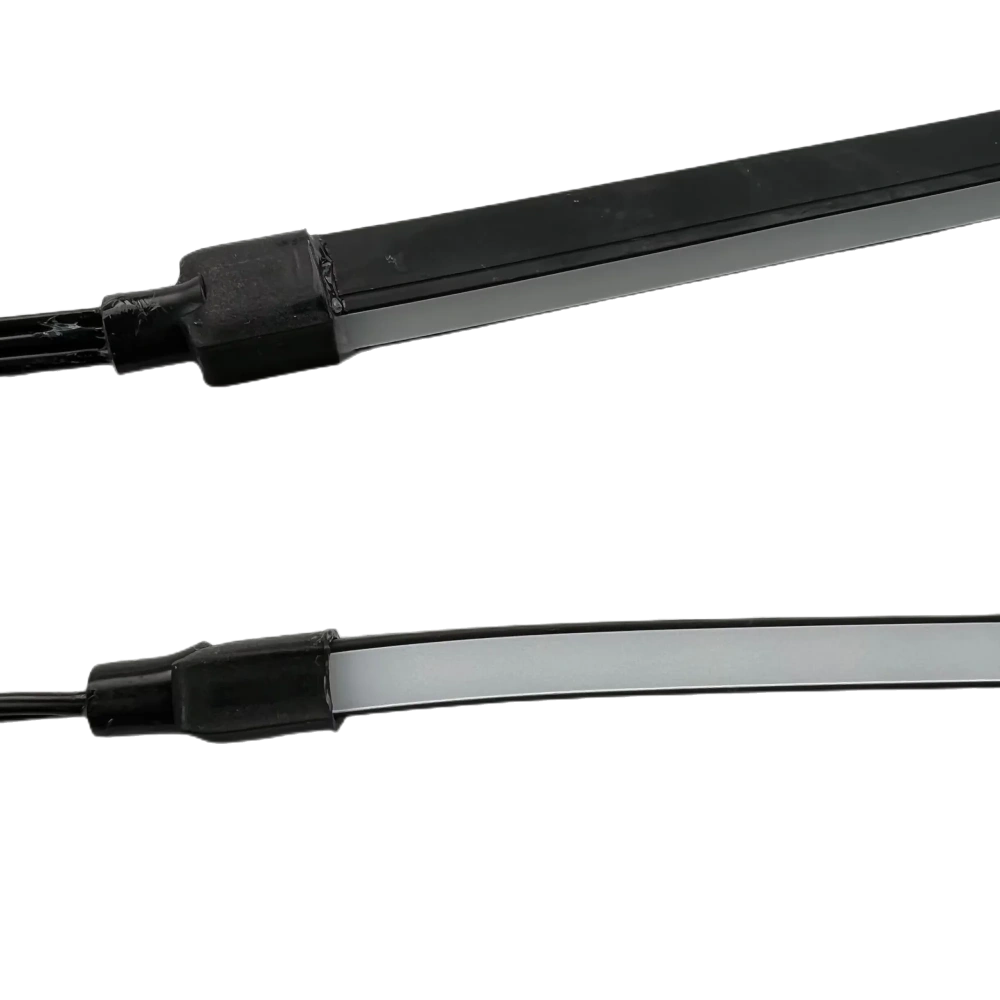

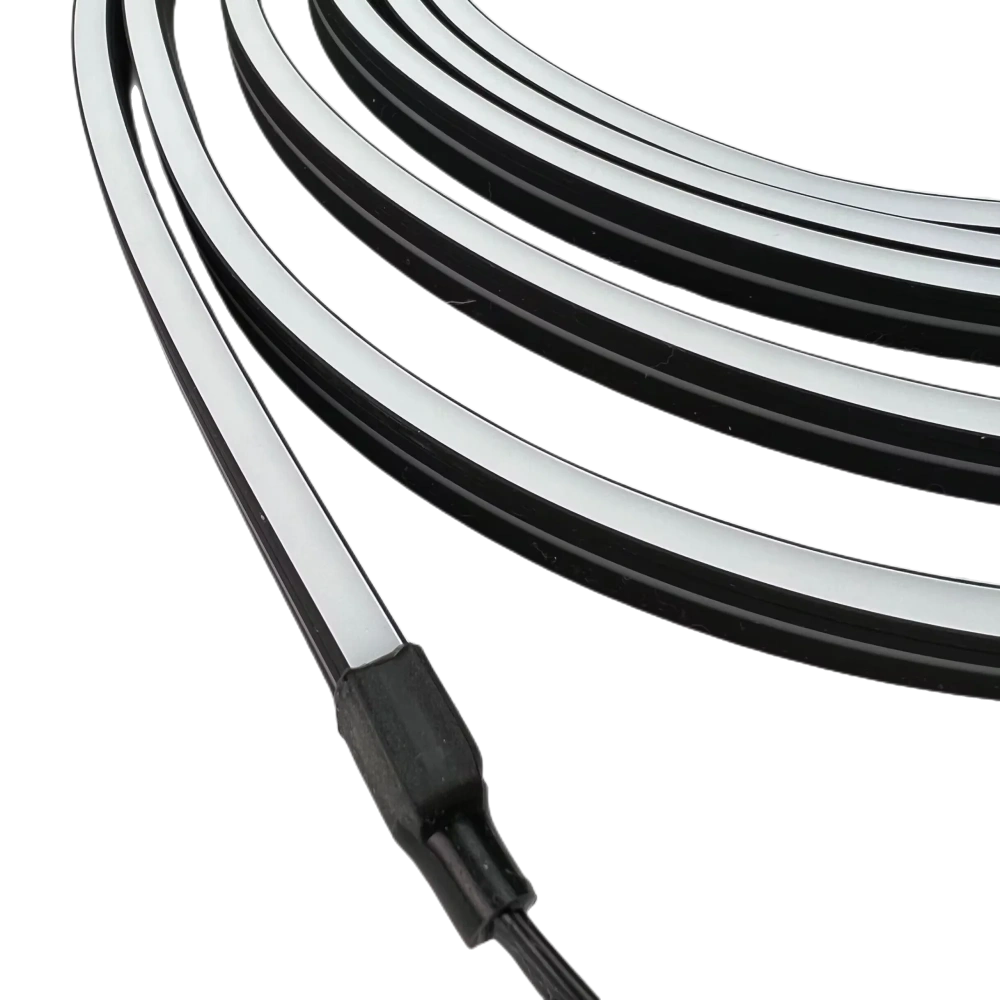

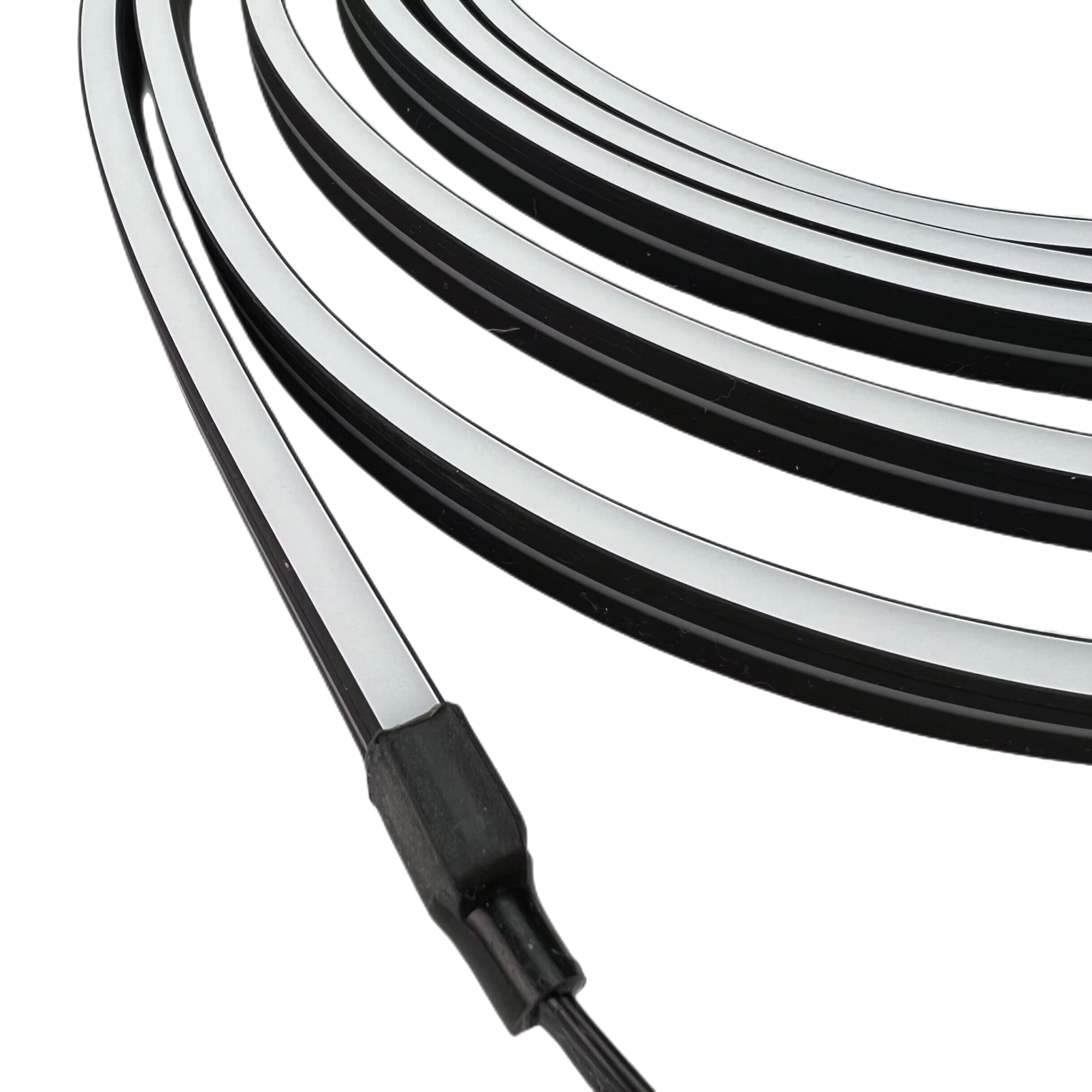

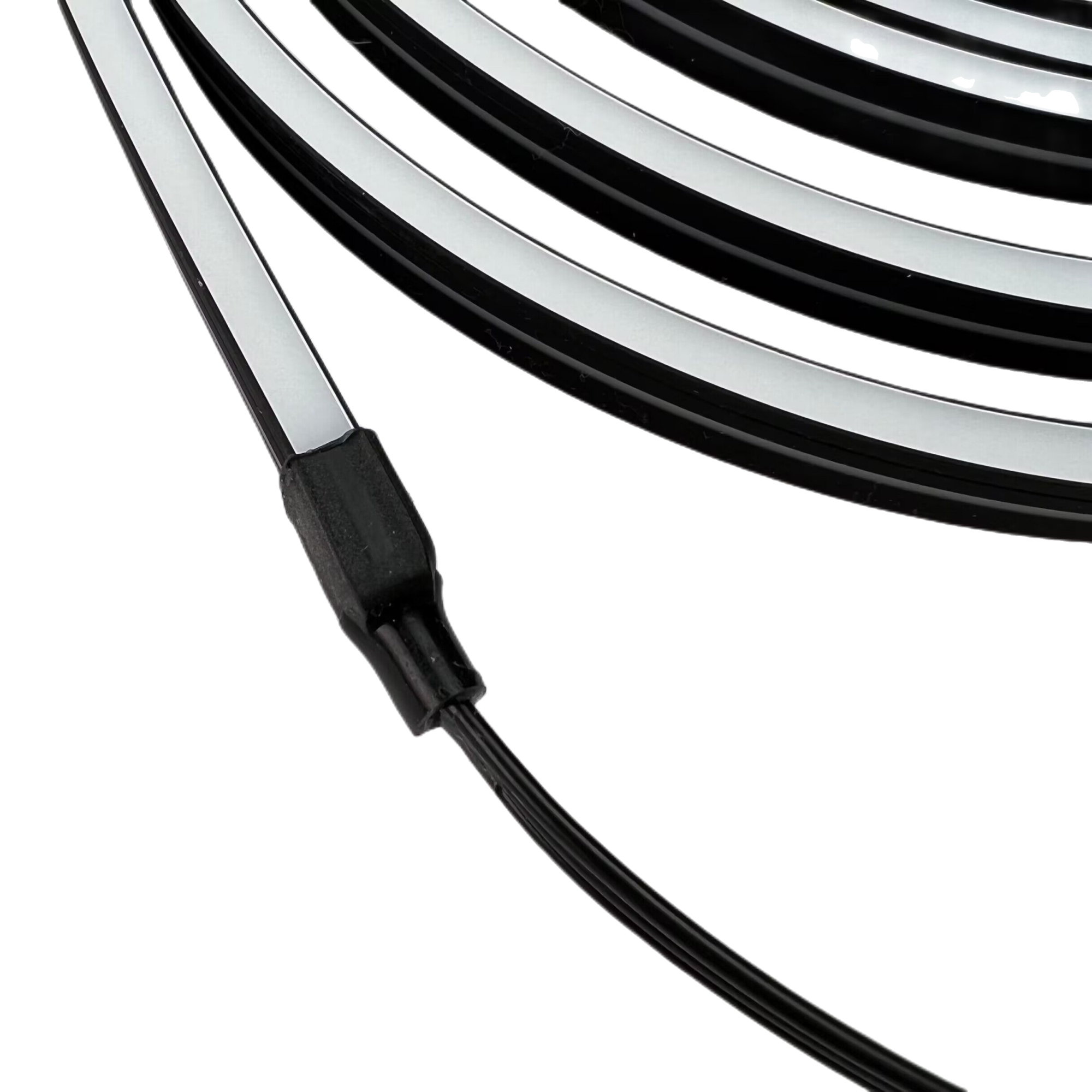

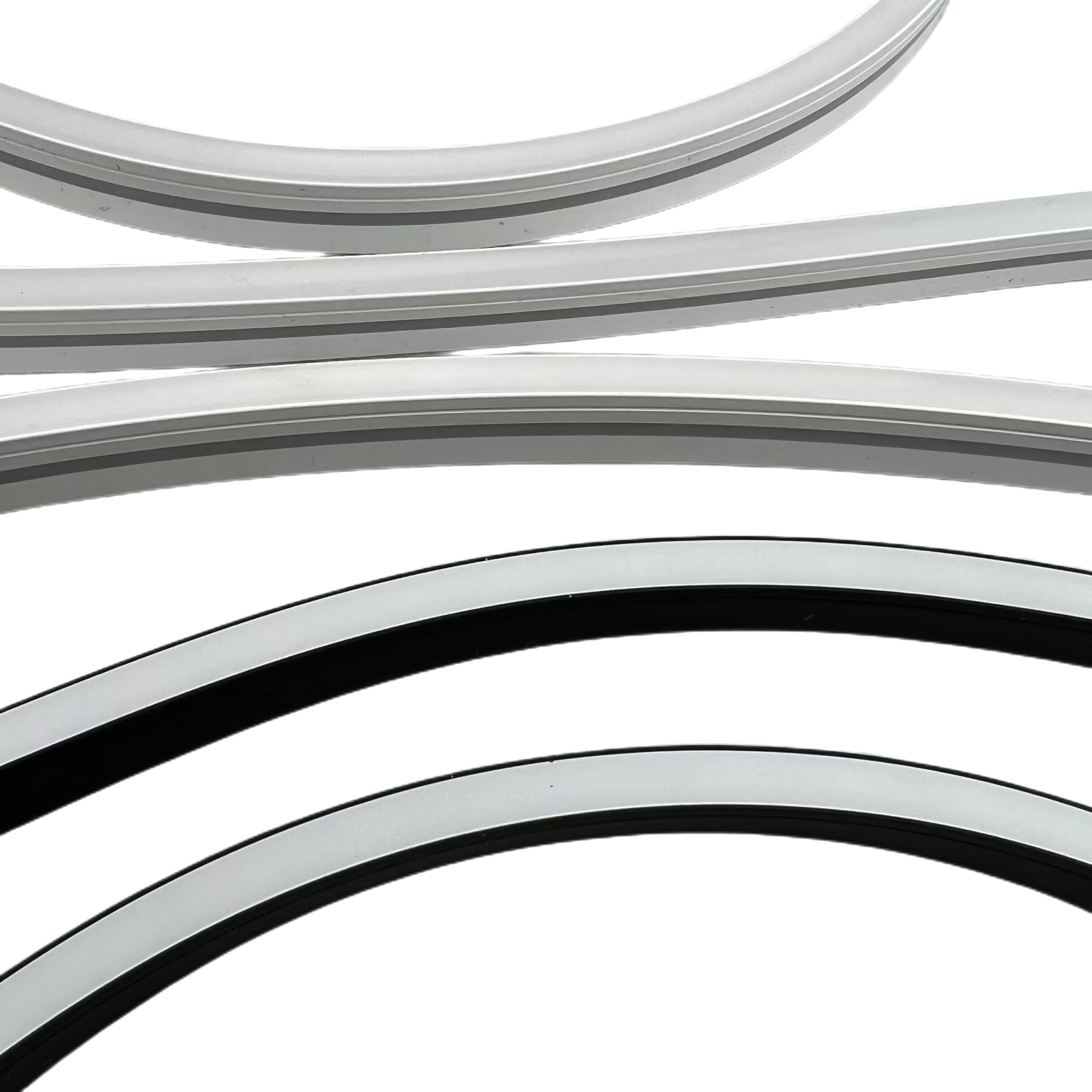

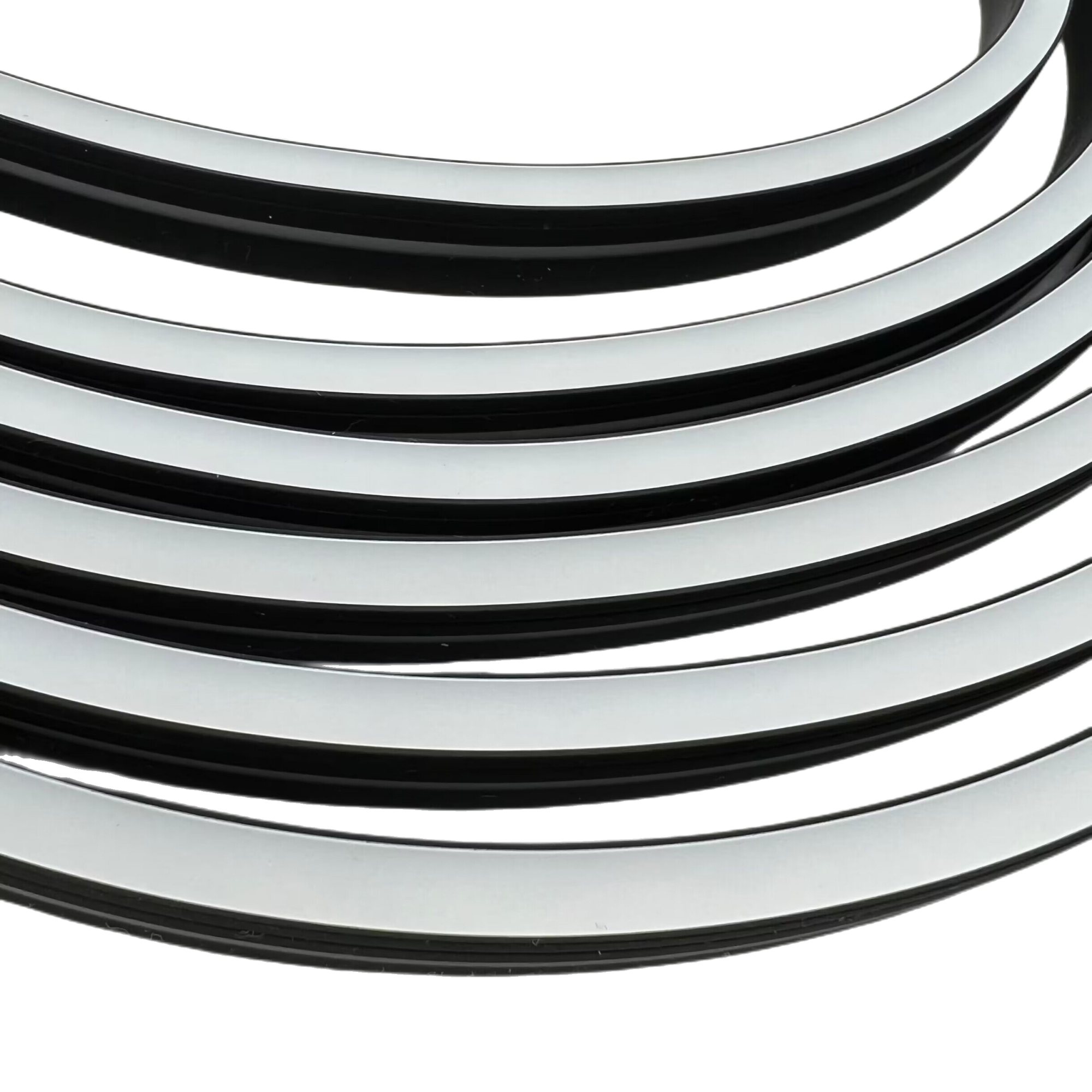

black neon tube:Side View:06mm*12mm,black color silicon frosted neon tube,used for PCBWidth: 8mm;120° Beamangle

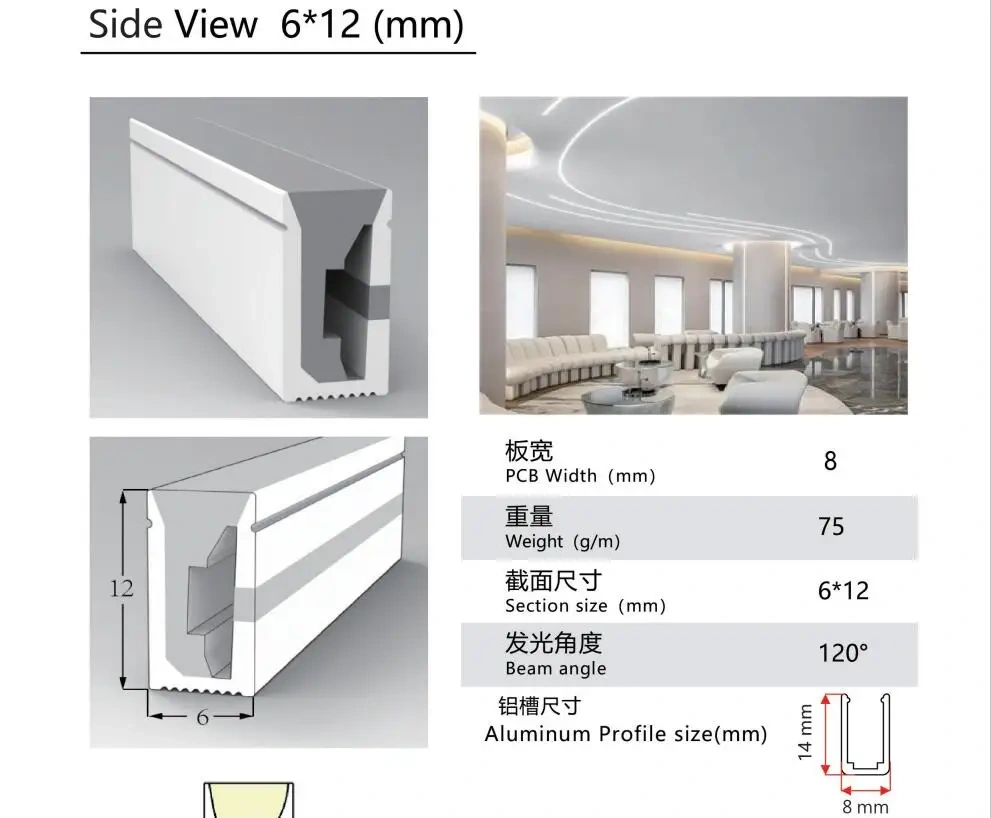

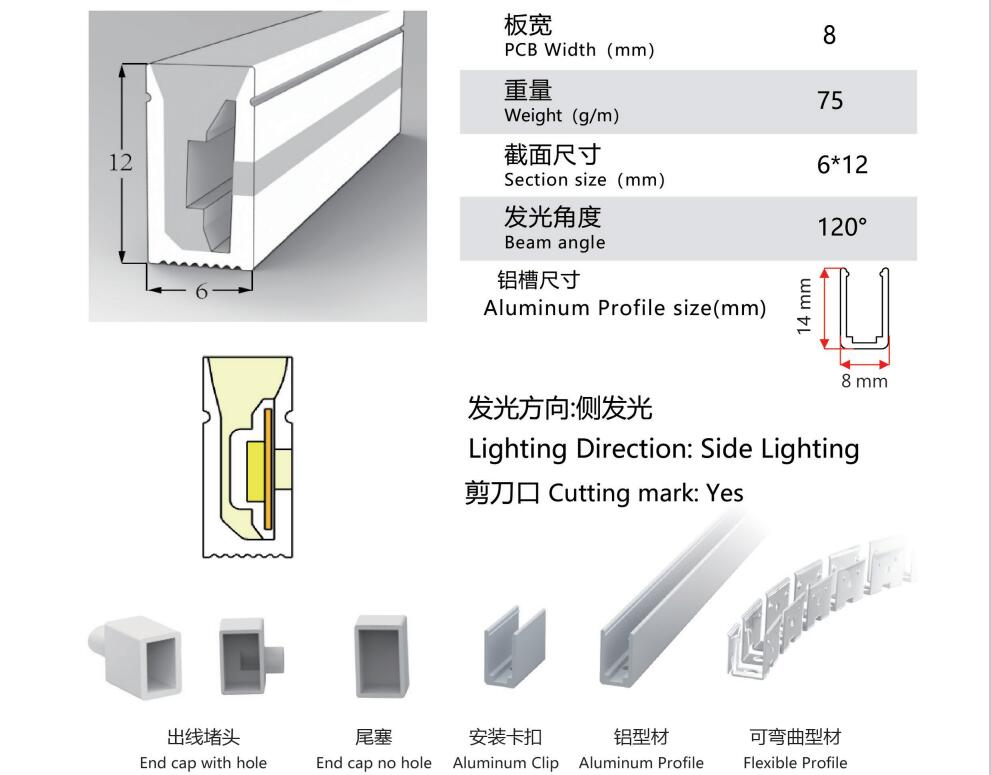

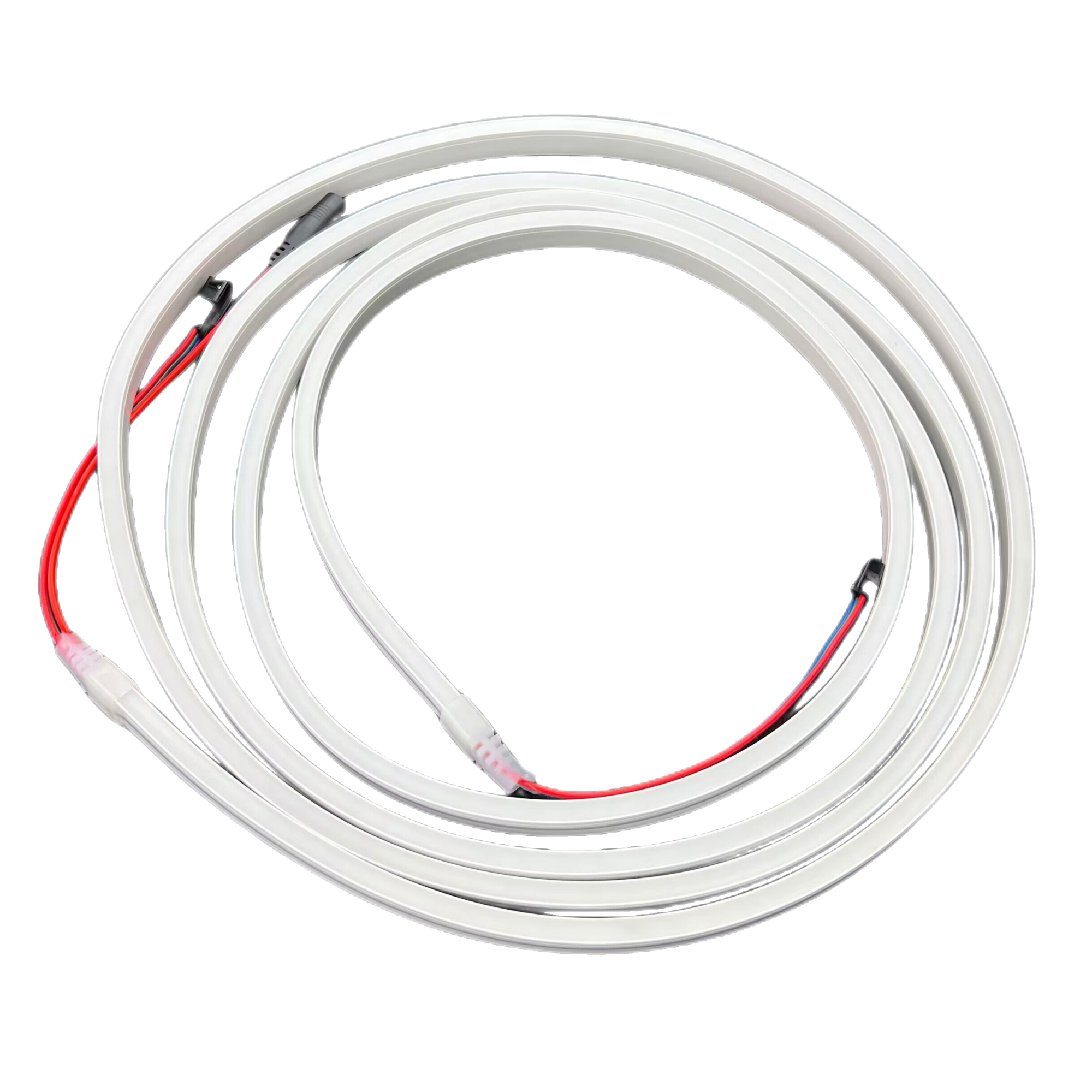

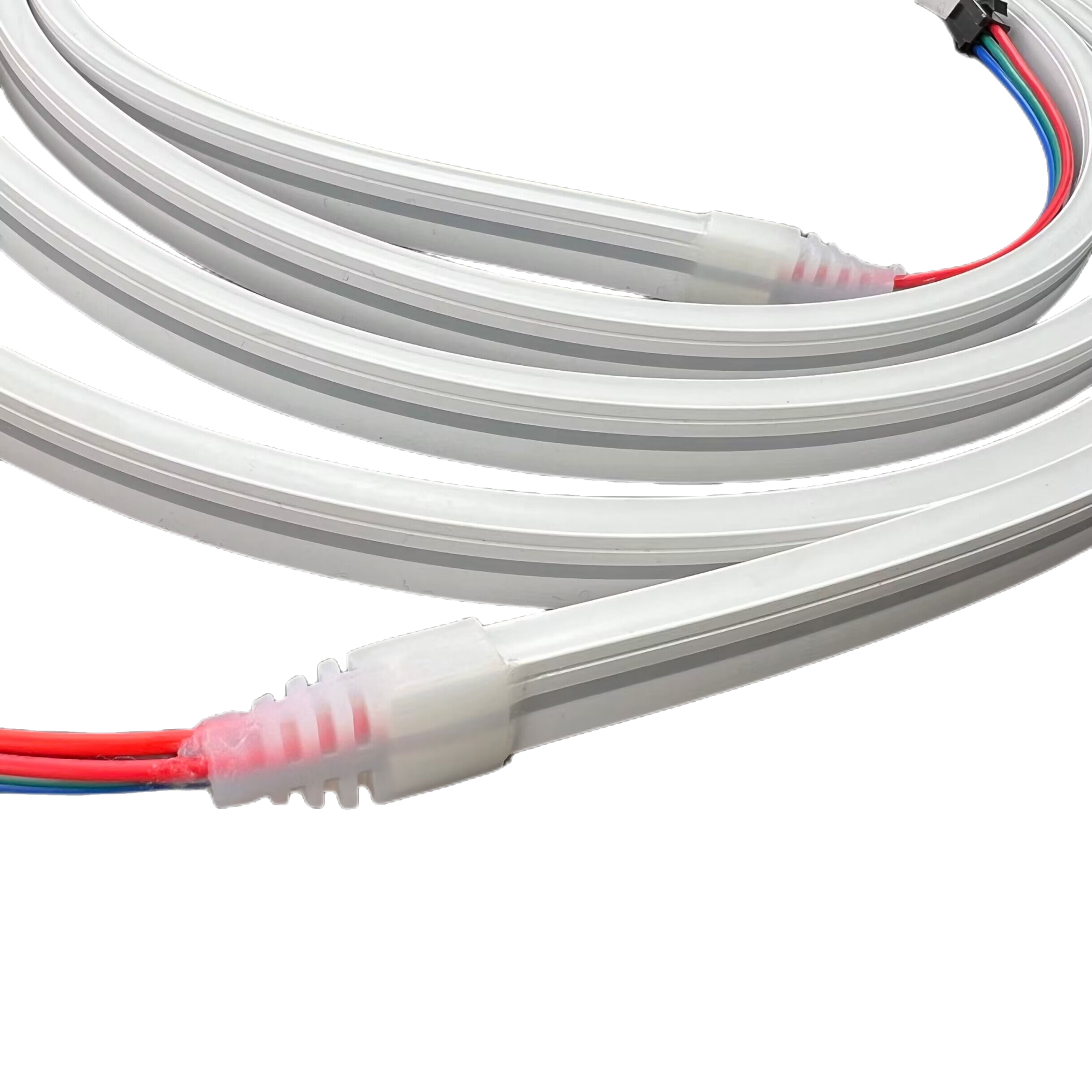

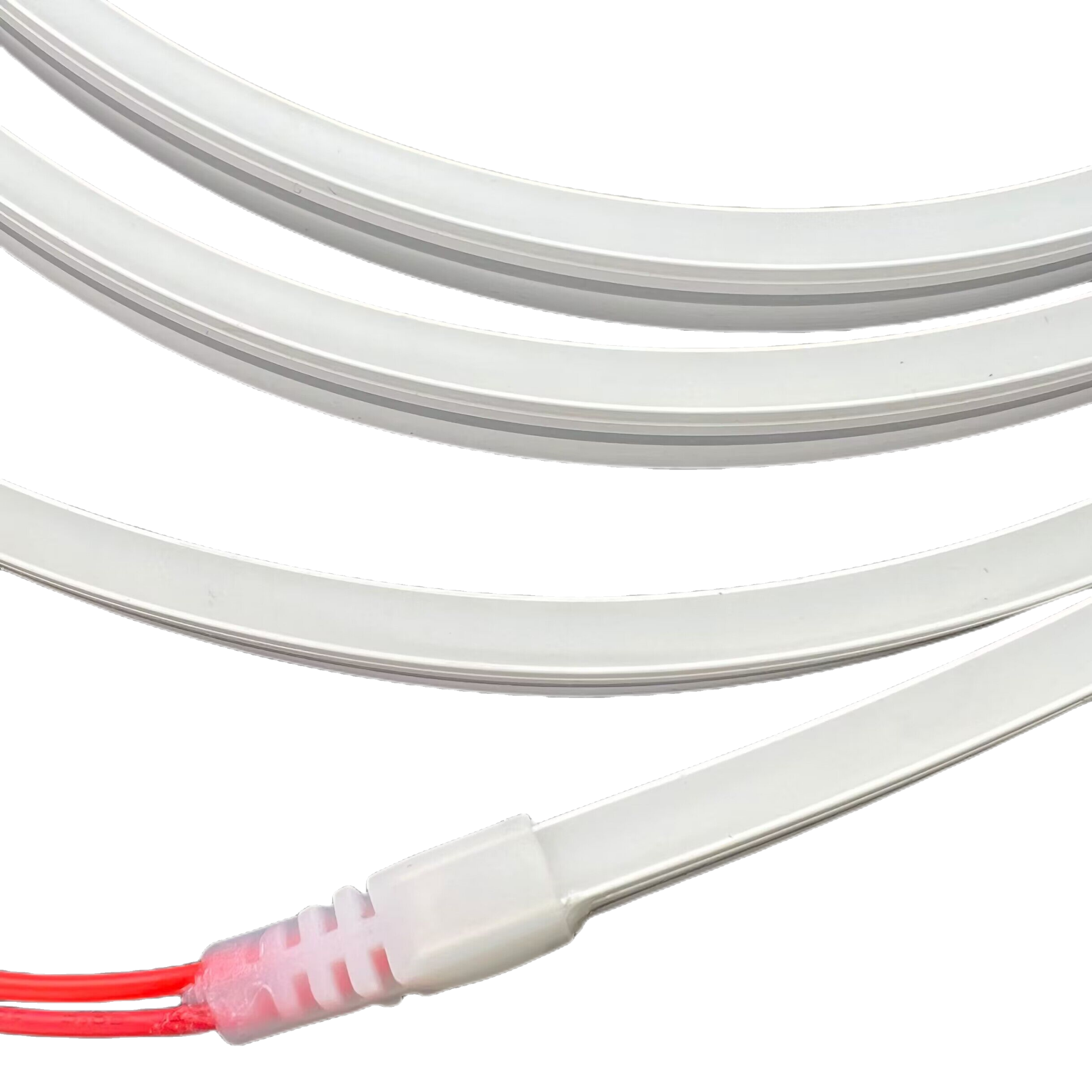

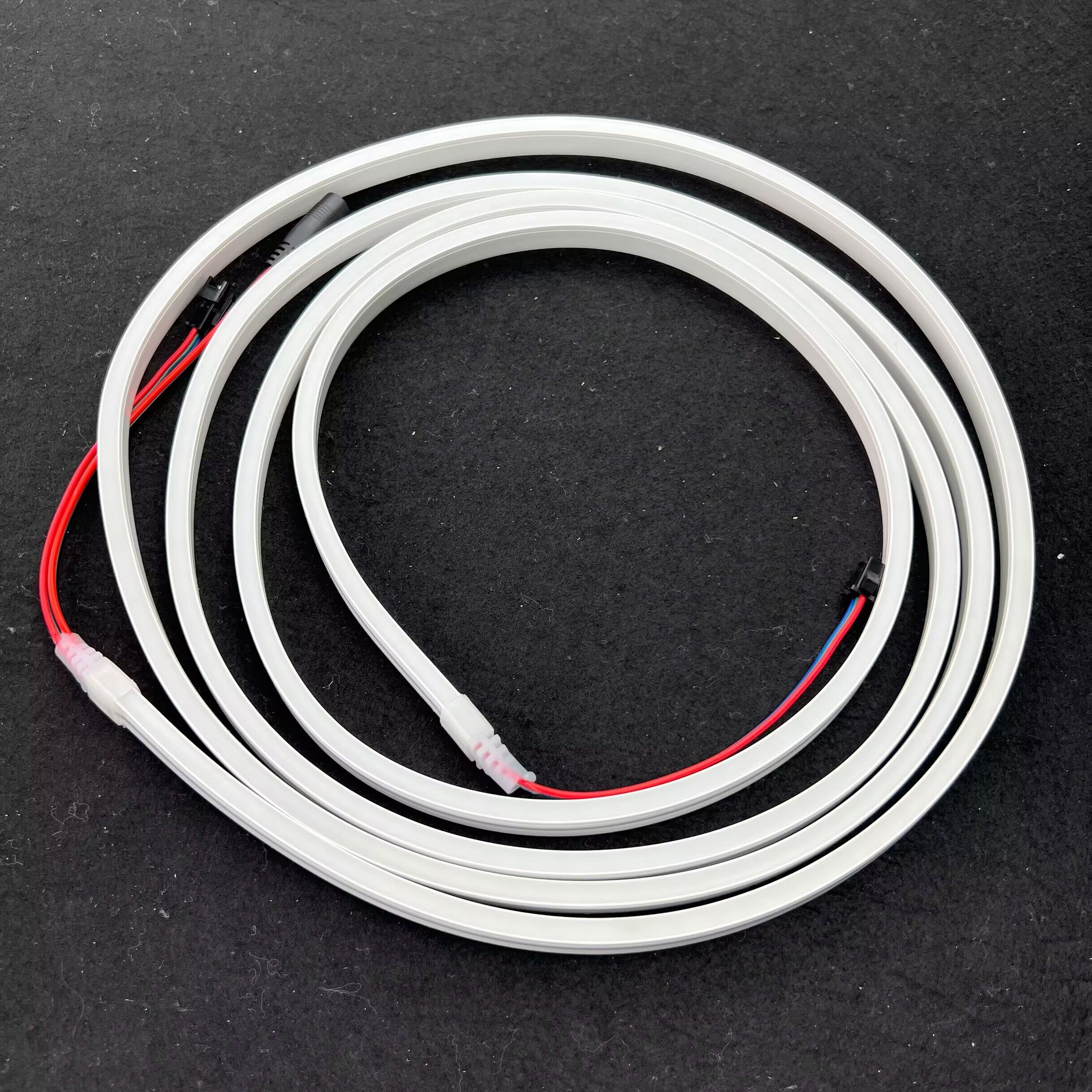

nomal neon tube: Size: 06mm*12mm,silicon frosted neon tube,side view,used for PCBWidth:8mm;120° Beamangle

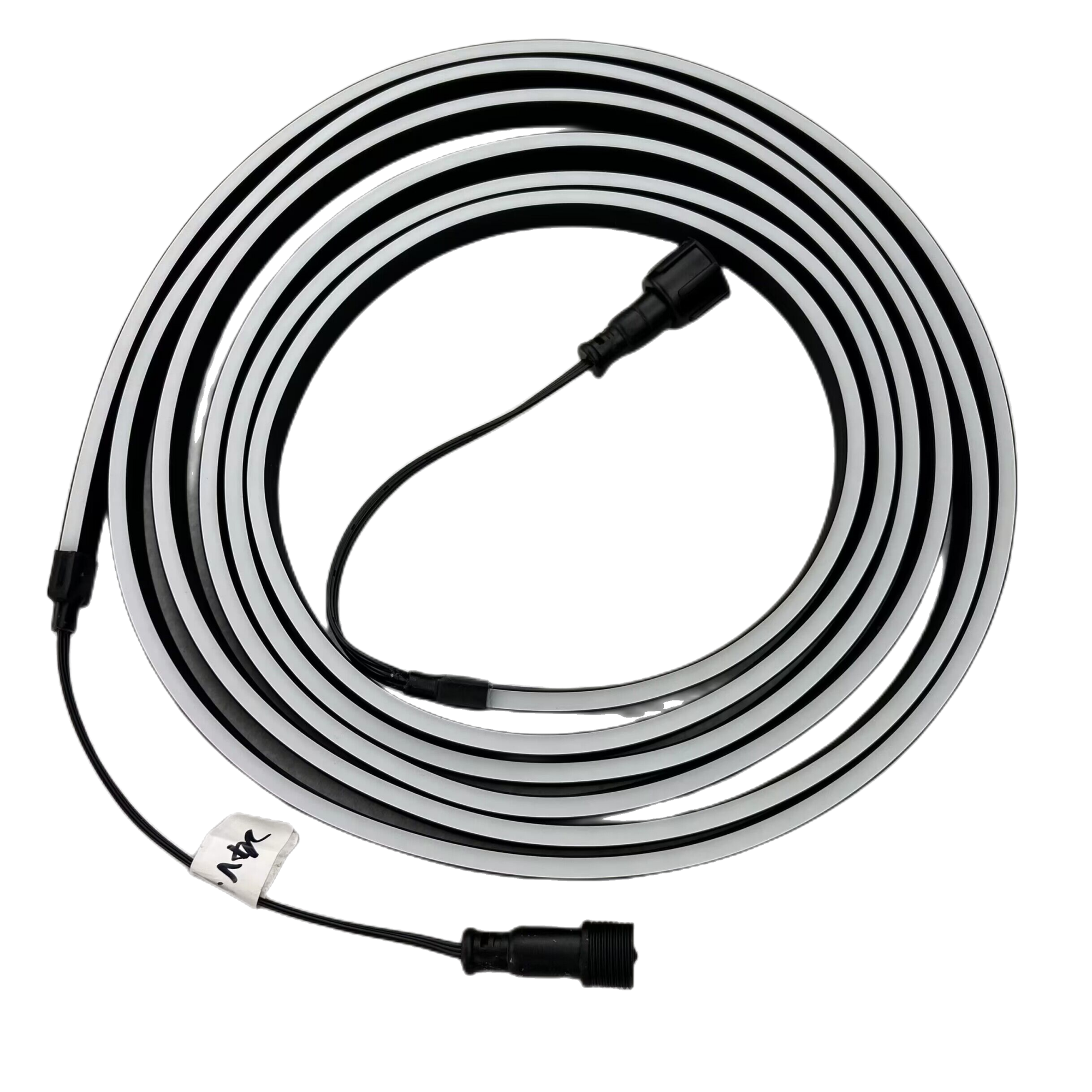

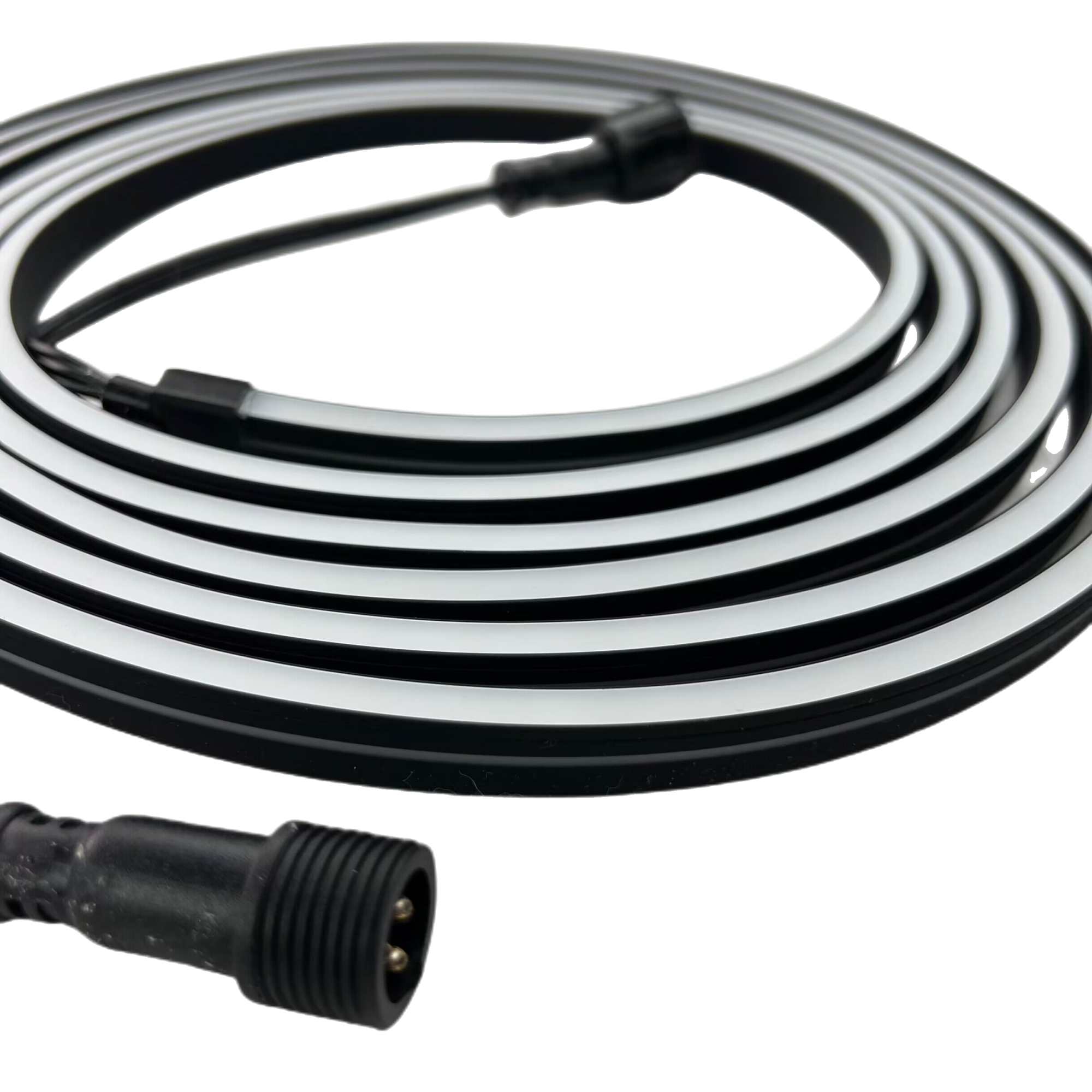

waterproof pigtails type:

xConnect/13.5mm(ray wu) series black waterproof male and female connectors at ends

3 core xConnect pigtails

3 core 13.5mm Raywu pigtails

3Pin JST SM connectors:

3PIN JST plug and socket,with 15cm long wire each,20AWG wire;all black wire

input end:                 0.2m long male connector with black flat wire

output end:                0.2m long female connector with black flat wire

standard pinout diagram for our pixel lights:

for pigtails:

Brown:- 5/12v +
Yellow: data
Blue: GND

Input end: male connector(screw end with bare pin)

Output end: female connector(with hole)

Recommended Controllers:

APP bluetooth & WIFI/SD card/Artent SPI etc
