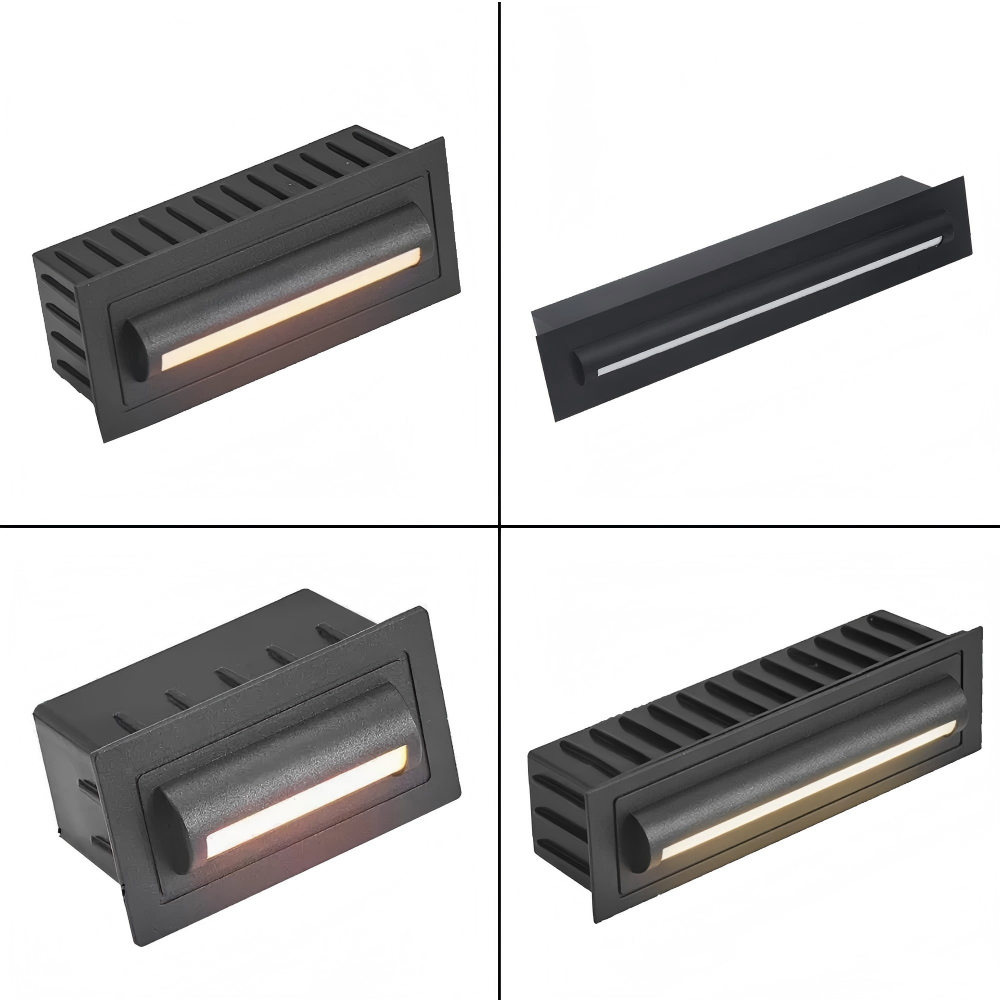

Product Introduction
The USKYLED Recessed Outdoor LED Step Light is a compact exterior lighting fixture designed for stairs, pathways, garden walls, yards, patios and architectural landscape projects.
The recessed installation allows the fixture to integrate into exterior walls and stair structures while providing practical illumination for steps and pedestrian areas.
The product uses a die-cast aluminum housing and is specified with IP65 protection, making it suitable for outdoor environments where protection from dust and water exposure is required. The current specification also lists a luminous efficiency of ≥100 lm/W and a service life of up to 50,000 hours.
The current product variants include different body lengths and wattages, with 3W, 5W, 6W and 10W options shown on the page. The selectable electrical configurations include 85-265V and 12-24V versions.
Design

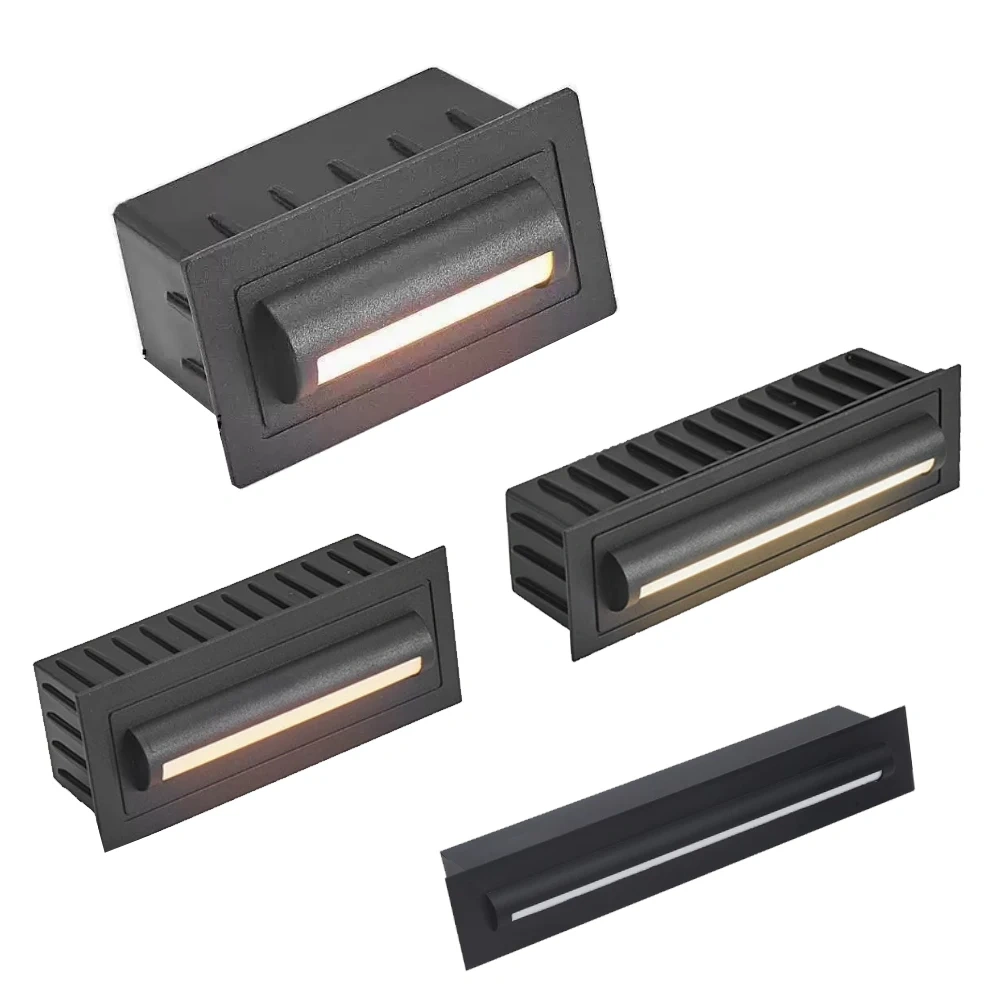

The outdoor LED step light uses a recessed architectural design intended to minimize the visible profile of the fixture after installation.
The body is made from die-cast aluminum, providing a solid housing for exterior applications. The current product configuration uses a sand black lamp body finish.
The recessed structure is suitable for integration into:
- Stair risers
- Exterior walls
- Garden walls
- Pathway structures
- Landscape walls
- Yard entrances
- Patio areas
- Architectural exterior surfaces
The product is supplied with a mounting box, simplifying installation preparation for suitable wall applications.
Main Features
IP65 Outdoor Protection
The fixture is specified with IP65 protection, making it suitable for exterior stairs, pathways, yards and landscape applications.
Recessed Installation
The recessed design integrates the fixture into the wall or stair structure rather than leaving a large surface-mounted housing exposed.
Die-Cast Aluminum Housing
The product uses die-cast aluminum as the main housing material. The current listed finish is sand black.
High Luminous Efficiency
The current product specification lists luminous efficiency of ≥100 lm/W.
Multiple Power Options
The product page currently shows:
with corresponding body-length options.
Multiple Voltage Options
The product variants include:
This allows the product series to serve both mains-voltage and low-voltage outdoor lighting projects, subject to the selected configuration.
Long Service Life
The listed service life is 50,000 hours.
Switch Control
The current specification lists switch control as the control method. This is important because the product should not be described as a motion-sensor step light.
Application
The recessed outdoor LED step light is suitable for exterior areas requiring discreet architectural and pathway illumination.

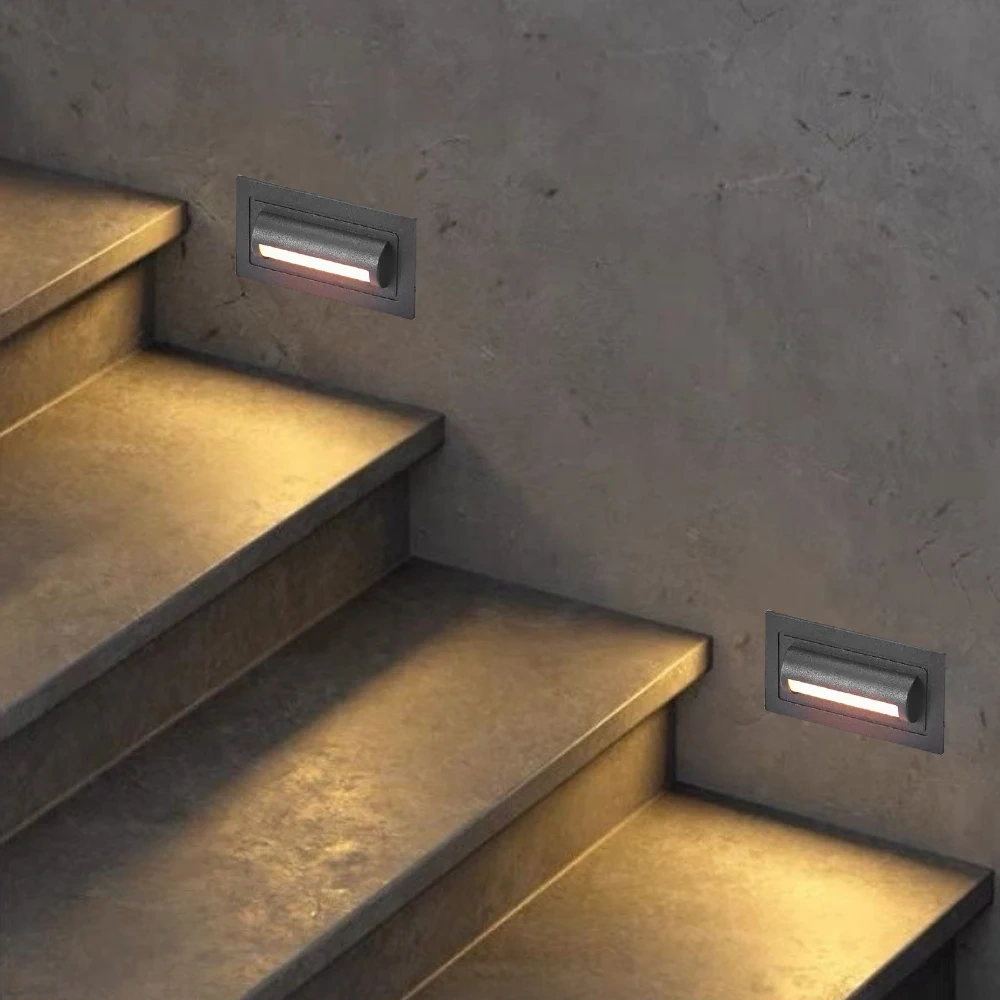

Outdoor Stairs
Install the fixture into stair risers to provide low-level illumination for steps.

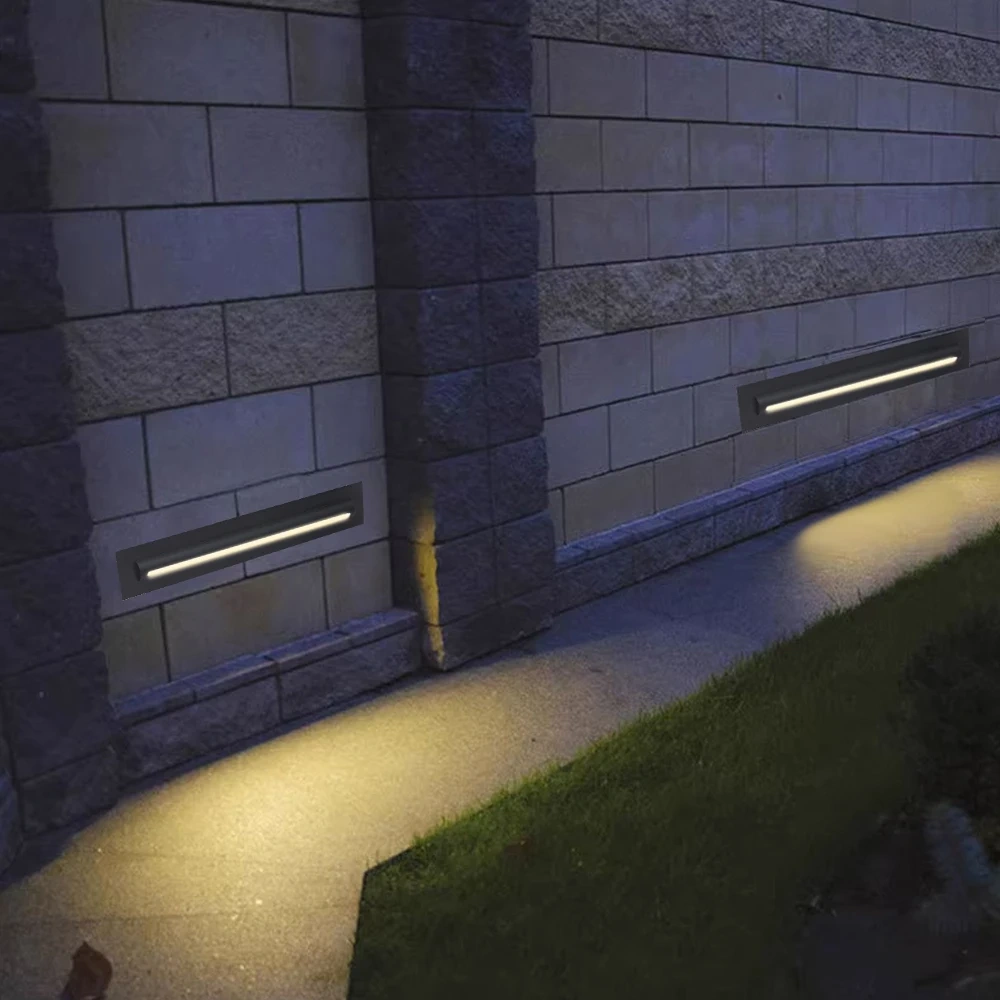

Pathways
Use the fixture along garden paths and pedestrian walkways to provide visual guidance at night.

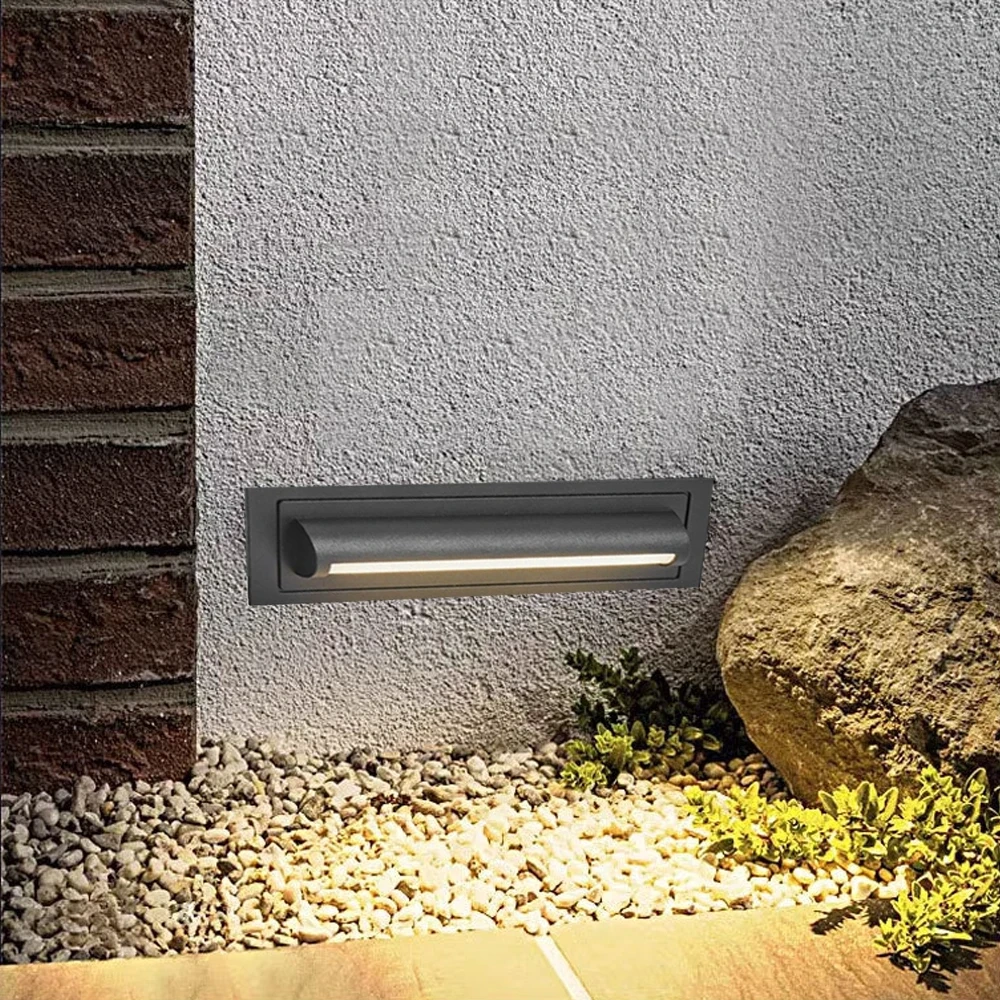

Garden & Yard Lighting
The recessed design can be integrated into garden walls, yard structures and exterior landscape elements.
Patios
Suitable for patio walls, outdoor seating areas and circulation spaces.
Driveways
The fixture can be used around driveway entrances and pedestrian access areas.

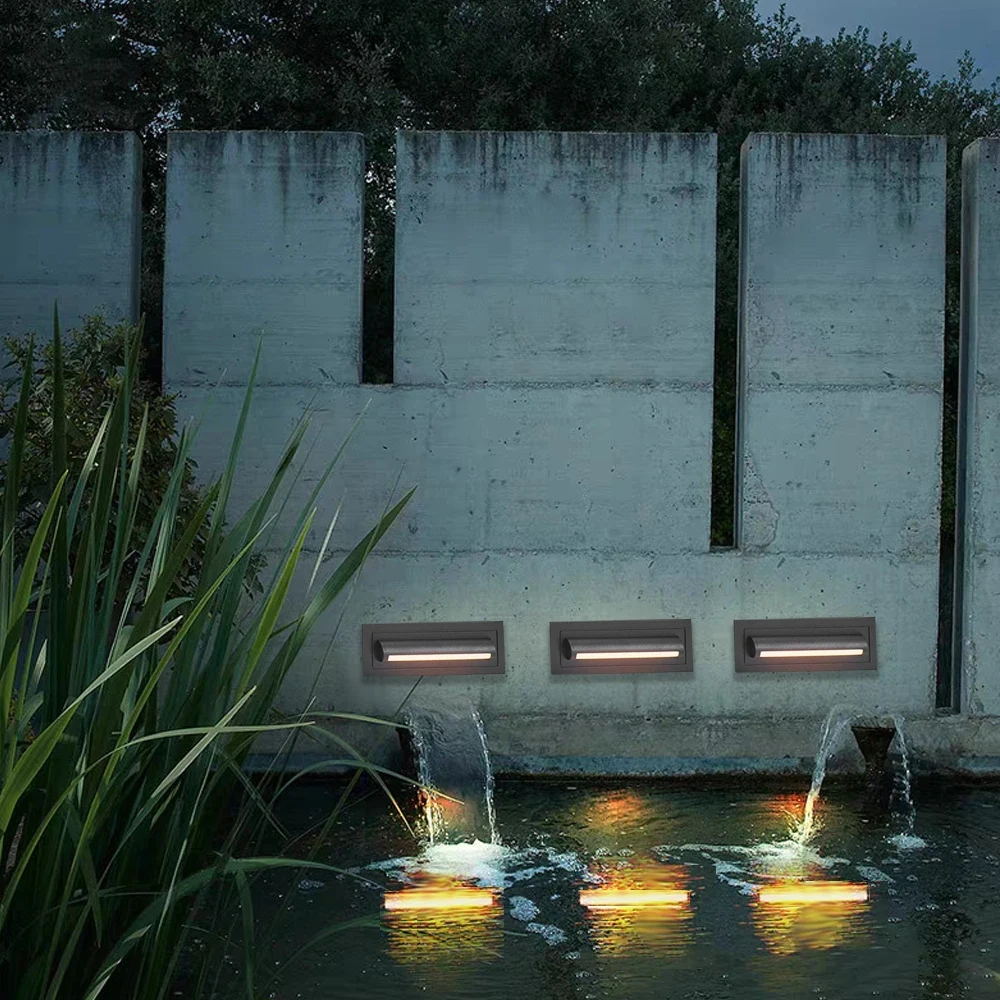

Landscape Lighting
The compact form makes the product suitable for residential and commercial landscape projects requiring integrated step and wall illumination.

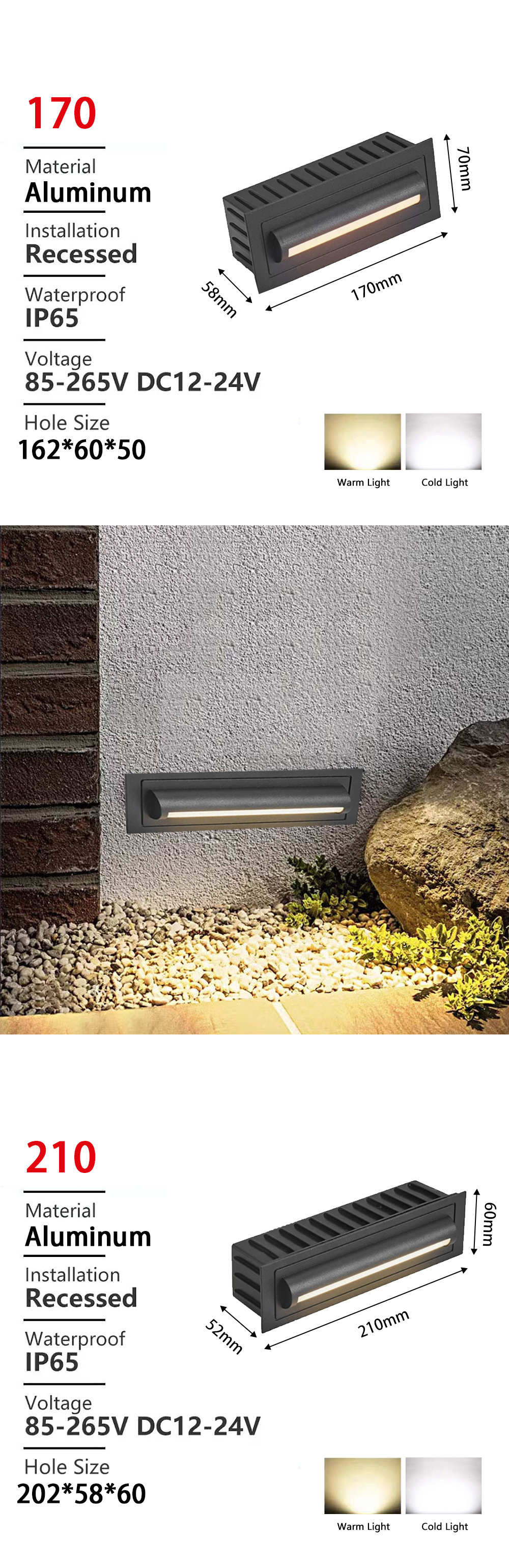

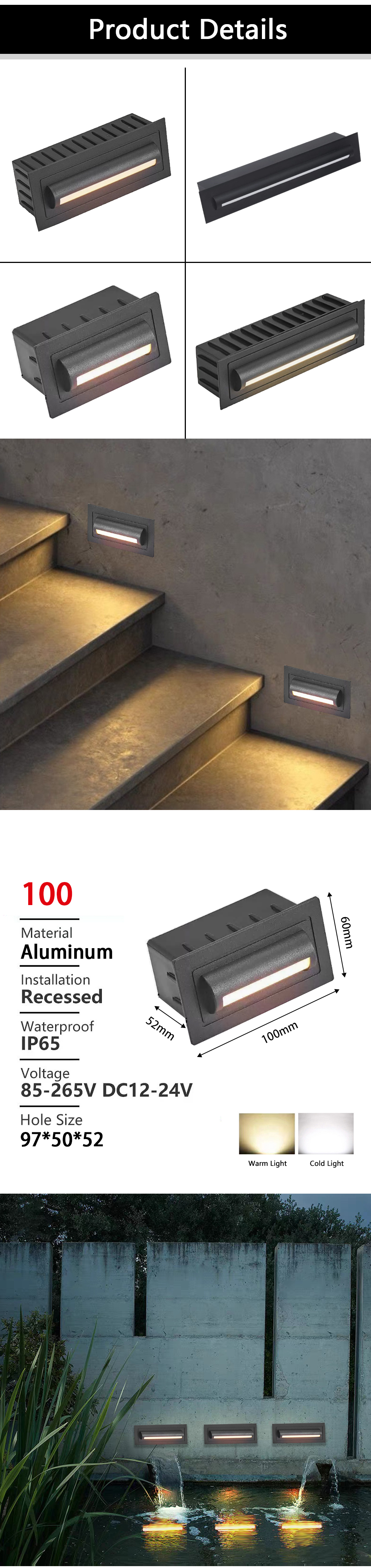

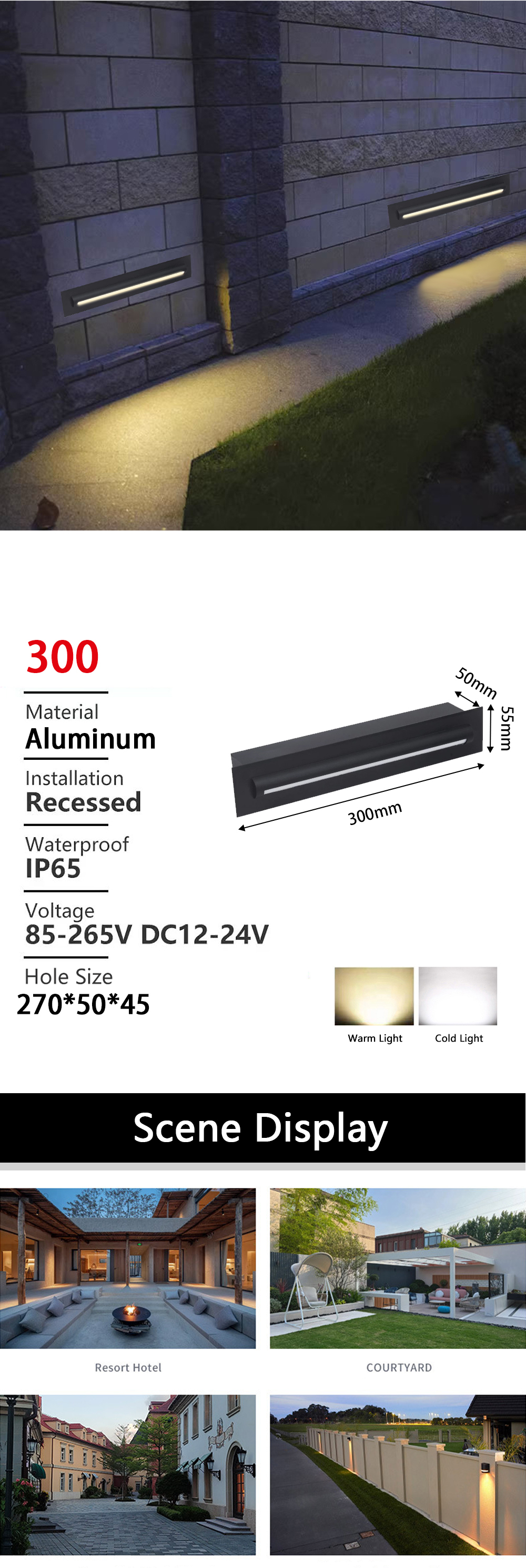

Size / Options
The current product variants shown on the Ueeshop page include the following configurations:
| Variant |
Listed Length |

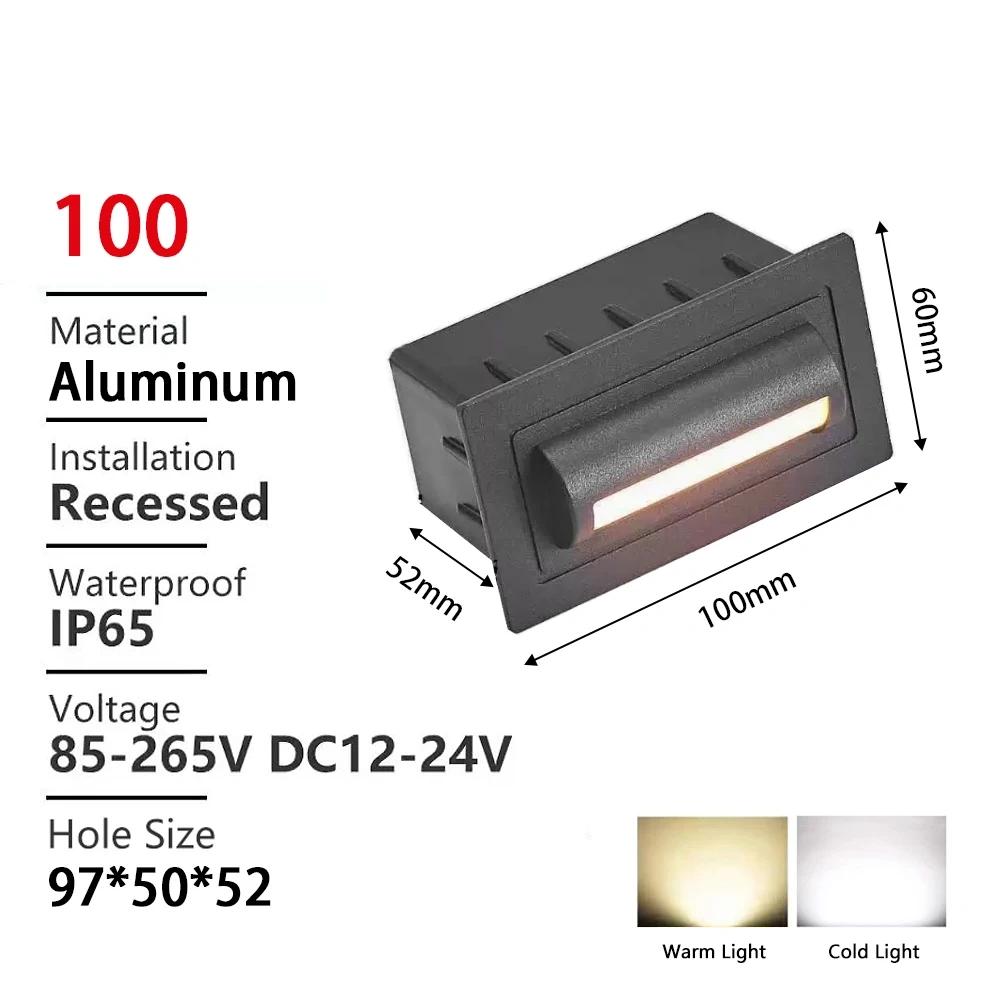

| 3W |
100 mm |

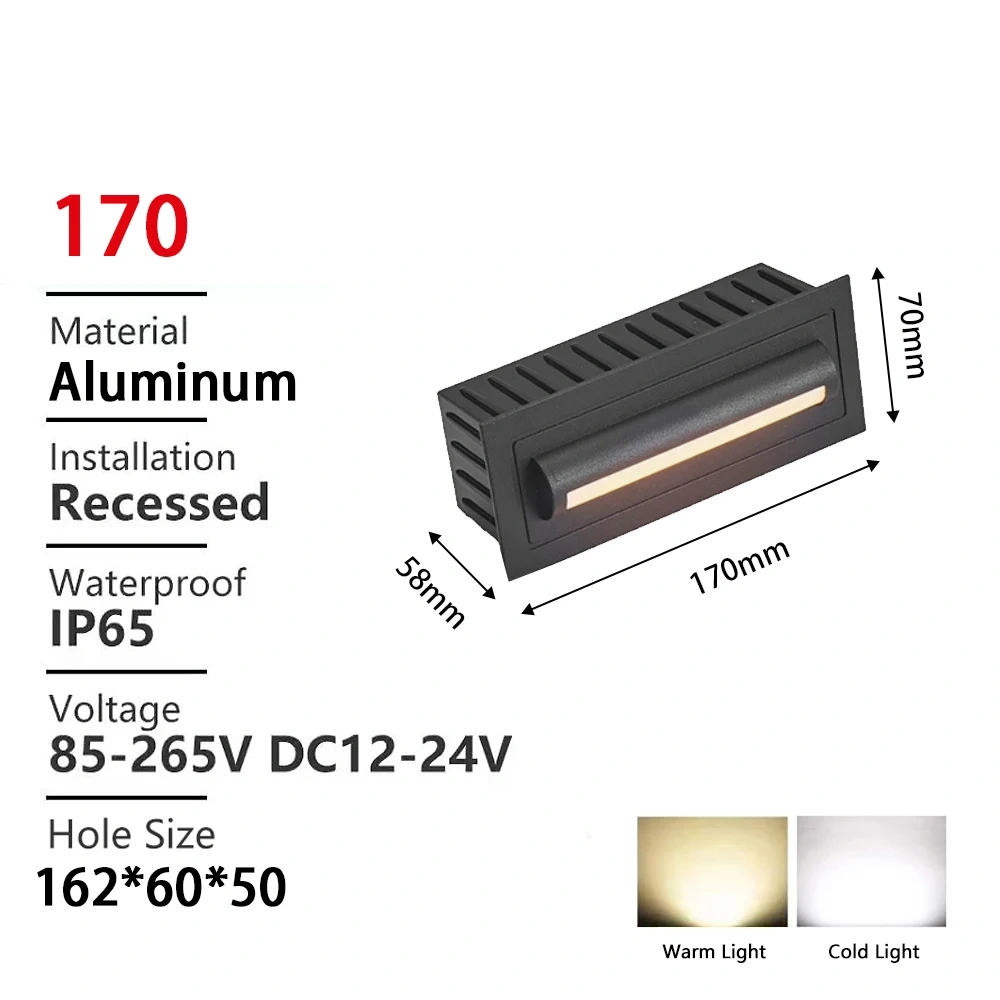

| 5W |
170 mm |

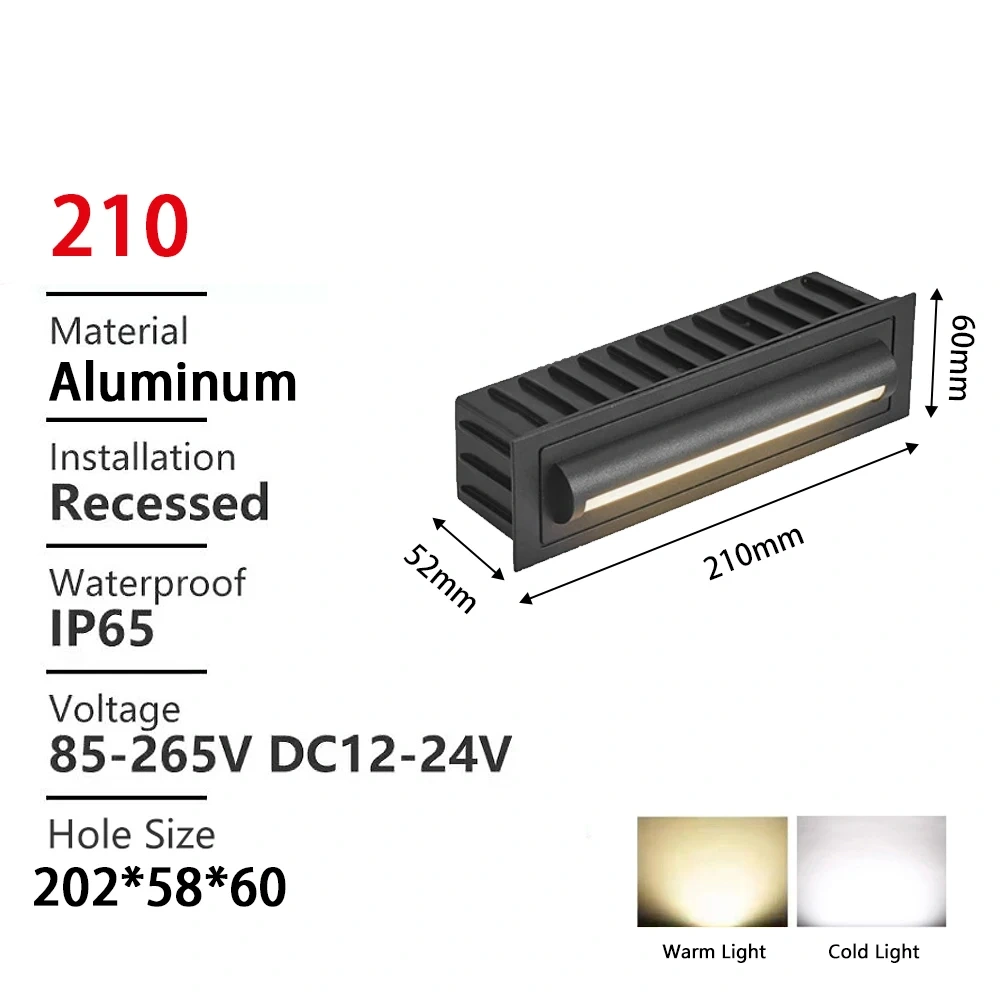

| 6W |
210 mm |

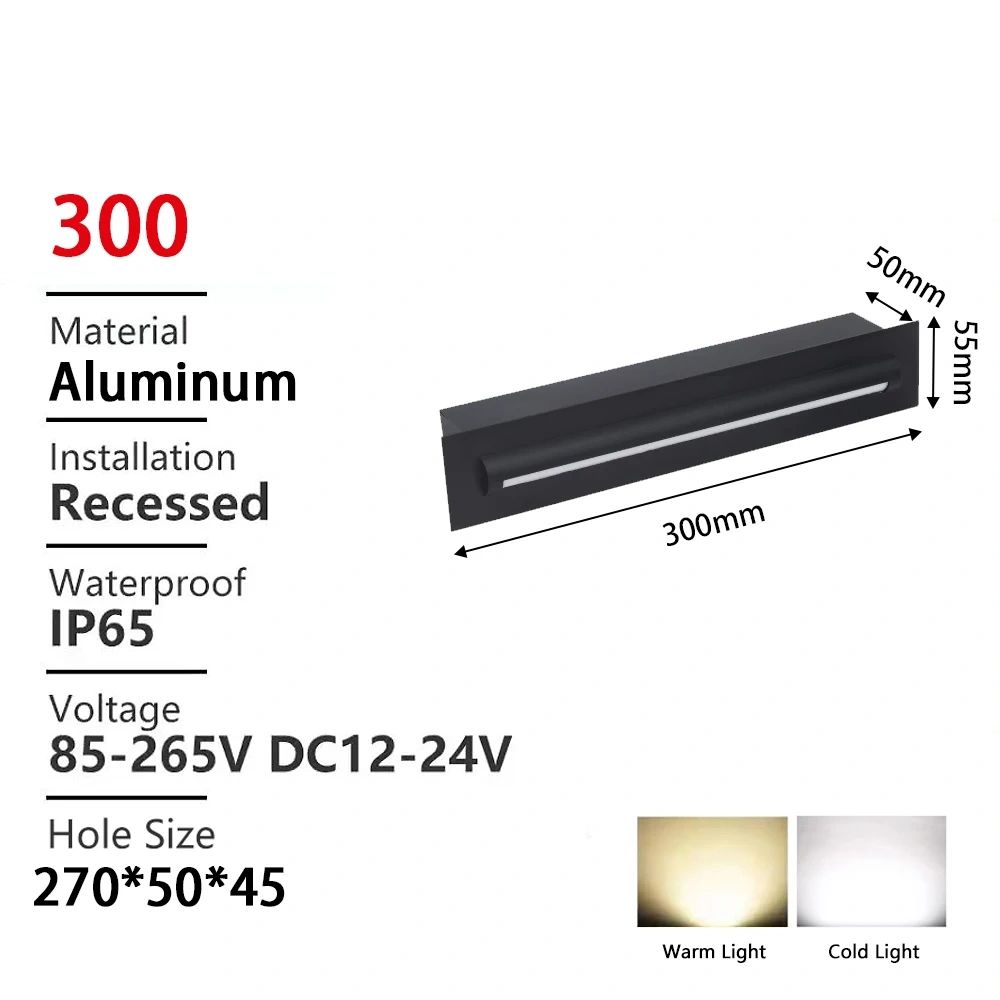

| 10W |
300 mm |
Voltage Options
The current page displays:
- Warm Light 85-265V
- Cold Light 85-265V
- Warm Light 12-24V
- Cold Light 12-24V
Lighting Options
The current specification lists two broad CCT ranges:
- Warm White: 2700-3500K
- Cold White: 5500-7000K
The product page also presents warm and cold light configurations for both the 85-265V and 12-24V options.
Warm White is suitable for residential gardens, villas, patios and decorative landscape environments.
Cold White is suitable for pathways, exterior circulation areas and projects requiring a brighter, cooler appearance.
Installation
The fixture is designed for recessed installation, and the current product specification states that the mounting box is included.
Typical installation locations include:
- Stair risers
- Exterior walls
- Garden walls
- Pathway edges
- Yard structures
- Driveway entrances
- Patio walls
- Landscape structures
Recommended installation process:
- Confirm the selected wattage, voltage and body length.
- Prepare the wall opening according to the fixture and mounting-box dimensions.
- Install the supplied mounting box.
- Complete electrical wiring according to the selected voltage version.
- Insert and secure the LED step light.
- Check the electrical connection.
- Test the light before completing the exterior surface.
For outdoor installation, the connection between the fixture and mounting surface should be properly sealed to maintain the intended weather protection.
Professional electrical installation is recommended for commercial and architectural projects.
Technical Specifications
| Specification |
Details |
| Product Type |
Recessed Outdoor LED Step Light |
| Main Application |
Outdoor Stairs & Step Lighting |
| Power Options |
3W / 5W / 6W / 10W |
| Voltage Options |
AC85-265V / 12-24V |
| Material |
Die-Cast Aluminum |
| Luminous Efficiency |
≥100 lm/W |
| Light Source |
LED Chips |
| CCT Options |
Warm White 2700-3500K / Cold White 5500-7000K |
| Control Type |
Switch Control |
| Housing Color |
Sand Black |
| Installation |
Recessed |
| Mounting Box |
Included |
| Protection Rating |
IP65 |
| Working Temperature |
-20°C to +60°C |
| Lifespan |
50,000 Hours |
| Application |
Stairs / Pathways / Yards / Gardens / Patios / Landscape |
| MOQ |
1 pcs |
| Sample Lead Time |
3-7 days |
| Mass Order Lead Time |
7-15 days |
The technical values above are based on the current product page and its displayed variants.
Project Applications
The product is suitable for residential, hospitality, commercial and landscape lighting projects.
Residential Projects
- Villas
- Private homes
- Residential staircases
- Garden pathways
- Courtyards
- Patios
- Driveways
Landscape Projects
- Garden walls
- Landscape pathways
- Exterior steps
- Courtyard structures
- Landscape borders
- Residential developments
Hospitality Projects
- Hotel exterior stairs
- Resort pathways
- Villa developments
- Outdoor circulation areas
- Patio areas
Commercial Projects
- Commercial entrances
- Office building exteriors
- Retail exterior areas
- Restaurants
- Public pedestrian areas
Architectural Projects
The recessed form is suitable for architectural projects where the lighting fixture needs to visually integrate with walls, steps or landscape structures.
For project orders, buyers can provide installation drawings, required voltage, CCT, power, dimensions and estimated quantity for configuration evaluation.
OEM/ODM
USKYLED supports OEM and ODM cooperation for:
- Lighting distributors
- Landscape lighting companies
- Outdoor lighting brands
- Contractors
- Project developers
- Architectural lighting companies
- Wholesalers
Possible customization options include:
- Product dimensions
- Wattage
- Voltage
- Color temperature
- Housing finish
- Front design
- Mounting configuration
- Packaging
- OEM logo
- Custom branding
For project-based orders, customers can provide:
- Project drawings
- Installation dimensions
- Required wattage
- Input voltage
- CCT
- Housing finish
- Quantity
- Target market
USKYLED can evaluate the project requirements and recommend the appropriate product configuration.
MOQ: 1 pcs
Sample Order Lead Time: 3-7 days
Mass Order Lead Time: 7-15 days
