Product Introduction

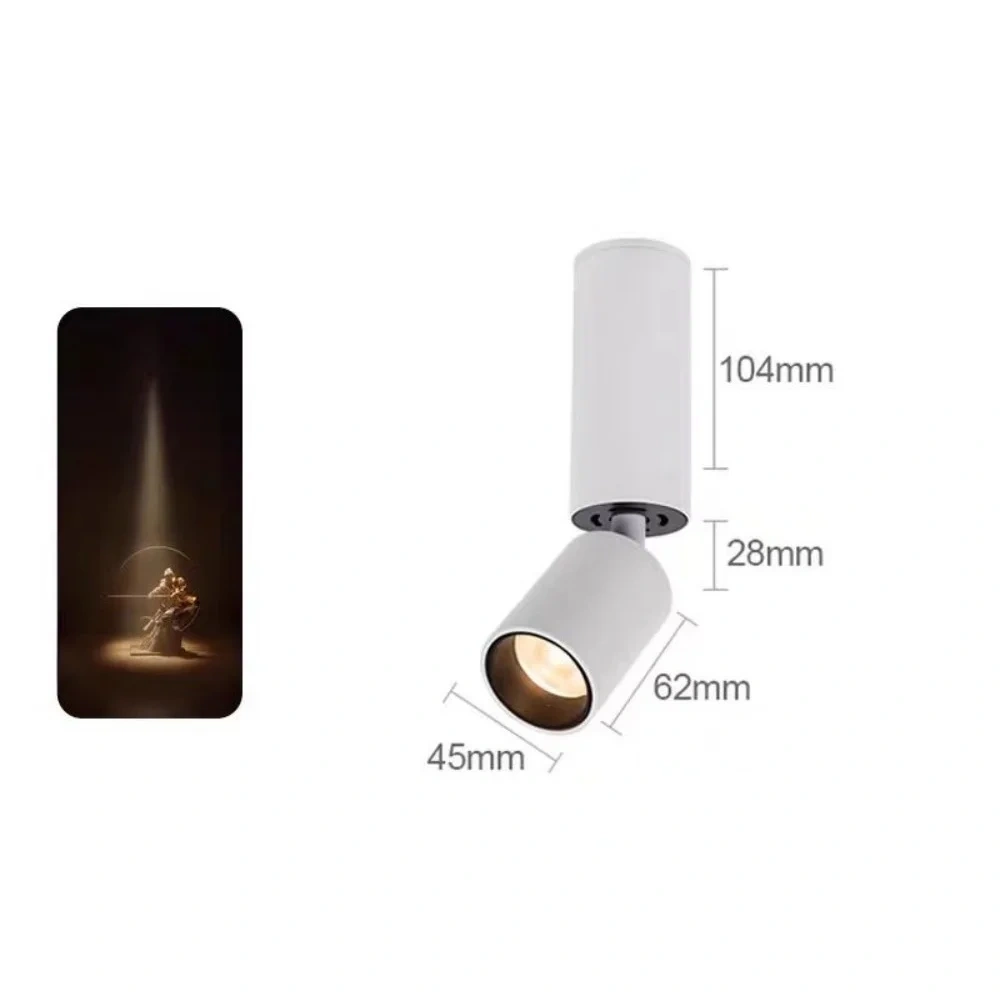

The USKYLED Small Beam Angle LED Spotlight is designed for surface-mounted ceiling applications where focused and directional lighting is required.
Unlike conventional wide-beam ceiling lights, this spotlight provides multiple narrow beam options from 3° to 36°, allowing lighting designers and project buyers to select a beam angle according to the desired lighting effect and target area.
The product uses a COB LED light source and is available in 3W, 7W and 12W configurations. Dimmable and non-dimmable versions are available, providing flexibility for different indoor lighting projects.
The product page specifies CRI>90, luminous efficiency of approximately 95–110 lm/W, and color temperature options including 3000K, 4000K and 6000K.
The surface-mounted design makes the spotlight suitable for household, retail, hospitality and commercial interior lighting where directional accent or background lighting is required.
Design

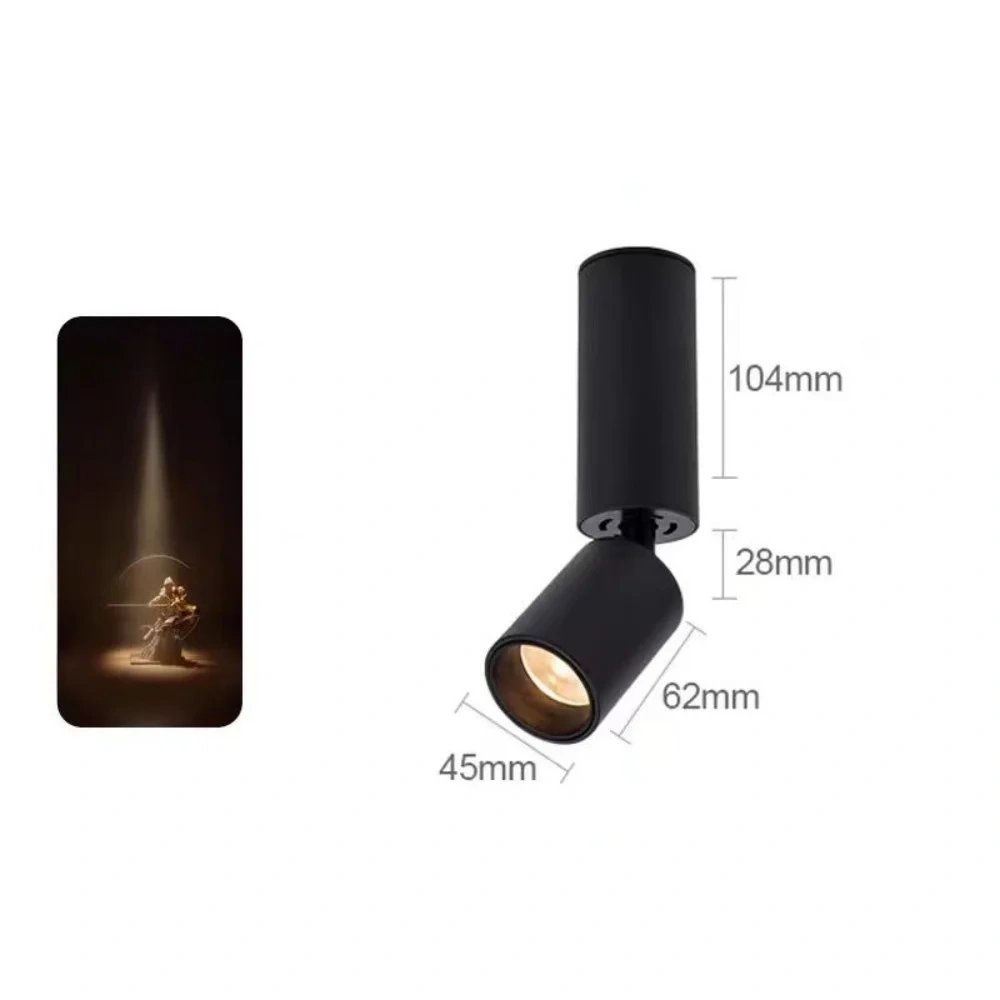

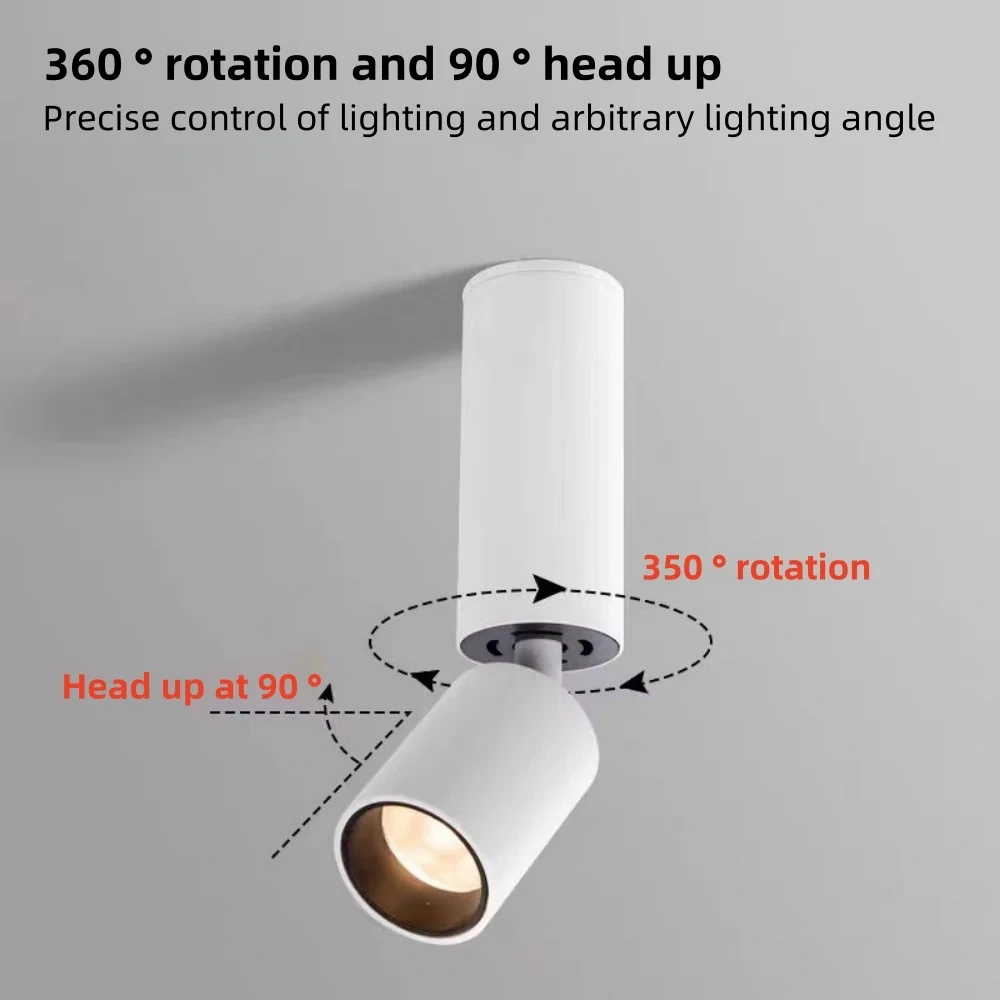

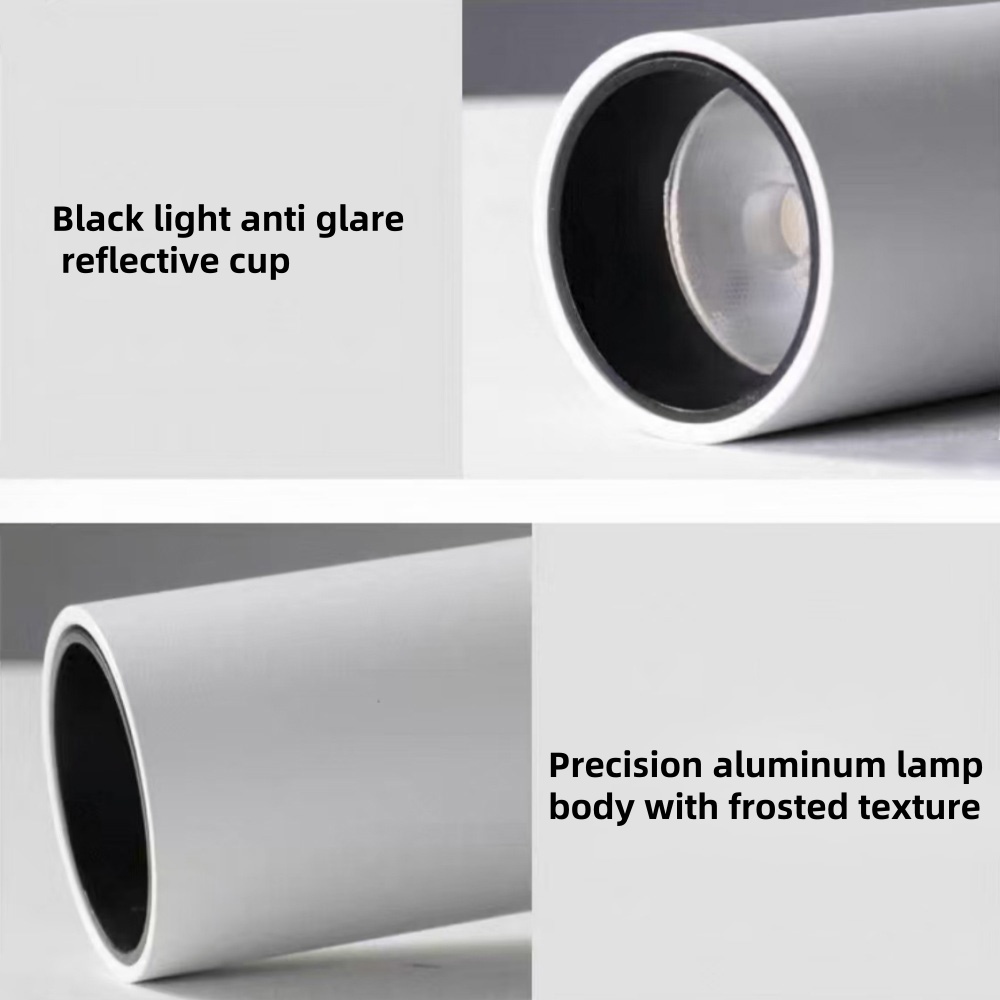

The spotlight uses a compact surface-mounted ceiling design with an aluminum housing.
Its ceiling-mounted structure allows the fixture to be installed directly on the ceiling surface rather than requiring a recessed ceiling opening.

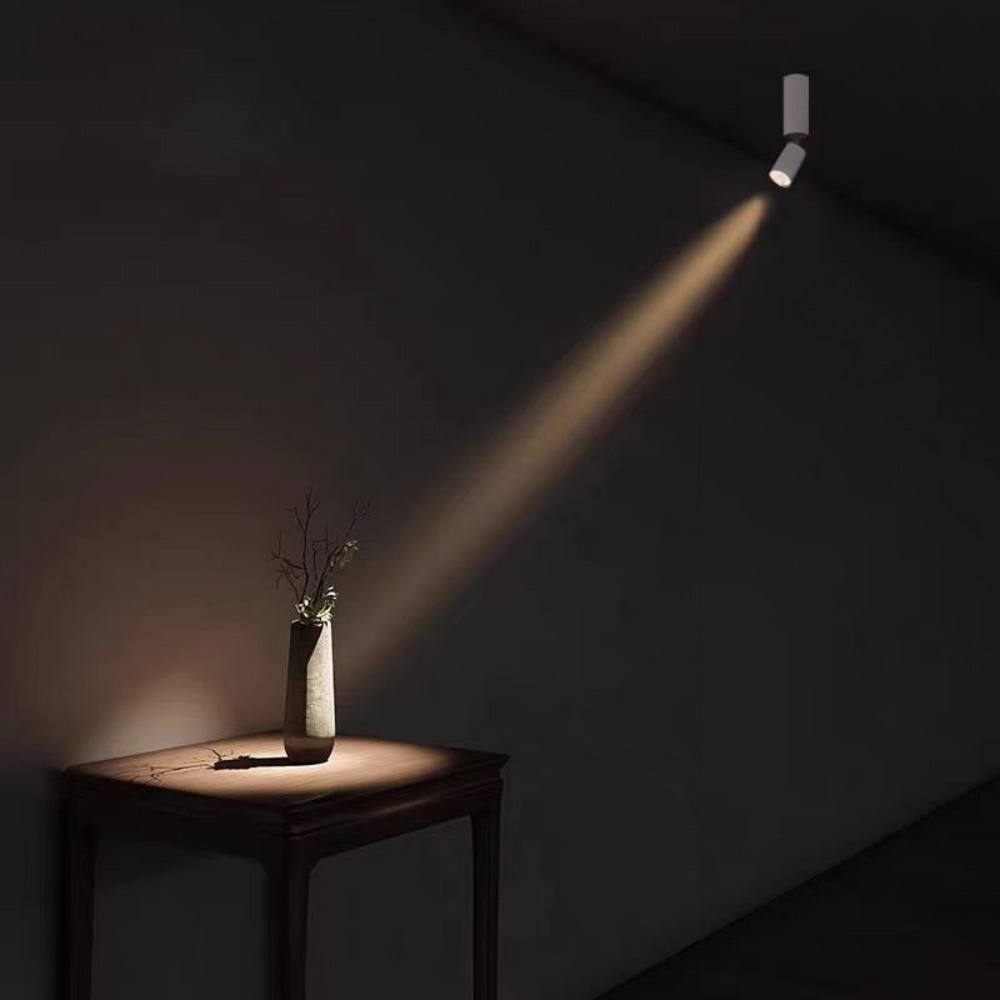

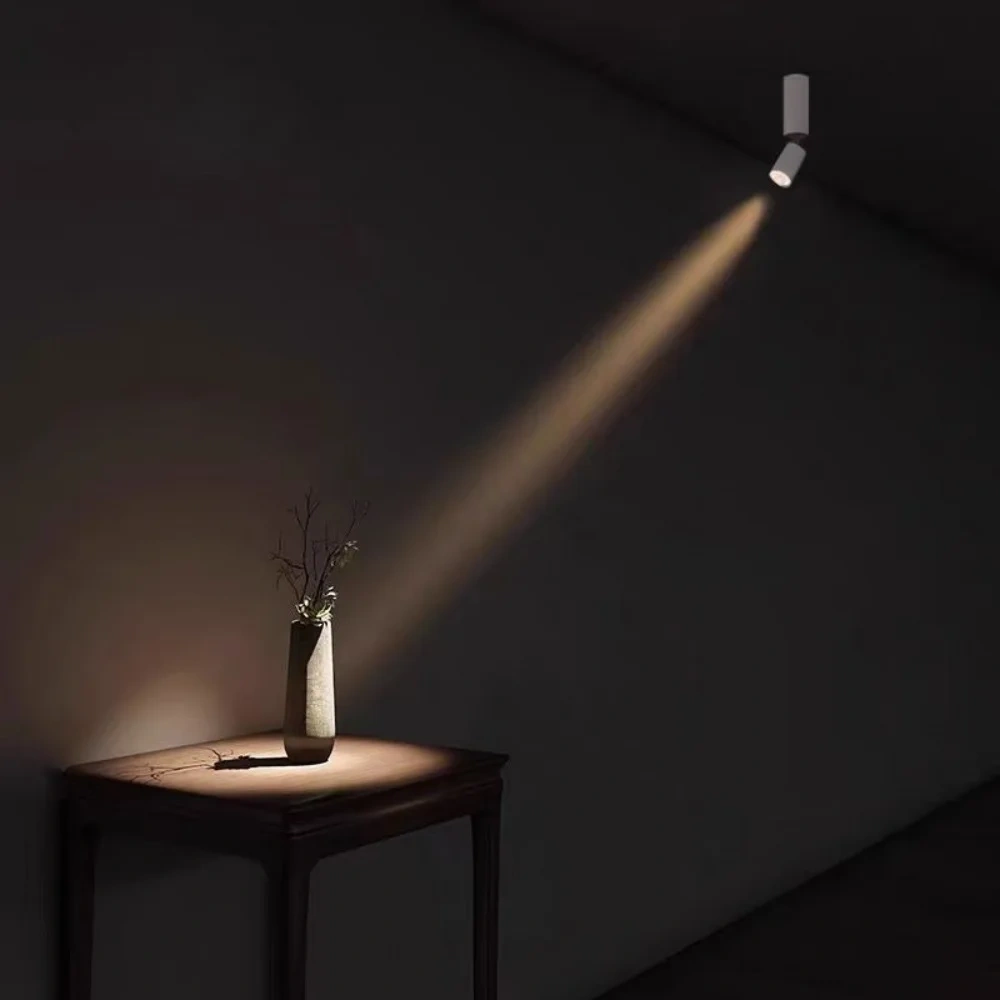

The small beam angle configuration is particularly suitable for focused lighting effects where the project requires a more concentrated light distribution.

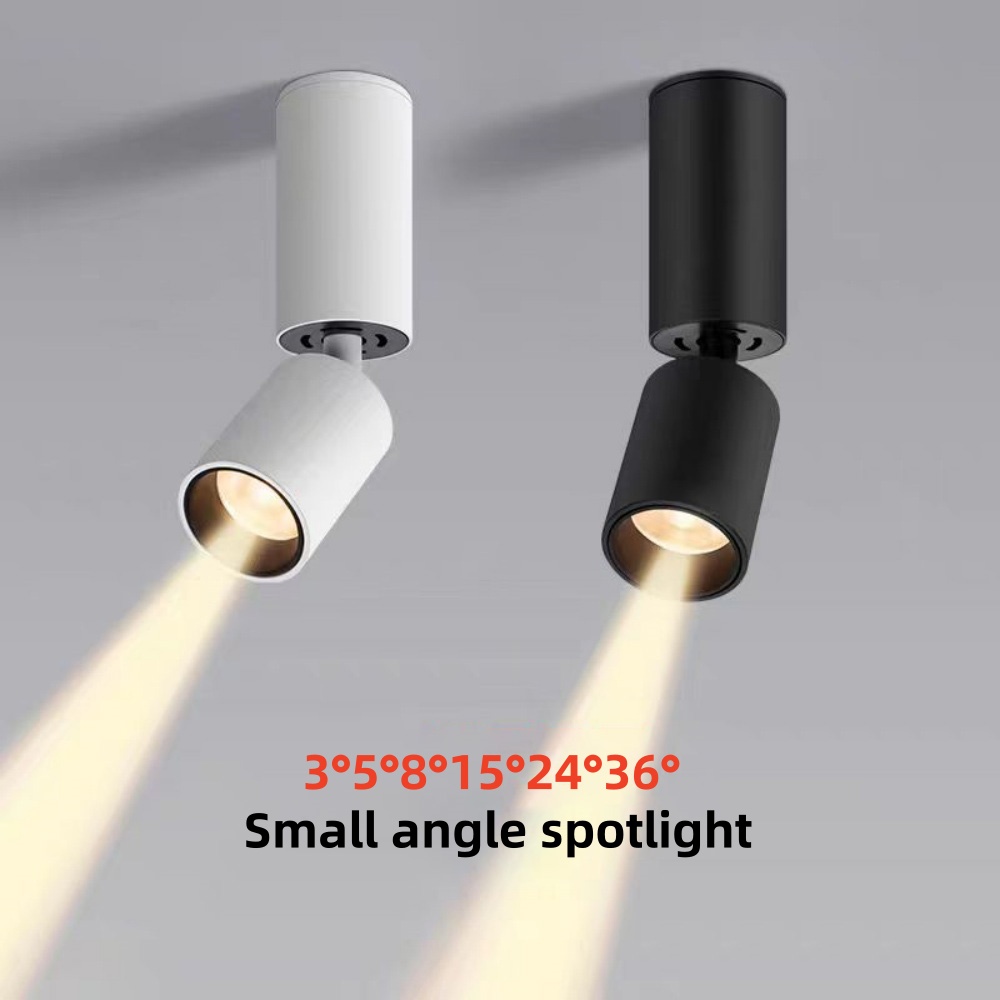

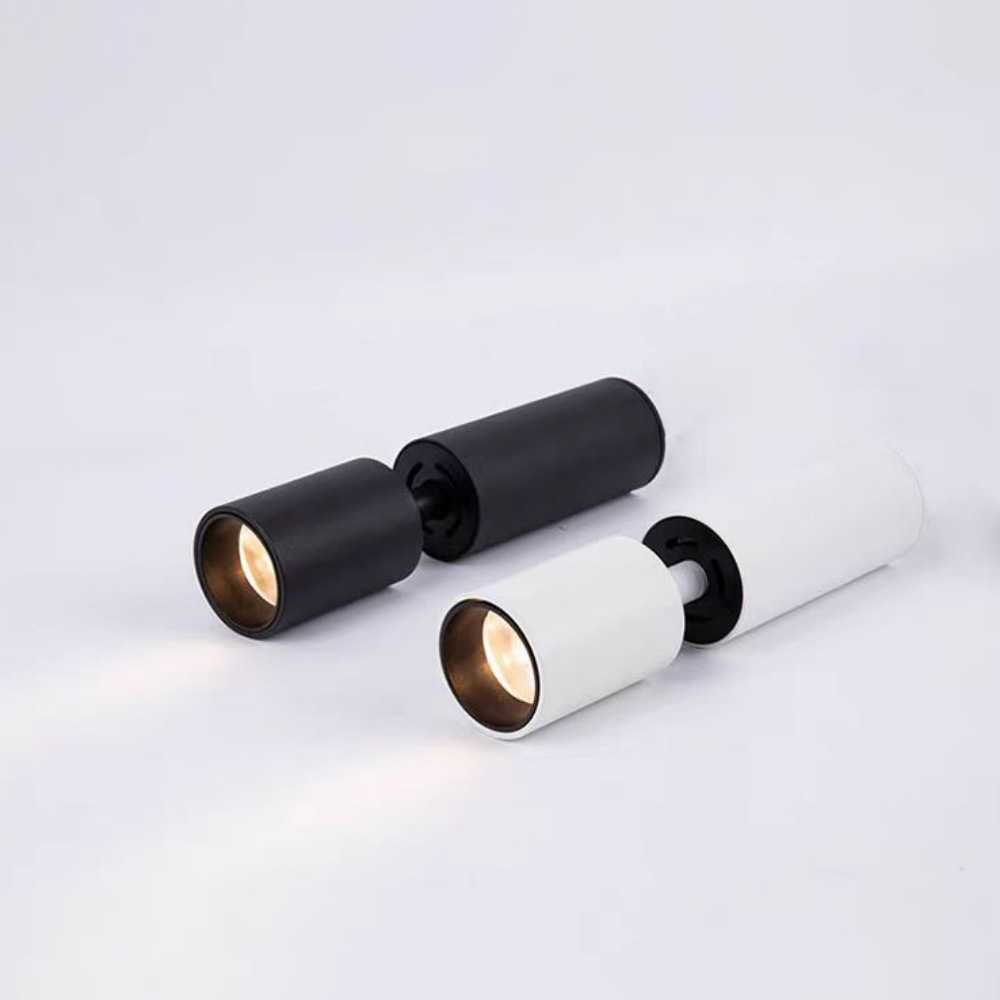

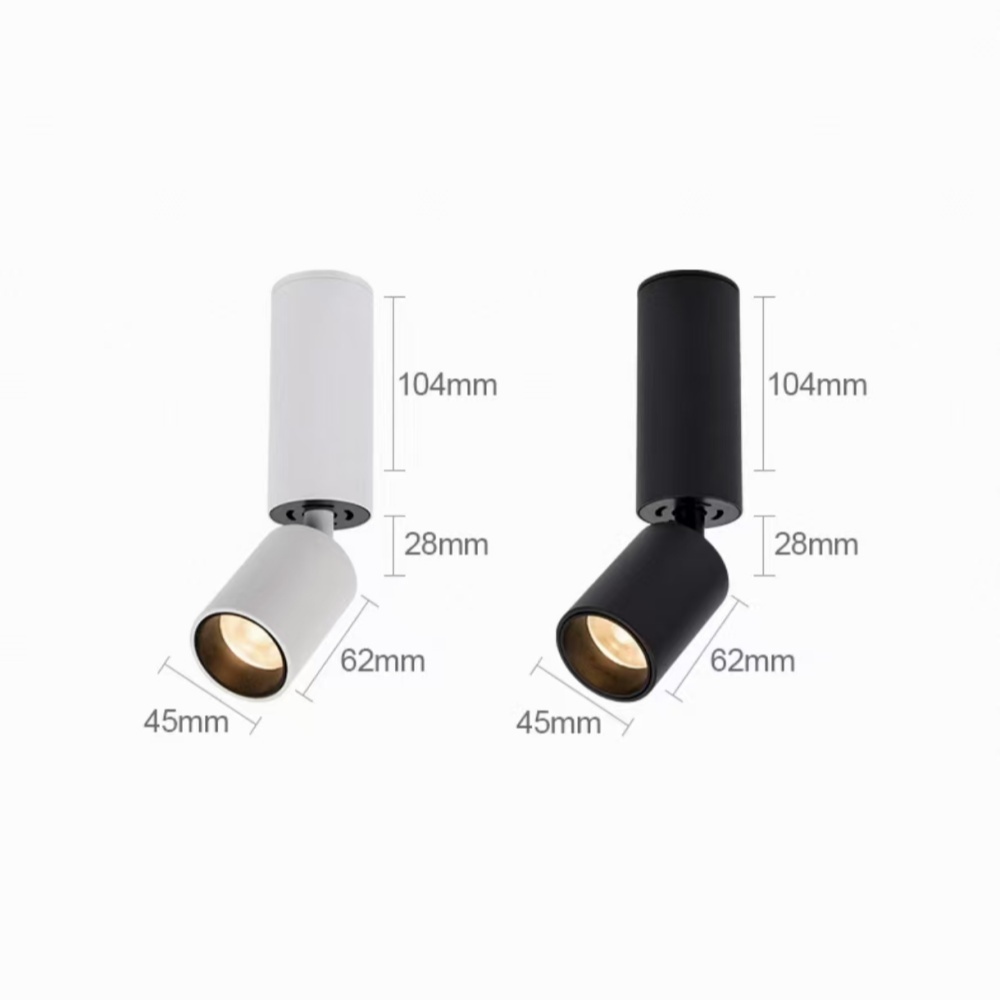

The product is available with:
- Black housing
- White housing
The product page identifies the construction as die-cast aluminum and the light source as COB LED.
Main Features
- Surface-mounted LED spotlight
- Small beam angle options
- 3° / 8° / 15° / 24° / 36° beam angles
- COB LED light source
- CRI>90
- 3W / 7W / 12W options
- Dimmable and non-dimmable versions
- 3000K warm white
- 4000K natural white
- 6000K cool white
- AC85–265V input
- IP42 protection
- Die-cast aluminum housing
- 95–110 lm/W luminous efficiency
- 50,000–80,000 hour stated lifetime
- 5-year stated warranty
These specifications are taken from the current product page.
Application

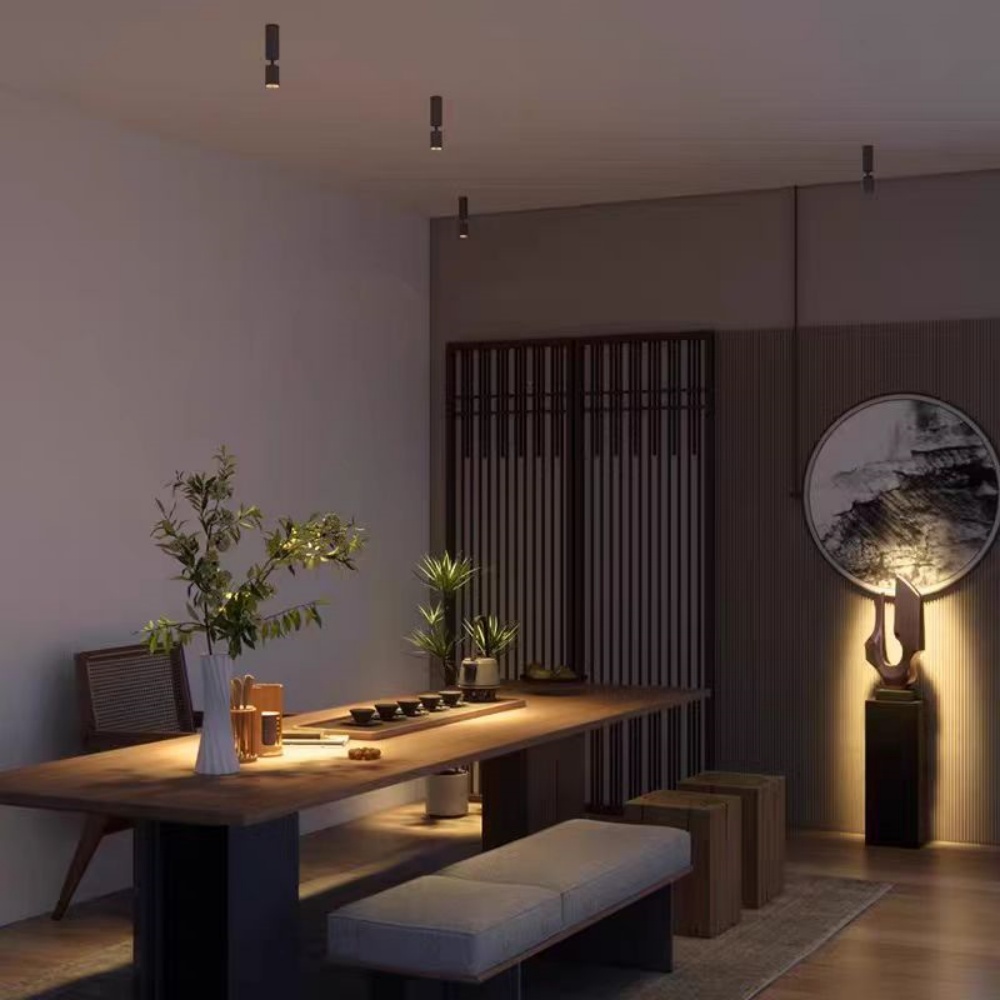

Household Lighting
The spotlight can be used for focused indoor lighting in:
- Living rooms
- Bedrooms

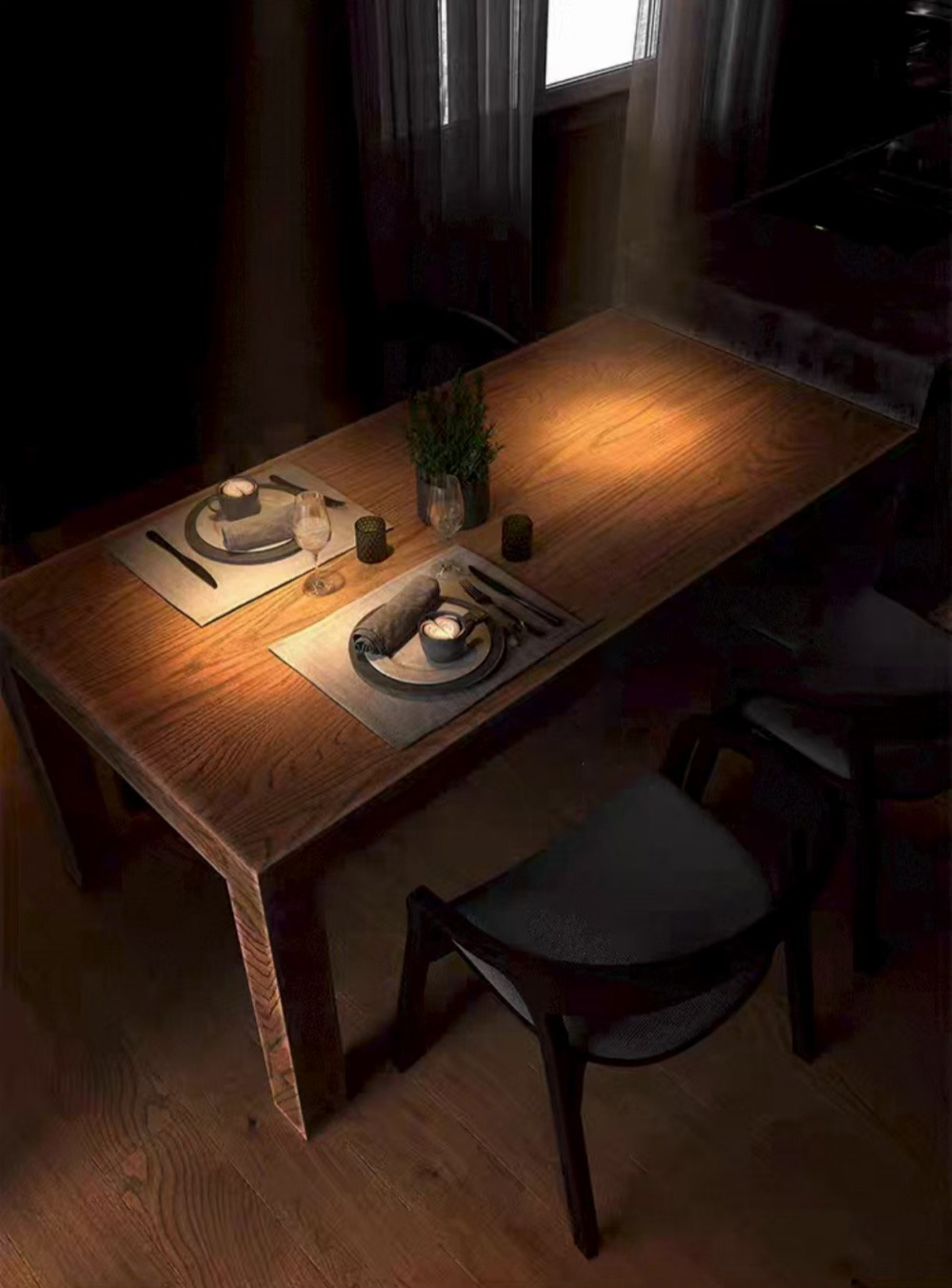

- Dining areas
- Home offices
- Hallways
- Entrance areas
The narrow beam options can be used where a more concentrated lighting effect is preferred.

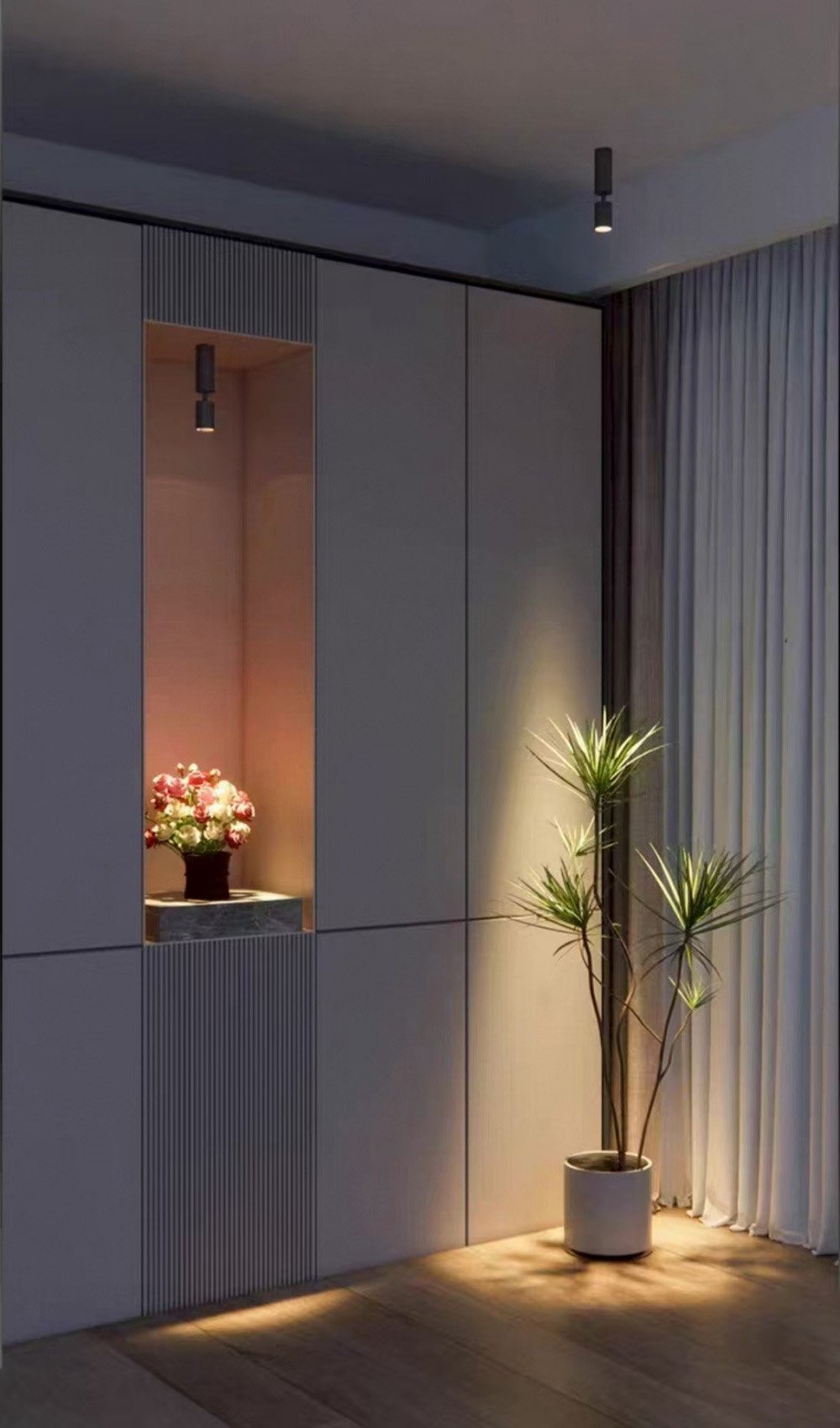

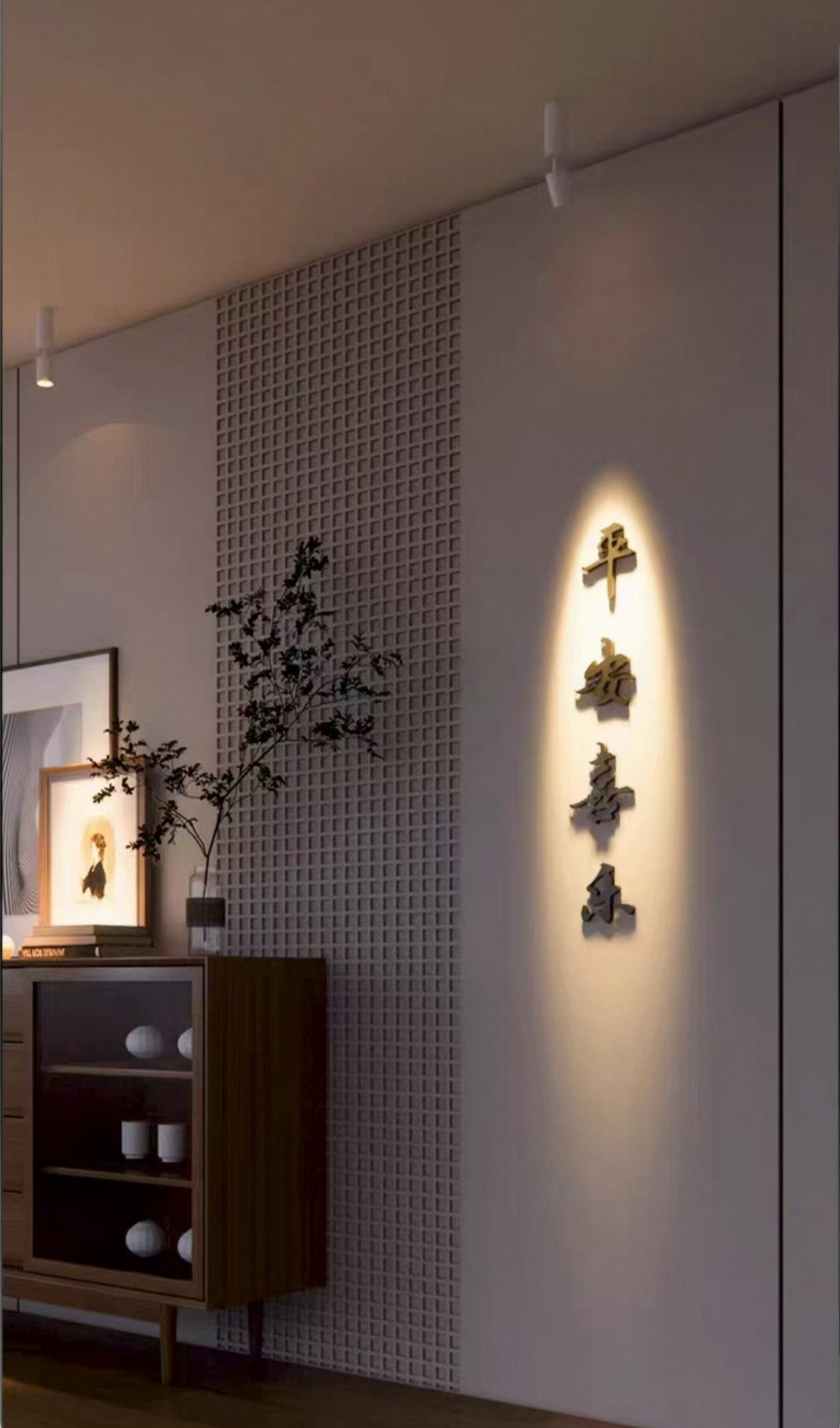

Background Lighting
The product can be used for background or ambient lighting in residential and commercial interiors.
Different beam angles allow designers to adjust the spread of light according to the ceiling layout and lighting objective.
Retail Lighting
Potential retail applications include:
- Product displays
- Shelving
- Feature walls
- Boutiques
- Clothing stores
- Showrooms

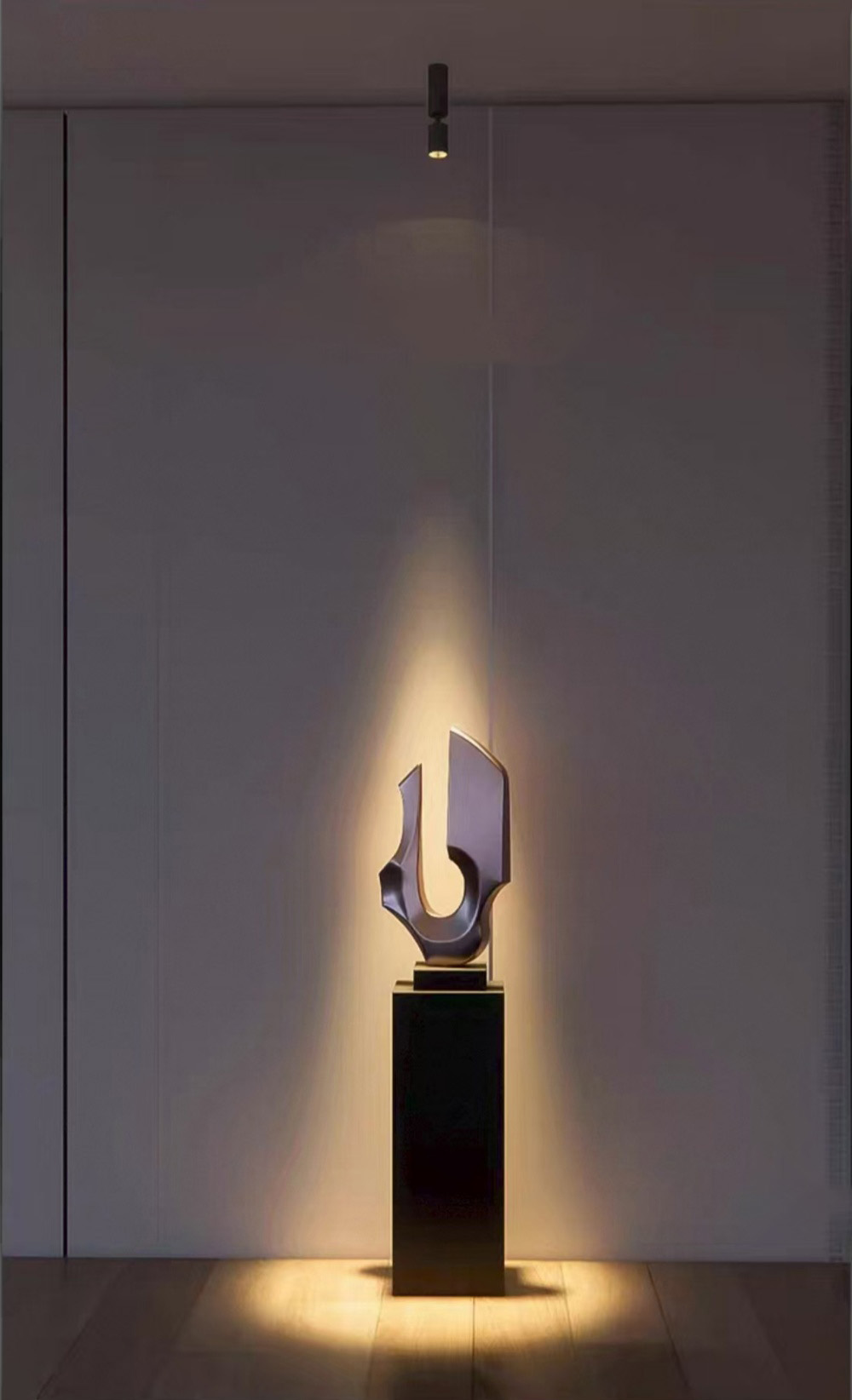

Narrower beam angles can be considered for focused display lighting.
Hospitality Lighting
The spotlight can be used for:
- Hotels
- Restaurants
- Cafés
- Reception areas
- Guest spaces
- Lounge areas
Commercial Interior Lighting
Applications can include:
- Offices
- Commercial interiors
- Showrooms
- Galleries
- Retail spaces
- Interior renovation projects
Size / Options
The current product page provides the following configurations:
| Option |
Available |
| Wattage |
3W |
| Wattage |
7W |
| Wattage |
12W |
| Dimming |
Dimmable |
| Dimming |
Non-dimmable |
| Housing Color |
Black |
| Housing Color |
White |
| CCT |
3000K |
| CCT |
4000K |
| CCT |
6000K |
| Beam Angle |
3° |
| Beam Angle |
8° |
| Beam Angle |
15° |
| Beam Angle |
24° |
| Beam Angle |
36° |
| Installation |
Surface Mounted |
| MOQ |
1pcs |
Lighting Options

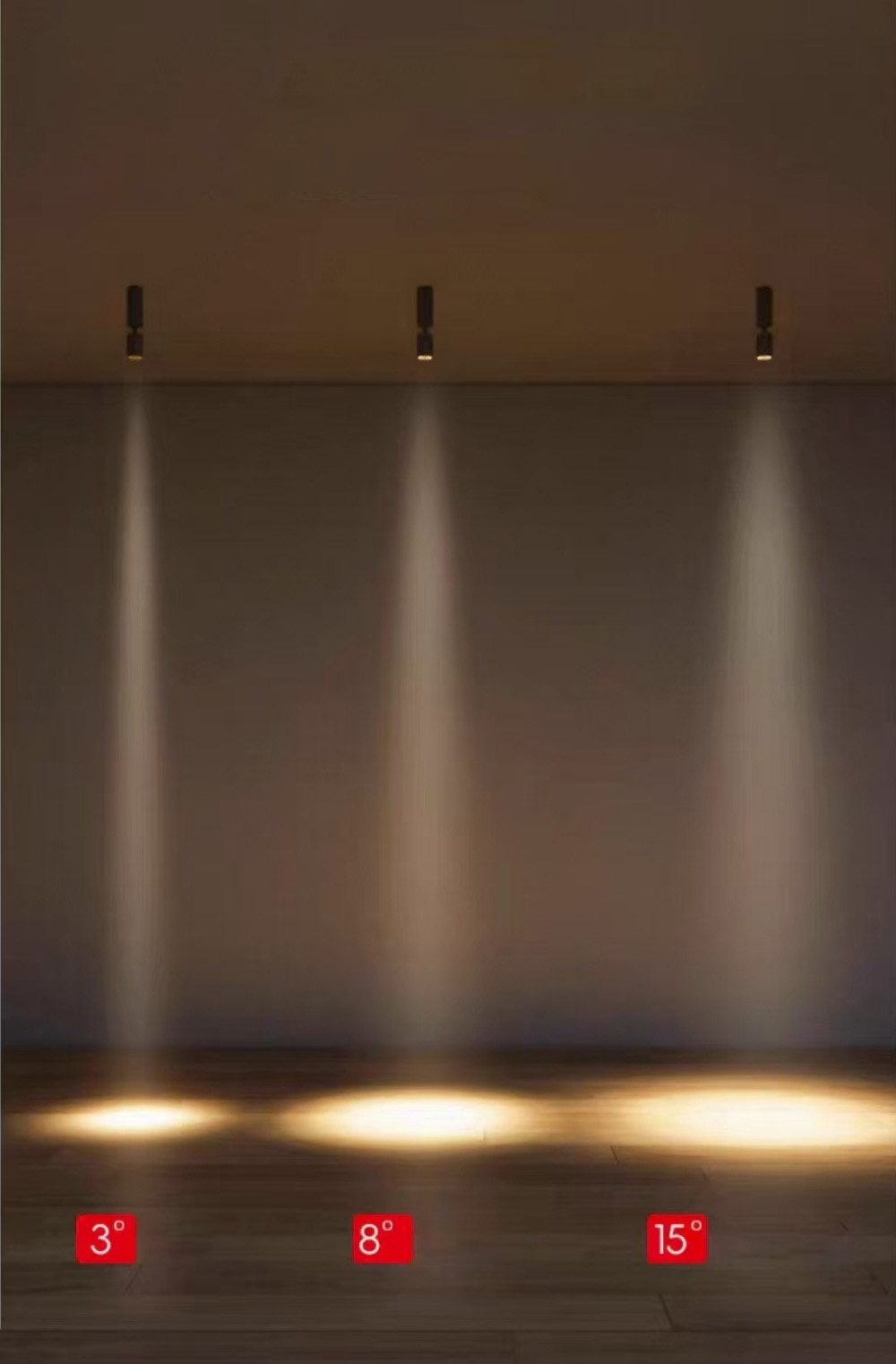

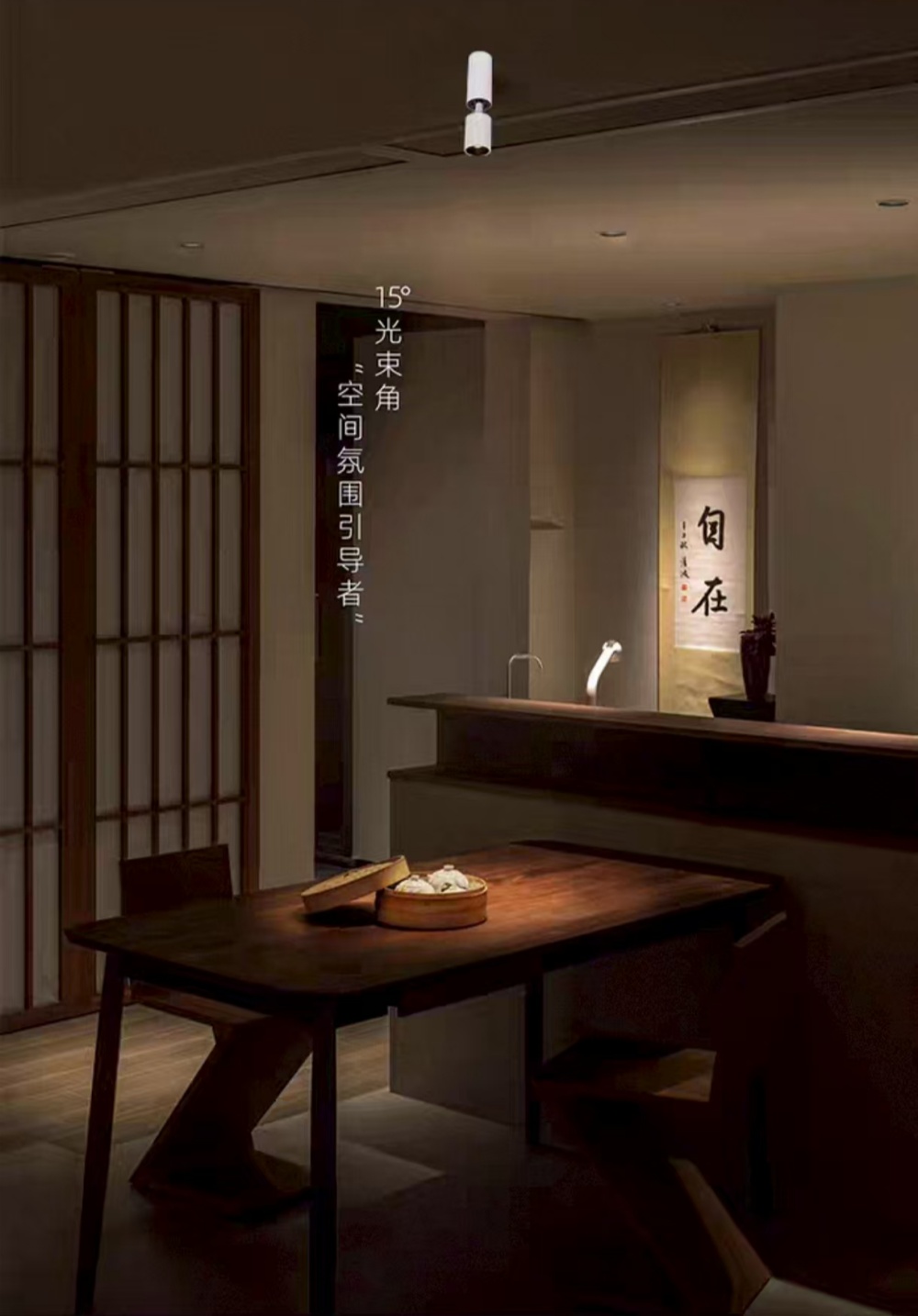

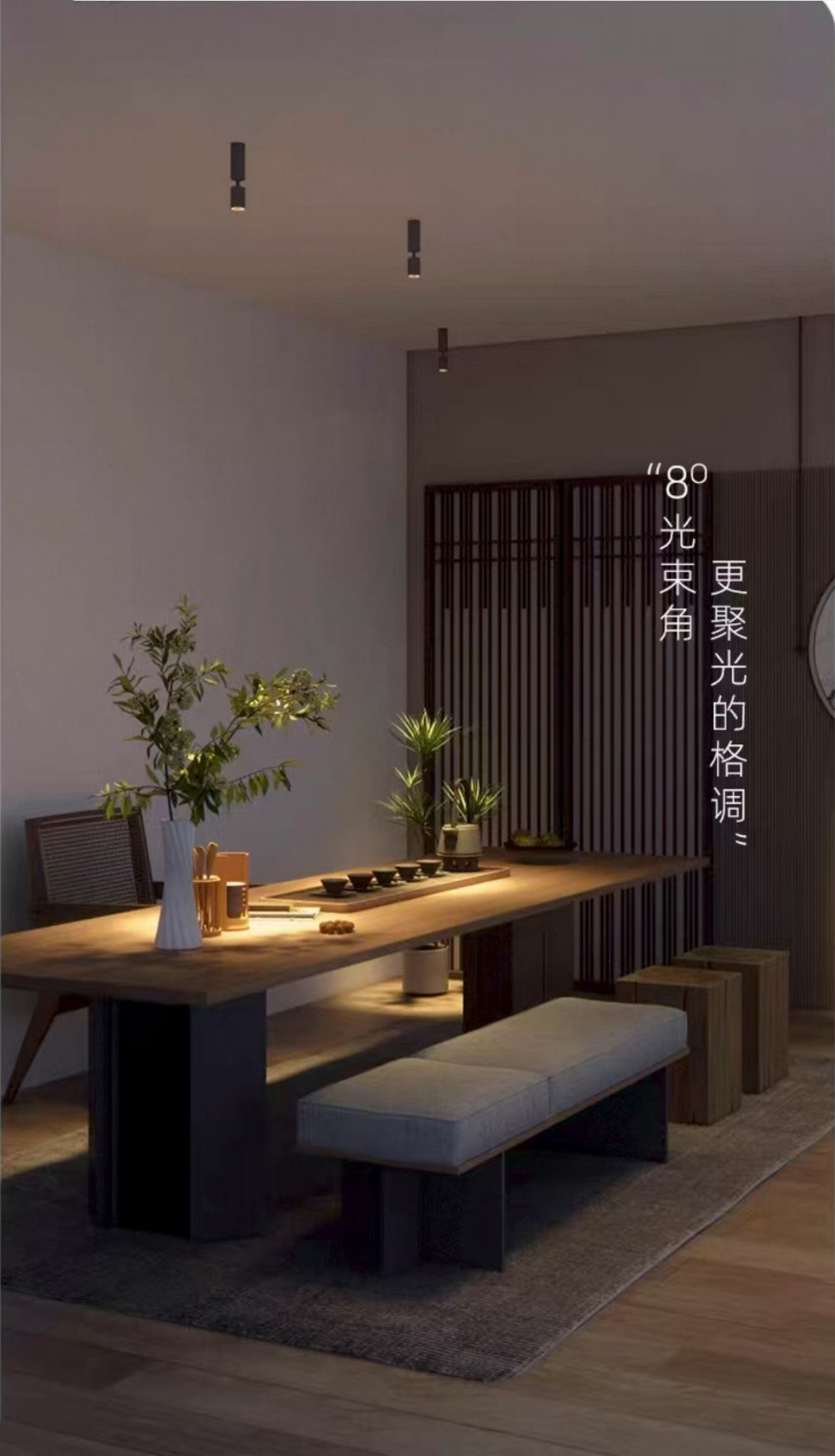

Beam Angle
The product offers five beam angle options:
The narrower beam options can be considered for focused accent lighting, while wider options provide a broader light distribution.
Color Temperature
The page lists:
Warm White: 2700K–3000K
Natural White: 4000K–4200K
Cool White: 6000K–6500K
These ranges should be retained as the current product information rather than simplifying them to a single CCT value.
Dimming
Both dimmable and non-dimmable versions are listed.
The exact dimming protocol should be confirmed according to the selected configuration.
Installation
The product is designed for surface-mounted ceiling installation.
Unlike recessed spotlights, it can be mounted directly onto the ceiling surface.
Before installation, buyers and installers should confirm:
- Mounting surface
- Fixture dimensions
- Driver configuration
- Input voltage
- Dimming compatibility
- Required beam angle
- Ceiling layout
The product page specifies AC85–265V / AC110V / AC220V, 50/60Hz input configurations.
Electrical installation should comply with applicable local regulations.
Technical Specifications
| Specification |
Details |
| Product Type |
Surface Mounted LED Spotlight |
| Light Source |
COB LED |
| Power |
3W / 7W / 12W |
| Dimming |
Dimmable / Non-dimmable |
| Installation |
Surface Mounted |
| Input Voltage |
AC85–265V |
| Additional Input |
AC110V / AC220V |
| Frequency |
50/60Hz |
| Beam Angle |
3° / 8° / 15° / 24° / 36° |
| CRI |
>Ra90 |
| Luminous Efficiency |
95–110 lm/W |
| Warm White |
2700K–3000K |
| Natural White |
4000K–4200K |
| Cool White |
6000K–6500K |
| Material |
Die-cast Aluminum |
| Protection |
IP42 |
| Operating Temperature |
-25°C to 45°C |
| Lifetime |
50,000–80,000 hours |
| Warranty |
5 years |
| Origin |
Guangdong, China |
| MOQ |
1pcs |
Package
The current page states that the package includes:
- 1 × LED recessed/spotlight fixture
- 1 × LED driver
- Dimmable or non-dimmable driver configuration according to selection
The page's Spanish description calls the product “luz empotrada LED” in the package section, while the product itself is categorized and titled as surface mounted. For the final English product page, the installation terminology should be standardized to surface mounted if that is the actual production configuration.
Project Applications
The Small Beam Angle LED Spotlight can be positioned for focused indoor lighting projects.
Residential Projects
- Living rooms
- Bedrooms
- Dining areas
- Home offices
- Hallways
- Entrance areas
Retail Projects
- Boutiques
- Clothing stores
- Product displays
- Feature walls
- Showrooms
- Commercial stores
Hospitality Projects
- Hotels
- Restaurants
- Cafés
- Reception areas
- Guest spaces
- Lounge areas
Commercial Projects
- Offices
- Showrooms
- Galleries
- Commercial interiors
- Retail fit-outs
- Architectural interior projects
OEM/ODM
USKYLED can evaluate OEM/ODM requirements for surface-mounted LED spotlight projects.
Potential customization areas may include:
- Wattage
- Beam angle
- CCT
- Dimming configuration
- Housing color
- Input voltage
- LED configuration
- Driver
- Packaging
- Private labeling
- Logo
For project orders, buyers can provide the required wattage, beam angle, CCT, dimming method, quantity and application for technical and commercial evaluation.
CTA
Looking for a small beam angle LED spotlight for your lighting project?
Contact USKYLED for product specifications, samples, project pricing and OEM/ODM support.
Send us your required wattage, beam angle, CCT, dimming requirement and project quantity to request a quotation.
MOQ: 1pcs
Sample Order Lead Time: 3–7 days
Mass Order Lead Time: 7–15 days
