H2 Product Introduction

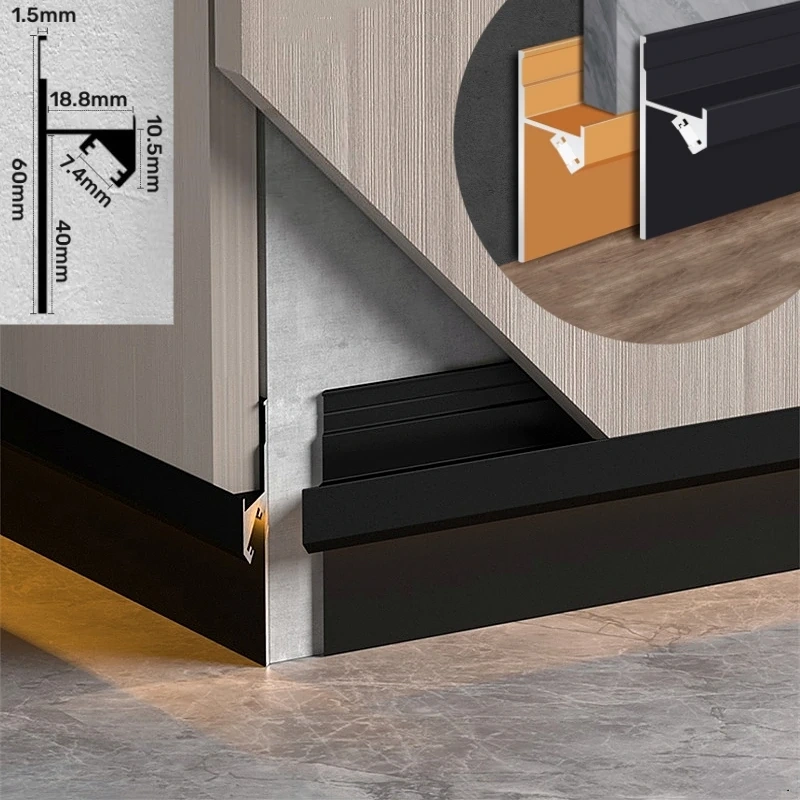

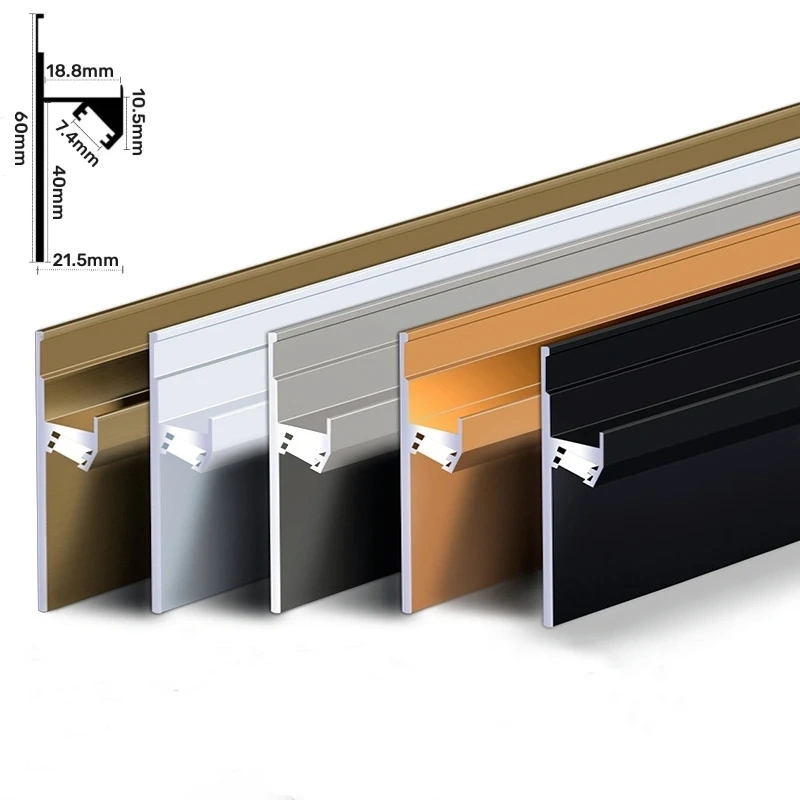

The H60mm LED aluminum skirting profile is a recessed architectural lighting channel developed for integrating linear LED strips into walls, baseboards, drywall, flooring edges and interior architectural details.
Unlike conventional surface-mounted LED channels, the recessed skirting design allows the aluminum profile to become part of the wall or floor structure. This helps create a visually integrated lighting line without leaving a bulky surface-mounted fixture.
The profile is suitable for residential and commercial interiors where concealed linear illumination, decorative wall trim or floor-edge lighting is required.
The current product specification lists an aluminum + PC construction, 60mm width, recessed installation and compatibility with 4–5mm PCB LED strips.
H3 Design
The H60mm profile uses a recessed skirting structure designed to integrate with drywall, wall panels, baseboards and architectural flooring details.
The aluminum channel provides mechanical support and helps dissipate heat from the LED strip, while the diffuser creates a cleaner appearance by covering the LED source.

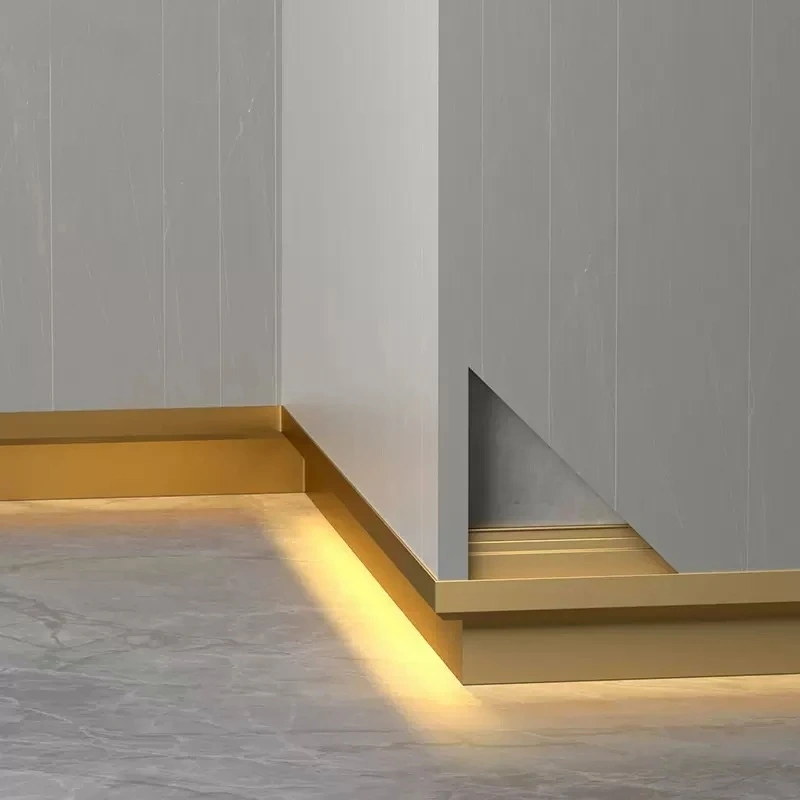

The profile can be used to form continuous horizontal or vertical lighting lines along walls, corners and floor transitions.
Available body colors include:
The current product page lists 50cm and 100cm profile lengths.
H3 Main Features
- H60mm recessed LED skirting profile
- 6063-T5 aluminum construction
- Recessed and hidden installation
- Designed for compatible LED strip lighting
- Suitable for drywall, wall panels and architectural interiors
- 4–5mm PCB width compatibility
- Frosted PC/PMMA diffuser
- 50cm and 100cm length options

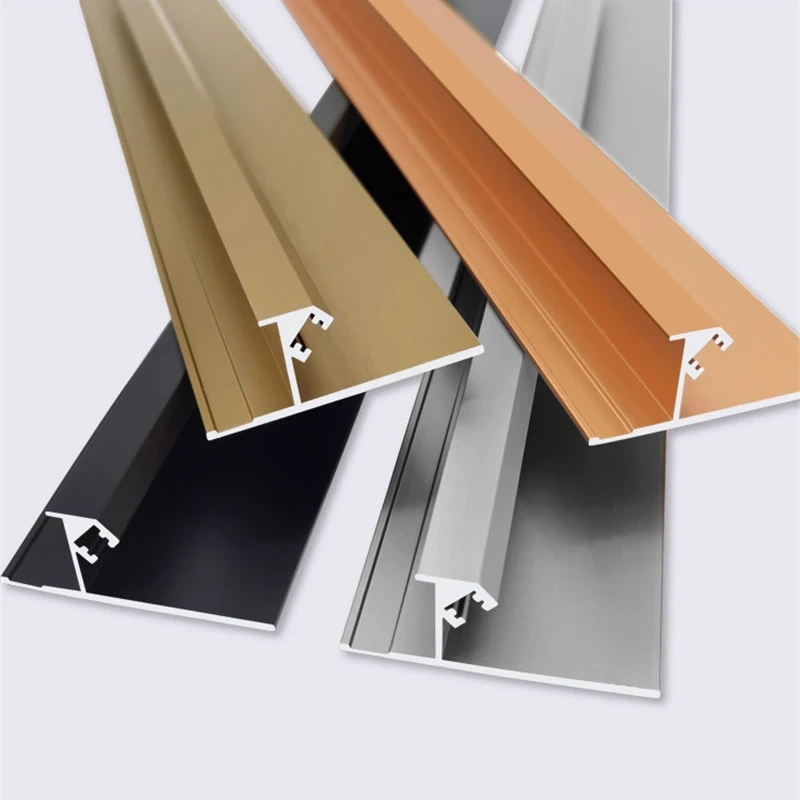

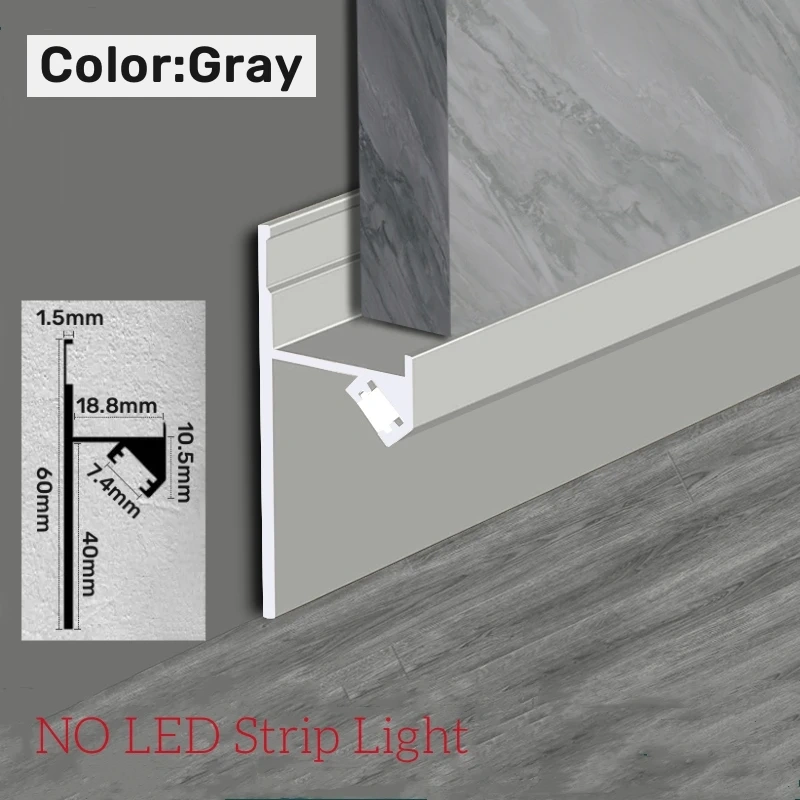

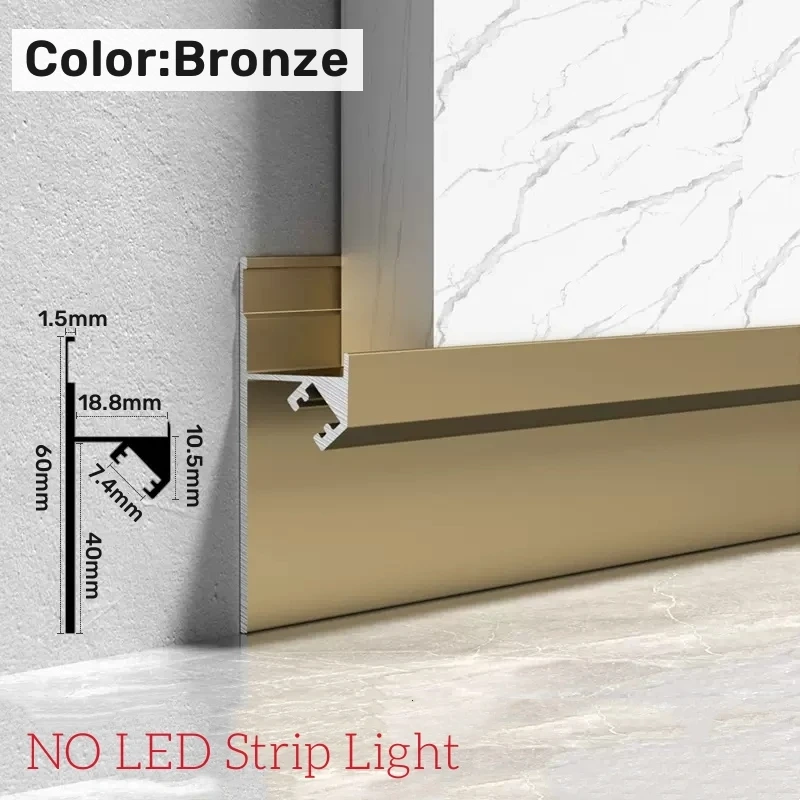

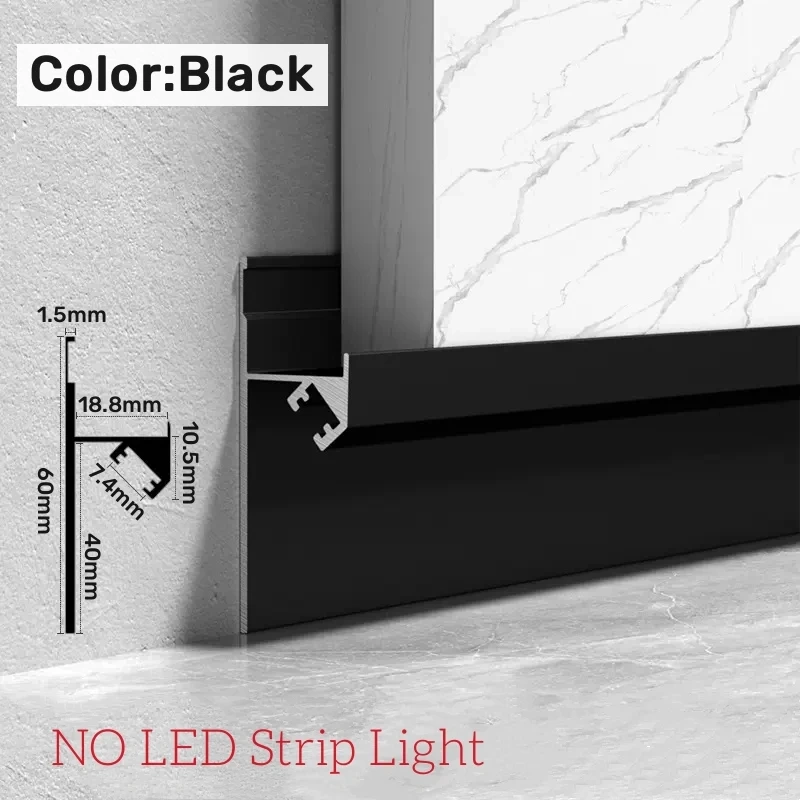

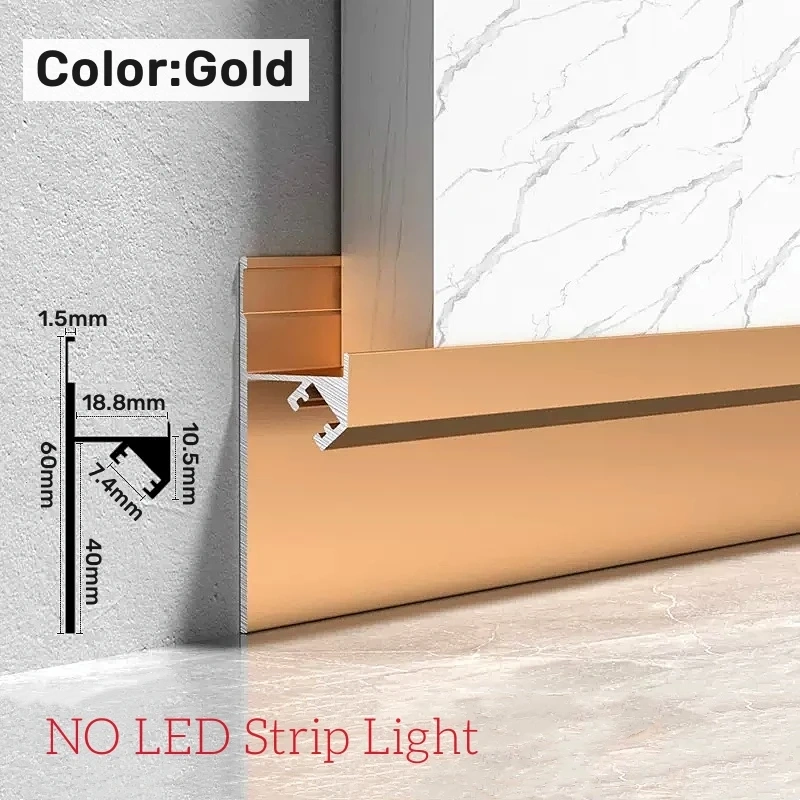

- Black, Gold, Bronze and Gray finishes
- Suitable for wall, floor and corner lighting
- Supports customized architectural lighting solutions
Important: The current product configuration is listed as without LED strip, without connector and without mounting screws.
H3 Application
This recessed LED skirting profile can be integrated into:
- Wall baseboards
- Drywall walls
- Floor perimeters
- Wall-to-floor transitions
- Interior corners
- Stair areas
- Hotel interiors
- Retail stores
- Residential living spaces
- Commercial interiors
- Decorative architectural lighting
- Furniture and built-in interior structures
It is particularly useful when the lighting system needs to remain visually discreet while creating a continuous linear light effect.
H3 Size / Options
| Specification |
Available Option |
| Profile Height |
H60mm |
| Width |
60mm |
| Length |
50cm / 100cm |
| Material |
Aluminum + PC |
| Aluminum Grade |
6063-T5 |
| PCB Compatibility |
4–5mm |
| Body Colors |
Black / Gold / Bronze / Gray |
| Diffuser |
Frosted PC/PMMA |
| Installation |
Recessed |
| LED Strip |
Not included |
| Connector |
Not included |
| Mounting Screws |
Not included |
The dimensions and included components above are based on the current product page and should be confirmed against the production drawing before mass production.
H3 Lighting Options

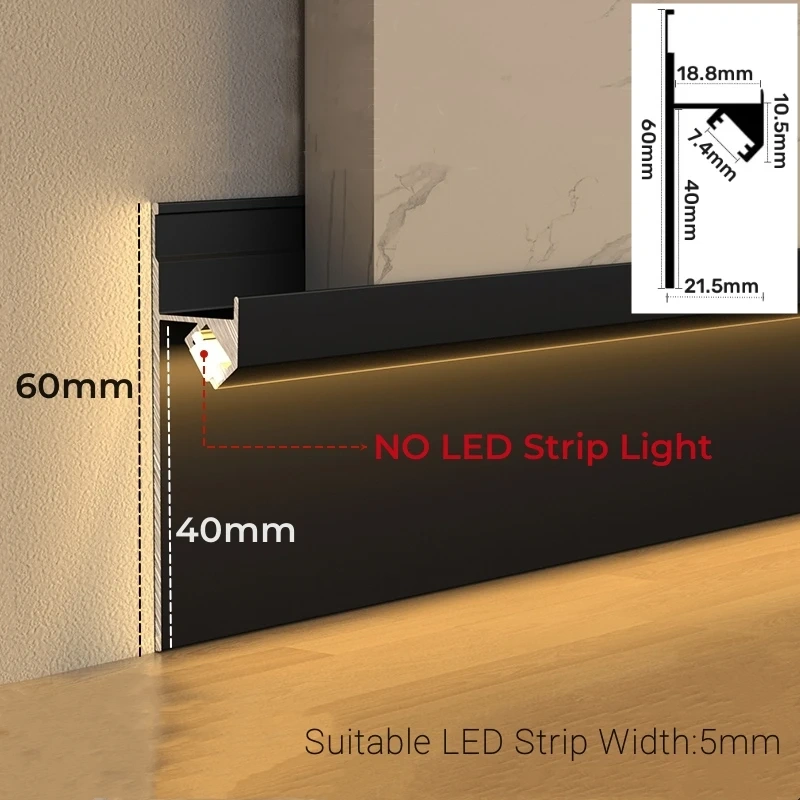

The profile is designed to accommodate compatible LED strip lighting with a PCB width of approximately 4–5mm.
Possible lighting configurations can include:
- Single-color LED strips
- COB LED strips
- High-density LED strips
- Dimmable LED strips
- Tunable white LED strips
- RGB/RGBW LED strips
Actual LED strip selection should be matched to the internal profile dimensions, required brightness, color temperature, power consumption and control system.
Beam angle: The current page contains inconsistent information: the description references 120°, while the detailed product specification states 45°. This parameter should be confirmed with the factory before publication as a fixed specification.

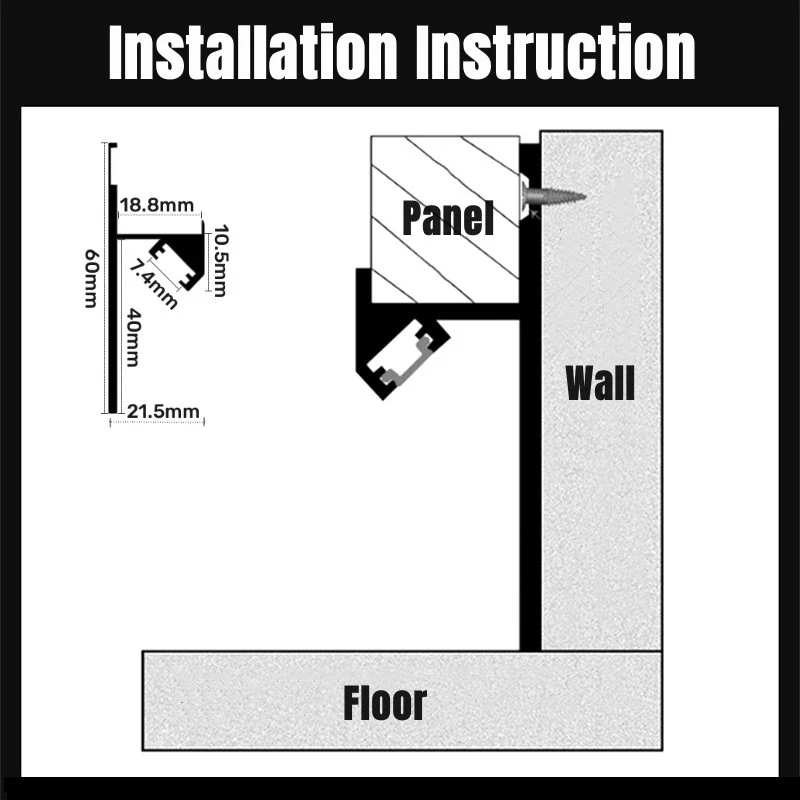

H3 Installation
The profile is designed for recessed installation.
Typical installation workflow:
- Prepare the required wall, drywall or floor opening.
- Confirm the profile dimensions and LED strip clearance.
- Install the aluminum skirting profile into the prepared recess.
- Install the compatible LED strip inside the aluminum channel.
- Connect the LED strip to the appropriate constant-voltage power supply and controller.
- Install the diffuser.
- Complete the surrounding drywall, wall panel or flooring finish.
For project installations, the profile opening should be coordinated with the final architectural drawings before construction.
H3 Technical Specifications
| Parameter |
Specification |
| Product Type |
Recessed LED Aluminum Skirting Profile |
| Product No. |
3256805027790050 |
| Material |
Aluminum + PC |
| Aluminum Alloy |
6063-T5 |
| Profile Height |
60mm |
| Profile Width |
60mm |
| Length Options |
500mm / 1000mm |
| Suitable PCB Width |
4–5mm |
| Diffuser |
Frosted PC/PMMA |
| Body Colors |
Black / Gold / Bronze / Gray |
| Installation |
Recessed |
| Application |
Wall / Floor / Baseboard / Corner |
| LED Strip |
Not included |
| Connector |
Not included |
| Mounting Screw |
Not included |
| Beam Angle |
45° listed; confirm before final publication |
| Operating Temperature |
-20°C to +60°C listed on current page |
| Warranty |
5-year structural guarantee listed; confirm with factory |
The product page also mentions an IP65 option, but this should be treated as an optional configuration rather than a standard IP rating unless confirmed for the exact assembly.
H3 Project Applications
Residential Projects
- Living room wall lighting
- Bedroom baseboard lighting
- Hallway lighting
- Stairway edge lighting
- Floor perimeter lighting
- Modern interior decoration
- Drywall architectural lighting
Commercial Projects
- Hotel corridors
- Retail stores
- Restaurants
- Shopping environments
- Office interiors
- Showrooms
- Exhibition spaces
- Commercial architectural projects
Architectural Applications
The H60mm recessed profile is suitable for projects where lighting needs to be integrated into the architectural structure rather than installed as a conventional visible fixture.
H3 OEM/ODM
USKYLED can support B2B customers requiring customized LED aluminum profile solutions.
Available customization may include:
- Profile length
- Profile color
- LED strip configuration
- Diffuser configuration
- Packaging
- Custom architectural applications
- OEM branding
- Project-specific profile development
For large architectural projects, provide the required profile dimensions, LED strip specifications, installation method and project drawings for technical evaluation.
CTA
Looking for a recessed LED skirting profile for your architectural lighting project?
Contact USKYLED for product specifications, samples, customized profile solutions and bulk quotations.
Mass Order Lead Time: 7–15 Days
Sample Order Lead Time: 3–7 Days
