Product Introduction

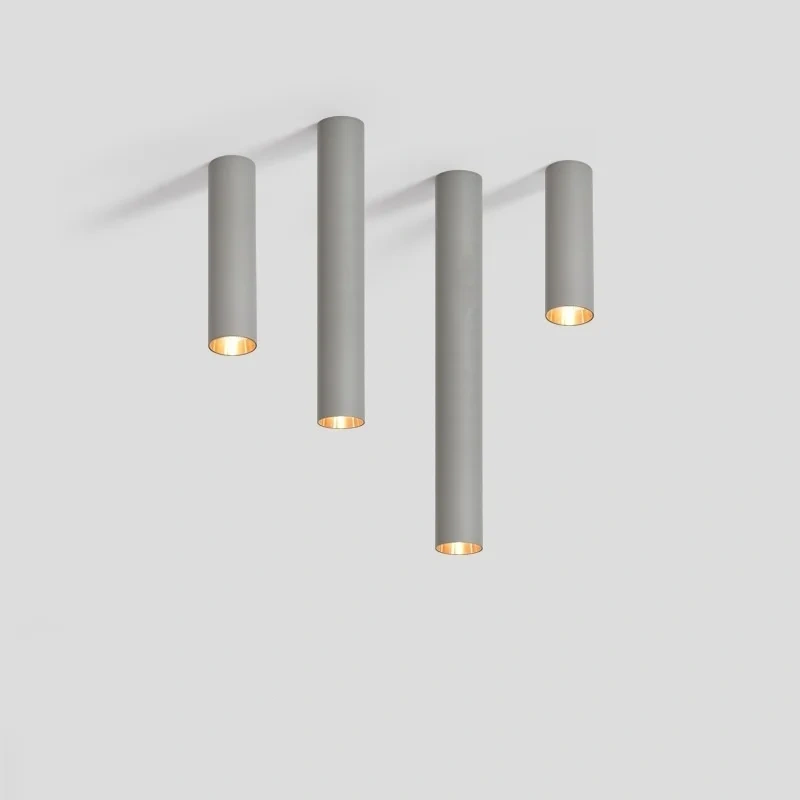

The Surface Mounted LED Downlight is a long-tube ceiling spotlight designed for indoor applications where surface installation is preferred over recessed lighting.
Unlike a recessed downlight, this fixture mounts directly onto the ceiling, making it suitable for renovation projects and spaces where recessed installation is difficult or not required.
The product uses a compact cylindrical housing with a 60mm diameter and multiple length options. The current product variants include D60 × 100mm, D60 × 200mm, D60 × 300mm, D60 × 400mm and D60 × 500mm configurations.
Power options include 5W and 12W, with dimmable versions available. The fixture is offered in black and white finishes and can be specified with 3000K, 4000K or 6000K light output.
Design
The long cylindrical housing gives the fixture a simple architectural appearance and allows it to function as both general and accent lighting.
The Ø60mm housing is available in several lengths, providing different visual proportions for different ceiling layouts.
Available body colors:
The aluminum housing supports heat dissipation and provides a durable enclosure for the LED module and driver.
The surface-mounted structure eliminates the need for a recessed ceiling opening, which can simplify installation in renovation projects and finished interiors.
Main Features
Surface-Mounted Installation
The fixture is designed for direct ceiling mounting, making it suitable for installations where recessed downlights are impractical.
Long Tube Design
Multiple tube lengths allow designers to select a configuration appropriate for different interior spaces.
COB LED Light Source
The product specification lists a high-lumen COB LED light source, providing concentrated illumination in a compact housing.
Multiple Power Options
Available power configurations include:
Dimmable versions are available according to the current product selector.
Multiple CCT Options
The product can be selected in:
This allows the fixture to be used in warm residential environments as well as more neutral commercial interiors.

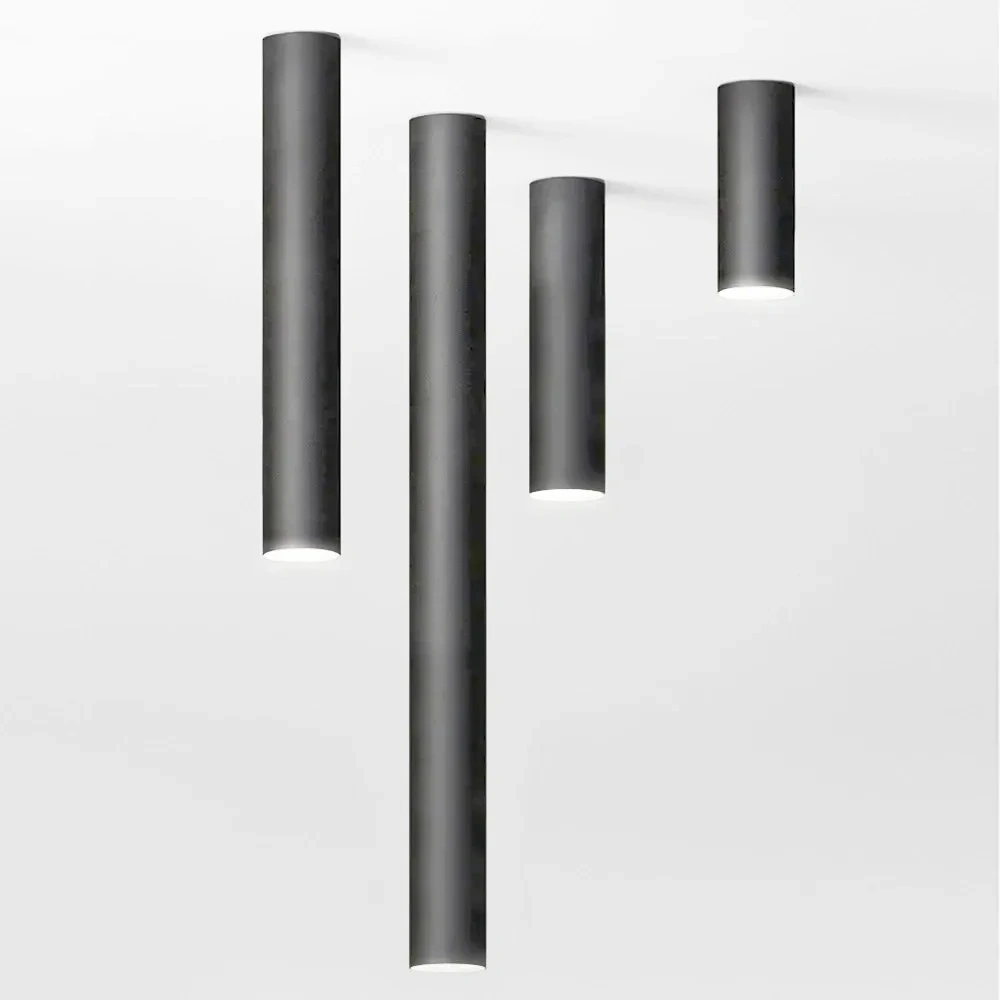

Black and White Finishes
The two housing colors provide flexibility for different ceiling and interior design schemes.
Application
The long-tube surface-mounted LED downlight is suitable for residential and commercial indoor lighting.
Kitchen Lighting
Suitable for kitchen areas, kitchen islands, countertops and open-plan cooking spaces where direct ceiling lighting is required.
Living Room Lighting
The fixture can be used for ambient or accent lighting in living rooms and other residential areas.
Bar Lighting
The long cylindrical design can be used above bar counters and in hospitality interiors.
Restaurant Lighting
Suitable for restaurants, cafés and dining areas where a clean ceiling-mounted lighting solution is required.
Hallway & Entryway Lighting
Surface mounting provides a practical solution for corridors, entrances and circulation areas.
Retail Lighting
The fixture can be used in retail interiors and display environments where directional or localized illumination is required.
Hotel & Hospitality Lighting
Suitable for hotel rooms, corridors, restaurants, lounges and other indoor hospitality spaces.
Size / Options
Power Options
- 5W
- 12W
- 5W Dimmable
- 12W Dimmable
Housing Color
Length Options
Current product variants list:
- Ø60 × 100mm
- Ø60 × 200mm
- Ø60 × 300mm
- Ø60 × 400mm
- Ø60 × 500mm
The final relationship between wattage and tube length should be clearly specified in the product variant table before publication.
Lighting Options
Color Temperature
Available options:
- 3000K Warm White
- 4000K Natural White
- 6000K Cool White
The original technical information describes the ranges approximately as:
- 3000–3500K
- 4000–4500K
- 6000–6500K
For the product selector, using standardized nominal values of 3000K / 4000K / 6000K is recommended.
CRI
The current product information specifies:
Ra >90
Dimming
Dimmable versions are available.
The description also references TRIAC and ELV compatible versions. The exact dimming protocol should be confirmed according to the selected driver configuration.
Light Distribution
The original description lists a 120° wide-angle beam. This should be verified against the optical drawing because the actual beam distribution may vary by tube length and optical configuration.
Installation
The product is designed for surface-mounted ceiling installation.
Typical installation:
- Confirm the fixture size and mounting position.
- Mark the ceiling mounting points.
- Prepare the electrical connection.
- Connect the fixture or built-in driver according to the wiring specification.
- Secure the mounting base to the ceiling.
- Install the LED tube fixture.
- Switch on the power and check the light output.
- Test the dimming function if a dimmable model is selected.
The current page describes surface installation without requiring a recessed ceiling cutout.
Technical Specifications
| Specification |
Details |
| Product Type |
Surface Mounted LED Downlight |
| Product Design |
Long Tube / Cylindrical |
| Light Source |
COB LED |
| Power |
5W / 12W |
| Dimmable |
Available |
| Input Voltage |
AC85–265V* |
| CCT |
3000K / 4000K / 6000K |
| CRI |
Ra >90 |
| Luminous Efficiency |
100–110 lm/W* |
| Beam Distribution |
Approx. 120°* |
| Housing Material |
Aluminum |
| Housing Diameter |
60mm |
| Length Options |
100 / 200 / 300 / 400 / 500mm |
| Housing Color |
Black / White |
| Driver |
Built-in driver |
| Installation |
Surface Mounted Ceiling |
| IP Rating |
IP20 |
| Working Temperature |
Approx. -25°C to +50°C* |
| Application |
Indoor |
Project Applications
This surface-mounted LED downlight can be specified for:
Residential Projects
Living rooms, kitchens, dining areas, hallways, bedrooms and home interiors.
Restaurant & Café Projects
Dining areas, bar counters, service areas and circulation spaces.
Hotel Projects
Guest rooms, corridors, lounges, restaurants and hospitality interiors.
Retail Projects
Retail stores, display areas, boutiques and commercial interiors.
Office Projects
Reception areas, corridors, meeting areas and other indoor spaces.
Renovation Projects
Particularly suitable where the existing ceiling does not allow recessed cutting or where a surface-mounted solution is preferred.
OEM/ODM
USKYLED supports OEM and ODM requirements for lighting distributors, wholesalers, contractors, interior designers, architects and lighting brands.
Customization can be discussed for:
- Wattage
- Tube length
- Housing diameter
- Housing color
- CCT
- CRI
- Beam angle
- LED source
- Driver
- Dimming system
- Mounting structure
- Logo
- Packaging
- Private label
For project orders, buyers can provide:
Quantity + tube length + wattage + CCT + CRI + dimming requirement + housing color
USKYLED can then confirm the suitable configuration and provide technical drawings or samples for evaluation.
CTA
Looking for Long Tube Surface Mounted LED Downlights for Your Project?
Contact USKYLED for samples, wholesale pricing, technical specifications and OEM/ODM solutions.
Send your required tube length, wattage, CCT, housing color and estimated quantity for a project quotation.
Request a Sample | Get Project Pricing | Discuss OEM/ODM
Features:
Long service life, low maintenance cost
Instant start without blinking
Solid state, shockproof
Save energy more than 90% by ordinary bulbs
Long time working, produce low heat
No RF interference
No mercury or other hazardous materials, according to RoHs
Working environment-20 centigrade ~+55 centigrade, suitable for unusual climate
Specifications:
100% new brand
Input: AC85-265V
Shell Material: Stable and durable high quality aluminum.
Rapid thermal dissipation.
Long-term work.
Power consumption: 5W.12W
200mm, diameter 60mm * height 300mm, diameter 60mm * height 400mm, diameter 60mm * height 500mm
LED light source/quantity(pcs): high lumen COB, LED chip
Lumens (lm): 100-110 lm/W
Working temperature: - 25 degrees centigrade-+ 50 degrees centigrade
Colour Rendering Index: Ra >90
Light Color: Cold White (6000-6500K)
Warm white (3000-3500K)
Natural white (4000-4500K)
Package Include:
1pcs * LED Downlight Surface
1pcs * LED driver built-in(Dimmable or not dimmable for your optional)
