Product Introduction
The USKYLED DC12V Recessed Magnetic Track Light is a compact and modular lighting system developed for jewelry display cabinets, retail showcases, shopwindows and exhibition displays. The recessed track design keeps the lighting system integrated into the cabinet structure while providing a clean and professional appearance.

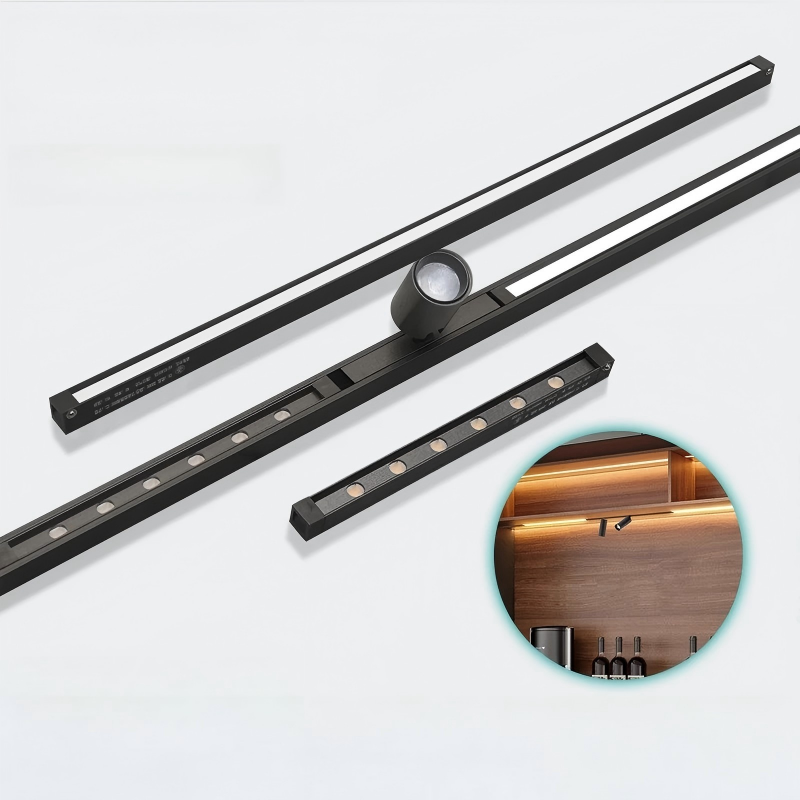

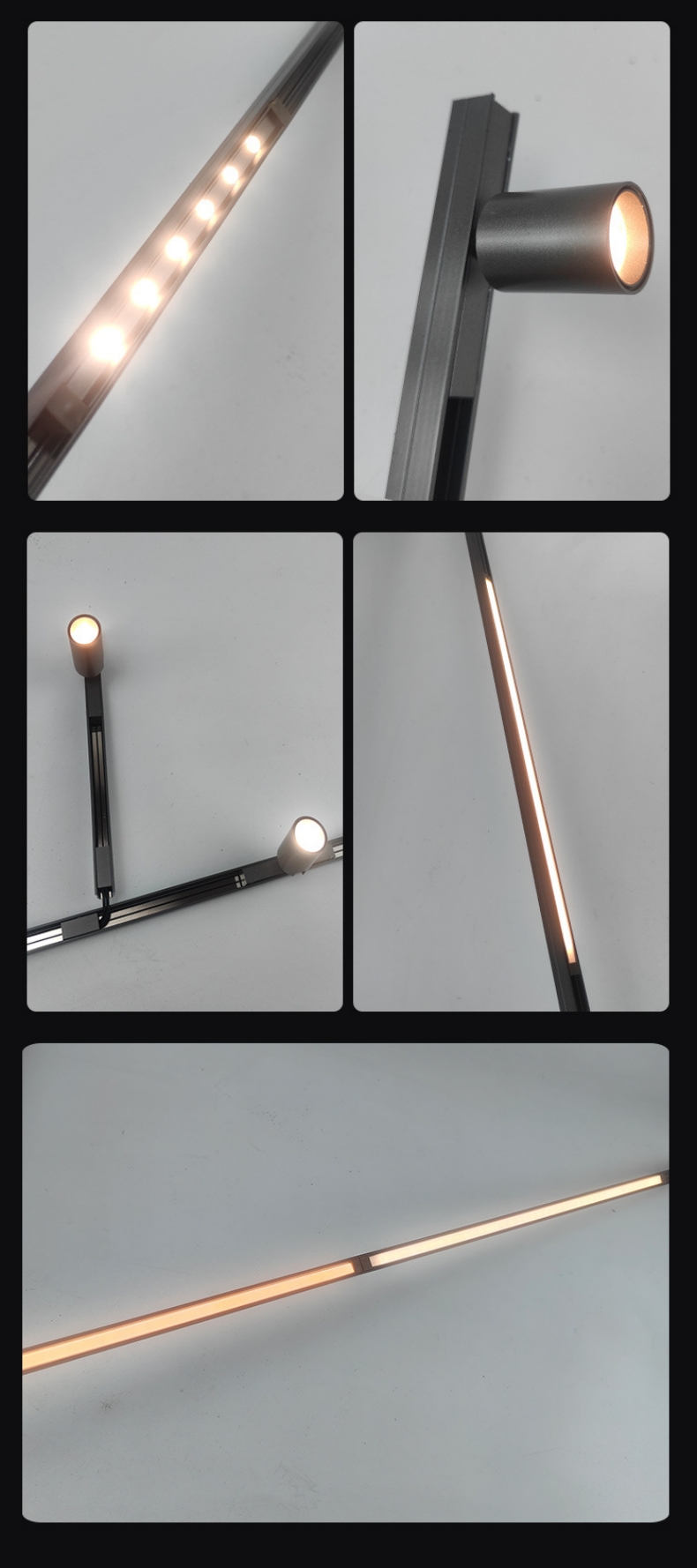

The system combines a slim magnetic rail with compact LED lighting modules, allowing different lighting components and accessories to be configured according to the display layout. It is suitable for projects where precise product illumination and a discreet installation are important.
With DC12V low-voltage operation, dark grey aluminum construction and multiple lighting power options, this magnetic track lighting system is suitable for commercial display lighting projects and customized retail interiors. The available track lengths include 0.5m and 1m, while lighting options range from 1.5W to 8W.
Design
The recessed magnetic track is designed to be integrated into the cabinet or display structure rather than mounted directly on the visible surface. This creates a cleaner appearance and helps keep the lighting hardware visually unobtrusive.
The dark grey aluminum finish provides a contemporary appearance that works well with jewelry showcases, luxury retail cabinets, exhibition furniture and modern commercial interiors.
The compact rail system also allows lighting modules to be positioned according to the merchandise layout, making it easier for lighting designers and display manufacturers to create different lighting configurations.
Main Features

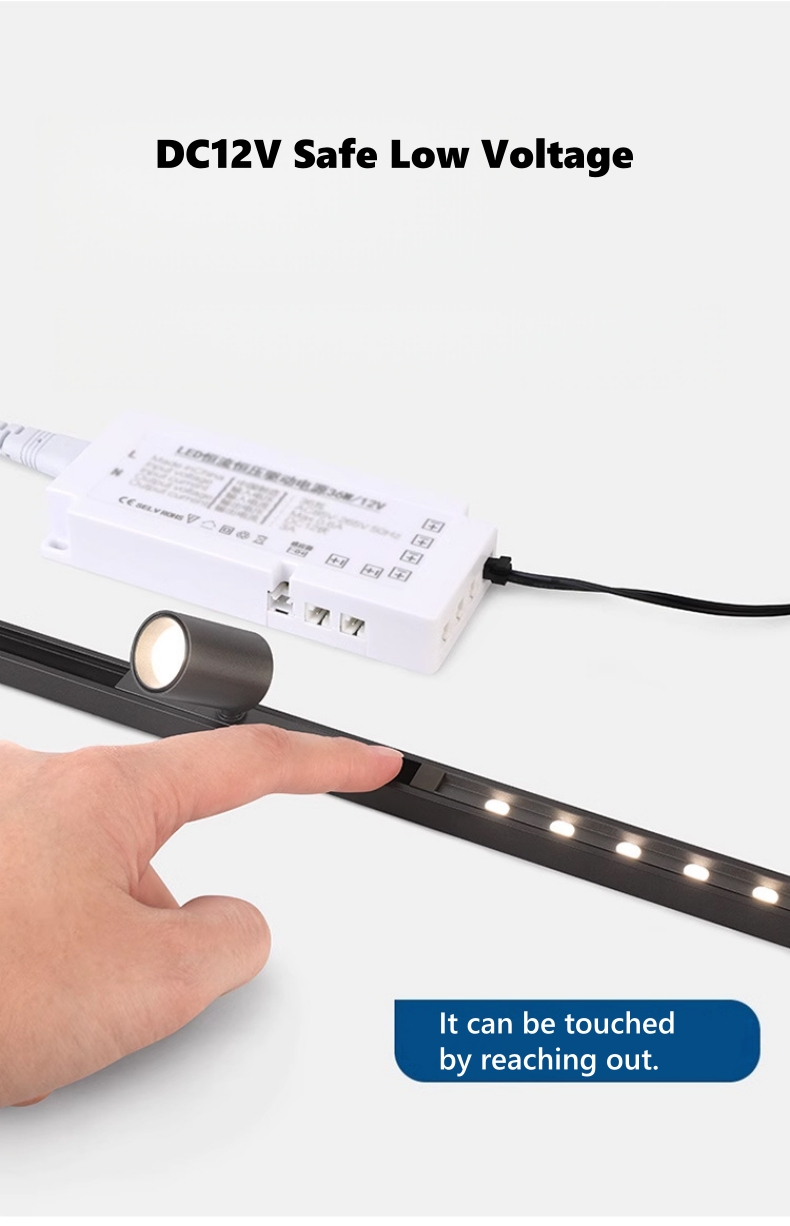

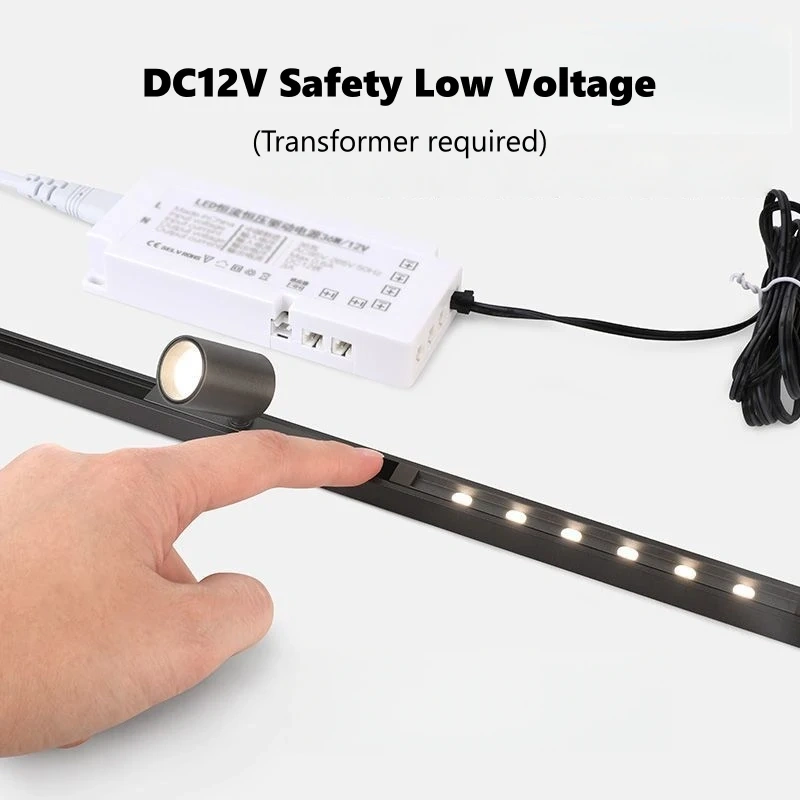

- DC12V low-voltage operation for cabinet and display lighting applications.
- Recessed magnetic track design for a clean, integrated installation.
- Aluminum construction for a durable and professional commercial appearance.
- 0.5m and 1m track options for different cabinet and display configurations.
- 1.5W to 8W lighting options for different illumination requirements.
- 4000K neutral white available for the current product configuration.

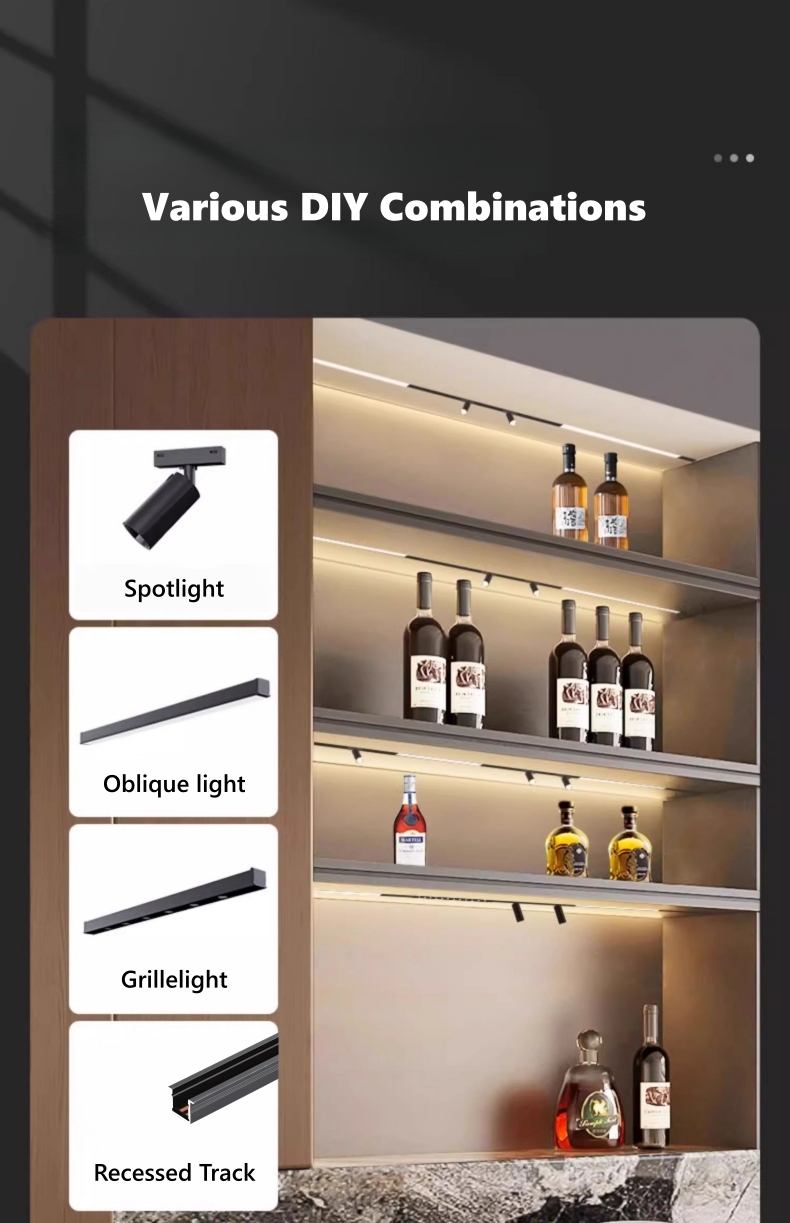

- Multiple lighting module choices, including spotlight, grille light and oblique light options.
- Accessory options including connectors, power heads, transformers and touch sensors.

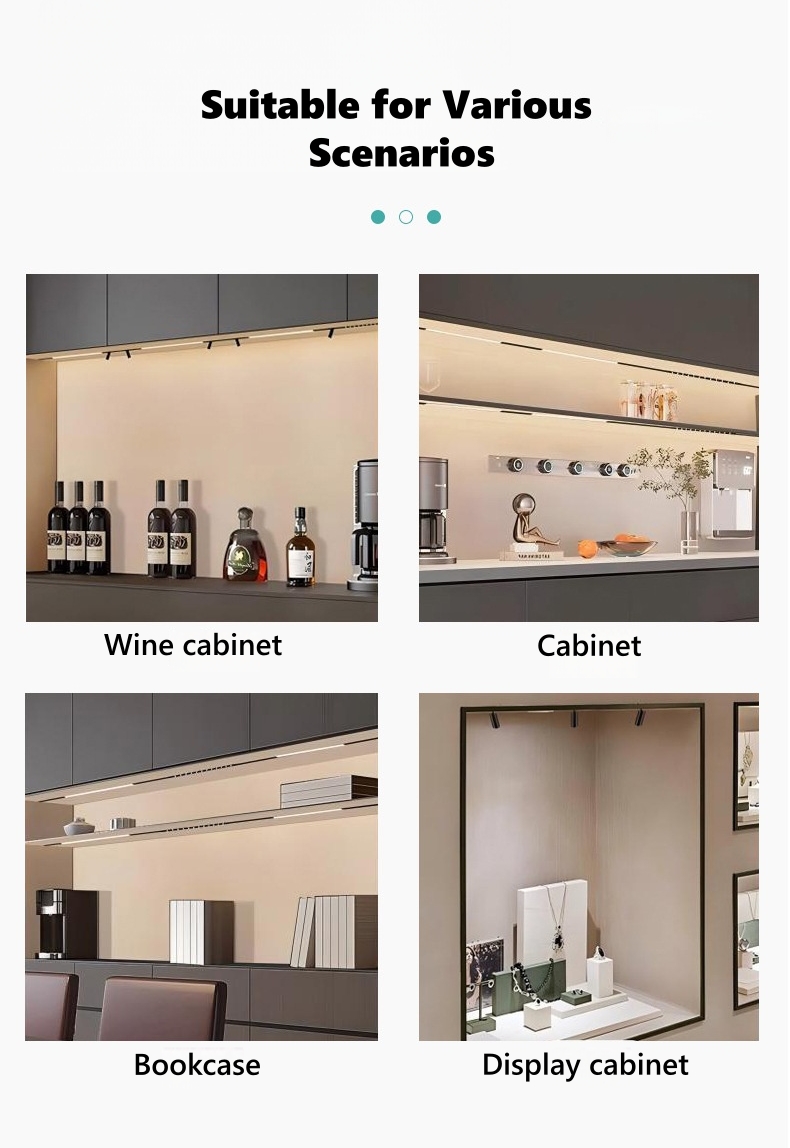

Application

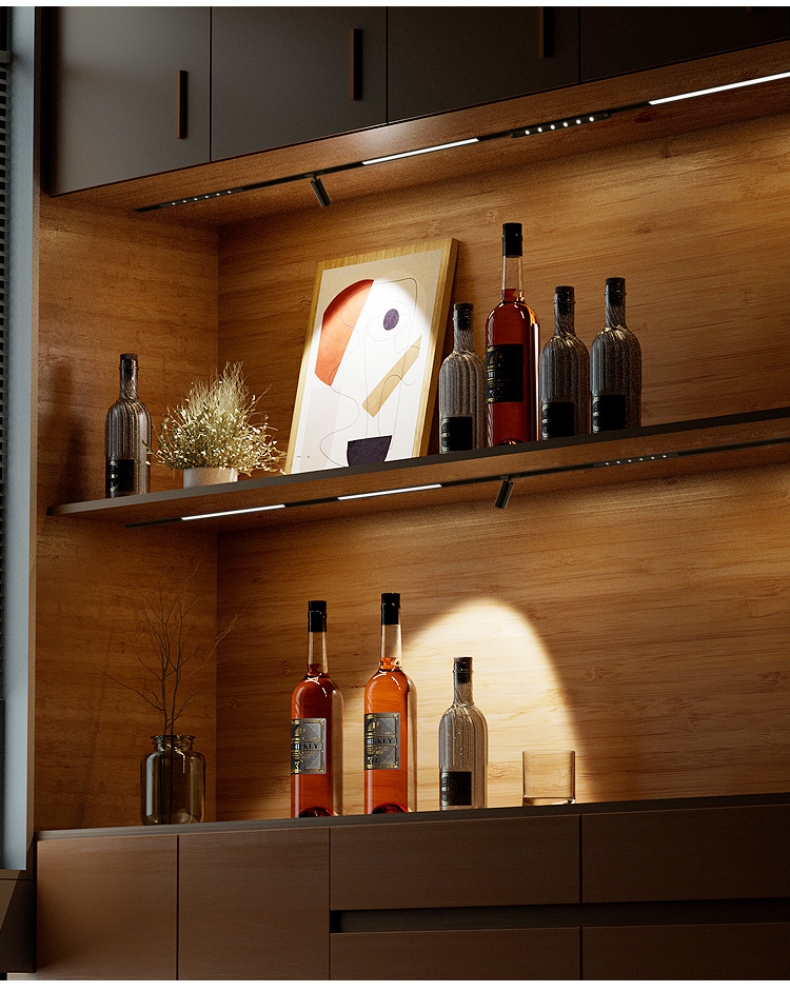

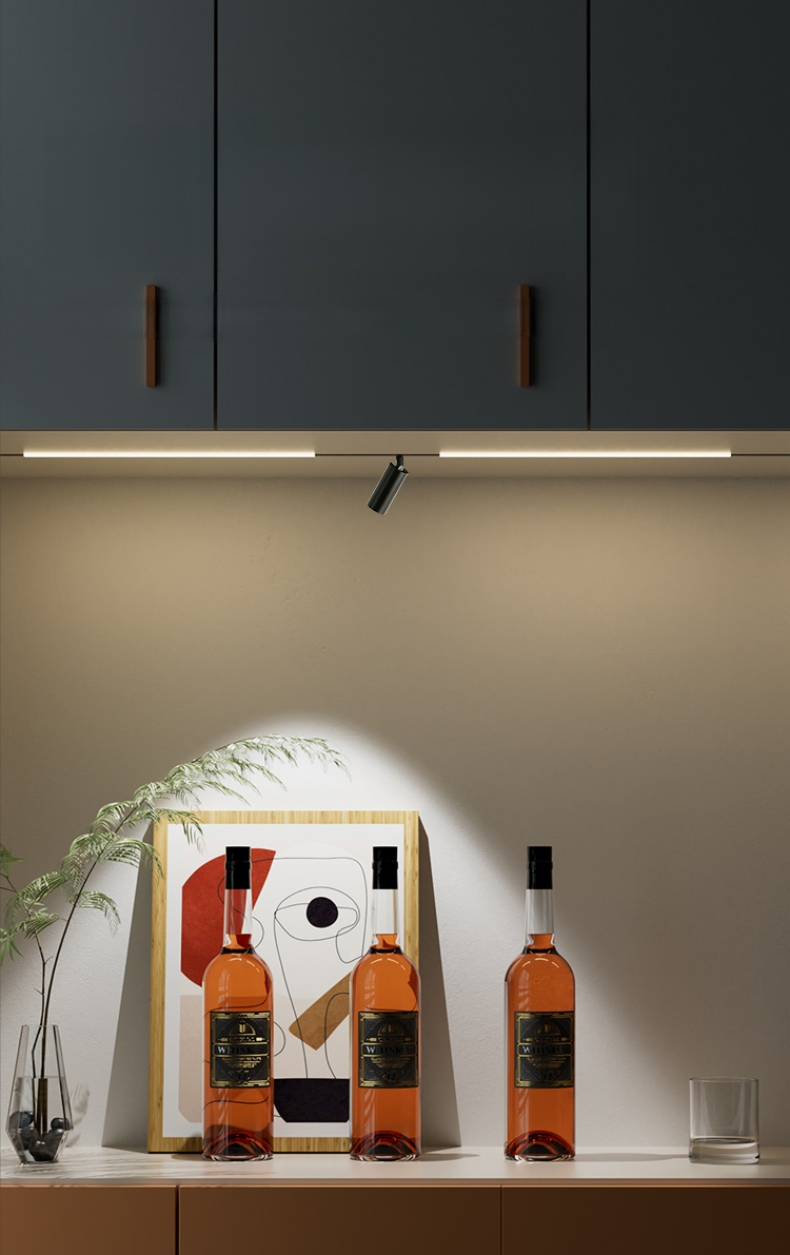

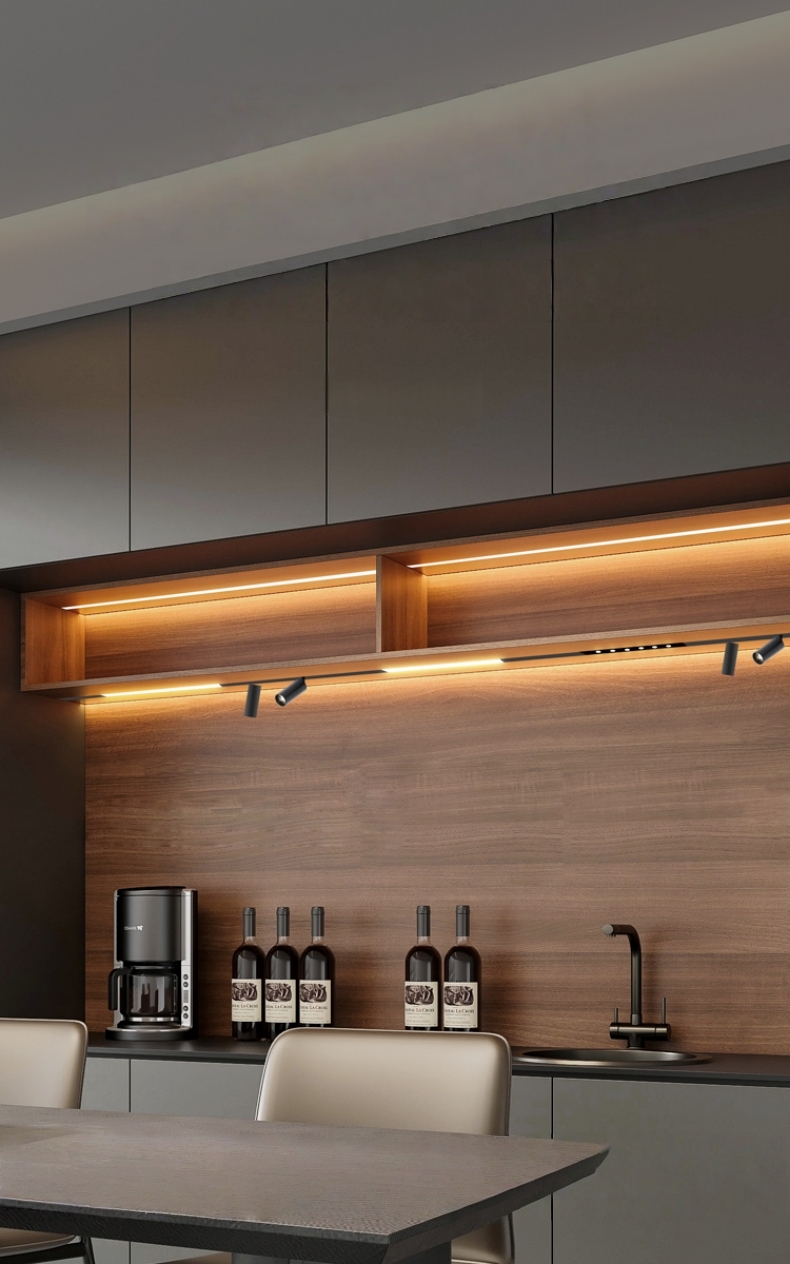

This recessed magnetic track light is designed for commercial display environments where products need clean and flexible accent lighting.
Recommended applications include:

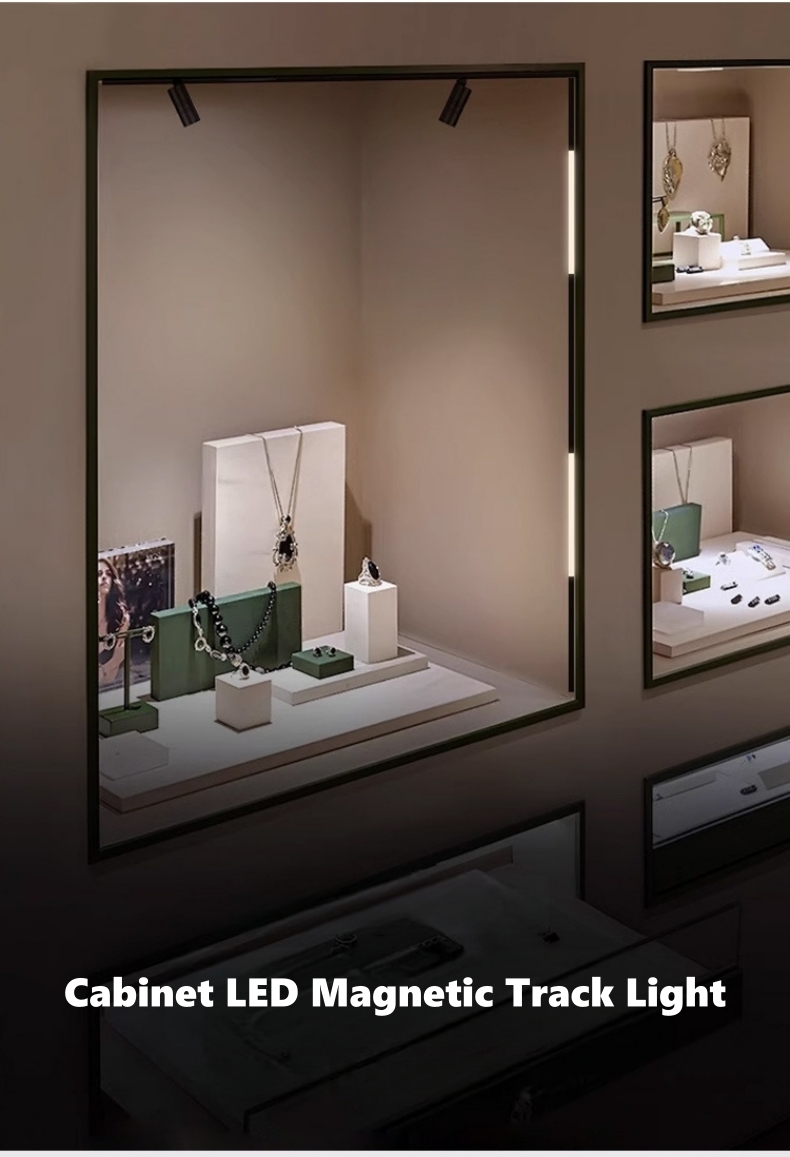

- Jewelry display cabinets
- Jewelry store showcases
- Watch display cabinets
- Retail shopwindows
- Exhibition showcases
- Luxury product displays
- Commercial display furniture
- Boutique retail interiors
- Product exhibition cabinets
- Custom retail fixtures
For jewelry and luxury retail projects, the compact recessed design helps keep attention on the displayed merchandise rather than on the lighting hardware.
Size / Options
The current product page provides:
| Item |
Options |
| Track Type |
Recessed Magnetic Track |
| Track Length |
0.5m / 1m |

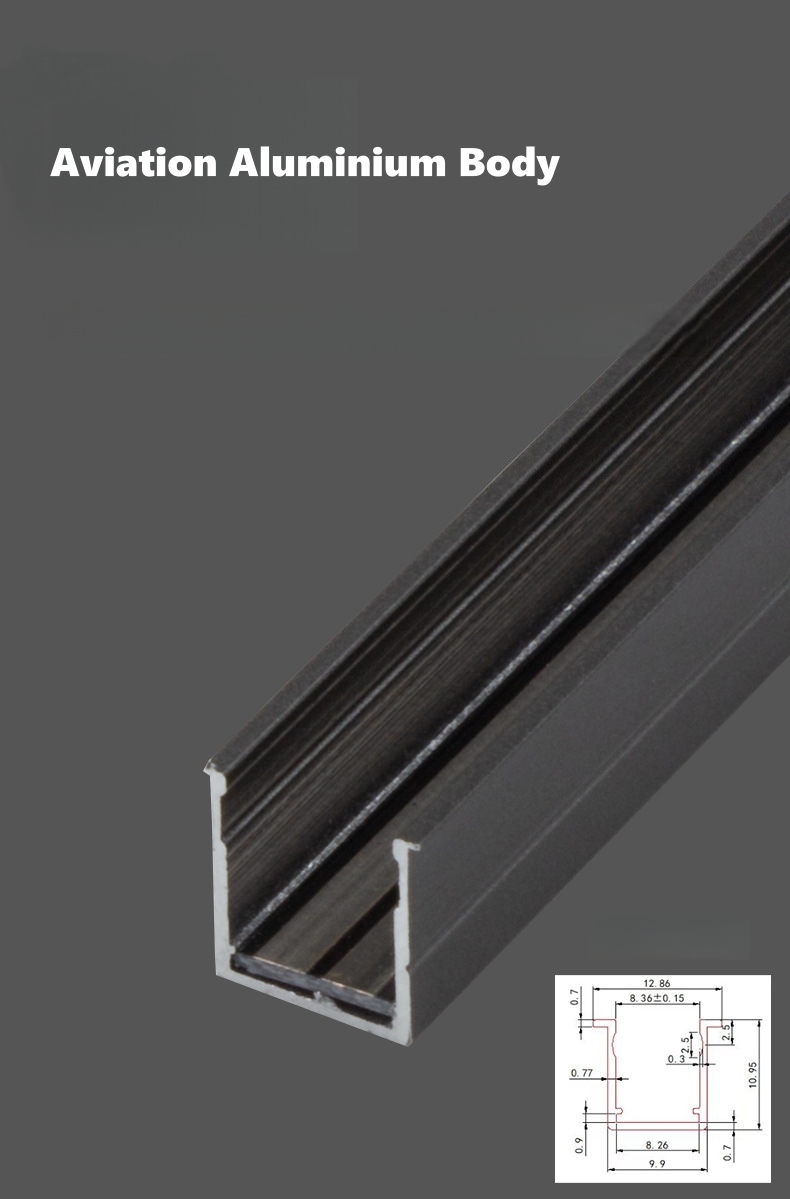

| Slotting Size |
10.5 × 10.5 mm |
| Material |
Aluminum |
| Finish |
Dark Grey |
| Voltage |
DC12V |
| Lighting Power |
1.5W / 2W / 3W / 4W / 5W / 6W / 8W |
| CCT |
4000K Neutral White |
These specifications are based on the information currently published on the product page.

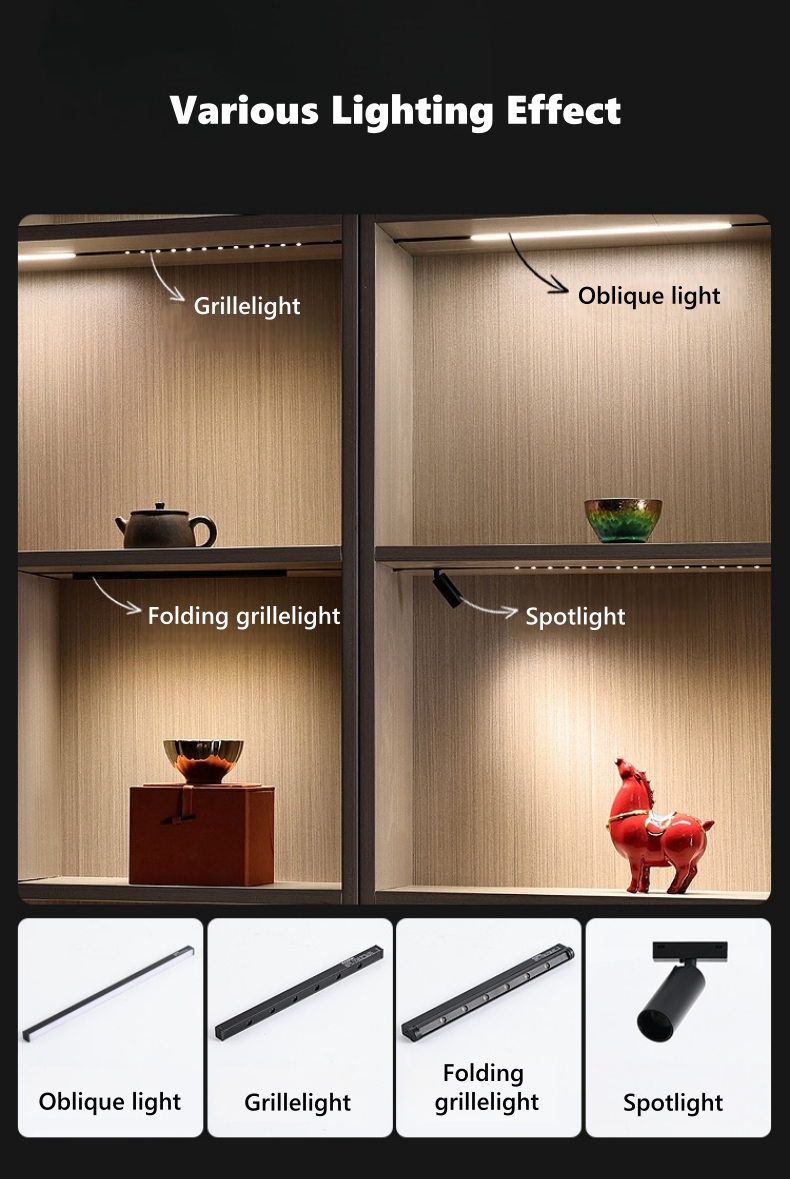

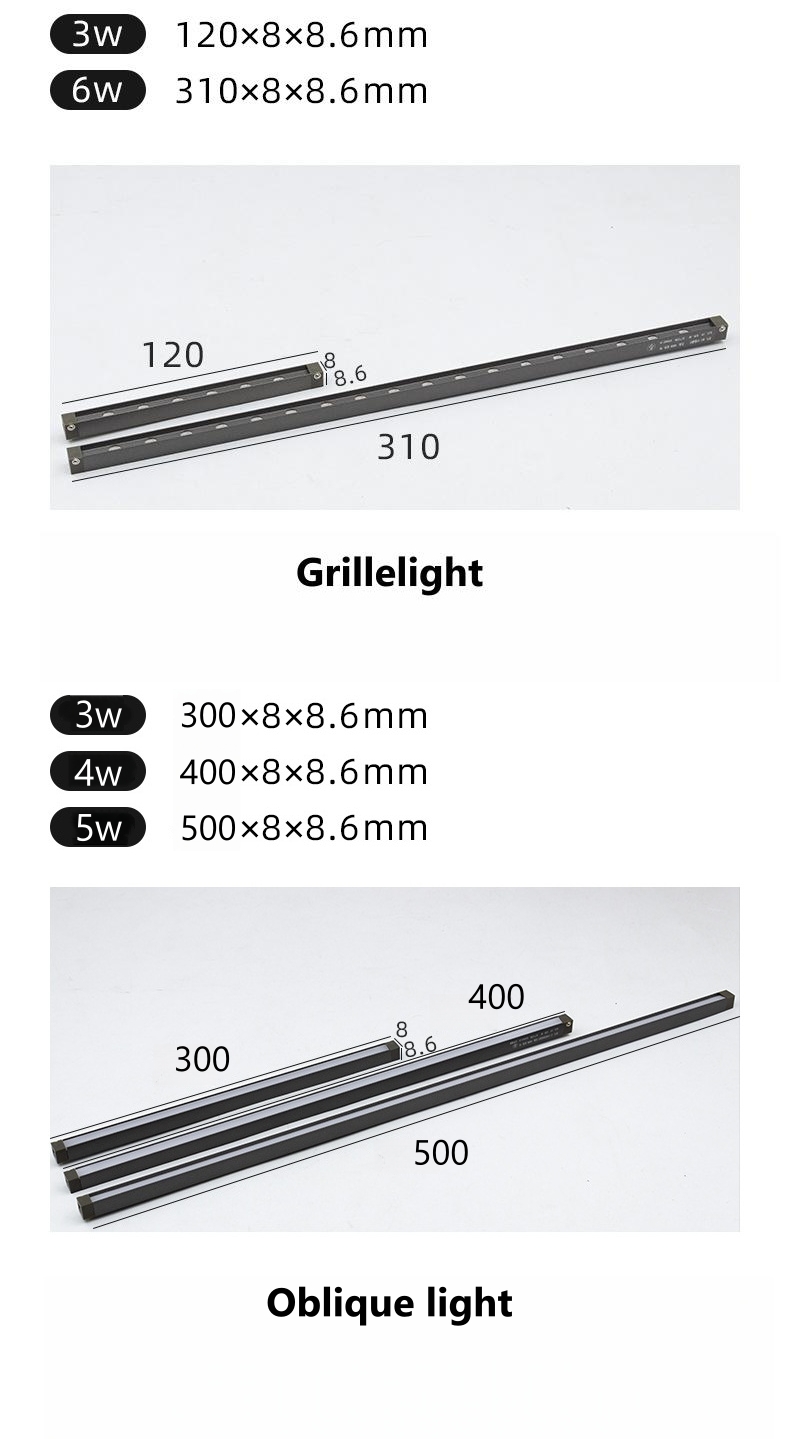

Lighting Options

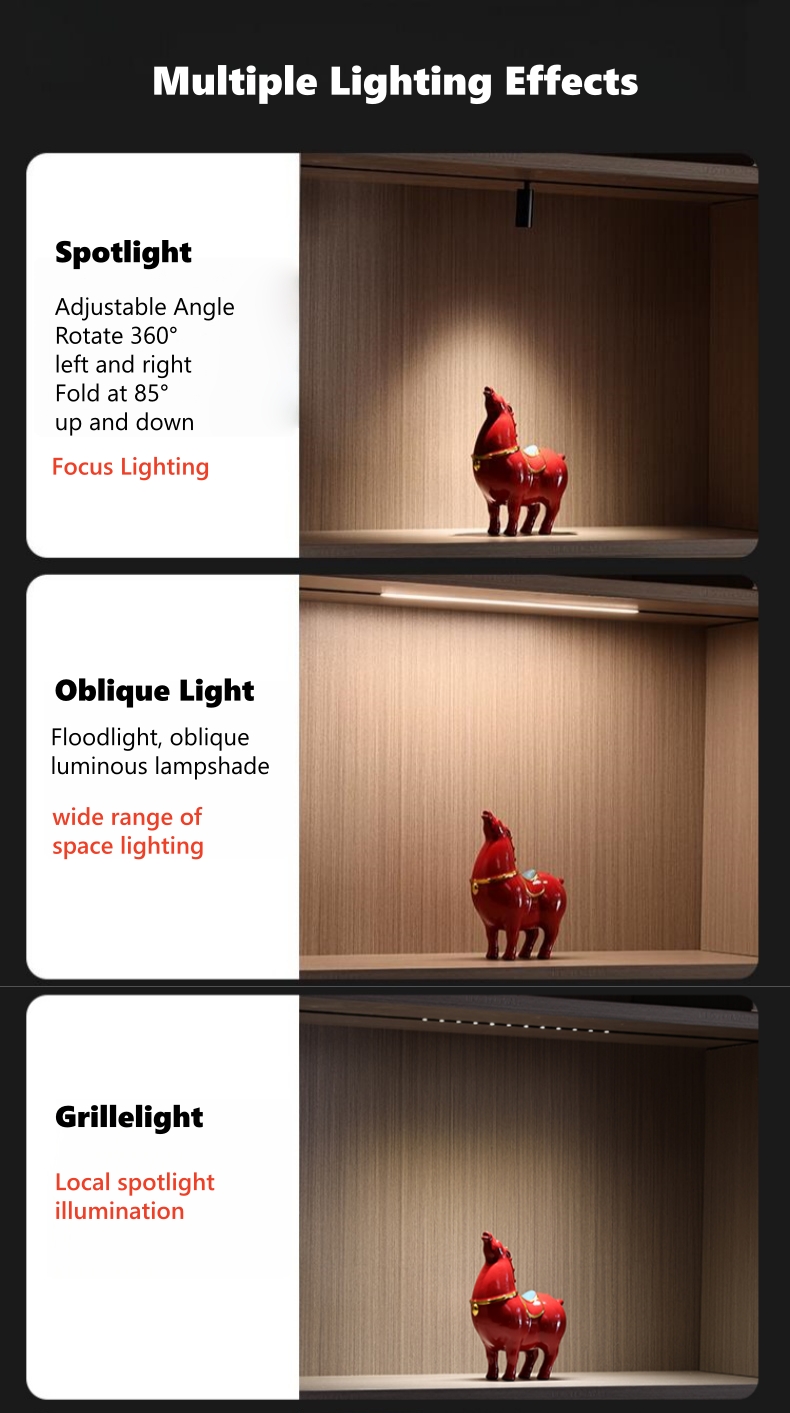

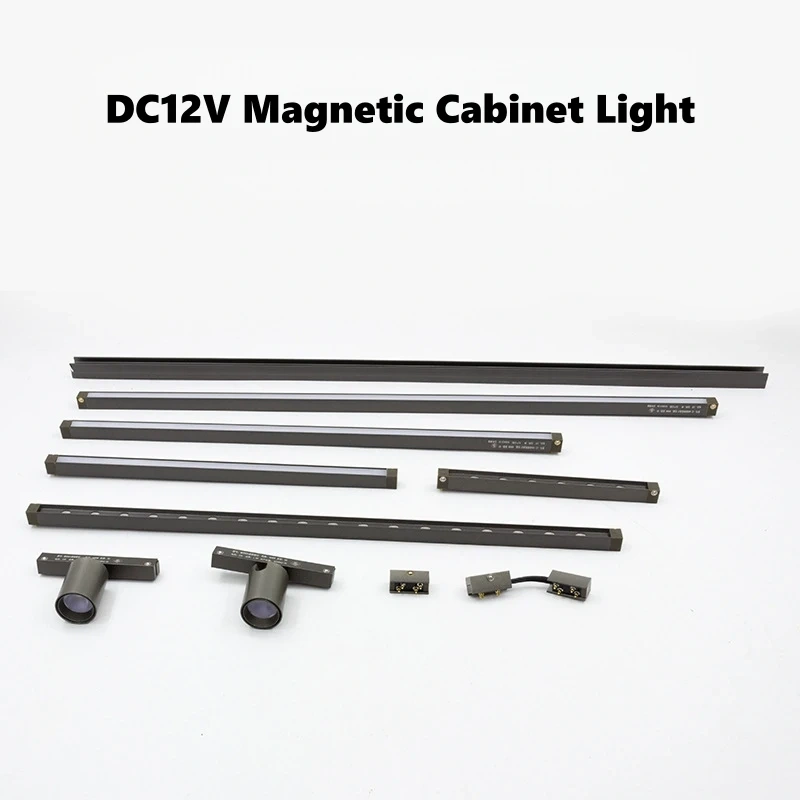

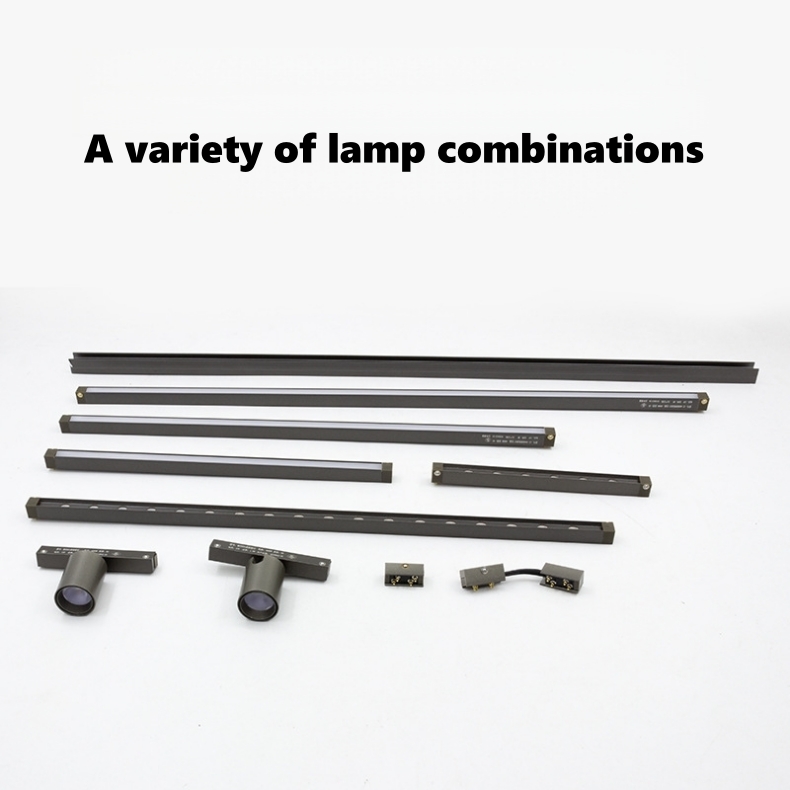

The system supports multiple lighting module configurations for different display requirements.
Available options shown on the product page include:

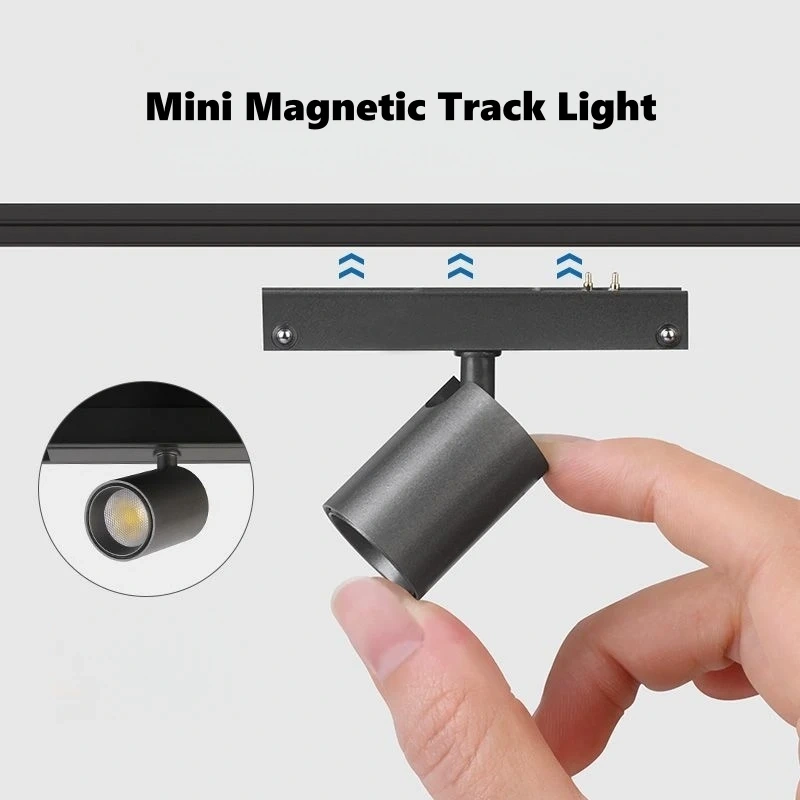

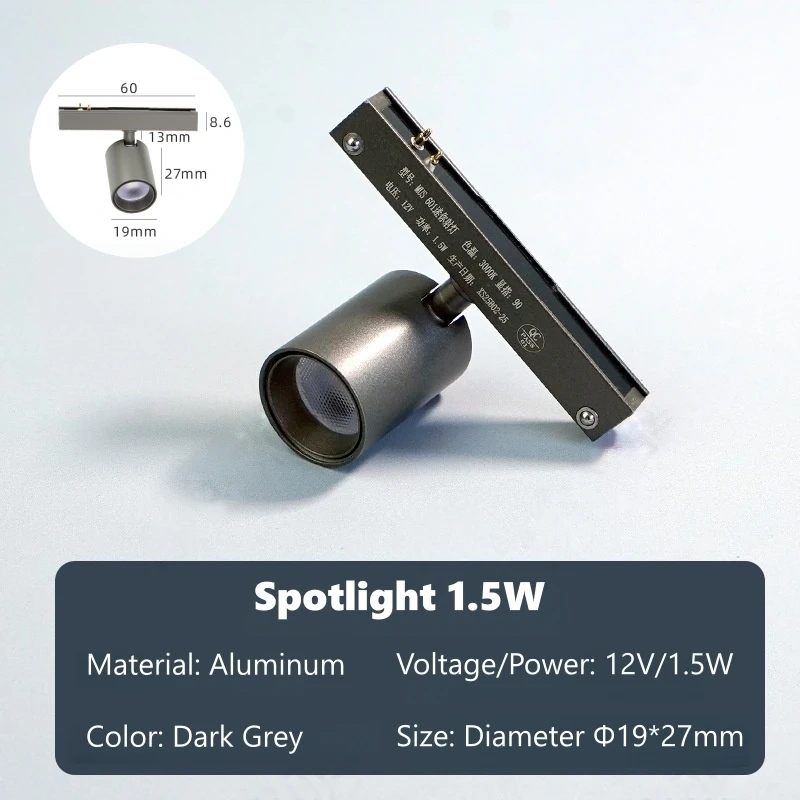

- 1.5W Spotlight

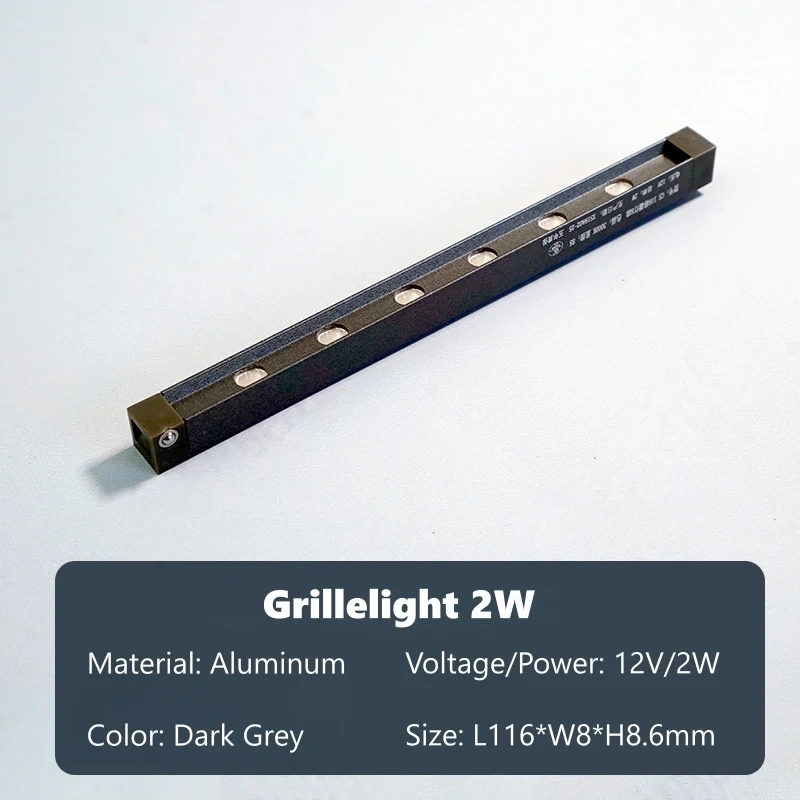

- 2W Grille Light

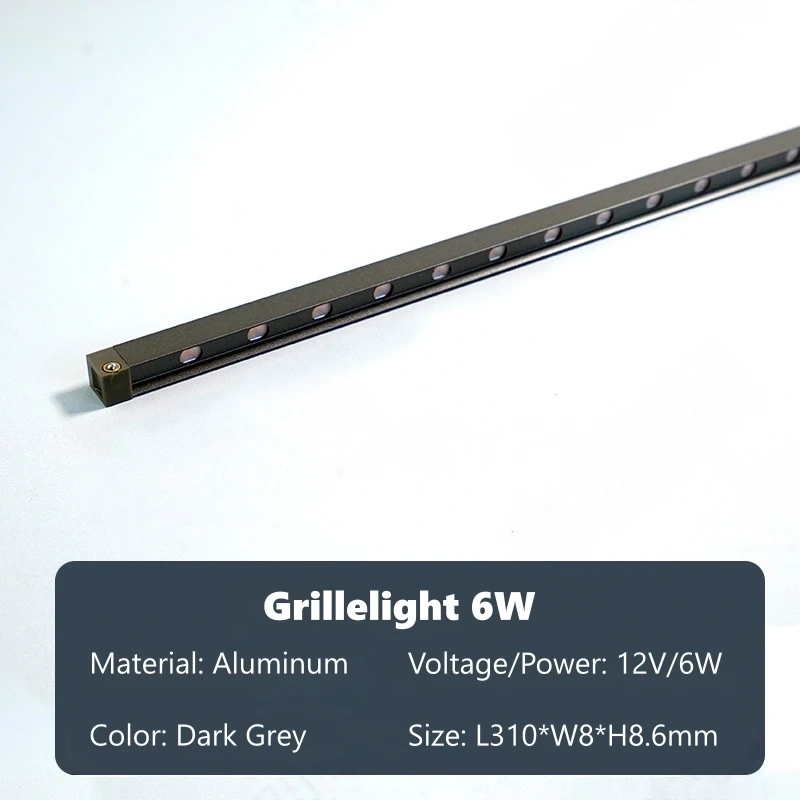

- 6W Grille Light
- 3W Oblique Light

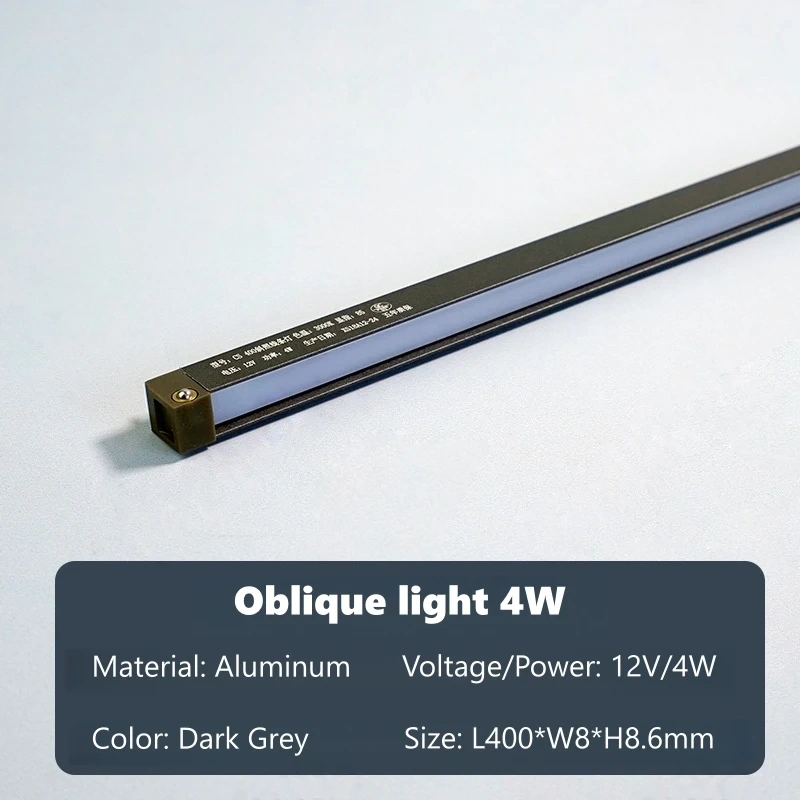

- 4W Oblique Light
- 5W Oblique Light

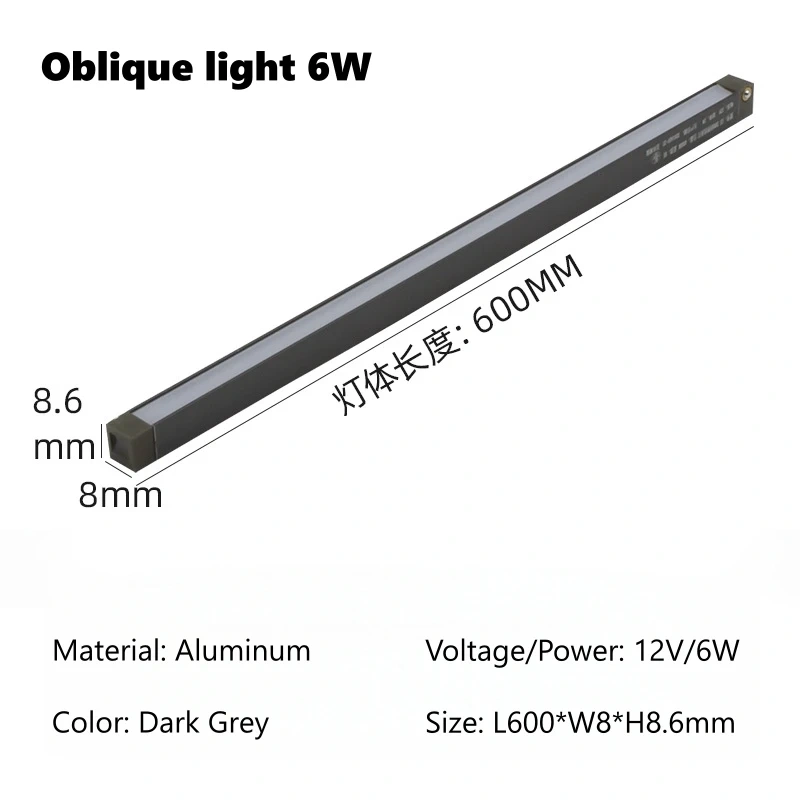

- 6W Oblique Light

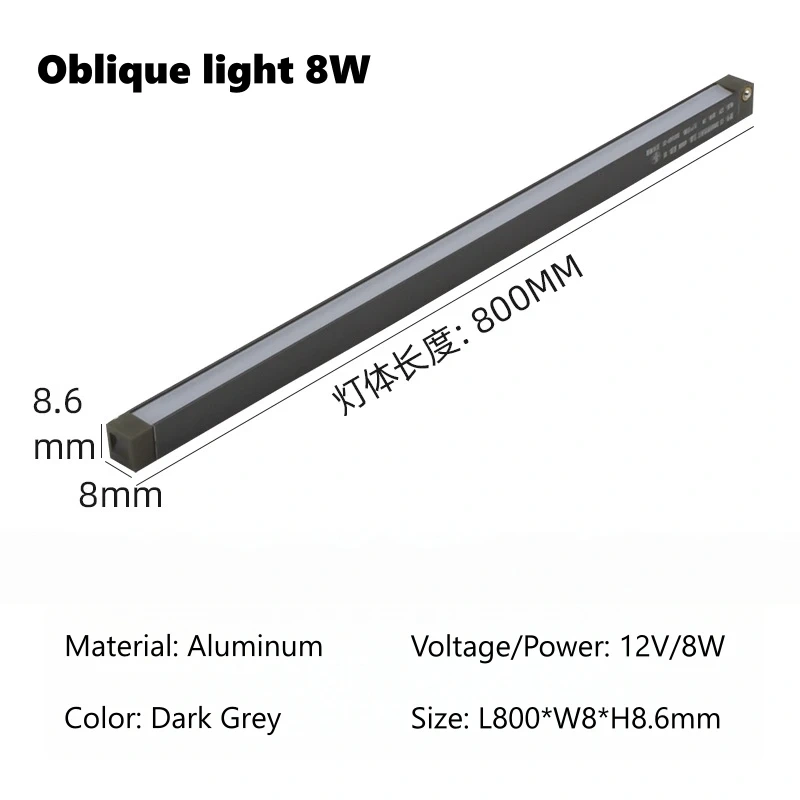

- 8W Oblique Light

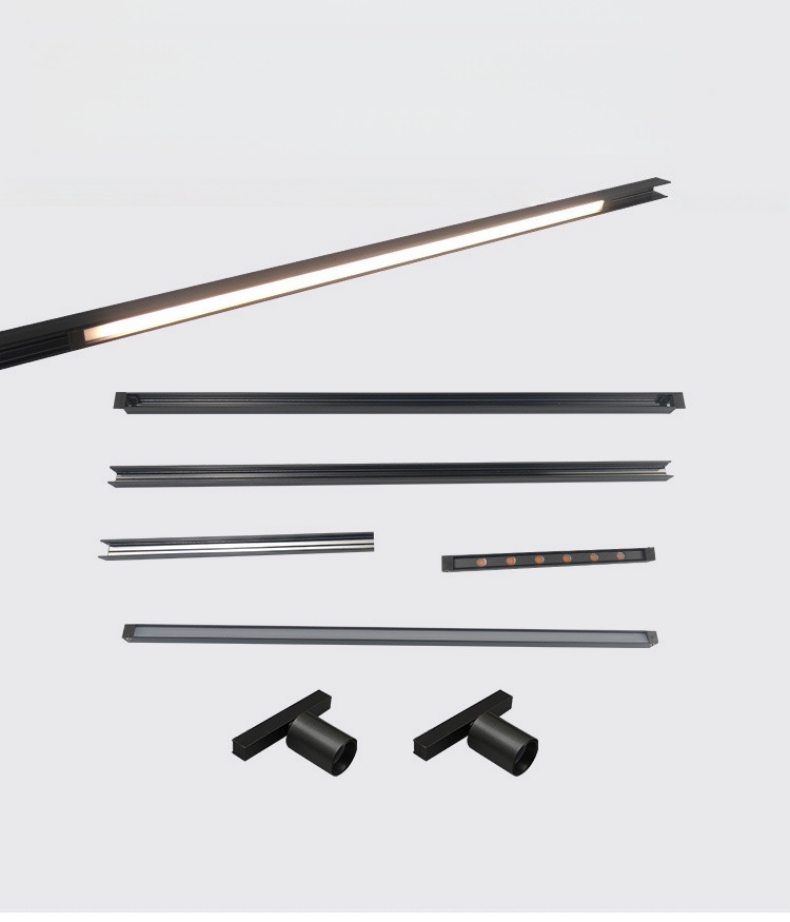

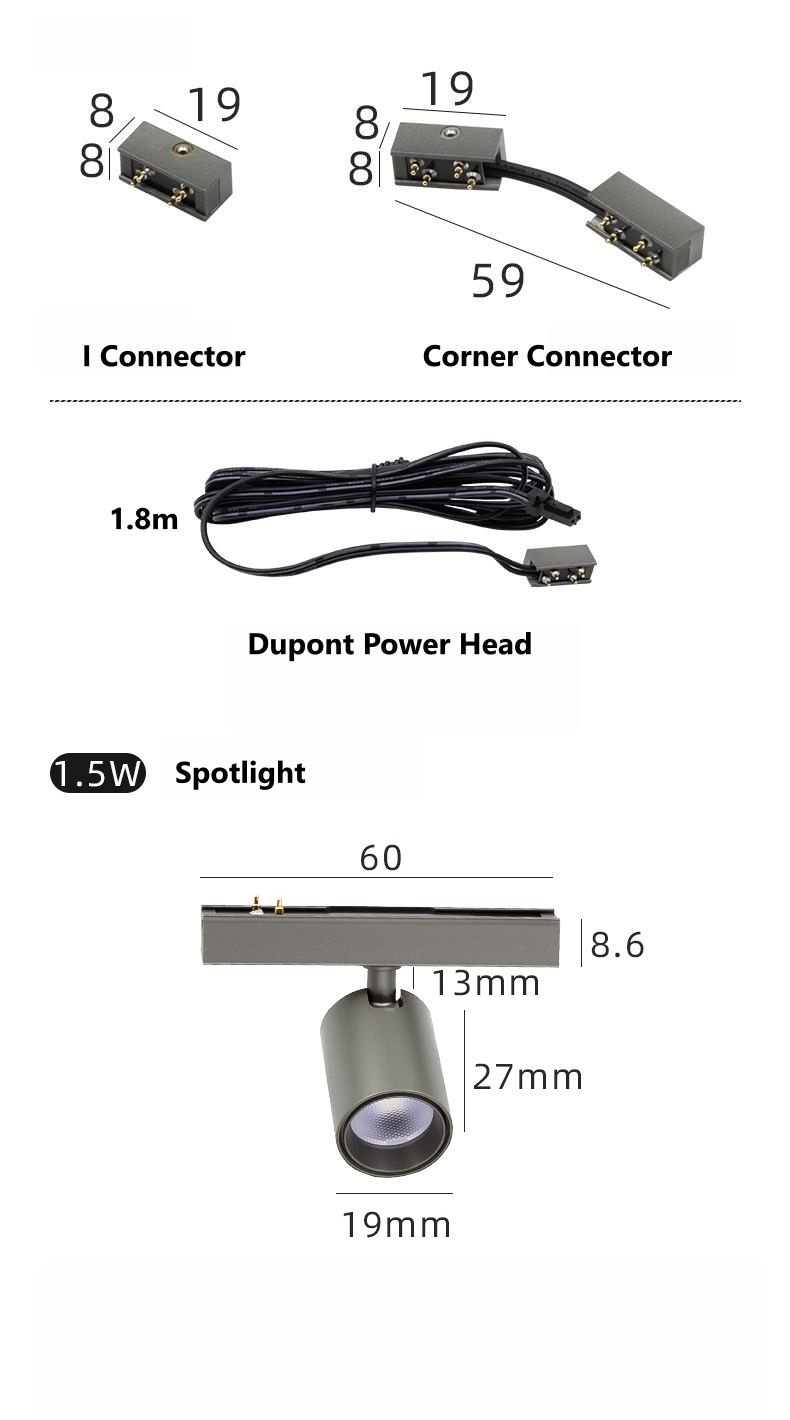

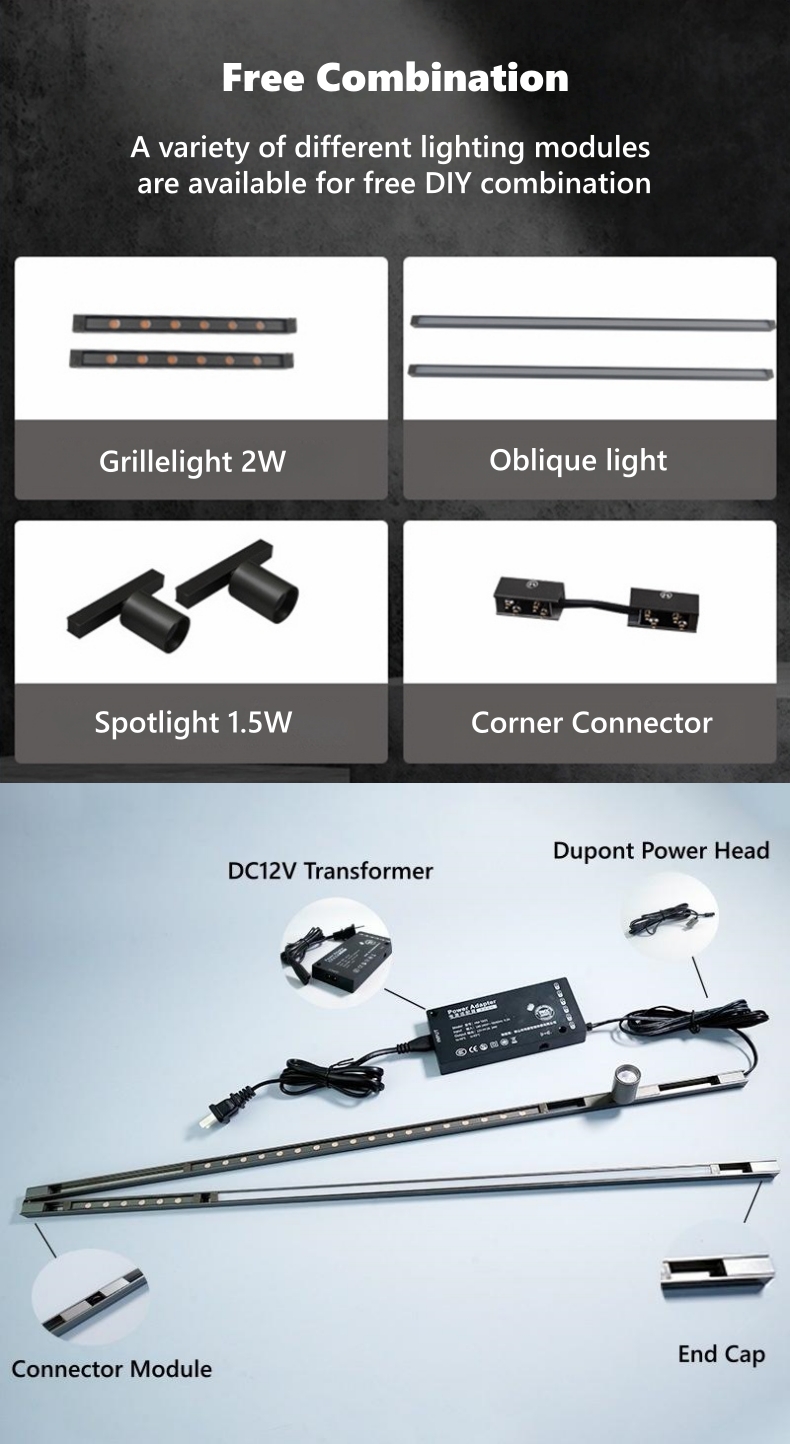

Additional system components include:

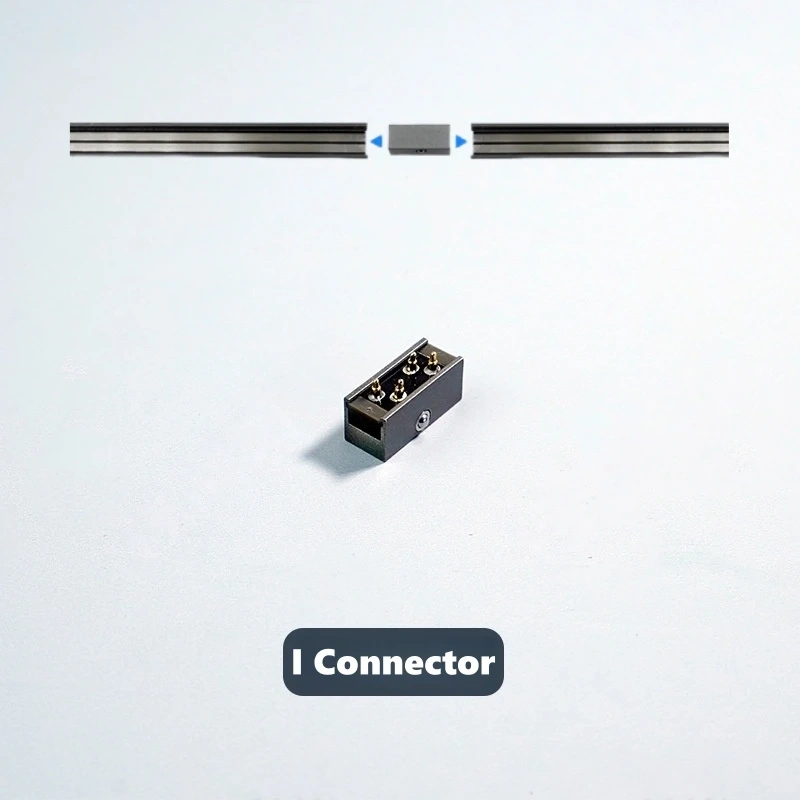

- I Connector

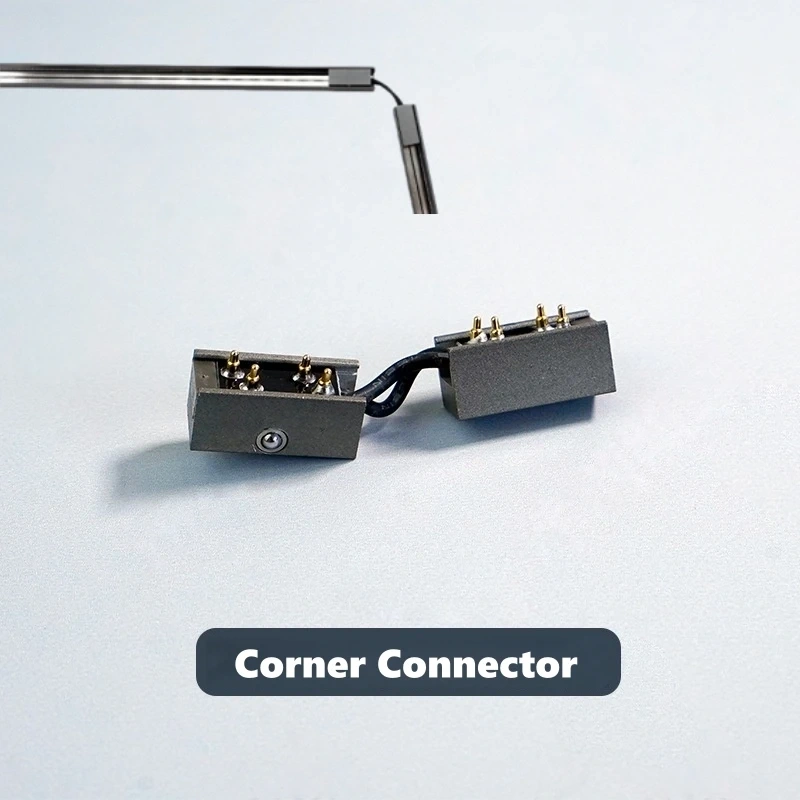

- Corner Connector

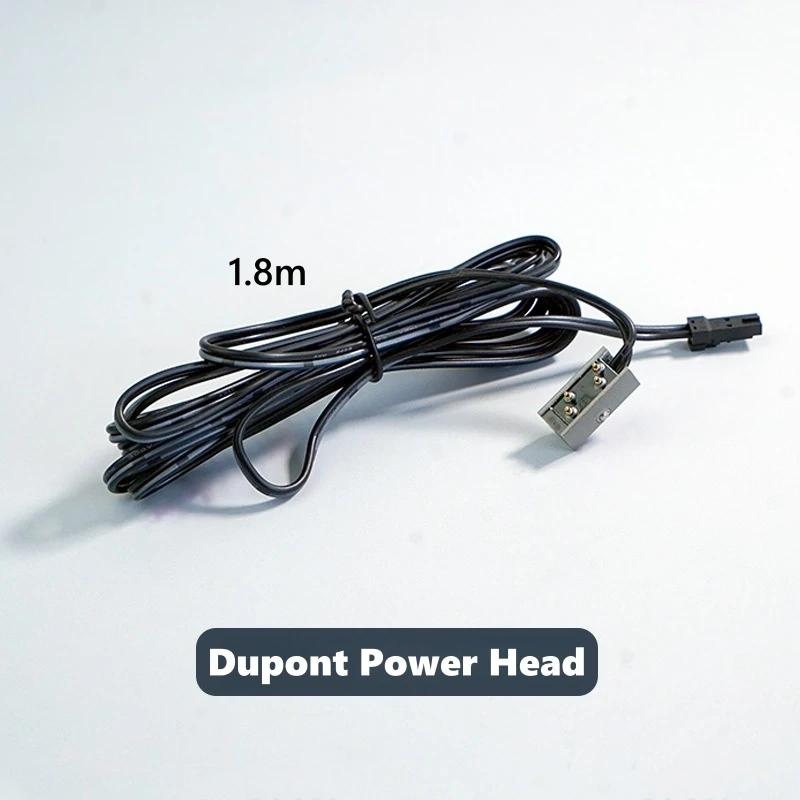

- Dupont Power Head

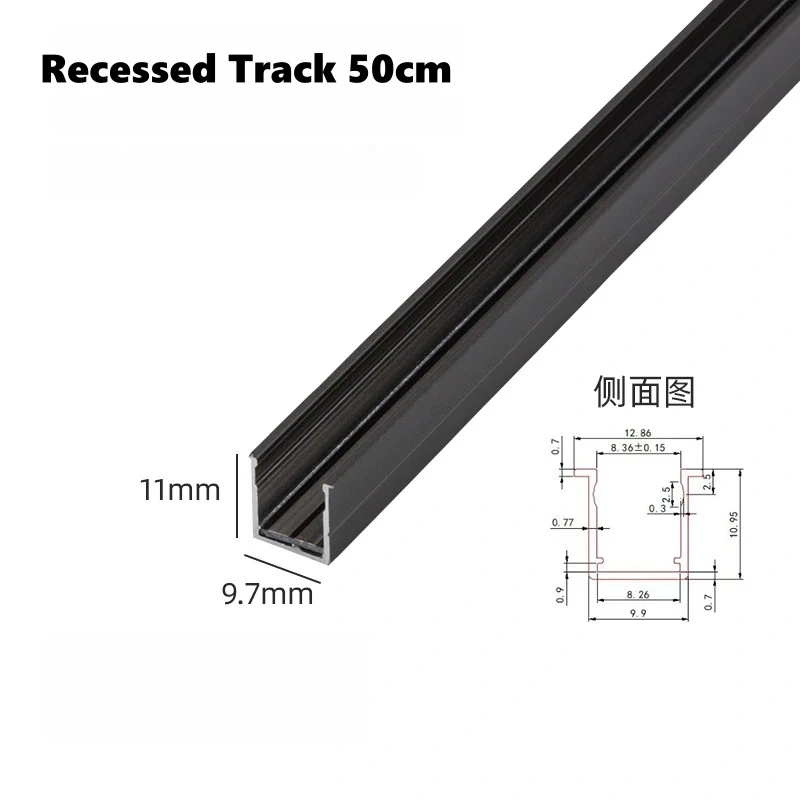

- 50cm Recessed Track
- 100cm Recessed Track

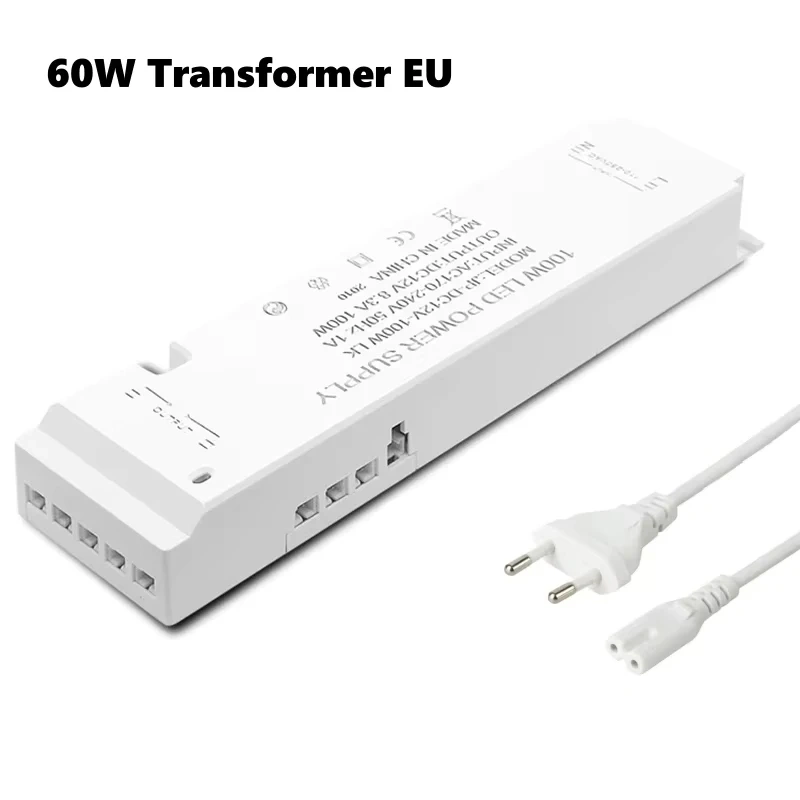

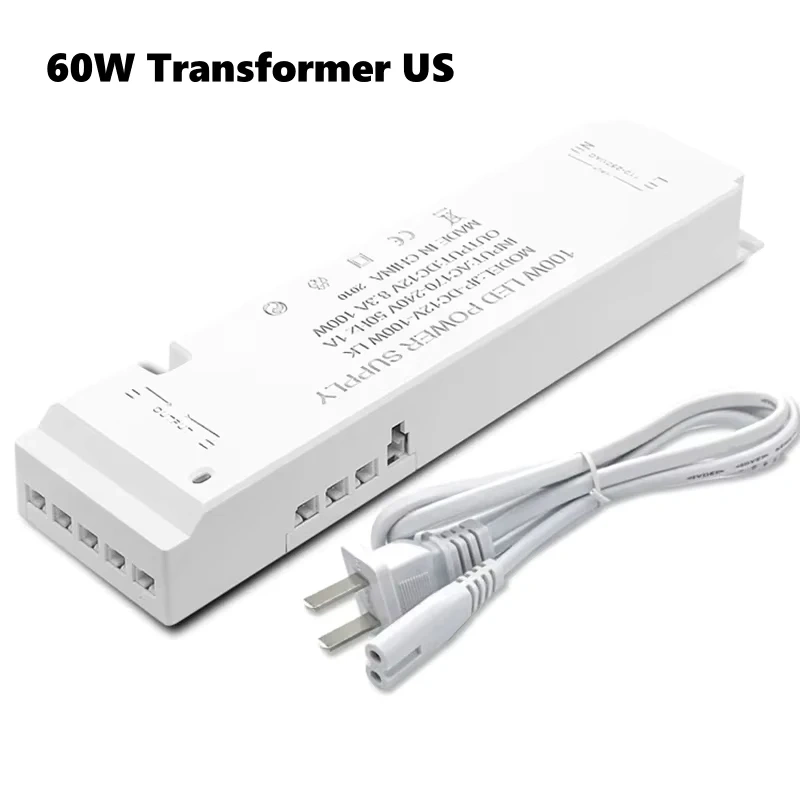

- 60W EU Transformer
- 60W US Transformer

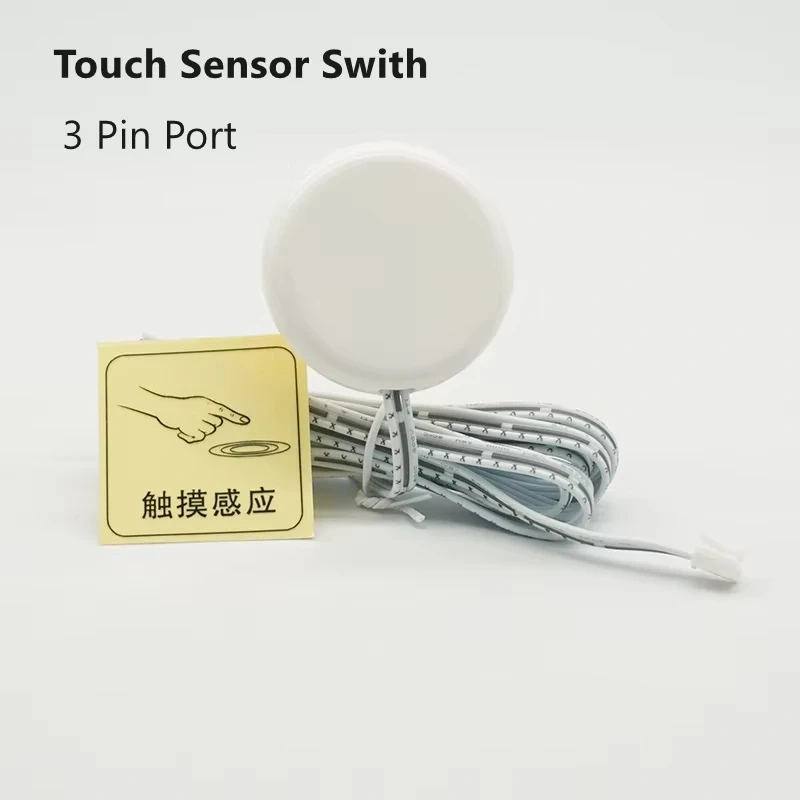

- Touch Sensor
Installation

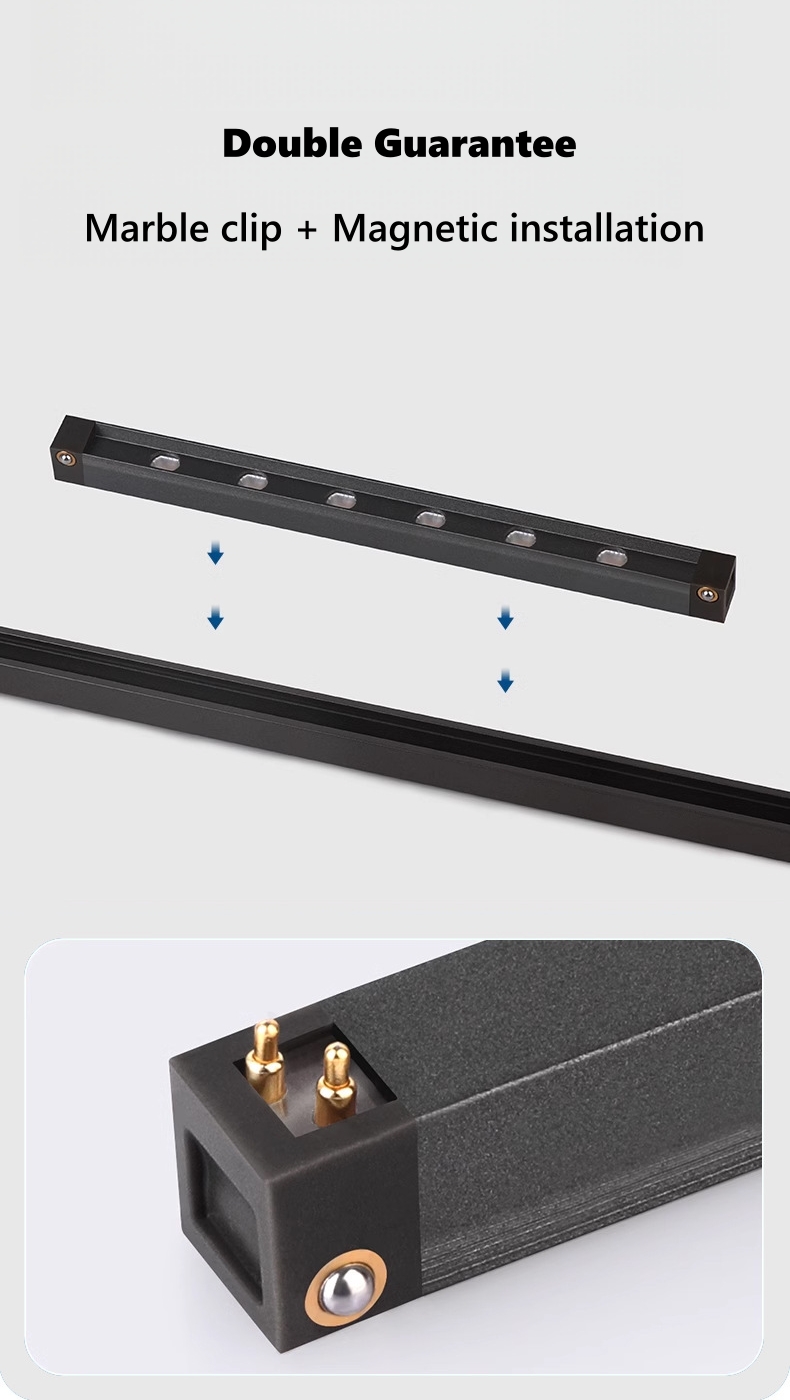

The recessed magnetic track is designed to be integrated into a routed cabinet or display structure.

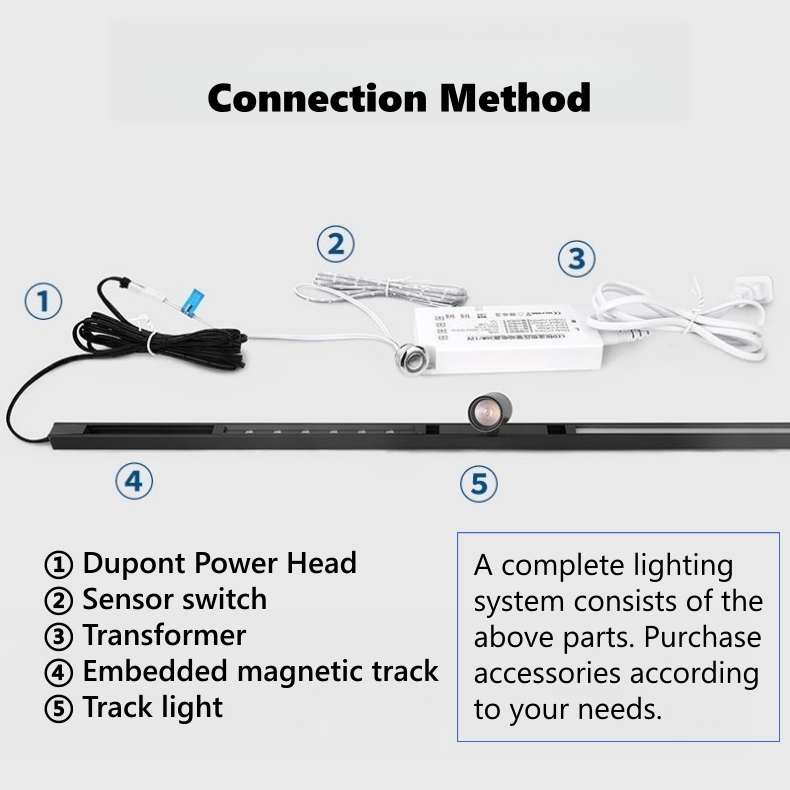

Recommended installation workflow:
- Prepare a 10.5 × 10.5 mm slot according to the product specification.
- Install the recessed magnetic track into the prepared cabinet or display structure.
- Select the appropriate track length for the display layout.

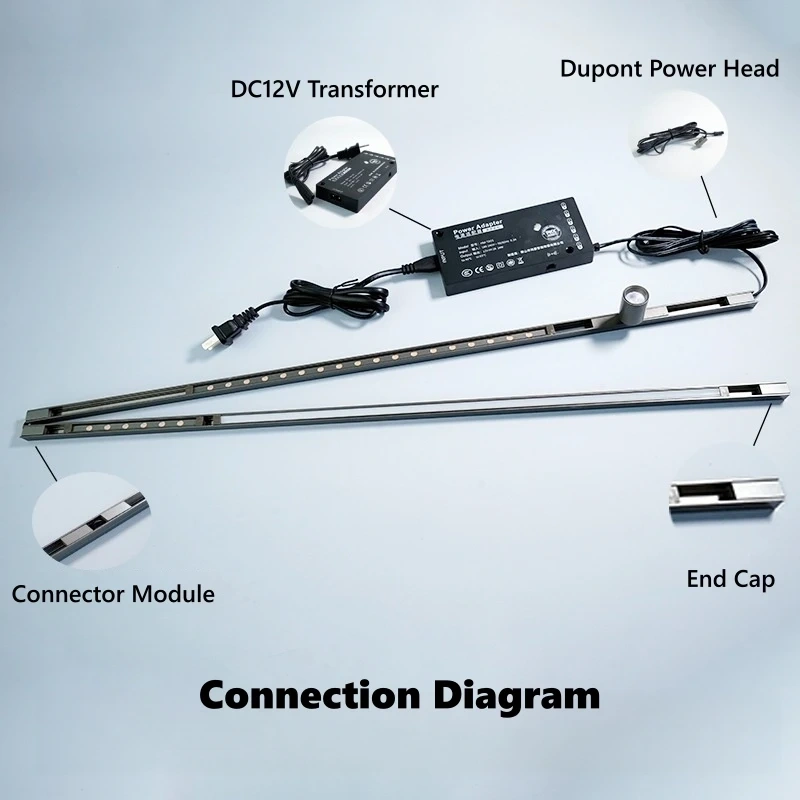

- Connect the DC12V power supply and required accessories.

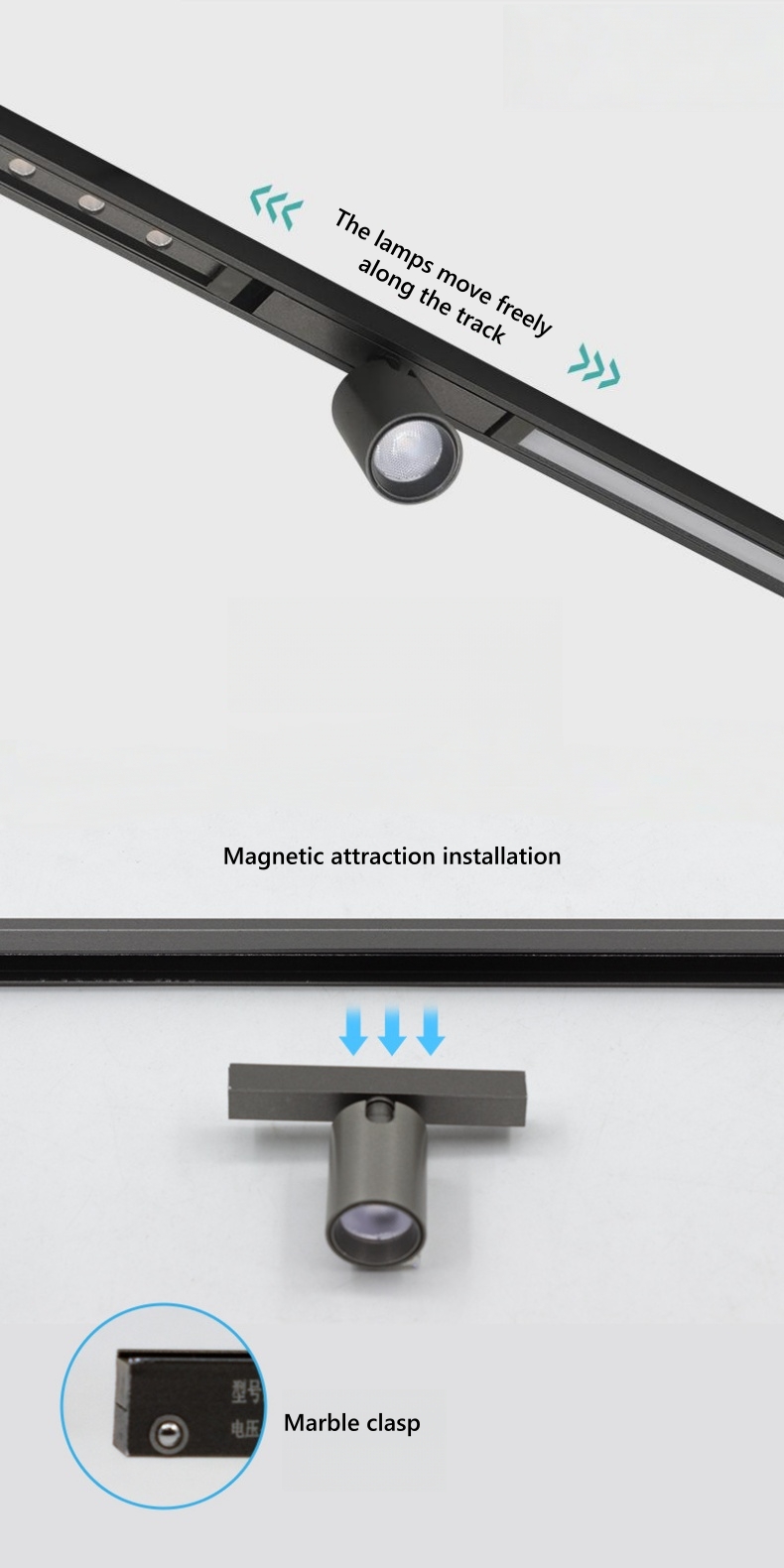

- Install the selected lighting modules into the magnetic rail.
- Position the lighting modules according to the products being displayed.
- Test the lighting system before completing the cabinet installation.
For commercial projects, the final installation method should be confirmed with the cabinet manufacturer and electrical contractor according to the project structure.
Technical Specifications
| Parameter |
Specification |
| Product Type |
Recessed Magnetic Track Light |
| Application |
Cabinet & Display Lighting |
| Input Voltage |
DC12V |
| Material |
Aluminum |
| Color / Finish |
Dark Grey |
| Track Length |
0.5m / 1m |
| Slotting Size |
10.5 × 10.5 mm |
| Power Options |
1.5W / 2W / 3W / 4W / 5W / 6W / 8W |
| Color Temperature |
4000K Neutral White |
| Track System |
Recessed Magnetic Rail |
| Lighting Types |
Spotlight / Grille Light / Oblique Light |
| Accessories |
Connectors / Power Head / Transformer / Touch Sensor |

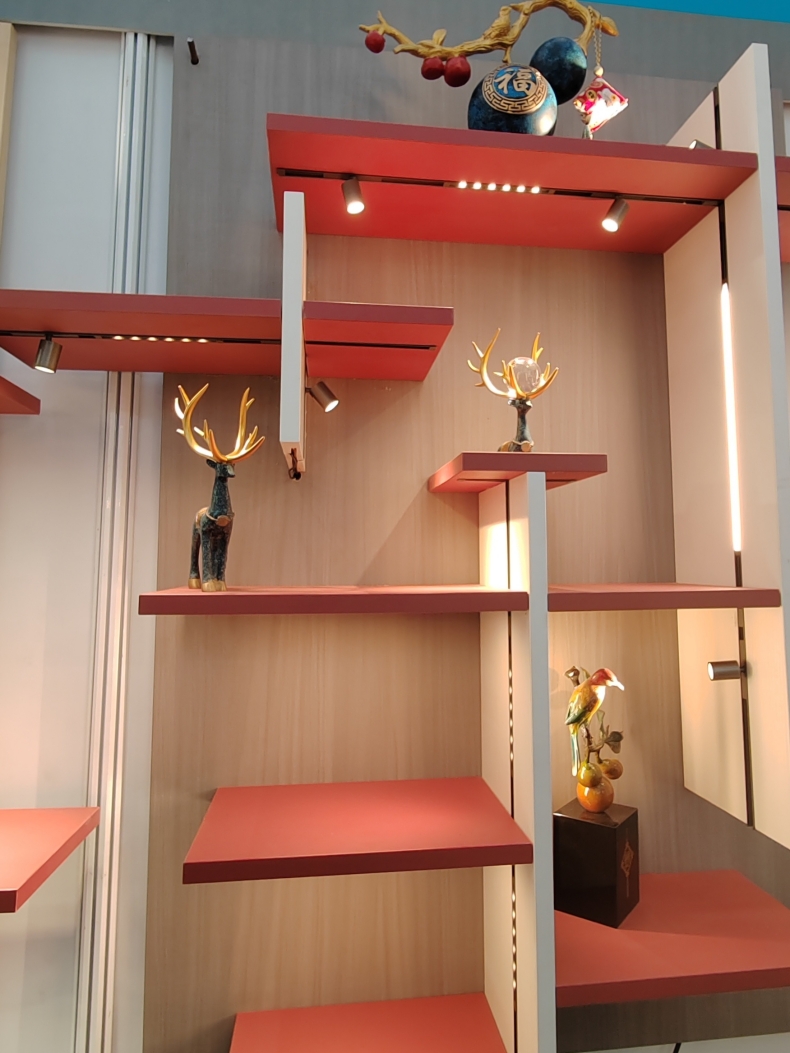

Project Applications
For B2B lighting and retail fixture projects, this recessed magnetic track system can be integrated into:
Jewelry Retail Projects

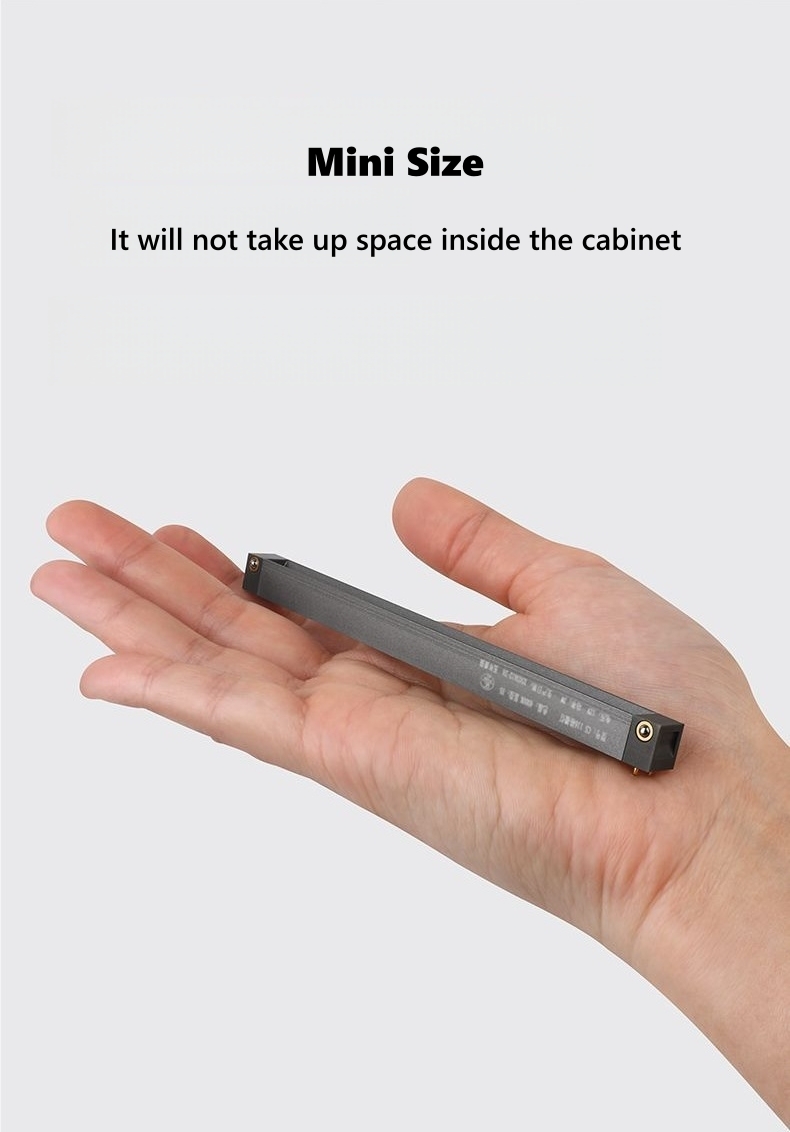

Designed for jewelry showcases where compact accent lighting is required without taking up unnecessary cabinet space.
Luxury Retail Stores
Suitable for watches, accessories, cosmetics and premium merchandise displays.
Exhibition Projects
The modular track concept can be incorporated into exhibition furniture and product display structures.
Custom Display Cabinets
Suitable for cabinet manufacturers and shopfitting companies developing customized commercial display fixtures.
Shopwindow Lighting
The recessed configuration provides a discreet solution for illuminated shopwindows and retail display areas.
For distributors, lighting wholesalers, retail fixture manufacturers and project contractors, USKYLED can provide customized magnetic track lighting solutions according to project requirements.
Contact USKYLED for product samples, project quotations, bulk pricing and OEM/ODM customization.
