Product Introduction
The DC48V Magnetic Track Light is a modular LED track lighting system designed for modern residential and commercial interiors. It combines magnetic click-in installation with multiple fixture options, including grille spotlights, floodlights, spotlights, fold spotlights and fold floodlights.
The system is designed around a DC48V low-voltage magnetic track architecture, providing a flexible way to combine accent lighting and general illumination within the same lighting system. The current product page specifically states that these modules are designed for DC48V magnetic track systems and are not compatible with standard 24V tracks.
The product range covers 6W to 36W lighting options depending on the selected module. Grille spotlights are available in 6W, 12W, 18W and 24W, while floodlights are available in 12W, 18W, 24W and 36W. Additional spotlight and foldable spotlight/floodlight configurations are also available.
Design

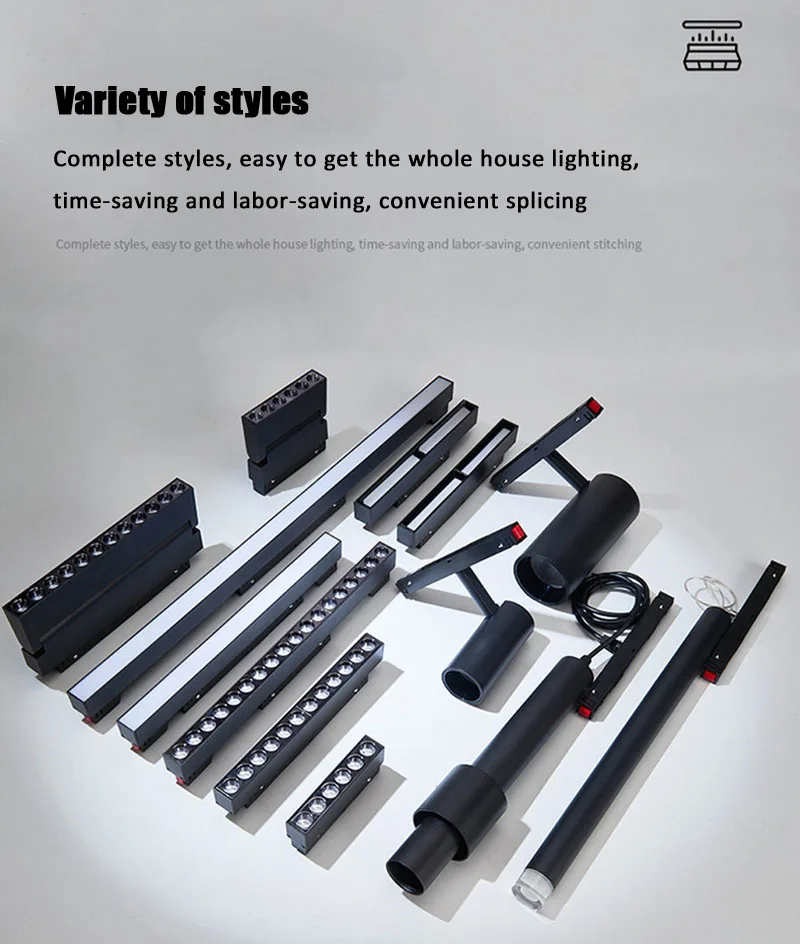

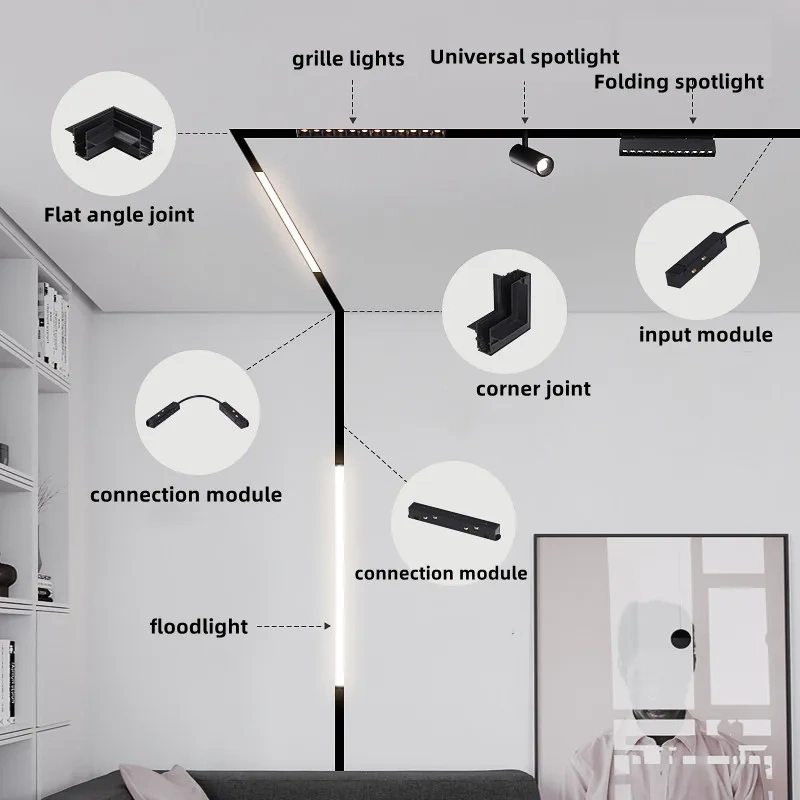

The system uses a compact modular magnetic structure that allows different lighting modules to be installed along the same magnetic track.

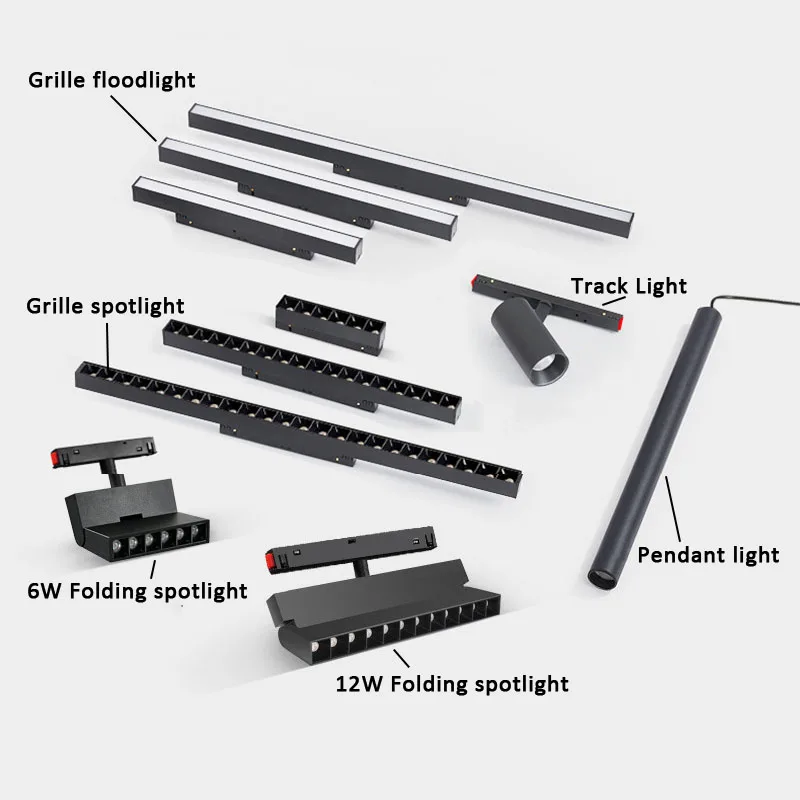

The design combines:
- Grille spotlight modules
- Floodlight modules
- Standard spotlight modules
- Fold spotlight modules
- Fold floodlight modules

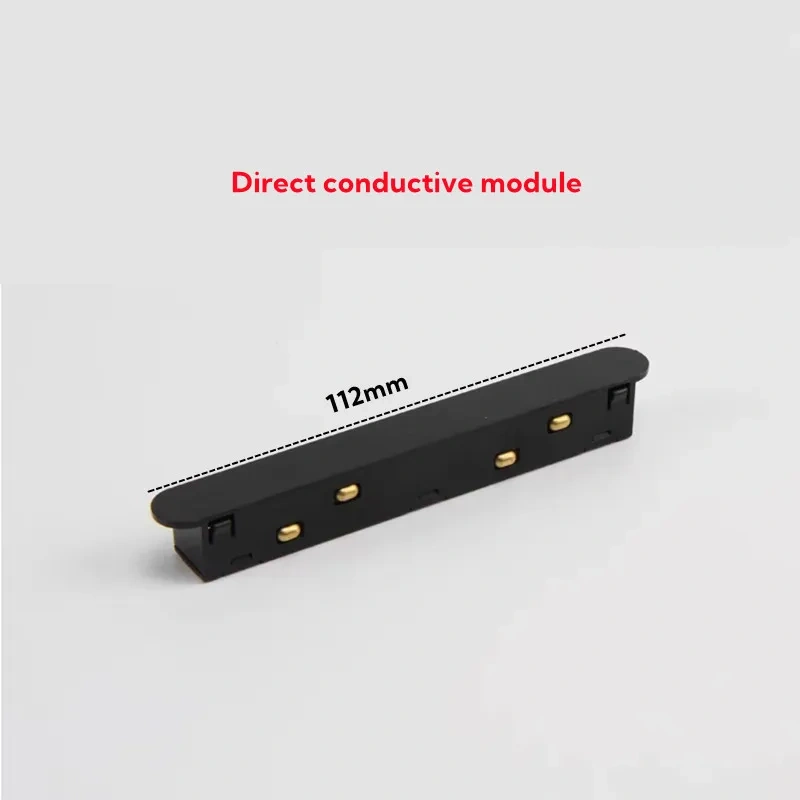

- Direct modules

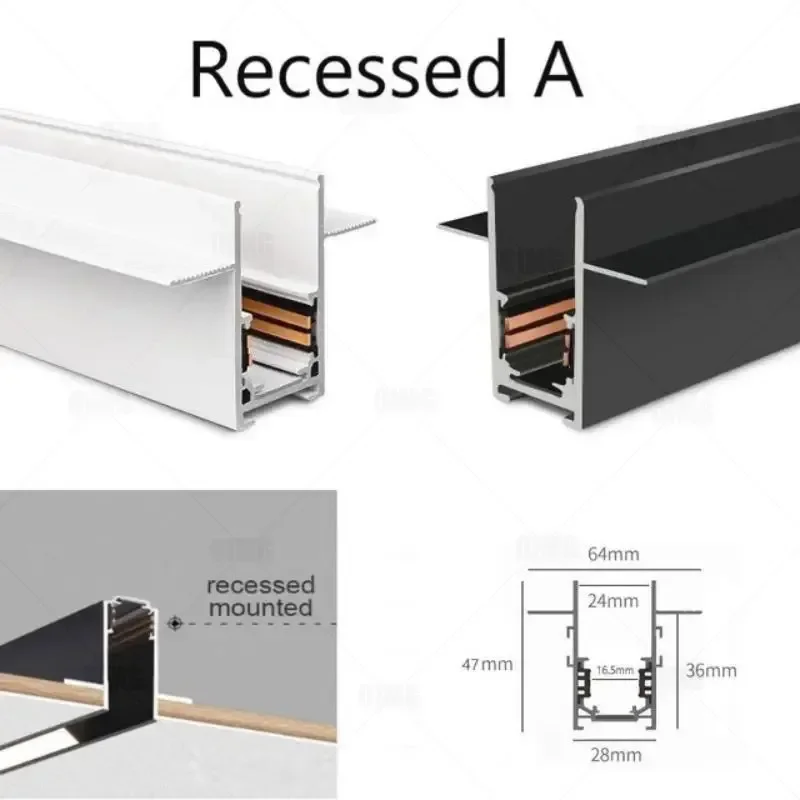

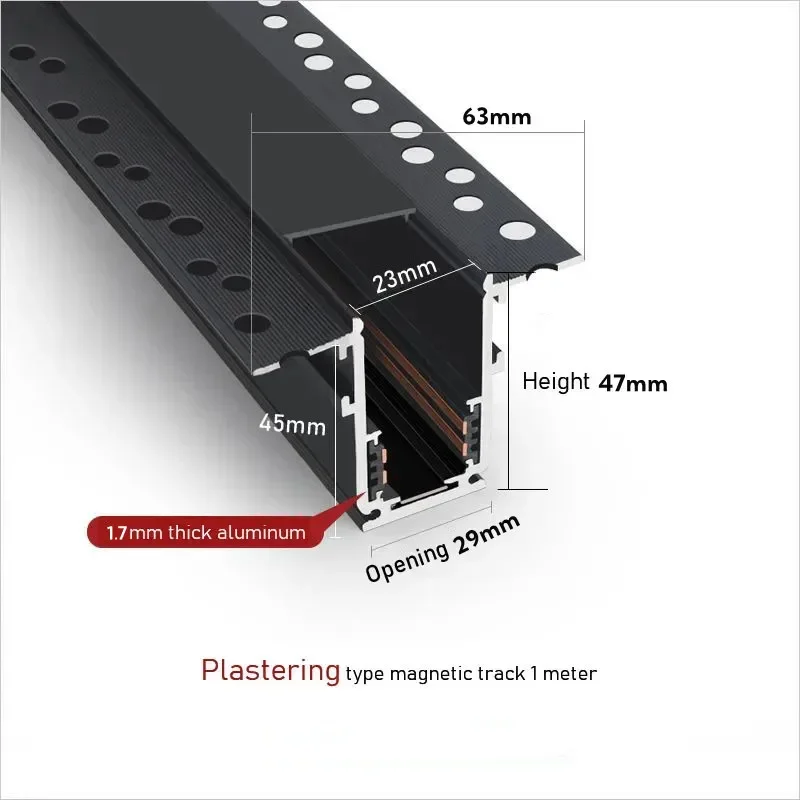

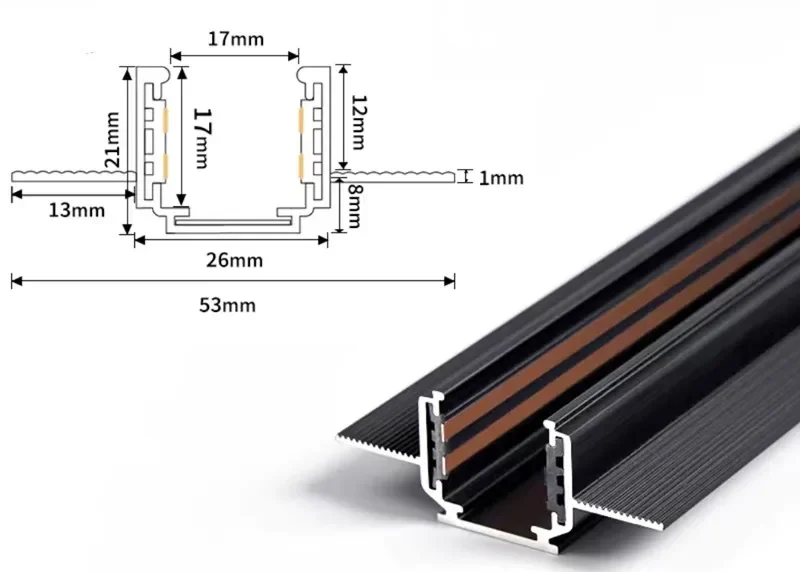

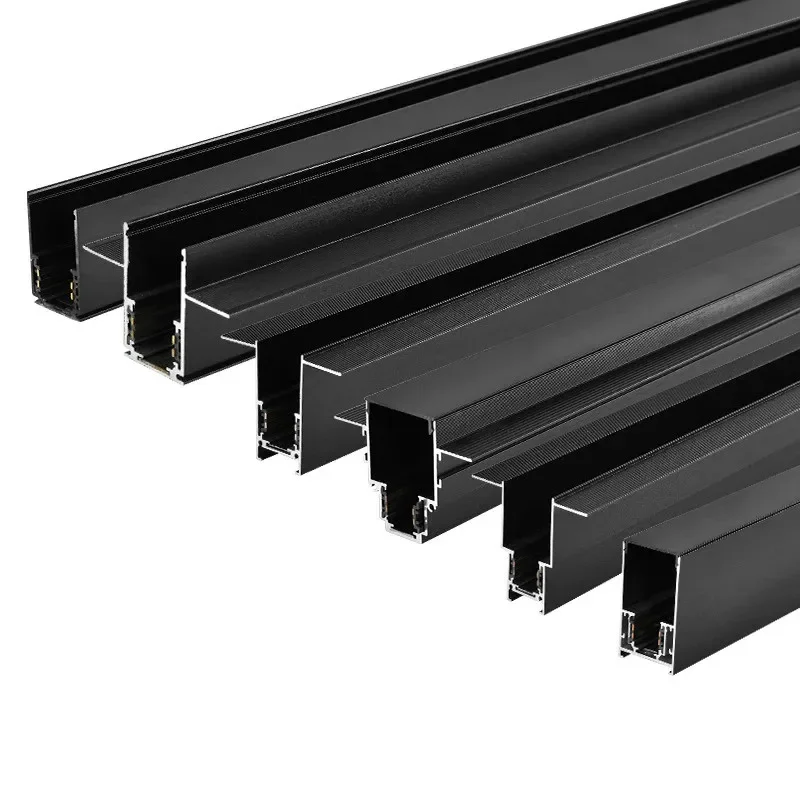

- Magnetic track components
- Compatible 100W and 200W power supply options
The grille design is intended for more focused, anti-glare accent lighting, while the floodlight provides a broader beam for general illumination. The current specification lists 24°/36° beams for grille modules and 110°/120° beams for floodlight modules.
Main Features
DC48V Low-Voltage System
The lighting modules operate on DC48V, providing a low-voltage magnetic track architecture for modern interior lighting projects.
The page specifically confirms that the modules should be used with a DC48V magnetic track rather than a standard 24V track.
High CRI Lighting
The product description specifies high CRI >90 / Ra95, making it suitable for retail, showroom, hospitality and other applications where color appearance matters.
Multiple Lighting Types
The system supports:
- Grille spotlight
- Floodlight
- Spotlight
- Fold spotlight
- Fold floodlight
- Direct module
This allows accent and ambient lighting to be combined within one magnetic track system.
Multiple Power Options
Available lighting modules include:
The current product selector also lists 100W and 200W power supplies.

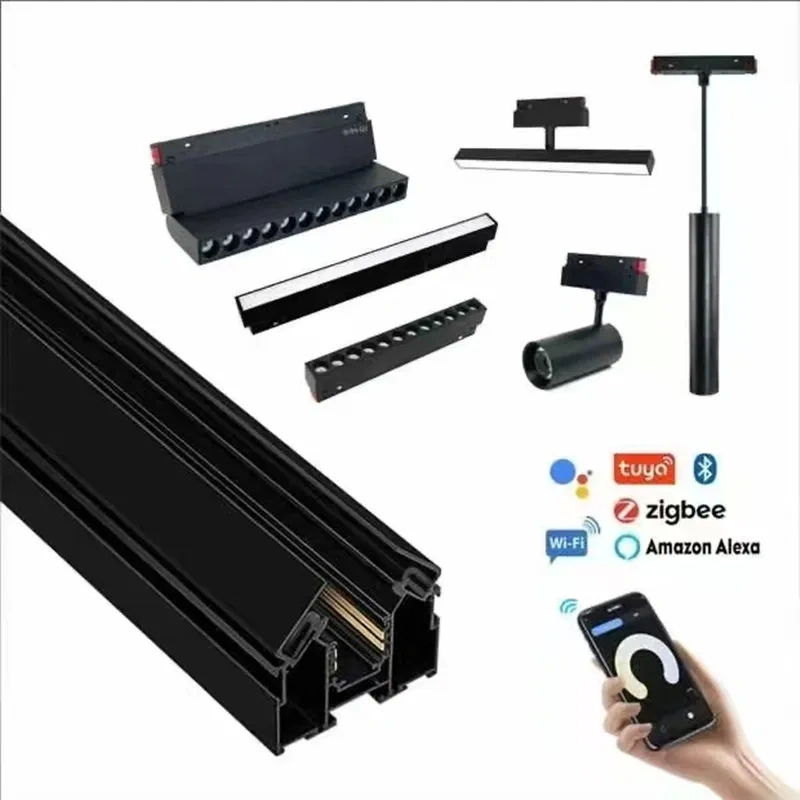

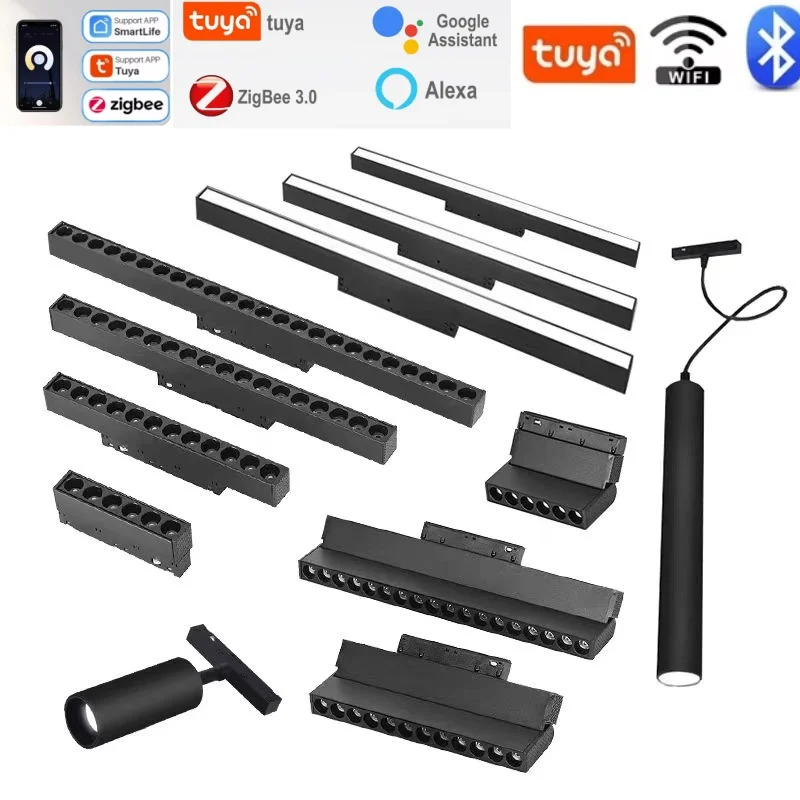

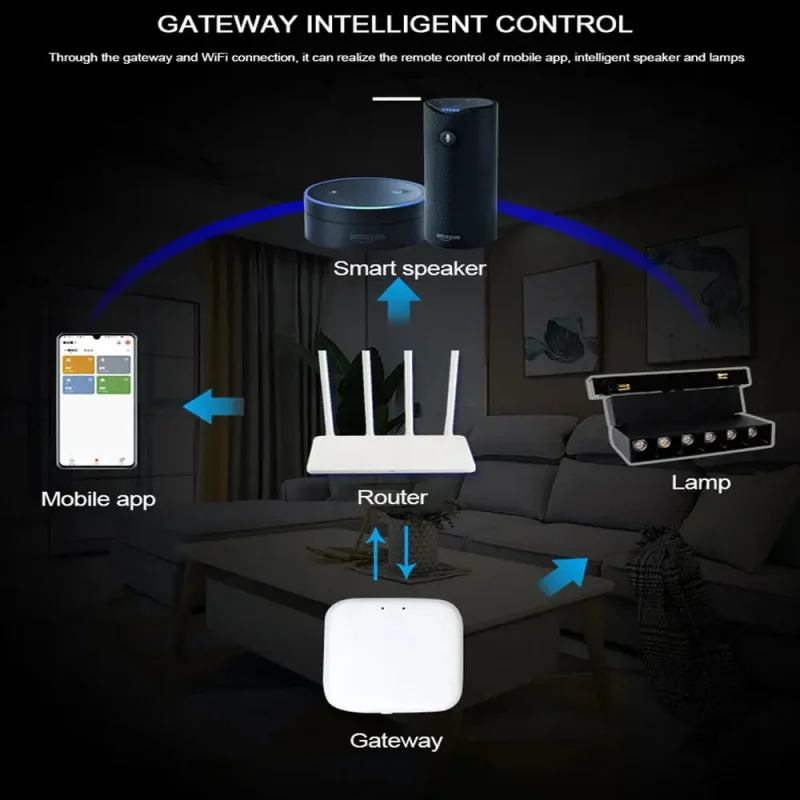

Smart Tuya Control
The smart versions support Tuya Bluetooth APP and Tuya Zigbee APP.
The Bluetooth version can be controlled directly through a mobile phone APP, while the Zigbee version requires a compatible Zigbee gateway.
The page also states that Tuya control can support voice control through platforms such as Alexa, Google Assistant and SmartThings.
0–100% Dimming
The product description specifies 0–100% dimming for the smart version.
OSRAM LED Chip
The product page describes the lighting modules as using OSRAM LED chips and specifies luminous flux ranging from 249 to 2000 lm, depending on the selected configuration.

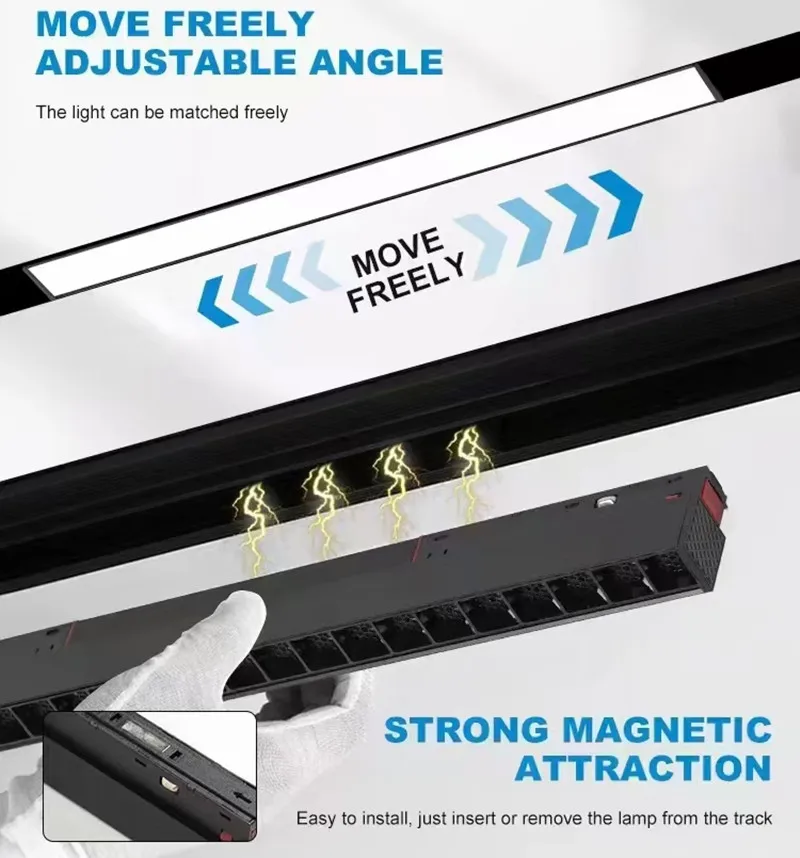

Magnetic Click-In Installation
The system uses a modular magnetic click-in structure, allowing compatible fixtures to be installed onto the magnetic track without conventional fixture mounting for each individual module. The page describes the installation as secure and tool-free.
Application

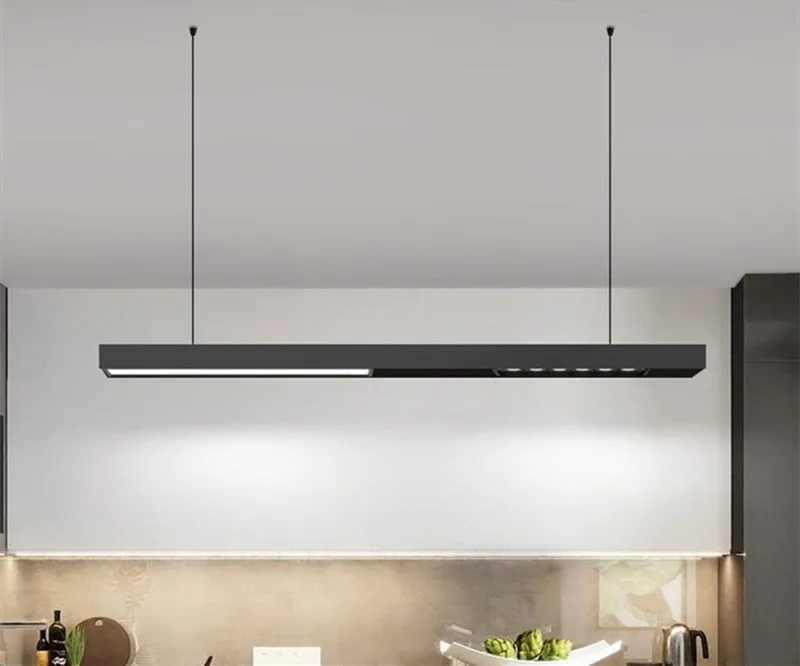

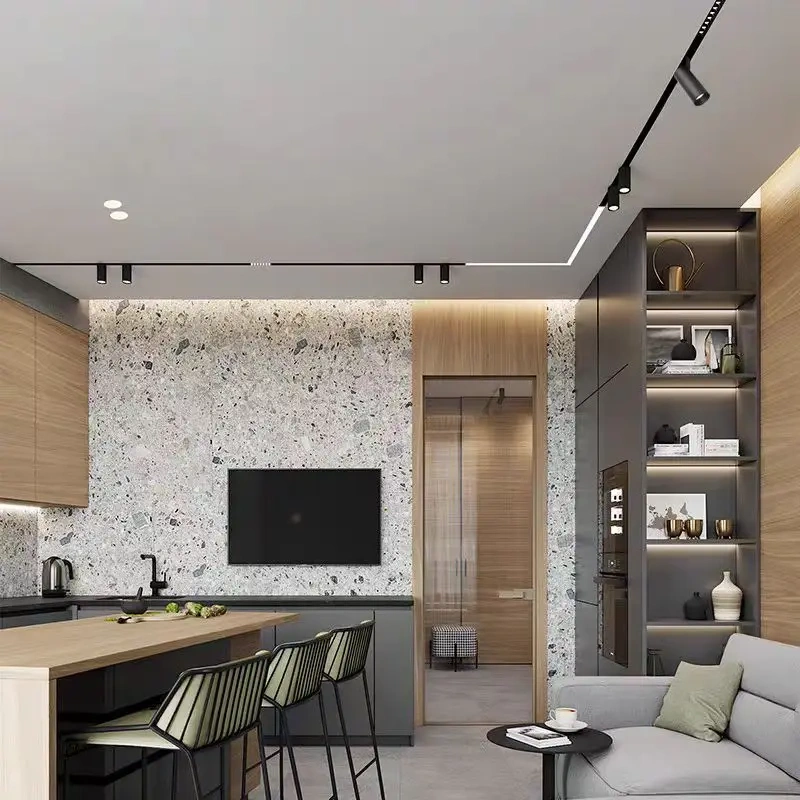

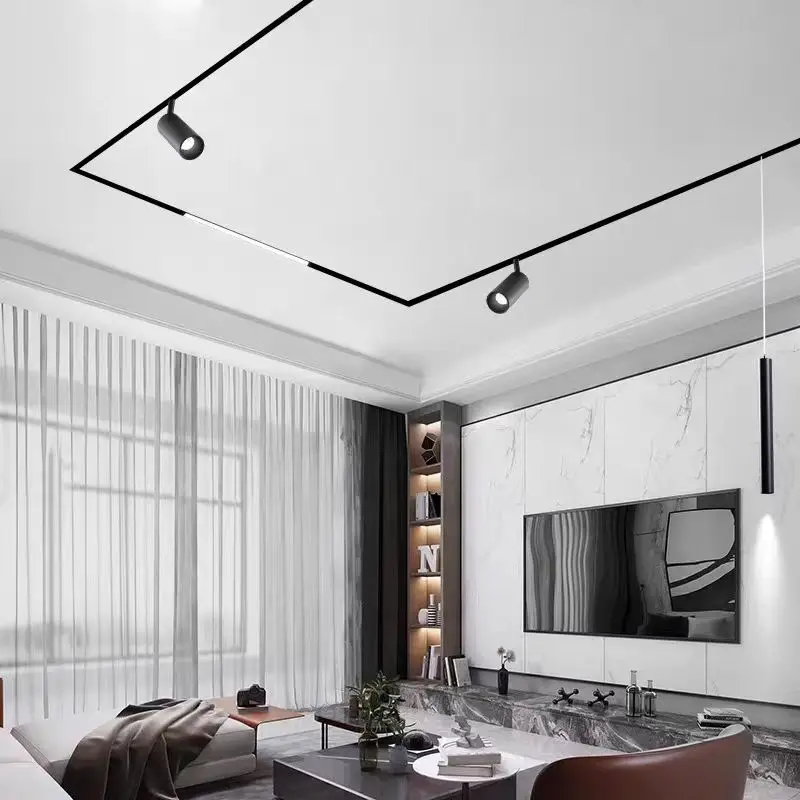

Residential Lighting
Suitable for:
- Living rooms
- Bedrooms
- Dining rooms
- Kitchens
- Home offices
- Corridors
The grille modules can provide focused accent lighting while floodlights can provide broader room illumination.
Retail Stores
The high-CRI grille spotlight is suitable for highlighting:
- Merchandise
- Shelving
- Display walls
- Feature areas
- Product counters
Showrooms
The modular system can combine accent and ambient lighting to create flexible showroom lighting layouts.
Galleries
The focused grille spotlight beam can be used for artwork and display lighting where directional illumination is required.
Hotels
The system can be used in:
- Hotel rooms
- Lobbies
- Corridors
- Restaurants
- Reception areas
Restaurants
The combination of focused and broad-beam modules can create different lighting layers for dining areas.
Offices
Floodlight modules can provide general illumination while spotlights can highlight reception desks or architectural elements.
Size / Options
The product page provides multiple fixture configurations rather than one fixed size.
Grille Spotlight Options
- 6W Grille Spotlight
- 12W Grille Spotlight
- 18W Grille Spotlight
- 24W Grille Spotlight

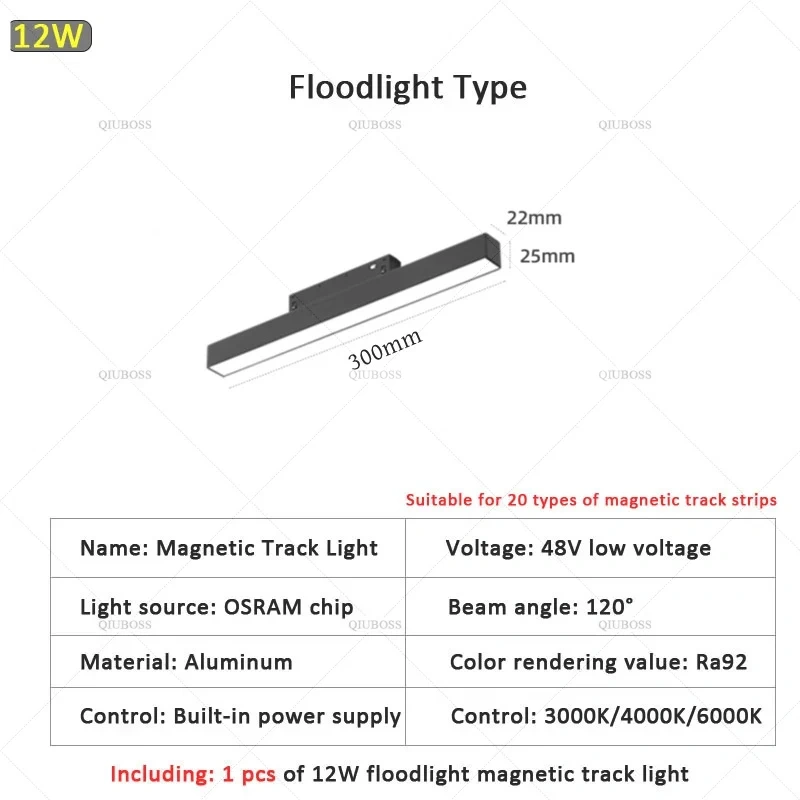

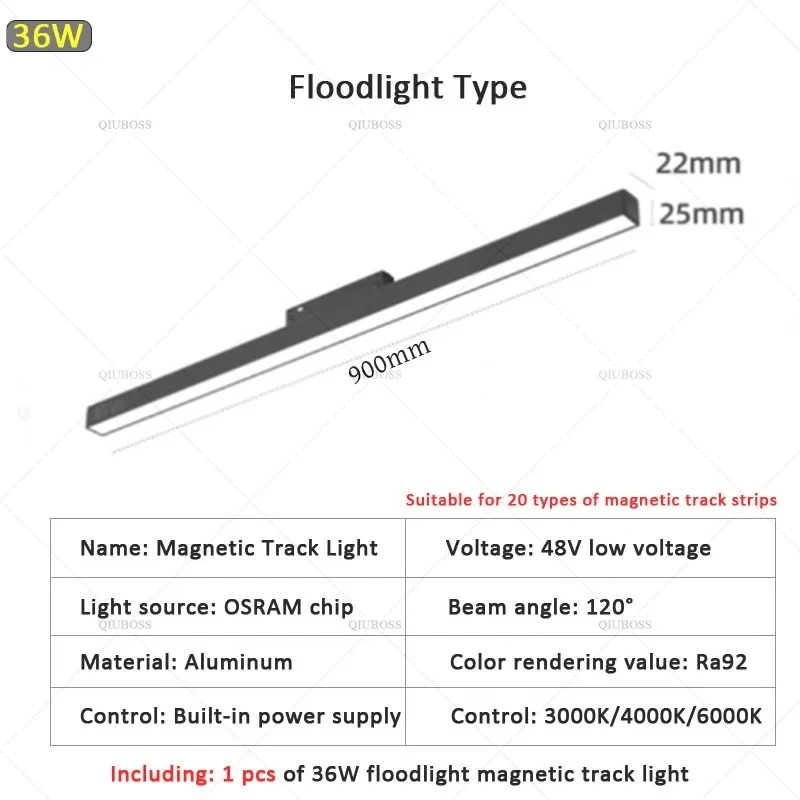

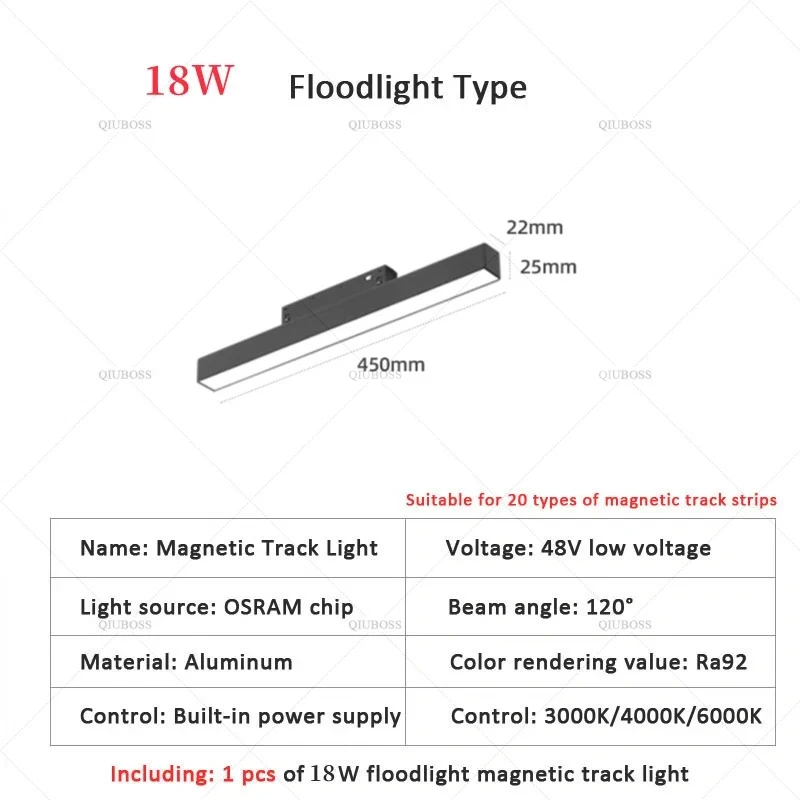

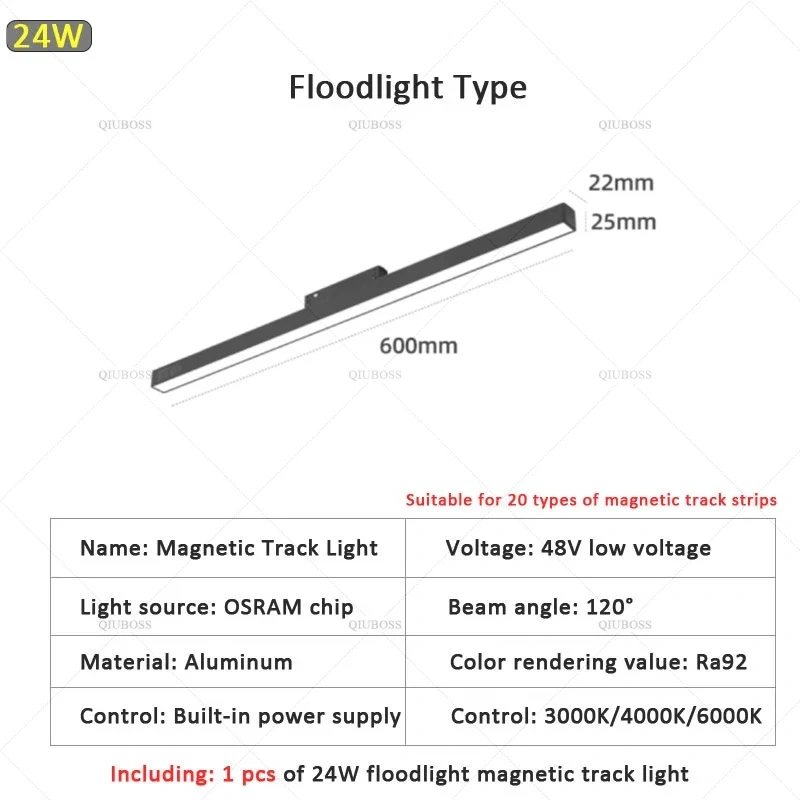

Floodlight Options
- 12W Floodlight
- 18W Floodlight
- 24W Floodlight
- 36W Floodlight

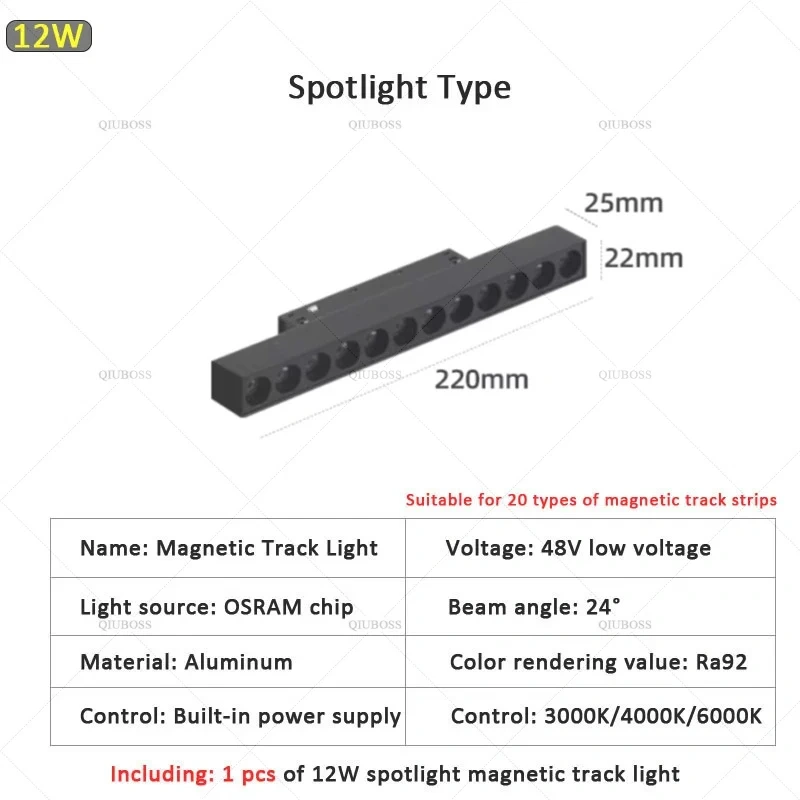

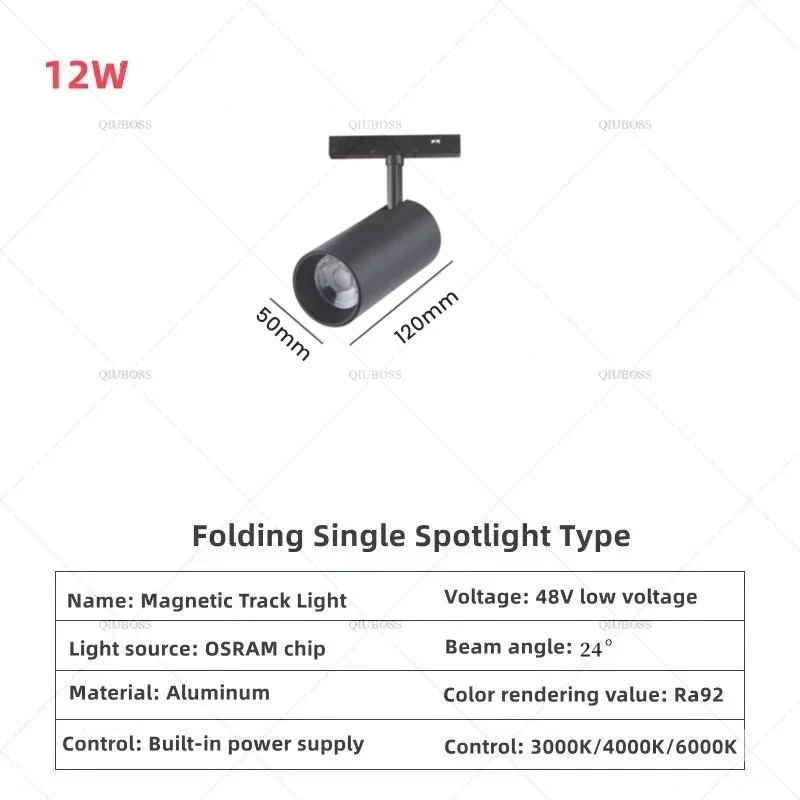

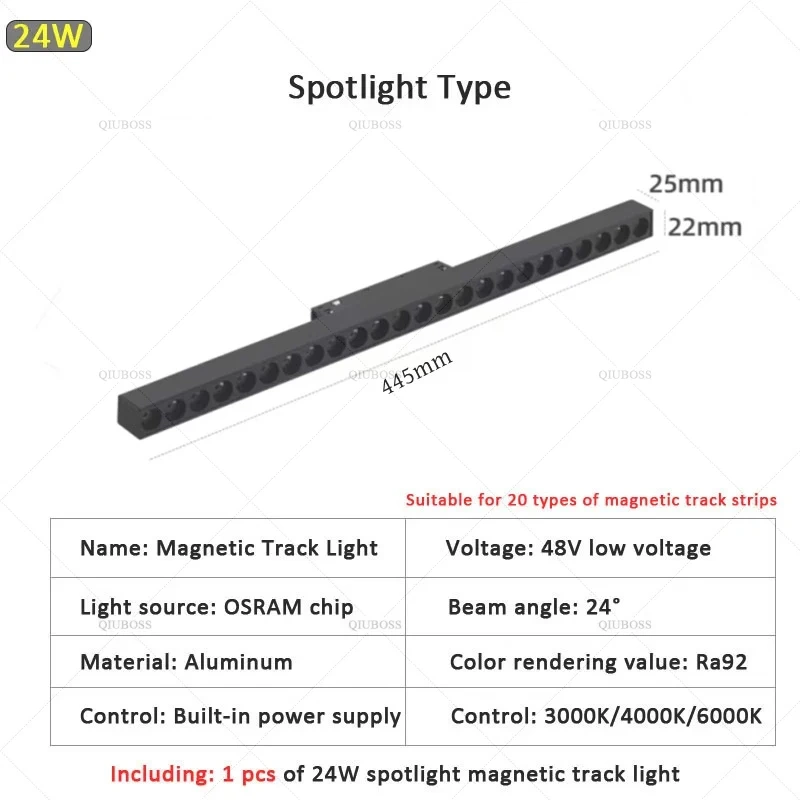

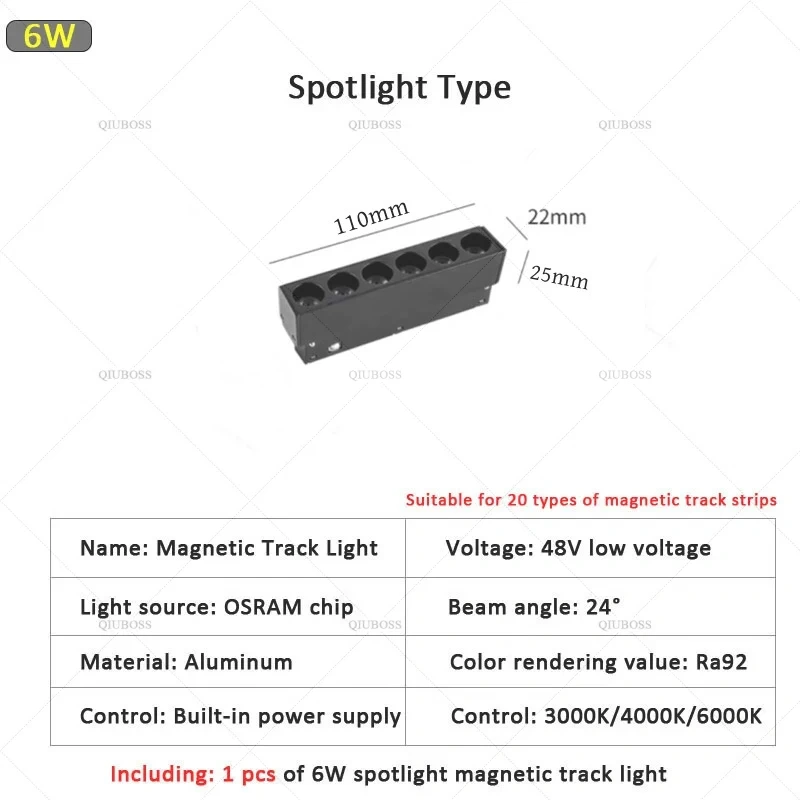

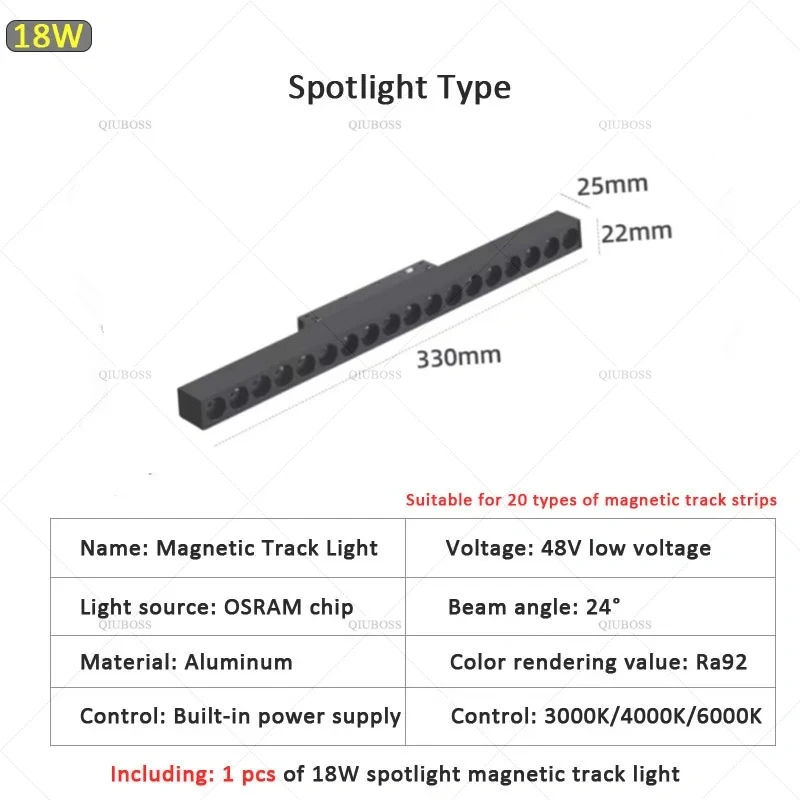

Spotlight Options
- 6W Spotlight
- 10W Spotlight
- 12W Spotlight
- 18W Spotlight
- 24W Spotlight

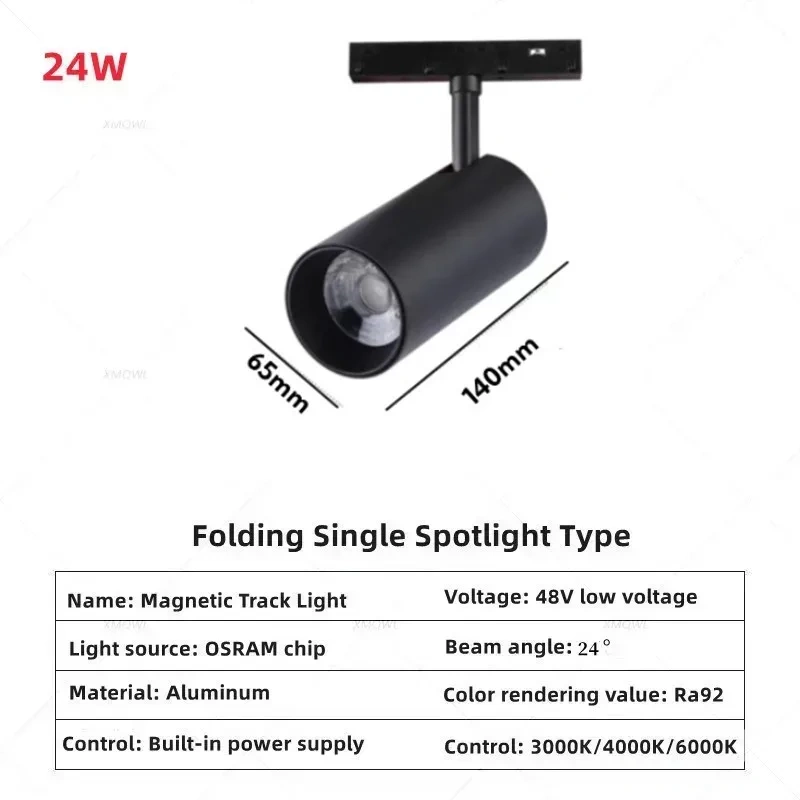

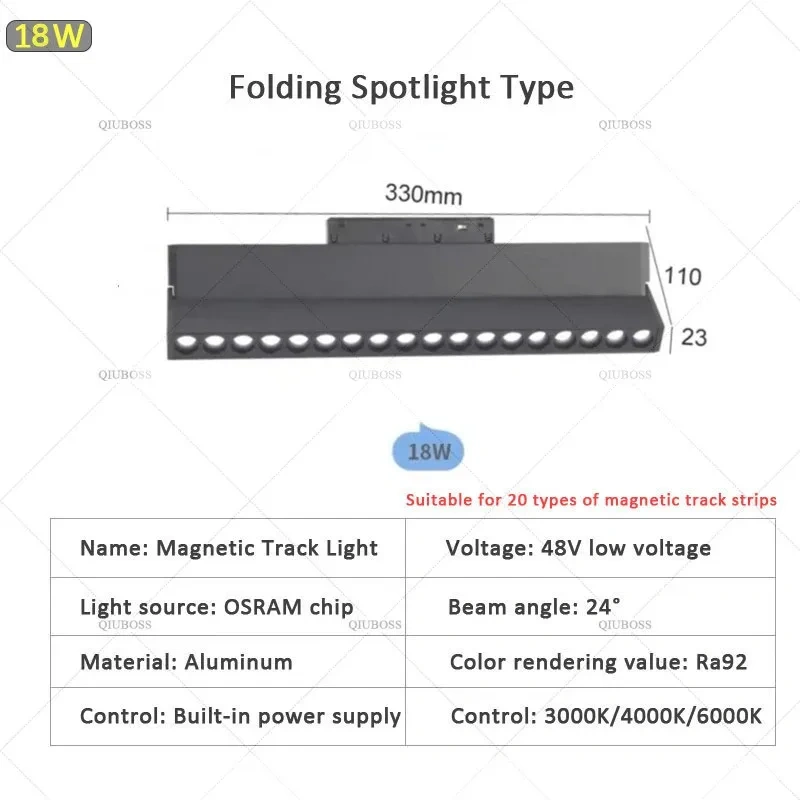

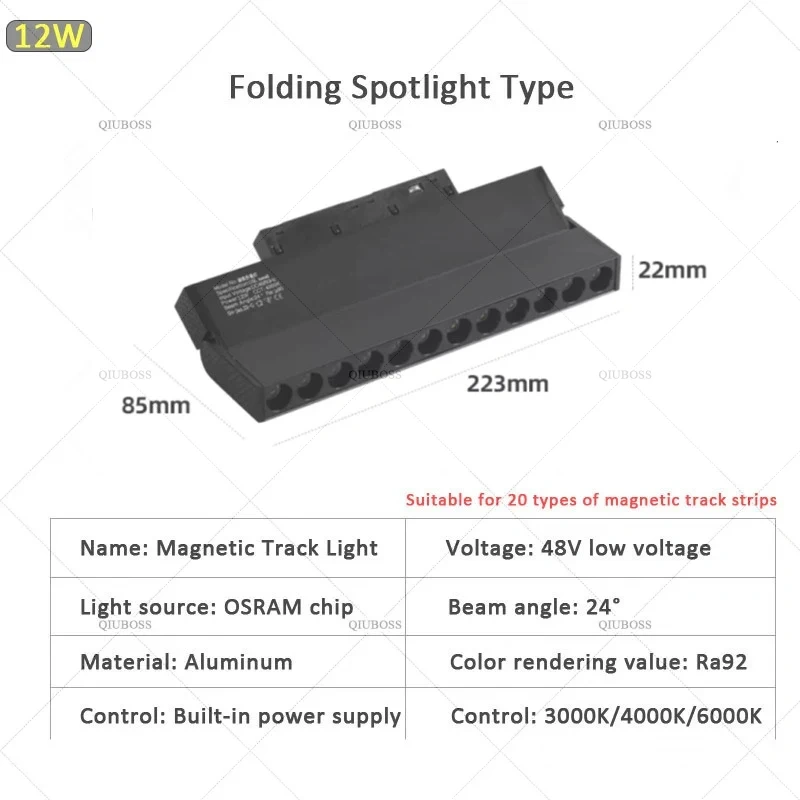

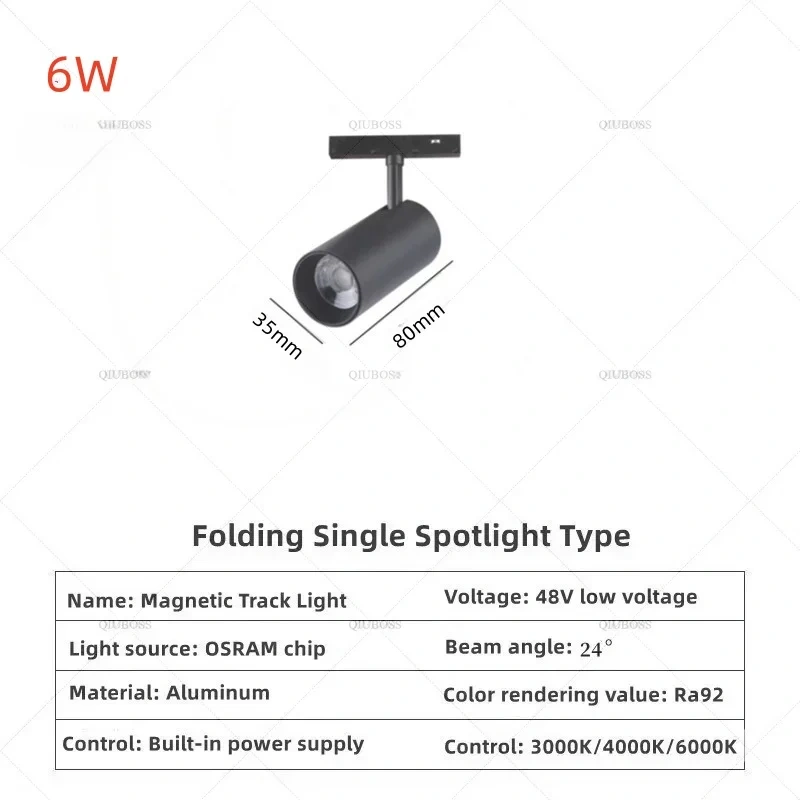

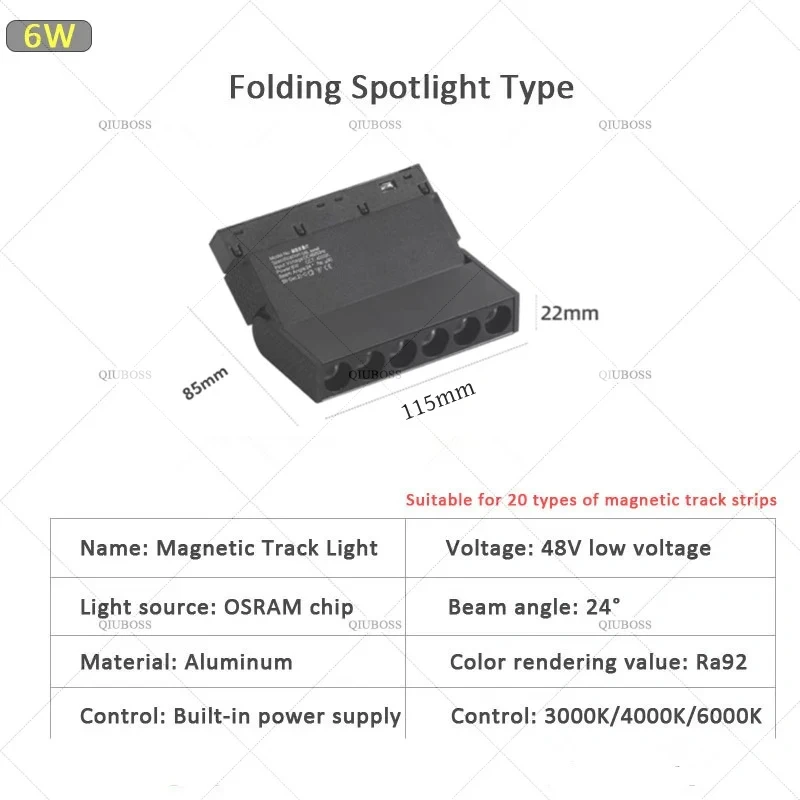

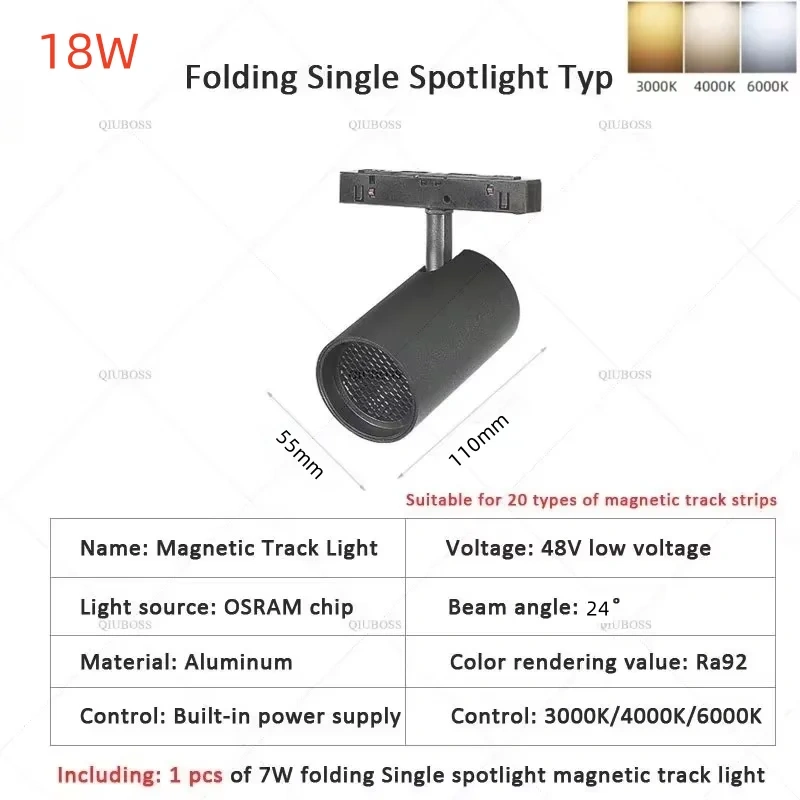

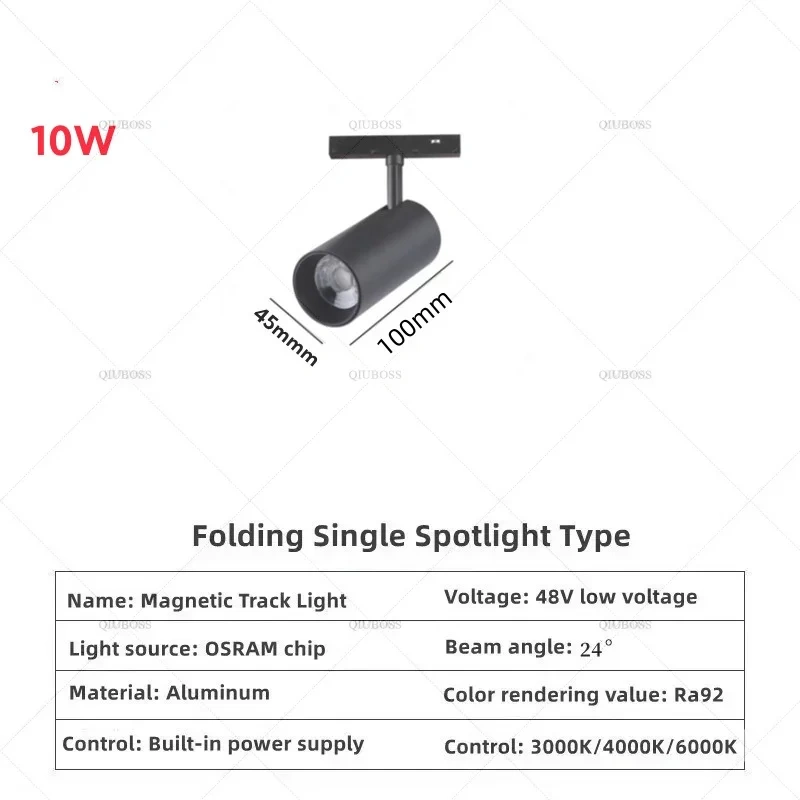

Fold Spotlight Options
- 6W Fold Spotlight
- 12W Fold Spotlight
- 18W Fold Spotlight

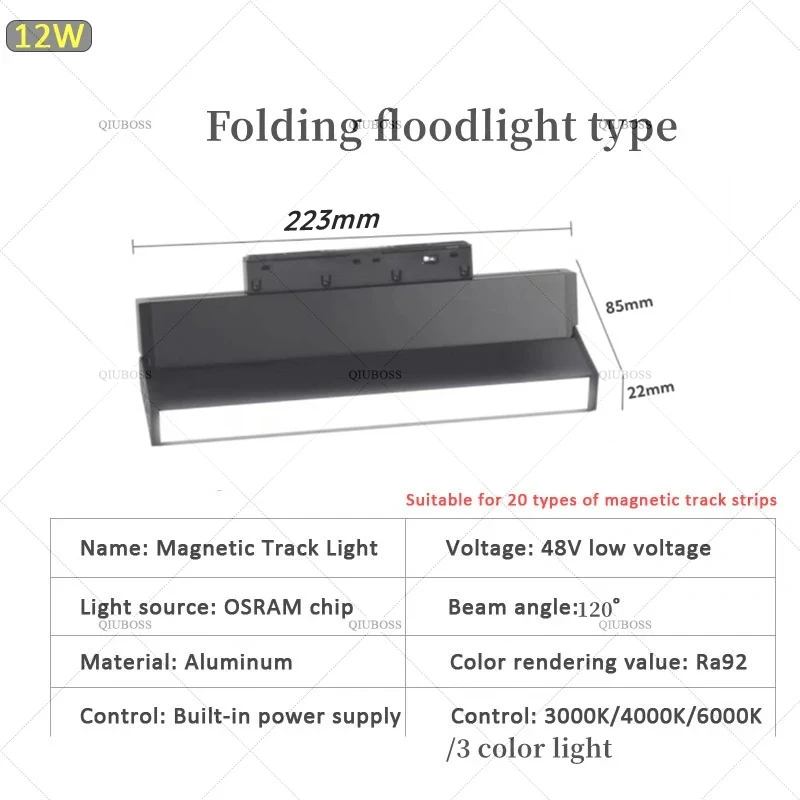

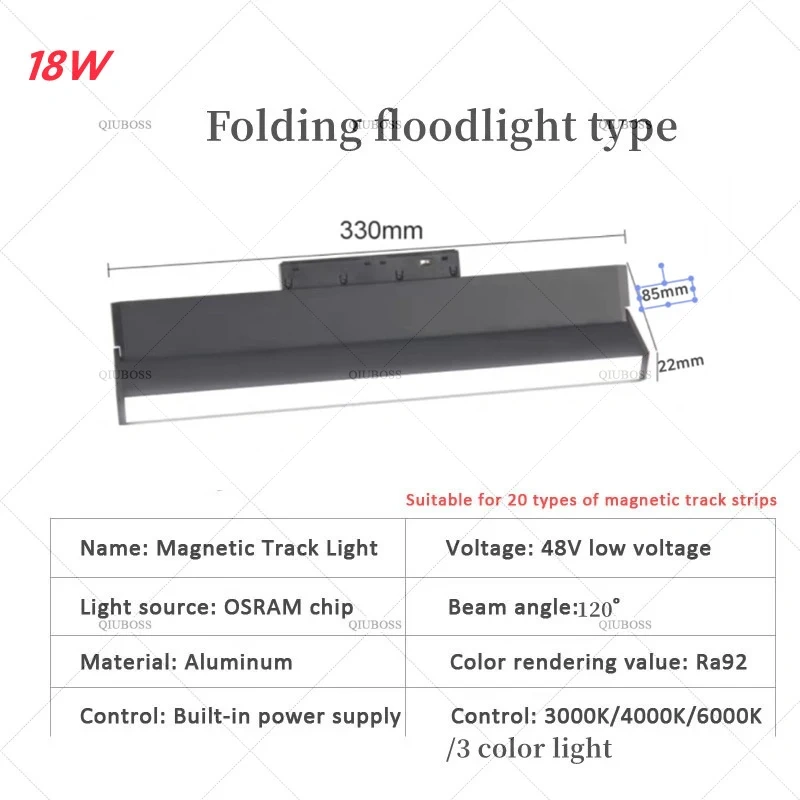

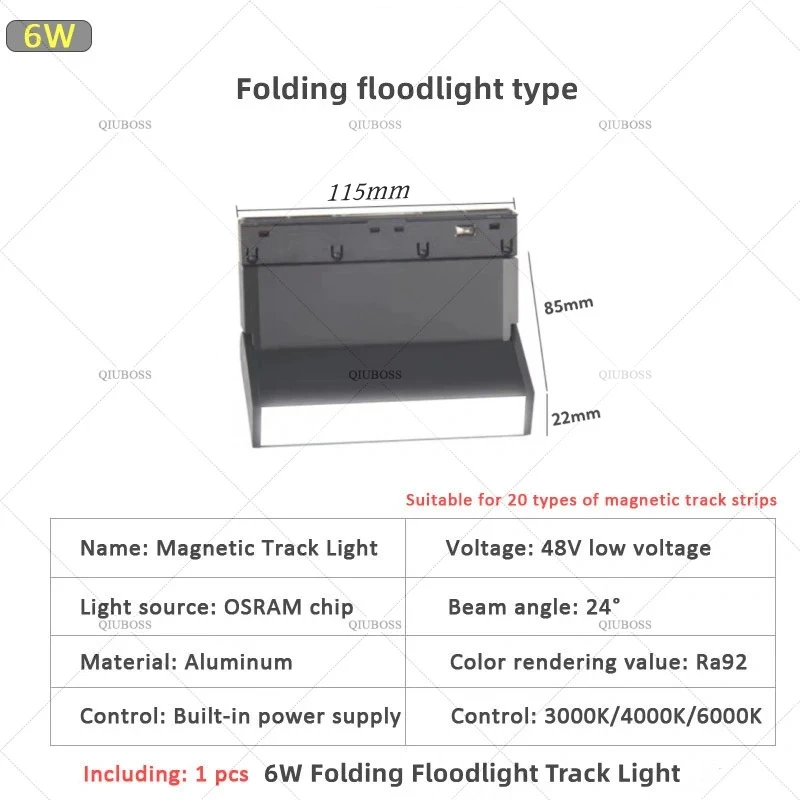

Fold Floodlight Options
- 6W Fold Floodlight
- 12W Fold Floodlight
- 18W Fold Floodlight

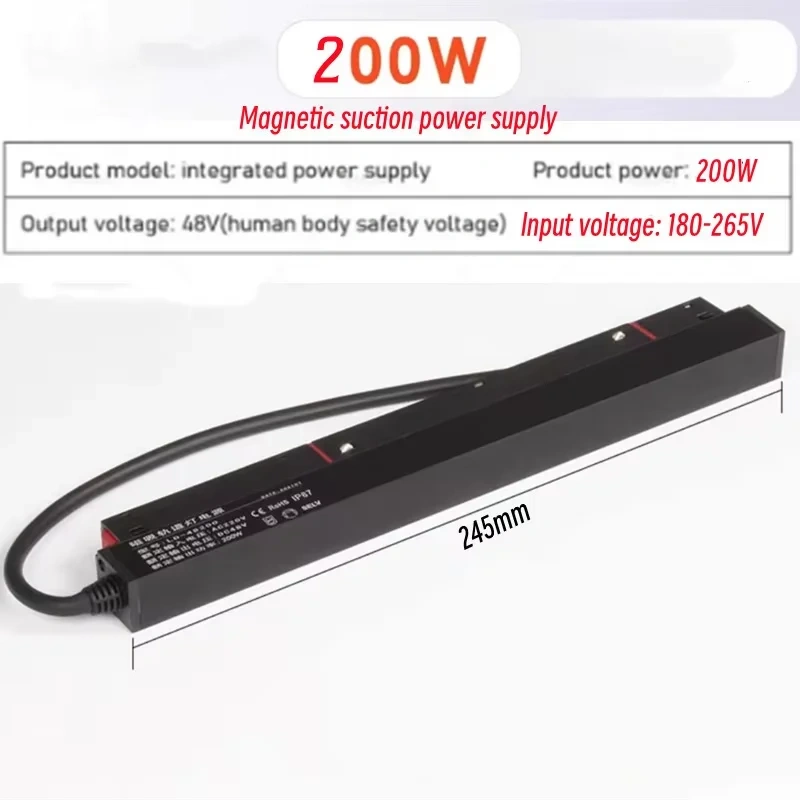

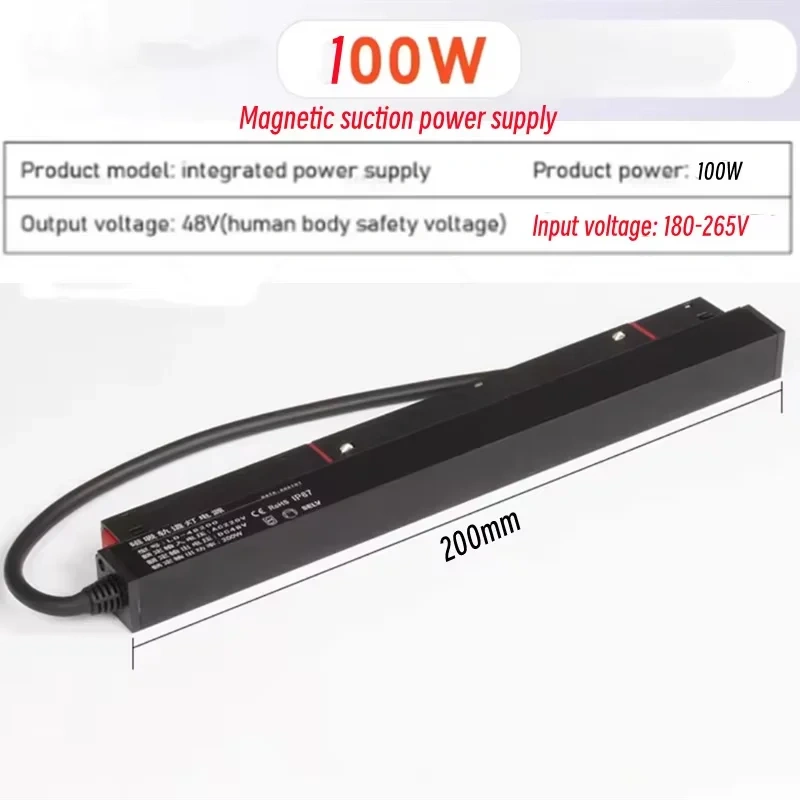

Power Supply Options
- 100W Power Supply
- 200W Power Supply
These options are currently displayed in the product selector.
Lighting Options
Color Temperature
Available options include:
- 3000K Warm White
- 4000K Neutral White
- 6000K Cool White
- Tunable White
The technical table lists the same CCT options for both grille and floodlight modules.
For the smart version, the description states that color temperature can be adjusted from 2700K to 6000K through the relevant smart-control configuration.
Beam Angle
Grille Spotlight
Floodlight
The grille version is positioned for focused accent lighting, while the floodlight is designed for general or ambient illumination.
Housing Colors
The current technical table lists both colors for grille and floodlight modules.

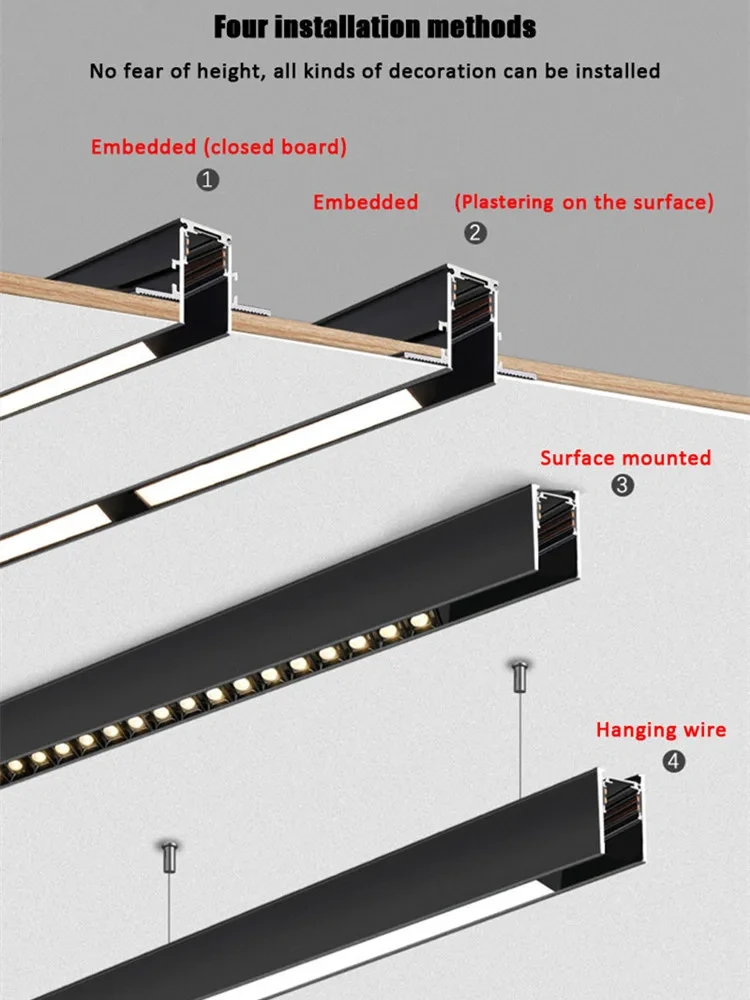

Installation

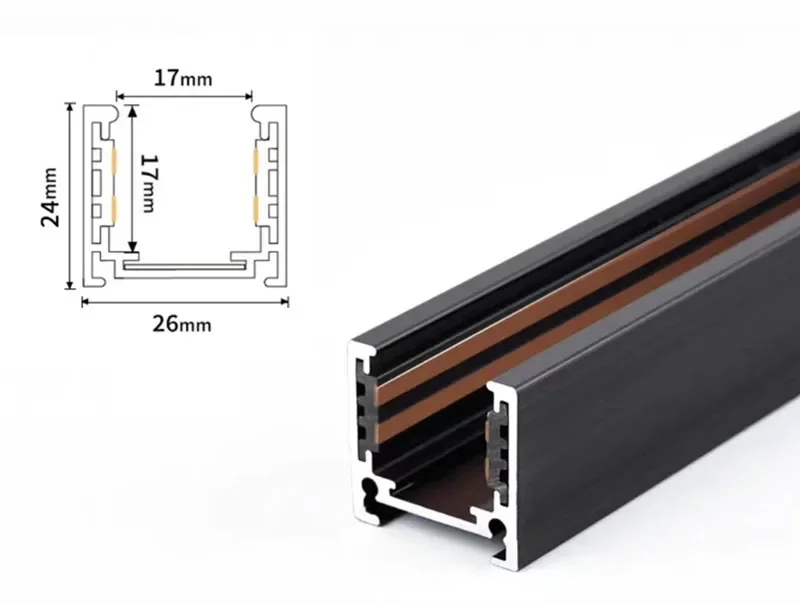

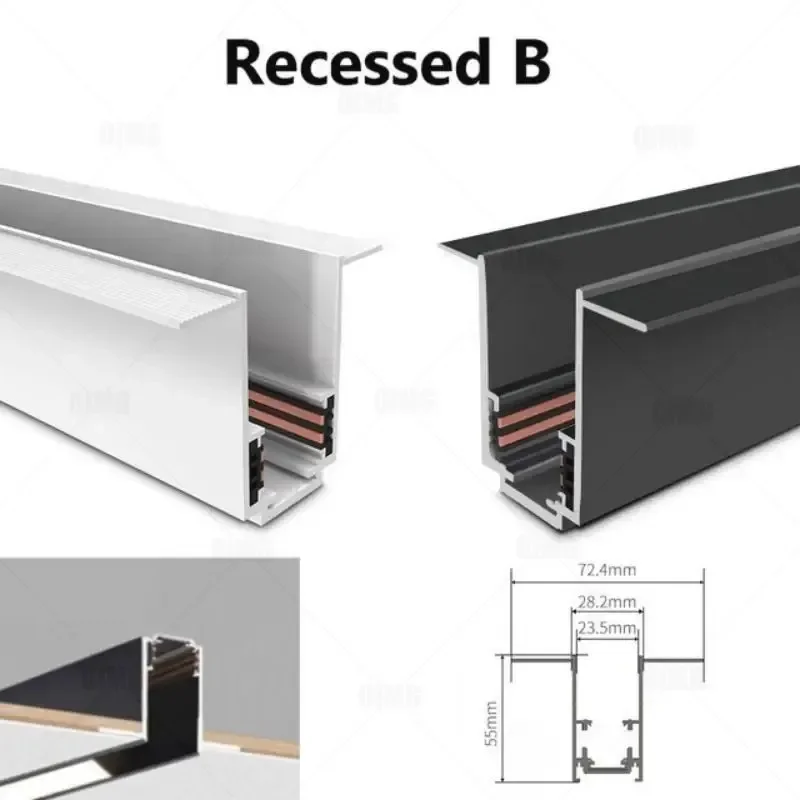

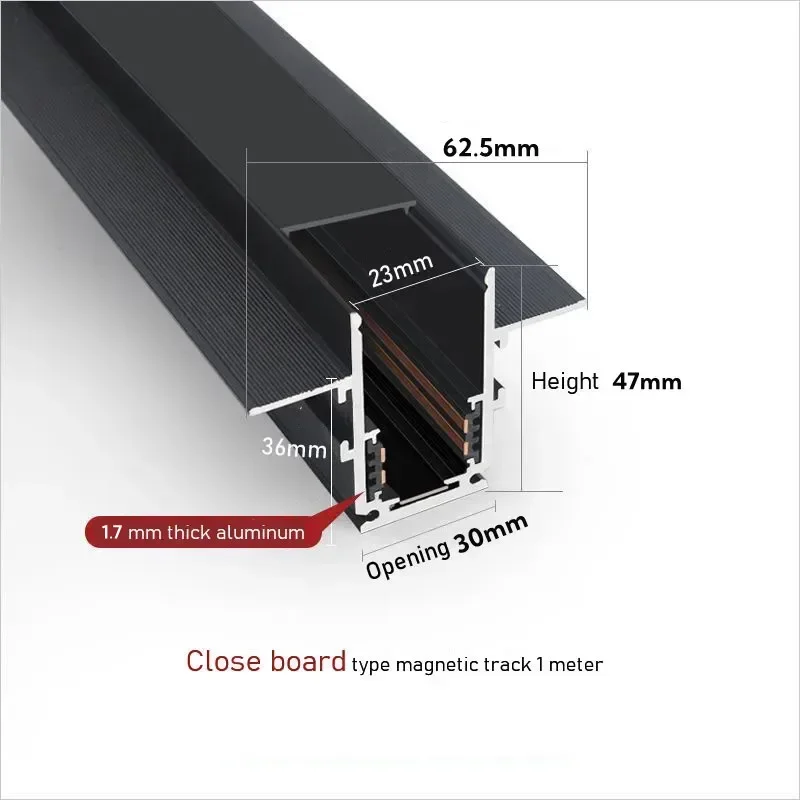

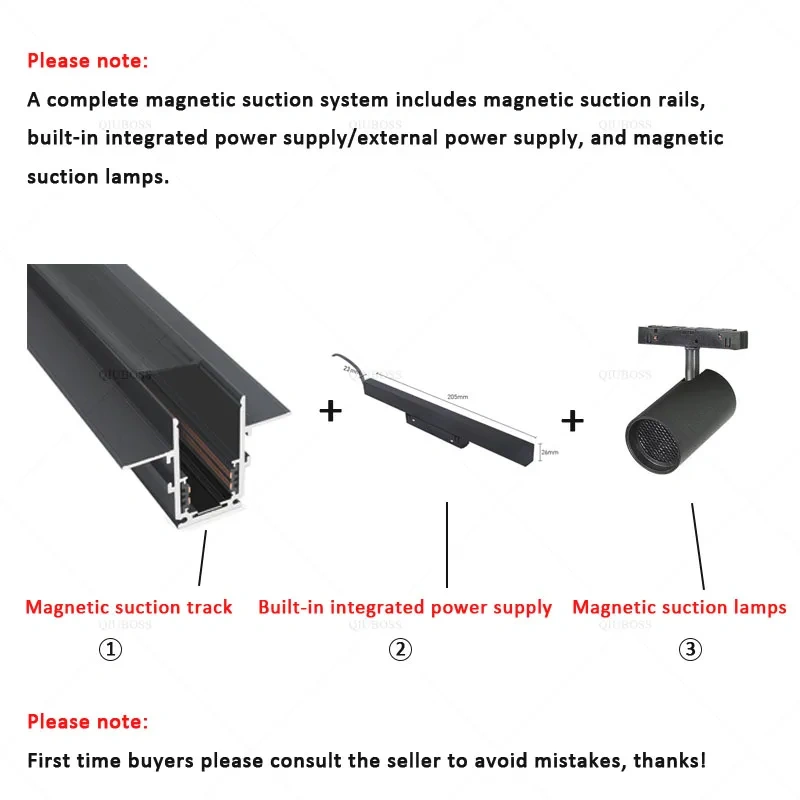

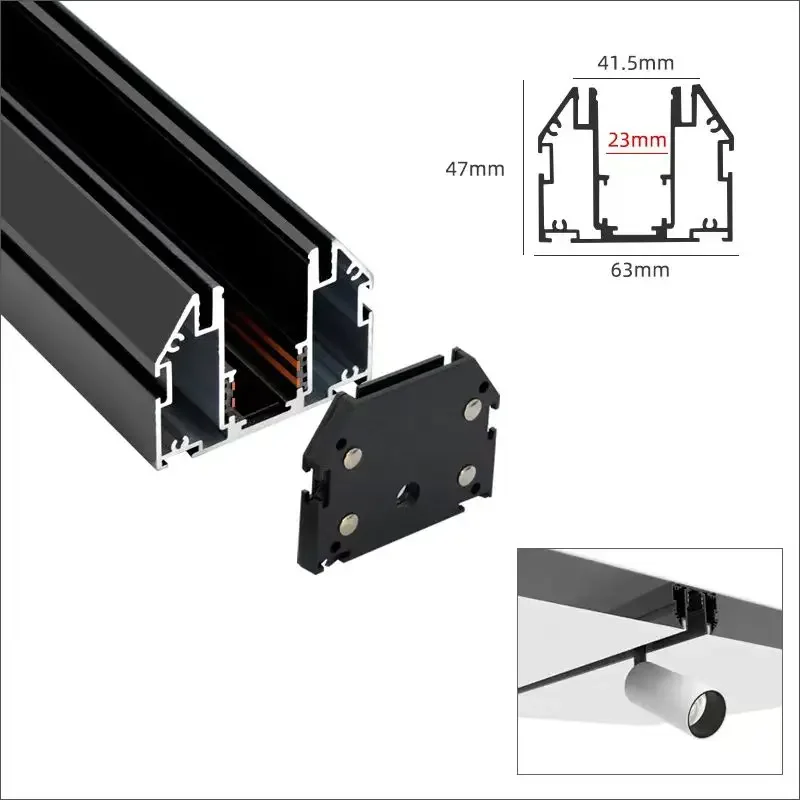

The lighting modules are designed for installation on a compatible DC48V magnetic track system.

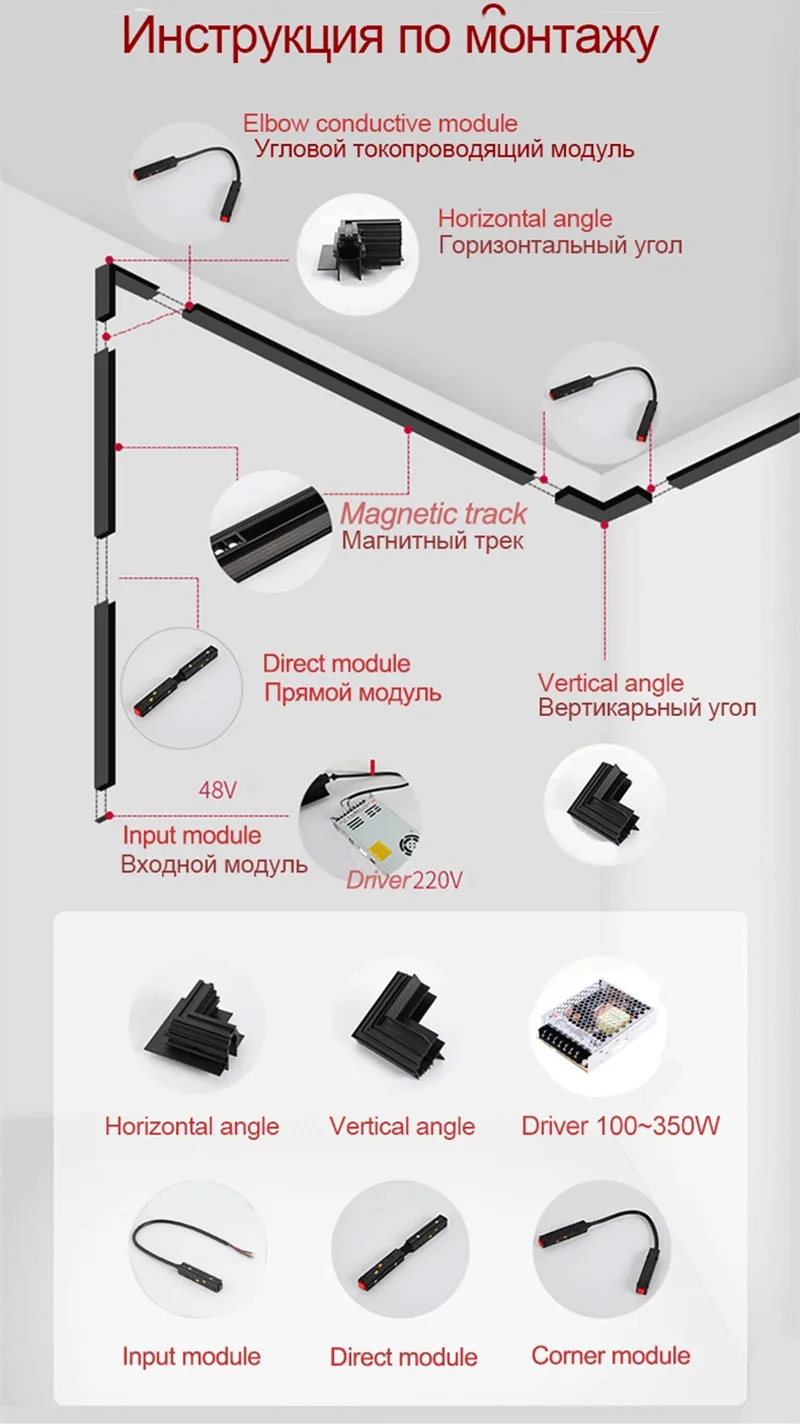

A typical project installation process is:
- Plan the track layout.
- Select the required track length and configuration.

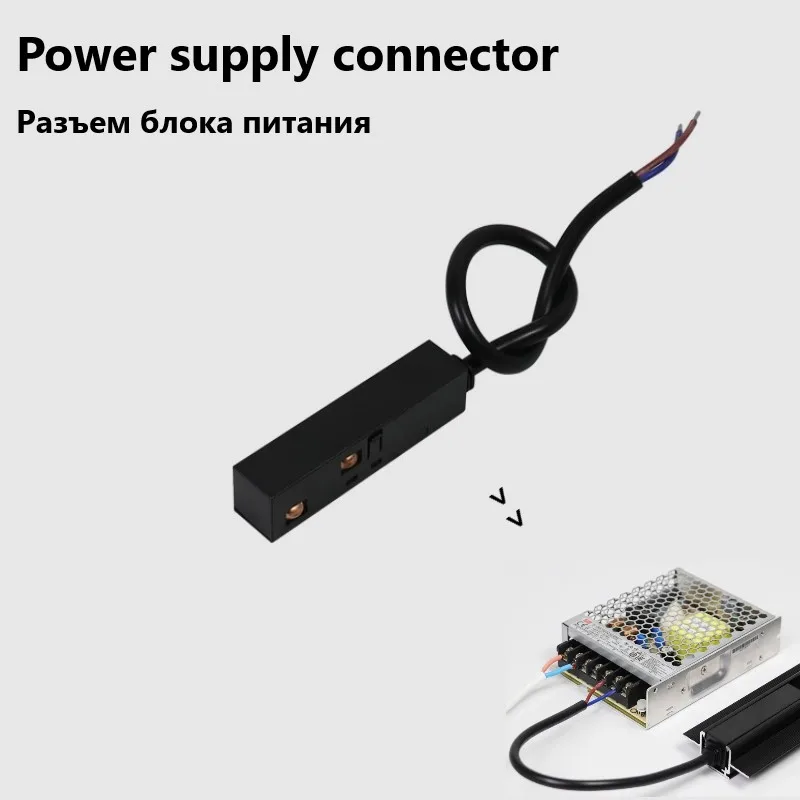

- Install the DC48V power supply.
- Connect the magnetic track to the power system.
- Position the required lighting modules.
- Click the fixtures into the magnetic track.
- Adjust foldable modules where applicable.
- Configure the desired lighting arrangement.
- Test the system before final commissioning.
The product page confirms that the modules are specifically engineered for DC48V magnetic track systems and should not be installed on standard 24V tracks.
Technical Specifications
| Specification |
Grille Spotlight |
Floodlight |
| System Voltage |
DC48V |
DC48V |
| Housing Color |
Matte Black / Matte White |
Matte Black / Matte White |
| CCT |
3000K / 4000K / 6000K / Tunable White |
3000K / 4000K / 6000K / Tunable White |
| Lighting Effect |
Accent / Spot Focus |
General / Ambient Diffusion |
| Beam Angle |
24° / 36° |
110° / 120° |
| Material |
Die-cast Aluminum |
Die-cast Aluminum |
| CRI |
>90 / Ra95 |
>90 / Ra95 |
| Dimming |
0–100% |
0–100% |
| Smart Control |
Tuya Bluetooth / Zigbee |
Tuya Bluetooth / Zigbee |
| LED Chip |
OSRAM |
OSRAM |
| Power Options |
6W / 12W / 18W / 24W |
12W / 18W / 24W / 36W |
| Warranty |
5 Years |
5 Years |
Project Applications
Retail Lighting Projects
Use grille modules for product highlighting and floodlights for general store illumination.
Boutique Lighting
The compact magnetic system can support flexible accent lighting layouts for fashion, jewelry and lifestyle stores.
Hotel Lighting
Use mixed spotlight and floodlight configurations for hospitality interiors.
Restaurant Projects
Focused beams can highlight dining tables and decorative elements while broad-beam floodlights provide ambient illumination.
Gallery & Exhibition Lighting
The 24°/36° grille options can be used for focused artwork illumination. The current product description specifically identifies artwork and dining areas as suitable applications for the grille version.
Residential Projects
The system can be configured for living rooms, bedrooms and dining areas where flexible lighting layouts are required.
Smart Home Projects
Bluetooth and Zigbee versions can integrate the lighting into smart-control environments.
OEM/ODM
USKYLED can support B2B customers with magnetic track lighting configurations for residential and commercial projects.
Potential OEM/ODM services include:
- Custom fixture configuration
- Custom power combination
- Custom CCT
- Custom beam angle
- Custom housing color
- Custom smart-control configuration
- Tuya Bluetooth configuration
- Tuya Zigbee configuration
- Custom packaging
- Private labeling
- Project-based lighting solutions
For larger projects, customers can combine grille, floodlight, spotlight and foldable modules to create different lighting zones within the same magnetic track system.
Lead time may vary according to the selected fixture configuration, smart-control option, power supply, quantity and customization requirements.
CTA
Looking for a DC48V magnetic track lighting system for your next residential, retail or commercial project?
USKYLED provides grille spotlights, floodlights, spotlights, foldable modules and compatible power supply options for flexible magnetic lighting layouts.
MOQ: 1 PCS
Sample Lead Time: 3–7 Days
Mass Order Lead Time: 7–15 Days
Contact USKYLED for samples, wholesale pricing, project configuration and OEM/ODM support.
