Product Introduction
USKYLED Custom LED Channel Letter Sign is a modular illuminated signage solution designed for storefronts, retail shops, commercial buildings, brand stores and outdoor advertising.
Unlike conventional fixed channel letter signs, this system uses a modular track structure that allows individual illuminated letters to be arranged and combined according to the customer's brand name, logo or advertising message.
The system supports customized letters from A–Z, numbers 0–9 and the "&" symbol, making it suitable for business names, brand identities, promotional messages and commercial signage.
The product is designed for both indoor and outdoor applications and features a waterproof construction for outdoor storefront signage. The modular track system also makes letter positioning and installation more flexible.
Design

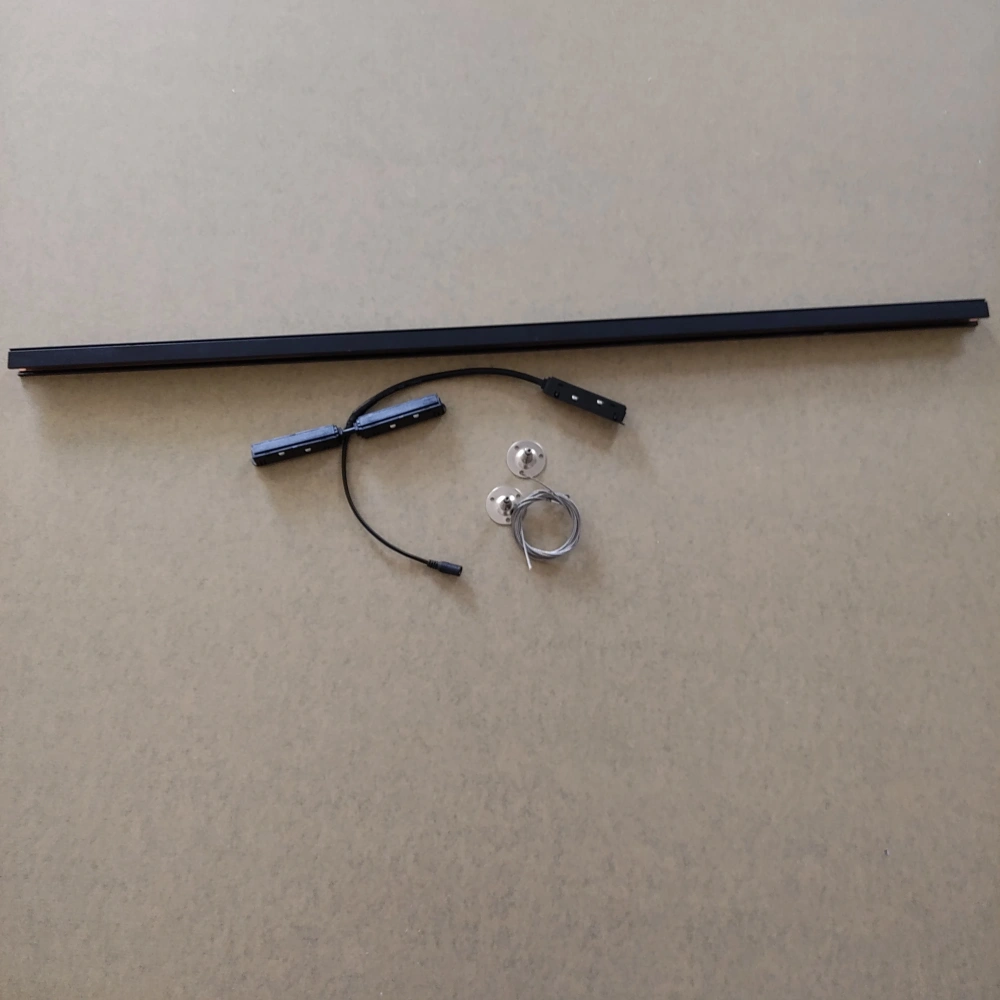

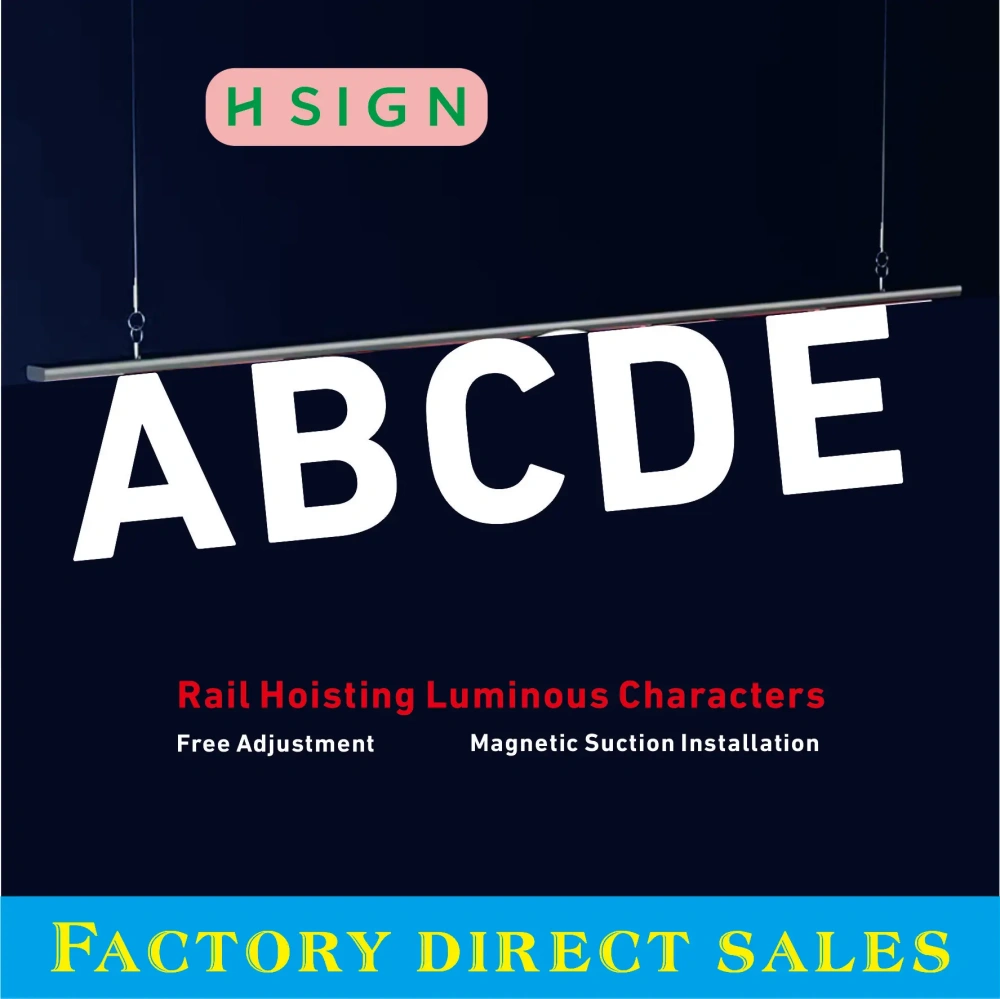

The LED channel letter system combines illuminated letters with a modular mounting track.

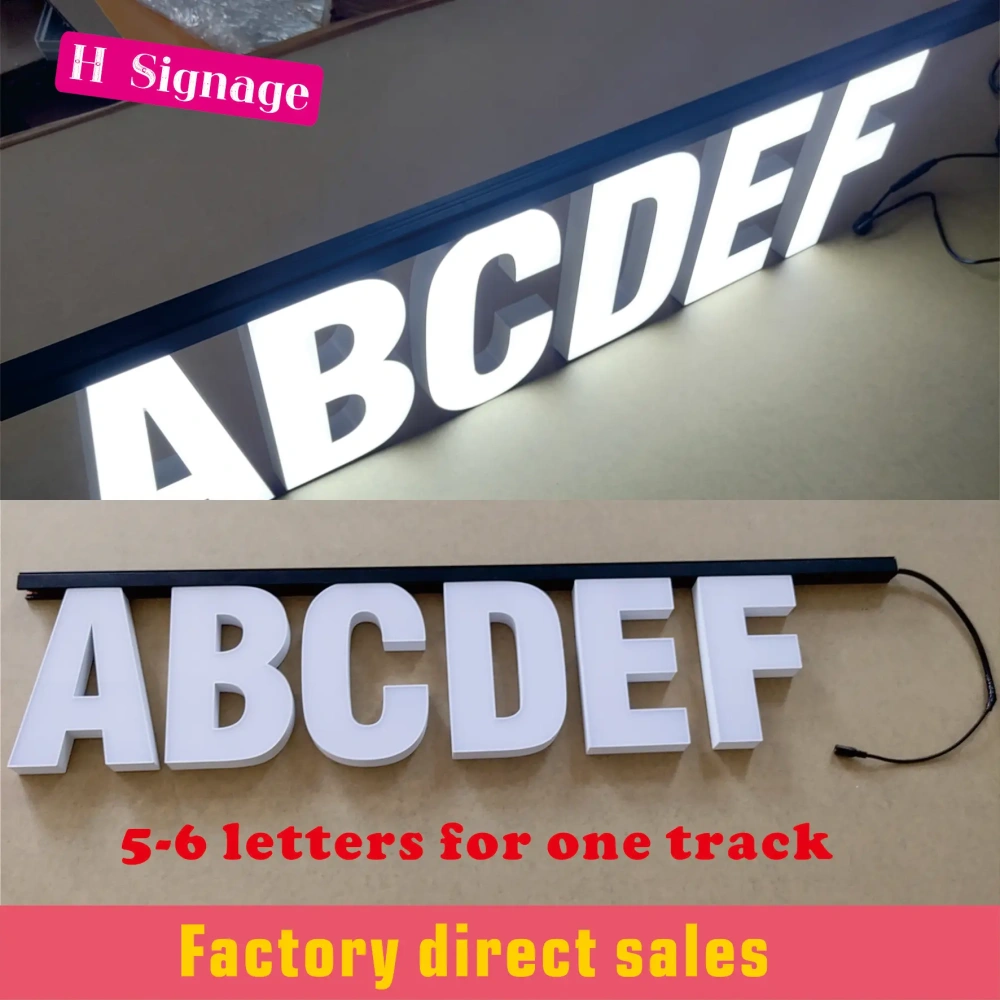

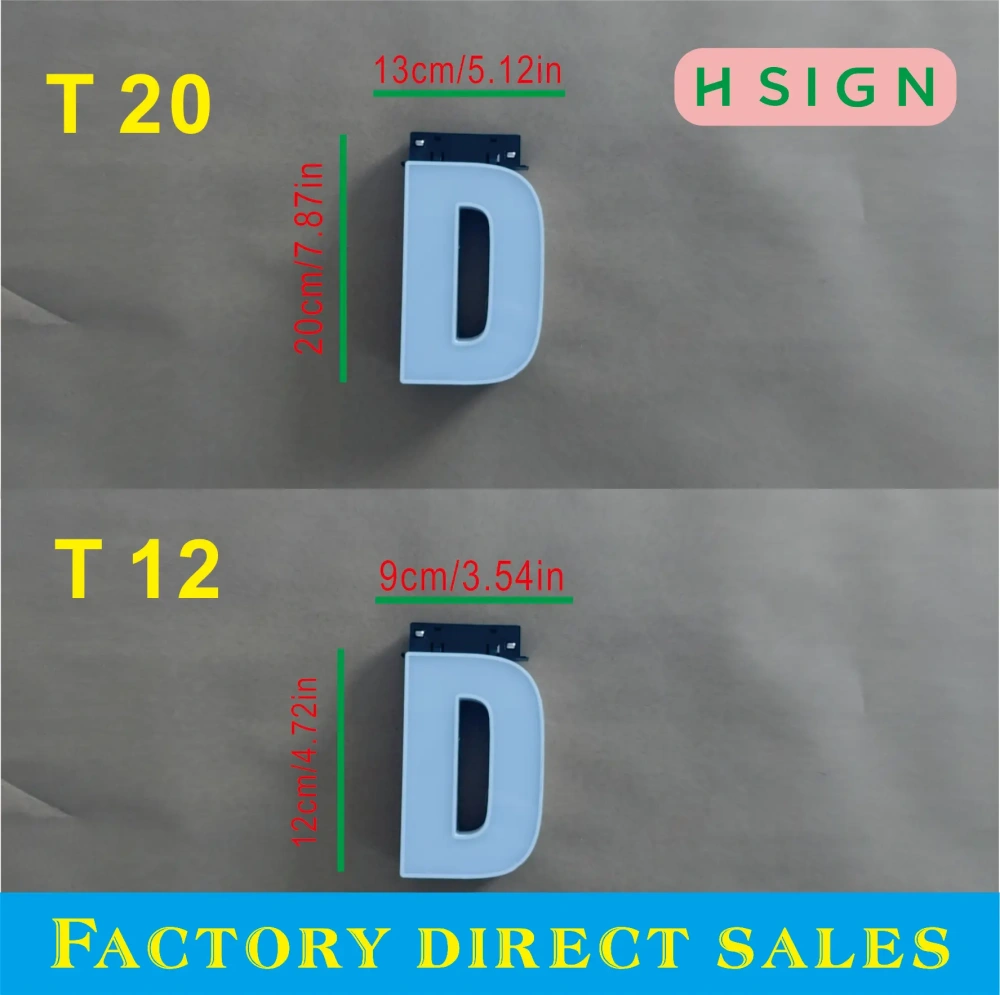

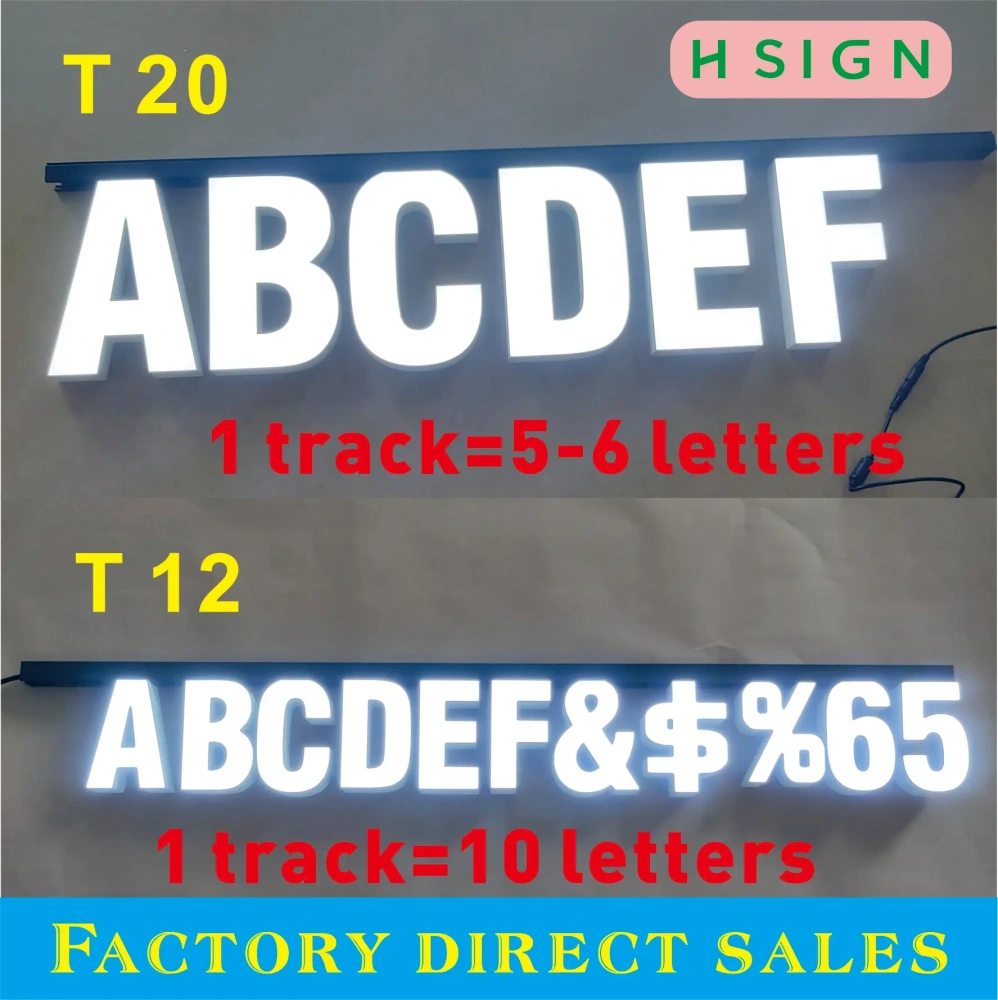

Each track section is 95cm long. Depending on the selected letter size, one track can accommodate approximately:

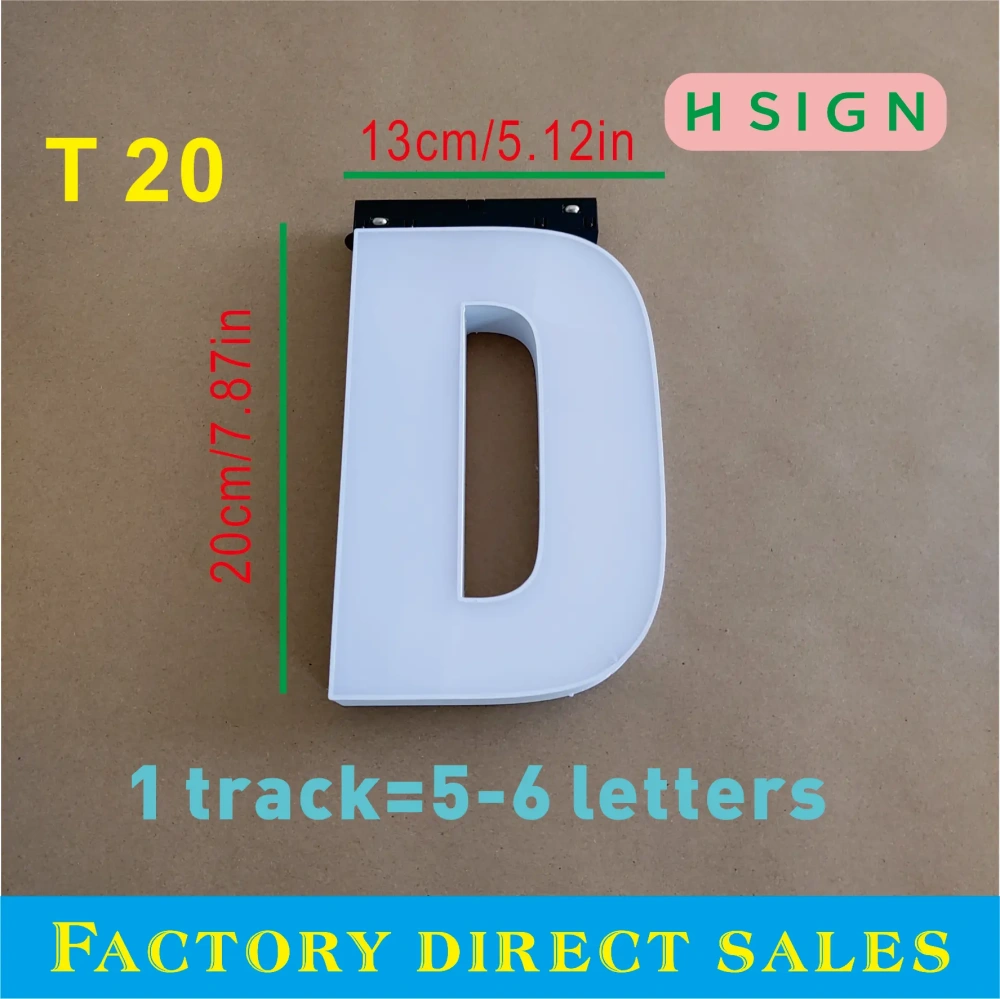

- 5–6 T20 letters

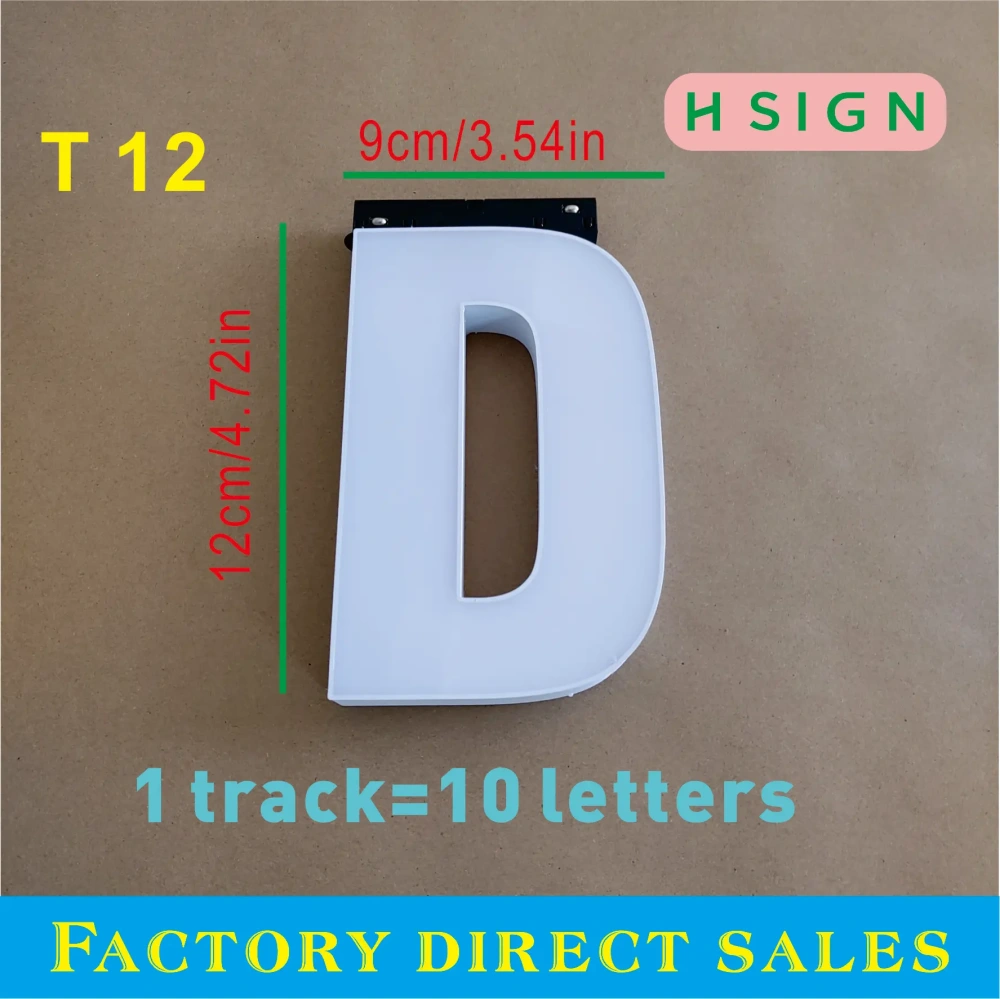

- Up to 10 T12 letters

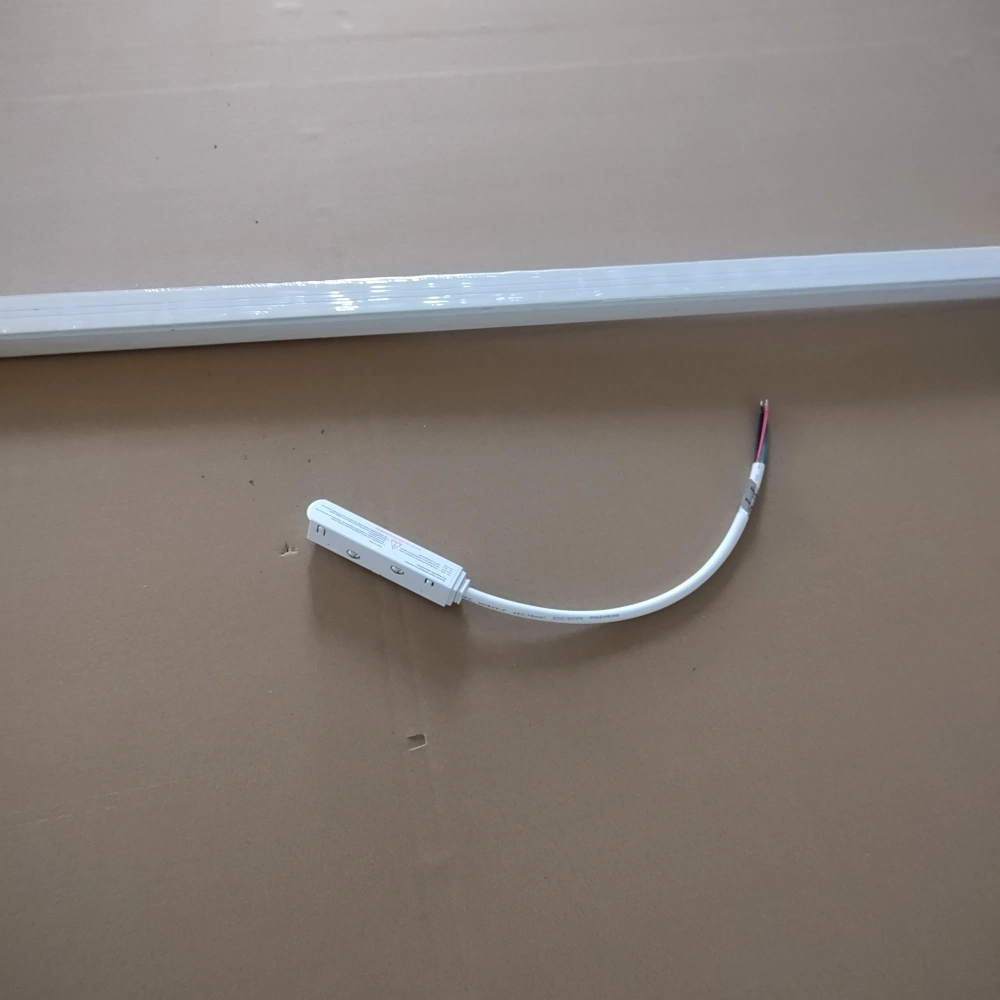

One adapter can support up to three tracks, allowing multiple sections to be connected for longer storefront names or brand messages.
The modular structure makes it easier to create different combinations of letters without requiring a completely custom mounting structure for every individual character.
The system supports both black and white track options.
Main Features
- Customizable LED channel letters
- Supports A–Z letters, numbers and
&
- T12 and T20 letter options
- Modular 95cm track system
- Approximately 5–6 T20 letters per track
- Up to 10 T12 letters per track
- Waterproof design for outdoor use
- Indoor and outdoor applications
- Multiple lighting colors
- DC-powered LED illumination
- 8W power option based on the listed product configuration
- Easy assembly and flexible letter arrangement
- Adapter can support up to three tracks
- 2-year warranty
- Suitable for storefront and commercial advertising applications
The existing product page specifically lists blue, green, red, white and yellow lighting colors and describes the product as waterproof for indoor and outdoor use.
Application

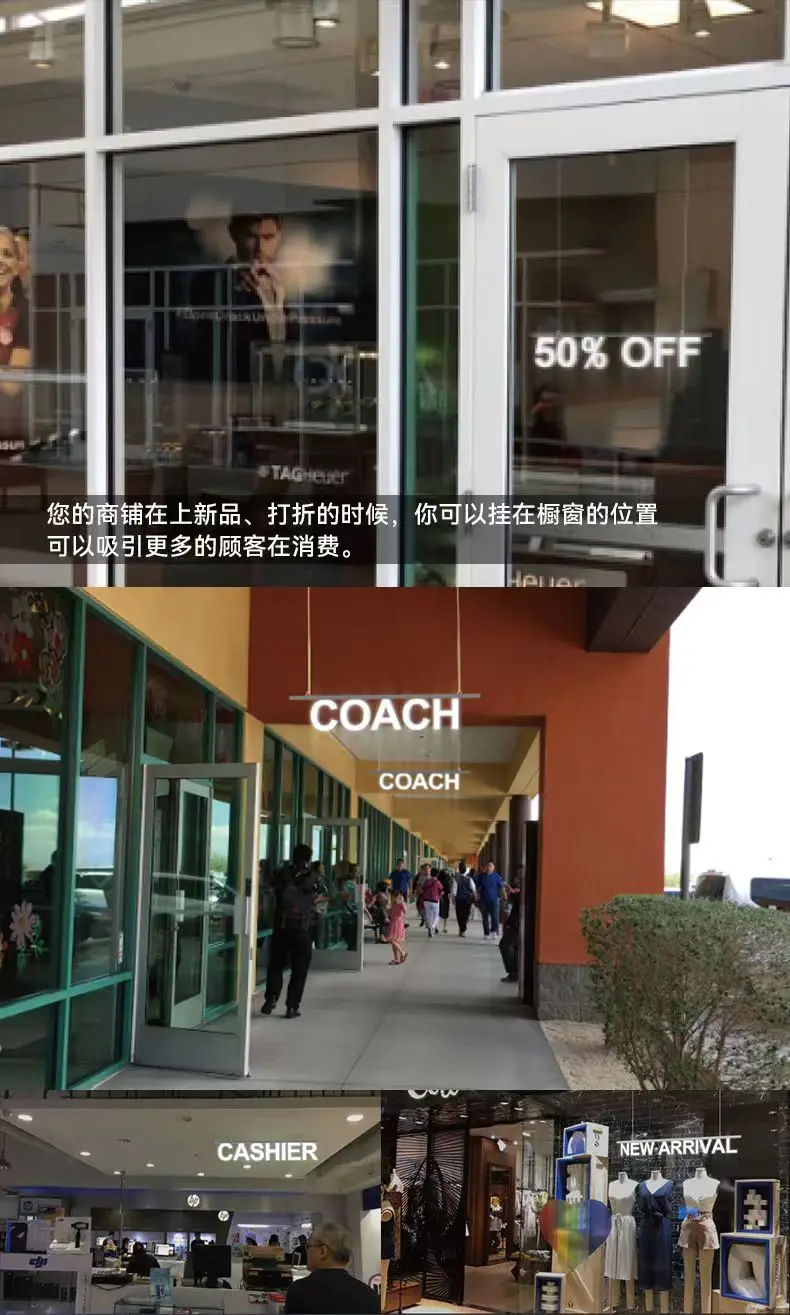

The Custom LED Channel Letter Sign is suitable for:
- Retail storefronts
- Brand stores

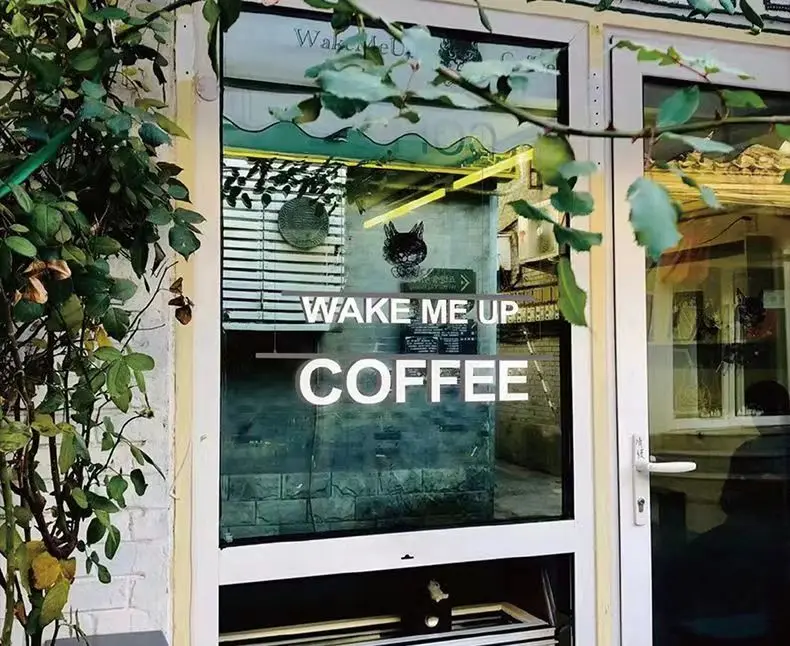

- Restaurants
- Cafés
- Hotels
- Shopping centers
- Commercial buildings
- Offices
- Beauty stores
- Clothing stores
- Supermarkets
- Franchise stores
- Outdoor advertising
- Business entrances
- Reception areas
- Trade show displays
The modular design is especially useful for businesses that need a clear and highly visible brand name or logo displayed on a storefront.
Size / Options
The product supports different letter and track configurations.
Letter Options
Character Options
Track Length
Track Color

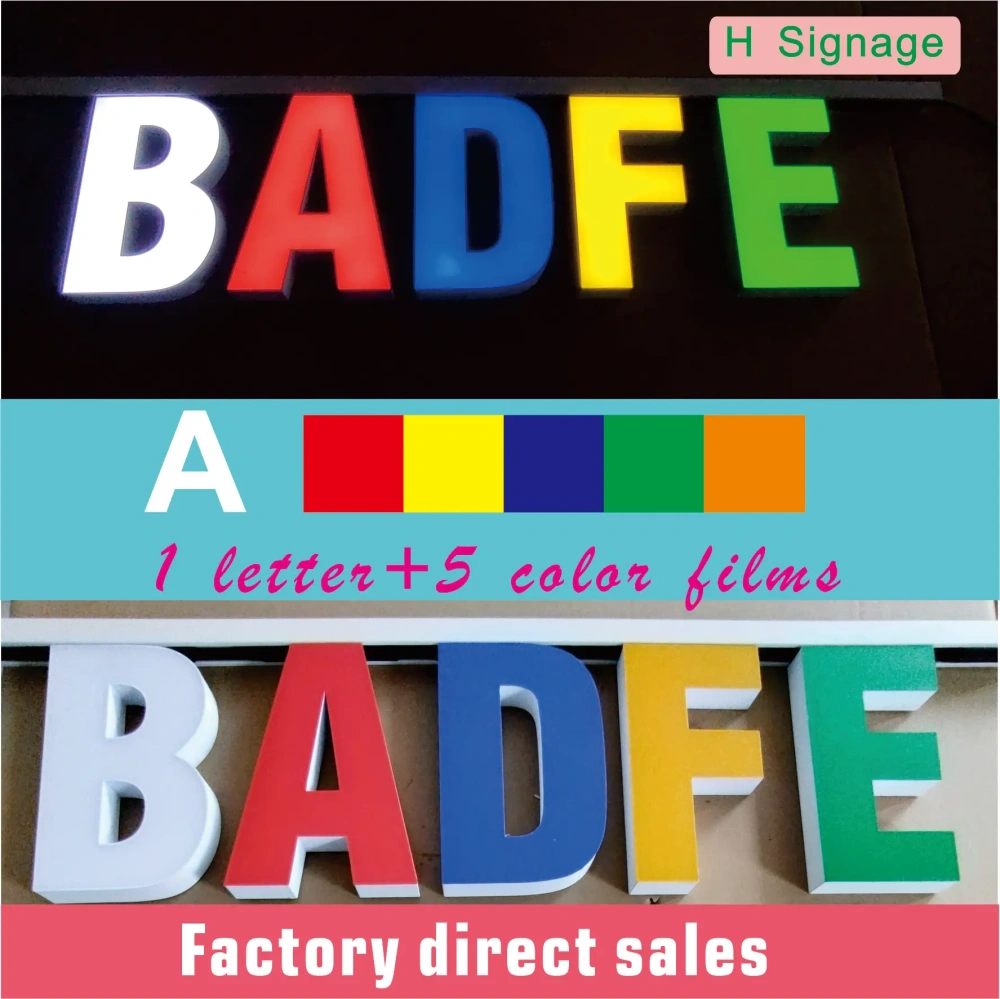

Lighting Colors
- Red
- Yellow
- Blue
- Green
- White
The actual letter quantity required depends on the selected character size and the total message length. Customers should provide the required letters or logo content when ordering.
Lighting Options
The product is available in multiple LED lighting colors:
- Red
- Yellow
- Blue
- Green
- White
For custom projects, lighting configuration can be discussed according to the customer's branding and storefront requirements.
The current listed configuration uses DC-powered LED illumination with 8W power consumption. The page also lists luminous flux in the range of 60–249, depending on configuration.

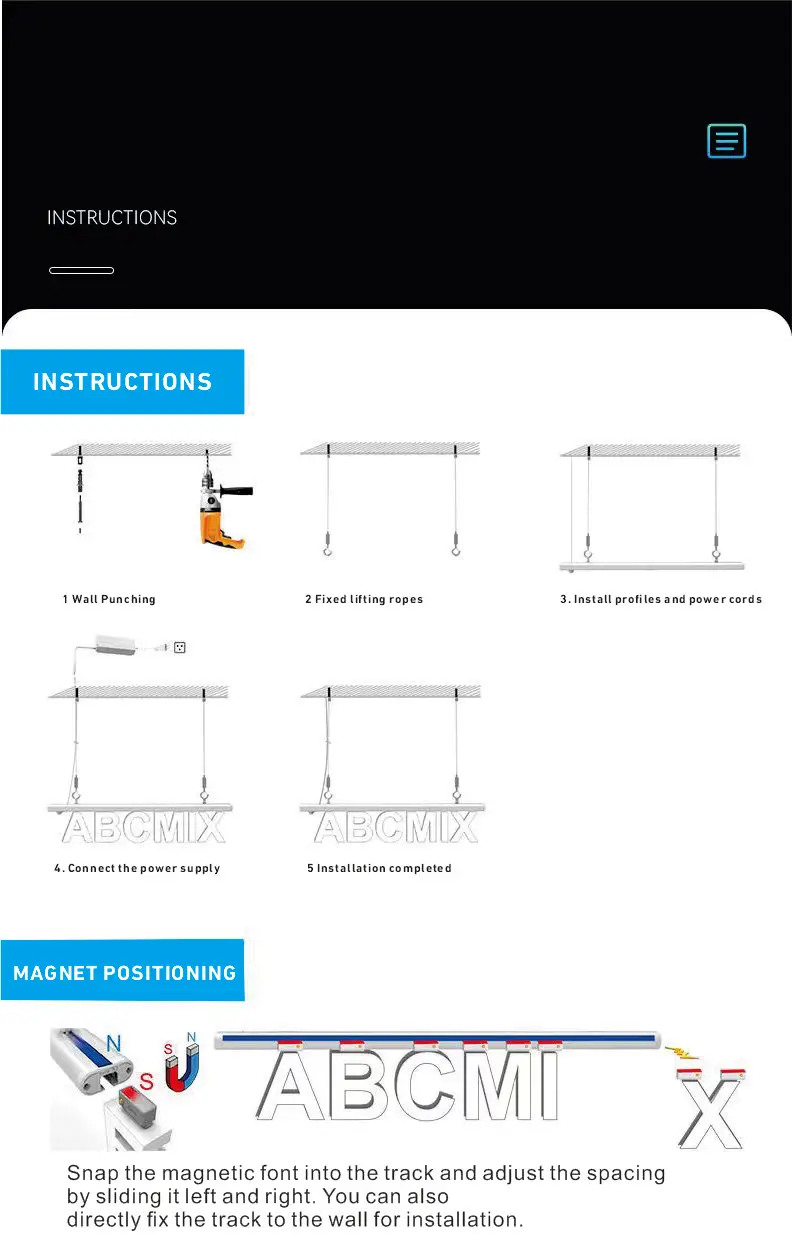

Installation

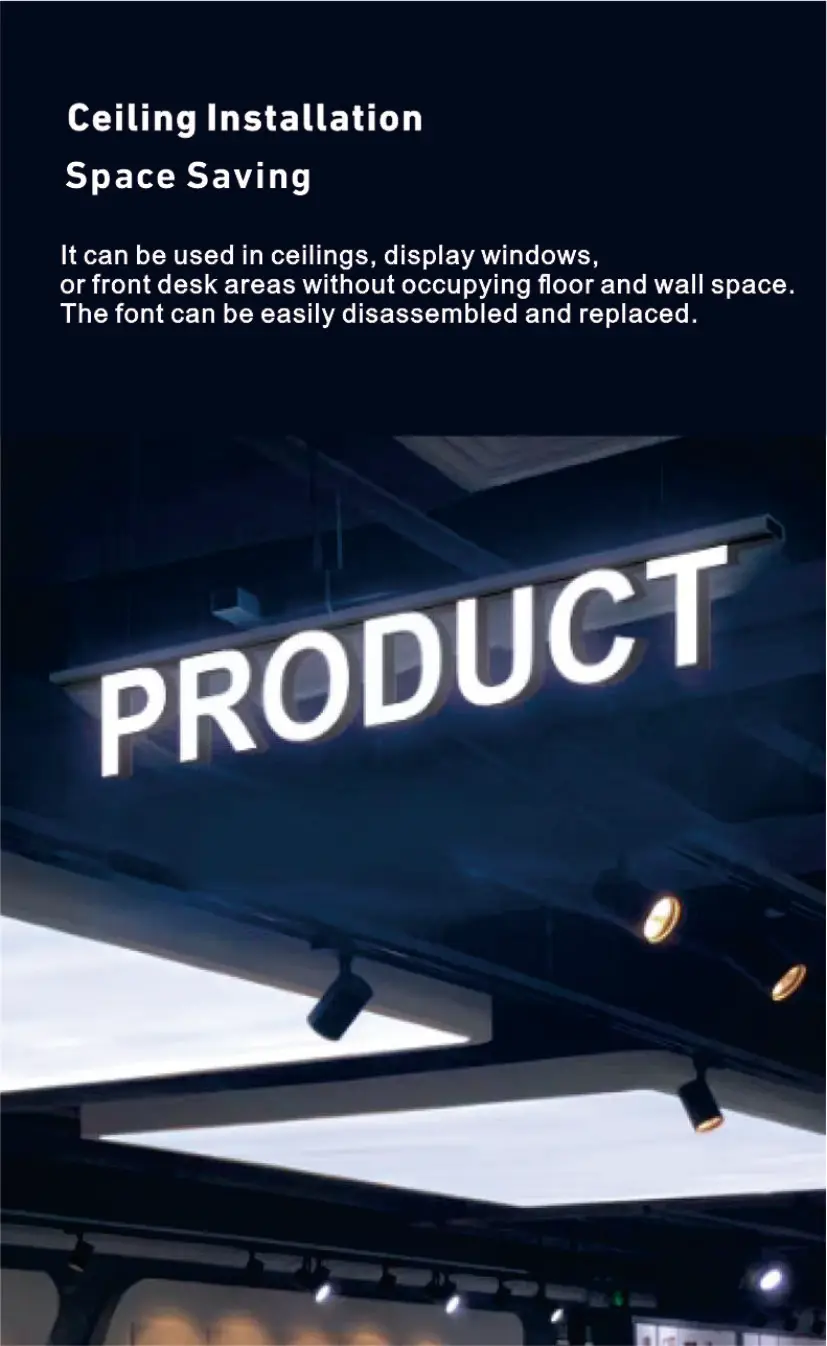

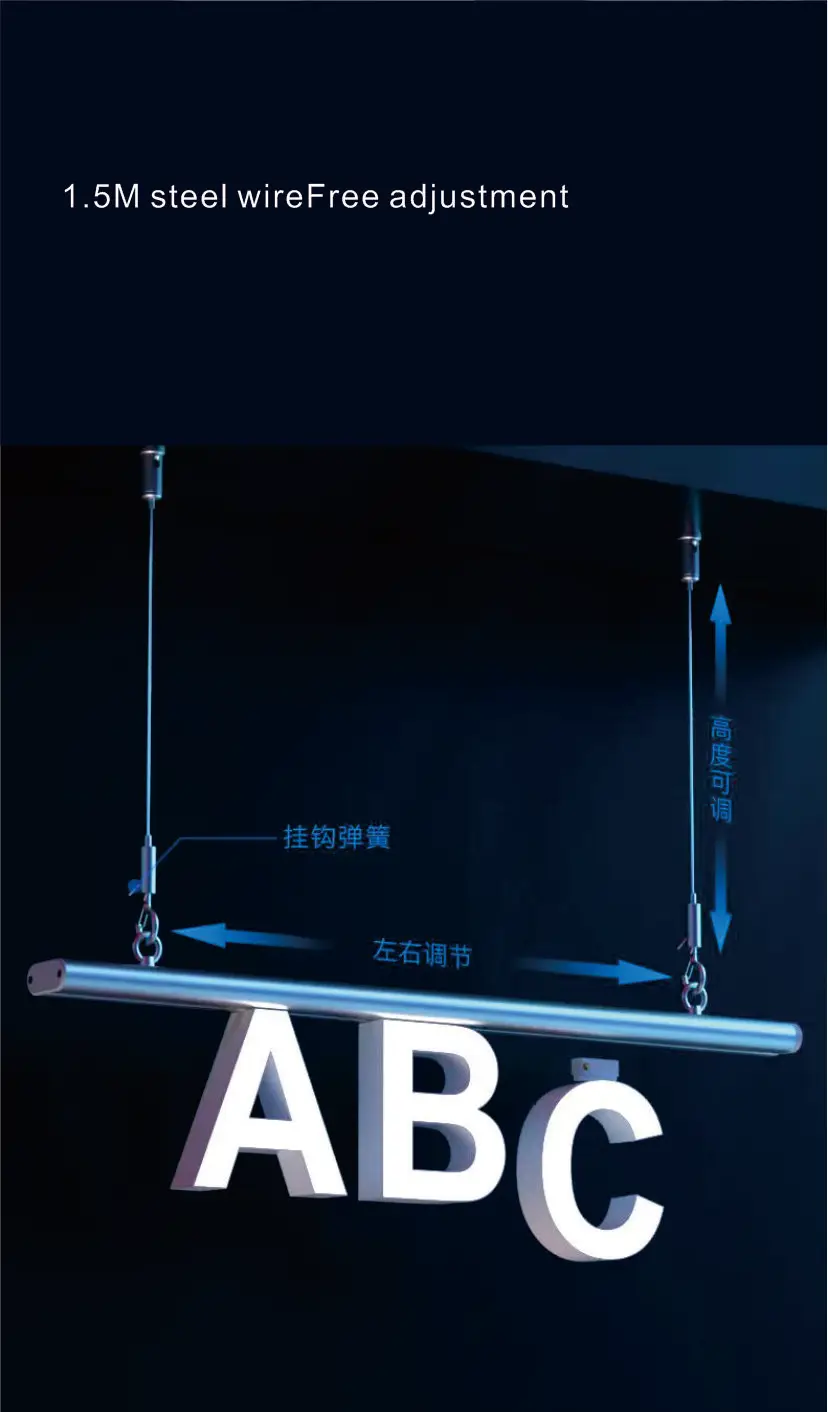

The LED channel letters are designed for modular assembly and track mounting.
Recommended installation process:
- Confirm the required letters and message.
- Select the appropriate T12 or T20 letter size.
- Determine the required number of 95cm tracks.
- Position the tracks according to the storefront layout.
- Install the selected LED letters onto the track.

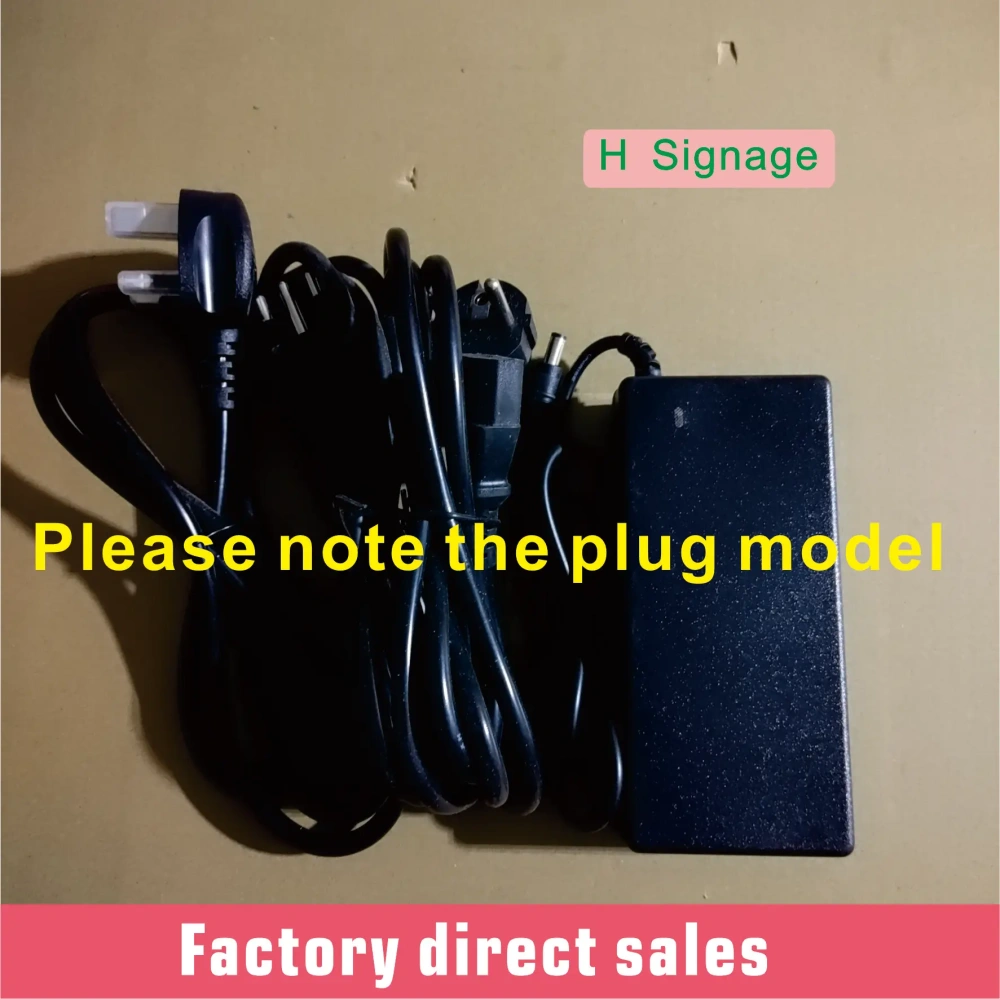

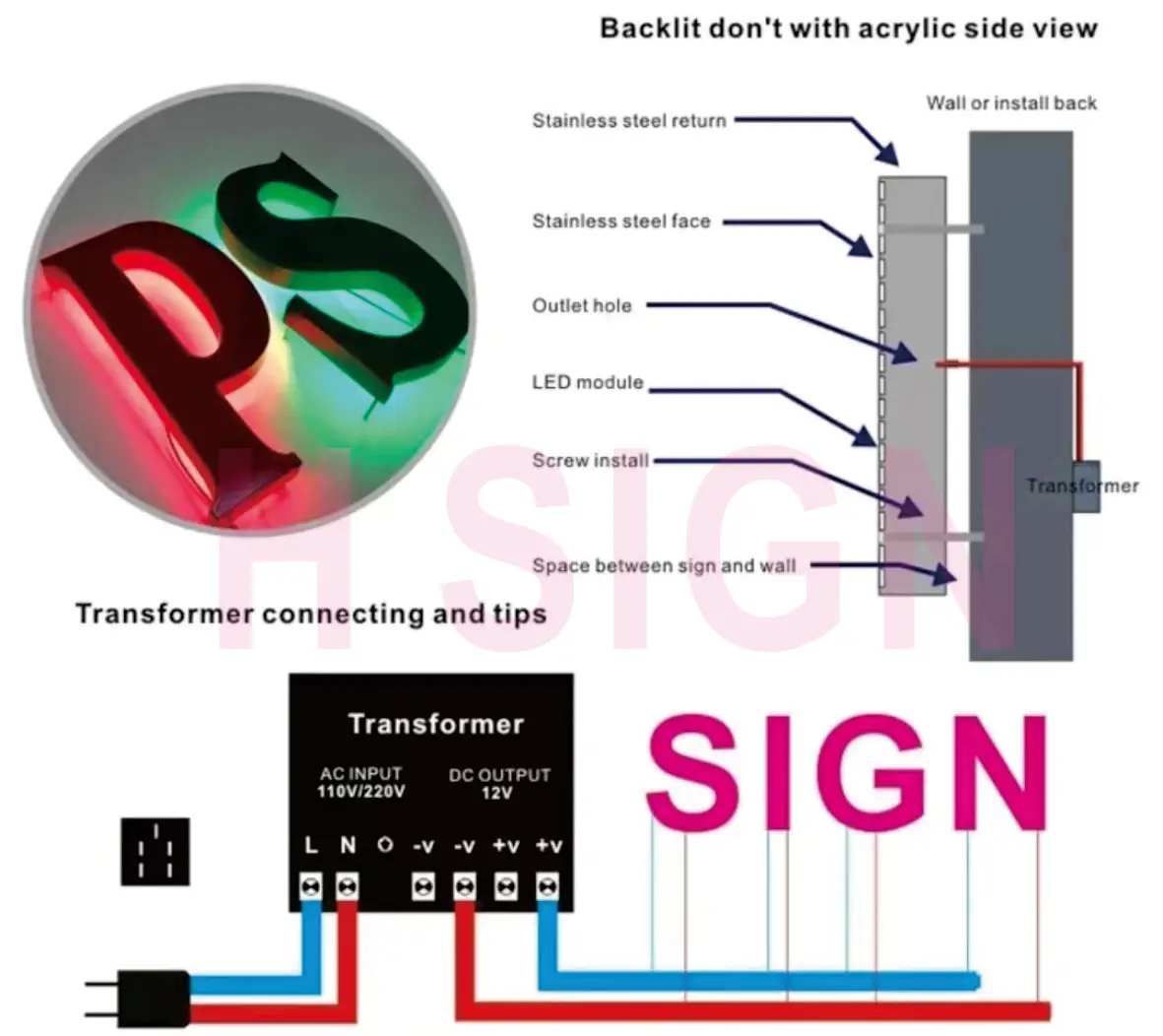

- Connect the adapter and DC power supply.
- Test the lighting before finalizing the installation.
The product page states that one 95cm track can accommodate approximately 5–6 T20 letters or 10 T12 letters, while one adapter can support three tracks.
For custom projects, USKYLED can provide installation guidance based on the final letter combination and track configuration.

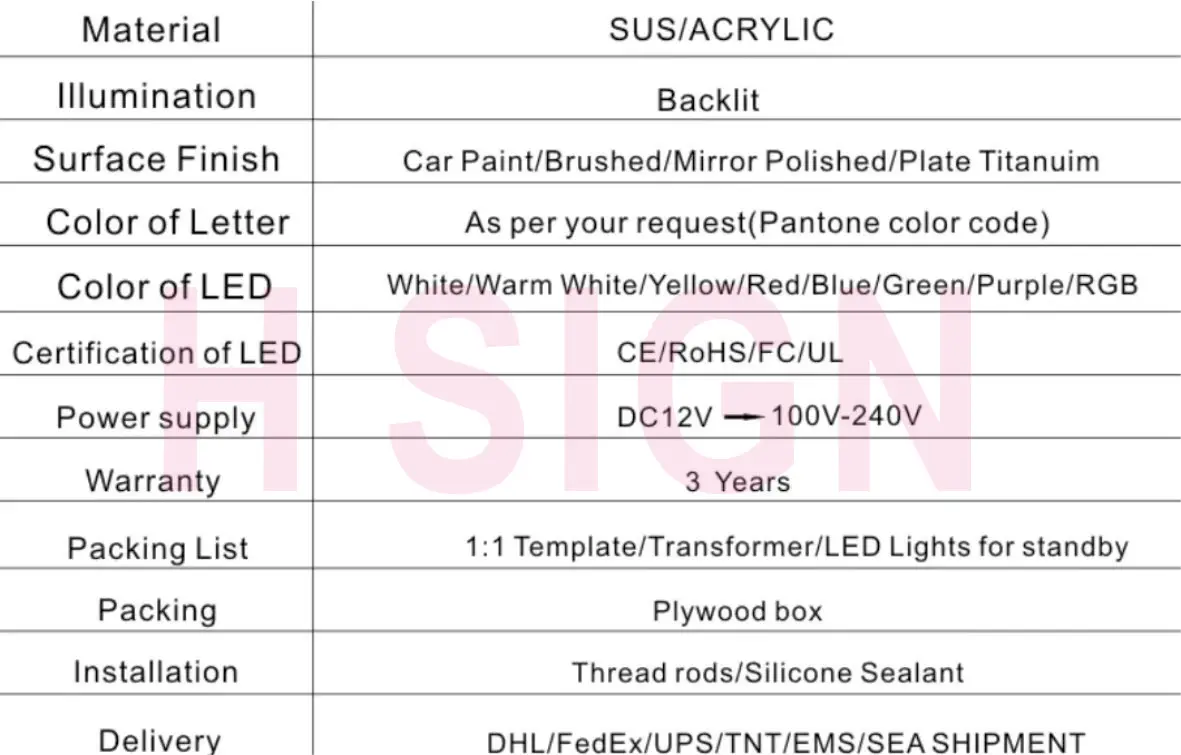

Technical Specifications
| Parameter |
Specification |
| Product Type |
LED Channel Letter Sign |
| Sign Type |
Illuminated LED Letters |
| Application |
Indoor & Outdoor |
| Character Options |
A–Z / 0–9 / & |
| Letter Options |
T12 / T20 |
| Track Length |
95cm |
| Track Color |
Black / White |
| Lighting Colors |
Red / Yellow / Blue / Green / White |
| Power |
8W listed configuration |
| Power Source |
DC |
| Waterproof |
Yes |
| Installation |
Modular Track / Assembly |
| T20 Capacity |
Approx. 5–6 letters per 95cm track |
| T12 Capacity |
Up to 10 letters per 95cm track |
| Adapter Capacity |
Up to 3 tracks |
| Warranty |
2 Years |
| Customization |
Letters / Numbers / Symbols |
| MOQ |
1 pcs |
| Sample Lead Time |
3–7 Days |
| Mass Order Lead Time |
7–15 Days |
Project Applications
Retail Storefront Projects
The illuminated letters can be used to display:
- Store names
- Brand names
- Logos
- Retail categories
- Promotional messages
Restaurant & Hospitality Projects
Suitable for:
- Restaurants
- Cafés
- Hotels
- Resorts
- Bars
- Food & beverage stores
Commercial Buildings
The system can be used for:
- Building entrances
- Corporate offices
- Commercial centers
- Reception areas
- Business premises
Franchise & Brand Rollouts
The modular system is also suitable for multi-location businesses that need consistent illuminated brand signage across different stores.
For distributors and signage companies, customized letter combinations can be produced according to project requirements.
OEM/ODM
USKYLED supports OEM and ODM customization for commercial LED signage projects.
Customization can include:
- Letter combinations
- Numbers
- Symbols
- Brand names
- Logo designs
- Letter sizes
- T12 / T20 configuration
- Track color
- Lighting color
- Track quantity
- Packaging
- Product labeling
- Project-specific configurations
For larger projects, customers can provide:
Logo + text + required letter size + total length + lighting color + installation environment
USKYLED can then help determine the appropriate letter and track configuration.
This is particularly suitable for:
- Signage companies
- Advertising agencies
- Retail chains
- Lighting distributors
- Brand contractors
- Store renovation companies
- Commercial project contractors
MOQ: 1 pcs
Sample Lead Time: 3–7 Days
Mass Order Lead Time: 7–15 Days
CTA
Looking for custom LED channel letter signs for your storefront or commercial project?
Send us your logo, text, letter size and required quantity.
USKYLED can provide customized LED illuminated letters, track configurations, project support and OEM/ODM manufacturing.
MOQ starts from 1 pcs.
Sample orders: 3–7 days.
Mass orders: 7–15 days.
Contact USKYLED for a customized quotation.
