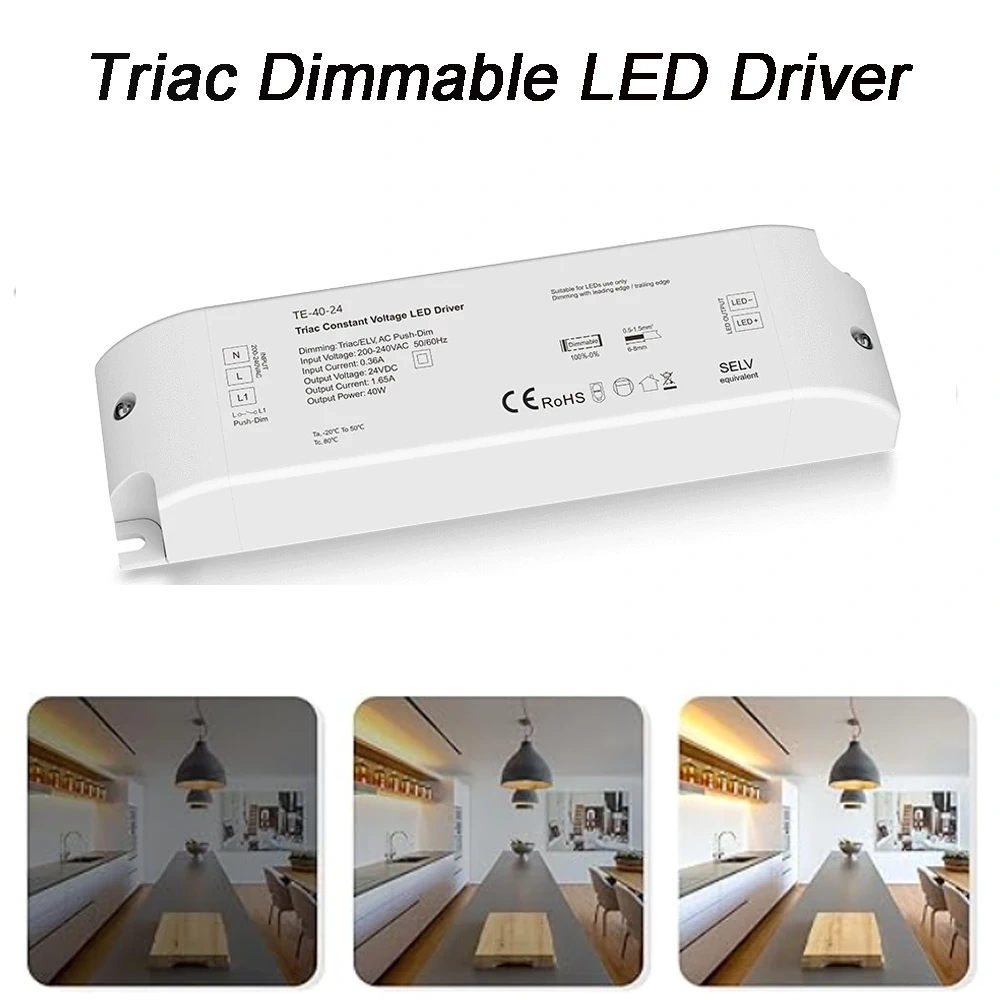

40W 75W Triac Dimming Constant Voltage LED Driver 12V 24V Dimmable Power Supply PWM Digital Dimming For Indoor LED Lighting

40W 75W Triac Dimming Constant Voltage LED Driver 12V 24V Dimmable Power Supply PWM Digital Dimming For Indoor LED Lighting

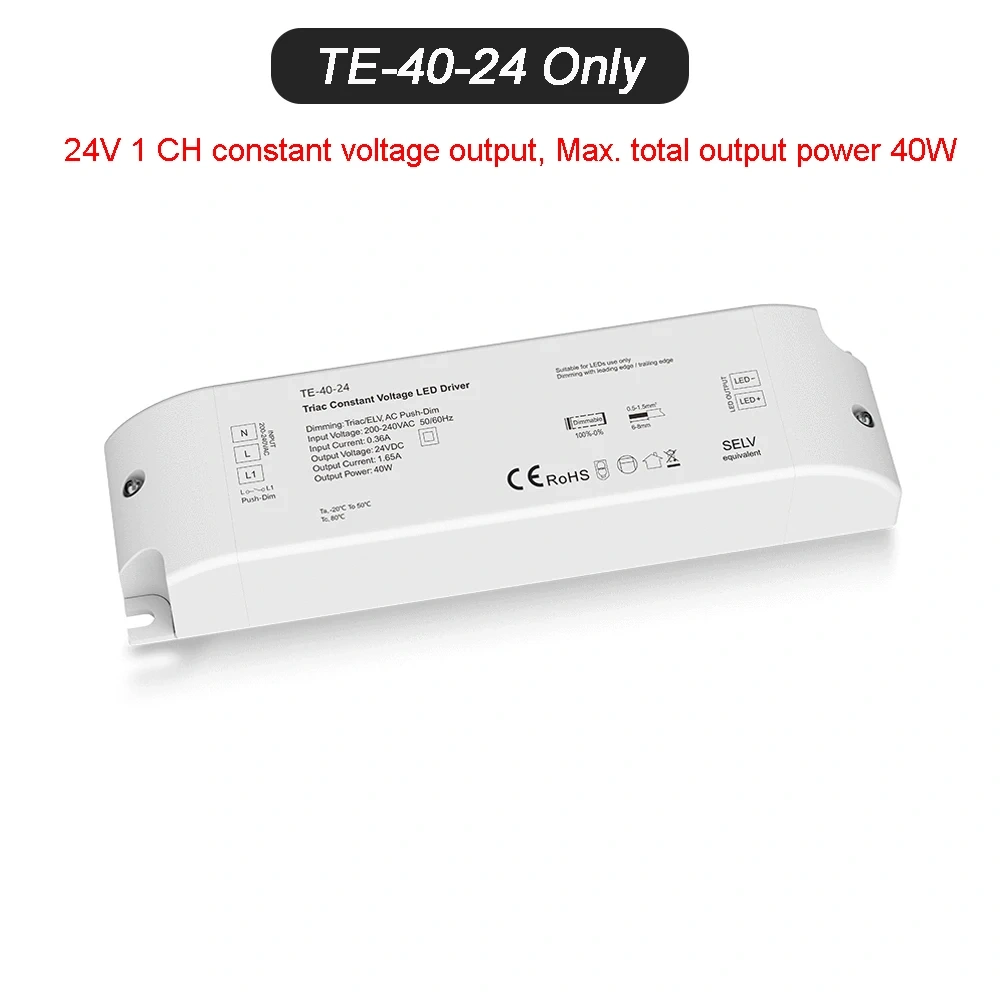

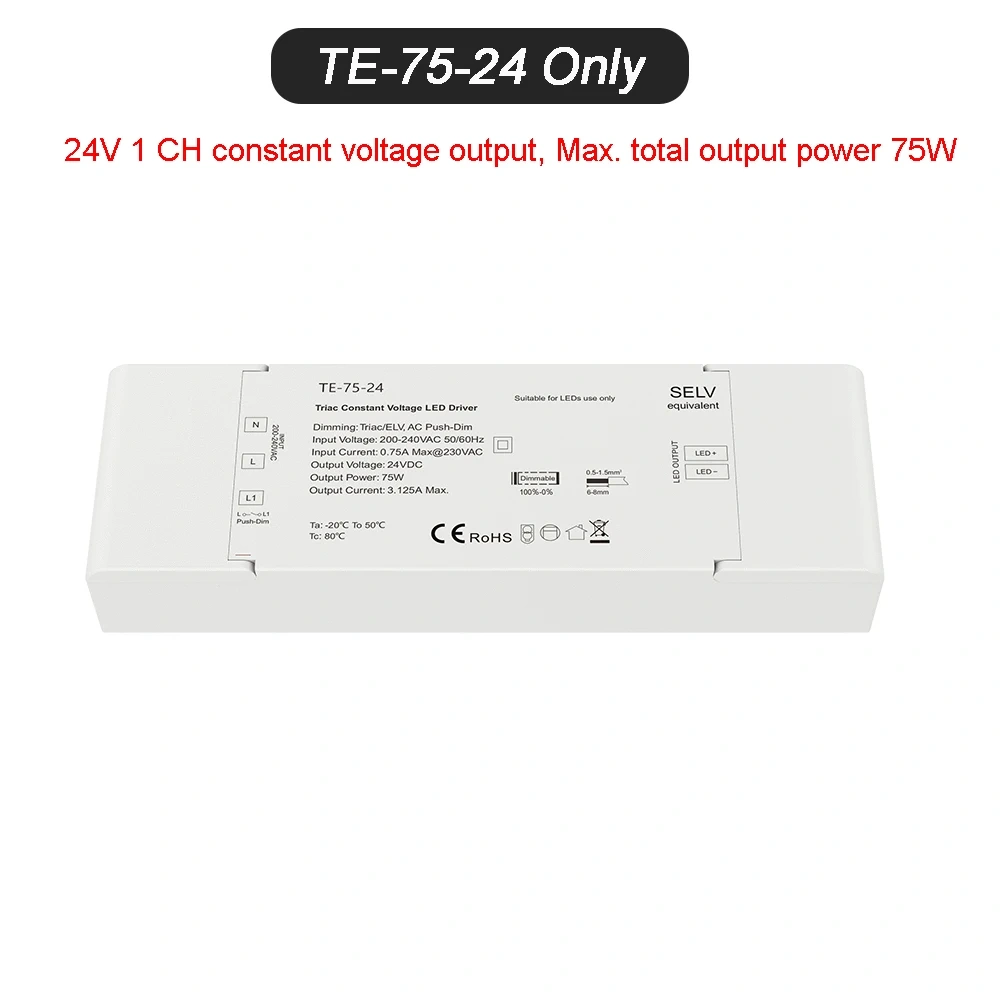

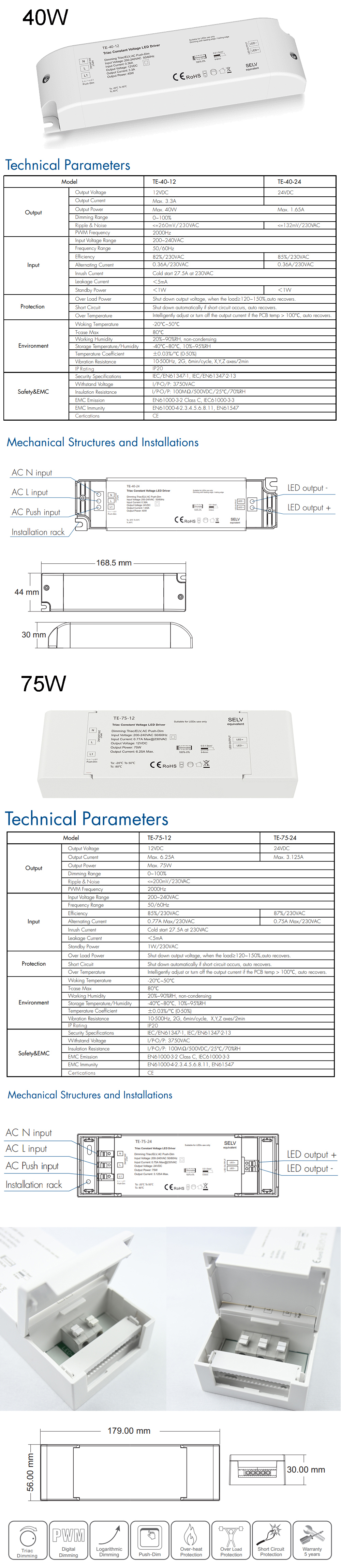

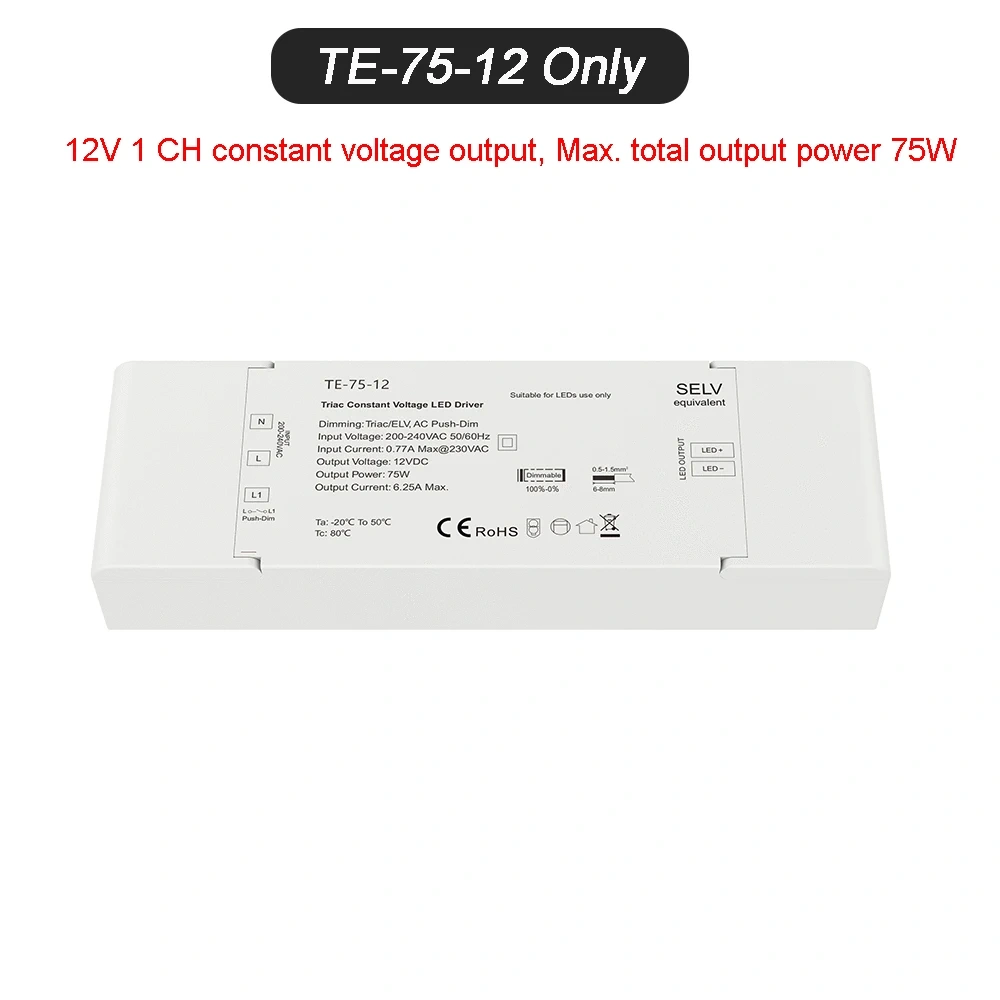

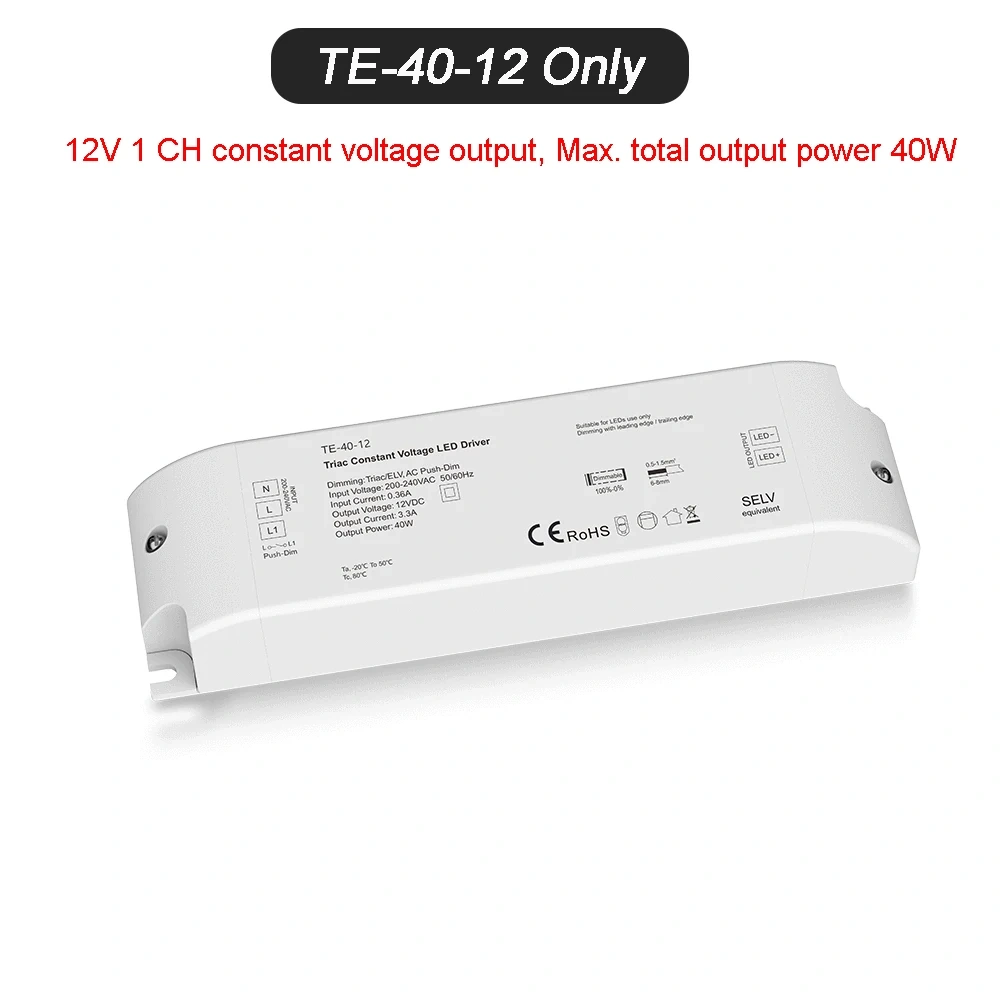

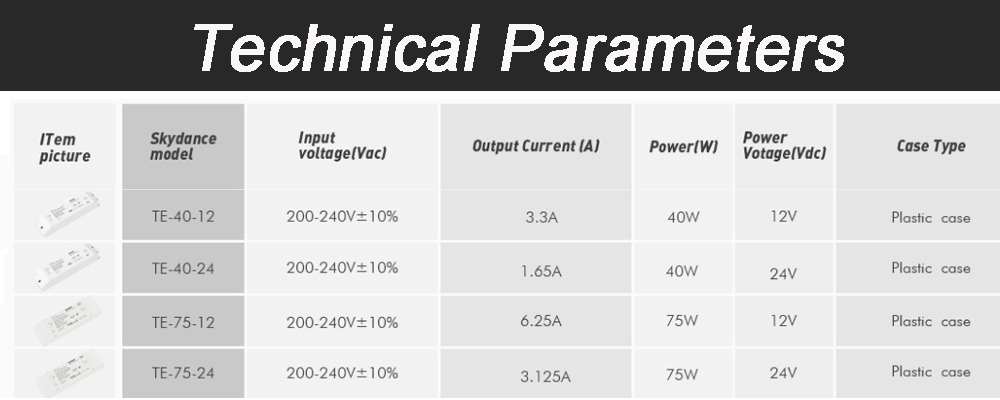

MODEL NO:TE-75-12,TE-75-24, TE-40-12,TE-40-24

Features

● Dimming interface: Triac/ELV, AC Push-Dim

● Apply to leading edge/trailing edge Triac dimmers and dimming system

● PWM digital dimming, no alter LED color rending index

● 1 channel constant voltage output, Max. total output power 75W/40W

● Over-heat / Over-load / Short circuit protection, recover automatically

● Full protective plastic case

● Suitable for indoor LED lighting application

● 5 Year, 50,000hr warranty

Applications

● Suitable for LED related xture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
● Ofce / Commercial / Domestic Lighting, Hotels, Retail and Display.
● Use for retrot upgrades & new luminaire designs.

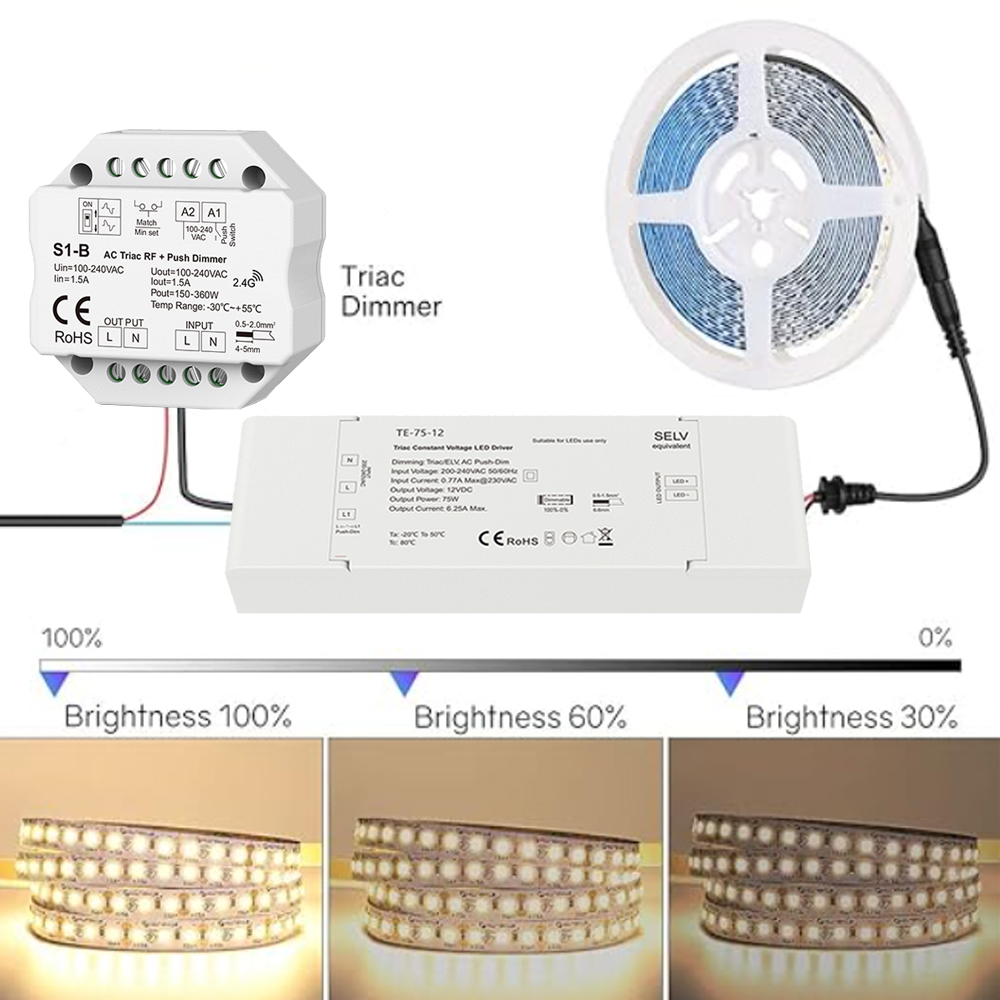

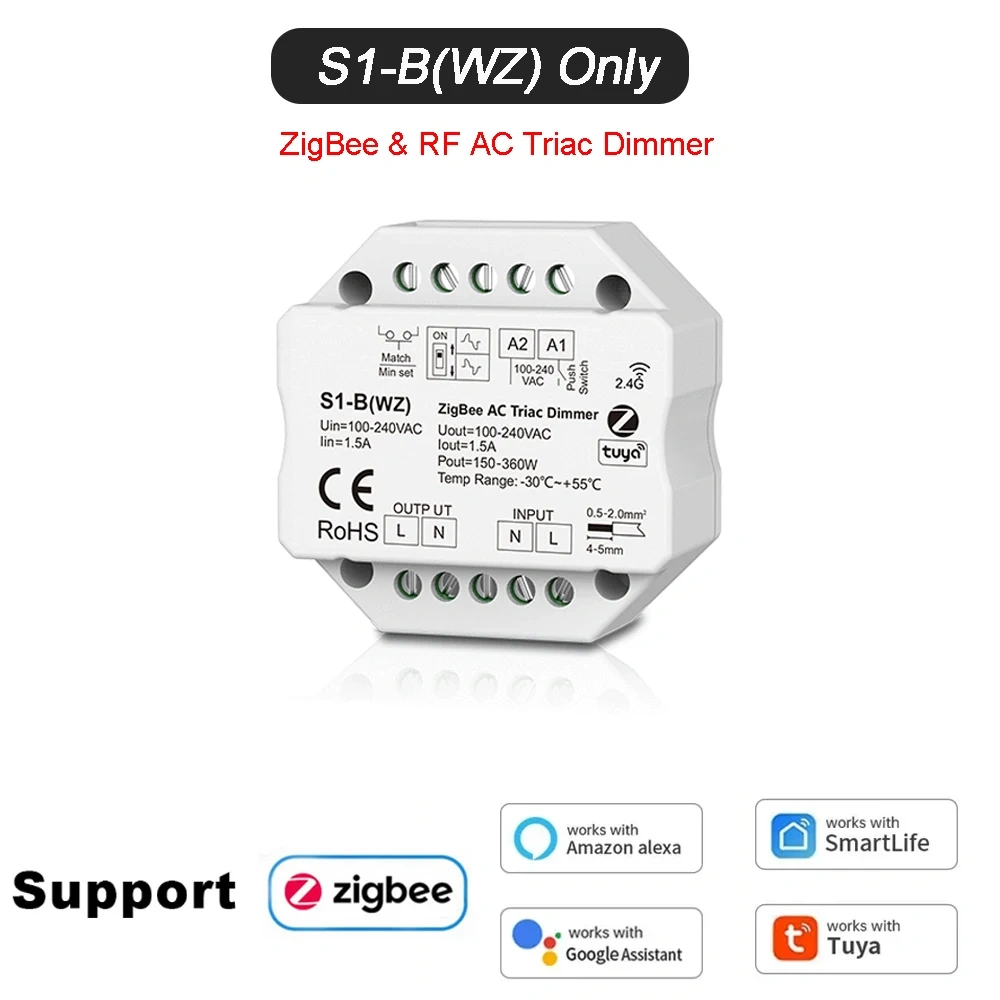

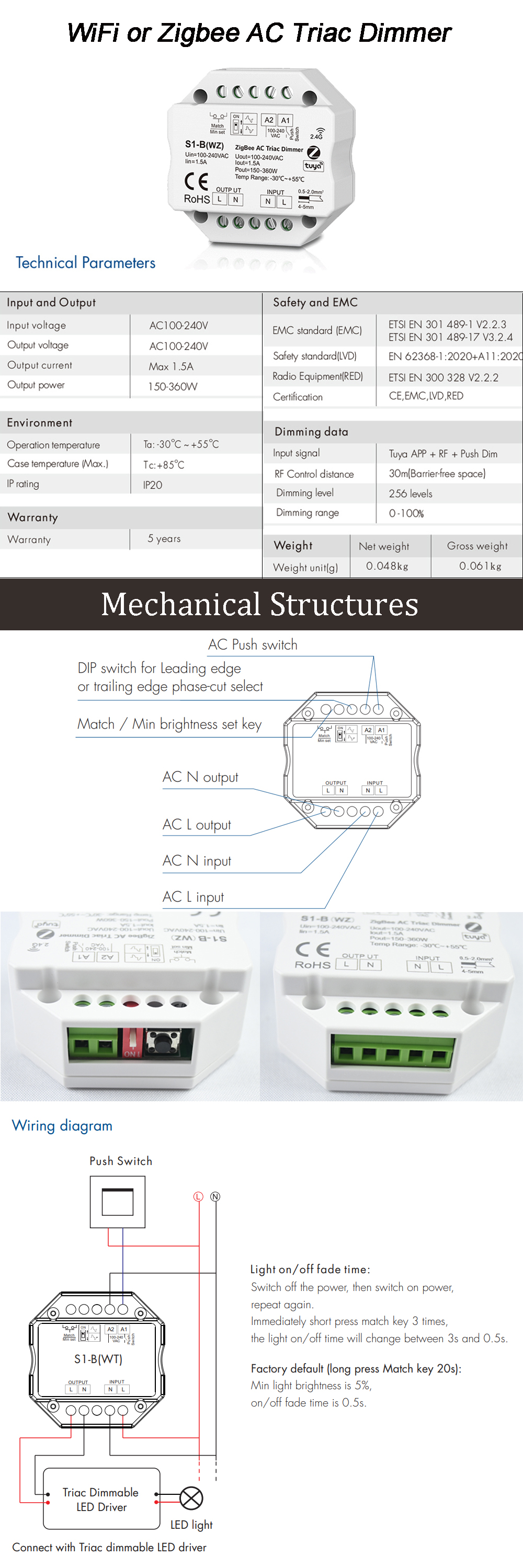

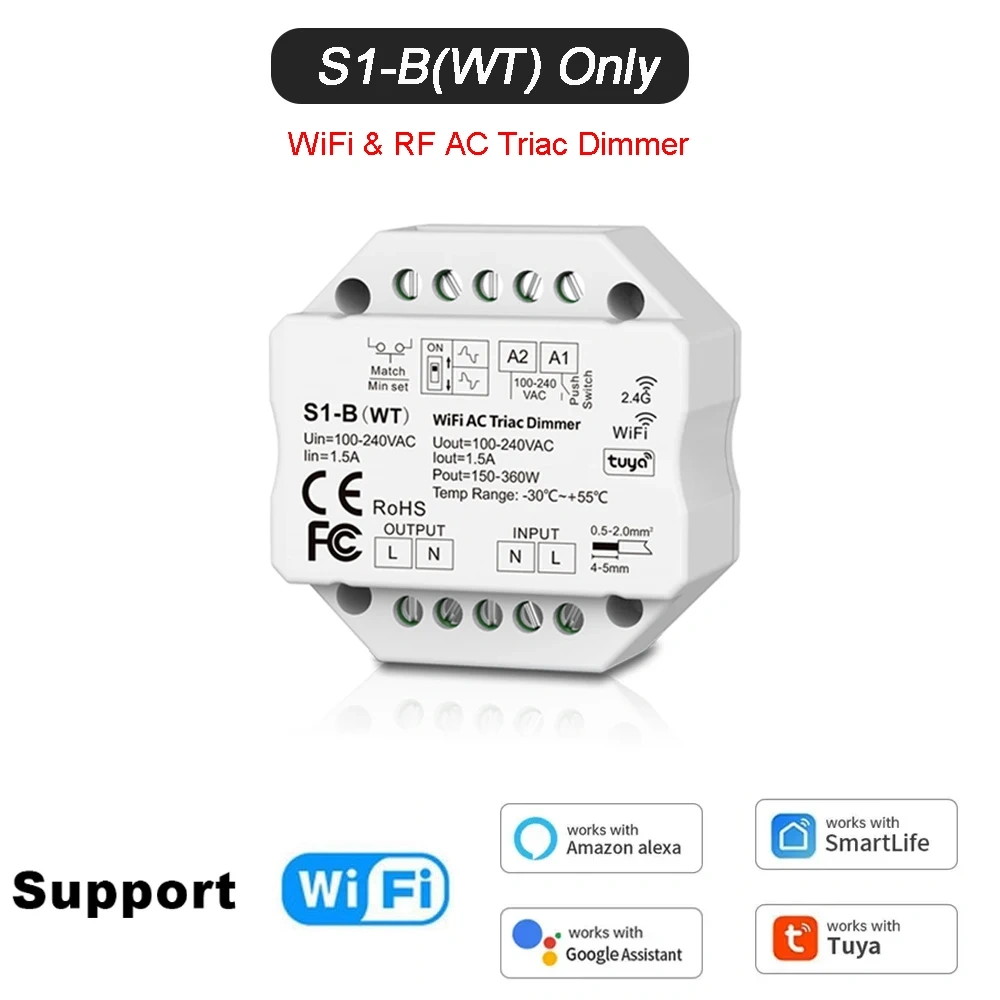

MODEL NO:S1-B(WT).S1-B(WZ)  (AC Triac Dimmer)

Features

● To dim and switch single color dimmable LED lamps,traditional incandescent and halogen lights.

● Tuya APP cloud control, support on/off, brightness adjust,delay turn on/off light, timer run, scene function.

● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu smart speakers.

● 256 levels 0-100% dimming smoothly without any ash.

● Leading edge dimming or trailing edge dimming set by dip switch.

● Min brightness can be set by key.

● Light on/off fade time 3s selectable.

● Compatibility with RF 2.4G single zone or multiple zone dimming remote control.

● Each S1-B controller can also work as WiFi-RF converter,

then use Tuya APP to control one or more RF dimming LED controller or driver synchronously.

● Connect with external push switch to achieve on/off and 0-100% dimming function.

● Easy to be placed in standard wall junction box behind a push switch.

● Over-heat / Over-load protection, recover automatically.

NOTE

SI-B(WZ) needs to match the ZIGBEE gateway to work

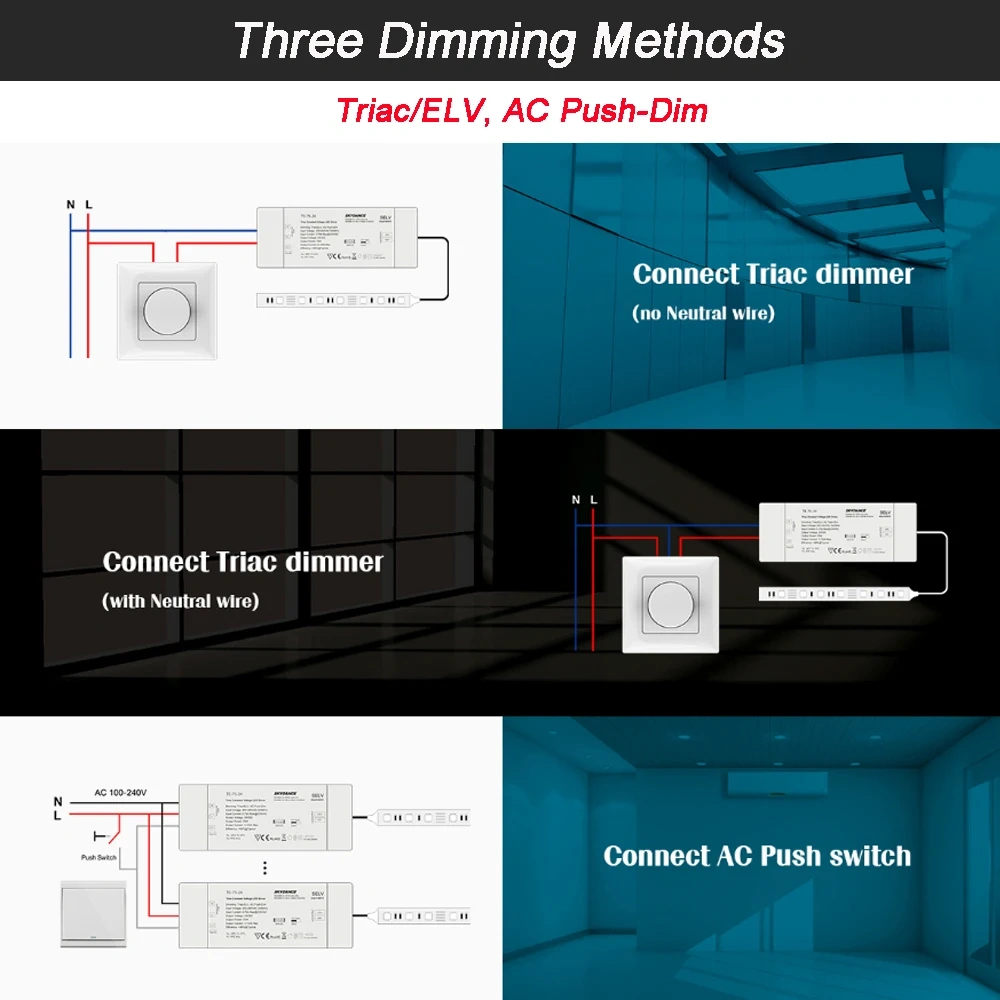

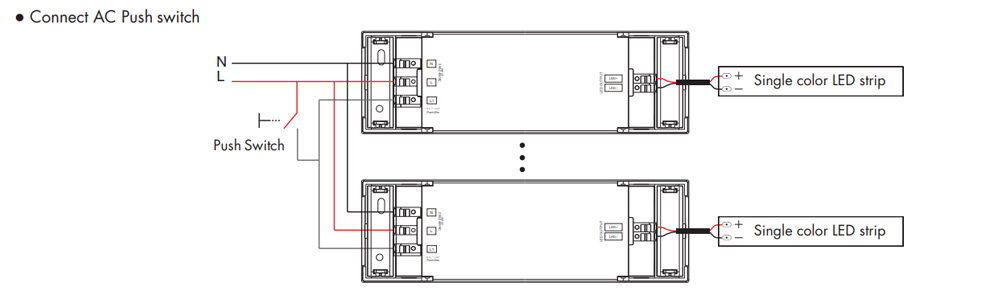

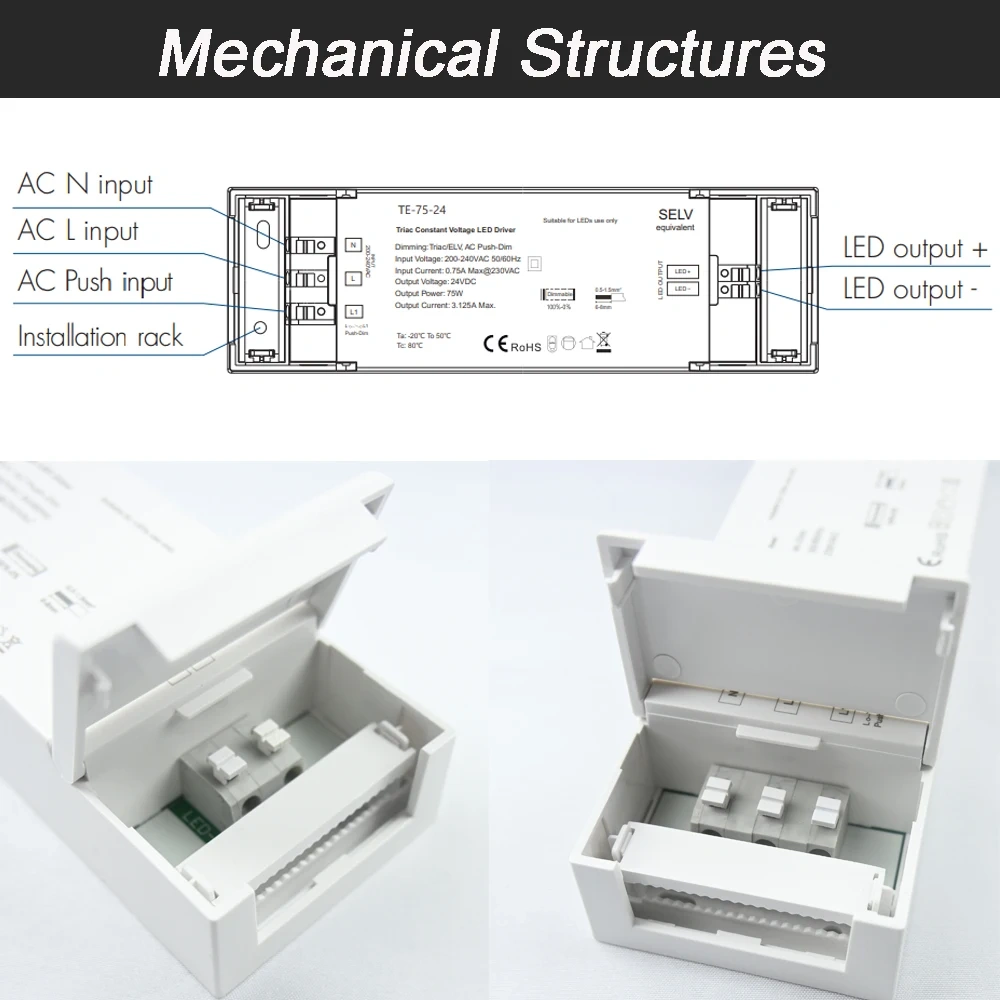

AC Push-Dim input

The provided AC Push-Dim interface allows for a simple dimming method using commercially available
non-latching (momentary) wall switchs.

● Short press:
Turn on or off light.
● Long press (1-6s):
Press and hold to step-less dimming, With every other long press, the light level goes to the opposite direction.
● Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.
● Synchronization:
If more than one LED driver are connected to the same push switch, do a long press for more than 10s,
then the system is synchronized and all lights in the group dim up to 100%.
This means there is no need for any additional synchrony wire in larger installations.
We recommend the number of LED drivers connected to a push switch does not exceed 25 pieces,
The maximum length of the wires from push to LED driver should be no more than 20 meters

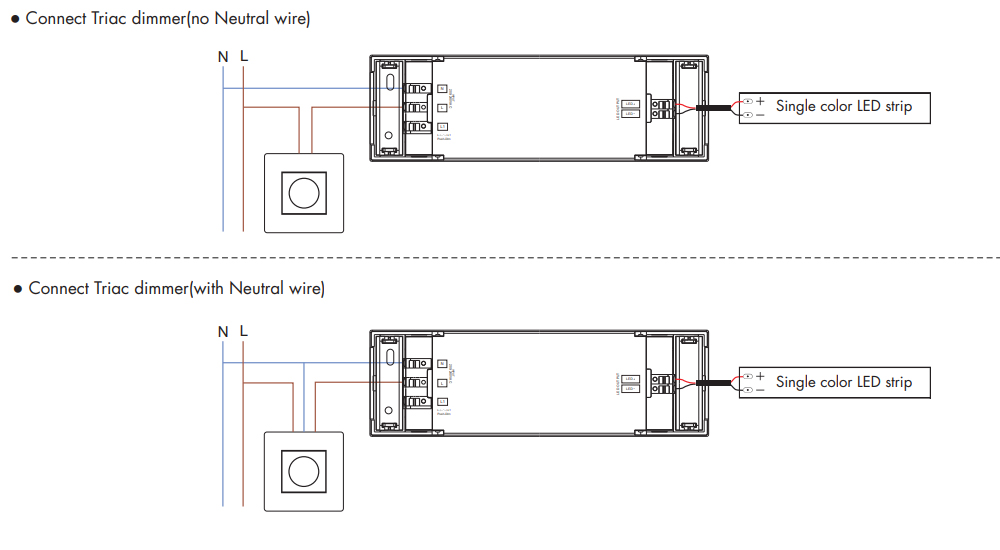

Triac Dimming Input

While connected with a Triac dimmer, such as Lutrom, Clipsal, Dynalite dimmer,

different Triac dimmers from different suppliers may have different minimum dimming levels which the driver can not be dimmed below.

To dim to 1%, please make sure the dimmer supports 1% minimum dimming level
