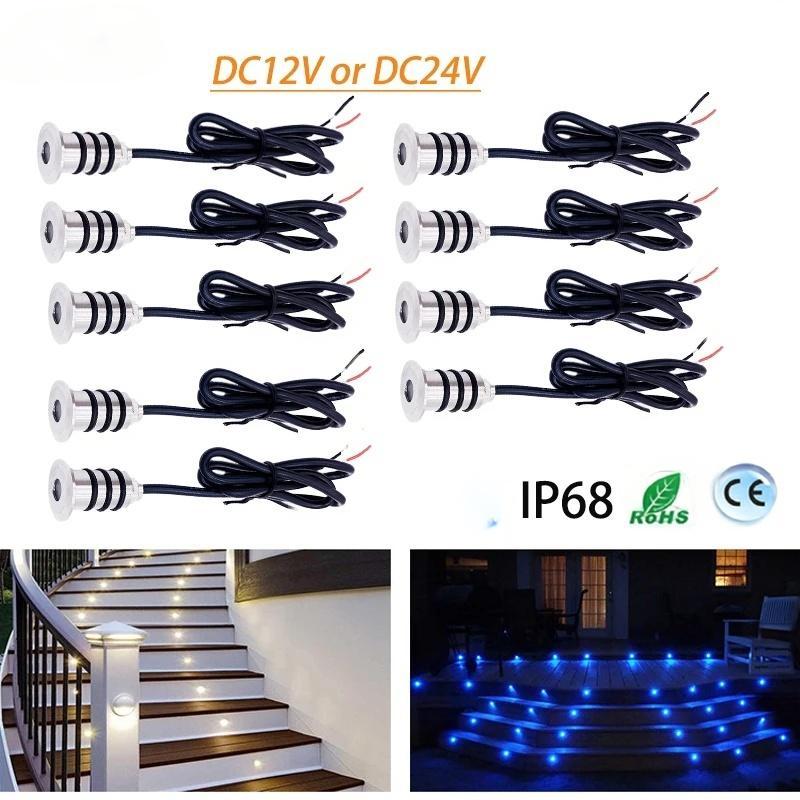

IP68 Waterproof 0.5W 12V Stainless Steel Recessed LED Deck Light for Garden Terrace and Inground Step Lighting

Product Introduction

The USKYLED recessed LED deck light is an architectural-grade inground fixture developed for exterior walkways, timber patios, stair risers, and garden landscaping. Designed for flush-mount installation, it provides subtle, glare-free dot-matrix orientation lighting that enhances foot safety while creating an inviting evening atmosphere. Engineered with marine-grade materials and full submersible-grade sealing, this fixture withstands constant moisture and outdoor weathering.

Design

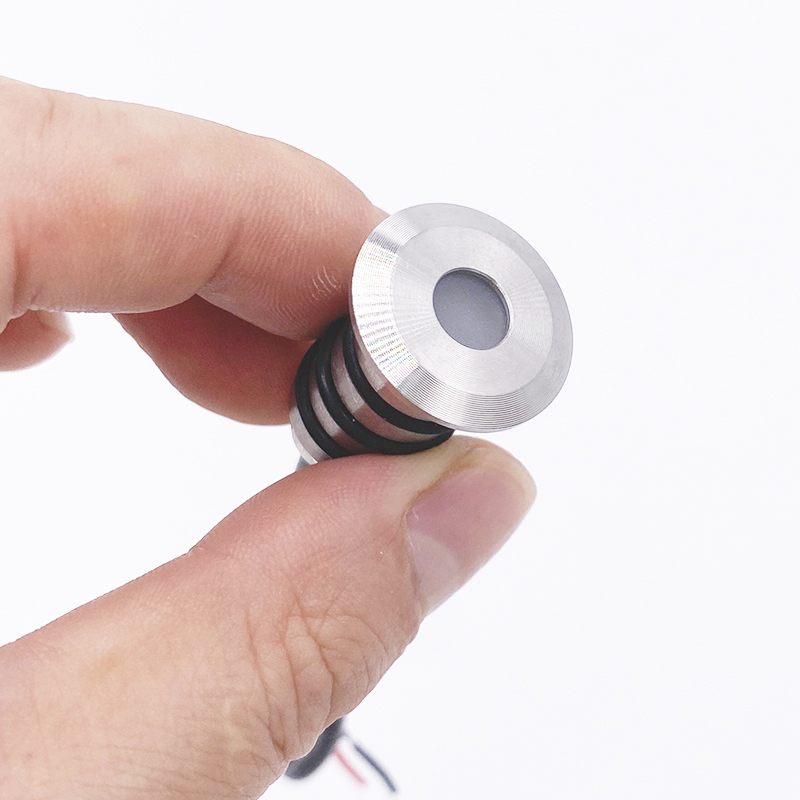

• Flush Walk-Over Bezel: Precision-machined 304 stainless steel front plate sits flat against decking boards, preventing tripping hazards and resisting foot traffic impact.

• Hermetically Sealed Core: Fully resin-potted optical compartment with high-density silicone gaskets achieves true IP68 waterproof integrity.

• Low-Profile Compact Cutout: Shallow depth allows easy integration into timber, composite decking boards, paver stones, and concrete steps.

Main Features

• Safe 12V Low-Voltage Operation: Eliminates electrical safety risks around gardens, outdoor living spaces, children, and pet activity areas.

• Ultra-Low Energy Draw (0.5W): Delivers clean orientation luminescence with minimal power consumption, ideal for multi-fixture continuous run loops.

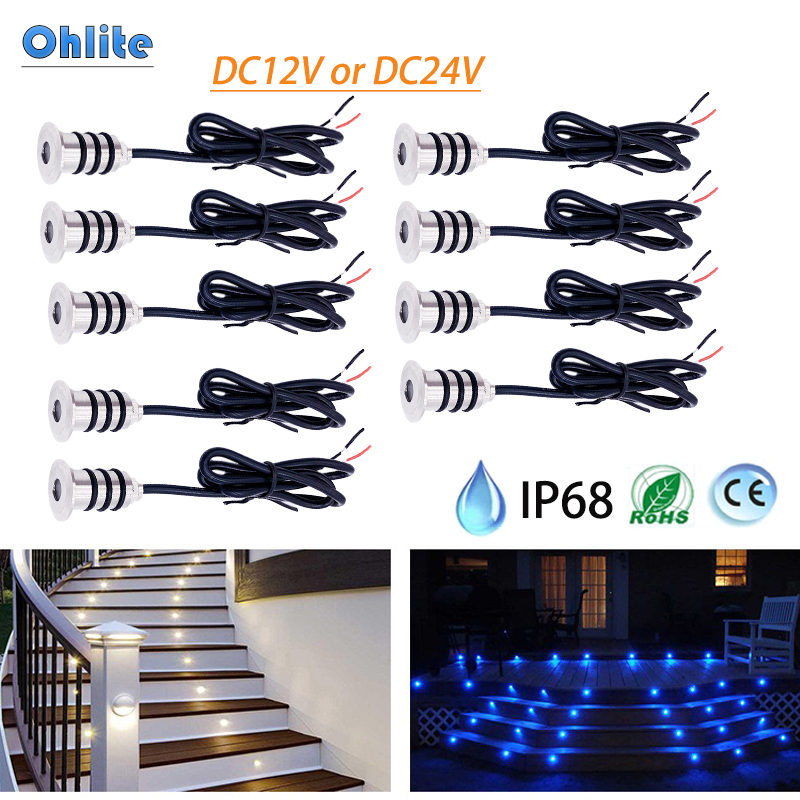

• Watertight Plug-and-Play Quick Connectors: Built-in male/female screw-lock IP68 cables allow fast daisy-chain installation without manual solder joints.

• Weather & Corrosion Resistance: Resists UV radiation, lawn fertilizers, heavy rainfall, winter freeze cycles, and coastal salt-spray.

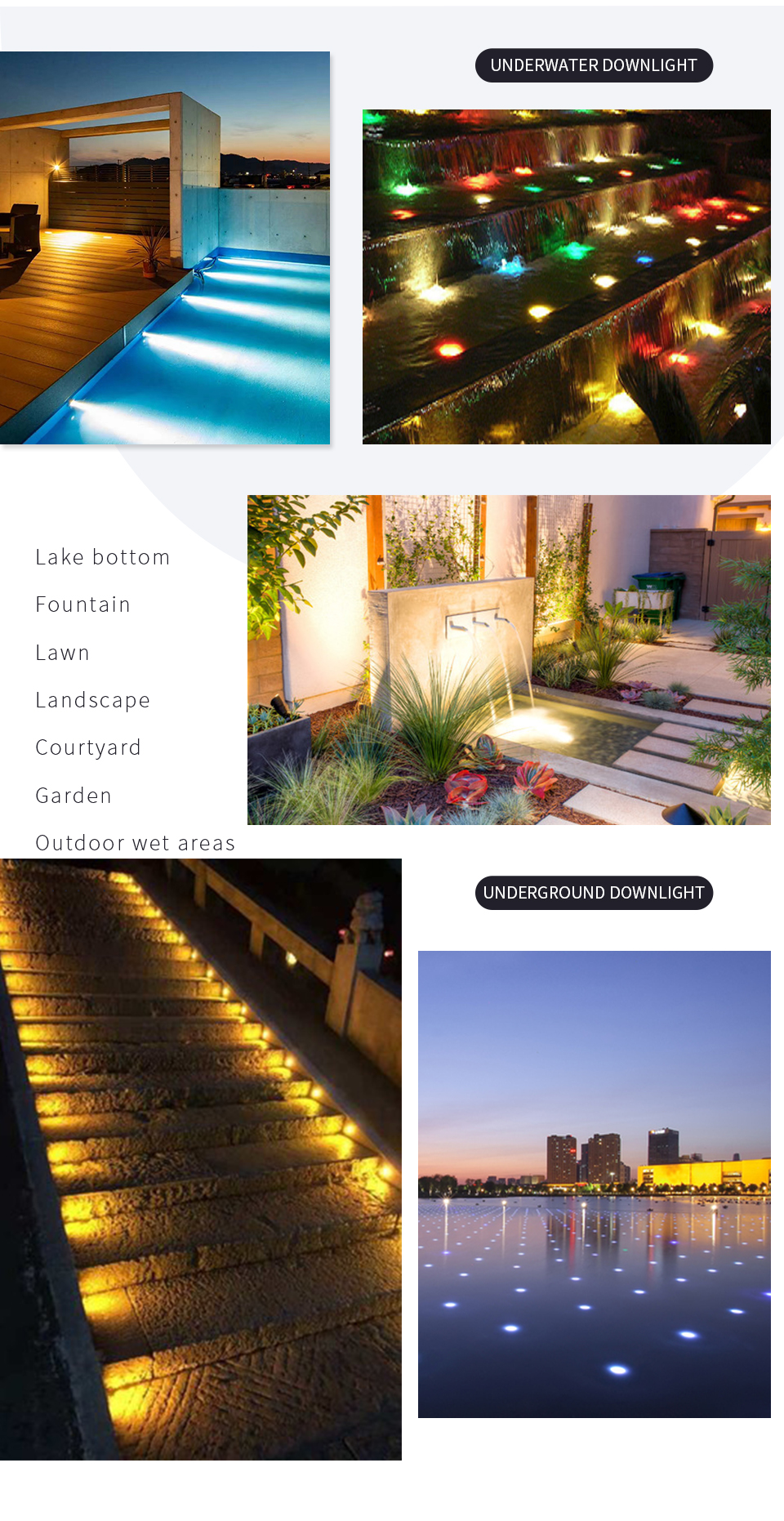

Application

Ideal for residential and commercial exterior applications including timber decking, composite terraces, garden pathways, stair risers, pool perimeters, dock walkways, and outdoor lounge areas.

Size / Options

• Overall Dimensions: Approx. Ø 32mm bezel diameter × 23mm depth.

• Cutout Hole Diameter: Ø 22mm – Ø 24mm.

• Housing Finish Options: Brushed 304 Stainless Steel / Matte Black Electro-Coating.

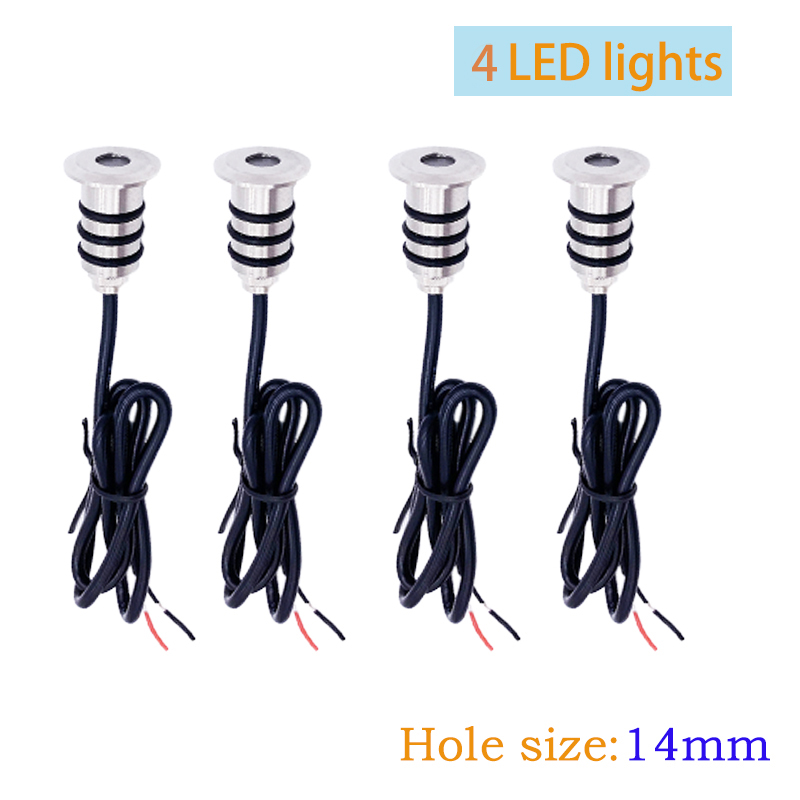

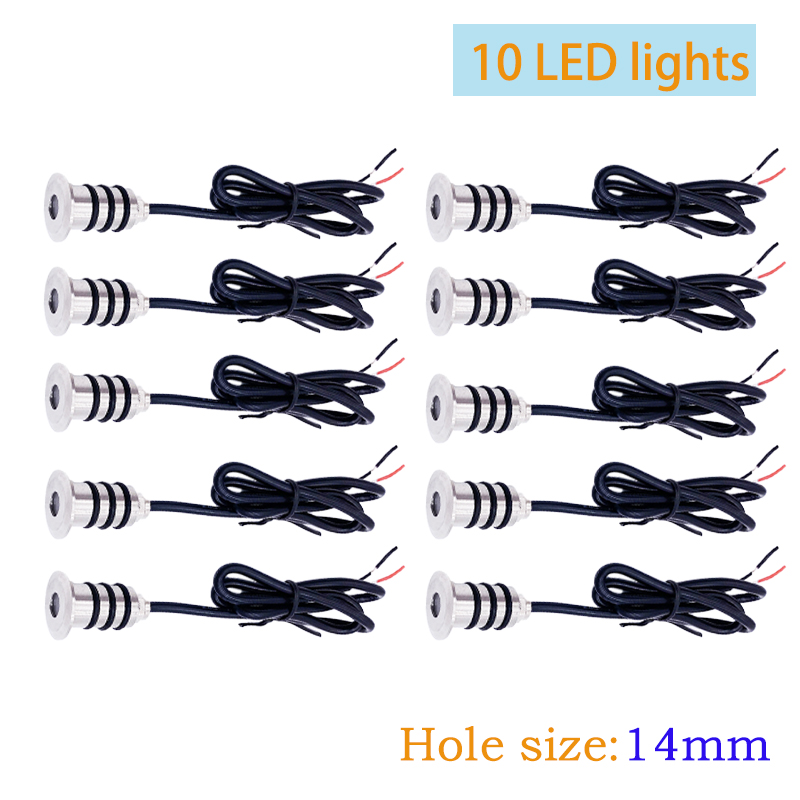

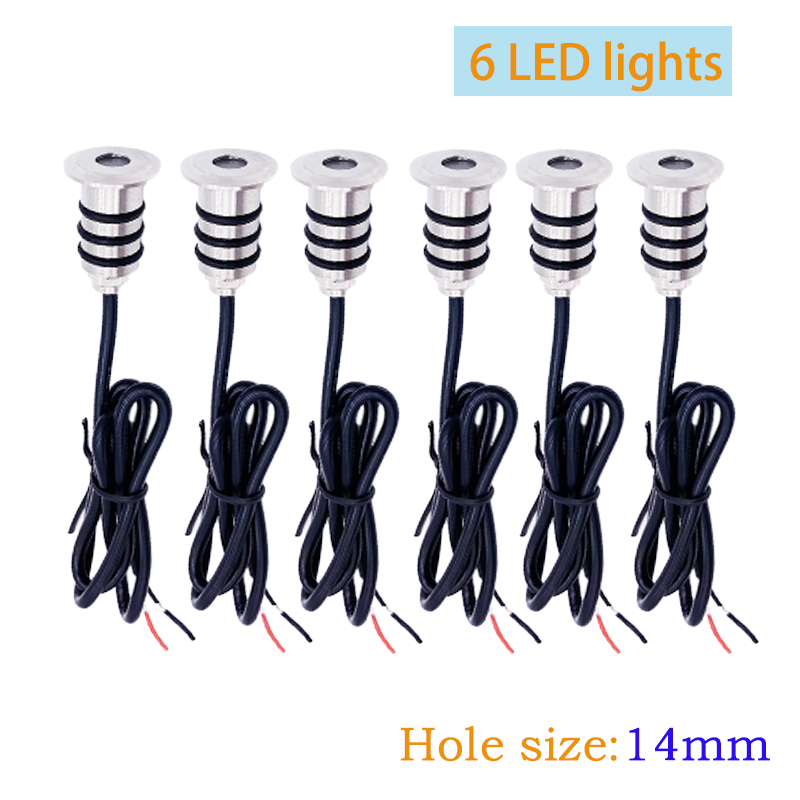

• Packaging Configurations: Single units (MOQ 1 pcs) or pre-configured contractor kits (4-pack, 6-pack, 10-pack with master power driver).

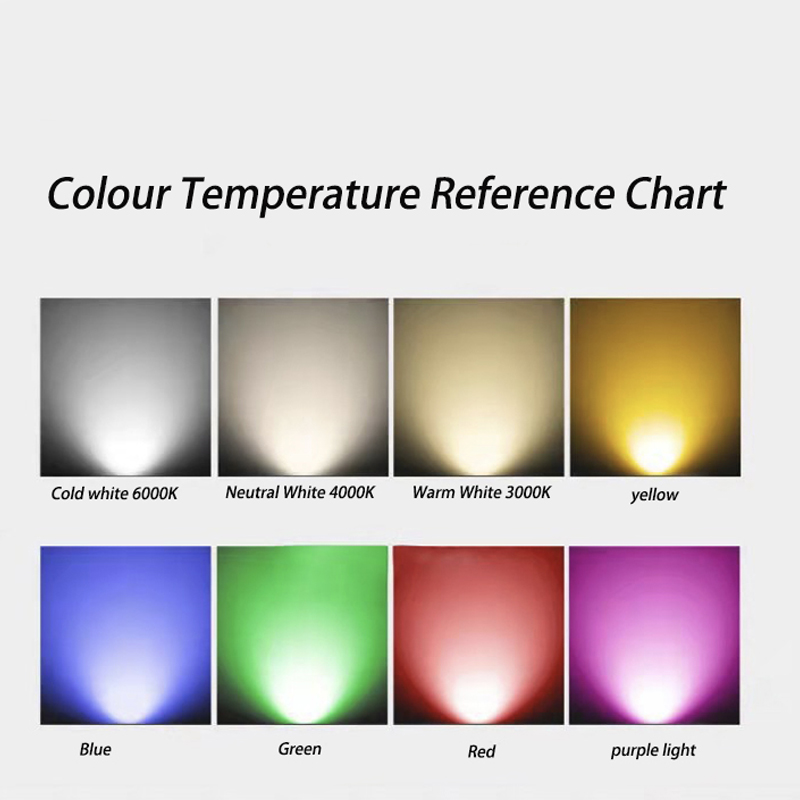

Lighting Options

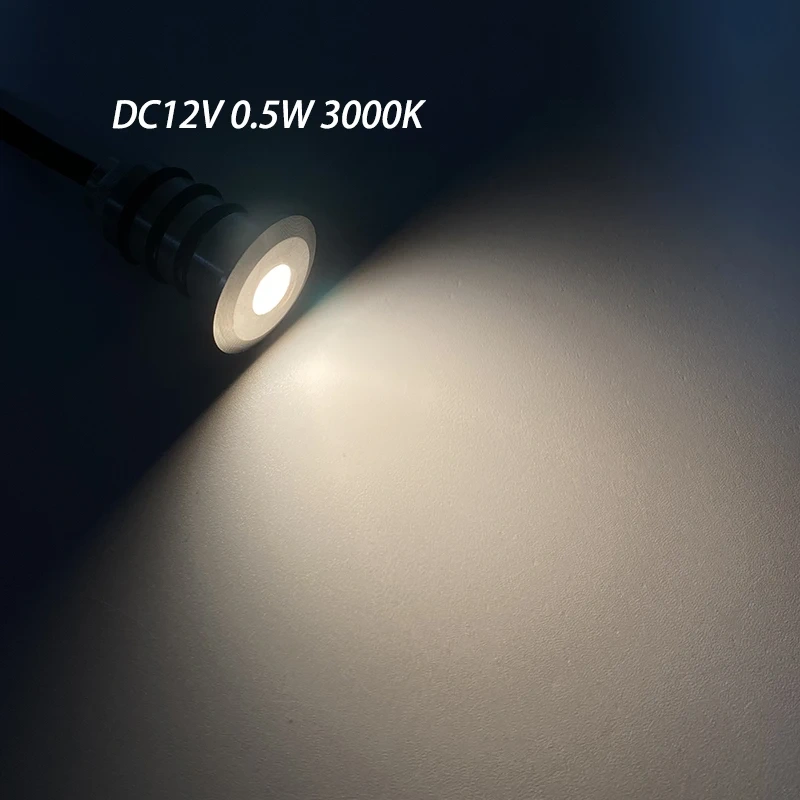

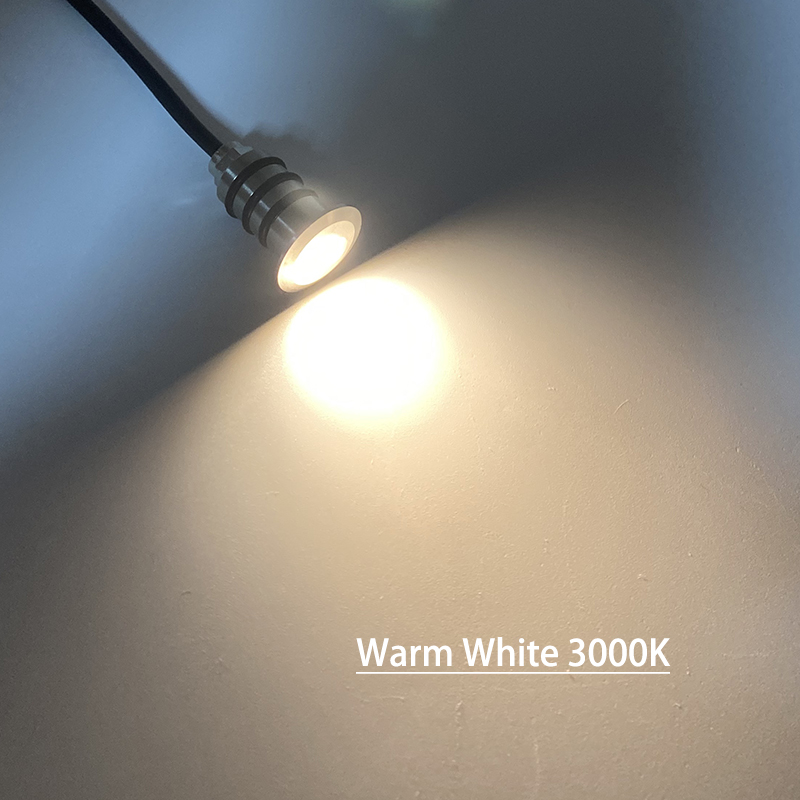

• Warm White (3000K): Creates an inviting, luxurious golden ambiance for residential patios, resort cabanas, and wooden terraces.

• Natural White (4000K): Delivers clean, realistic illumination for modern composite decks and architectural walkways.

• Cool White (6000K): Provides crisp, high-visibility contrast along pathways, security perimeters, and commercial steps.

• Accent Blue: Dramatic decorative effect for coastal docks, swimming pool borders, and garden features.

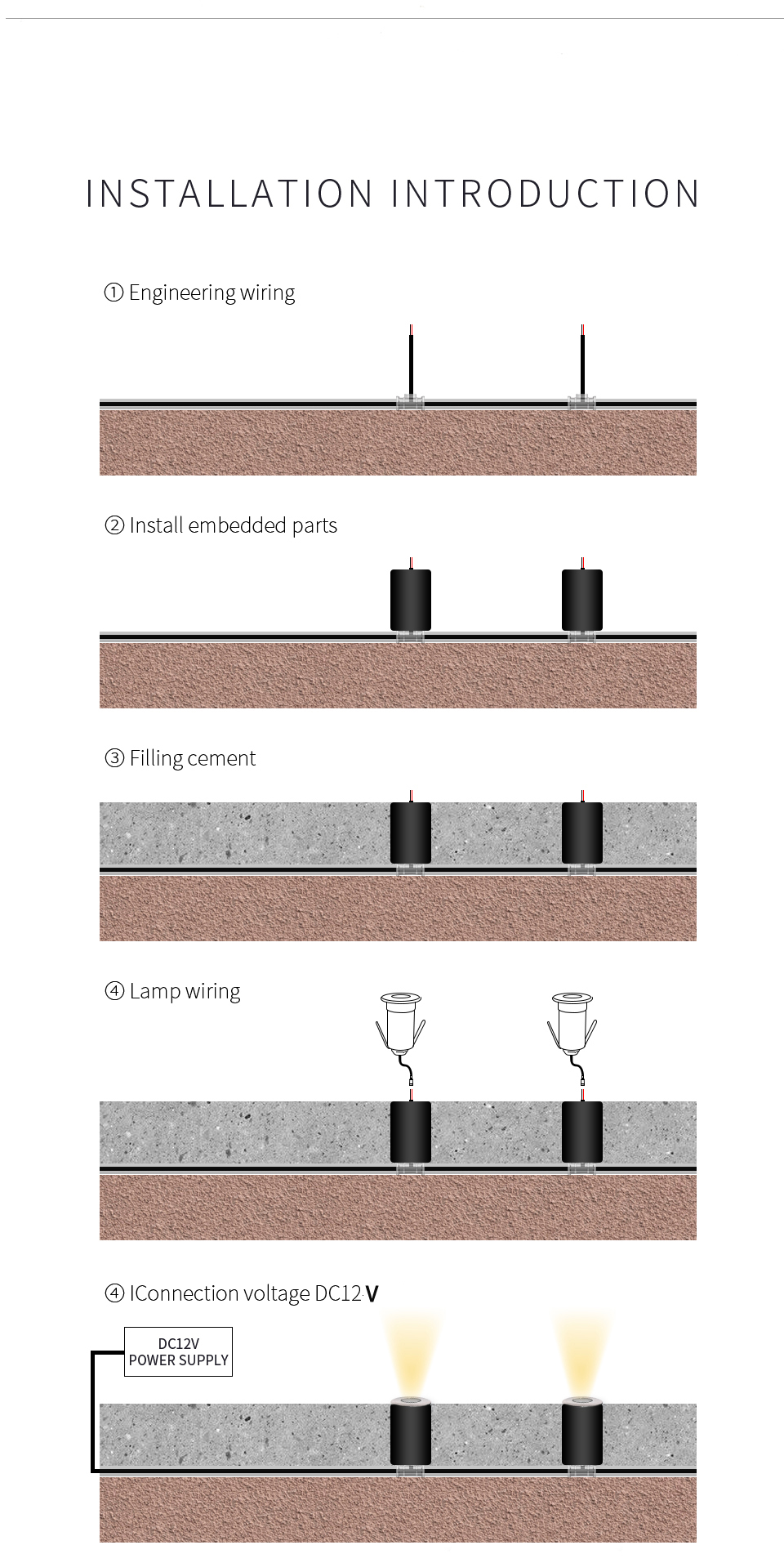

Installation

1. Mark hole locations on the deck boards or stair risers and drill a clean Ø 22mm hole using a hole saw.

2. Route the 12V low-voltage feed cable along the underside of the deck framing structure.

3. Push the fixture body into the cutout hole until the stainless steel flange rests flush against the surface.

4. Join the waterproof male and female screw-lock plugs between adjacent lights in the daisy-chain line.

5. Connect the primary circuit lead to the external 12V DC constant voltage transformer and energize.

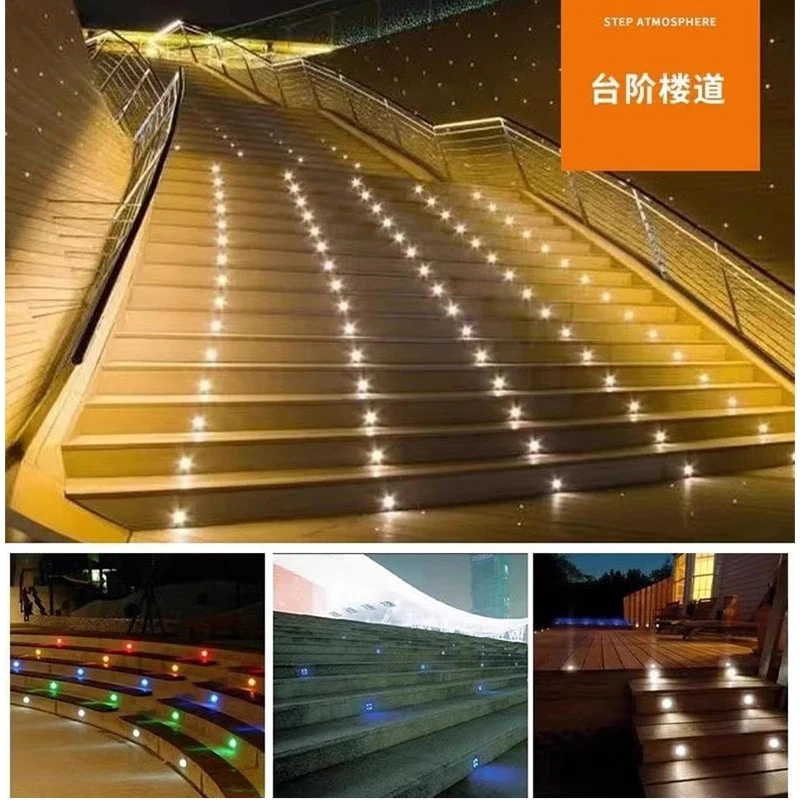

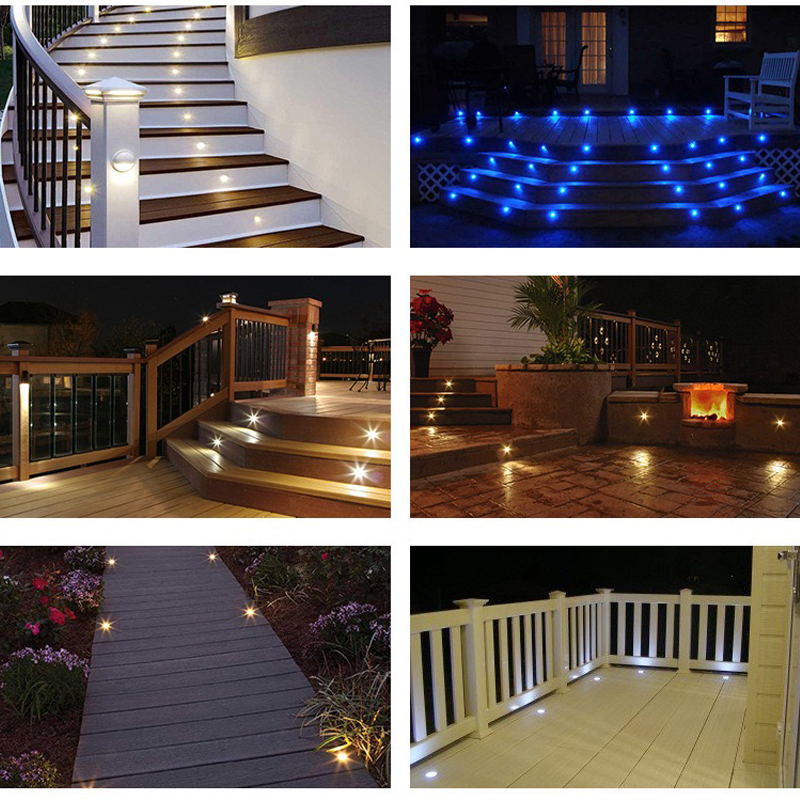

   Project Applications

   • Resort Boardwalks & Patios: Discreet step and path orientation lighting along beachfront wooden decks and outdoor restaurant terraces.

   • Residential Garden Landscaping: Low-profile boundary illumination recessed into retaining walls, stone pavers, and stairs.

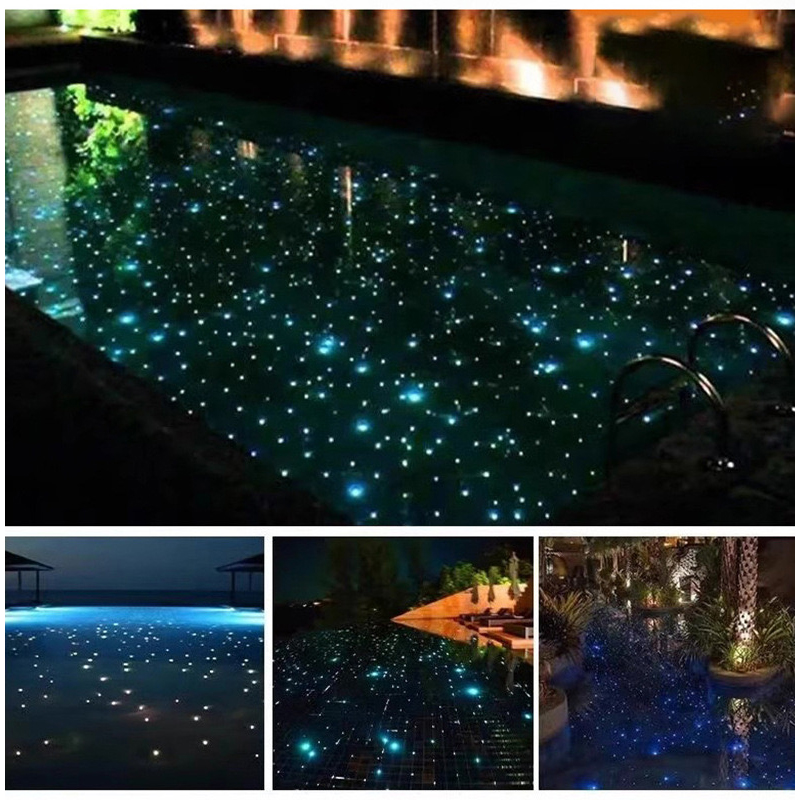

   • Marina Docks & Poolsides: Corrosion-resistant low-voltage safety accents around freshwater and saltwater leisure zones.

   OEM/ODM

   USKYLED supports global landscape brands, lighting distributors, and engineering contractors with flexible customization:

   • Upgrade option to 316 marine-grade stainless steel for harsh maritime installations.

   • Customized cable lengths, branching splitters, and custom pitch spacing between fixtures.

   • RGB / RGBW color-changing configurations compatible with external smart controllers.

   • Custom brand packaging, laser-etched faceplate logos, and full pre-wired contractor master cartons.

   CTA

   Equipping a commercial decking or landscape pathway project? Contact the USKYLED engineering team today for technical data sheets, wholesale tiered pricing, and sample kits.

   11 Technical Specifications

   Parameter	Specification
   Product Model	US-MDK05W-IP68
   Rated Power	0.5W / fixture
   Input Voltage	DC 12V (Constant Voltage)
   Light Source	High-efficiency SMD 2835 LED
   Luminous Output	~40–50 lm / fixture
   Beam Angle	120° Wide flood orientation beam
   Color Temperature (CCT)	3000K (Warm) / 4000K (Natural) / 6000K (Cool) / Blue
   Color Rendering Index (CRI)	Ra ≥ 80
   Bezel Material	Marine-Grade 304 Stainless Steel (316 optional)
   Housing Material	Impact-Resistant Engineering Polycarbonate (PC)
   Ingress Protection	IP68 Waterproof (Submersible & Wet Location Rated)
   Dimensions	Outer Dia. Ø 32 mm × Depth 23 mm
   Cutout Diameter	Ø 22 mm – Ø 24 mm
   Weight Capacity	Walk-over safe (> 100 kg surface load)
   Operating Lifespan	> 50,000 Hours
   Minimum Order Quantity (MOQ)	1 pcs
   Sample Lead Time	3 – 7 days
   Mass Order Lead Time	7 – 15 days
