H2 — Product Introduction
The USKYLED 3W RGBW LED cabinet light brings adjustable color and warm white illumination to display cabinets, shelving, and fitted furniture. Measuring just 60mm in diameter and 8mm in height, this compact puck light keeps the fitting discreet where installation space is limited.
Use the dedicated 3000K warm white channel for everyday display lighting, or select RGB colors to change the mood of a cabinet or retail presentation. Separate DC12V and DC24V versions are available, allowing you to choose the model that matches your lighting system.
For cabinet makers, shopfitters, and lighting distributors, the fixture offers a compact option for sample evaluation and project purchasing, with a minimum order quantity of one piece.
H3 — Design

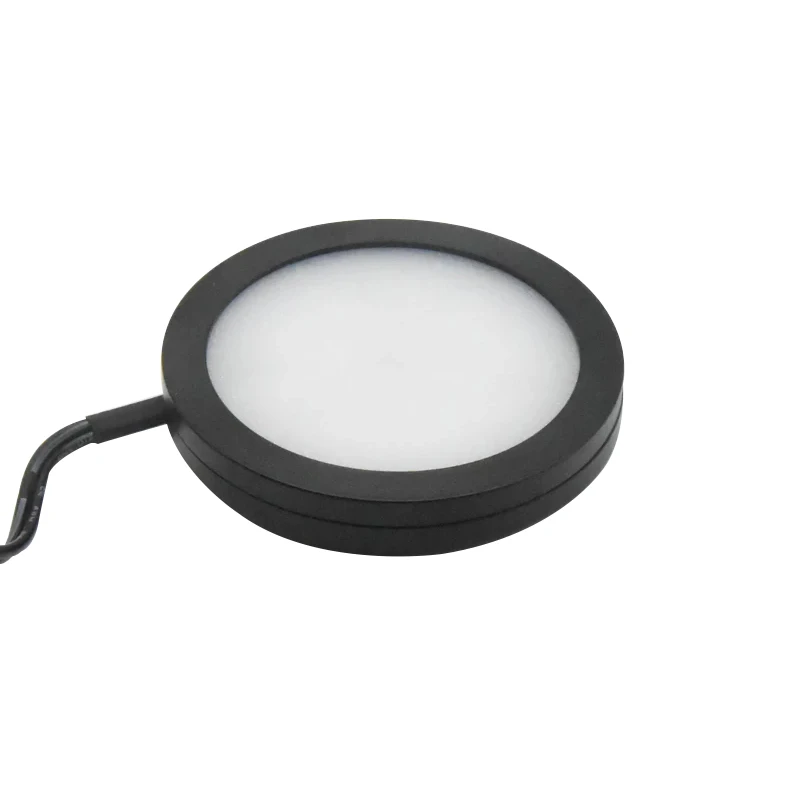

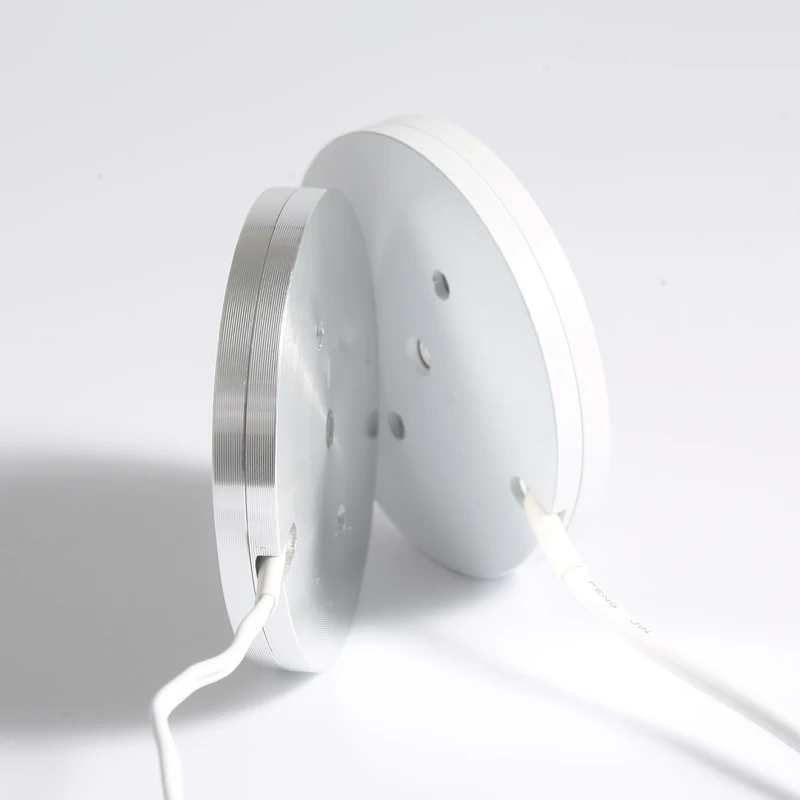

The round aluminum housing has a slim 8mm profile for surface-mounted installation beneath shelves or inside cabinets. Its compact dimensions make it suitable for furniture layouts where a larger light fitting would take up valuable display space.

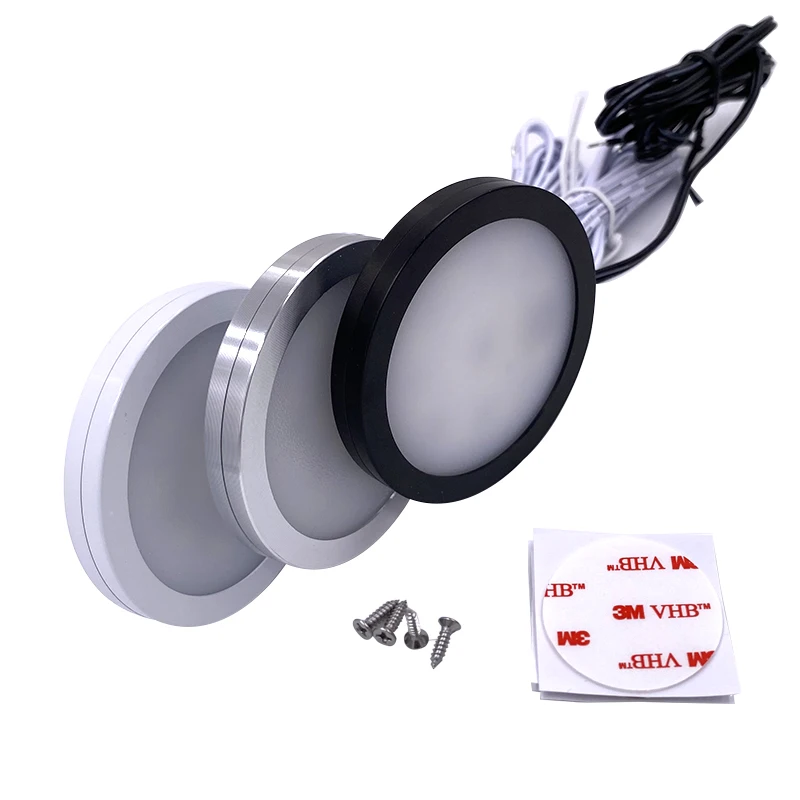

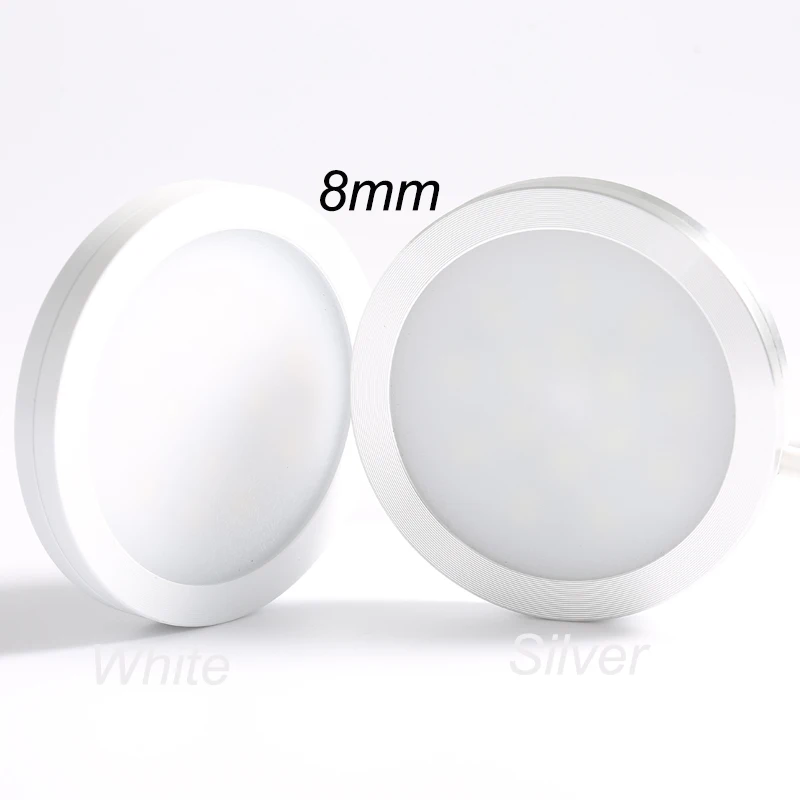

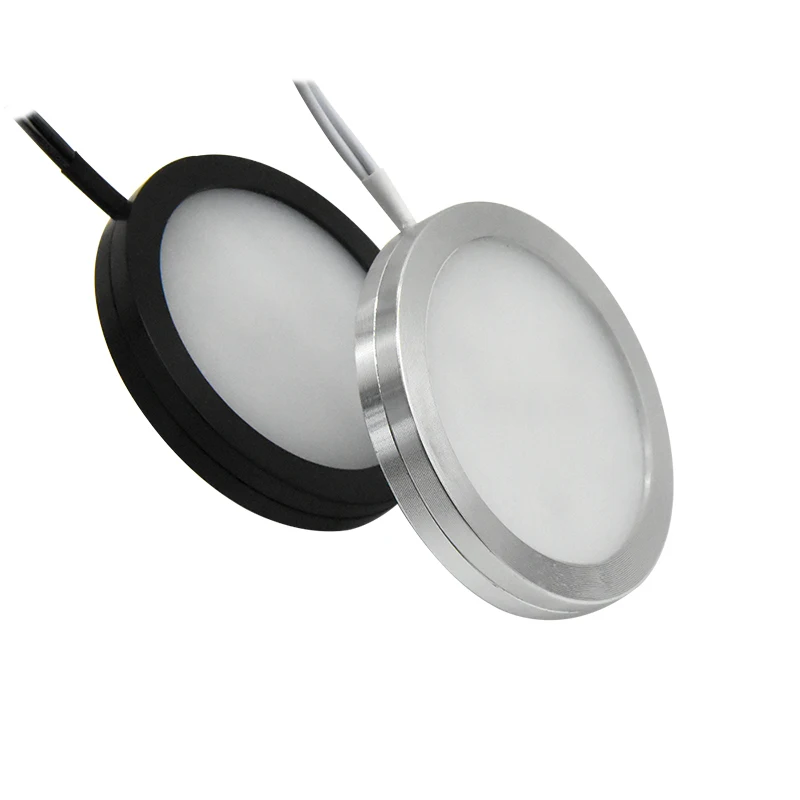

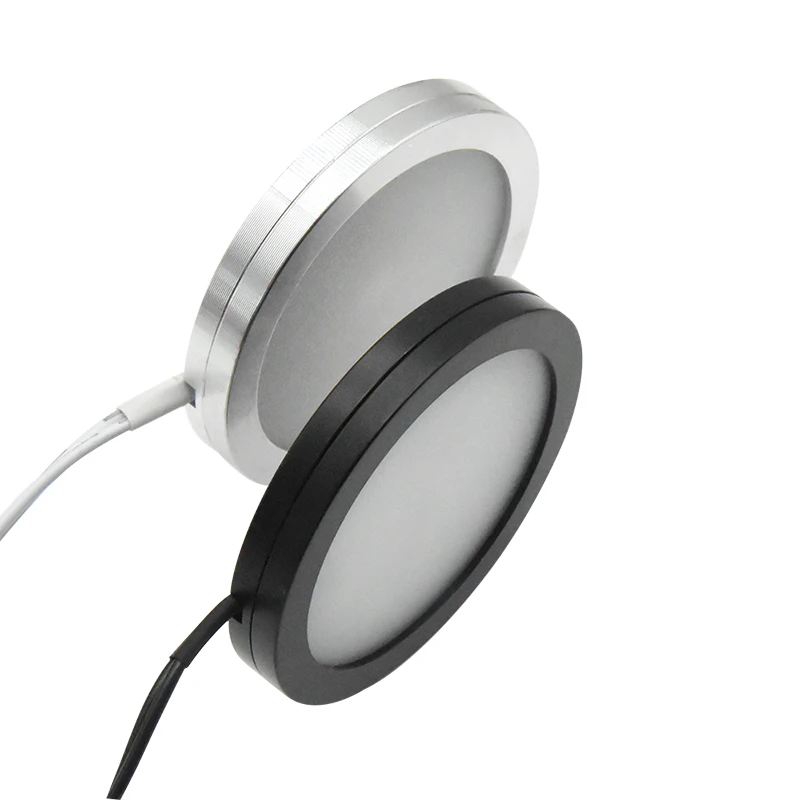

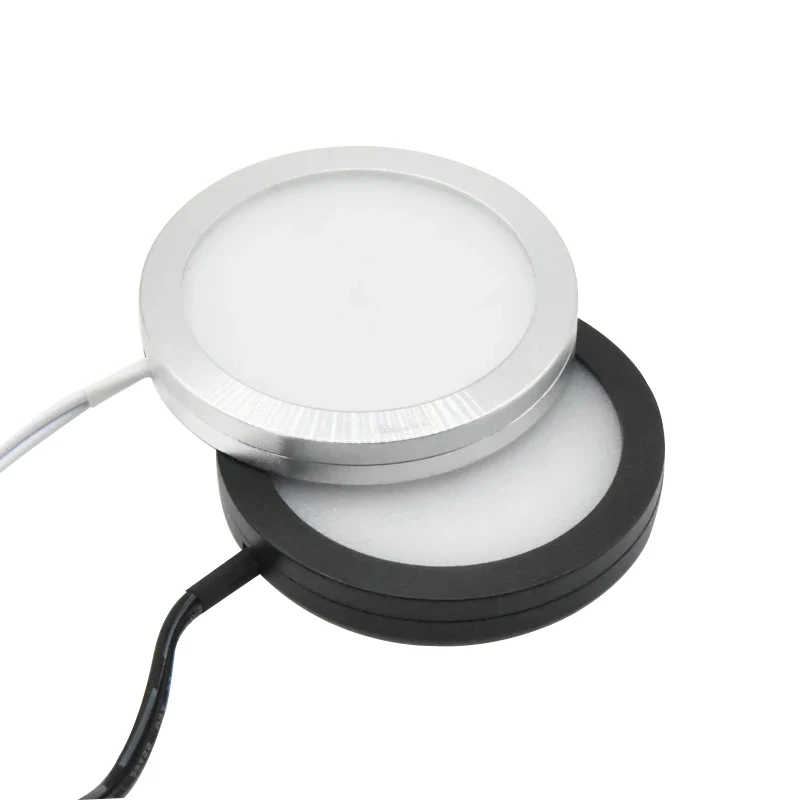

Choose a black, silver, or white housing to coordinate with cabinet interiors and surrounding hardware. The listed 120° beam angle provides a broad spread of light for nearby surfaces and display contents.
H3 — Main Features
- Slim dimensions: Ø60 × H8mm housing for compact cabinet installations.
- 3W rated power: Suitable for localized shelf and display illumination.
- RGBW lighting: RGB colors plus a dedicated 3000K warm white channel.
- Two voltage options: Separate DC12V and DC24V models.
- PWM dimming: Adjust brightness with a compatible controller.
- Aluminum housing: Available in black, silver, and white finishes.
- Surface-mounted design: Suitable for cabinet panels and shelving.
- Low minimum order: Order from one piece for evaluation or small projects.
H3 — Application

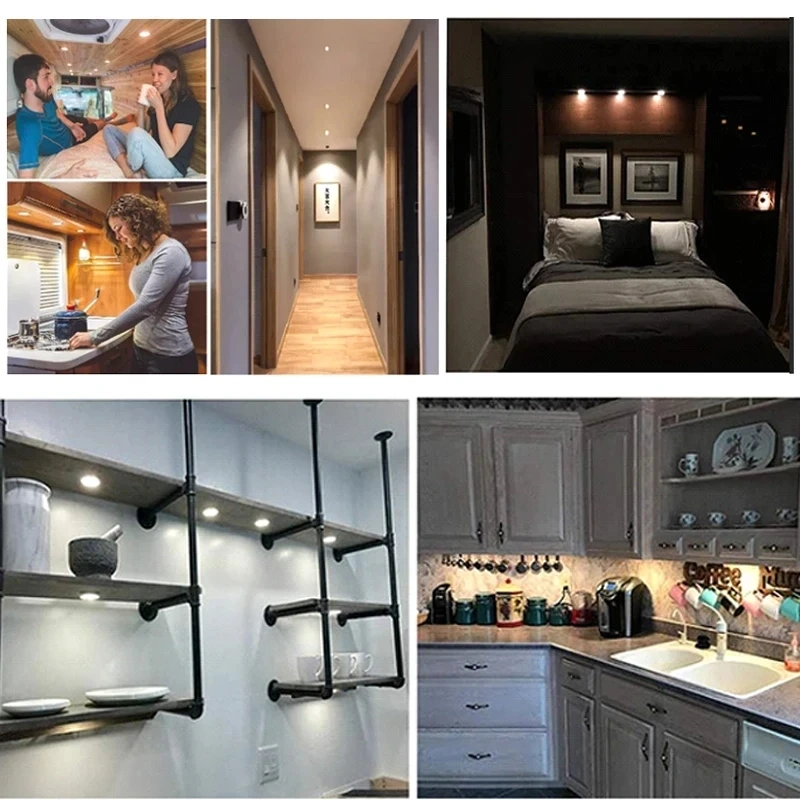

This RGBW LED puck light is suitable for indoor furniture and display applications, including:
- Jewelry display cabinets.
- Retail showcases and product shelves.
- Wine cabinets and bar shelving.
- Bookcases and decorative shelving.
- Wardrobe display compartments.
- Kitchen cabinet accent lighting.
- Hotel furniture and reception display units.
Use warm white light for a consistent everyday presentation and RGB colors for decorative effects. For jewelry projects with strict color-rendering requirements, evaluate a sample with the actual merchandise before specifying the full installation.
H3 — Size / Options

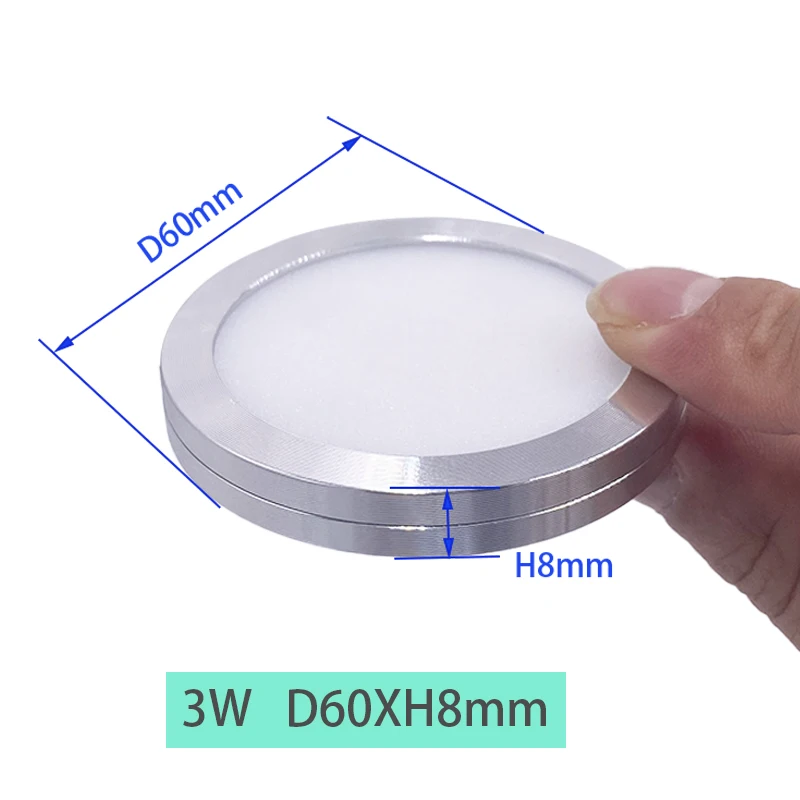

The fixture measures 60mm in diameter and 8mm in height.
Current selectable configurations include:
| Option |
Available Selection |
| Rated power |
3W |
| Input voltage |
DC12V or DC24V |
| Light color |
RGBW with 3000K warm white |
| Housing finish |
Black, silver, or white |
| Mounting |
Surface mounted |
Select the voltage before ordering. The 12V and 24V versions are separate options and should be matched to the corresponding power supply.
H3 — Lighting Options

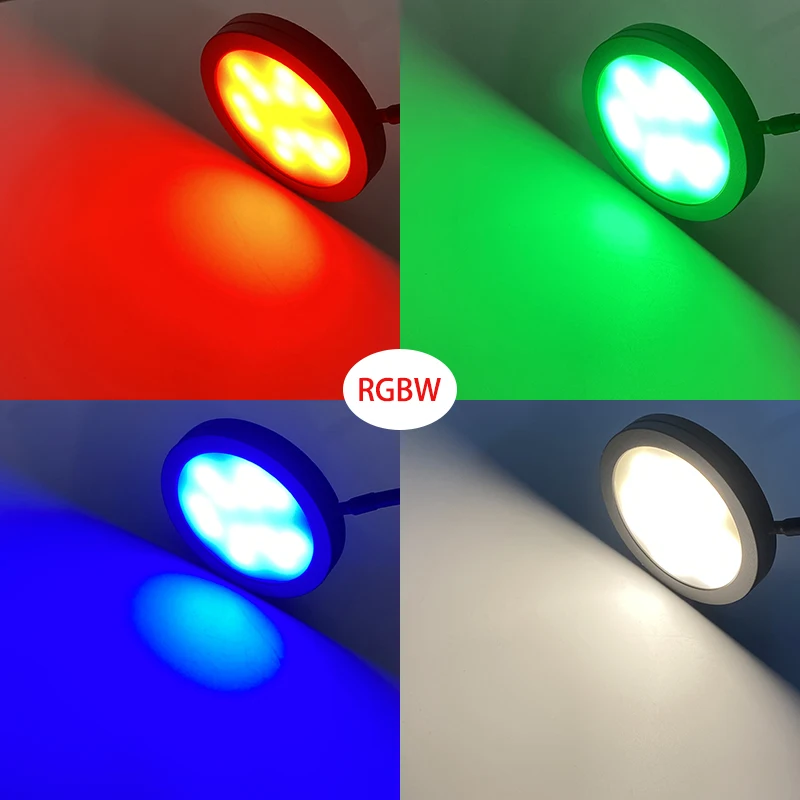

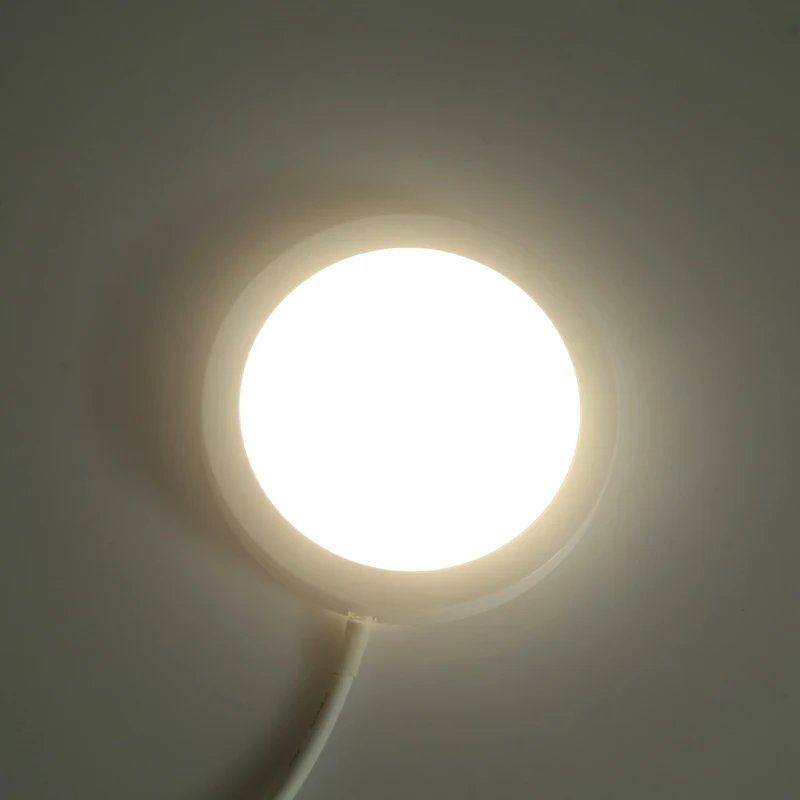

The RGBW3000K configuration combines red, green, and blue lighting with a dedicated warm white channel. This allows the same fitting to provide decorative color lighting and 3000K white illumination.
PWM dimming is supported when the fixture is paired with a compatible RGBW controller. Available color modes and control functions depend on the controller selected.
The LED power supply and RGBW controller are not included and must be purchased separately.

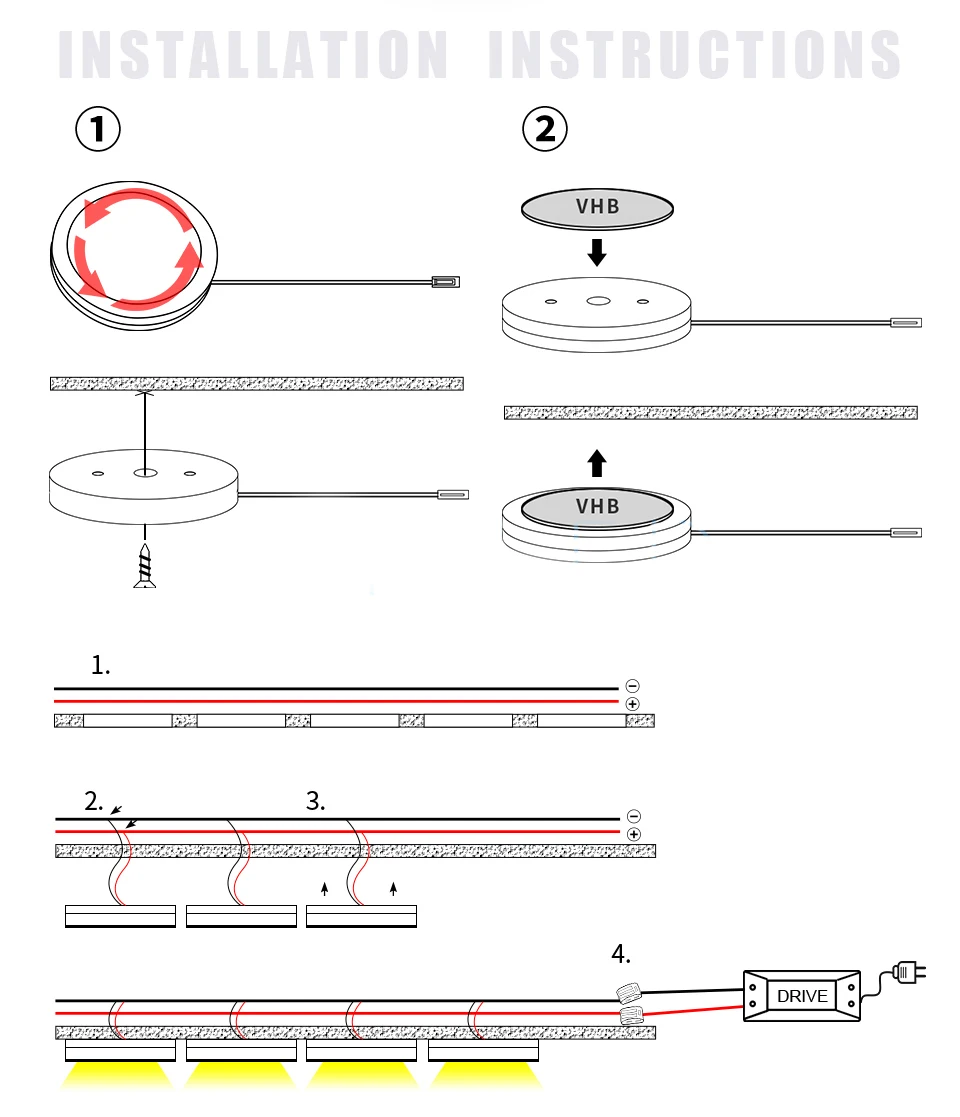

H3 — Installation
Plan the light positions, cable routes, and locations of the power supply and controller before installation. Keep the power supply and controller accessible for inspection and maintenance.
- Select the DC12V or DC24V fixture to match the planned system.
- Install the light using the mounting method supplied for the selected model.
- Connect the fixture to a compatible RGBW controller according to the wiring diagram.
- Connect the controller to a matching DC power supply.
- Test the color channels, warm white output, and dimming before completing the cabinet installation.
Do not connect the fixture directly to AC mains voltage. Confirm the controller capacity and power supply sizing for the total connected load.
H3 — Technical Specifications
| Parameter |
Specification |
| Product type |
RGBW LED cabinet puck light |
| Rated power |
3W |
| Input voltage |
DC12V or DC24V, depending on model |
| Light color |
RGB + 3000K warm white |
| Dimming method |
PWM with compatible controller |
| Housing material |
Aluminum |
| Housing finish |
Black / Silver / White |
| Dimensions |
Ø60 × H8mm |
| Mounting type |
Surface mounted |
| Beam angle |
120°, as listed |
| Protection rating |
IP52, as listed |

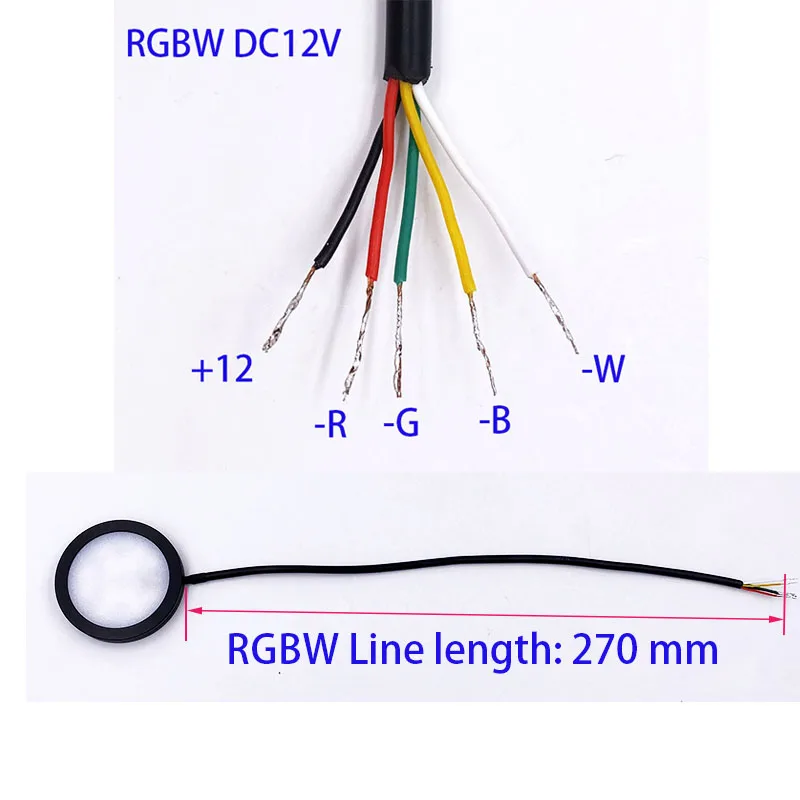

| RGBW cable length |
270mm, as listed |
| Power supply |
Sold separately |
| RGBW controller |
Sold separately |
H3 — Project Applications
For retail showcases, use several fixtures positioned to suit the cabinet dimensions and product arrangement. Check the lighting on the actual display materials, especially glass, polished metal, and reflective jewelry surfaces.
For furniture projects, the shallow housing helps keep the installation visually discreet. Coordinating the housing finish with the cabinet interior can make the fitting less noticeable when viewed from normal standing or seated positions.
For wholesale orders, specify the required voltage, housing finish, quantity, and controller requirements so the quotation matches the intended installation.
H3 — OEM/ODM
For OEM/ODM inquiries, send USKYLED your required quantity, housing finish, voltage, cable requirements, and packaging specifications. Customization availability, minimum quantities, pricing, and lead times will be confirmed for the requested configuration.
Standard product orders start from one piece. Custom orders may require different quantities and production schedules.
CTA
Planning a cabinet or showcase lighting project? Contact USKYLED with your required voltage, housing finish, quantity, and control requirements for a quotation.
MOQ: 1 piece
Sample order lead time: 3–7 days
Mass order lead time: 7–15 days
Power supply and RGBW controller are sold separately. Shipping time is additional.
