Product Introduction
The USKYLED 24V WS2811 COB LED Strip Light is a programmable linear lighting solution designed for projects that require smooth and dynamic running or chasing light effects.
Unlike conventional static LED strips, this product combines COB LED technology with WS2811 pixel control, allowing different sections of the strip to illuminate sequentially and create flowing visual effects.
With 360 LEDs/m, the COB design provides a continuous and uniform luminous appearance, helping reduce visible LED points and creating a cleaner linear lighting effect.
The strip operates at DC24V and uses approximately 10–12W/m. The current specification also lists a 10mm PCB width, 12 ICs/m, IP20 indoor use, and a standard 10m roll.
The system is suitable for architectural lighting, retail environments, hotels, restaurants, bars, showrooms, stage installations, event lighting and decorative interior projects.
Design

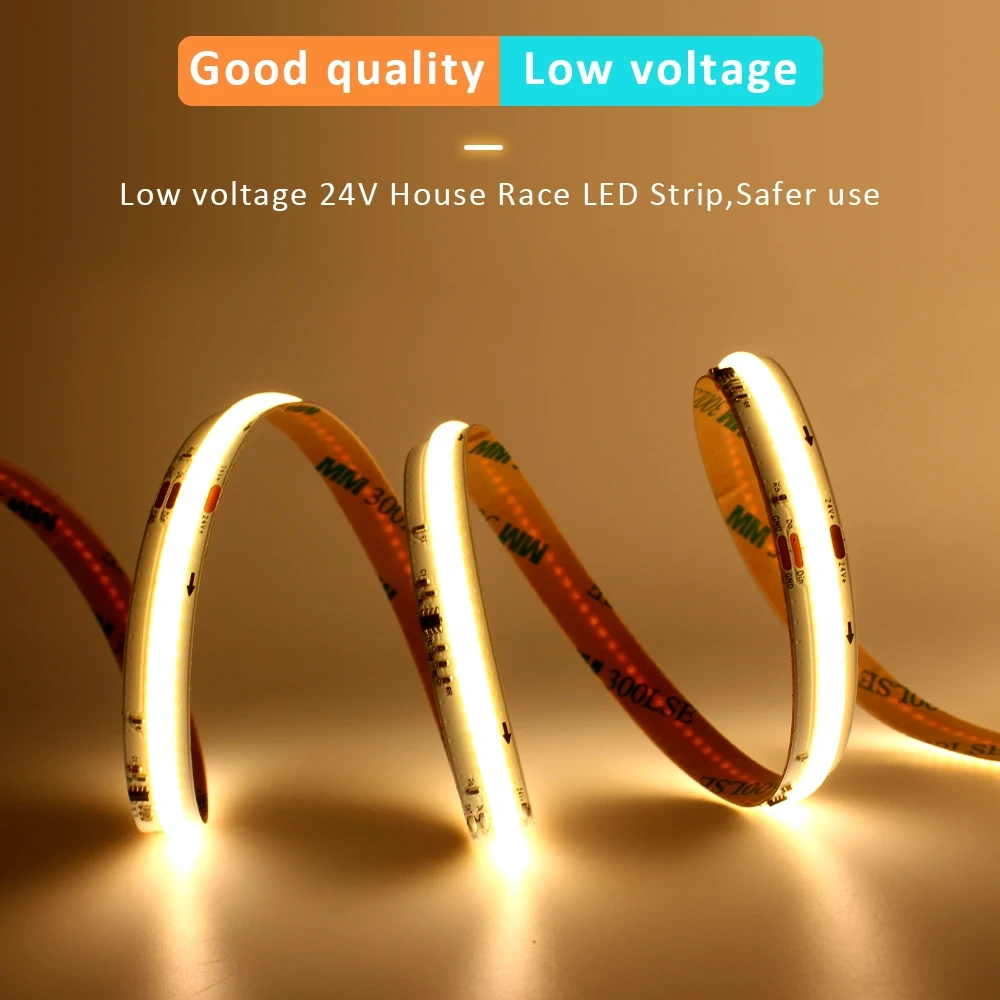

The strip uses a flexible PCB with high-density COB LED technology.
The 360 LEDs/m arrangement creates a smooth linear light output that is particularly suitable for applications where a continuous luminous appearance is preferred.
The 10mm PCB width allows the strip to be integrated into compatible channels, ceiling details, cove lighting structures and decorative linear lighting systems.
The WS2811 control architecture divides the strip into programmable pixel sections, allowing dynamic movement rather than only static illumination.
Main Features
WS2811 Pixel Control
The built-in WS2811 IC system enables programmable sequential lighting effects.
This makes the strip suitable for running, chasing and flowing lighting effects in architectural and entertainment installations.

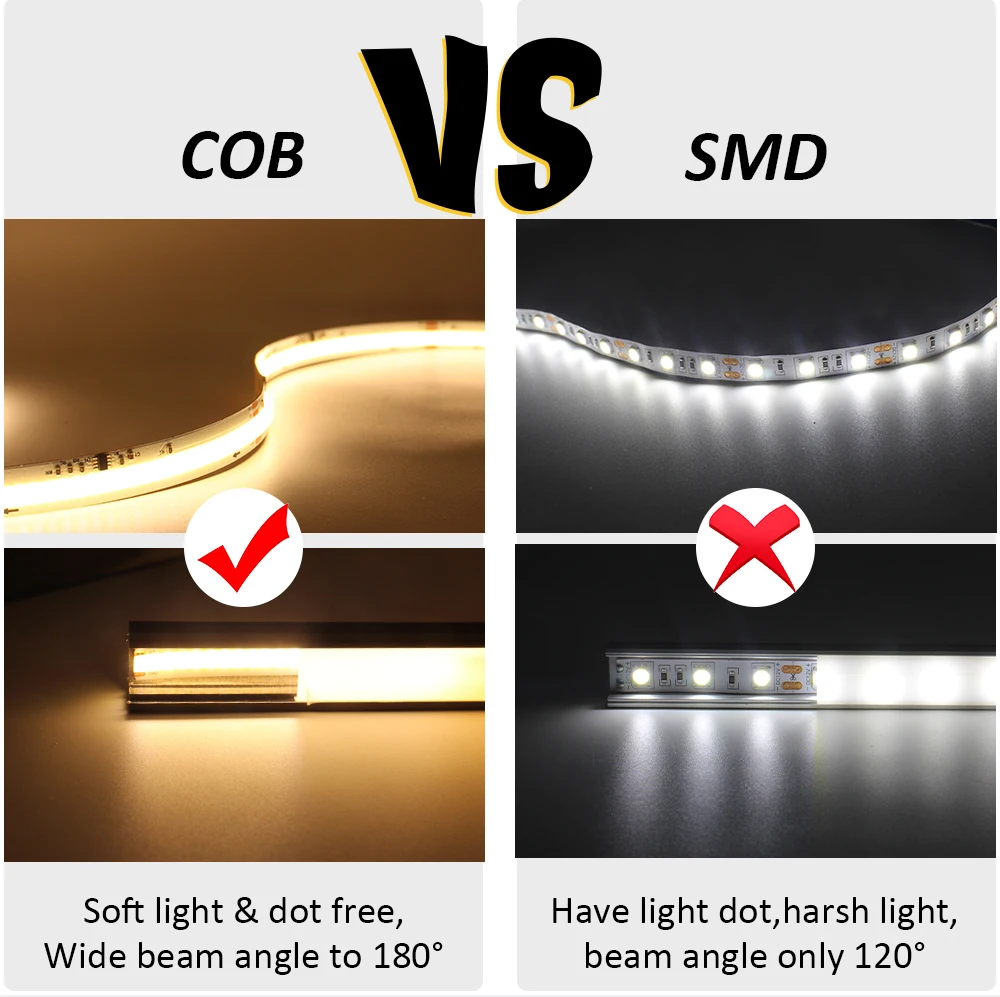

High-Density COB LED Design
With 360 LEDs/m, the COB construction produces a smooth and continuous luminous appearance.

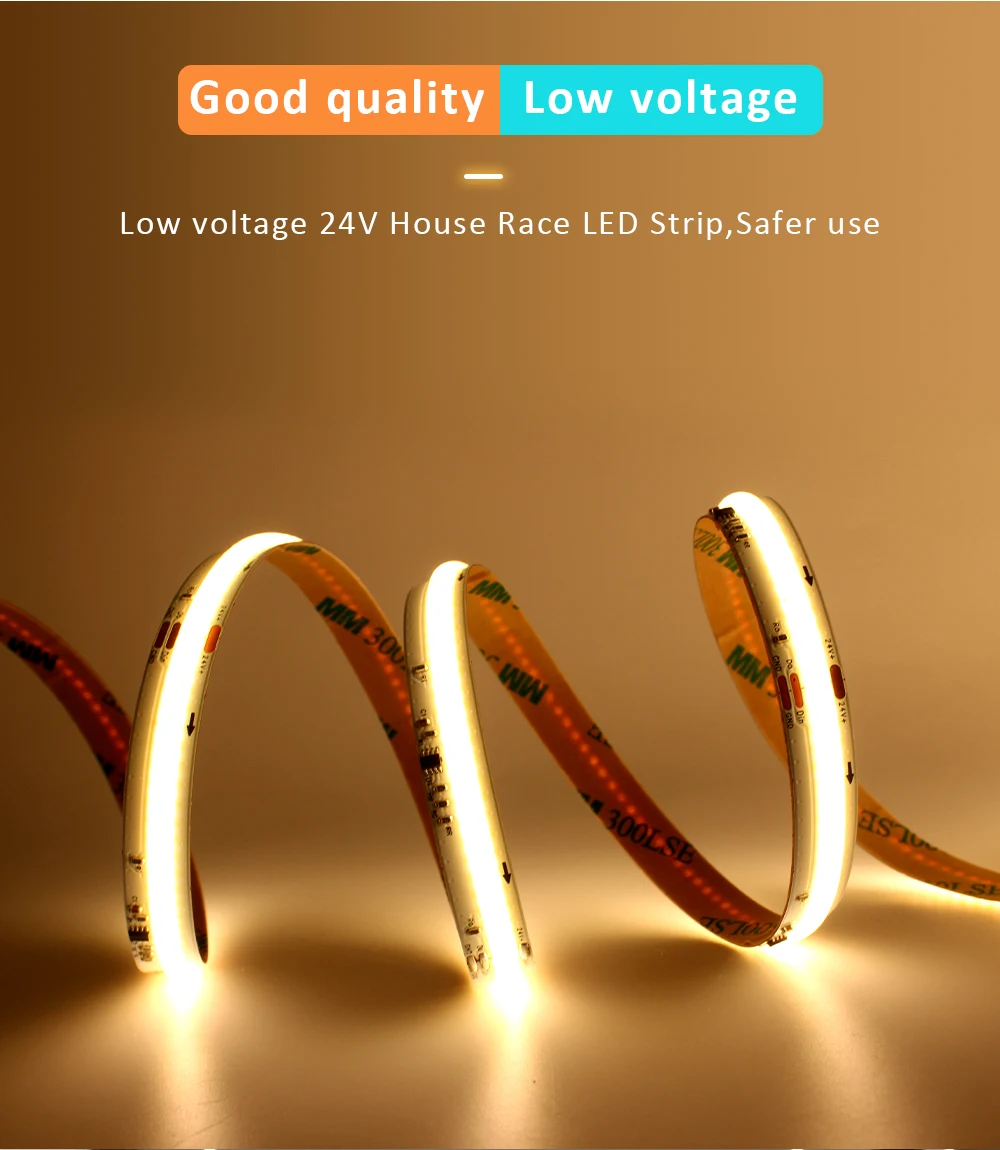

24V DC Operation
The strip uses a 24V DC low-voltage power supply, making it suitable for professional low-voltage LED lighting systems.
Dynamic Running Effect
The WS2811 control system allows sections of the strip to illuminate sequentially, creating dynamic running-light effects.
7 Built-In Lighting Modes
The current product specification lists 7 dynamic lighting modes.

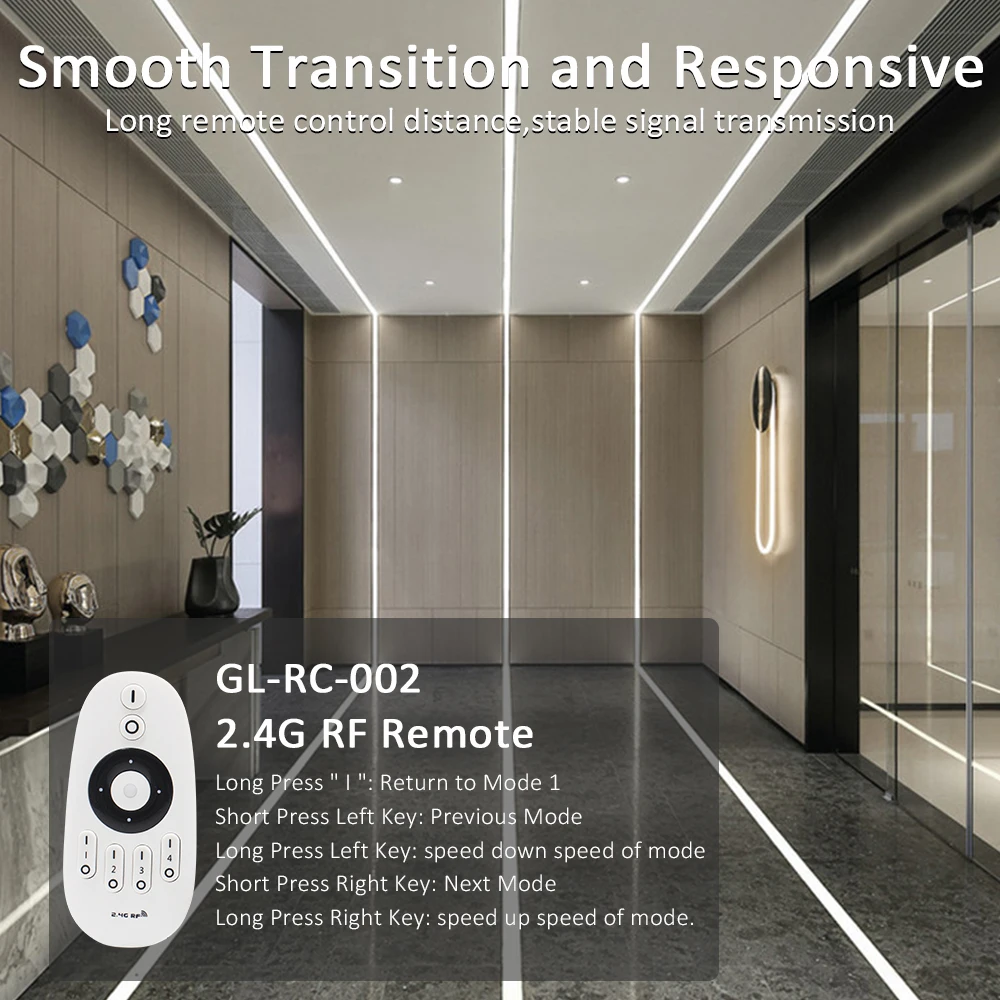

2.4G RF Wireless Control
The system supports a 2.4G RF remote controller for mode, speed and brightness adjustment.
The current page specifies a remote control range of up to 30 meters.

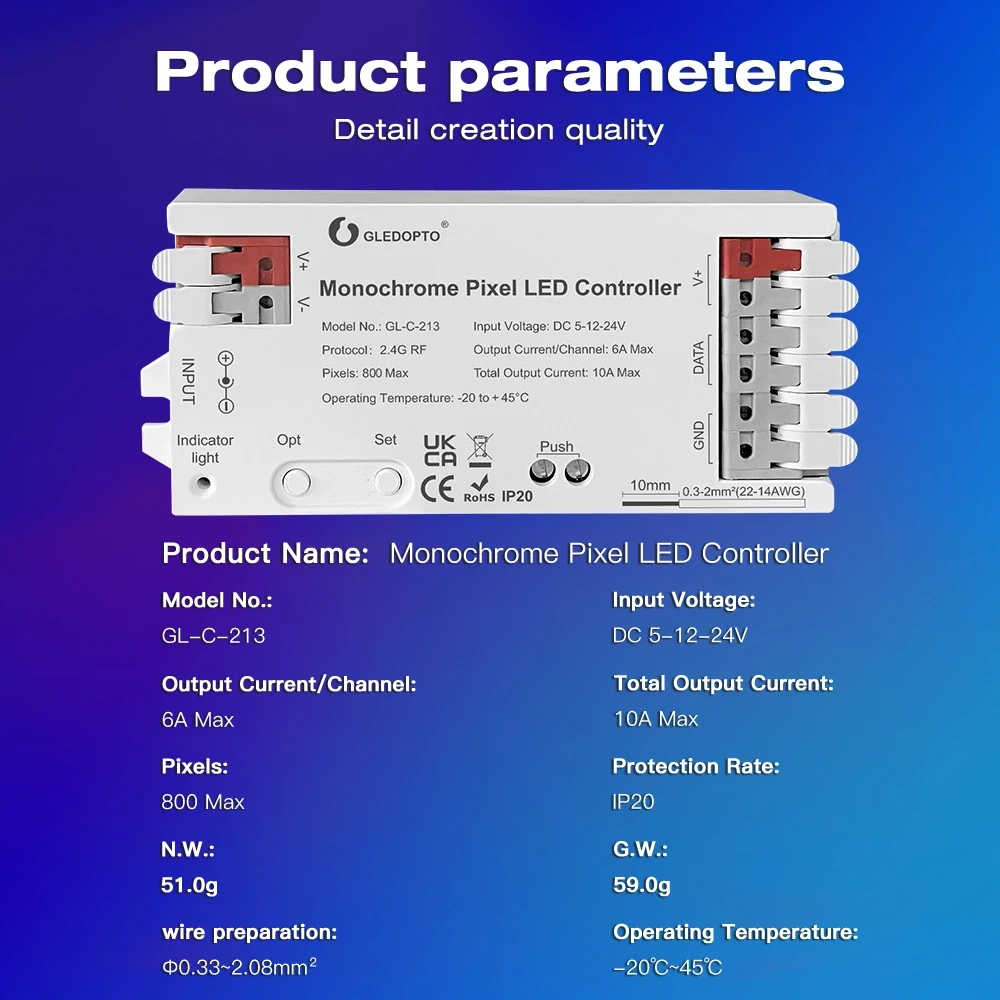

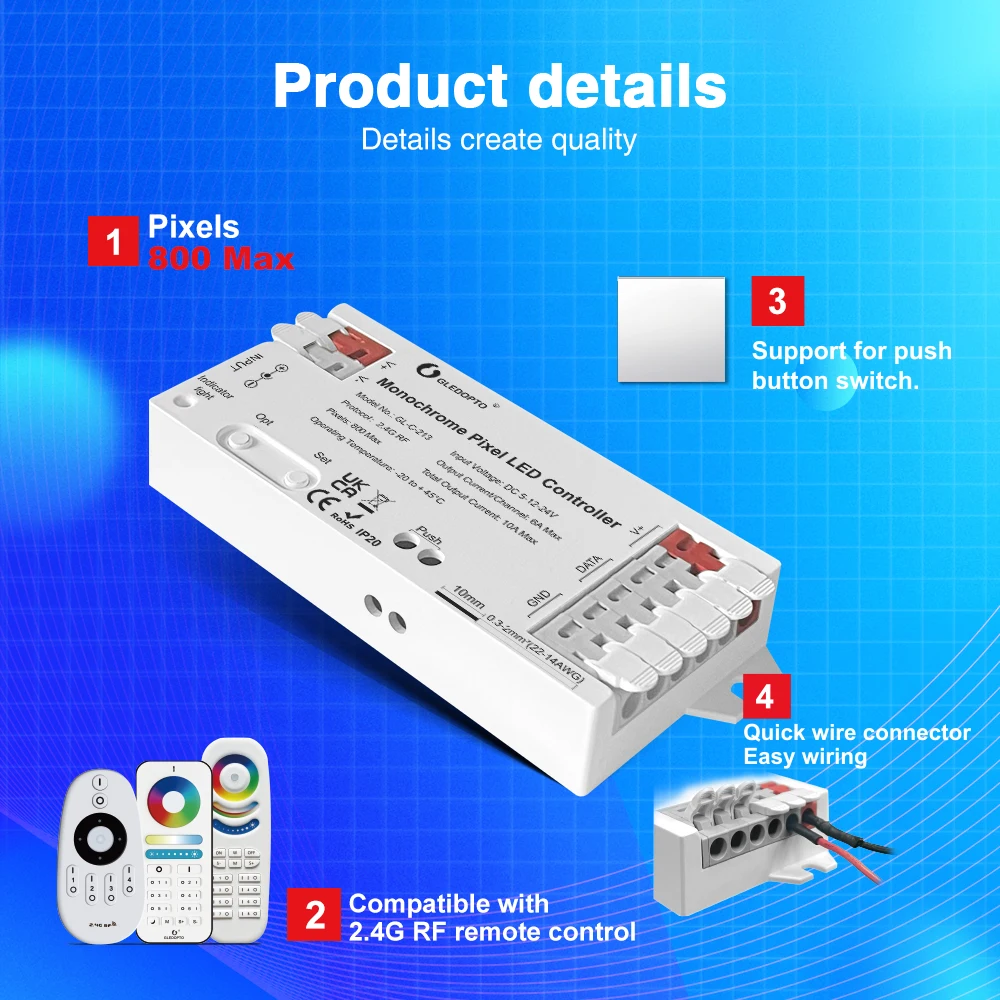

Up to 800 Pixels
The controller can support up to 800 pixels, allowing longer or multi-section dynamic lighting installations.

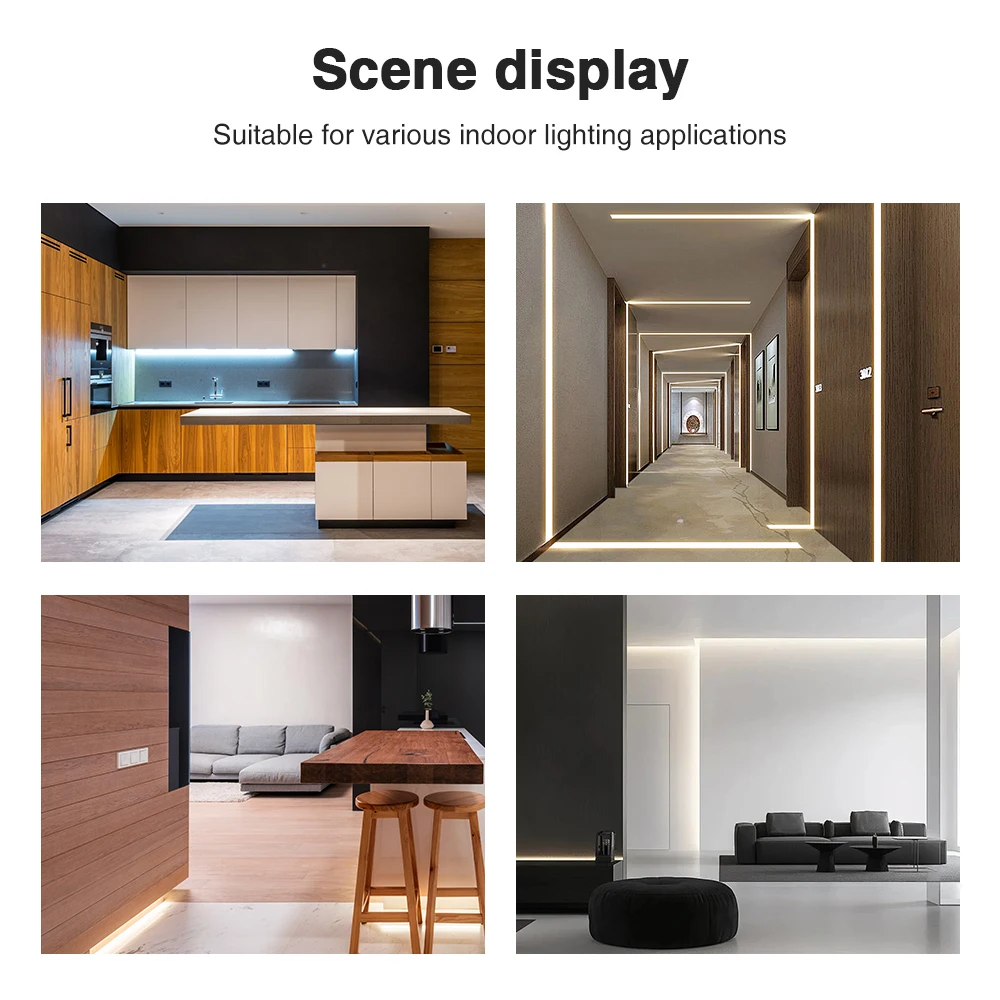

Application
The 24V WS2811 COB LED Strip Light is suitable for:
- Architectural ceiling lighting
- Cove lighting
- Feature walls
- Decorative light lines
- Retail stores
- Shopping malls
- Hotels
- Restaurants
- Bars
- Showrooms
- Stage lighting
- LED walls
- Fashion shows
- Entertainment venues
- Event installations
- Residential ceilings
- Staircases
- Home theaters
- Decorative wall lighting
These application categories are consistent with the current product page.
Size / Options
Standard Voltage
DC24V
LED Density
360 LEDs/m
IC Density
12 ICs/m
PCB Width
10mm
Power Consumption
10–12W/m

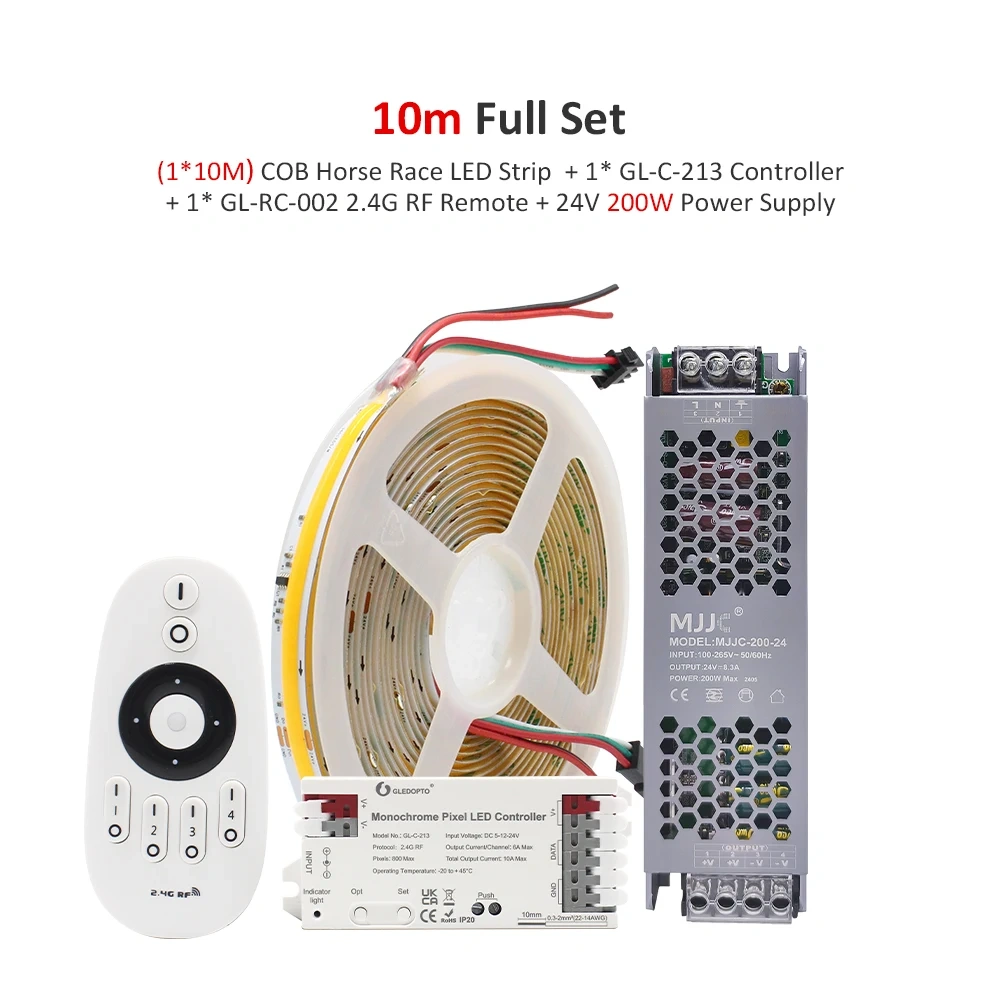

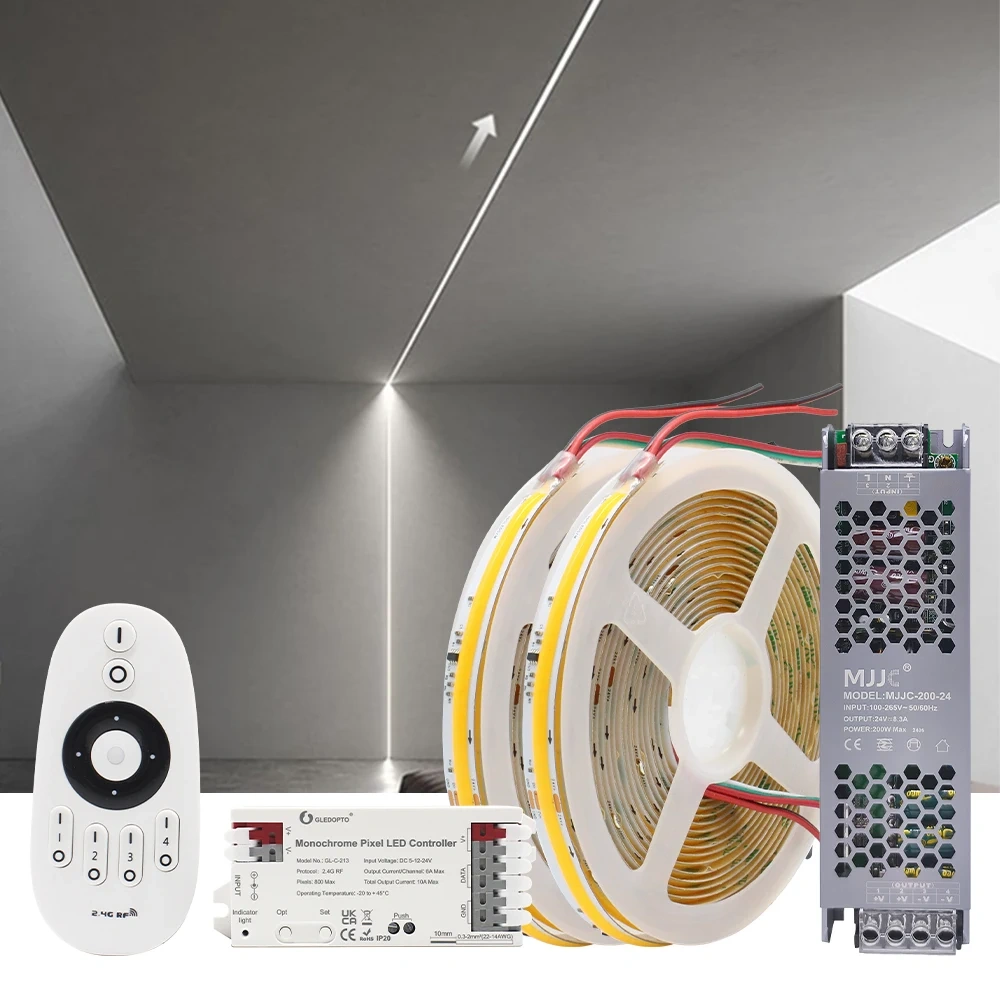

Standard Length Options
- 5m Strip Only

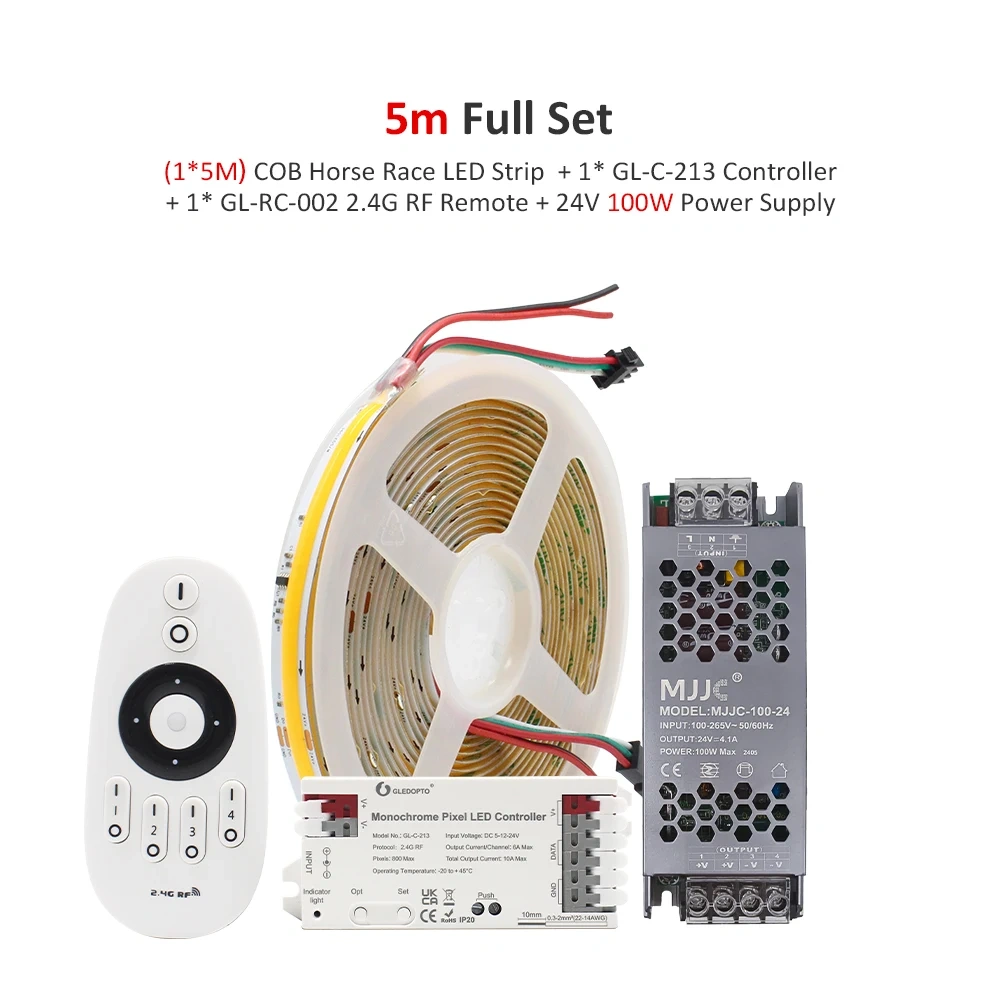

- 5m Full Set

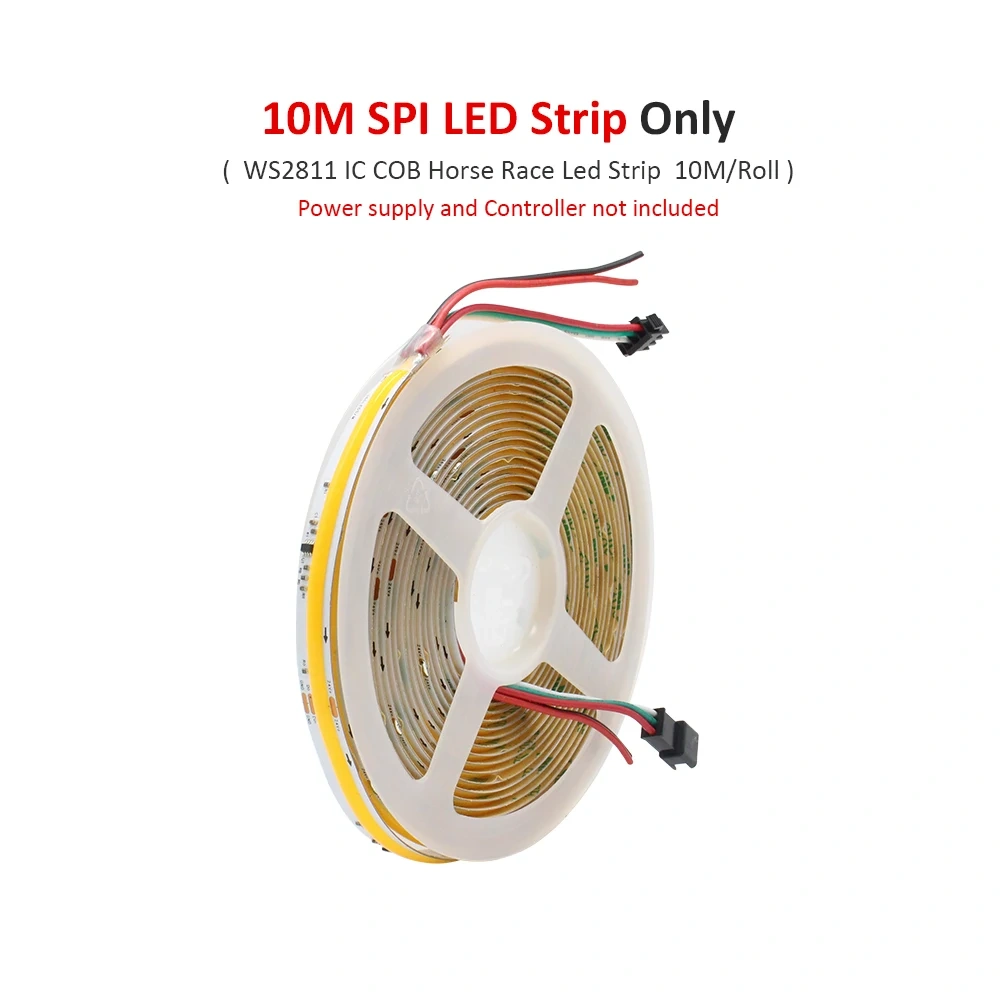

- 10m Strip Only
- 10m Full Set

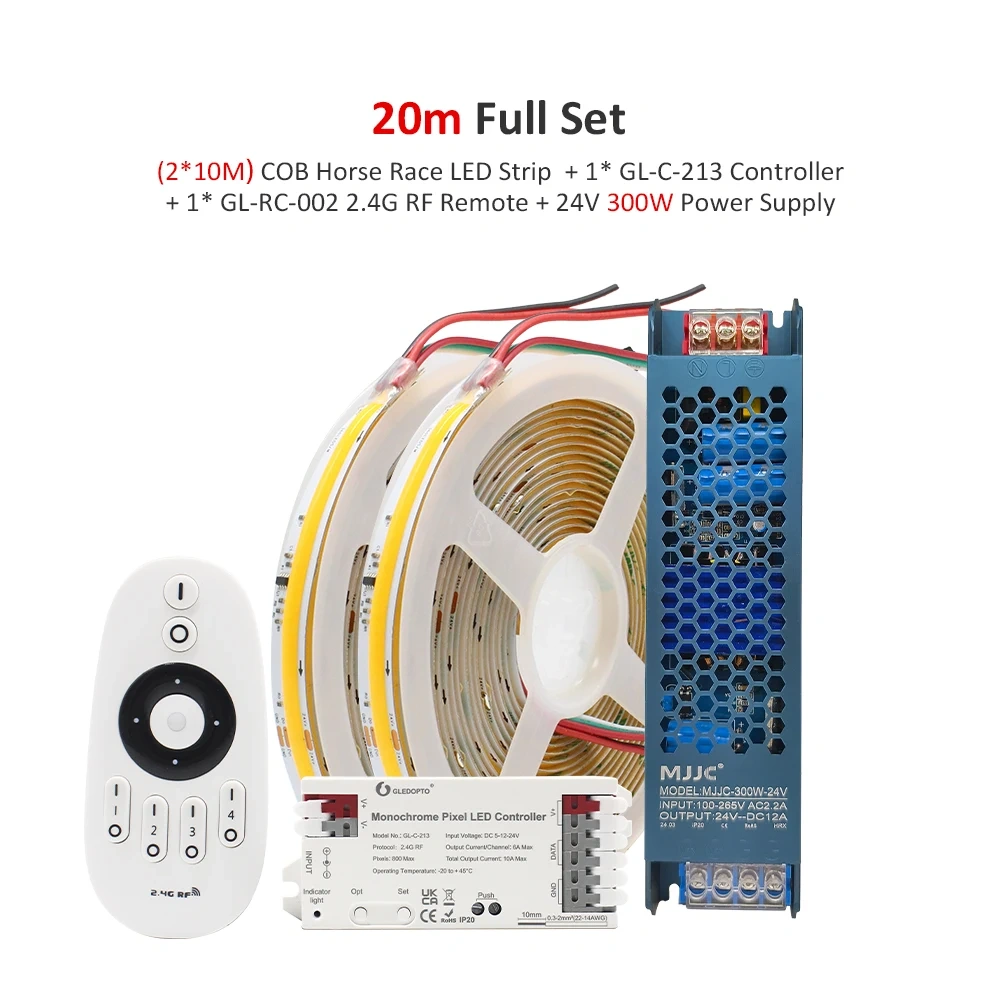

- 20m Full Set

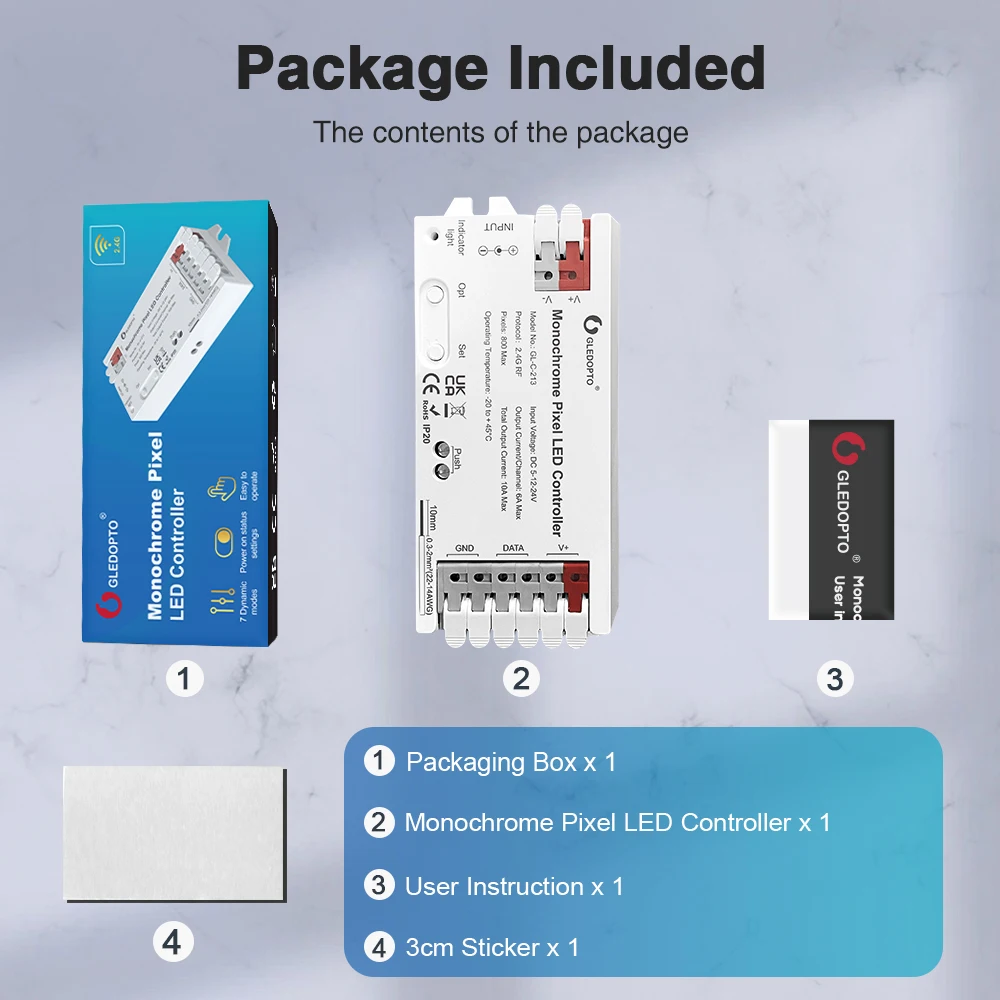

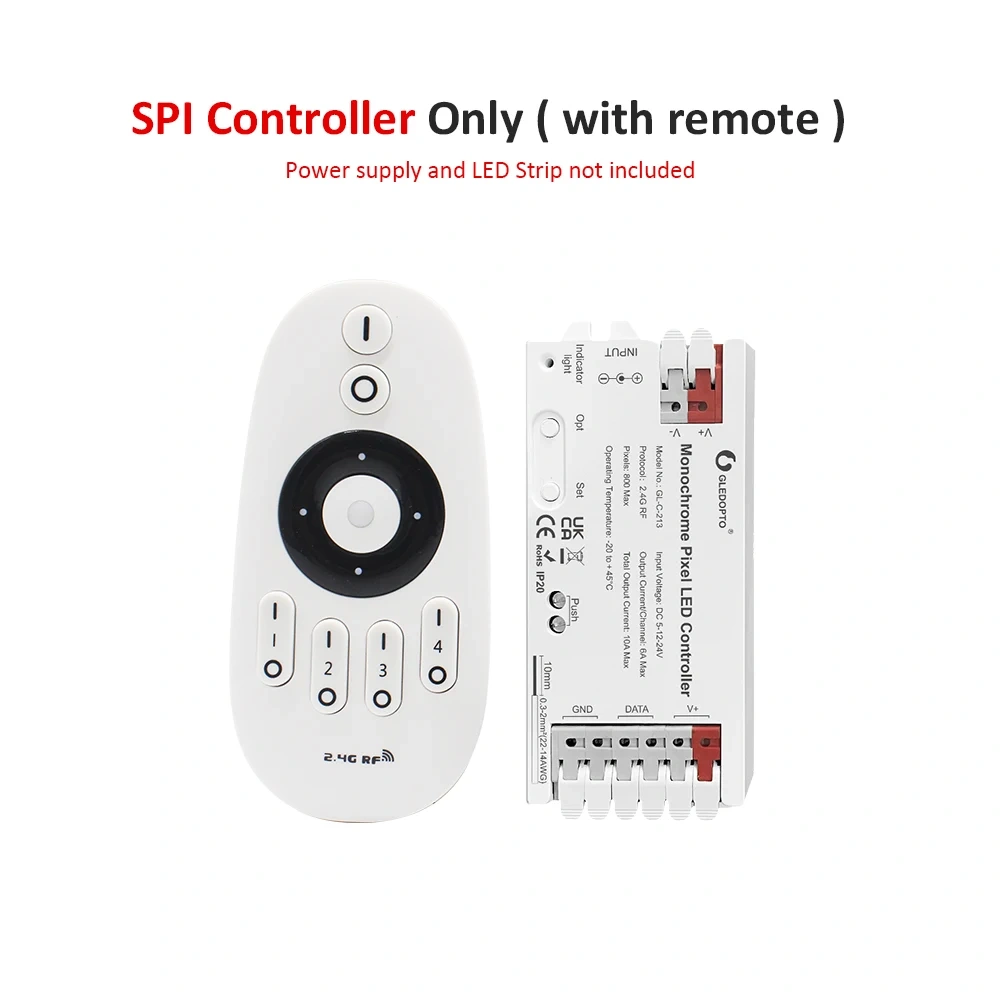

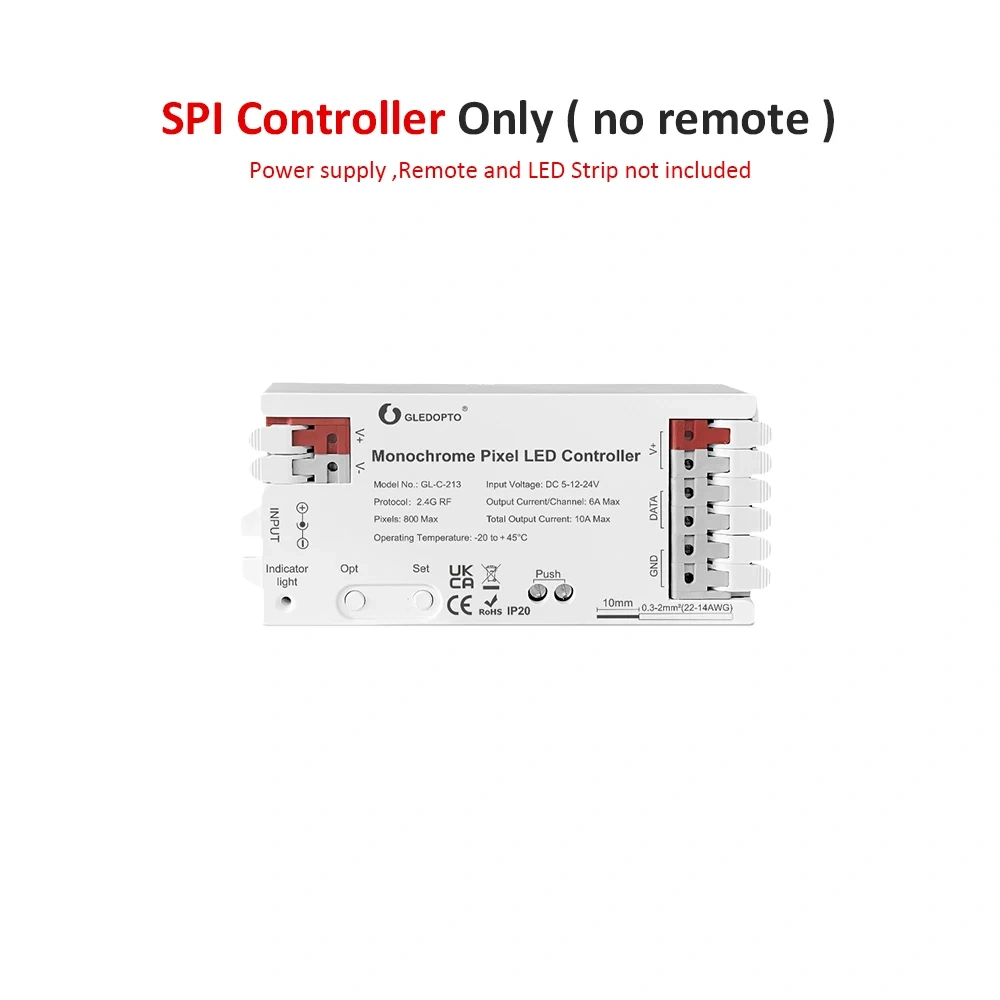

- Controller Only
- Controller Remote
These options are currently shown in the product variants.

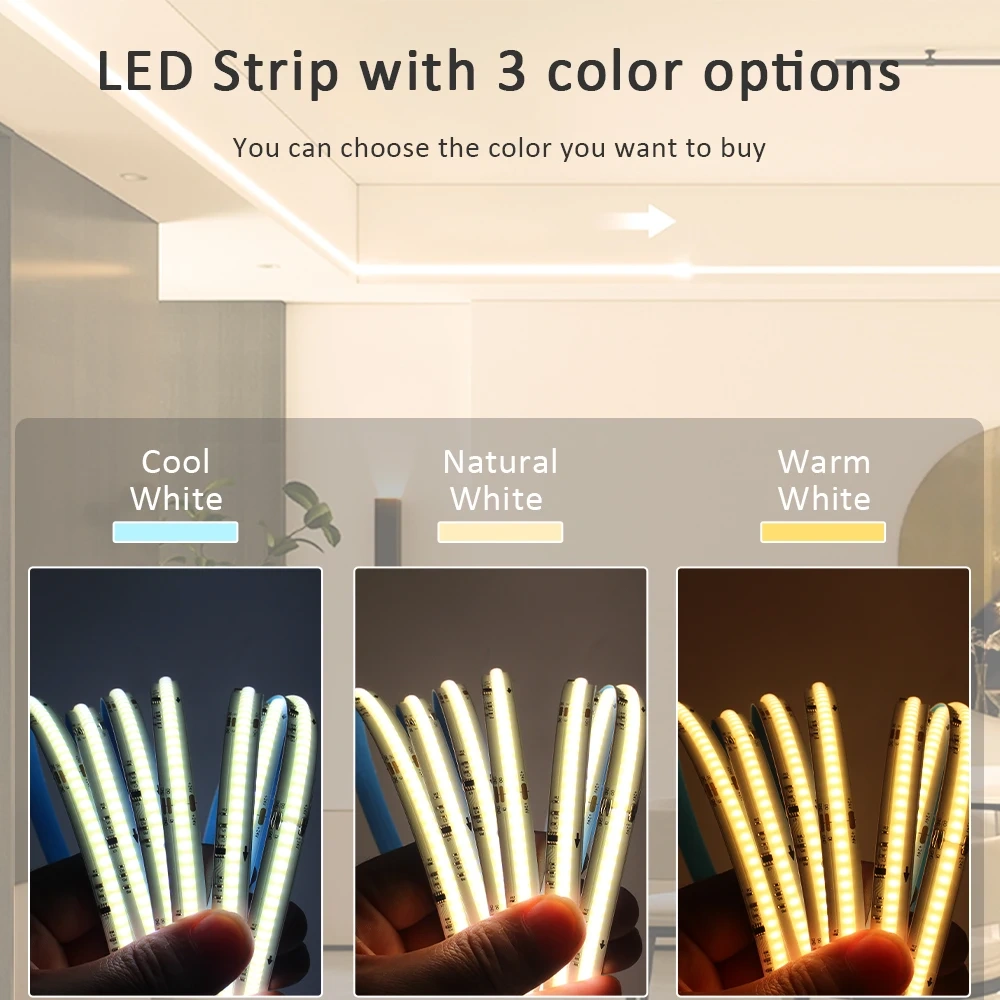

Color Temperature
- 3000K Warm White
- 4000K Natural White
- 6000K Cool White
Protection Rating
IP20 — Indoor Use
The current technical information explicitly identifies this version as non-waterproof IP20.

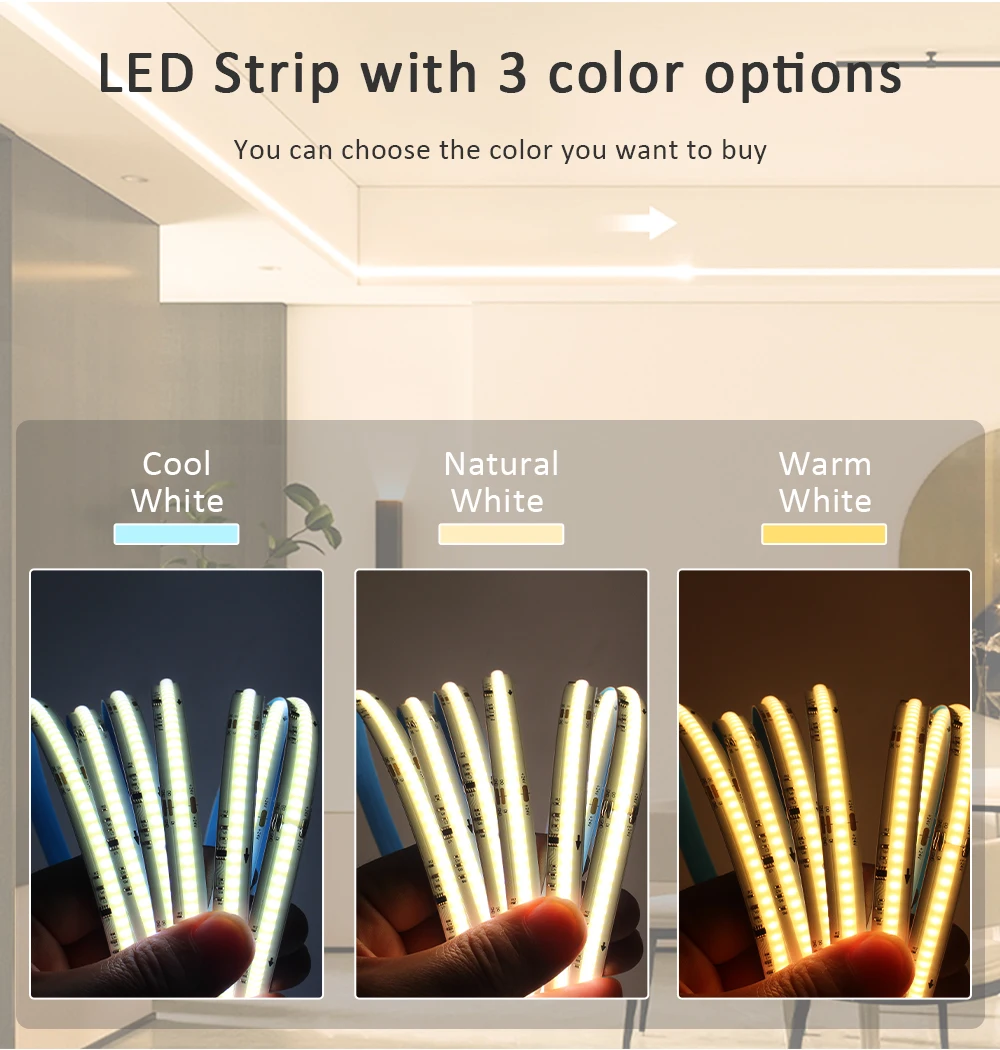

Lighting Options
3000K Warm White
Suitable for:
- Hotels
- Restaurants
- Bars
- Hospitality interiors
- Decorative architectural lighting
4000K Natural White
Suitable for:
- Retail stores
- Showrooms
- Commercial interiors
- Office environments
6000K Cool White
Suitable for:
- Modern commercial spaces
- Exhibition environments
- High-visibility decorative installations
Dynamic Effects
The WS2811 controller can provide:
- Running effects
- Chasing effects
- Flowing effects
- Sequential lighting
- Speed adjustment
- Brightness adjustment
- Multiple-zone control
The current page lists 7 modes and independent 4-zone control through the controller/remote system.

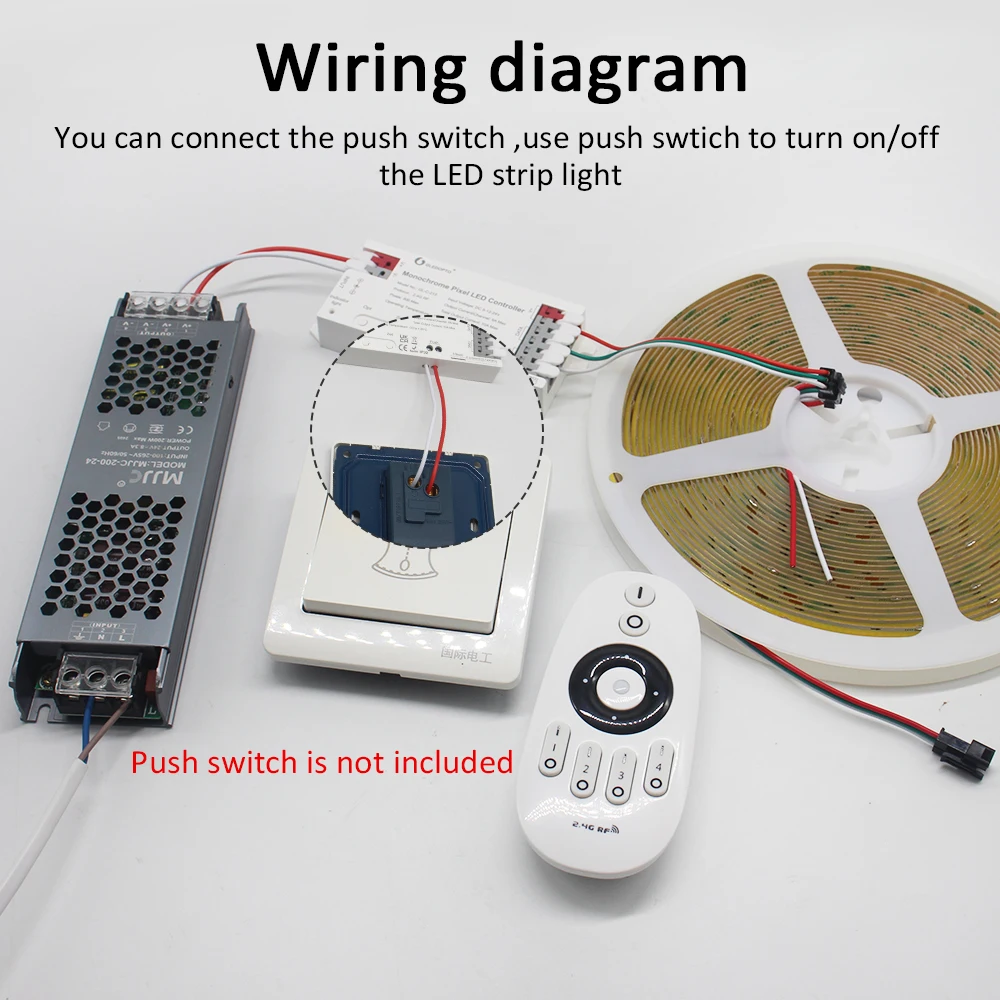

Installation
The WS2811 COB LED Strip should be installed with a suitable 24V DC power supply and compatible WS2811 controller.
Recommended installation process:
- Measure the required installation length.
- Select the appropriate strip length.
- Prepare a compatible 24V DC power supply.

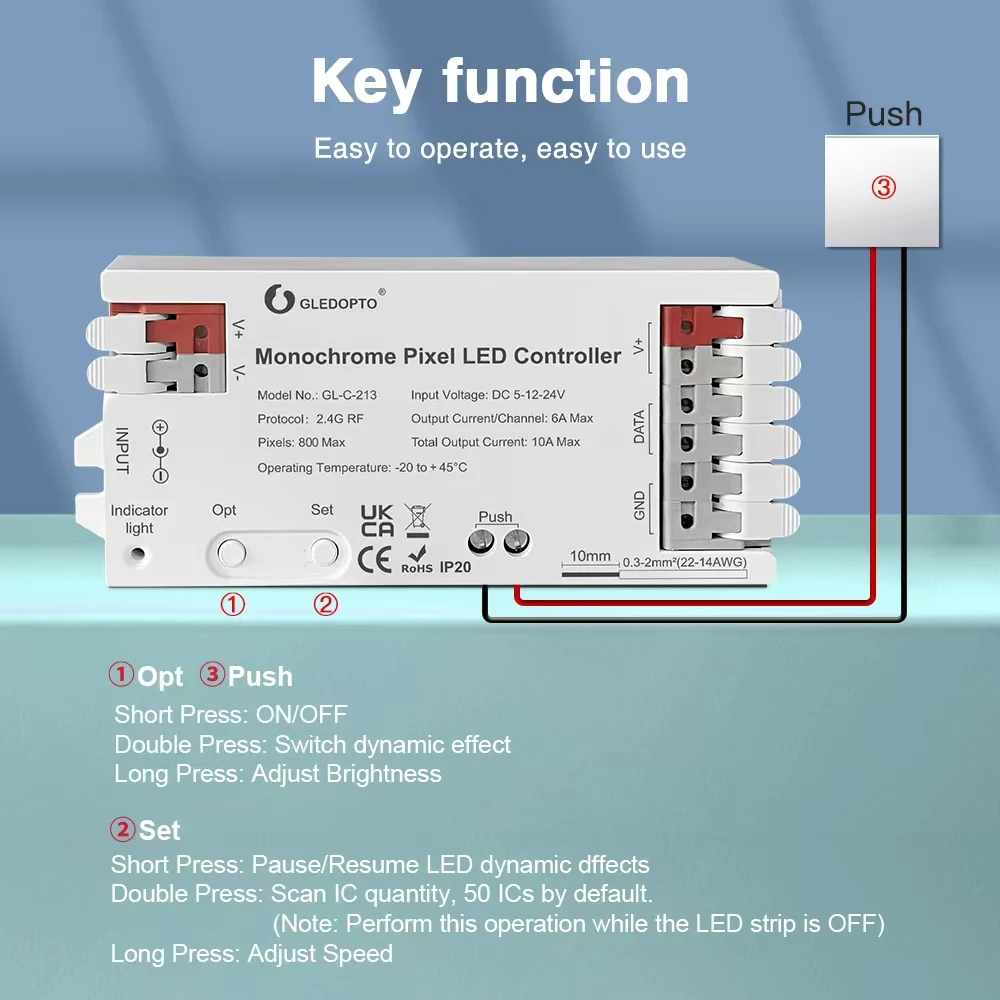

- Connect the WS2811 controller.

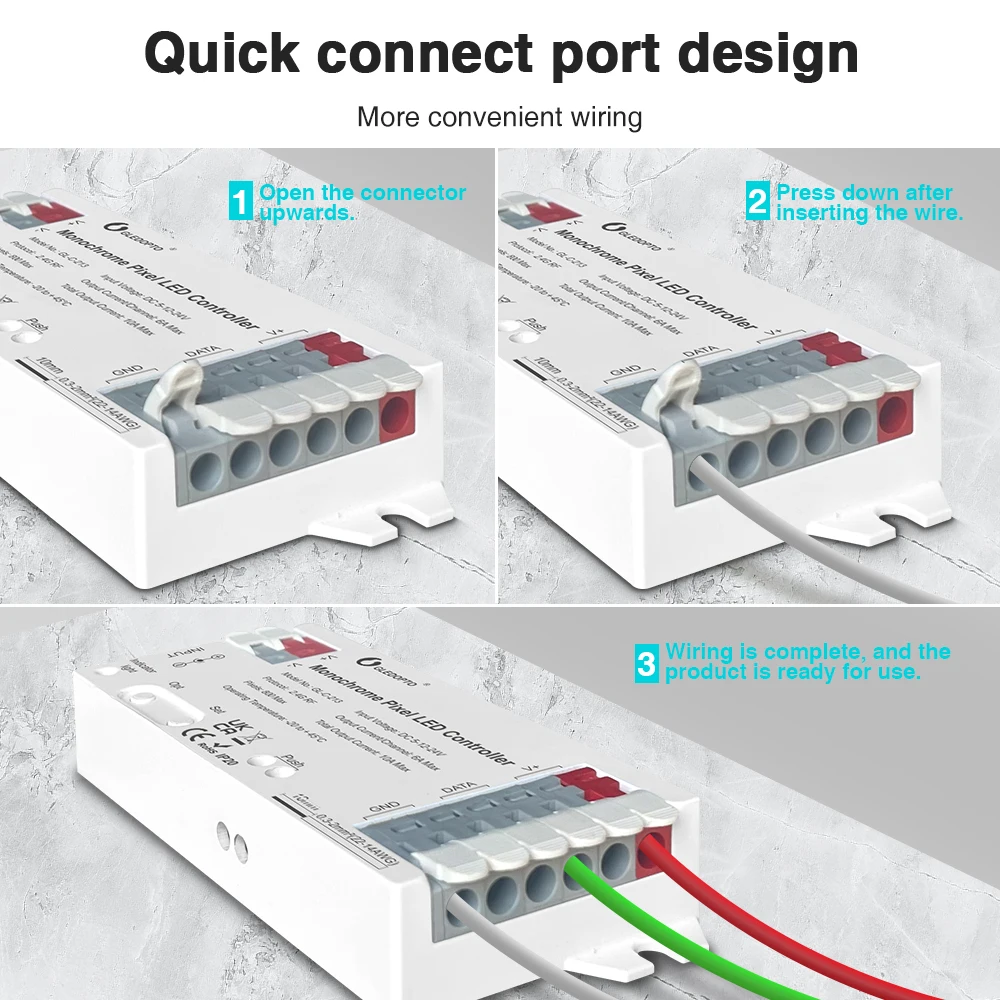

- Connect the LED strip according to the wiring instructions.
- Configure the required pixel quantity.
- Pair the RF remote with the controller.
- Test the lighting modes.
- Adjust brightness and running speed.

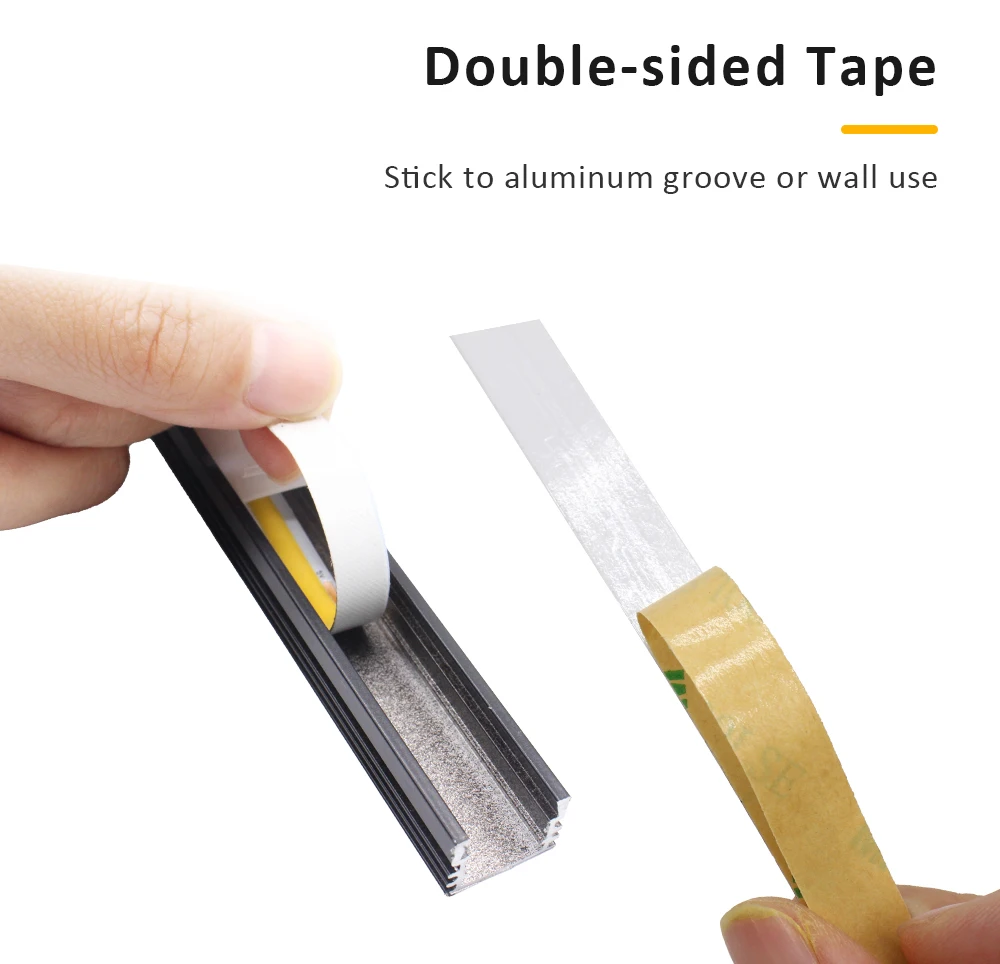

- Secure the strip inside the appropriate installation channel or mounting structure.

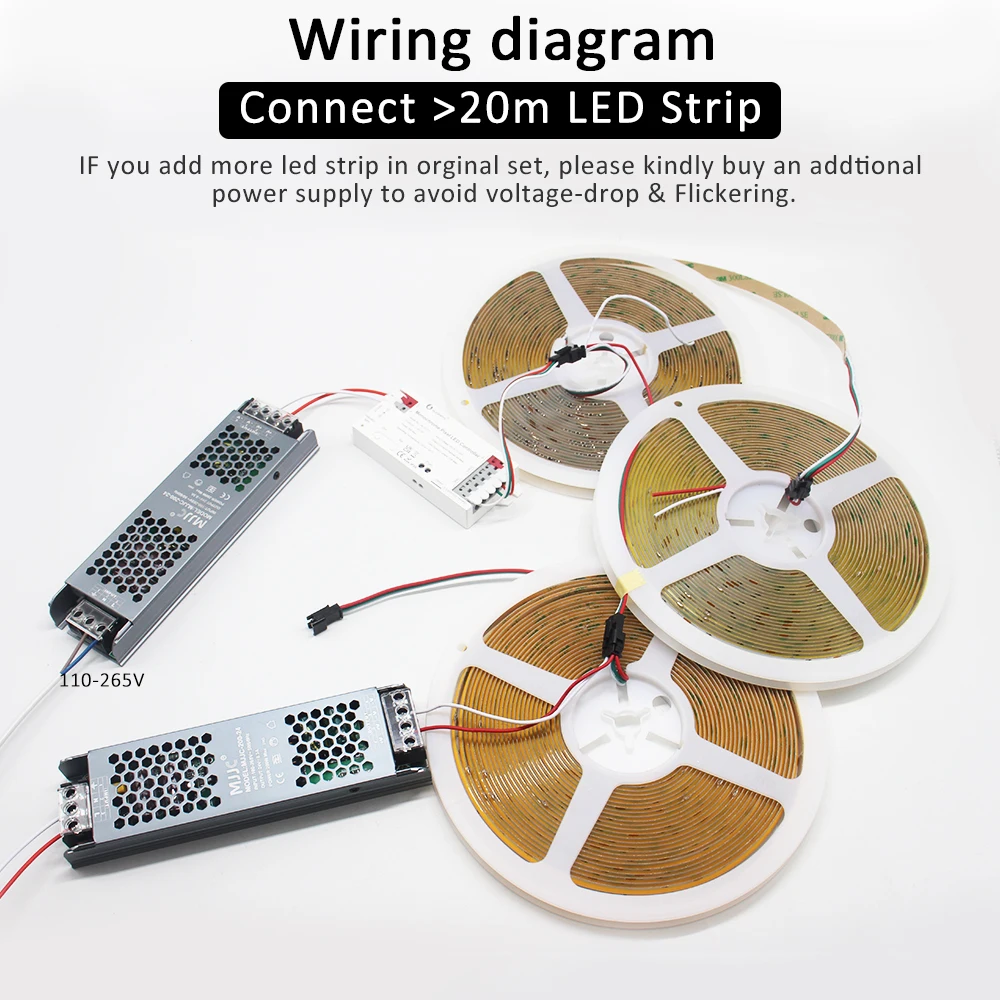

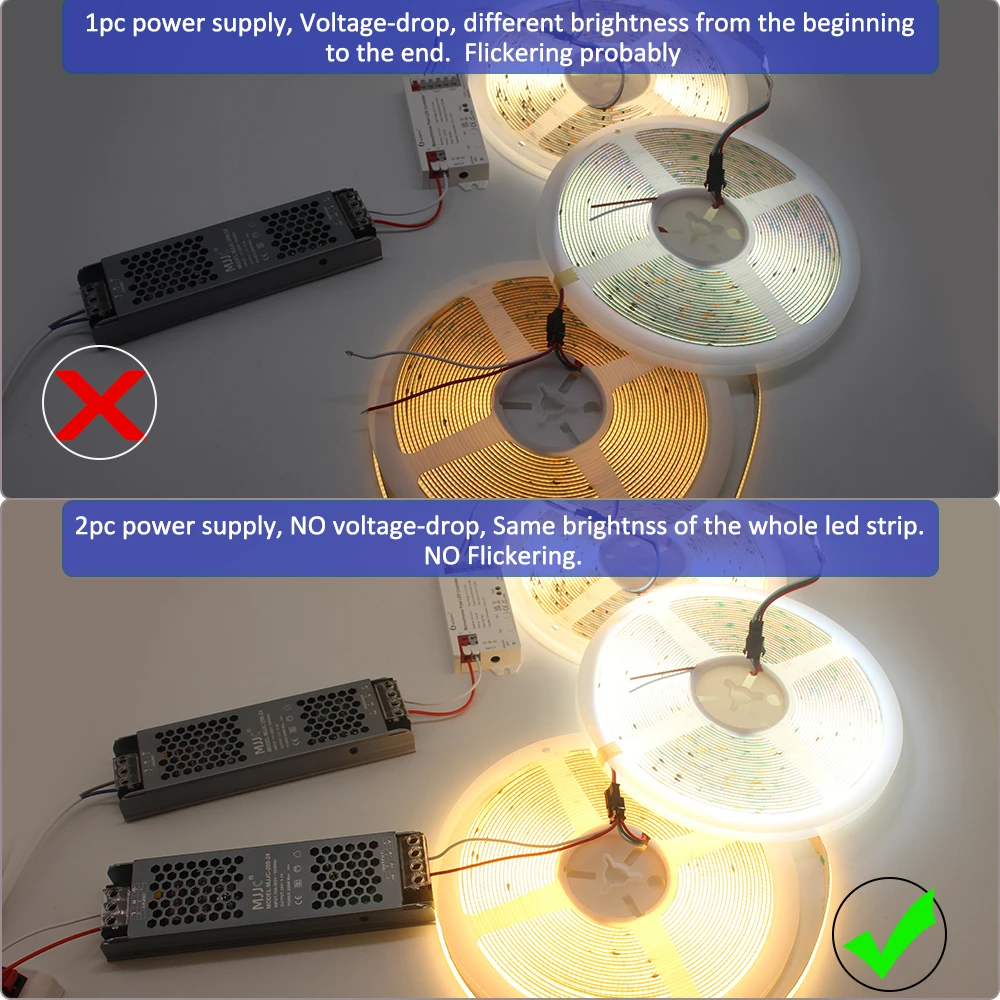

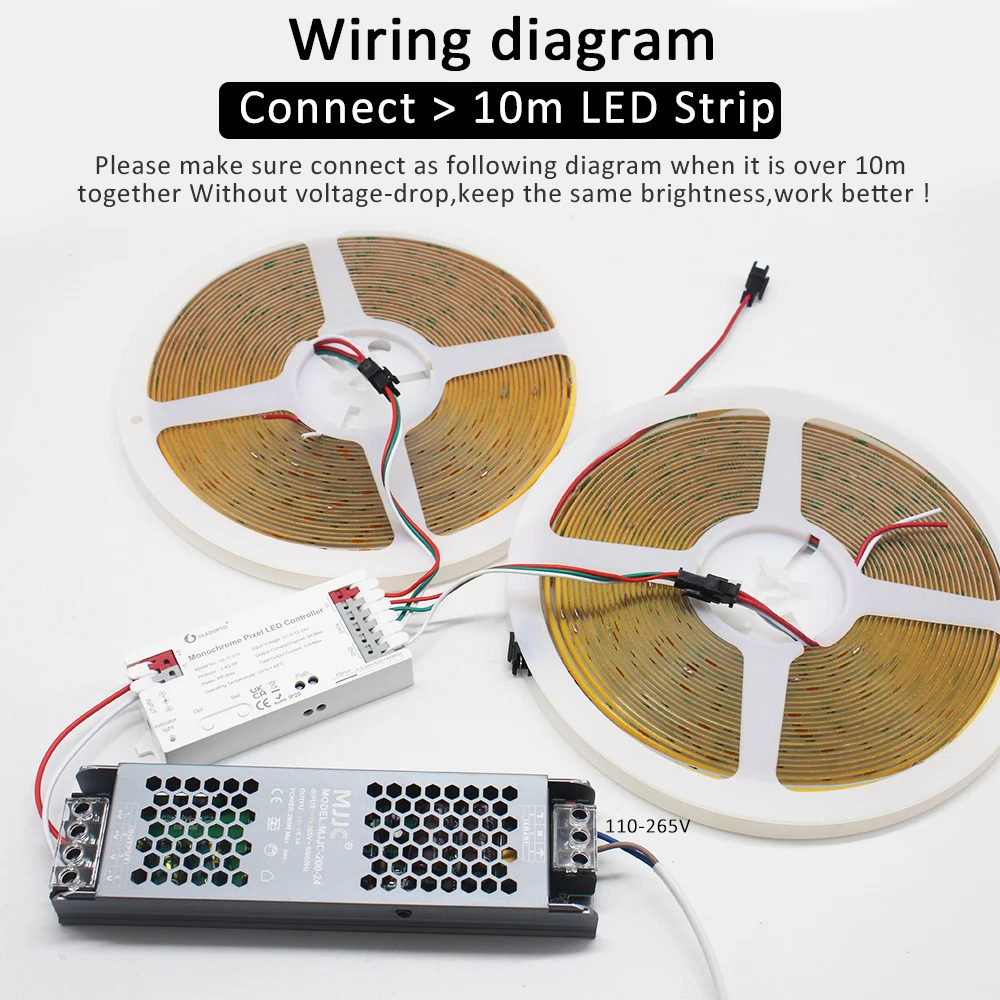

For strips longer than 10m, the current product instructions recommend power injection at both ends to maintain consistent brightness.
The product instructions also emphasize configuring the pixel quantity before operation; otherwise, only part of the strip may operate correctly.

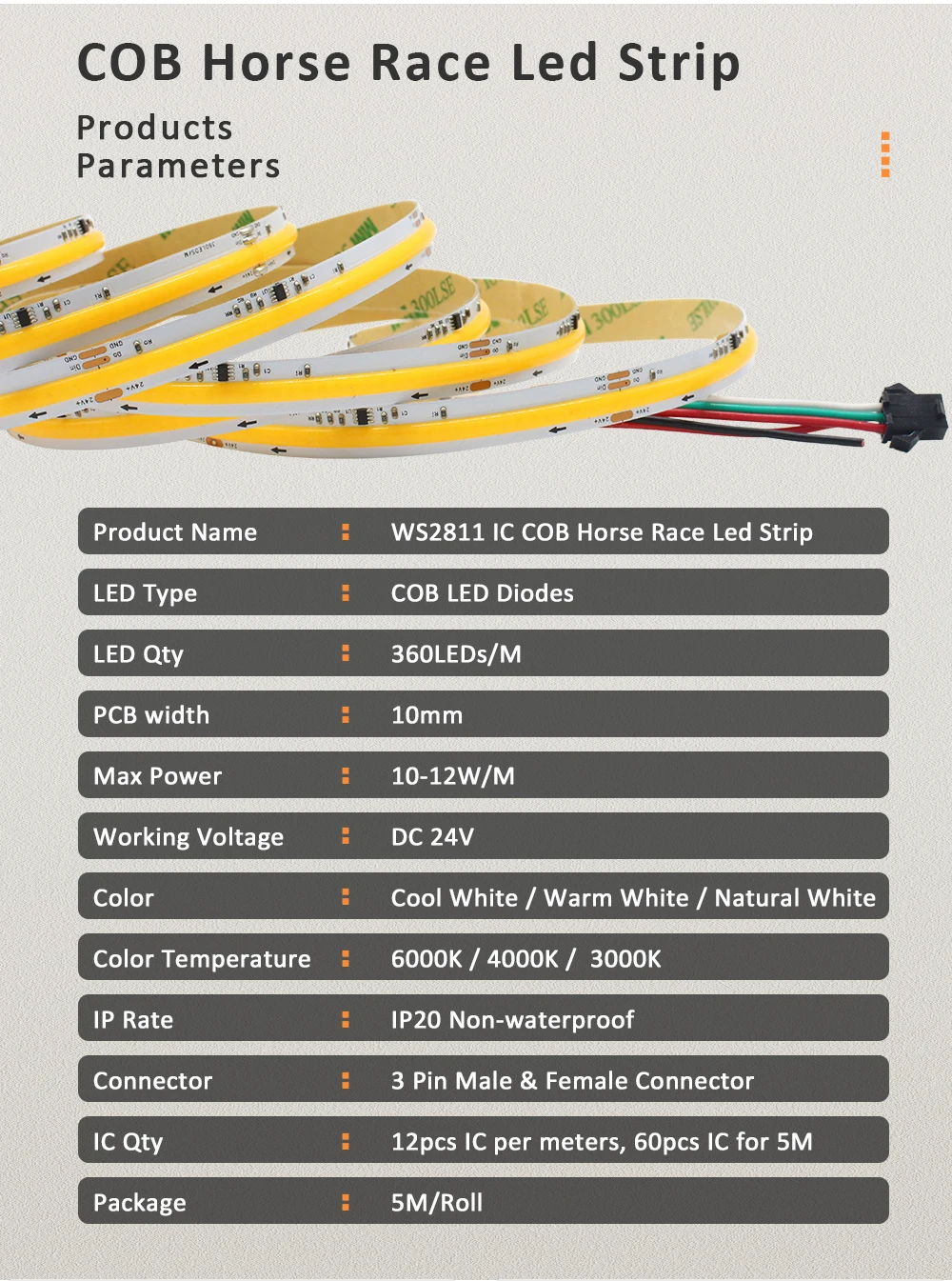

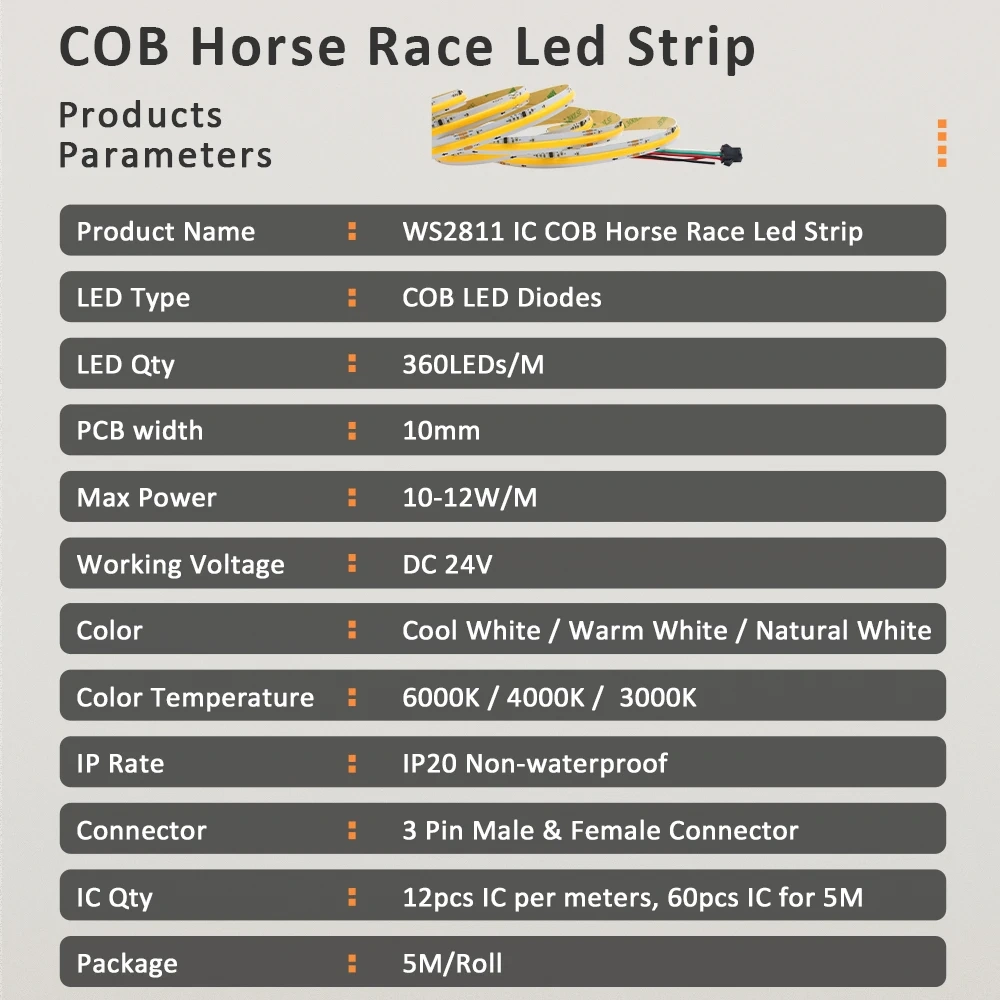

Technical Specifications
| Parameter |
Specification |
| Product Type |
WS2811 COB Chasing LED Strip Light |
| Primary Keyword |
WS2811 COB LED Strip Light |
| Voltage |
DC24V |
| LED Technology |
COB |
| LED Density |
360 LEDs/m |
| IC |
WS2811 |
| IC Density |
12 ICs/m |
| PCB Width |
10mm |
| Power Consumption |
10–12W/m |
| CCT |
3000K / 4000K / 6000K |
| Light Color |
Warm White / Natural White / Cool White |
| Dynamic Modes |
7 |
| Control |
WS2811 SPI + 2.4G RF |
| Maximum Pixels |
Up to 800 pixels |
| Remote Distance |
Up to 30m |
| Protection |
IP20 |
| Standard Roll |
10m |
| Connector |
3-pin male/female connector |
| Power Supply |
DC24V |
| Recommended Power Supply |

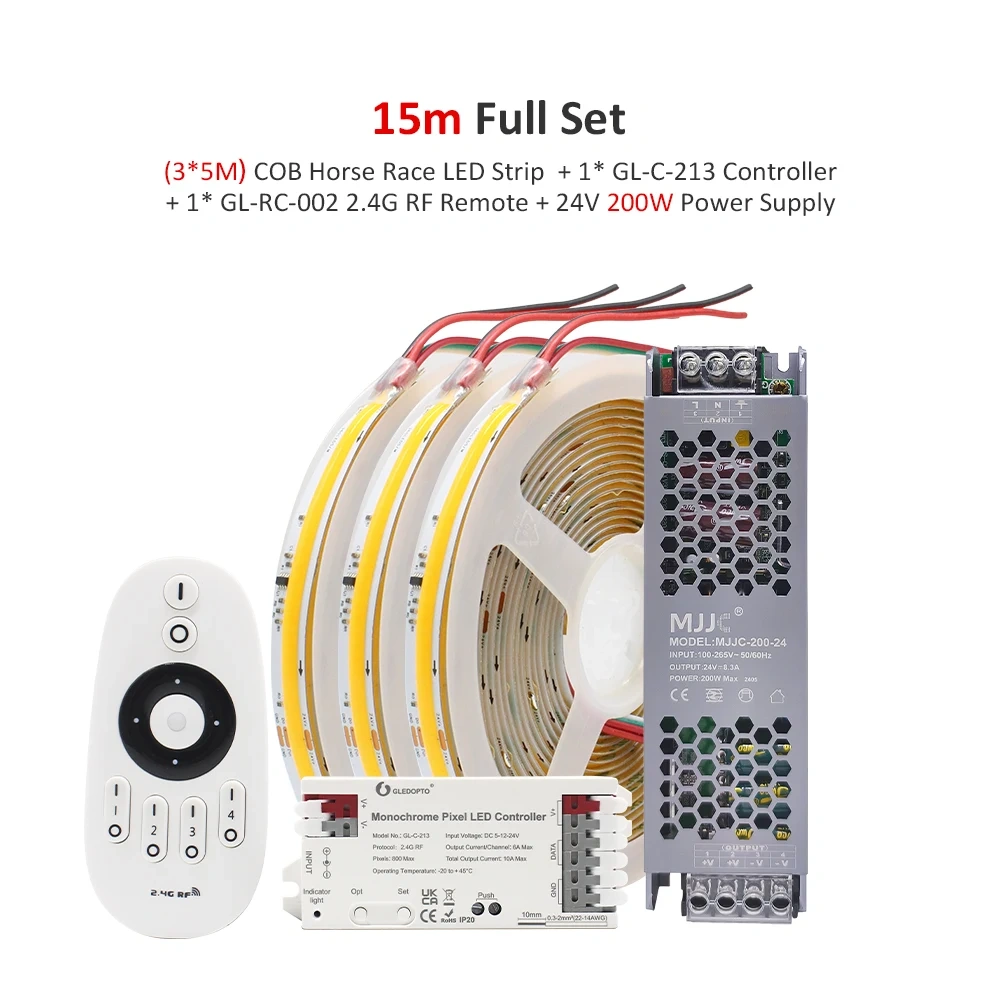

24V 200W for up to 15m* |
| Application |
Indoor architectural and commercial lighting |
| MOQ |
1 pcs |
| Sample Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |
Project Applications

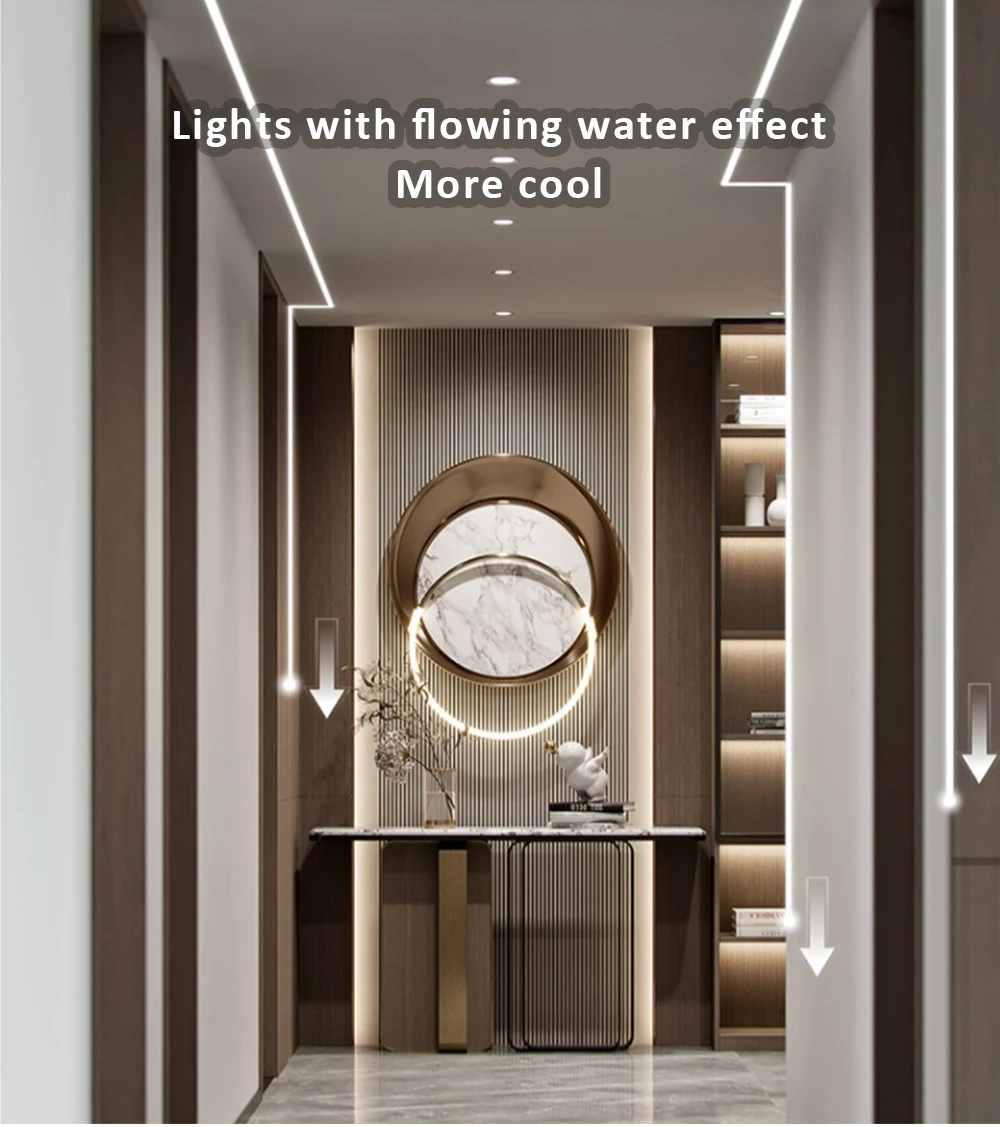

Architectural Ceiling Lighting
Create dynamic linear lighting effects in ceiling coves, recessed ceiling details and architectural light lines.
Feature Wall Lighting
Use running effects to create visually dynamic feature walls in commercial interiors, hotels and entertainment venues.
Retail Lighting
Dynamic LED effects can be used around storefronts, display areas, product walls and promotional installations.
Hotel & Hospitality Lighting
Suitable for hotel lobbies, restaurants, bars and hospitality environments where decorative lighting effects are required.
Stage & Event Lighting
The programmable WS2811 architecture makes the strip suitable for fashion shows, events, LED walls and entertainment spaces.
Home Theater & Residential Decoration
The strip can also be integrated into ceilings, staircases, home theaters and decorative wall lighting.
OEM/ODM
USKYLED provides OEM/ODM solutions for distributors, wholesalers, lighting contractors, system integrators and commercial lighting project buyers.
Customization options can include:
- LED density
- IC density
- Strip length
- PCB width
- Voltage
- CCT
- Controller
- RF remote
- Connector
- Power supply
- Packaging
- Private label
- Custom project configurations
For larger projects, customers can provide:
Required length + installation environment + CCT + control method + quantity
USKYLED can then recommend the appropriate configuration and provide a project quotation.
Order Information
MOQ: 1 pcs
Sample Order Lead Time: 3–7 days
Mass Order Lead Time: 7–15 days
Lead time may vary according to order quantity, customization requirements and production schedule.
