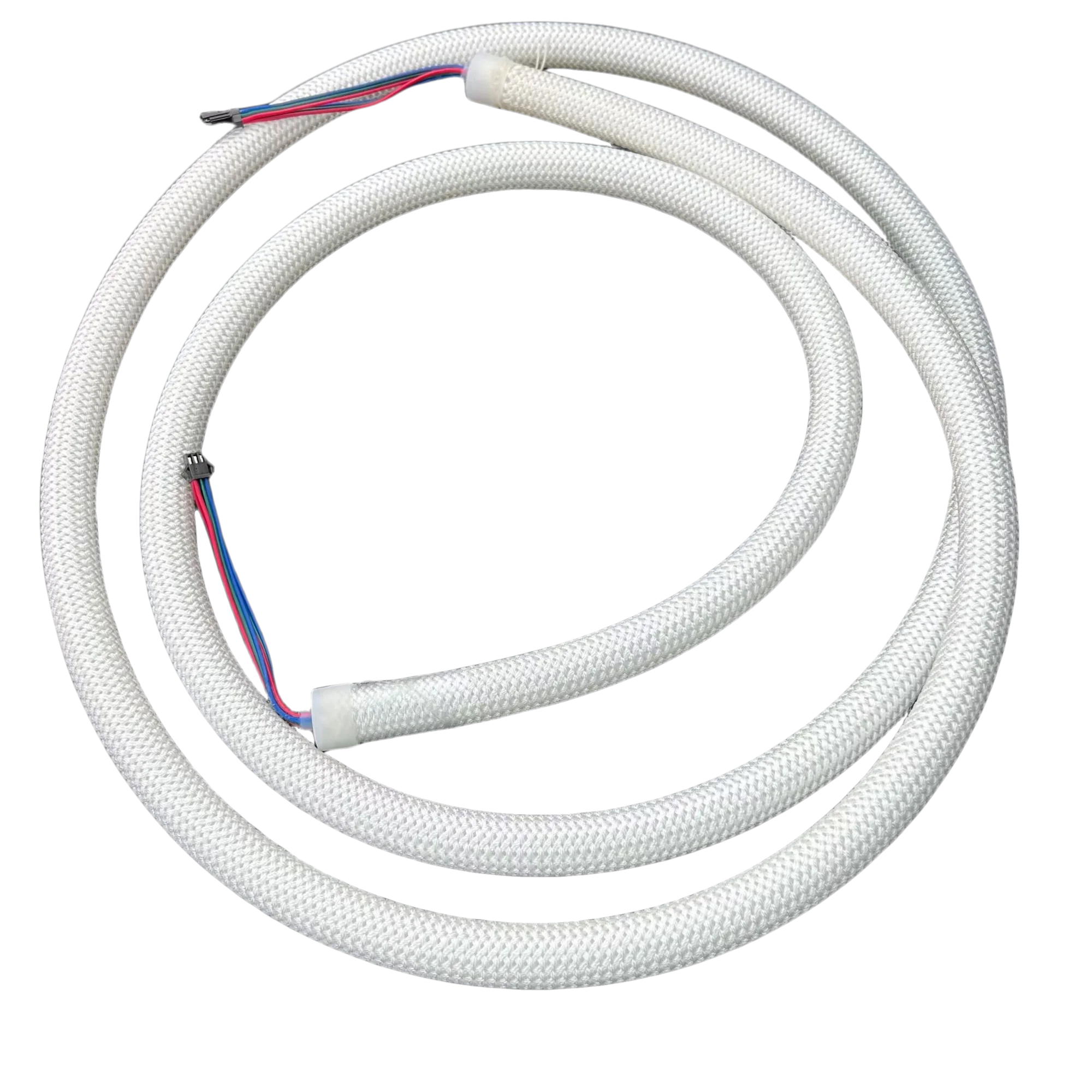

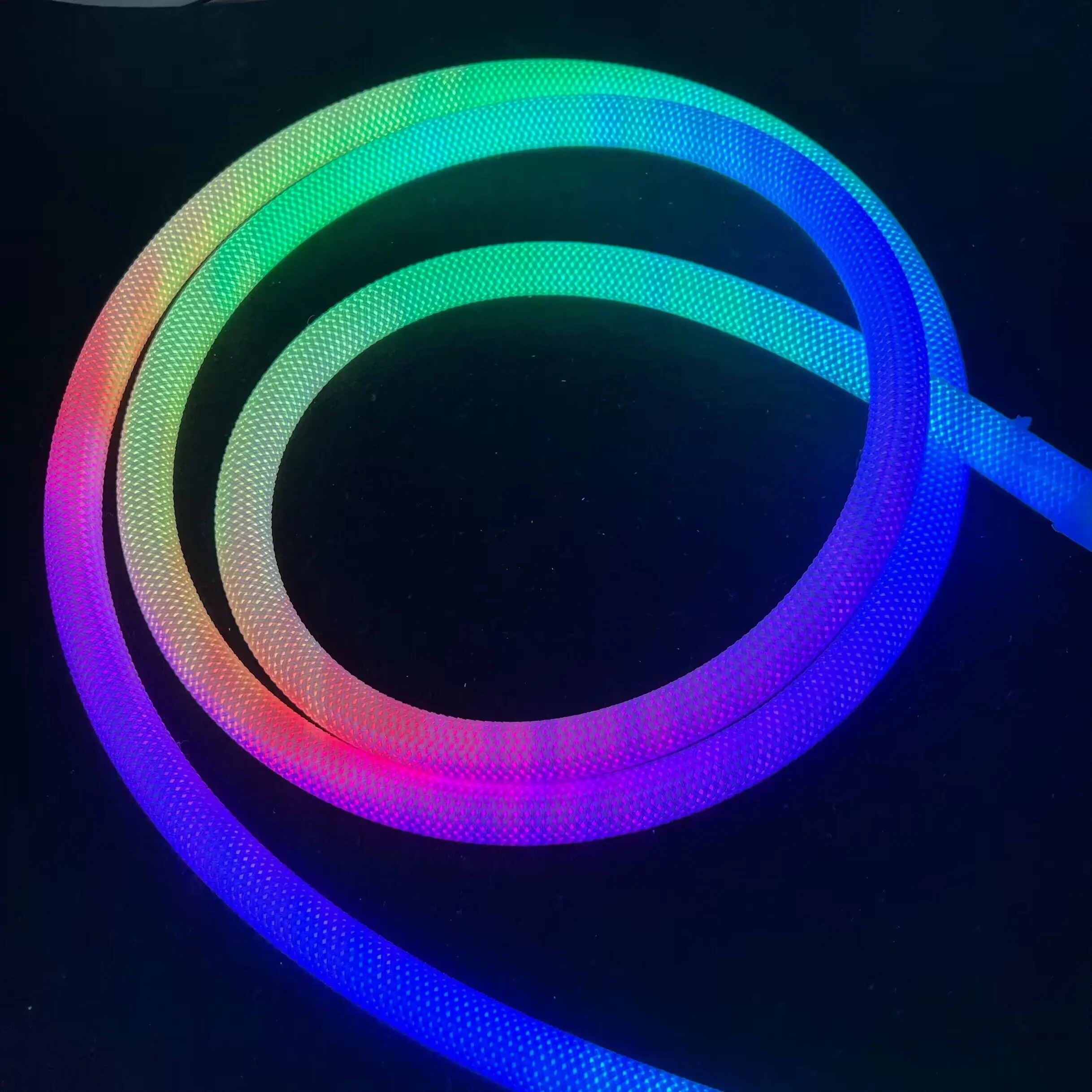

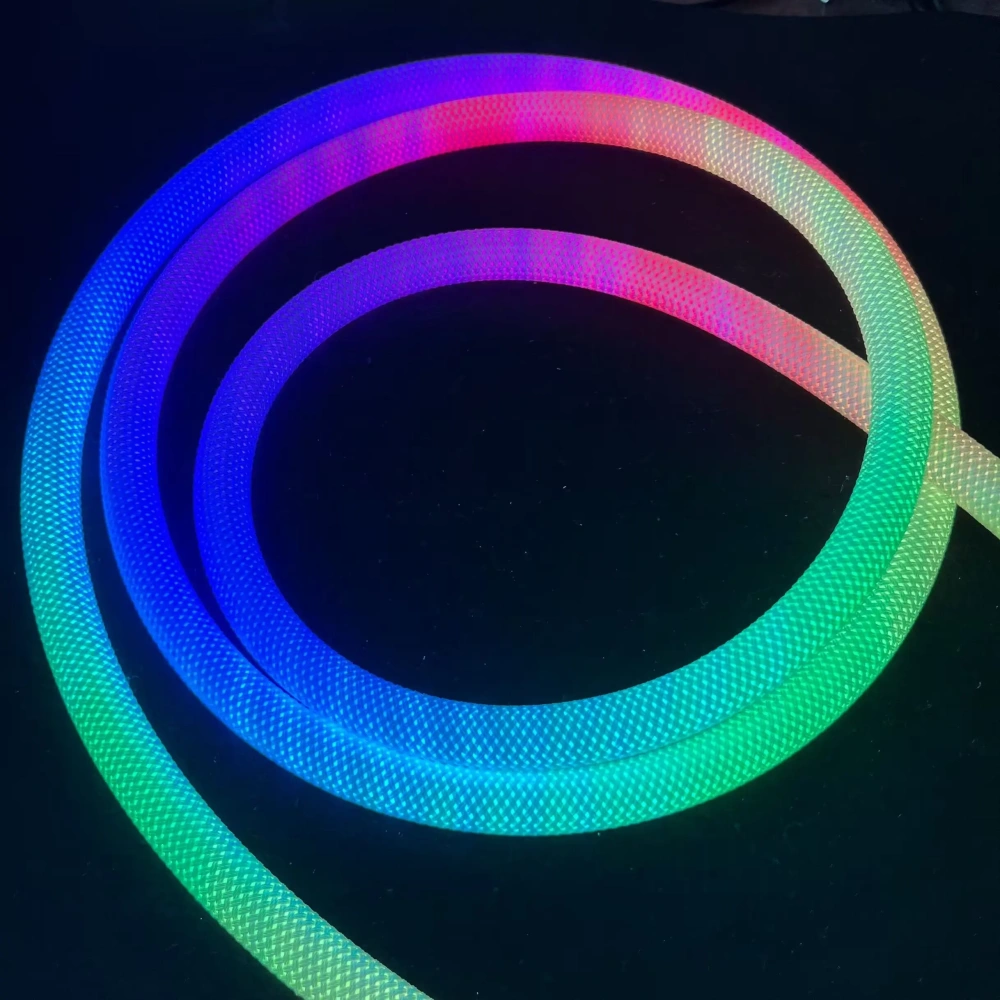

22mm Diameter 60/96LEDs/m DC12V/24V WS2811/WS2815 RGB Full Color LED Pixel Round Braided Neon Strip Light 360 degree Beam Angle

Introducing the 22mm Diameter

Experience unparalleled illumination versatility with our advanced Round Braided Neon Strip Light, engineered for professional-grade lighting solutions. Featuring a 360-degree beam angle and cutting-edge pixel control technology, this product redefines precision lighting in architectural, commercial, and creative applications.

Key Technical Specifications

• Optical Design:

• 360° uniform beam dispersion ensures seamless omni-directional lighting without dark spots.

• Round braided silicone jacket provides IP65 waterproofing while diffusing light evenly.

• LED Configuration:

• Dual-density options: 60 LEDs/m (balanced brightness) or 96 LEDs/m (high-resolution effects).

• WS2811/WS2815 IC chips enable individual pixel addressing for dynamic RGB color transitions.

• Electrical Compatibility: Wide voltage range: **DC 12V/24 support for flexible power system integration.

• Low-voltage operation enhances safety and energy efficiency (consumption: ≤18W/m @24V).

Engineering Advantages

1. Durability:

• Reinforced braided structure resists UV degradation, mechanical stress, and environmental corrosion°C to +60°C operational range).

1. Installation Flexibility:

• 22mm diameter design facilitates bending radii down to 5cm for complex contours.

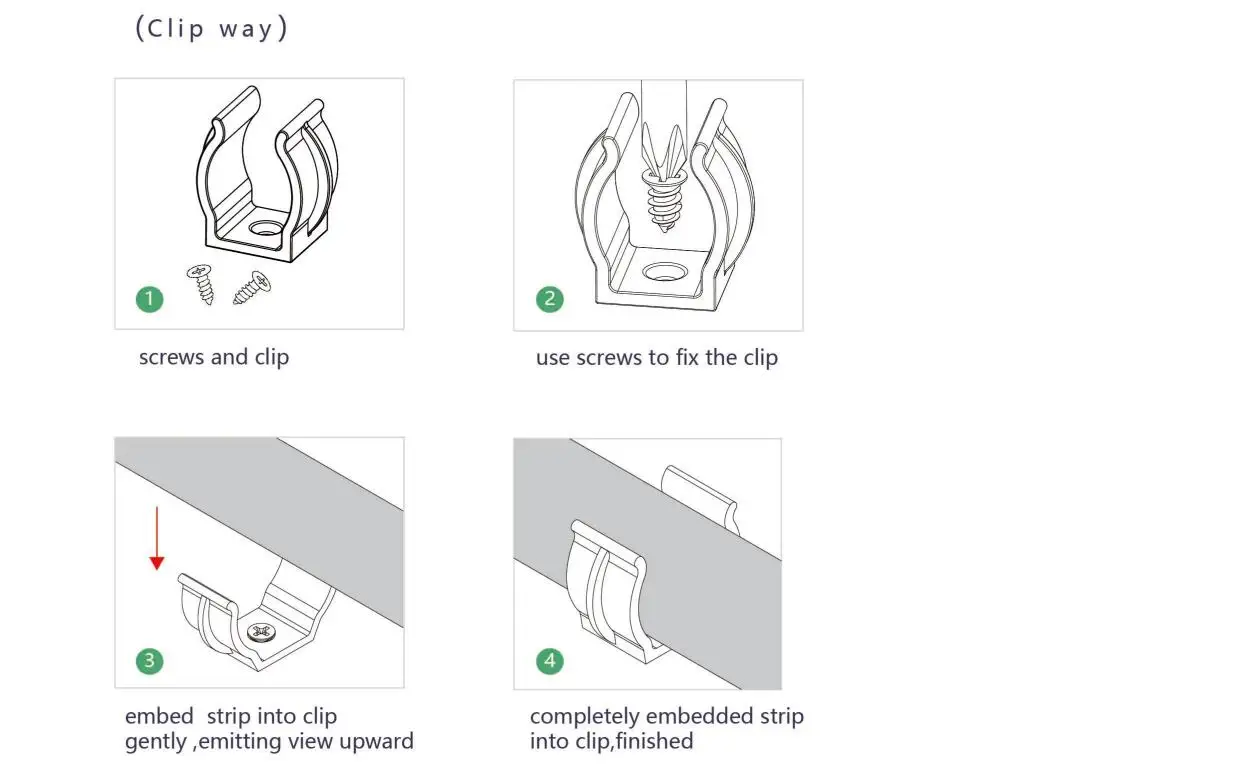

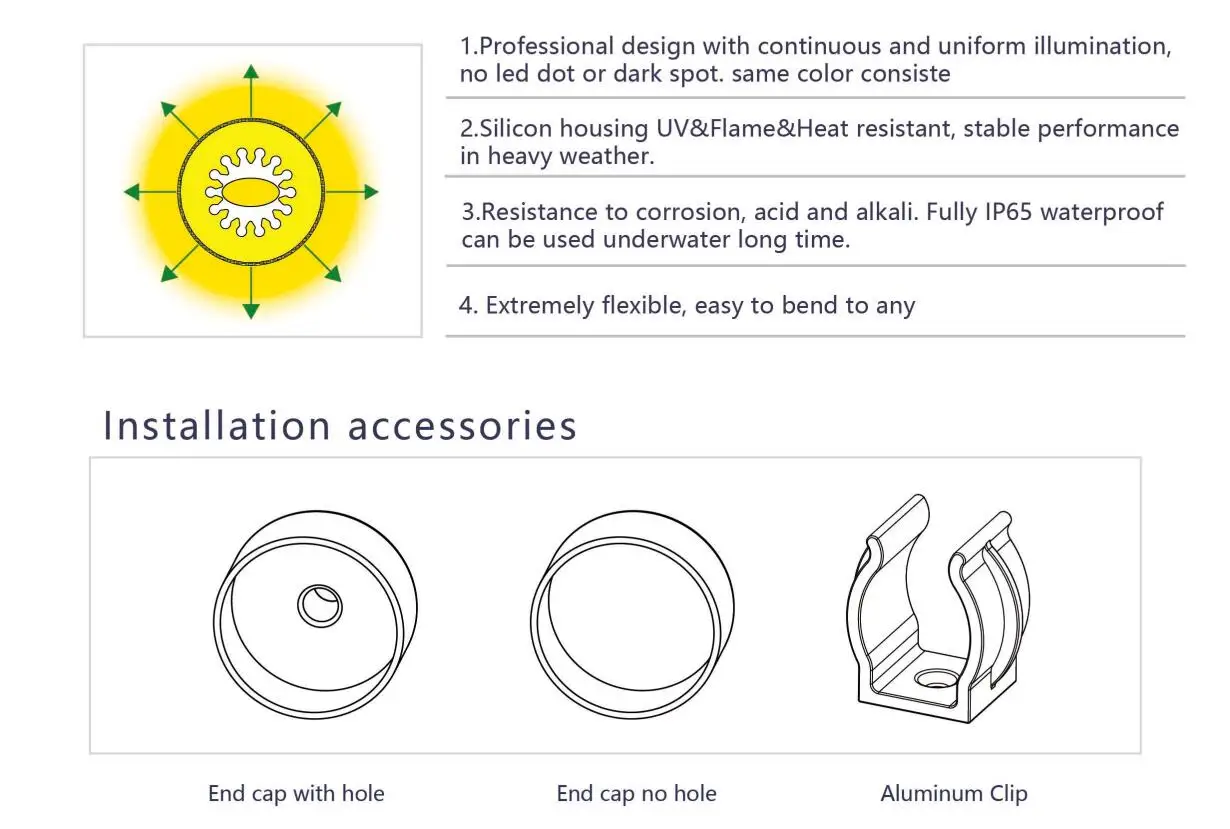

• Peel-and-stick adhesive backing with mounting clips included.

1. Control Precision:

• Compatible with SPI protocols (e.g., DMX, Art-Net) for synchronized large-scale installations.
• 24-bit color depth (.7 million hues) with refresh rates up to 2kHz.

Ideal Applications

• Architectural accent lighting (coves, arches, façades)
• Stage/set design and immersive art exhibits
• Retail displays ambiance enhancement

Certification Note: CE/RoHS compliant. Includes 3-year warranty against manufacturing defects.

Optimize your lighting projects with professional-grade technology—[Order Samples] or [Request CAD Files] today.

22mm Diameter 60/96LEDs/m DC12V/24V WS2811/WS2815 RGB Full Color LED Pixel Round Braided Neon Strip Light 360 degree Beam Angle

Input voltage:..............               DC12V or DC24V

Power:........................               0.24W/LED

LED resource:.............              5050/3535 SMD RGB

Q'ty of LED and Pixels:             12V 60 Pixels 120LEDs per Meter: Addressable,one LED as one Pixel;double sided PCBA inside

                                                  24V 60 Pixels 120LEDs per Meter: Addressable,one LED as one Pixel;double sided PCBA inside

                                                  12V 32 Pixels 192LEDs per Meter: 3 LEDs as one Pixel;double sided PCBA inside

                                                  24V 14 Pixels 168LEDs per Meter: 6 LEDs as one Pixel;double sided PCBA inside

IC Type: .....................              WS2811 IC/WS2812B/SK6812

Grey scale:                               256;

Bits/color:                                  8-bits/color;24bit for RGB

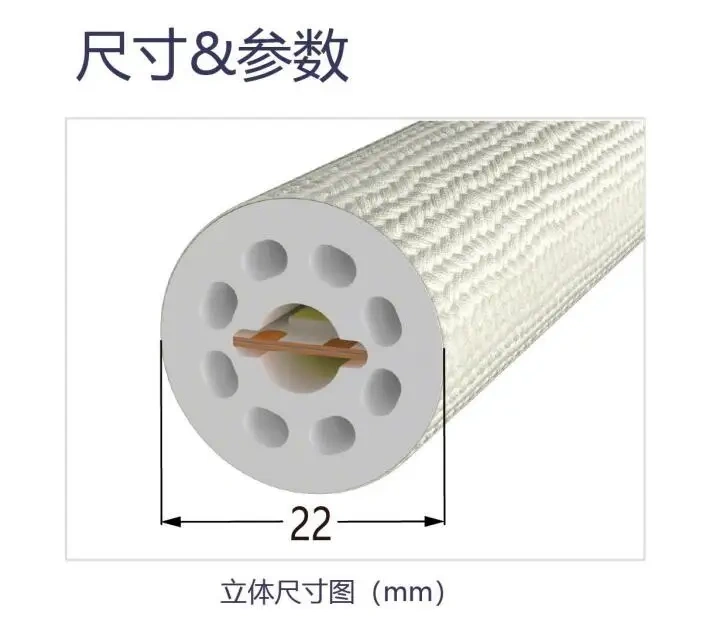

neon size:.....................            22mm diameter

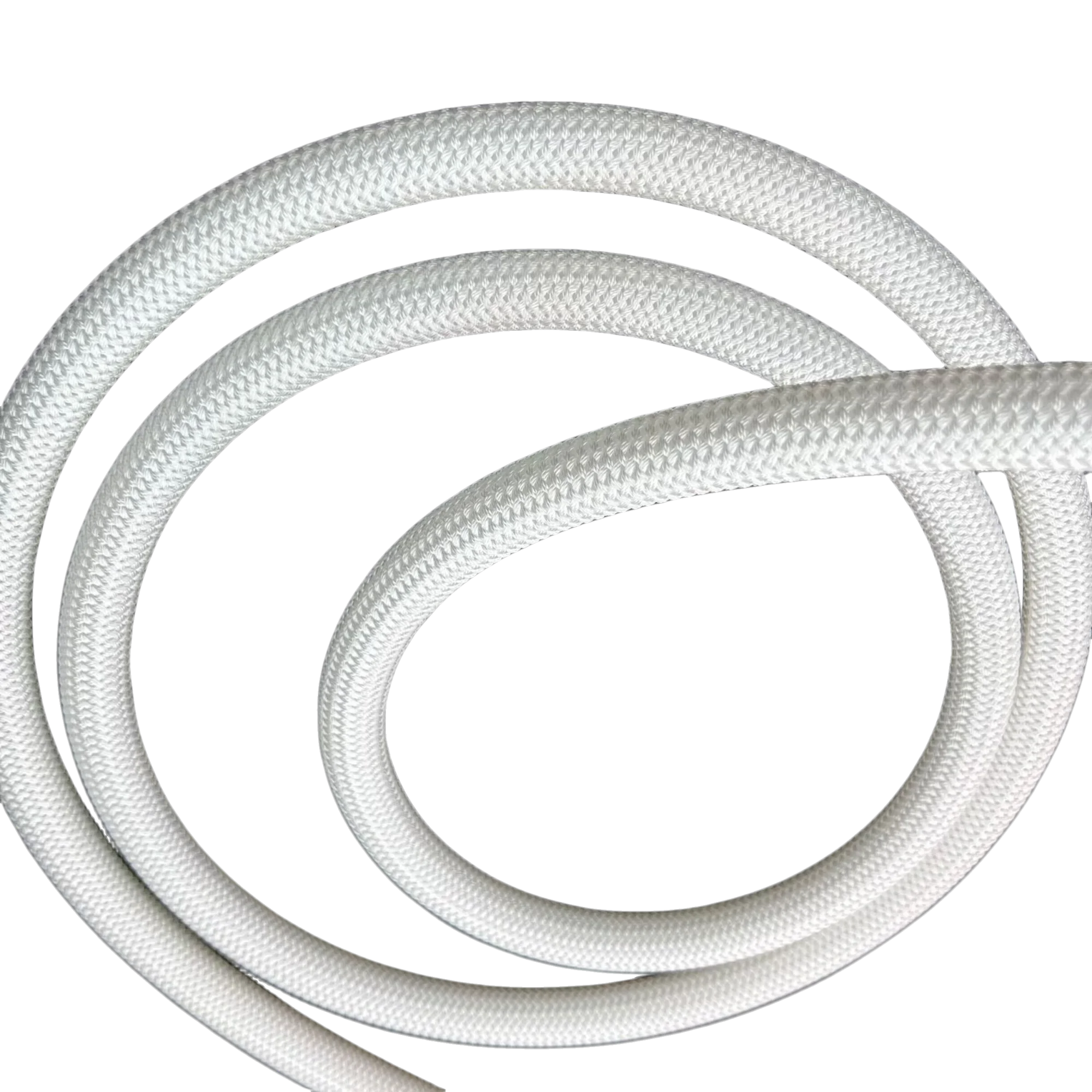

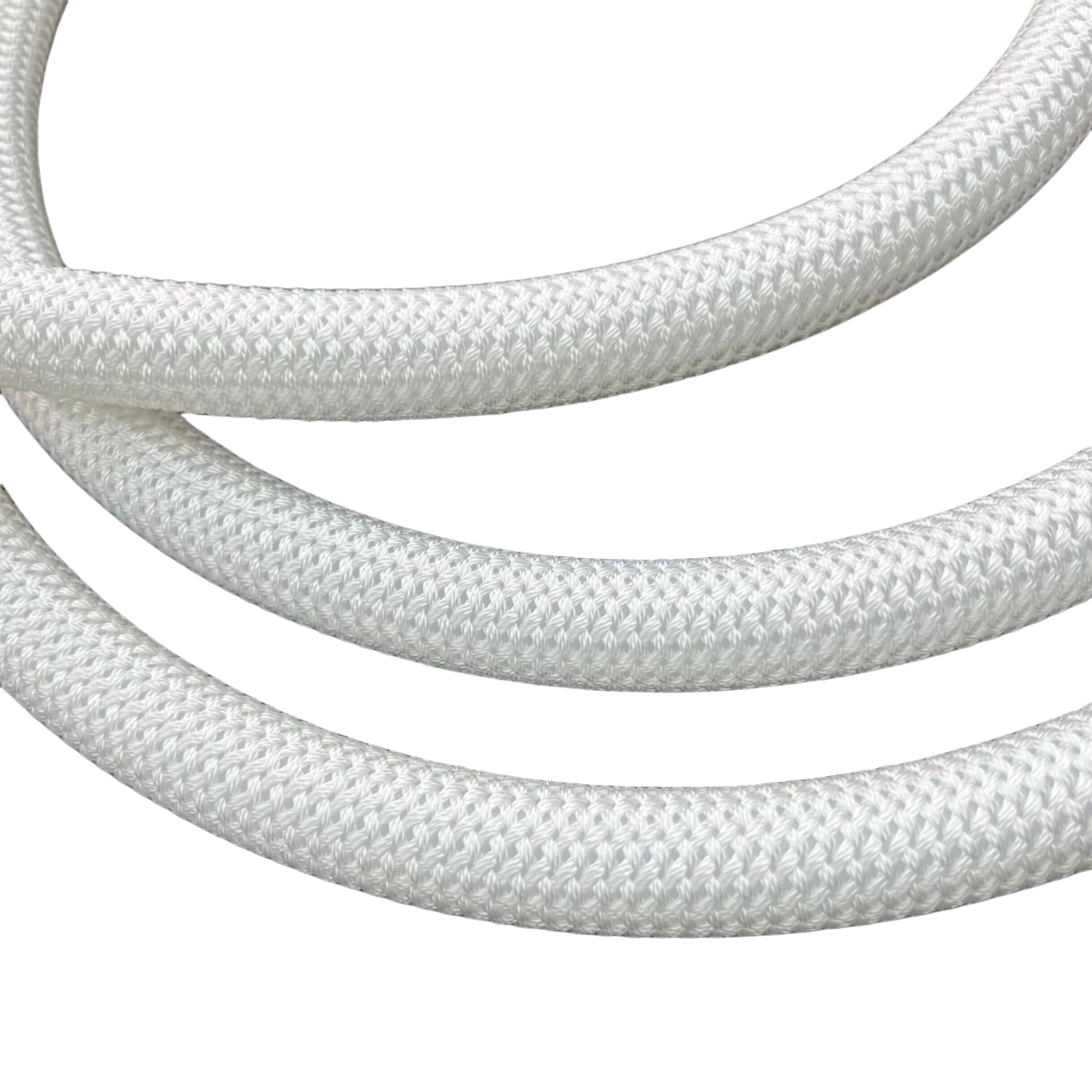

neon material:..............            100% silicon;very soft,with Braided on the surface

beam angle:.................             360 degree

Protection rate..............            waterproof in frosted silicon tube

Colors:........................              Full color RGB, dream color changing;

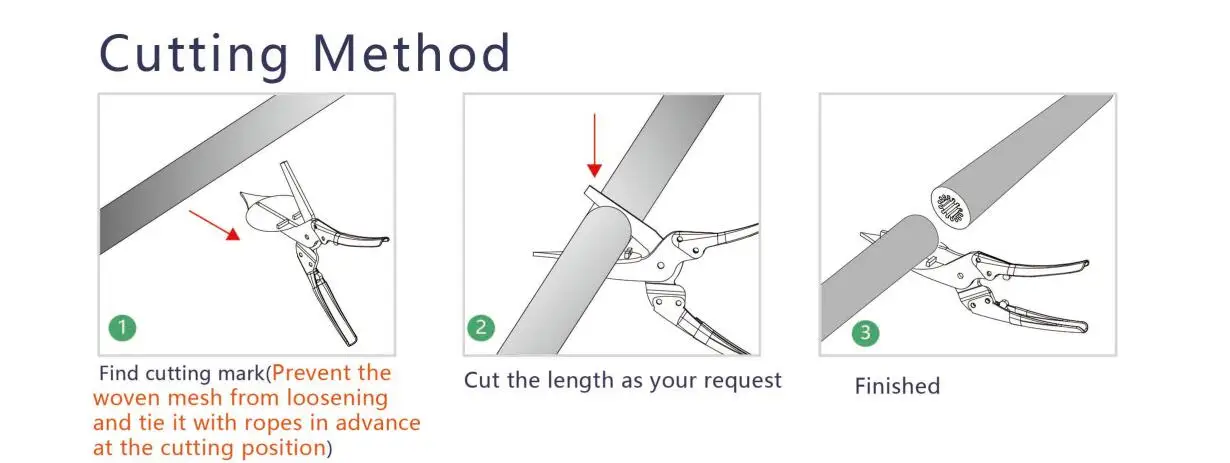

Cuttable:......................             every one pixel is cuttable;

Package:.....................             3/4/5 meters/reel in anti-static bag

Product options( pixel strip PCBA inside the neon tube):

12V 60 Pixels 120LEDs per Meter: Addressable,one LED as one Pixel,double sided PCBA inside:

WS2815 DC12V addressable full color RGB 5050 LED strip;60leds/m;5m;non-waterproof;IP33;WHITE PCB

24V 60 Pixels 120LEDs per Meter: Addressable,one LED as one Pixel,double sided PCBA inside:

WS2812B SK6812 DC24V addressable RGB full color Led Strip Light 60Pixels/Leds/m

12V 32 Pixels 192LEDs per Meter: 3 LEDs as one Pixel,double sided PCBA inside:

DC12V WS2811 LED digital pixel strip;96leds/m;32pixels/m,8mm wide PCB,white PCB;3535 SMD RGB smart strip

24V 14 Pixels 168LEDs per Meter: 6 LEDs as one Pixel,double sided PCBA inside:

24V WS2811 84LEDsper meter, WHITE PCB led digital strip;IP20;non-waterproof;8mm wide PCB

3Pin JST SM connectors:

3PIN JST plug and socket,with 15cm long wire each,20AWG wire;all black wire

input end:                 0.2m long male connector with black flat wire

output end:                0.2m long female connector with black flat wire

standard pinout diagram for our pixel lights:

for pigtails:

Brown:- 5/12v +
Yellow: data
Blue: GND

Input end: male connector(screw end with bare pin)

Output end: female connector(with hole)

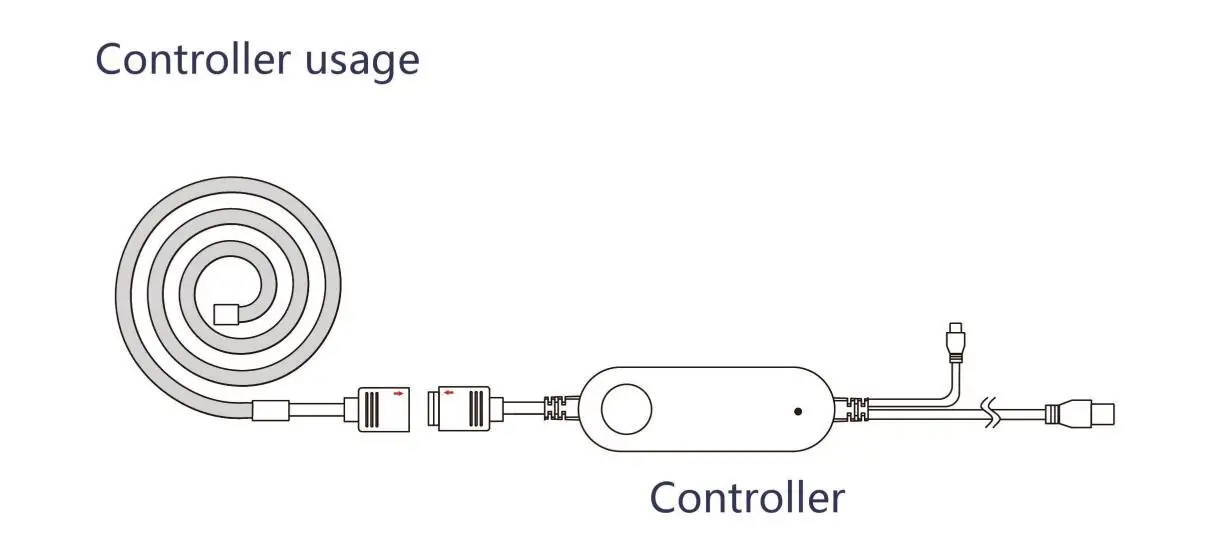

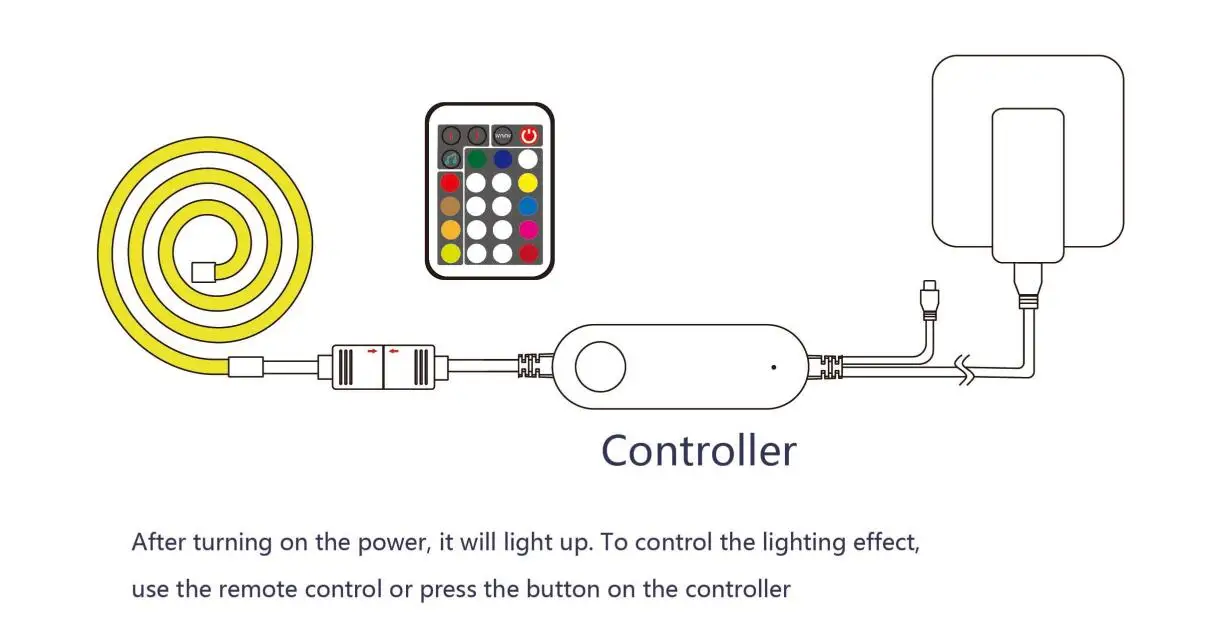

Recommended Controllers:

APP bluetooth & WIFI/SD card/Artent SPI etc
