Mini LED Downlight Kit with 1W 12V Dimmable Spotlights for Cabinets & Ceiling Accents

Product Introduction

The USKYLED dimmable mini LED downlight kit provides compact recessed accent lighting for cabinets, showcases, bookcases and decorative ceiling layouts. Each spotlight uses 1W and operates on DC12V, with a 30° beam that directs light toward individual objects or selected areas.

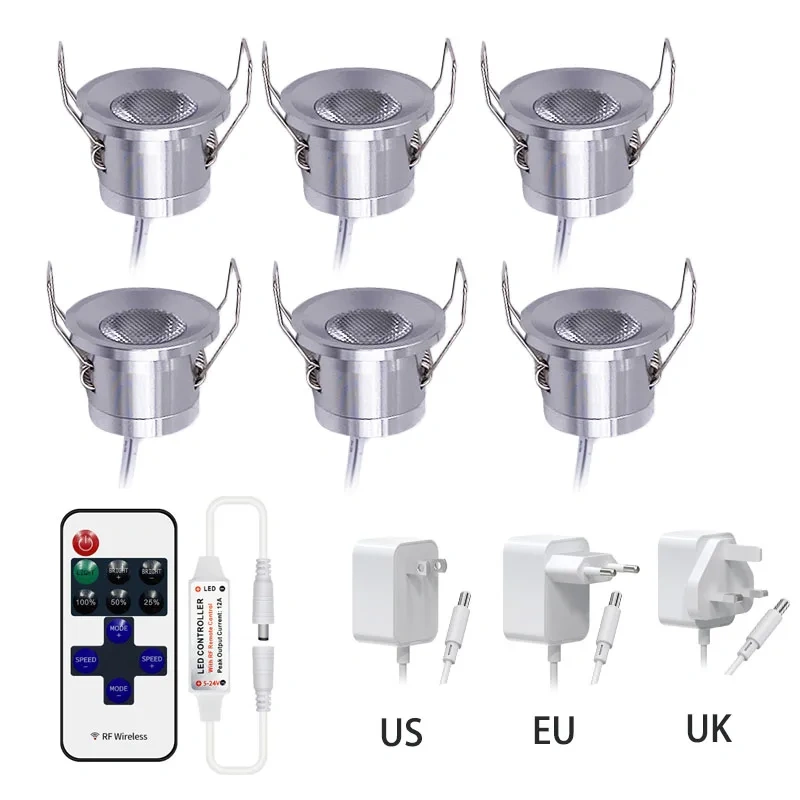

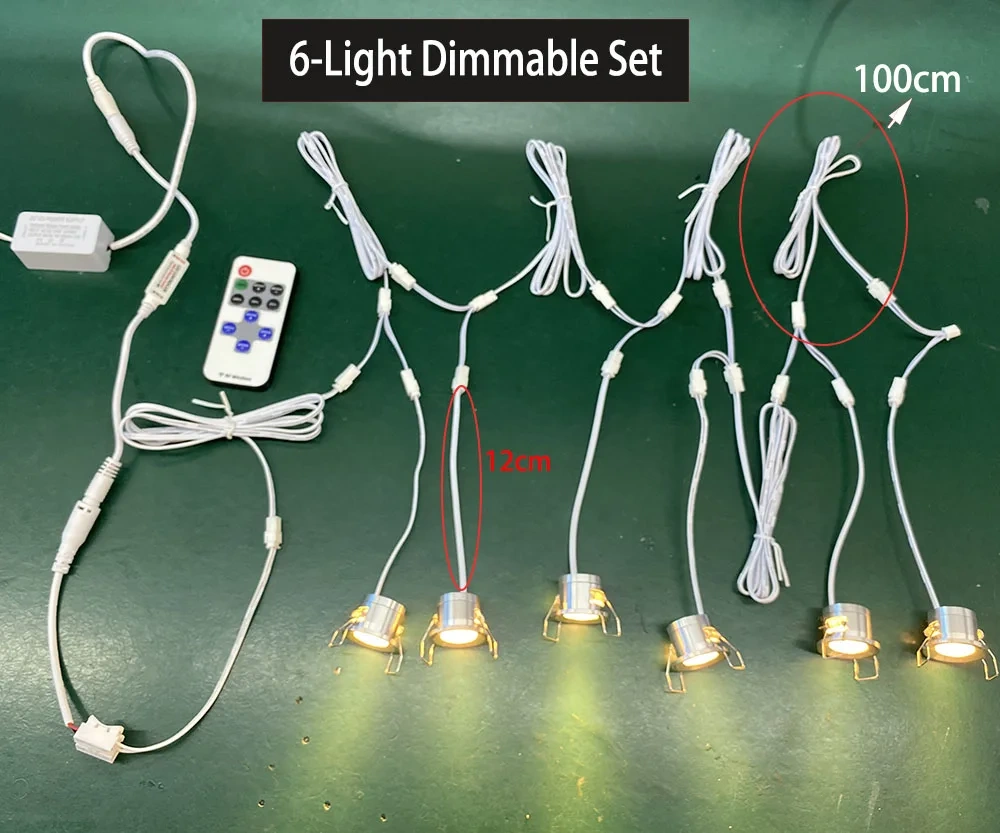

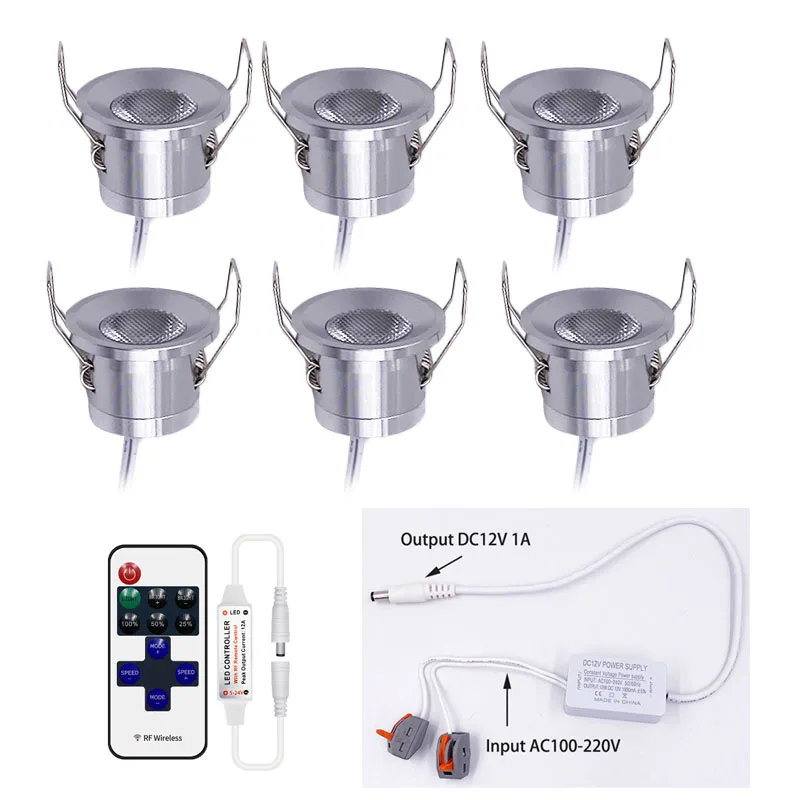

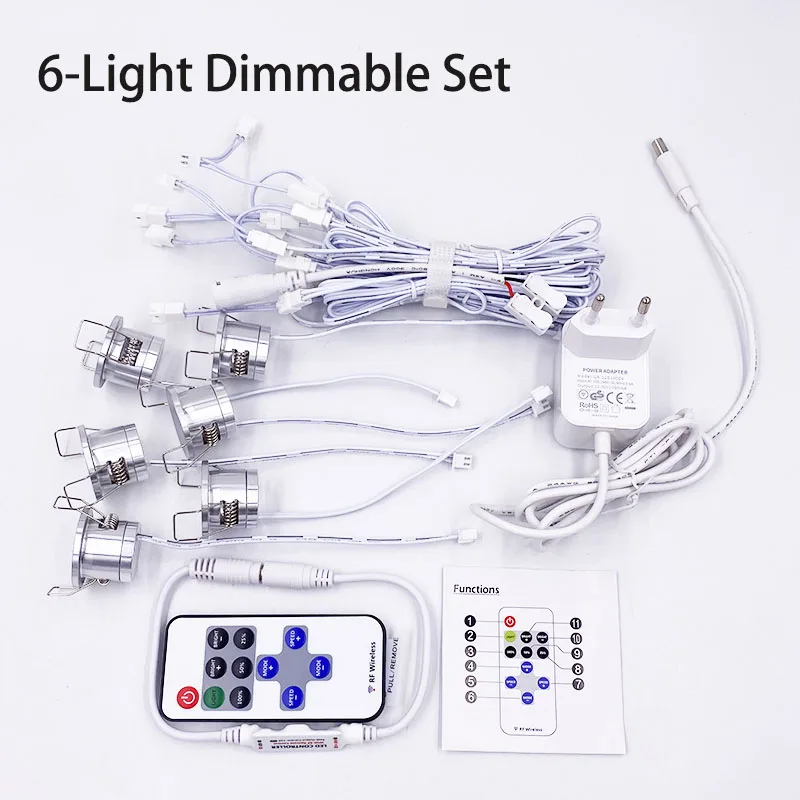

Choose a set of 4, 5, 6, 7 or 8 lights to suit the layout. Each listed set includes the selected number of spotlights, one power supply, one remote dimmer and wiring.

The small fixture fits a 27mm mounting cutout. Its Ø32mm face keeps the visible fitting compact, making it useful where a full-size downlight would occupy too much space.

Design

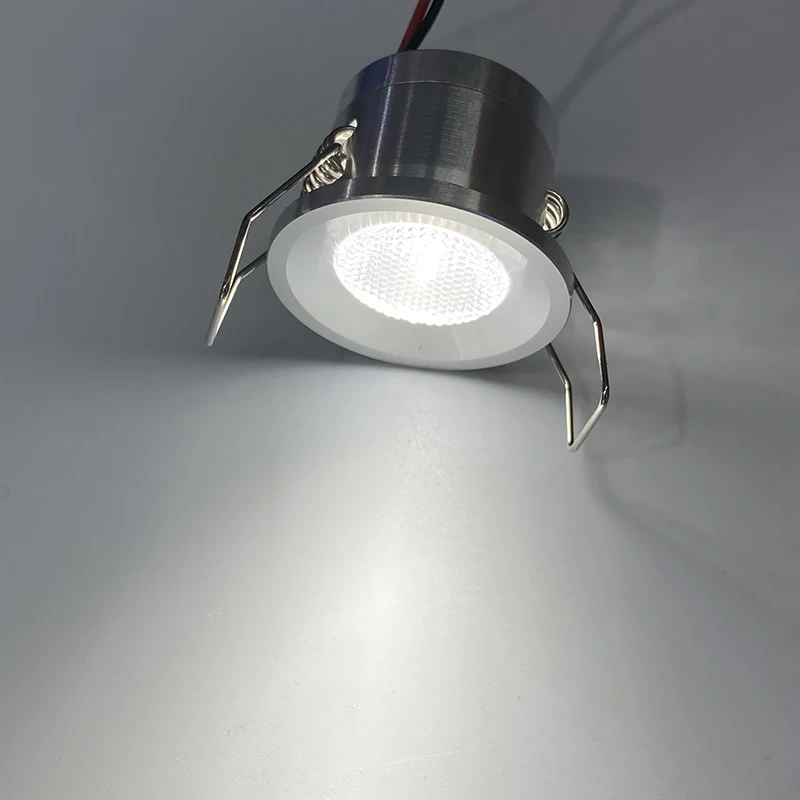

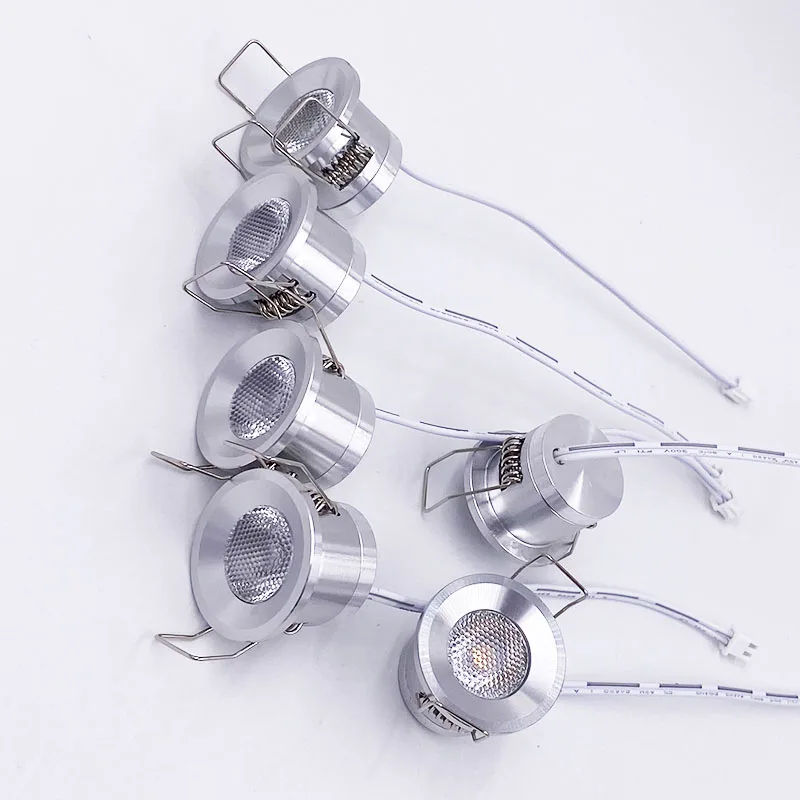

The aluminum lamp body has a silver-toned finish and a compact recessed profile. Spring clips hold the fitting in a suitable mounting panel, leaving the circular trim visible at the surface.

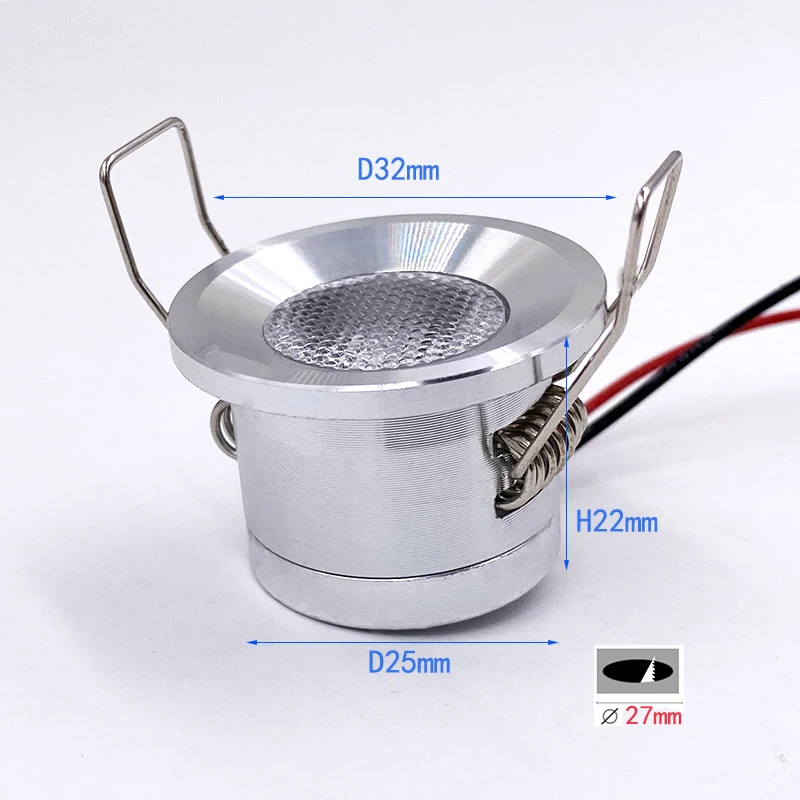

Each spotlight measures Ø32 × H22mm. The required cutout is Ø27mm, which is smaller than the external trim diameter.

Allow additional space behind the panel for the cable, connections and installation clearance. The external power supply and dimmer should remain accessible for inspection and replacement.

Main Features

• 1W per spotlight: Suitable for small-scale accent lighting.
• DC12V lamp input: Used with the included AC100–240V to DC12V power supply.
• Remote dimming: Adjust brightness with the supplied remote dimmer.
• 4–8-light sets: Select the number of lights needed for the installation.
• 27mm cutout: Fits compact recessed mounting layouts.
• 30° beam angle: Highlights individual objects or defined areas.
• Three white-light options: Warm white, neutral white and cool white.
• Aluminum construction: Compact body with spring-clip mounting.
• Listed CRI above 80: White-light specification for general display applications.
• IP42 rating: Intended for protected indoor installations.

Application

Use this mini recessed spotlight kit for:

• Display cabinets and small retail showcases.
• Bookcases, shelves and collectible displays.
• Wine cabinet accents.
• Decorative bedroom and living room ceiling layouts.
• Hallway and entrance accent lighting.
• Indoor stair-area decorative lighting.
• Restaurant and hospitality display features.

These small spotlights are intended for accent lighting. Use additional fixtures where the project requires general room illumination or dedicated task lighting.

For color-sensitive displays, evaluate a sample and request the relevant photometric information before final selection.

Size / Options

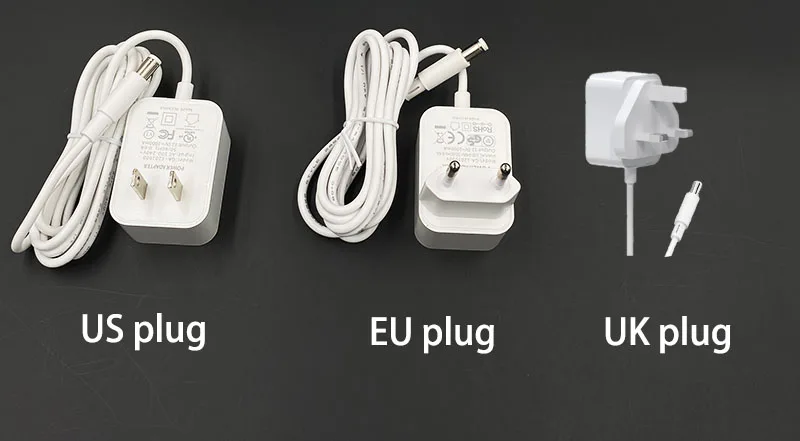

The listed power supply accepts AC100–240V and outputs DC12V, 1A, 12W.

For the “No Plug” option, confirm the supplied connection arrangement before ordering. Do not assume that this selection means the power supply is omitted.

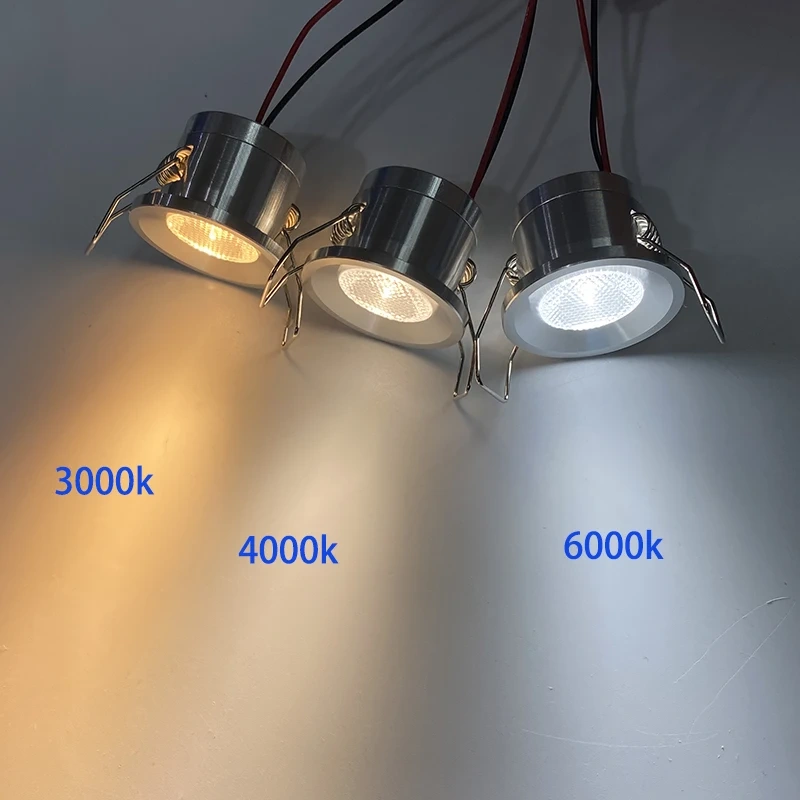

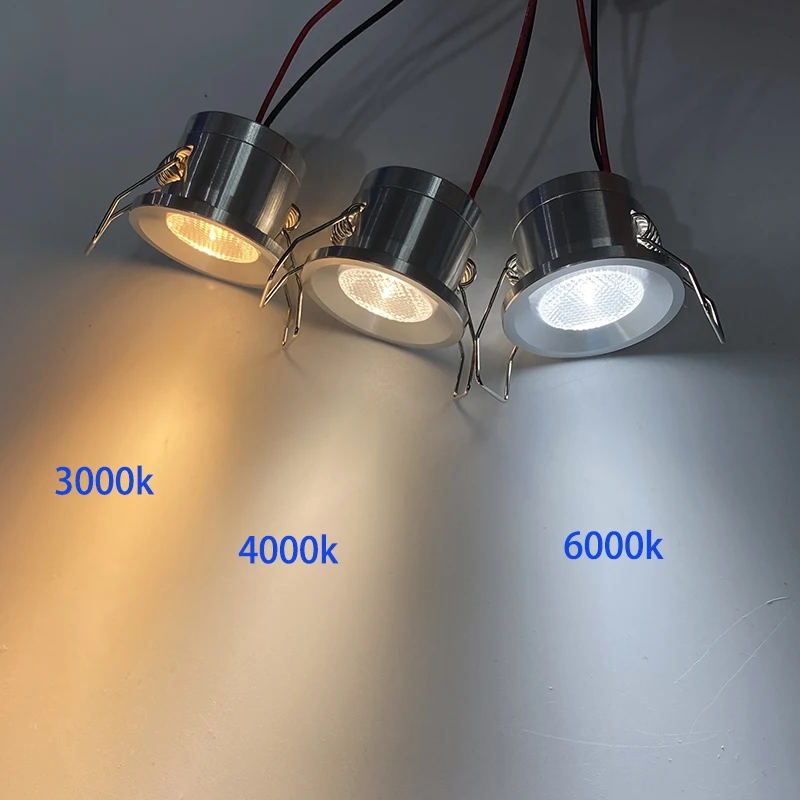

Lighting Options

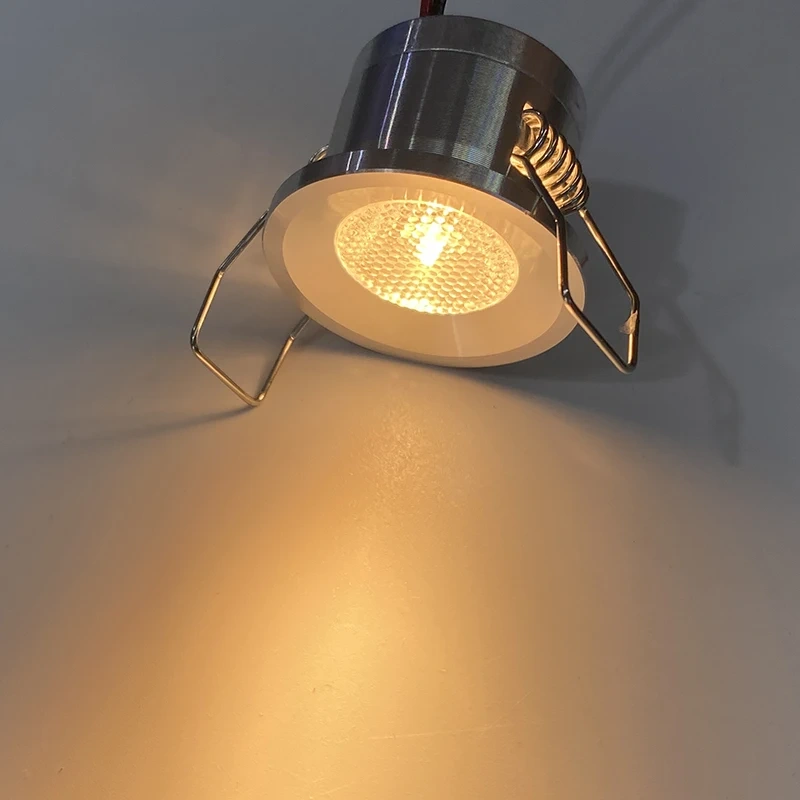

Warm White: 2700–3000K

A warm appearance for bedrooms, wood cabinetry, wine displays and hospitality interiors.

Neutral White: 4000–4500K

A neutral tone for shelves, general display cabinets and everyday interior accents. The current product selector labels this option “WHITE.”

Cool White: 5500–6500K

A cooler white appearance for displays where this tone suits the surrounding materials and lighting design.

Remote Dimming

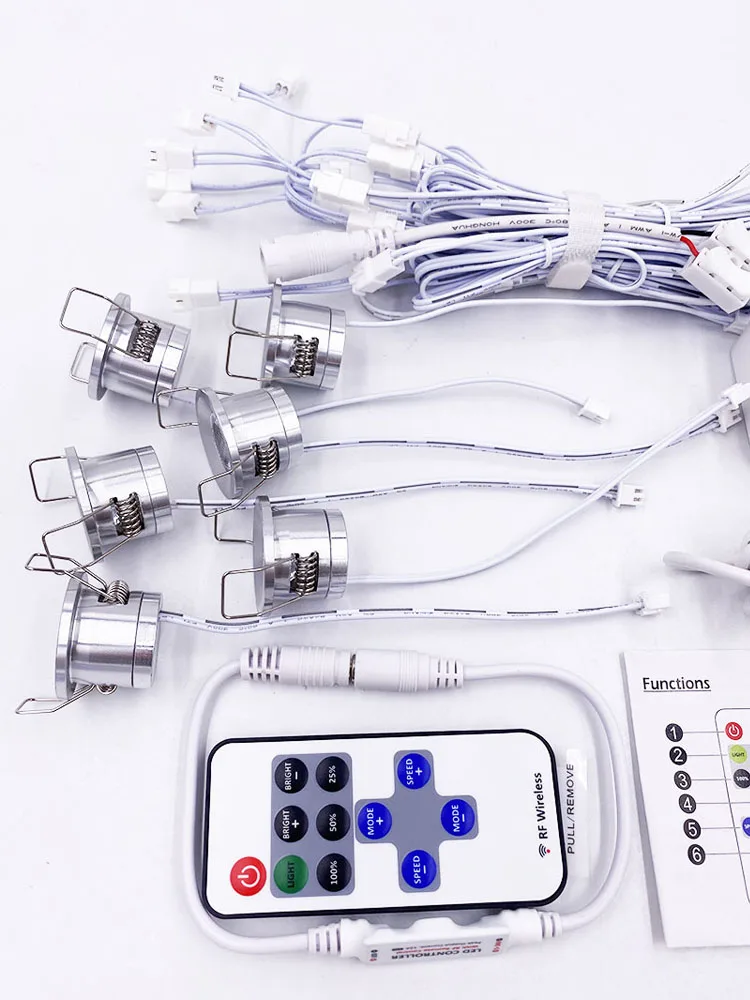

Use the supplied remote dimmer to adjust the brightness of the connected lights. The product image identifies the remote as RF wireless.

The listed white-light versions are separate color-temperature selections. They should not be described as tunable-white fixtures.

Red, green, blue and yellow are mentioned in the original specification text but are not present in the current purchase selector. Contact USKYLED to confirm availability if a single-color version is required.

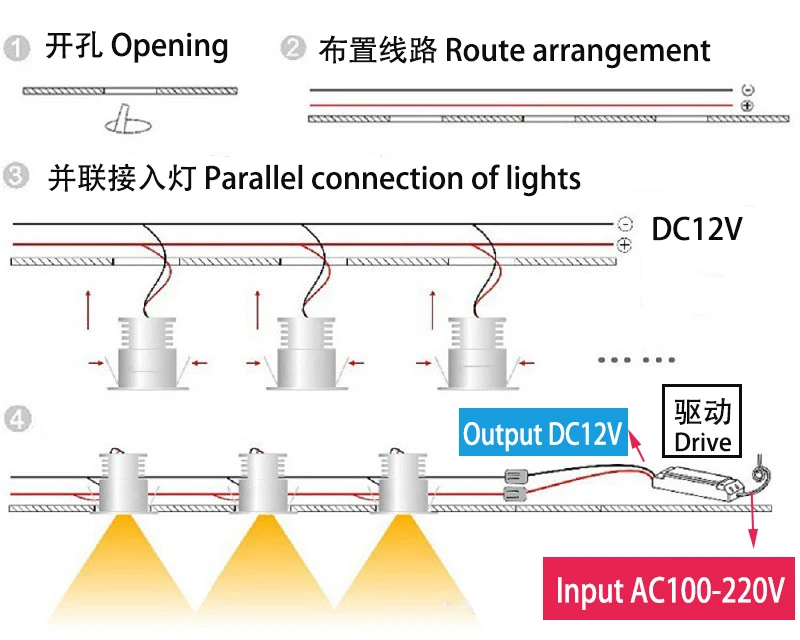

Installation

1. Plan the spotlight positions and check the space behind the mounting surface.
2. Confirm the Ø27mm cutout against the supplied fixture before drilling.

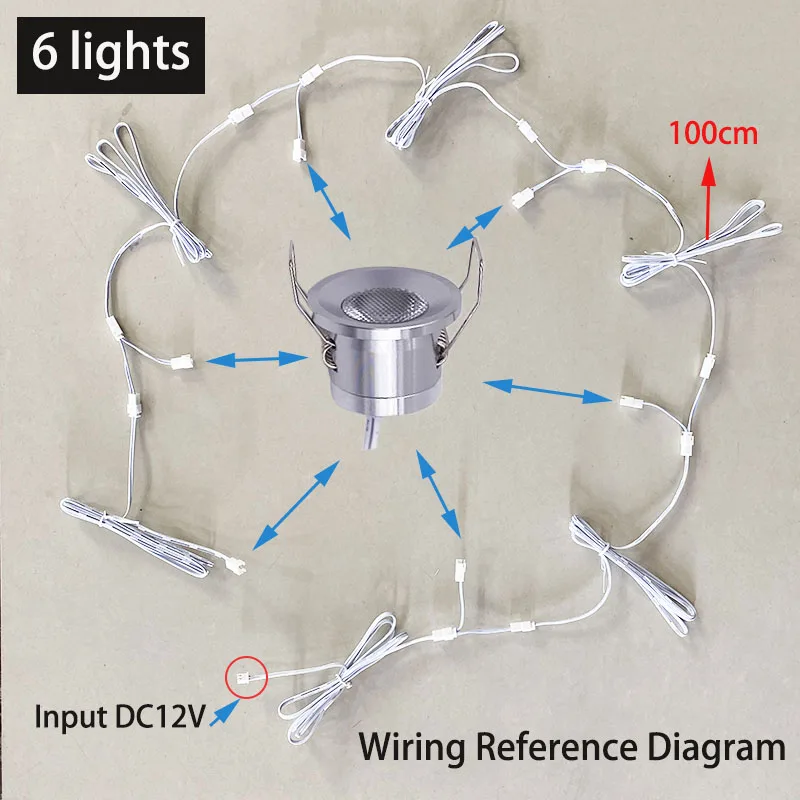

3. Route the low-voltage wiring according to the supplied connection instructions.
4. Insert the spotlight and secure it with the spring clips.
5. Connect the lights, dimmer and DC12V power supply as instructed.
6. Test the lights and remote operation before closing the installation.

The lamps operate on DC12V and must not be connected directly to AC mains. The included external power supply converts AC100–240V to DC12V.

Keep the power supply and dimmer accessible and provide appropriate clearance. Confirm compatibility before introducing any additional wall dimmer or control system.

Use the kit in protected indoor locations. It is not intended for outdoor exposure, shower areas or other locations requiring waterproof fixtures.

Technical Specifications

Project Applications

For cabinet makers and interior contractors, the kit provides a coordinated set of small recessed lights with a power supply and dimming control.

A four-light set can serve a compact display, while larger sets provide more lighting points across a wider cabinet or decorative ceiling layout. Final spacing should be based on mounting distance, object size and a practical lighting test.

Before ordering for repeat installations, confirm the set size, color temperature, plug configuration and wiring arrangement. A sample helps verify the cutout fit, beam coverage and dimming response.

OEM/ODM

Contact USKYLED to discuss OEM/ODM requirements for cabinet and interior accent lighting projects. Share the quantity, intended application, preferred color temperature, cable requirements and packaging details.

Customization availability, minimum order quantities and lead times are subject to confirmation. Standard product terms do not automatically apply to customized orders.

Request a Sample or Project Quote

Send USKYLED your required set size, light color, plug option and order quantity for a quotation.

MOQ: 1 piece.
Sample order lead time: 3–7 days.
Bulk order lead time: 7–15 days.

Confirm the selected set contents and installation requirements before ordering.
