Mini Recessed LED Spotlight with 12V PWM Dimming for Starry Ceilings & Cabinet Accents
No.1005005804808821
SKU:
Add decorative points of light to ceilings and cabinet displays with this DC12V mini recessed LED spotlight. Its faceted crystal-style tip creates a distinctive visible detail, while the compact fitting uses a 13mm cutout. Choose 0.5W or 1W, silver or black housings, and white-light or single-color options. Supports compatible PWM dimming. The current listing is supplied in 2-piece packs; a power supply and dimmer are not listed as included.

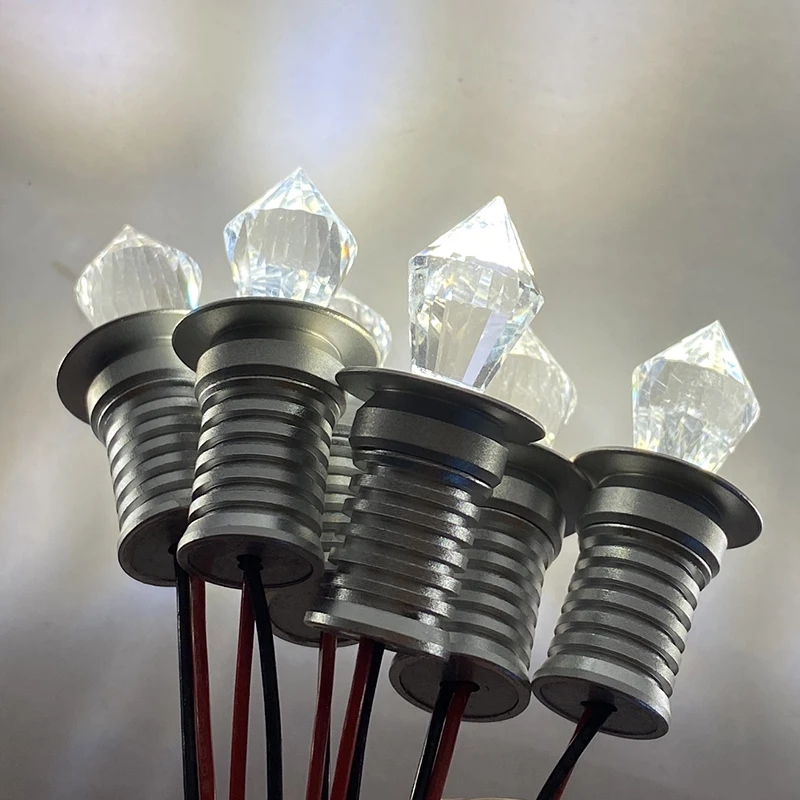

The USKYLED mini recessed LED spotlight adds small decorative points of light to starry ceiling layouts, cabinet interiors and indoor display features. A faceted crystal-style tip extends below the trim, giving the fitting a decorative appearance even when viewed at close range.
The light operates on DC12V and is available in 0.5W or 1W versions. It supports compatible PWM dimming, allowing brightness adjustment when used with an appropriate external controller.
Each fitting requires a 13mm mounting cutout. The current product options are supplied in 2-piece packs, with silver or black housings and a choice of white-light or single-color output.
Design

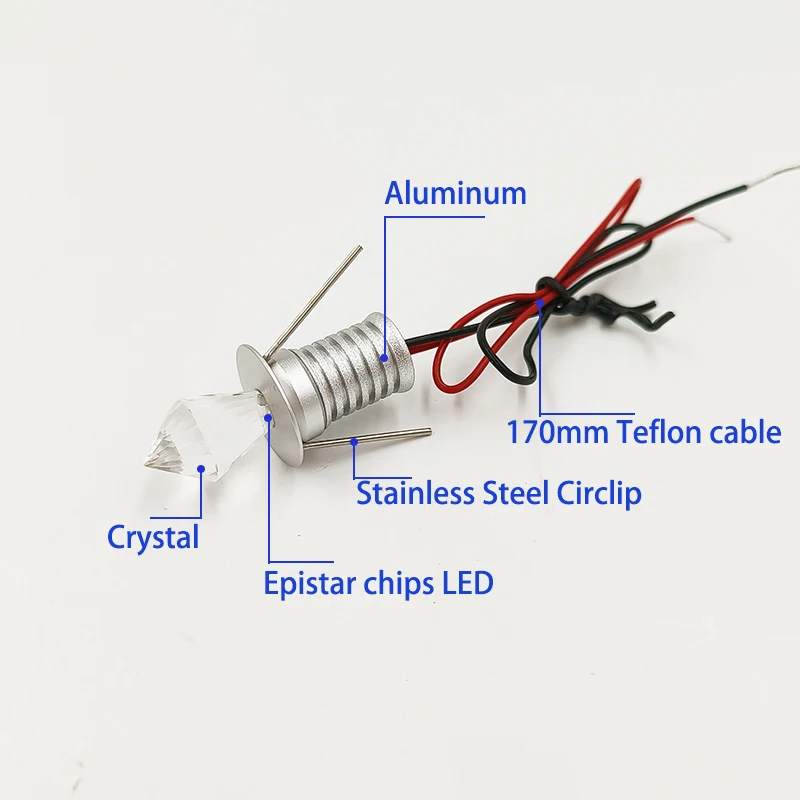

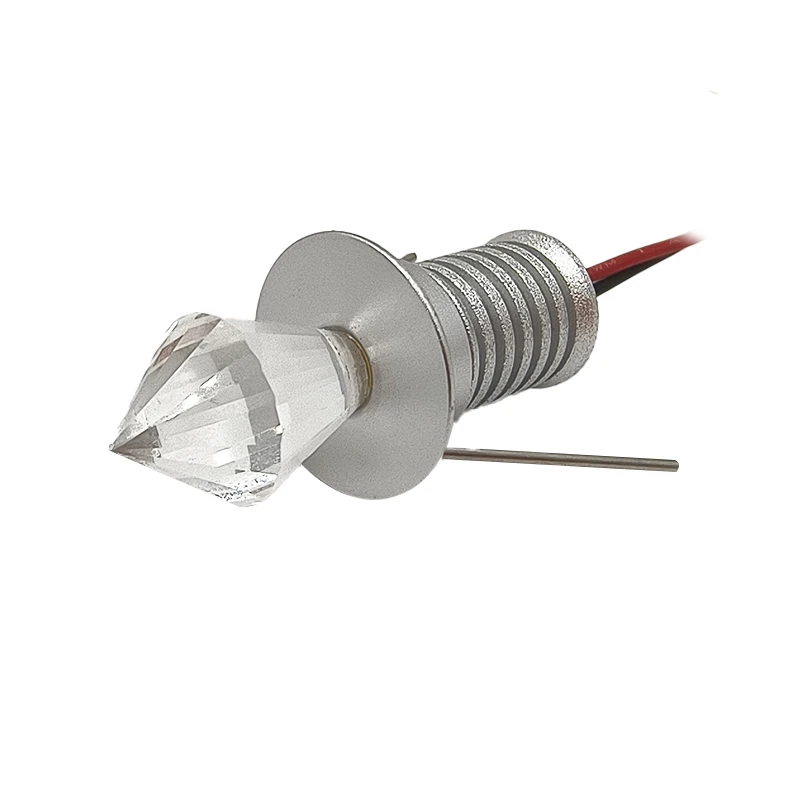

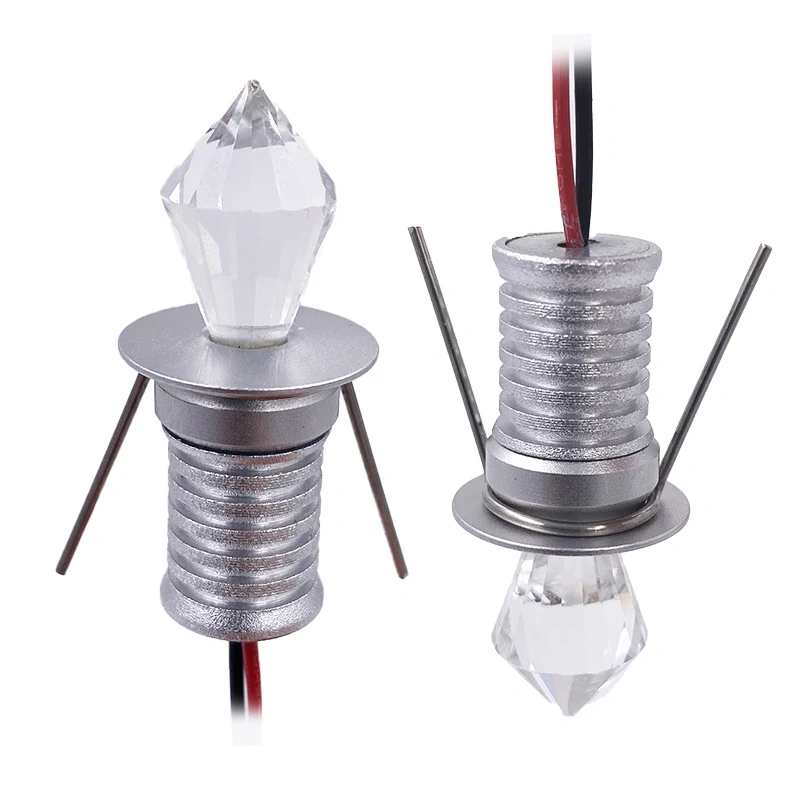

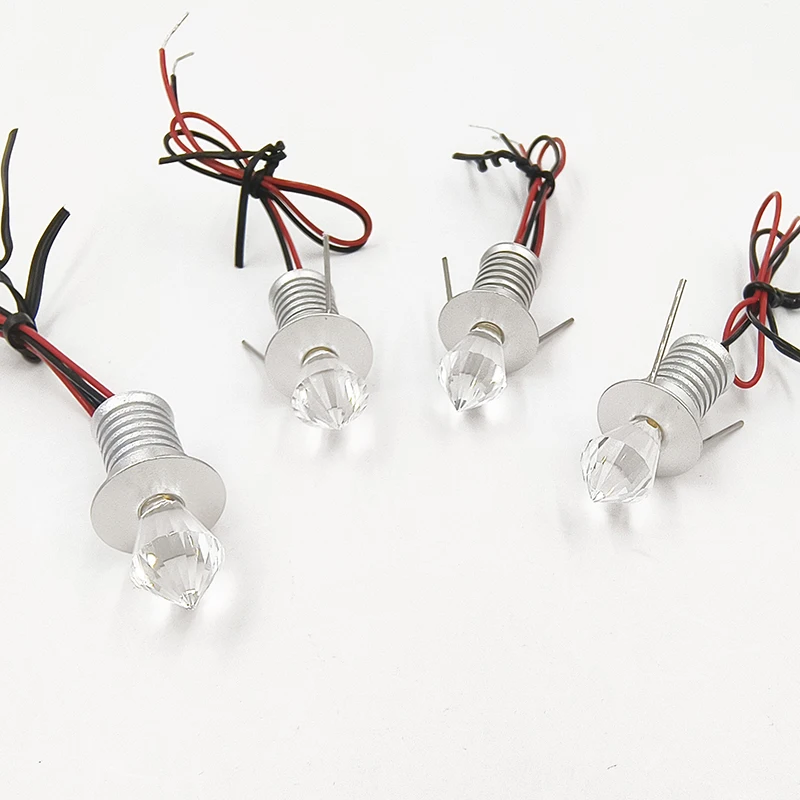

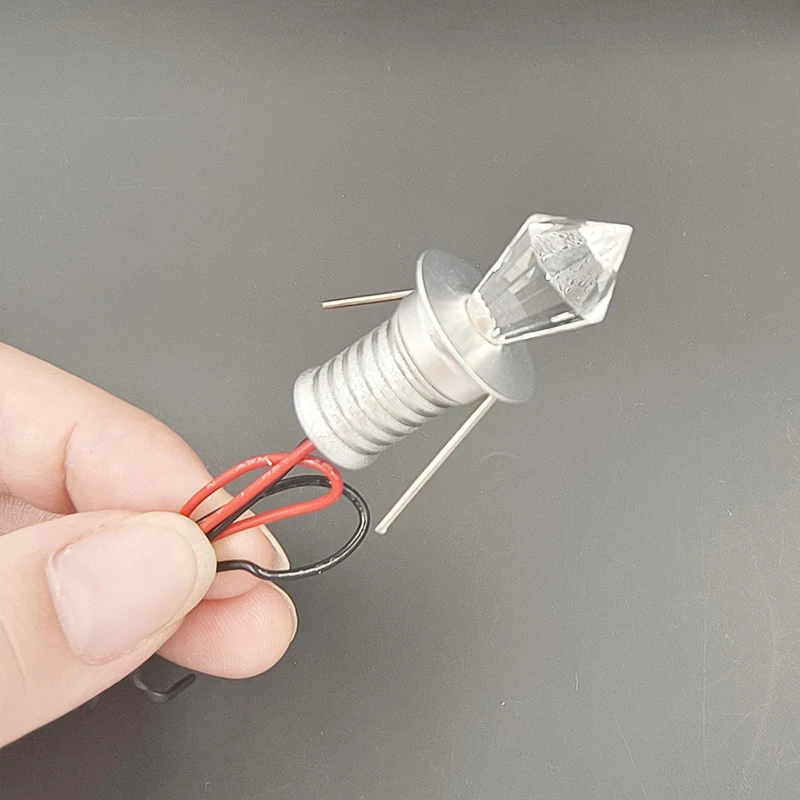

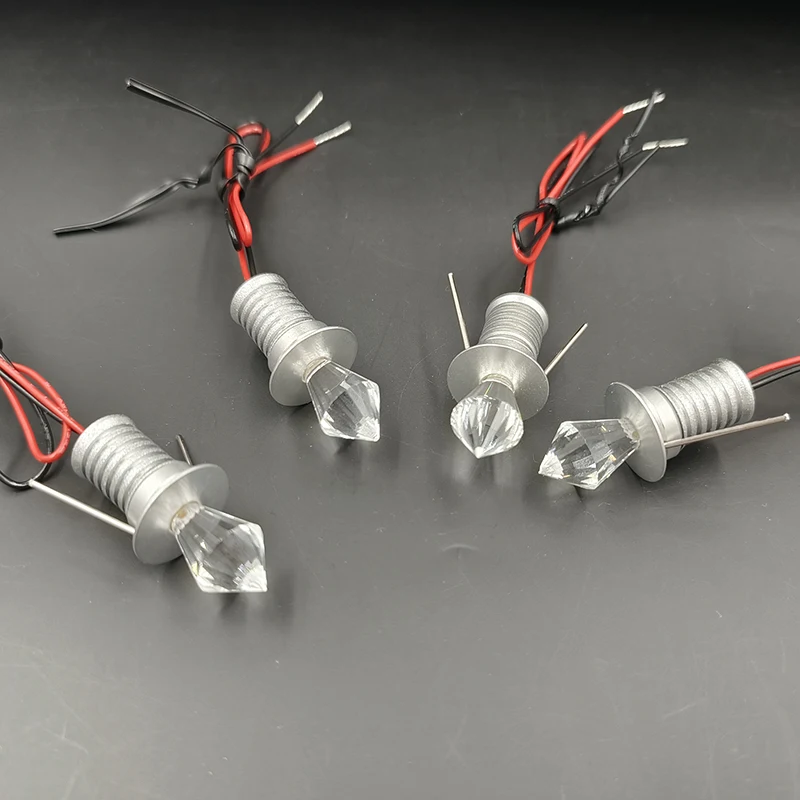

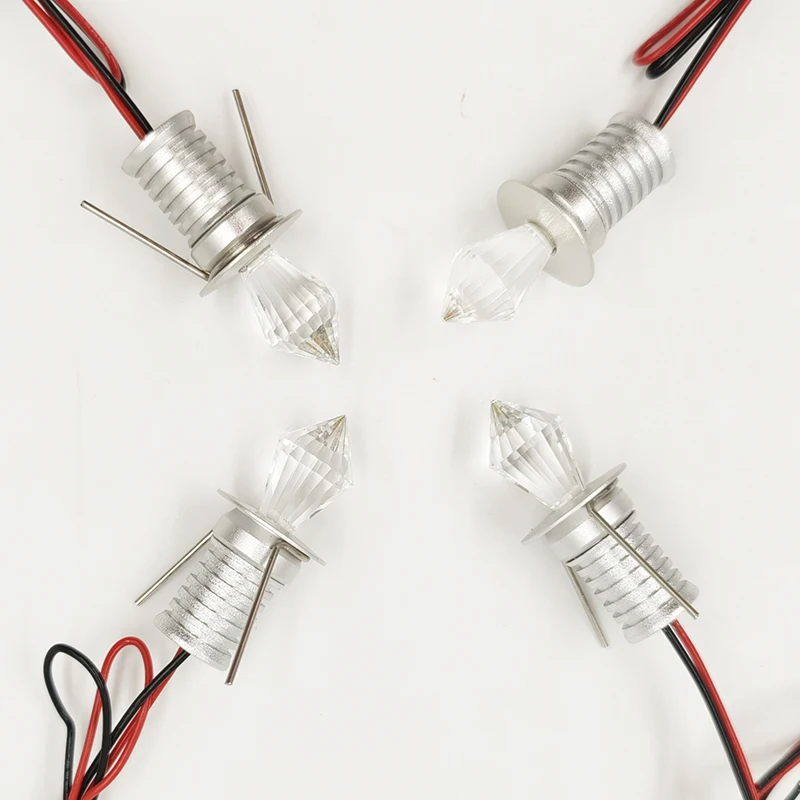

The spotlight combines a compact aluminum body, spring mounting clips and a clear faceted decorative tip. Most of the body sits behind the mounting surface, while the trim and pointed tip remain visible.

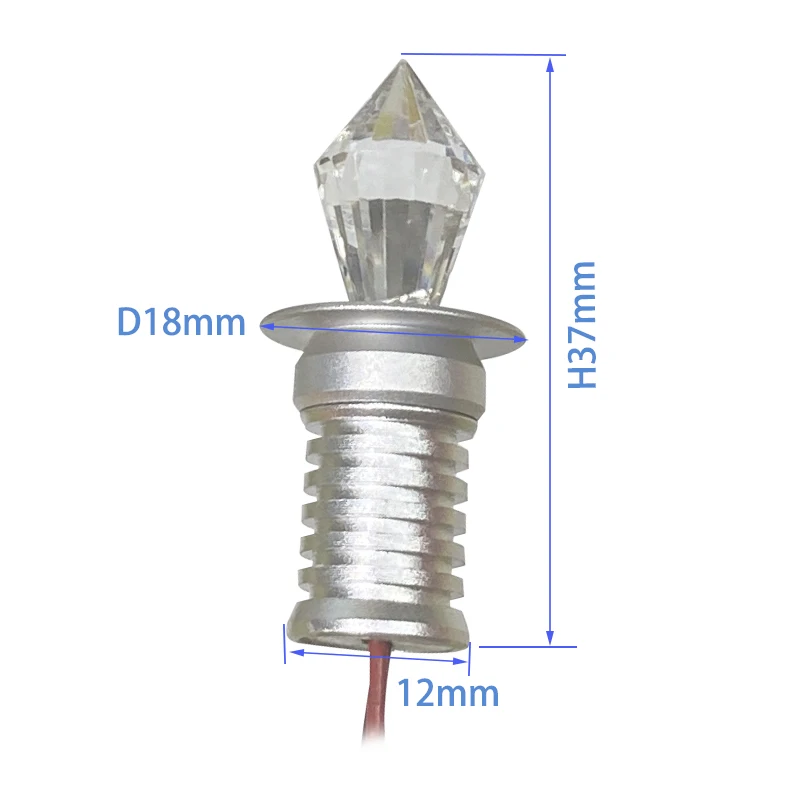

The listed overall dimensions are Ø18 × H37mm, with a Ø13mm cutout. Check the installation drawing or a physical sample to confirm the depth behind the panel and the visible projection before preparing the mounting surface.
Silver and black finishes are available in the current product selector.
Main Features
Compact recessed fitting: Designed for a 13mm mounting cutout.
Decorative faceted tip: Adds a crystal-style detail to ceiling and cabinet layouts.
DC12V operation: Requires a suitable external 12V DC power supply.
PWM dimming support: Use with a compatible PWM dimmer.
Two power options: Choose 0.5W or 1W per light.
White-light choices: Warm white, neutral white and cool white.
Single-color choices: Red, green, blue and yellow.
Aluminum housing: Available in silver or black.

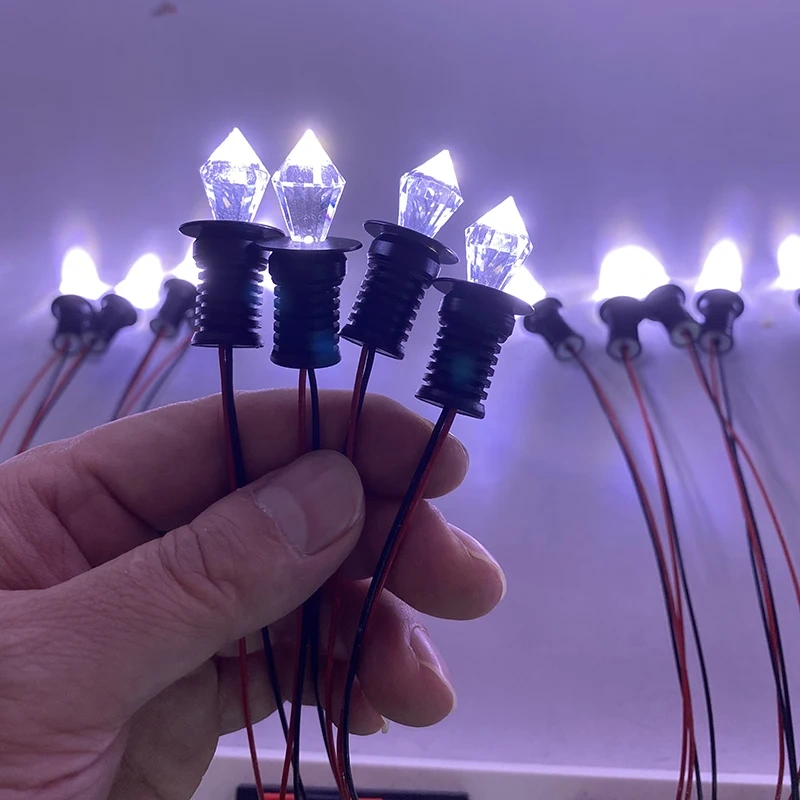

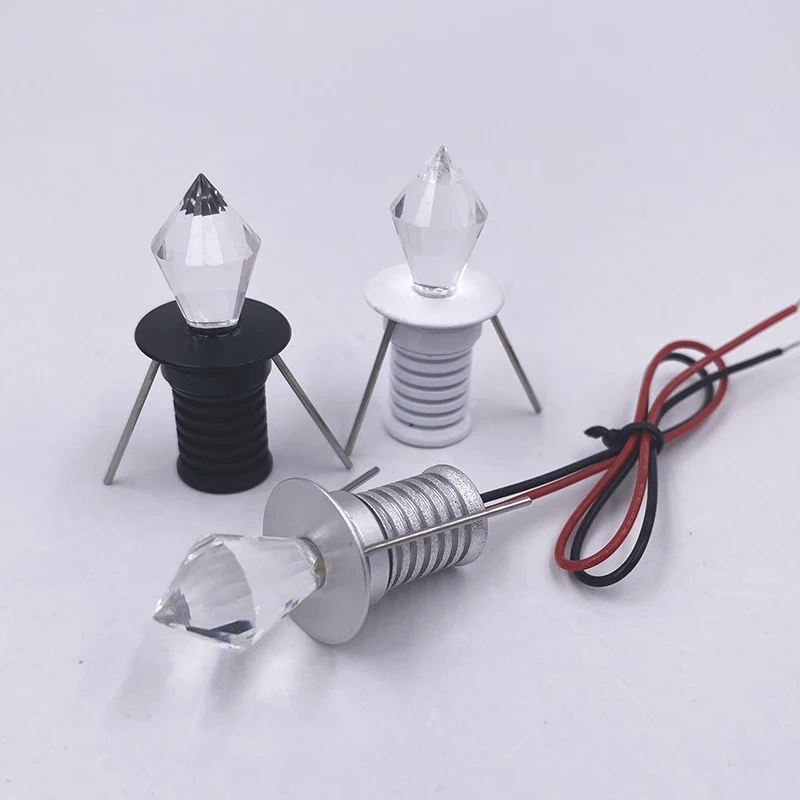

Spring-clip mounting: Secures the fitting in a suitable panel.
2-piece packaging: Two lights are listed per selected pack.

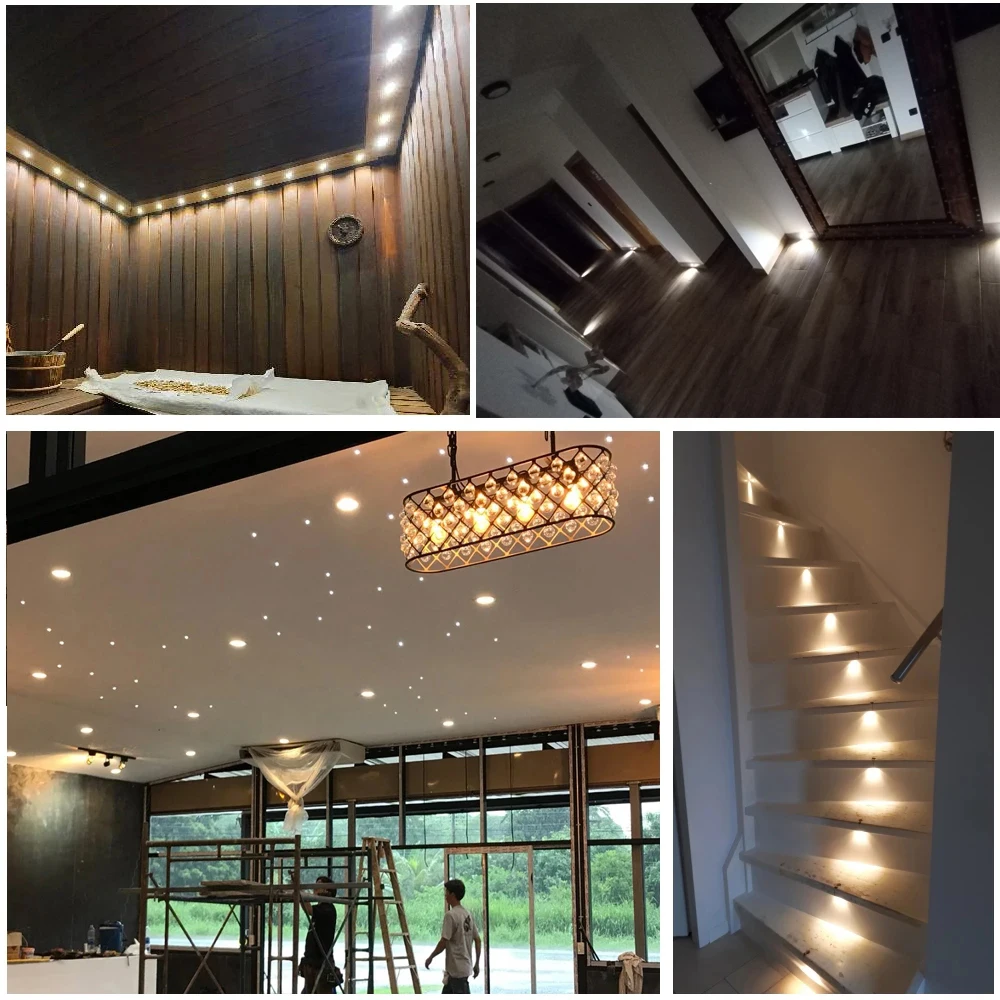

Application
Use this mini spotlight for:
Decorative starry ceiling layouts.
Bedroom and living room ceiling accents.
Hallway and entrance decorative lighting.
Cabinet, bookcase and wine cabinet accents.
Small display features and themed interiors.
Indoor stair-area decorative details.
Restaurant, bar and hospitality mood lighting.
This product is intended for decorative accent lighting. It should not be treated as a replacement for general room lighting or required stair illumination.
For displays that need precise color presentation, request the relevant photometric information and evaluate a sample.
Size / Options
Option
Available Selection
Model family
MINI21C-1W/0.5W
Power per light
0.5W / 1W
Lamp input
DC12V
Listed overall dimensions
Ø18 × H37mm
Mounting cutout
Ø13mm
Housing finish
Silver / Black
White-light options
Warm White / Neutral White / Cool White
Single-color options
Red / Green / Blue / Yellow
Listed lead length
170mm
Current pack size
2 lights

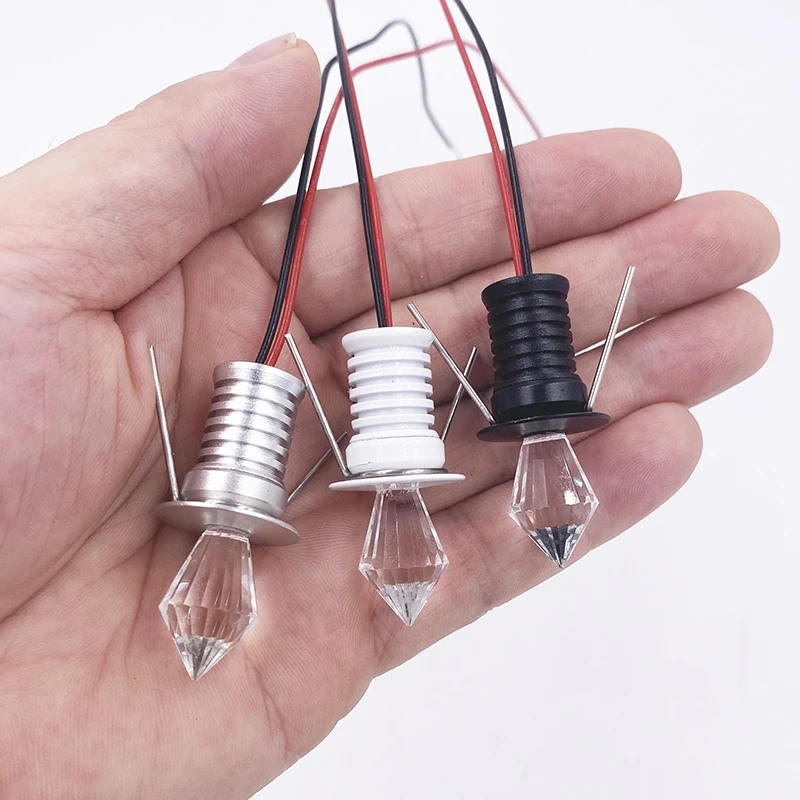

The main image also shows a white housing, but white is not available in the current housing selector. Contact USKYLED to confirm availability before specifying that finish.

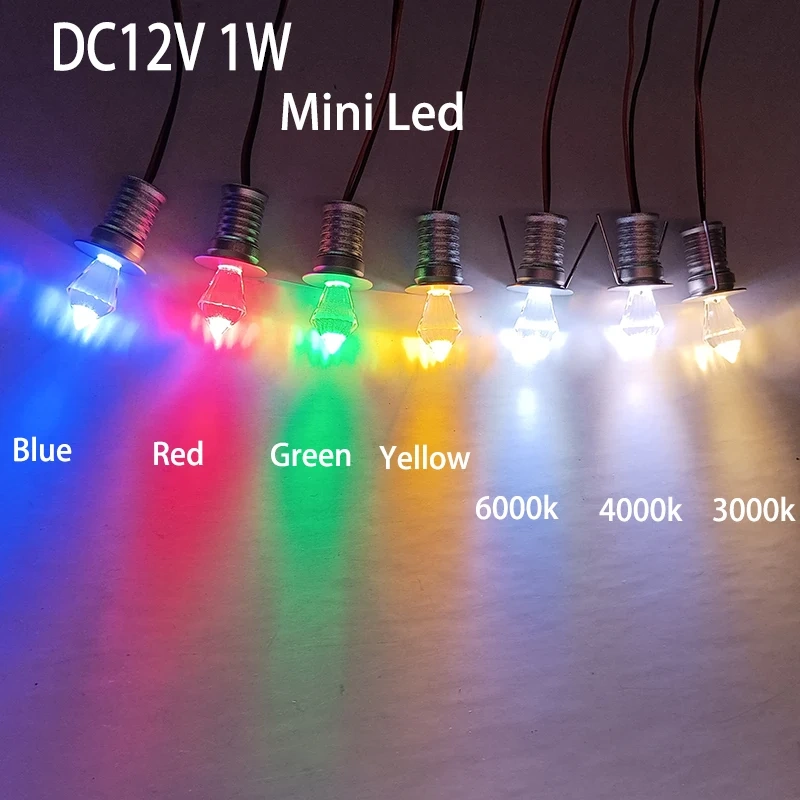

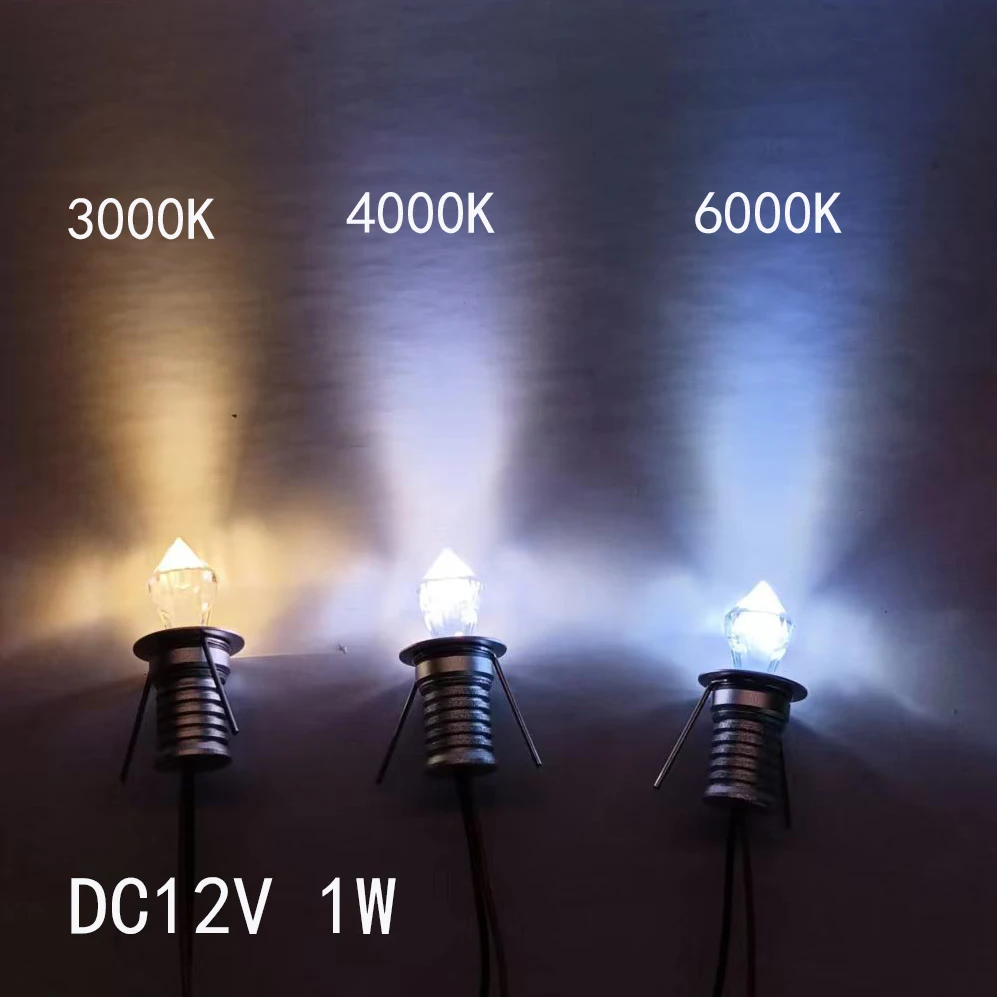

Lighting Options

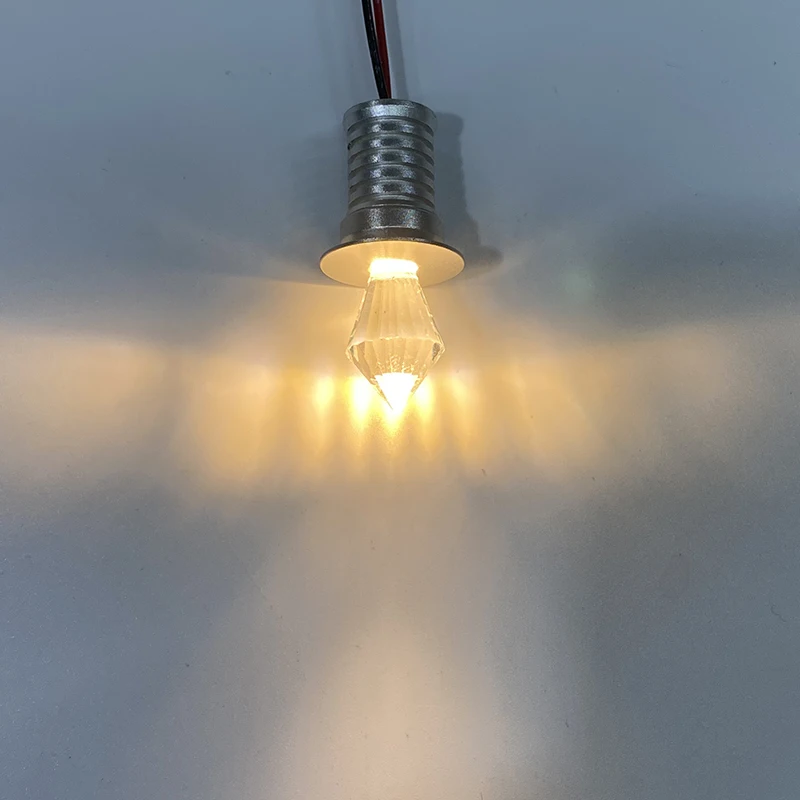

Warm White: 2700–3000K
A warm tone for bedrooms, wooden cabinets and relaxed decorative interiors.
Neutral White: 4000–4500K
A neutral white appearance for indoor accents and display details. The current selector identifies this option as “WHITE.”
Cool White: 5500–6500K
A cooler white tone for decorative layouts where this appearance suits the surrounding interior.

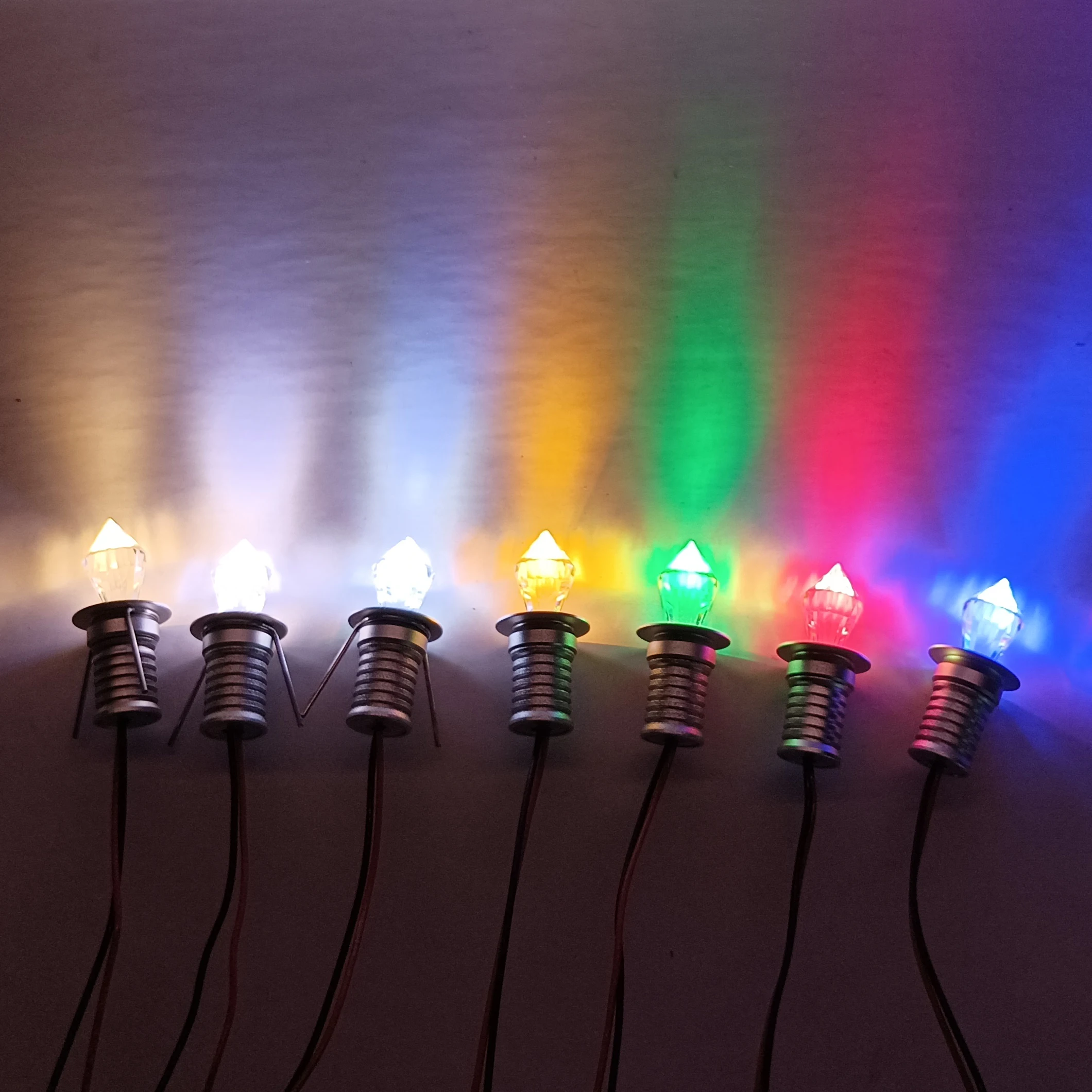

Single-Color Versions
Red, green, blue and yellow are available as separate light-color selections. These options should not be described as RGB color-changing lights.
PWM Dimming
The product specification states support for PWM dimming. Select a controller compatible with the DC12V lights and the complete connected load.
A dimmer and power supply are not listed in the package contents. Confirm the required accessories before ordering. Compatibility with TRIAC, DALI, 0–10V or smart-home systems is not specified.

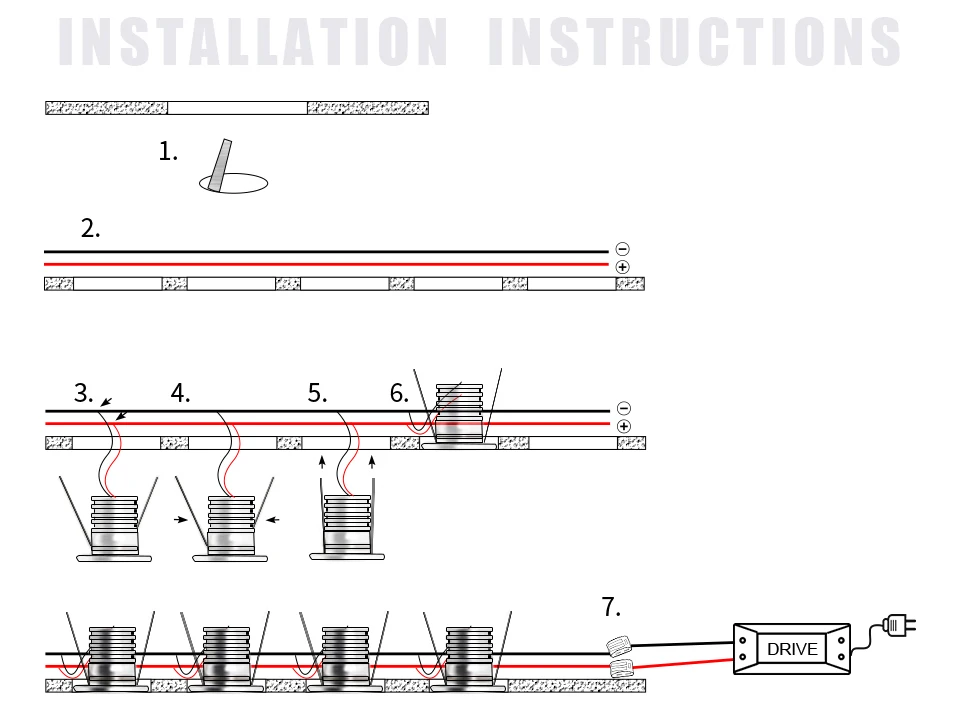

Installation
Plan the positions of the decorative lighting points.
Confirm the cutout size, mounting depth and panel suitability against the supplied fitting.
Prepare the Ø13mm cutouts.
Route and connect the low-voltage wiring according to the supplied instructions, observing polarity.
Secure each spotlight with its spring clips.
Connect a suitable DC12V power supply and, if required, a compatible PWM dimmer.
Test the lights before completing the installation.
Do not connect the lights directly to AC mains. Keep the power supply, controller and wiring connections accessible for maintenance.
The listed 170mm leads may require suitable extension wiring for larger layouts. Use the lights in protected indoor locations; the IP42 rating should not be presented as waterproof.
Technical Specifications
Parameter
Specification
Product type
Mini recessed decorative LED spotlight
Model family
MINI21C-1W/0.5W
Power options
0.5W / 1W per light
Input voltage
DC12V
Dimming
Supports compatible PWM dimming
Housing material
Aluminum
Housing finishes
Silver / Black
Optical appearance
Faceted crystal-style decorative tip
Warm white
2700–3000K
Neutral white
4000–4500K
Cool white
5500–6500K
Single-color options
Red / Green / Blue / Yellow
Listed overall dimensions
Ø18 × H37mm
Cutout diameter
Ø13mm
Listed lead length
170mm
Installation
Recessed, spring-clip mounting
IP rating
IP42
Listed operating temperature
−25°C to +45°C
Listed warranty
5 years
Current package contents
2 mini LED spotlights
Project Applications

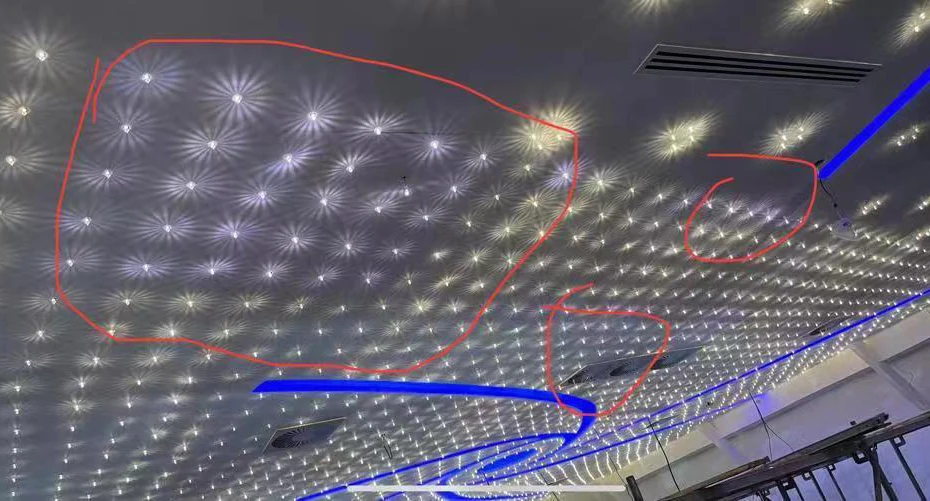

For decorative ceiling projects, multiple small fittings can create a pattern of illuminated points. Final spacing should be based on the ceiling layout, viewing distance and the desired appearance.
In cabinets and display structures, the visible faceted tip becomes part of the design. Test the fitting in a sample panel to confirm its projection, light effect and suitability for the available space.
For repeat installations, specify the wattage, light color, housing finish and dimming arrangement. Calculate the complete connected load before selecting the power supply and controller.
OEM/ODM
Contact USKYLED to discuss OEM/ODM requirements for decorative ceiling and cabinet lighting projects. Share the required quantity, preferred light color, housing finish, wiring arrangement and packaging requirements.
Customization availability, minimum quantities and production lead times are subject to confirmation. Standard product terms may differ from customized orders.
Request a Sample or Project Quote
Send USKYLED your required wattage, light color, housing finish and quantity for a quotation.
MOQ: 2 piece. Sample order lead time: 3–7 days. Bulk order lead time: 7–15 days.
The current online options are 2-piece packs. Confirm the order unit and required power supply or dimming accessories when requesting a quote.
1W LED Spotlight:
1.CE RoHS Certification, environmental friendly and Energy saving
2.Quality Security, focusing on high markets
3.Fluent and decent appearance, lightly lamp housing
4.Easy to install and use
5.Pure aluminum , anti-oxidative and more durable, longer lifespan
6.1W 2W 3W 4W mini led ceiling light / led downlight / led spotlight
Warranty policy: 1: Warranty: 5 years. 2: 100% of all products will be tested before shipping by our QC staff. 3: During the warranty period, we will immediately supply replacement for free. 4: Promot technciail supports and led solution will be offered! 5: Favorable price according to large qty. 6: Once partnership established, newest and hottest products information
