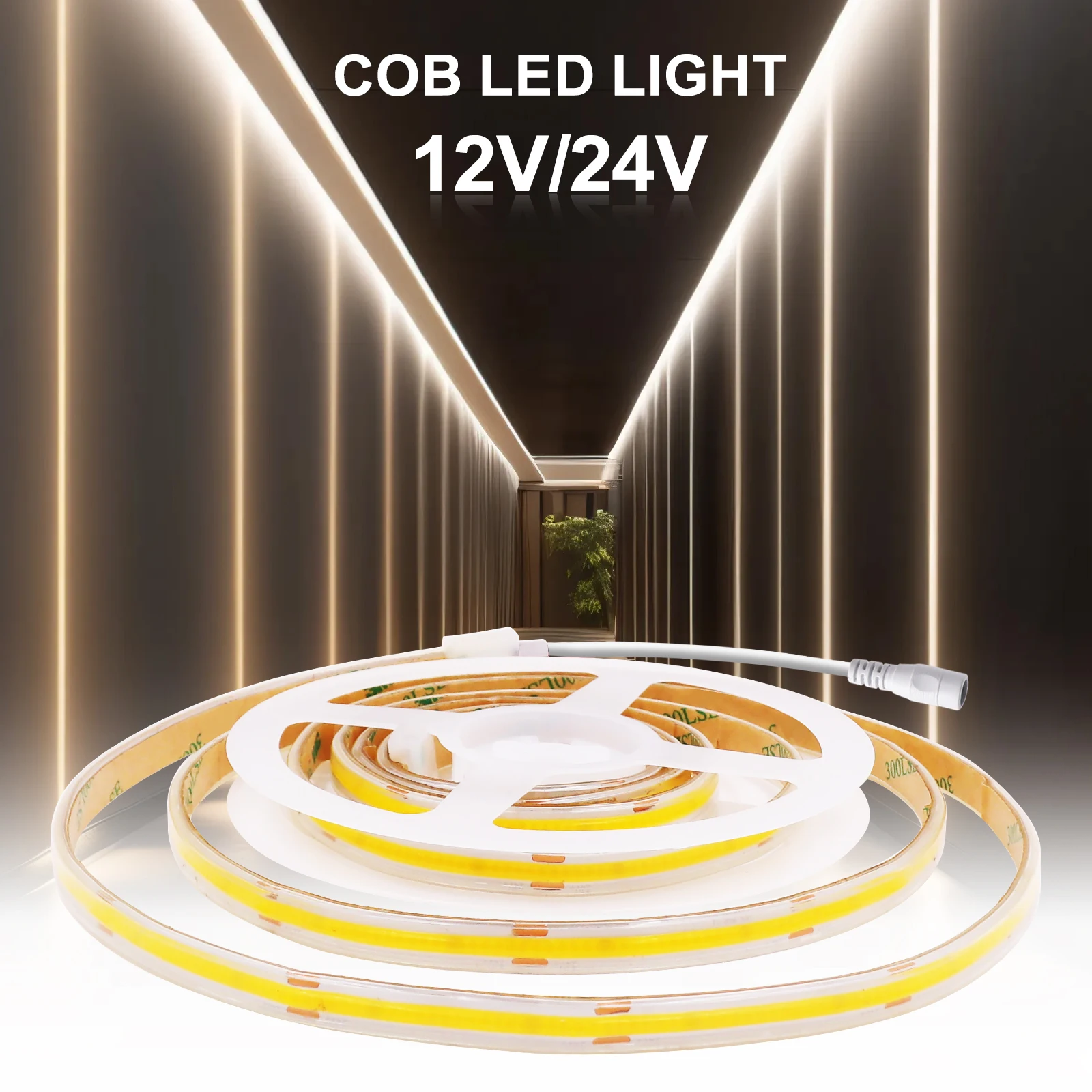

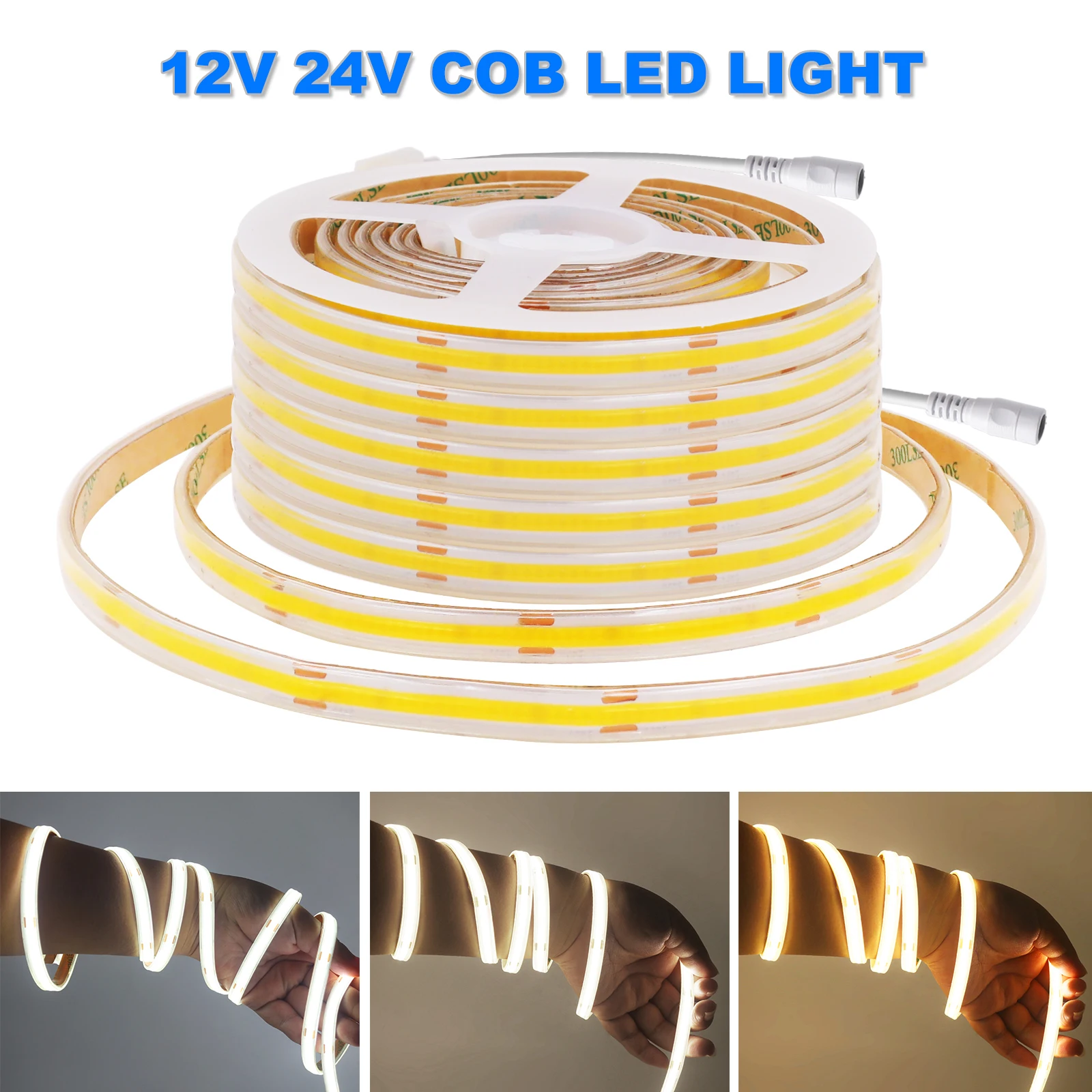

Product Introduction
The USKYLED 480 LEDs/m COB LED Strip Light is a high-density flexible LED tape designed for applications that require smooth, continuous and uniform linear illumination. Using COB technology with 480 LED chips per meter, the strip helps minimize visible LED dots and dark areas compared with conventional low-density LED strip lights.

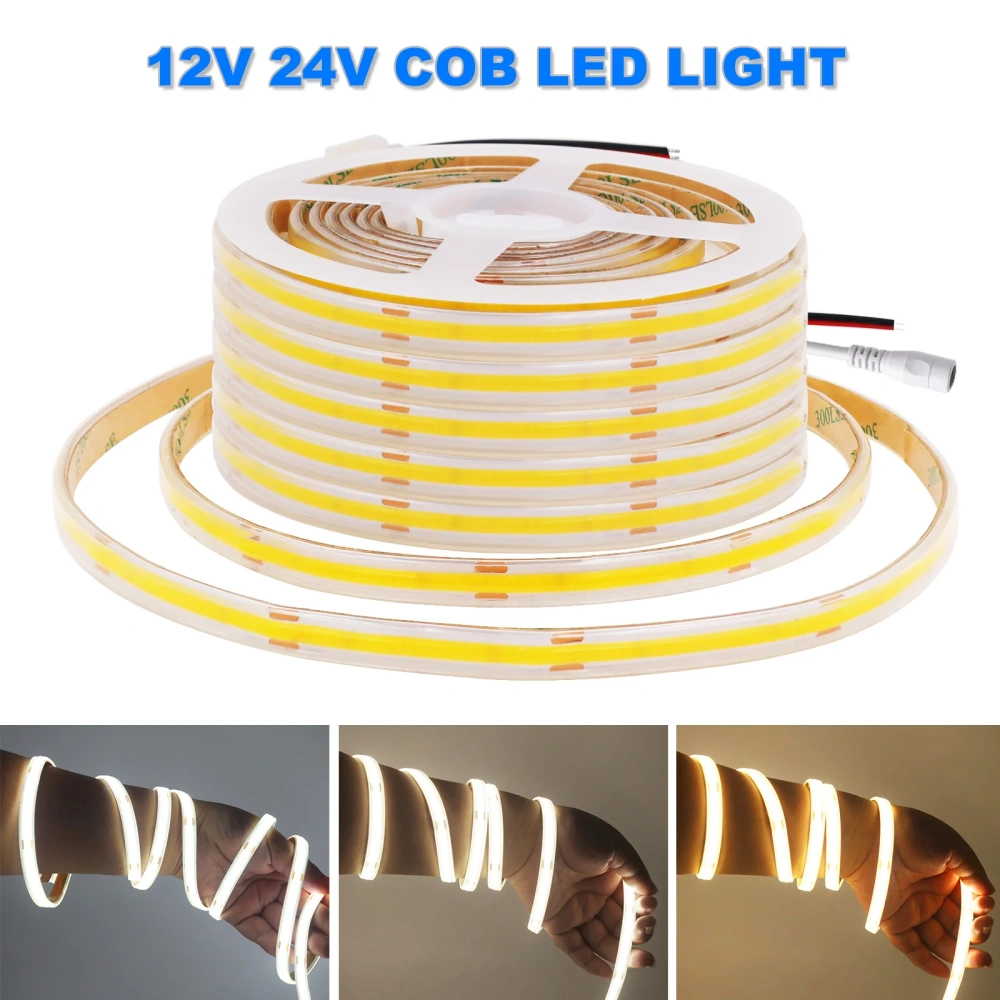

Available in DC12V and DC24V, the COB LED strip supports 3000K warm white, 4000K natural white and 6000K white lighting options. With CRI >90 and a wide 180° viewing angle, it can be used for both decorative and functional lighting in residential, commercial and architectural environments.
The flexible strip uses a compact 10mm width and 2.5mm thickness, making it suitable for installation in narrow channels, cabinets, furniture, ceilings, display areas and other linear lighting structures.
For B2B lighting projects, USKYLED supports different lengths, connection options and OEM/ODM requirements. The standard product can be supplied with a 2-pin wire or DC female connector according to project requirements.
Design

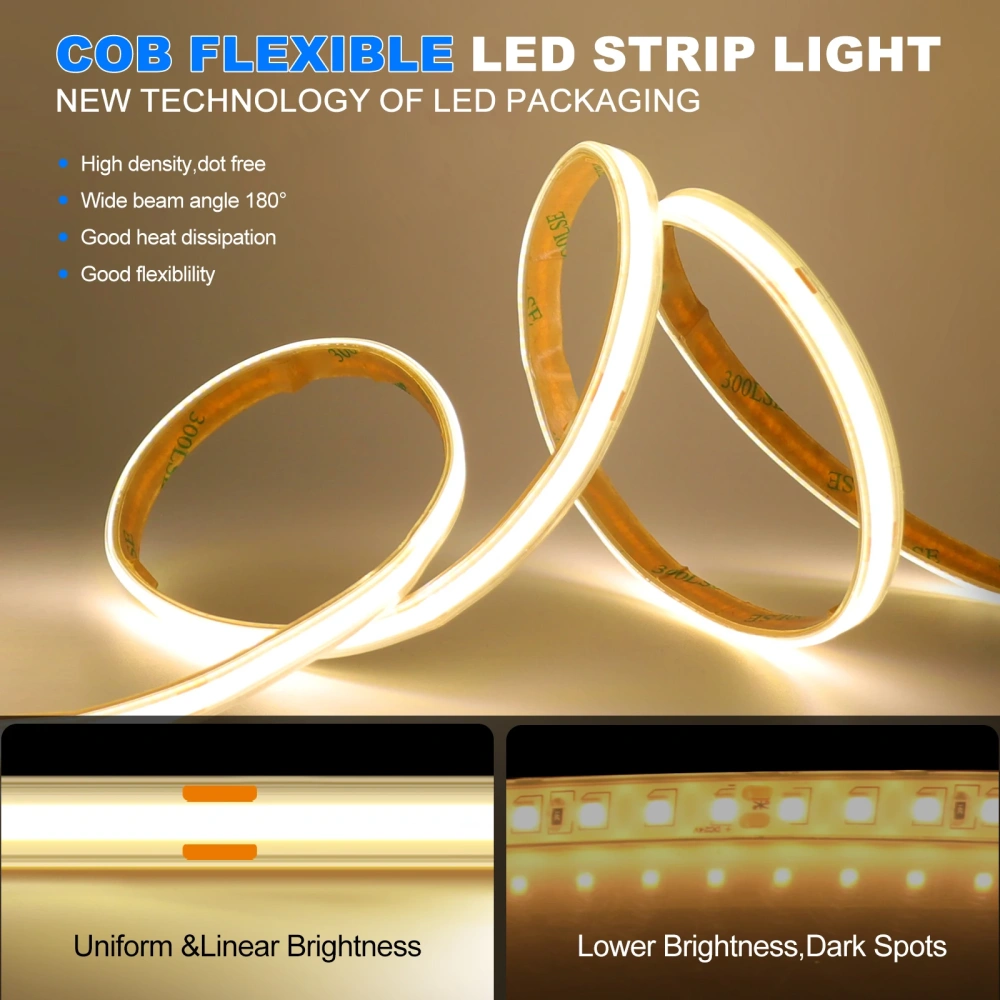

High-Density COB LED Technology
The COB LED structure integrates a high density of LED chips along the flexible circuit board.

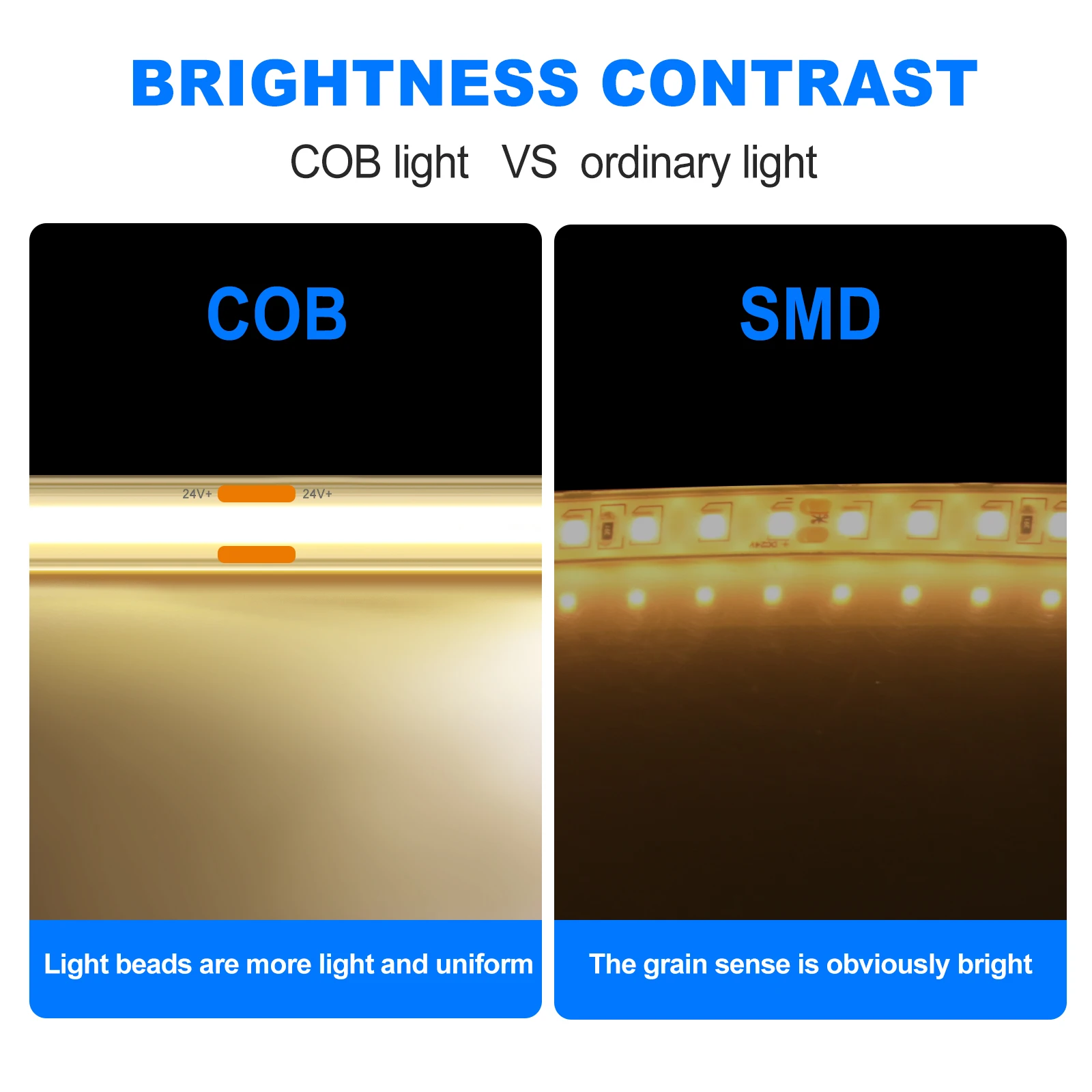

With 480 LEDs/m, the strip produces a more continuous linear light appearance and helps reduce visible dots when installed in suitable aluminum profiles or lighting channels.

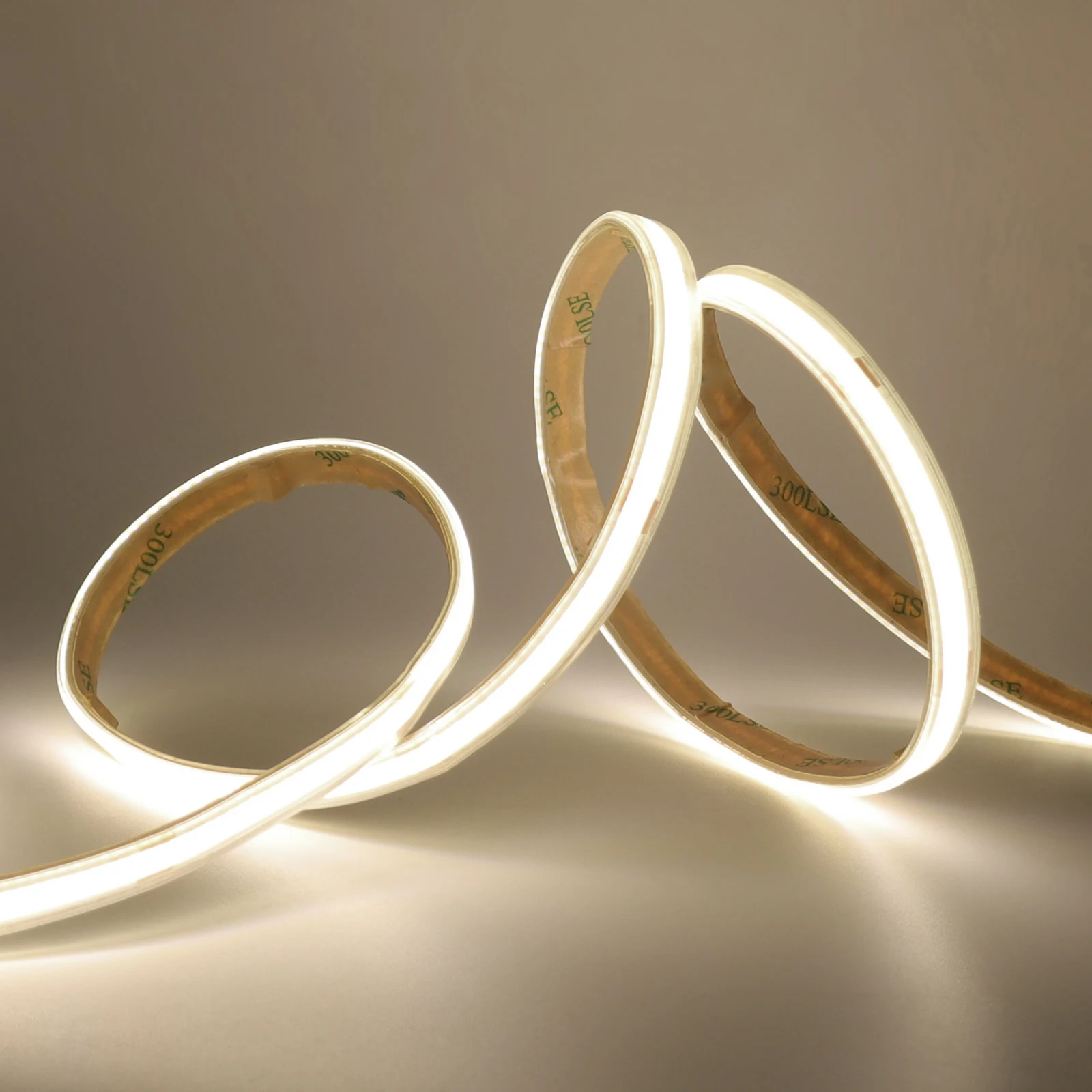

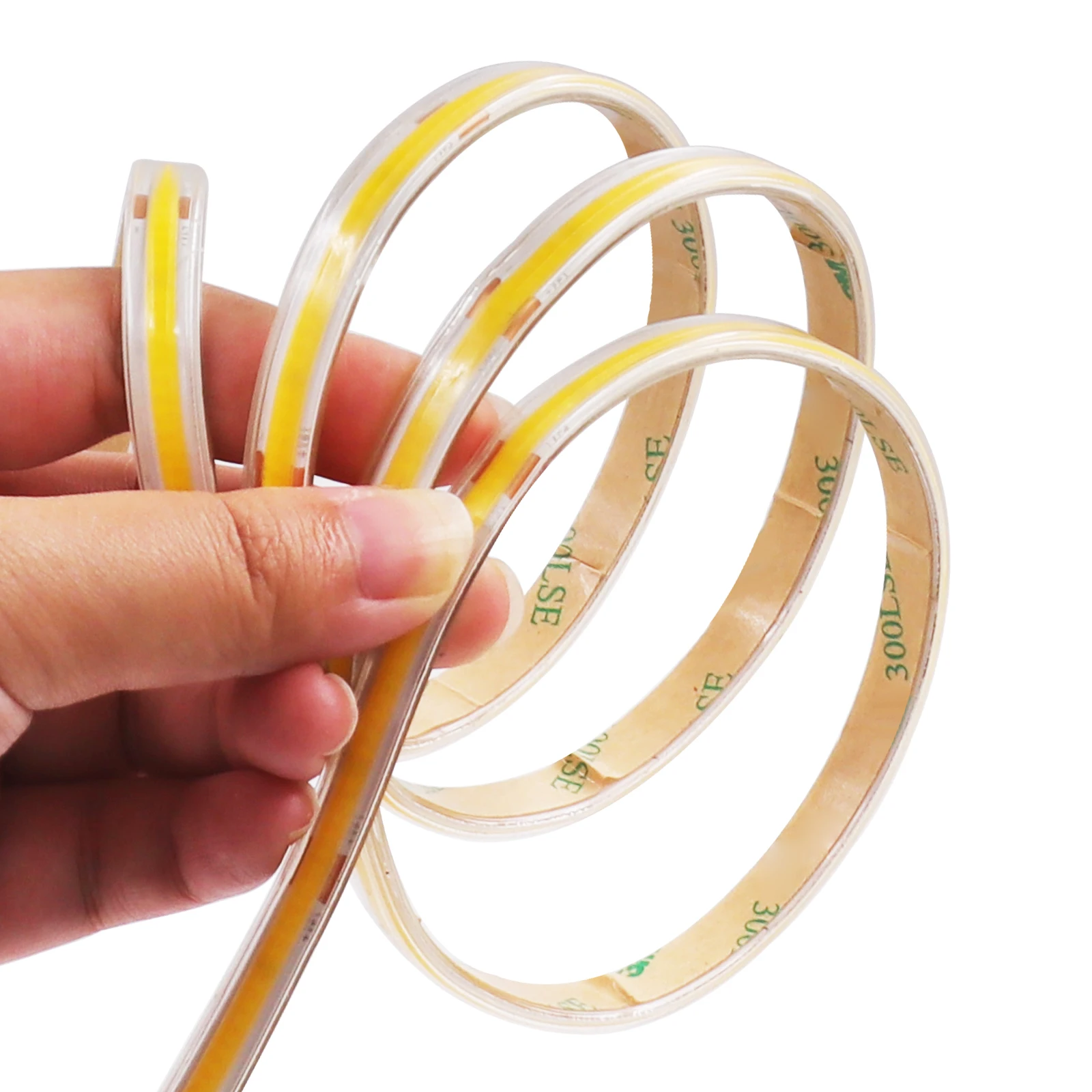

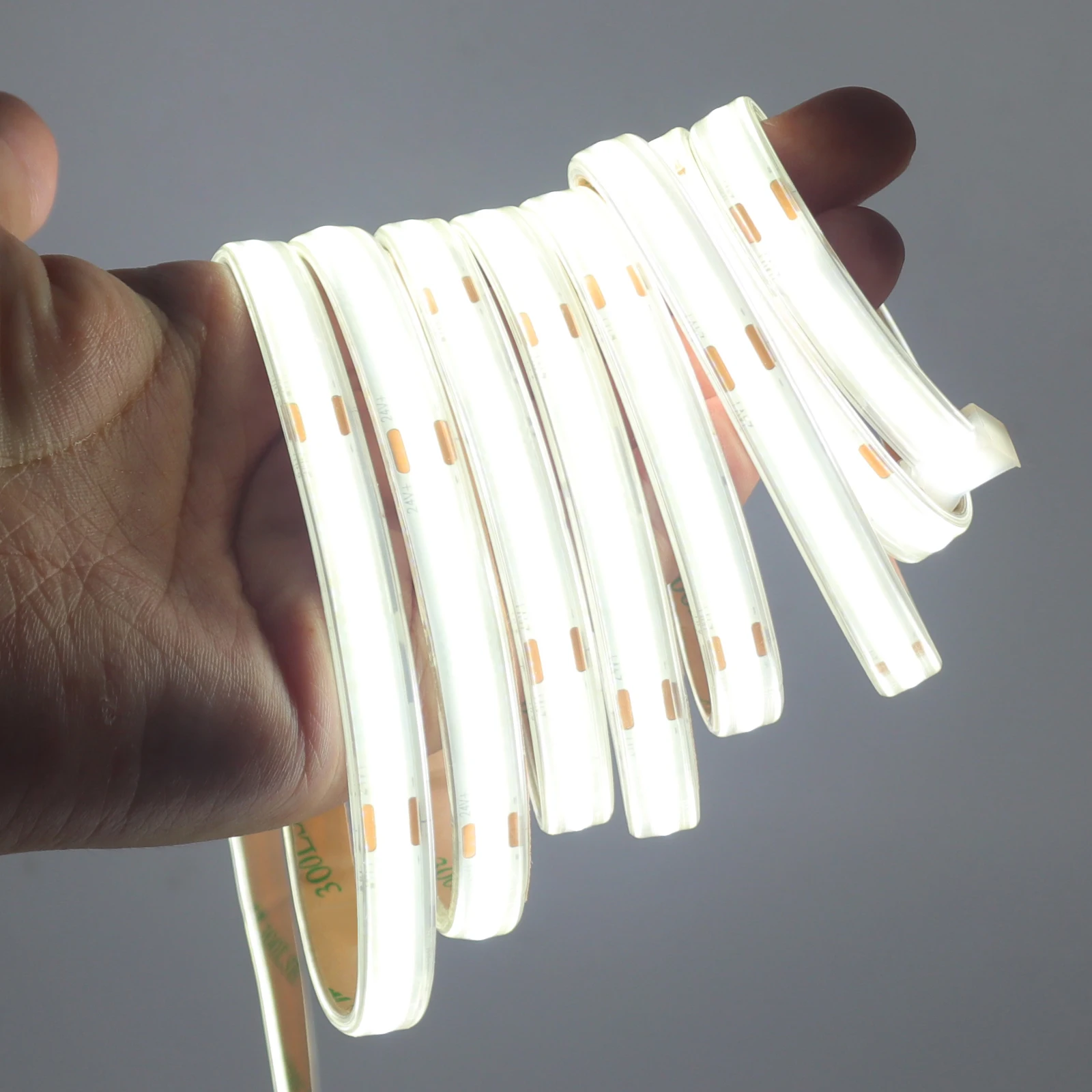

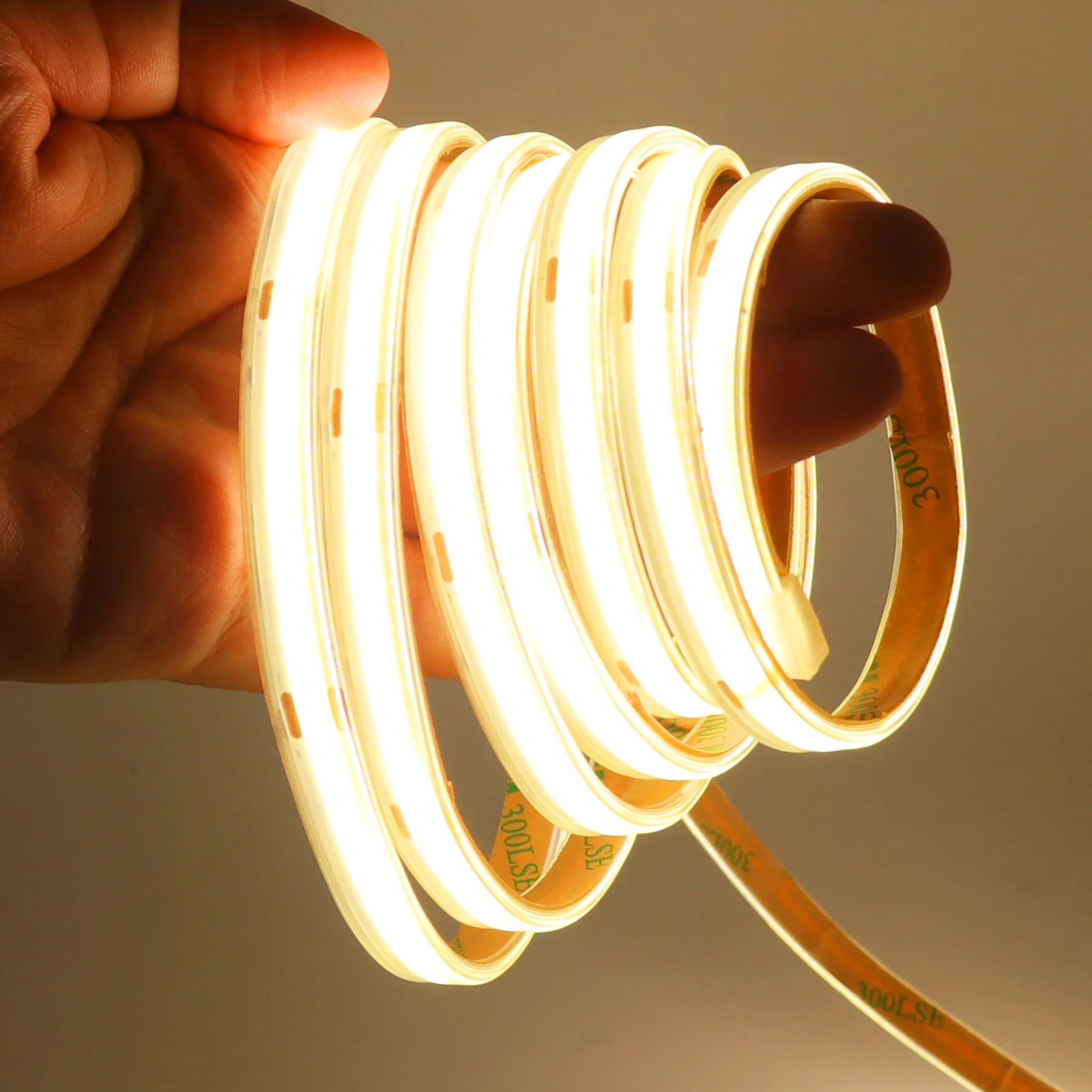

Flexible LED Tape Structure
The flexible PCB allows the strip to follow straight or curved installation paths.
The 10mm × 2.5mm profile is suitable for compact linear lighting applications where installation space is limited.
Adhesive Backing
The strip is supplied with adhesive backing for convenient installation on clean, dry surfaces.
For long-term commercial and architectural installations, an aluminum LED profile is recommended to improve heat dissipation and installation stability.
Main Features
- 480 LEDs/m high-density COB LED technology
- DC12V / DC24V low-voltage operation
- 9–11W/m power consumption
- CRI >90 for improved color rendering

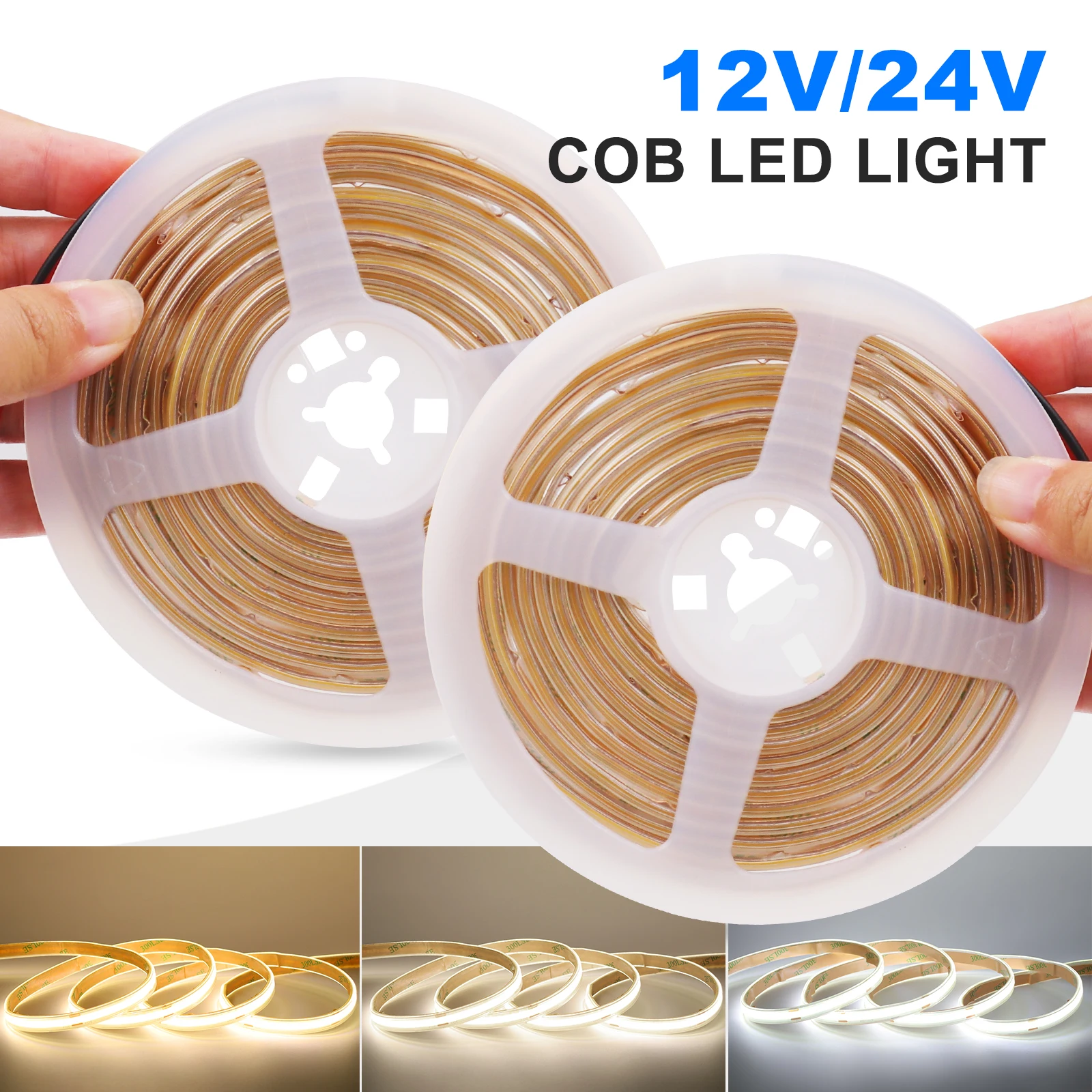

- 3000K / 4000K / 6000K color temperature options
- 180° wide viewing angle
- Flexible and bendable LED strip construction
- 10mm width × 2.5mm thickness

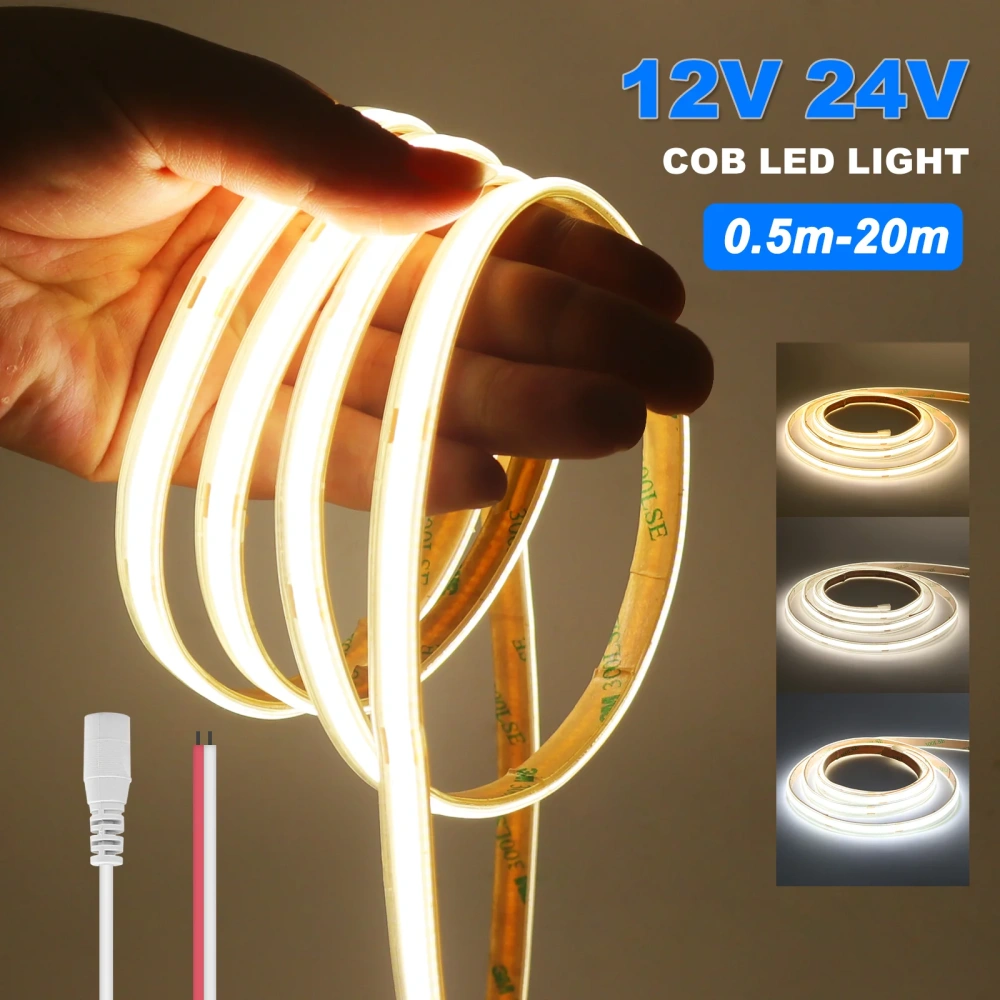

- Available in lengths from 0.5m to 20m
- Cuttable design for customized installation

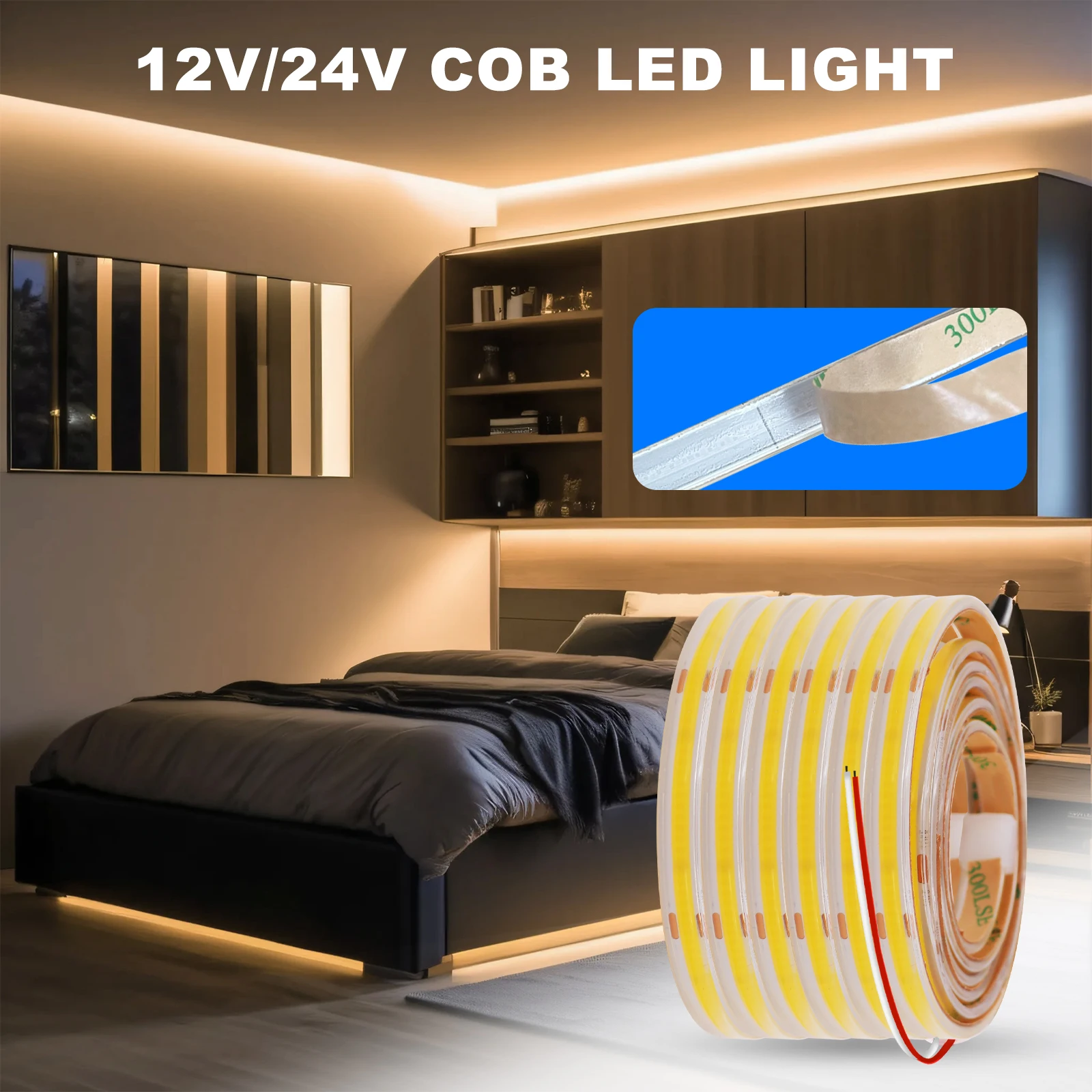

- Adhesive backing for convenient mounting

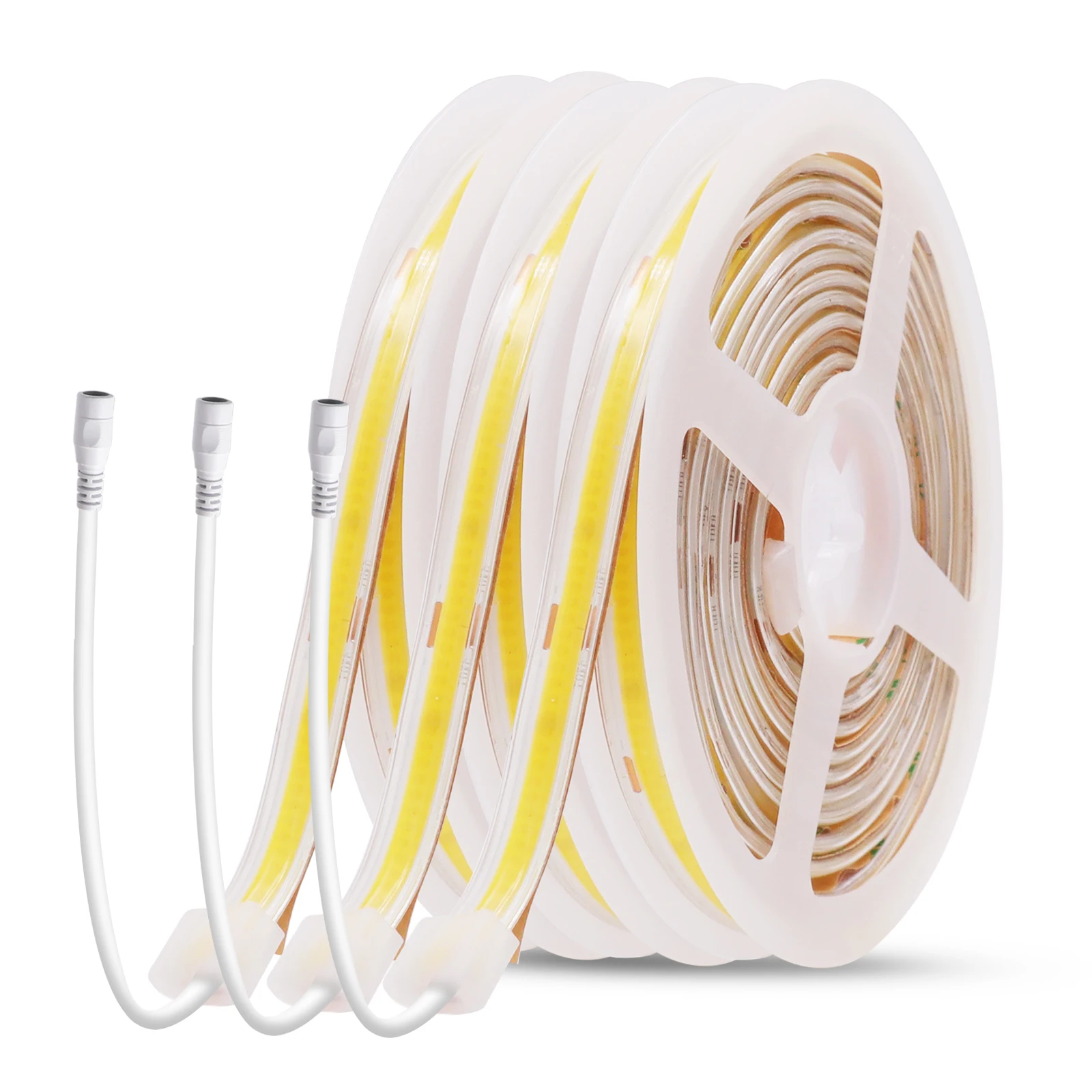

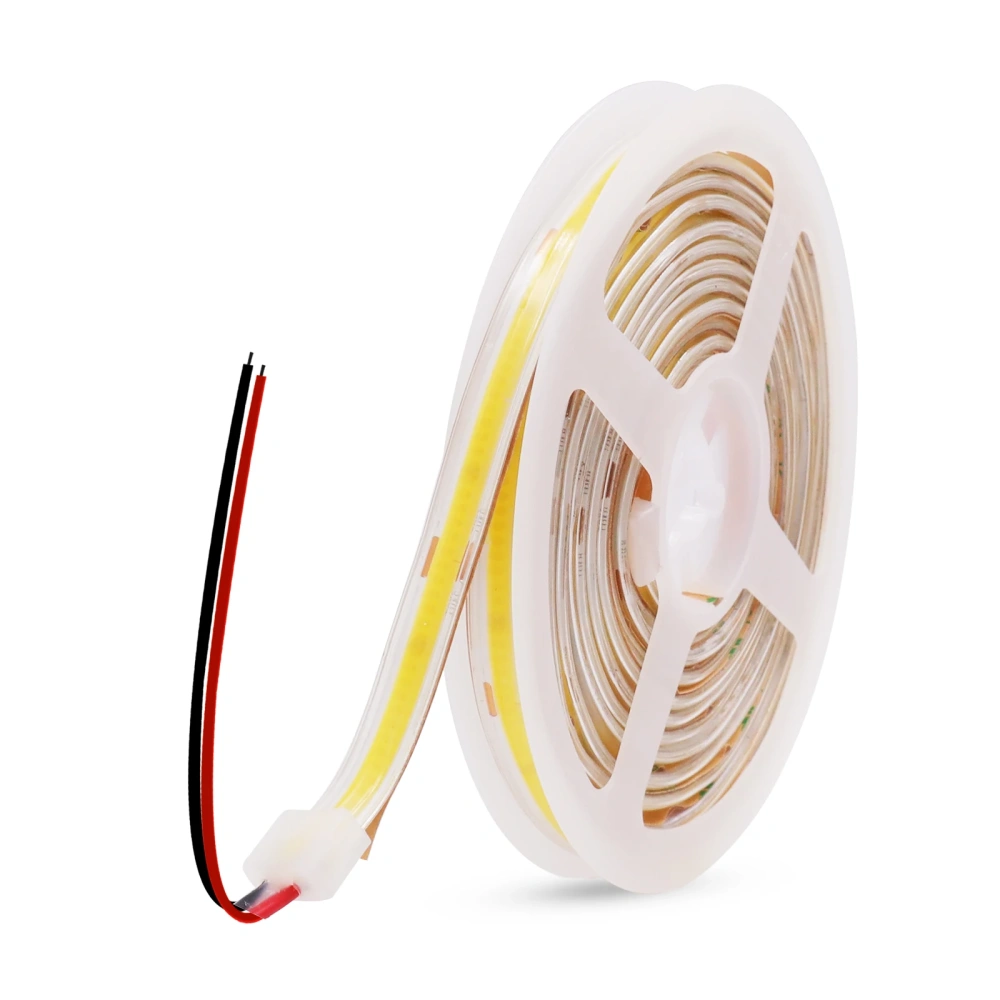

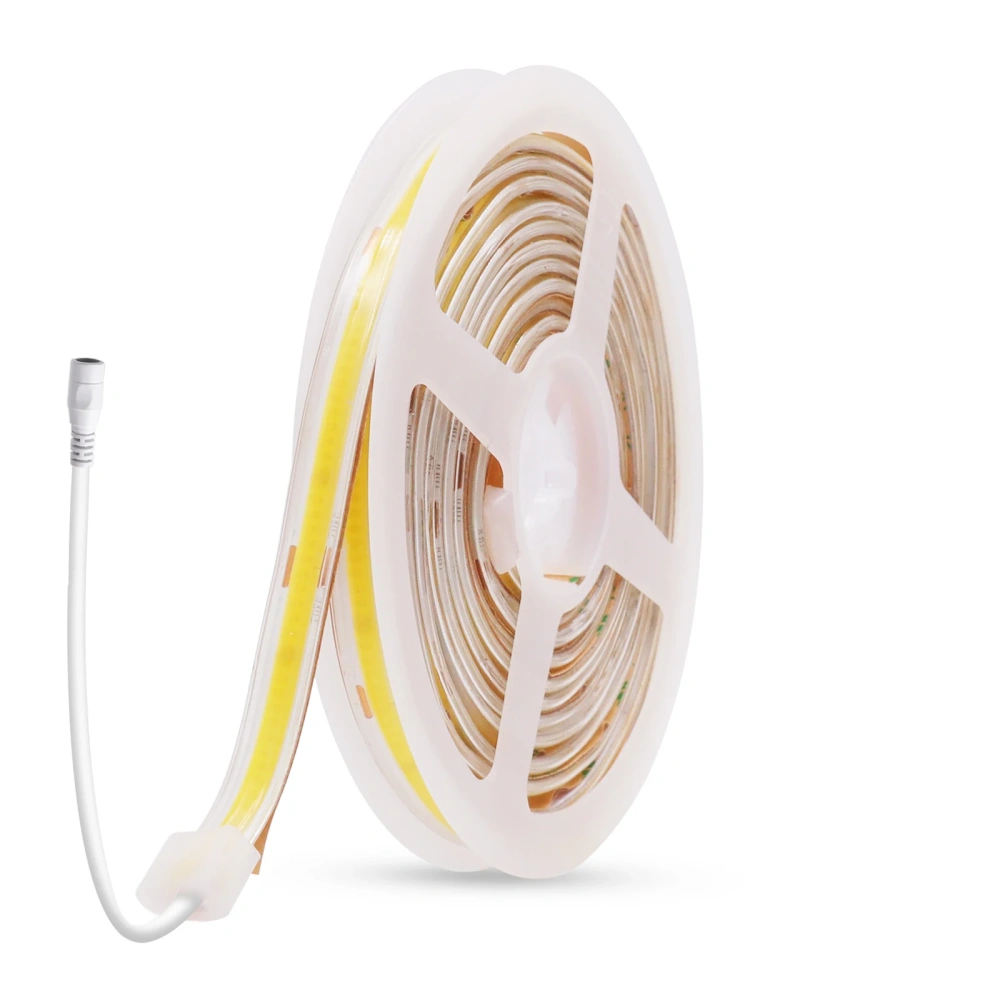

- 2-pin wire or DC female connector options
- Suitable for indoor and selected outdoor decorative lighting
- MOQ: 1 piece
- Sample lead time: 3–7 days
- Mass order lead time: 7–15 days
Application
The 480 LEDs/m COB LED Strip Light can be integrated into a wide range of residential, commercial and architectural lighting systems.
Typical applications include:
- Cabinet lighting
- Under-cabinet lighting
- Furniture lighting
- Wardrobe lighting
- Display cabinet lighting
- Retail shelving
- Cove lighting
- Ceiling lighting
- Stair lighting
- Hotel interior lighting
- Restaurant lighting
- Bar and hospitality lighting
- Commercial interior lighting
- Exhibition and display lighting
- Architectural decorative lighting
- Outdoor decorative lighting
Size / Options
The COB LED strip is available in multiple voltage, length and connection configurations.
| Parameter |
Options |
| LED Type |
COB |
| LED Density |
480 LEDs/m |
| Input Voltage |
DC12V / DC24V |
| Power |
9–11W/m |
| Strip Width |
10mm |
| Thickness |
2.5mm |
| Standard Length |
0.5m–20m |
| Available Lengths |
5m / 10m / 20m |

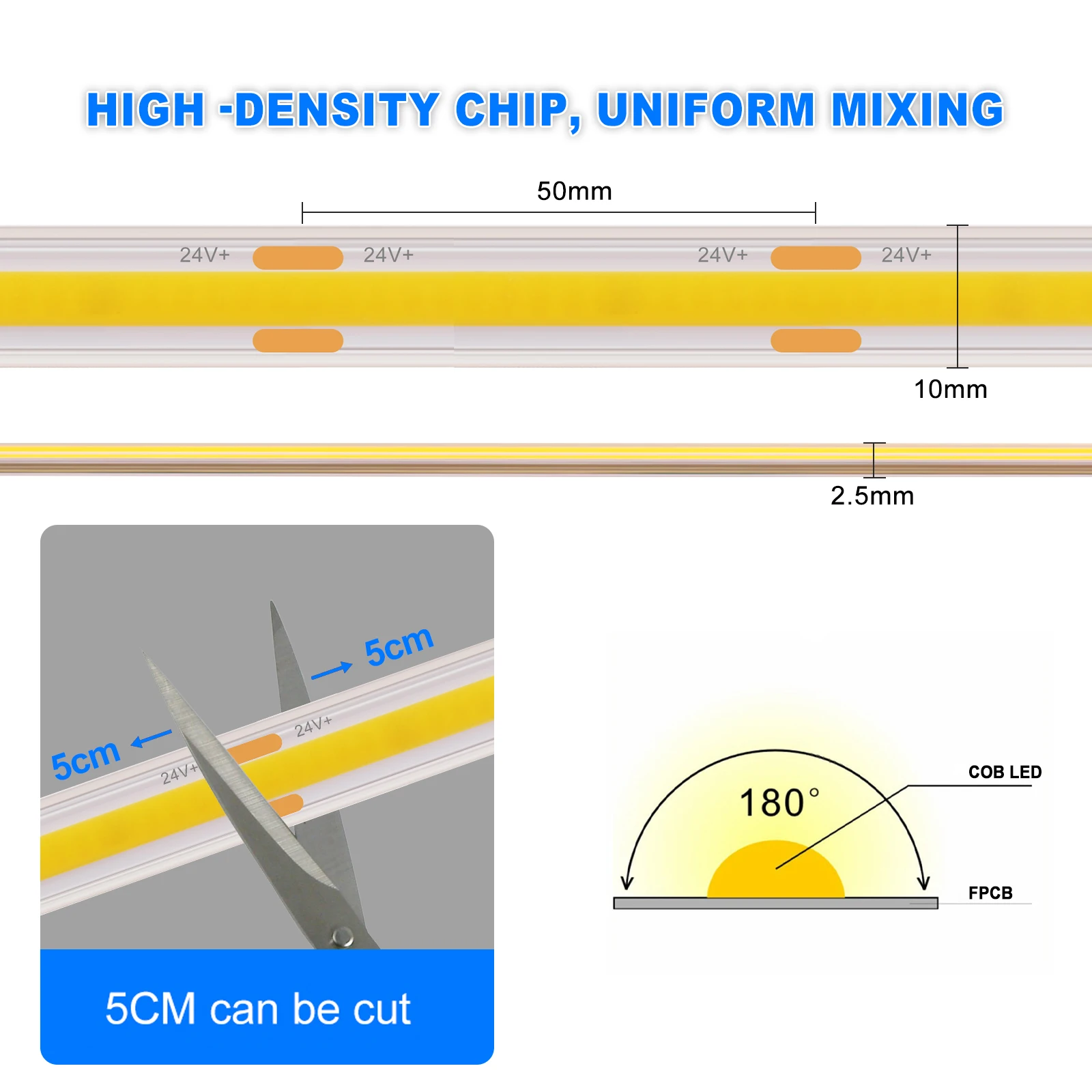

| Cutting |
Every 50mm for 24V |
| Connection |

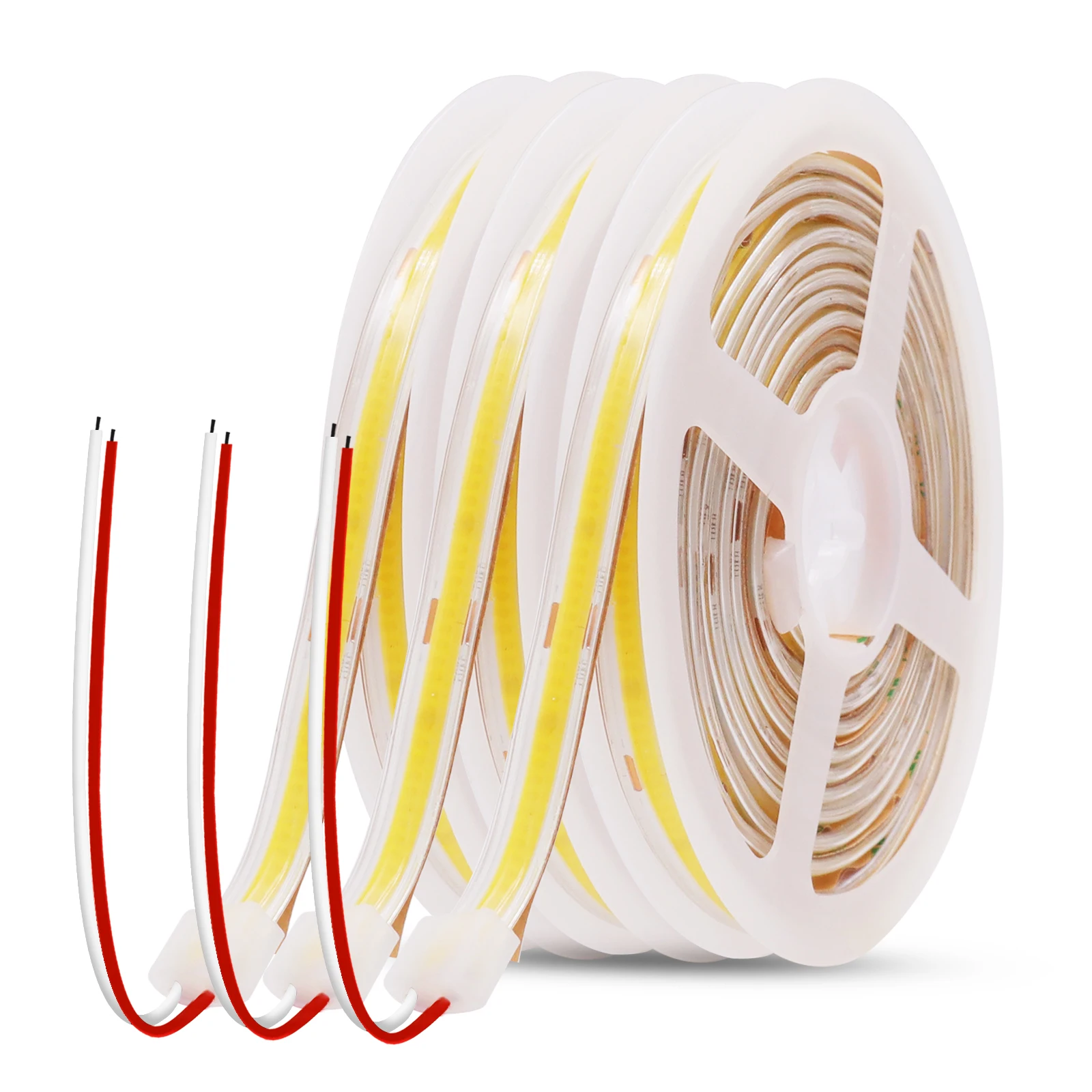

2-pin wire / DC female |
| MOQ |
1 piece |
| Sample Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |

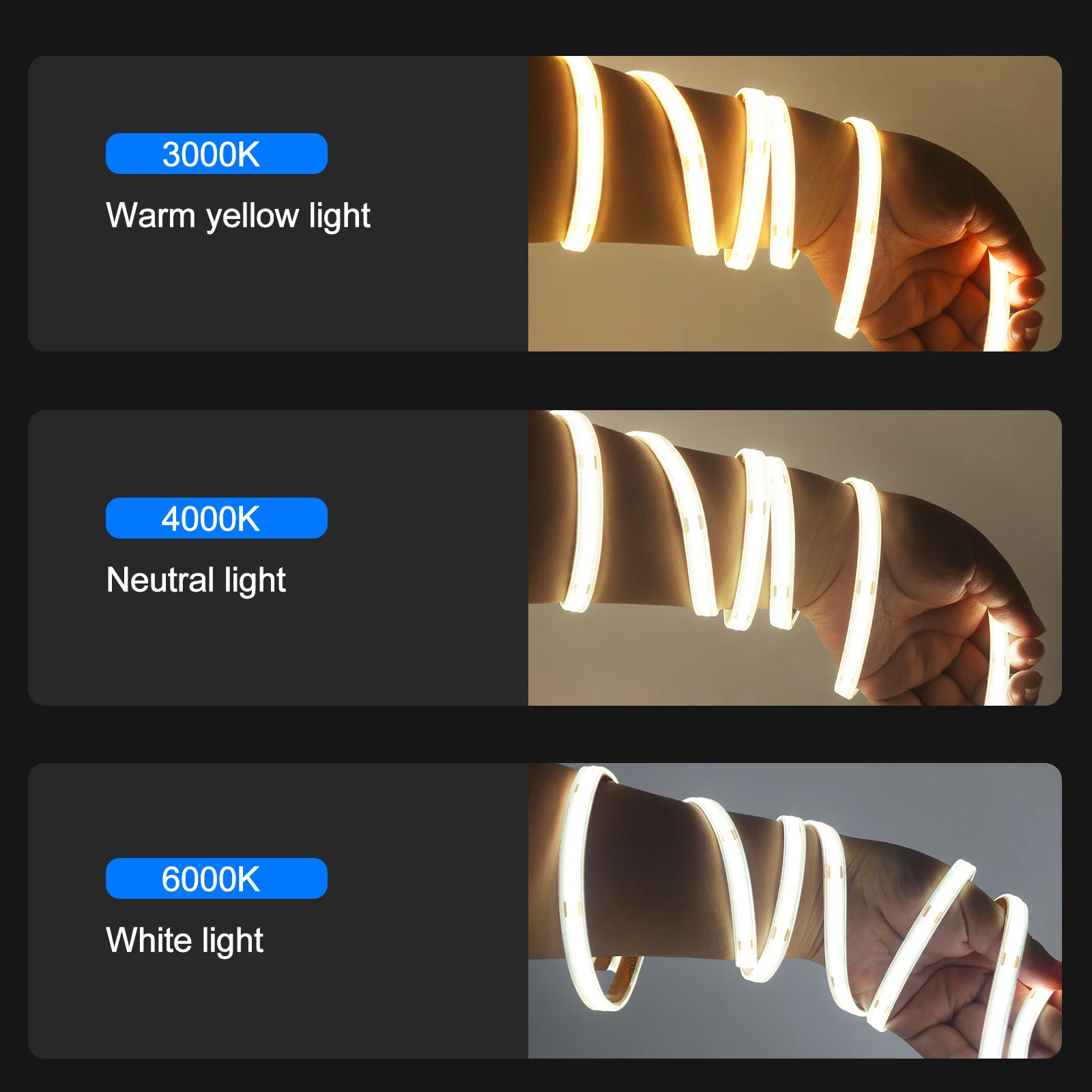

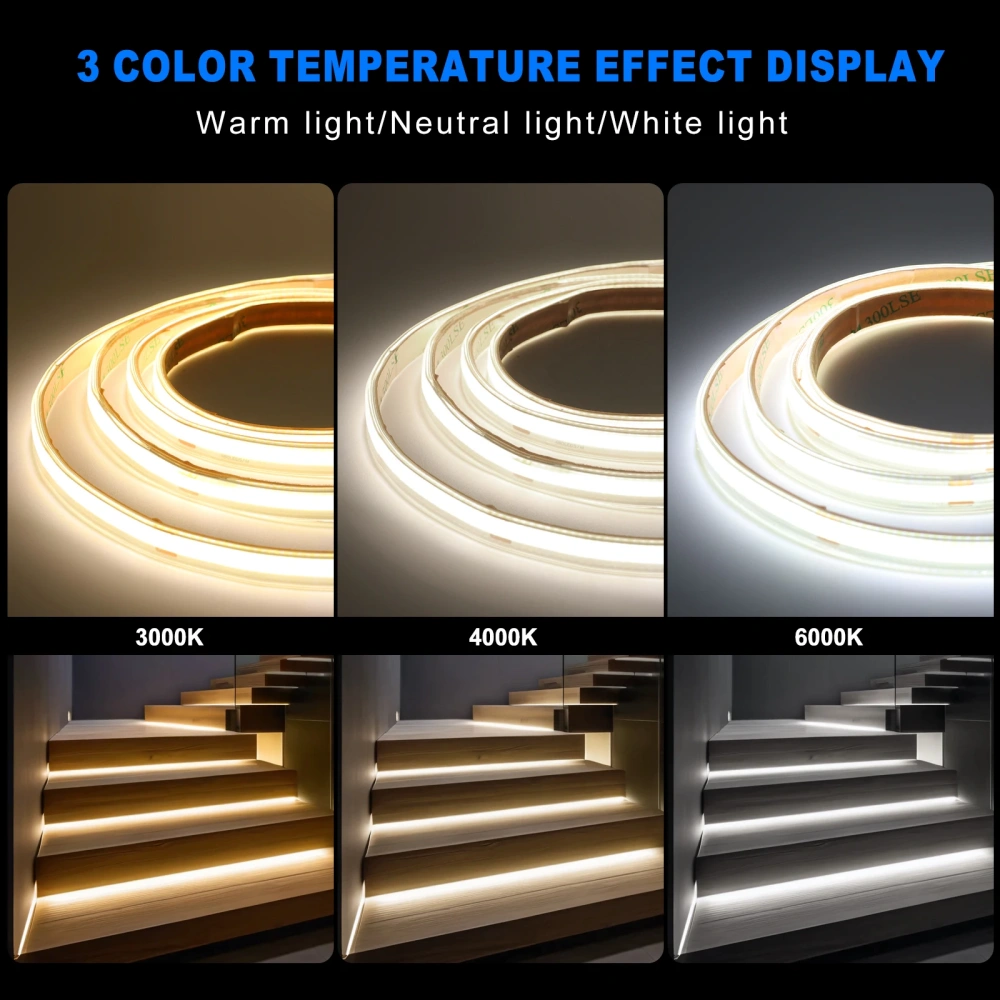

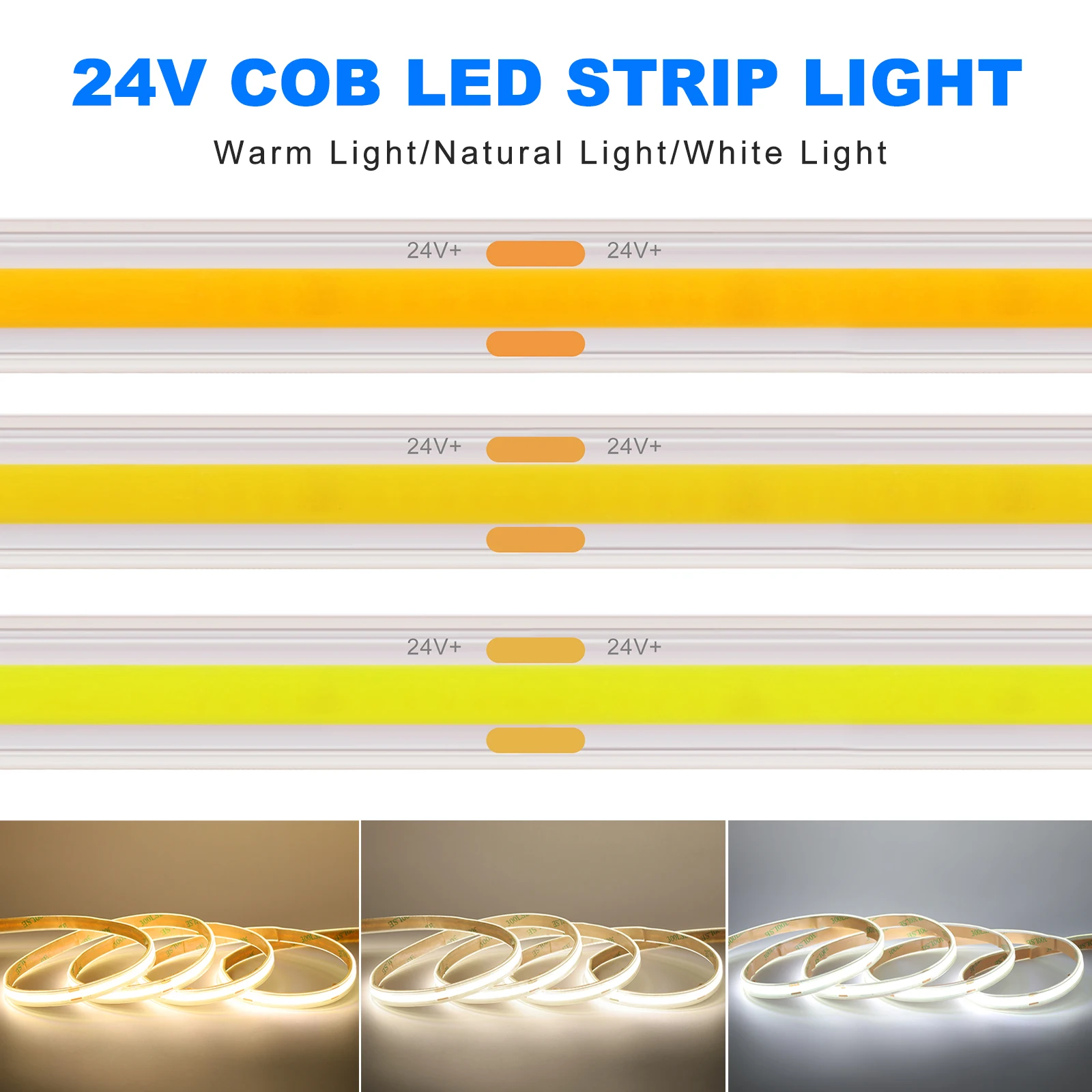

Lighting Options
3000K Warm White
A warm color temperature suitable for:
- bedrooms
- hospitality spaces
- restaurants
- residential interiors
- decorative furniture
- ambient lighting
4000K Natural White
A neutral white option suitable for:
- kitchens
- offices
- retail stores
- display cabinets
- commercial interiors
- general architectural lighting
6000K White
A cooler white option suitable for applications requiring a brighter and cleaner visual appearance.

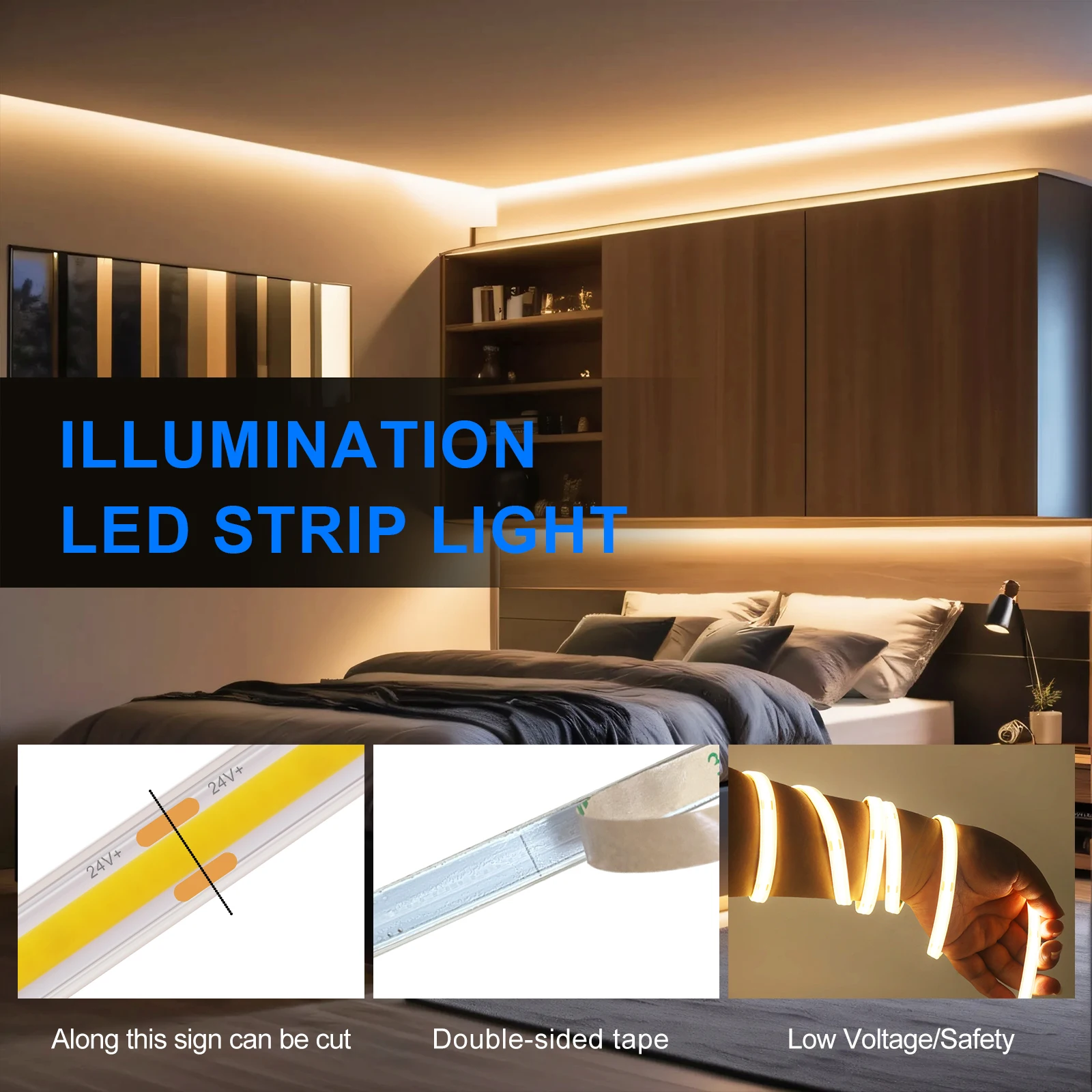

Installation
The COB LED strip uses an adhesive backing for simple surface mounting.
For professional projects:
- Measure the required installation length.

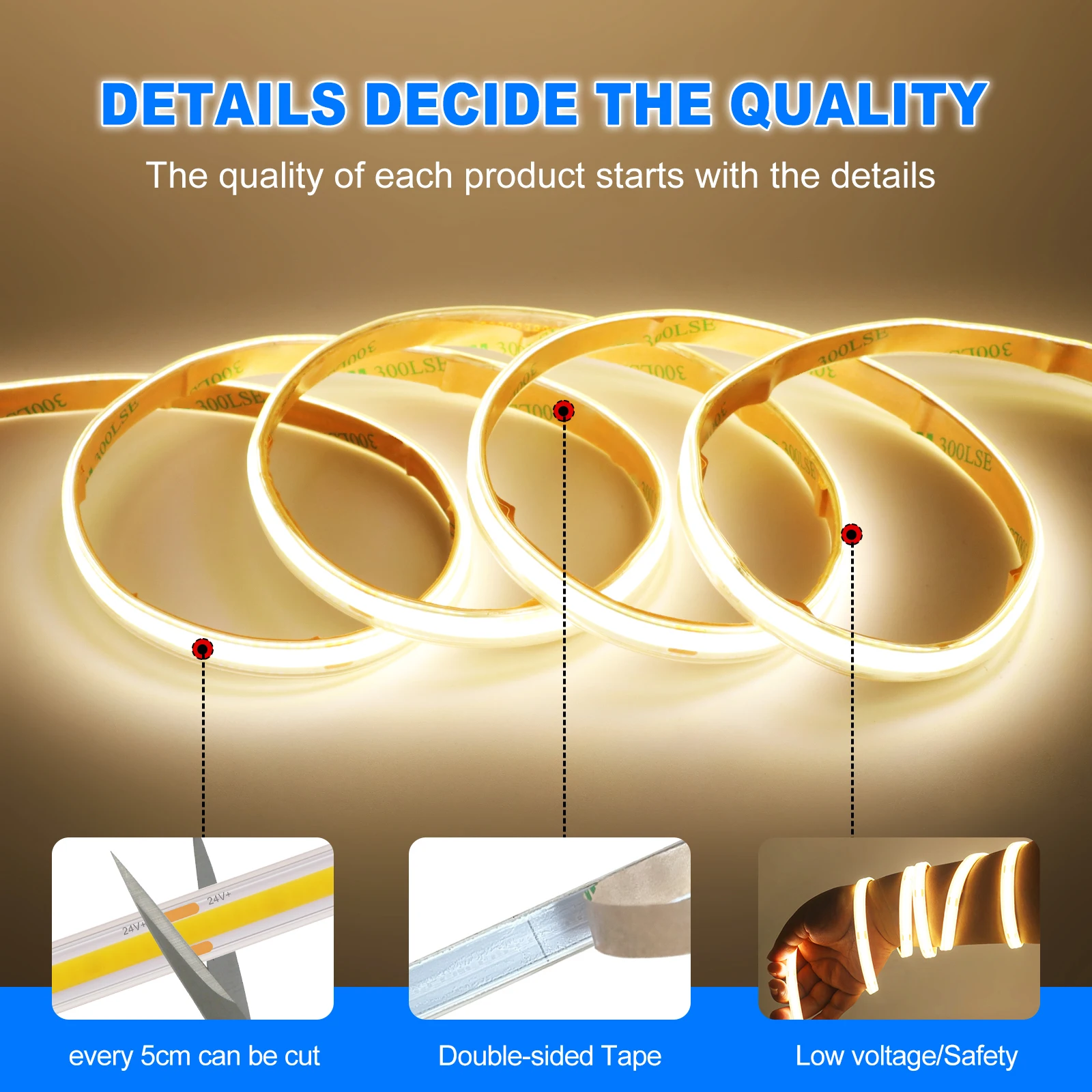

- Cut the strip at the designated cutting point.
- Clean and dry the mounting surface.
- Remove the adhesive backing.
- Fix the strip to the installation surface or aluminum profile.
- Connect the strip to a compatible DC12V or DC24V power supply.
- Test the lighting before final installation.
For longer runs, appropriate power injection should be considered to reduce voltage drop.
The current product page notes that DC12V runs of 6–10m and DC24V runs of 11–20m require both ends to be connected to the power supply to reduce voltage drop.
Technical Specifications
| Specification |
Details |
| Product Type |
COB LED Strip Light |
| LED Technology |
COB |
| LED Density |
480 LEDs/m |
| Input Voltage |
DC12V / DC24V |
| Power Consumption |
9–11W/m |
| Color Temperature |
3000K / 4000K / 6000K |
| Light Color |
Warm White / Natural White / White |
| Color Rendering |
Ra >90 |
| Beam / Viewing Angle |
180° |
| Strip Width |
10mm |
| Strip Thickness |
2.5mm |
| Available Length |
0.5m–20m |
| Cutting Length |
50mm for 24V |
| Waterproof Rating |
IP67* |
| Operation Temperature |
-20°C to +45°C |
| Storage Temperature |
-20°C to +60°C |
| Installation |
Adhesive backing |
| Connector Options |
2-pin wire / DC female |
| Power Supply |
Not included |
| MOQ |
1 piece |
| Sample Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |
Project Applications
The product can be used in B2B lighting projects where flexible, high-density linear illumination is required.
Residential Projects
- Kitchen cabinets
- Wardrobes
- Bedrooms
- Living rooms
- Staircases
- Furniture
- Home decoration
Commercial Projects
- Retail stores
- Shopping displays
- Restaurants
- Hotels
- Bars
- Office interiors
- Showrooms
Architectural Projects
- Cove lighting
- Ceiling details
- Wall details
- Architectural features
- Display structures
- Linear decorative lighting
For outdoor applications, the installation environment should be evaluated together with the confirmed waterproof rating, connectors, power supply and installation method.
OEM/ODM
USKYLED supports OEM and ODM LED strip lighting projects for wholesalers, distributors, lighting brands, contractors and project suppliers.
Customization options can include:
- LED strip length
- Voltage configuration
- Color temperature
- PCB specification
- Connector type
- Cable length
- Packaging
- Product labeling
- Brand packaging
- OEM product requirements
For project orders, customers can provide the required installation length, voltage, CCT, quantity and application environment for configuration.
MOQ: 1 piece for sample or trial orders.
Sample lead time: 3–7 days.
Mass order lead time: 7–15 days, subject to order quantity and customization requirements.
CTA
Looking for a 480 LEDs/m COB LED Strip Light supplier for your next lighting project?
Contact USKYLED for product specifications, samples, OEM/ODM customization and wholesale pricing.
MOQ: 1 piece
Sample Lead Time: 3–7 Days
Mass Order Lead Time: 7–15 Days
Contact USKYLED for samples, wholesale orders and project quotations.
