Product Introduction
The USKYLED DMX512 RGBW Neon Flex combines flexible silicone neon construction with RGBW LED technology and integrated DMX512 pixel control. It is designed for lighting projects that require dynamic color effects, programmable animations and smooth continuous illumination.
The product uses 5050 RGBW LEDs with TM512AC-SOP10 DMX512 ICs, providing 60 LEDs per meter and 10 pixels per meter. Each group of 6 LEDs is controlled as one RGBW pixel using four channels: red, green, blue and white. This allows individual sections of the neon strip to display programmable lighting effects.
The neon flex operates at DC24V and provides 14.4W/m, with a total power of approximately 72W for a 5-meter roll. The flexible 100% silicone housing is rated IP67, making the product suitable for applications where protection against dust and water is required.
With a 12 × 25mm neon profile, 270° side-viewing illumination and flexible bending characteristics, this product is suitable for architectural outlines, building facades, signage, entertainment venues, stages, hotels, retail environments and other decorative lighting projects.
Design

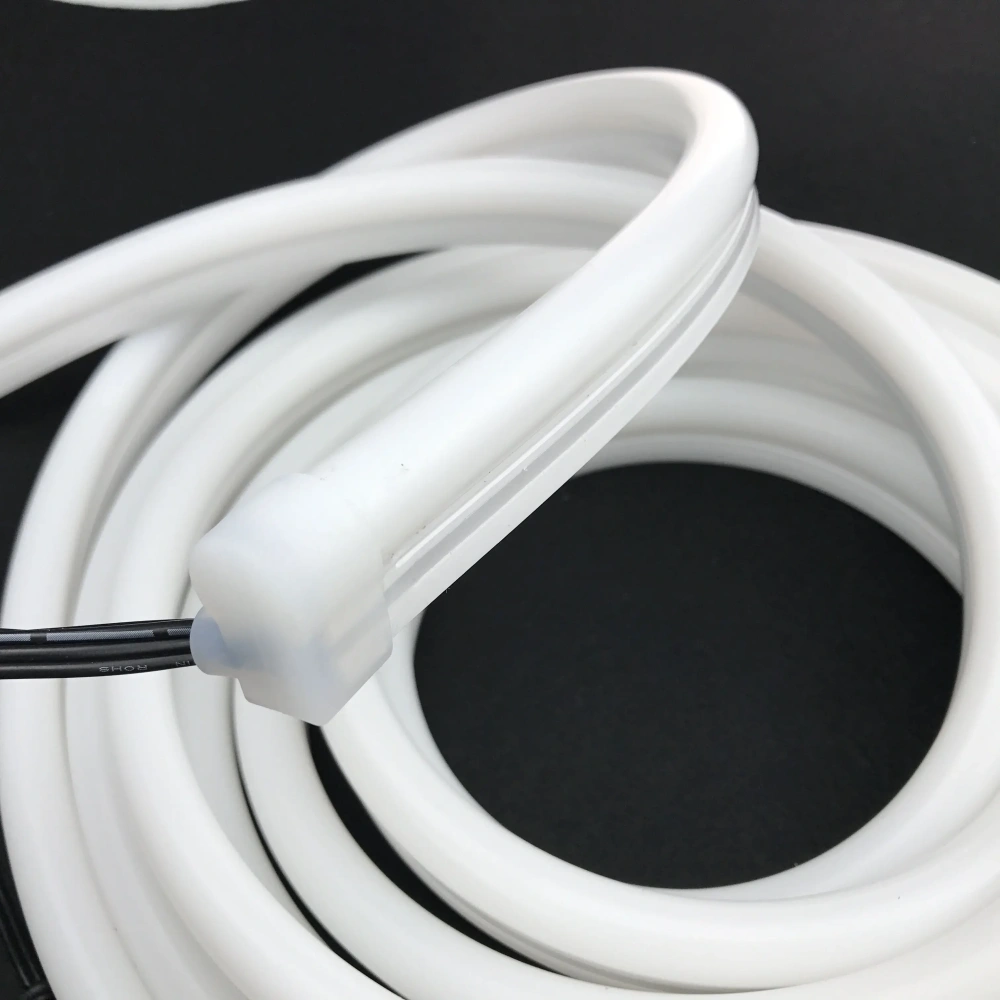

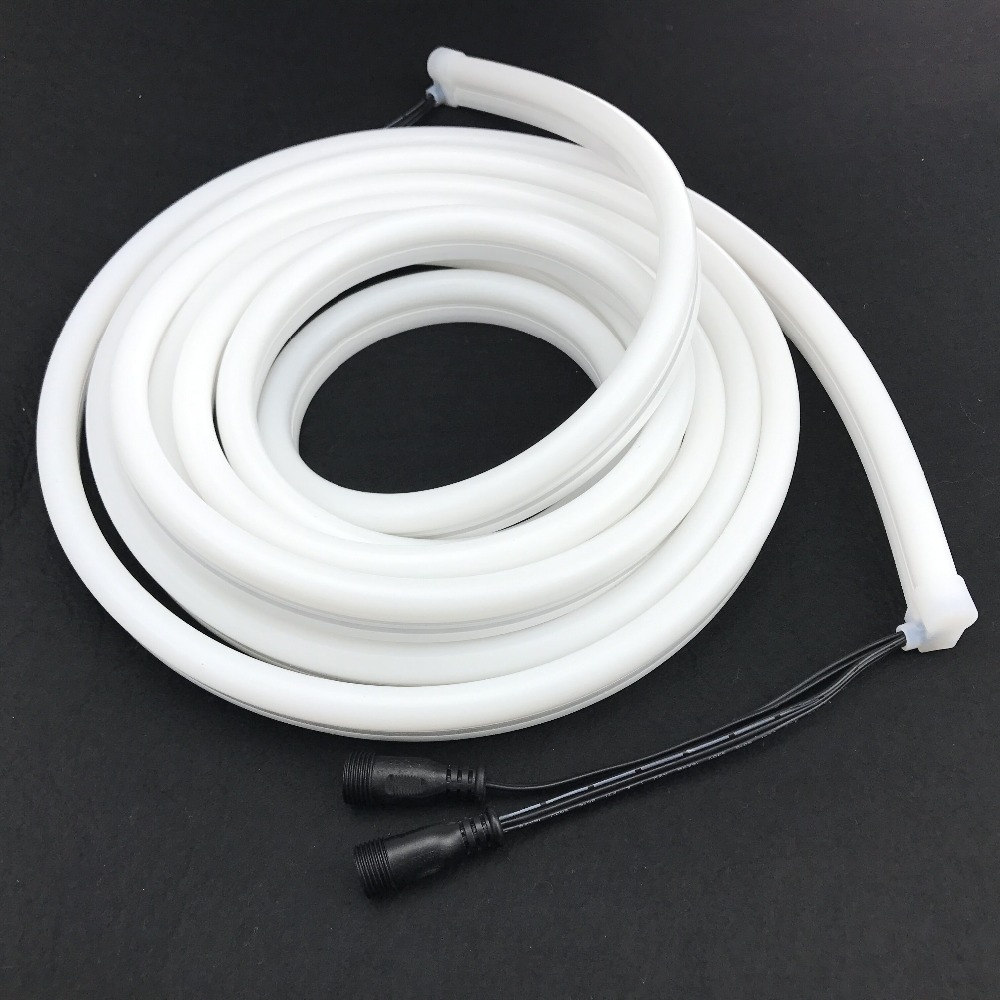

The LED neon strip is enclosed in a flexible silicone housing designed to provide continuous and visually uniform illumination.

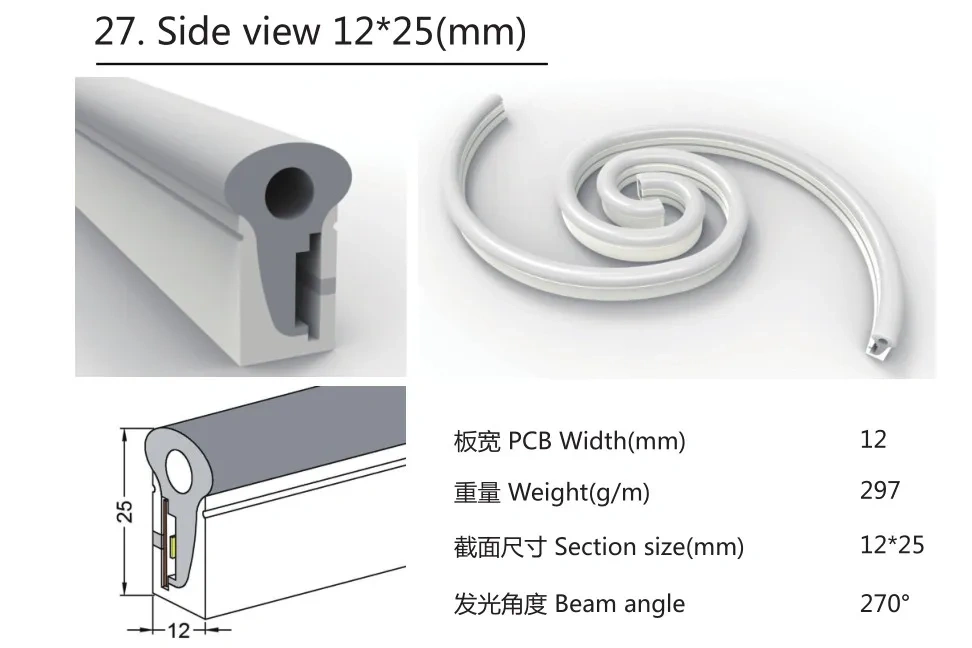

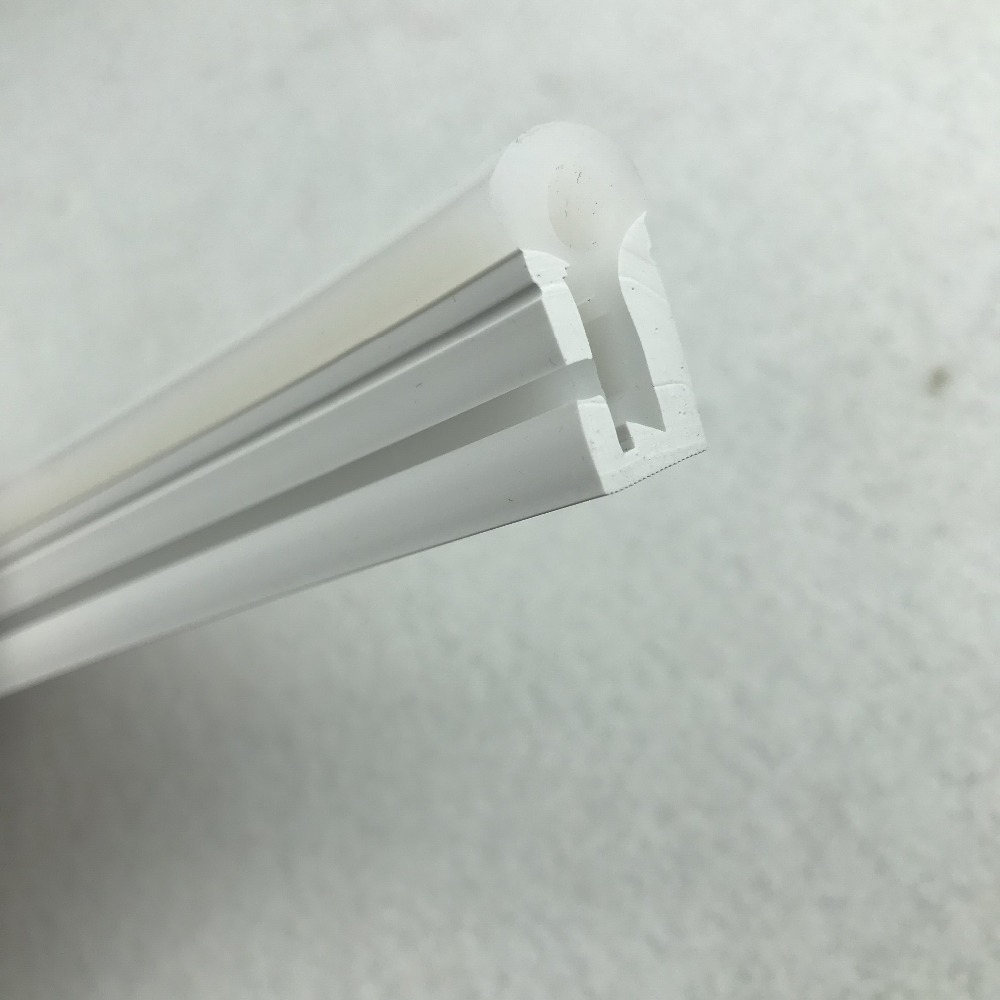

The silicone profile measures approximately 12mm × 25mm and provides 270° side-viewing illumination, making it suitable for outlining architectural surfaces and curved structures.

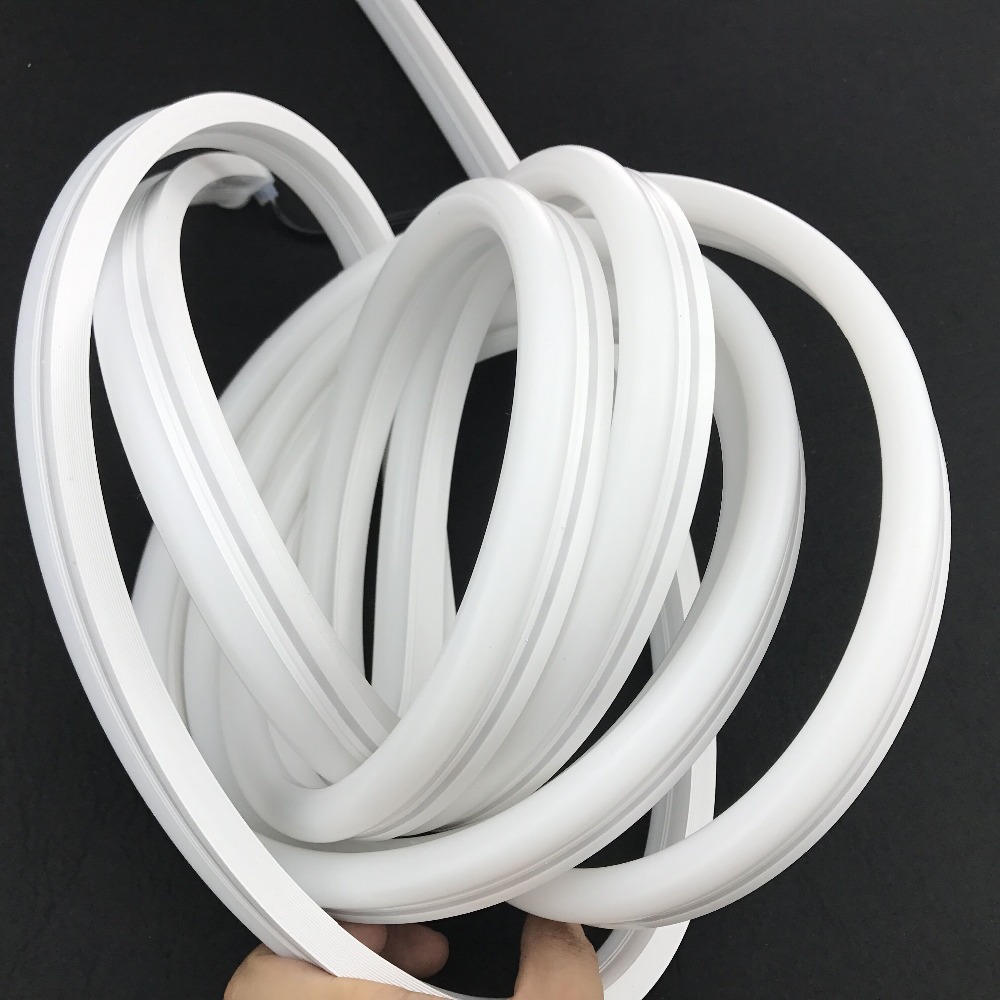

The flexible construction allows the neon to be bent around suitable curves and design shapes. The product page also states that individual LED sections can be cut for installation requirements.
The frosted silicone tube helps distribute light across the surface for a smooth neon appearance rather than exposing individual LED points.
Main Features
- DMX512 RGBW pixel LED neon flex
- 5050 RGBW LED technology
- TM512AC-SOP10 DMX512 IC
- 60 LEDs/m
- 10 pixels/m
- DC24V operation
- 14.4W/m power consumption
- Approximately 72W per 5m roll
- RGBW full-color output
- 256 gray scale
- IP67 waterproof silicone housing
- 12 × 25mm neon profile
- 270° side-viewing illumination
- 120° LED viewing angle
- Flexible silicone construction
- Programmable DMX512 lighting effects
- More than 50,000 hours stated lifespan
- CE / RoHS / FCC certification
- Suitable for architectural and commercial projects
- OEM/ODM cooperation available

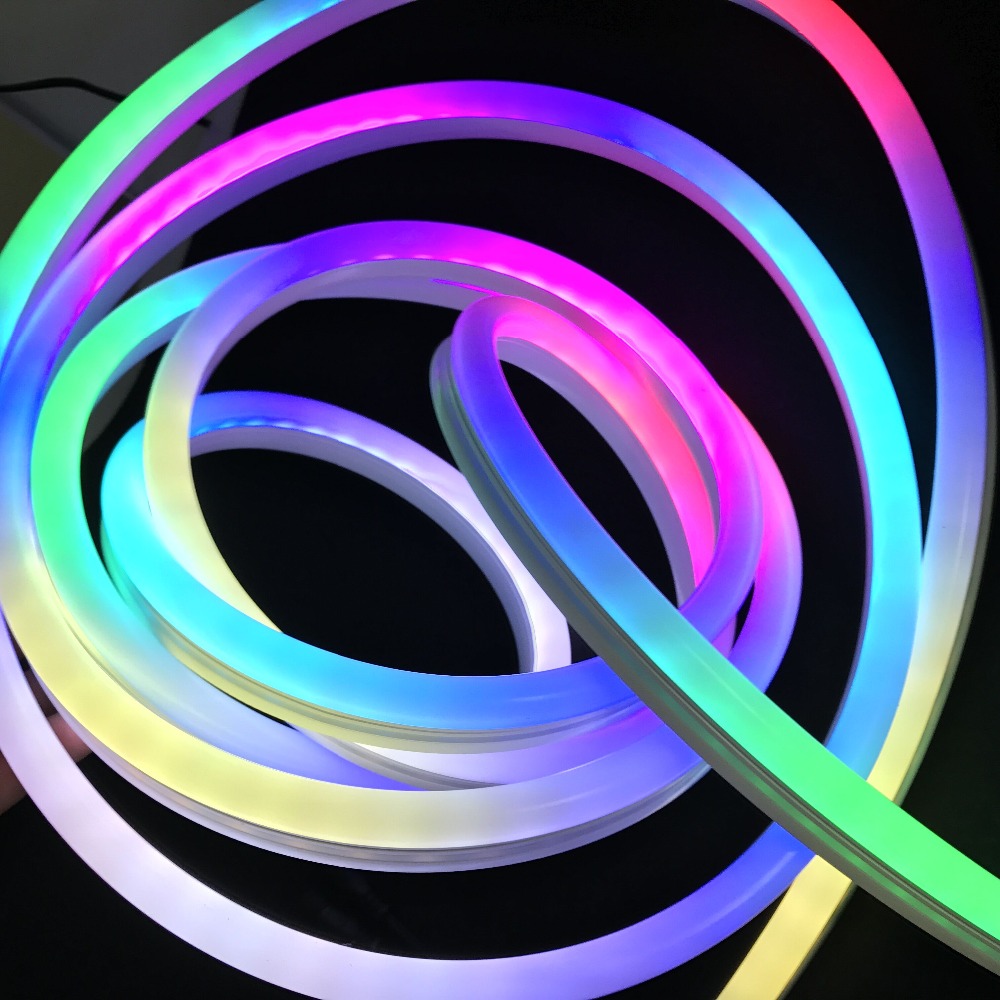

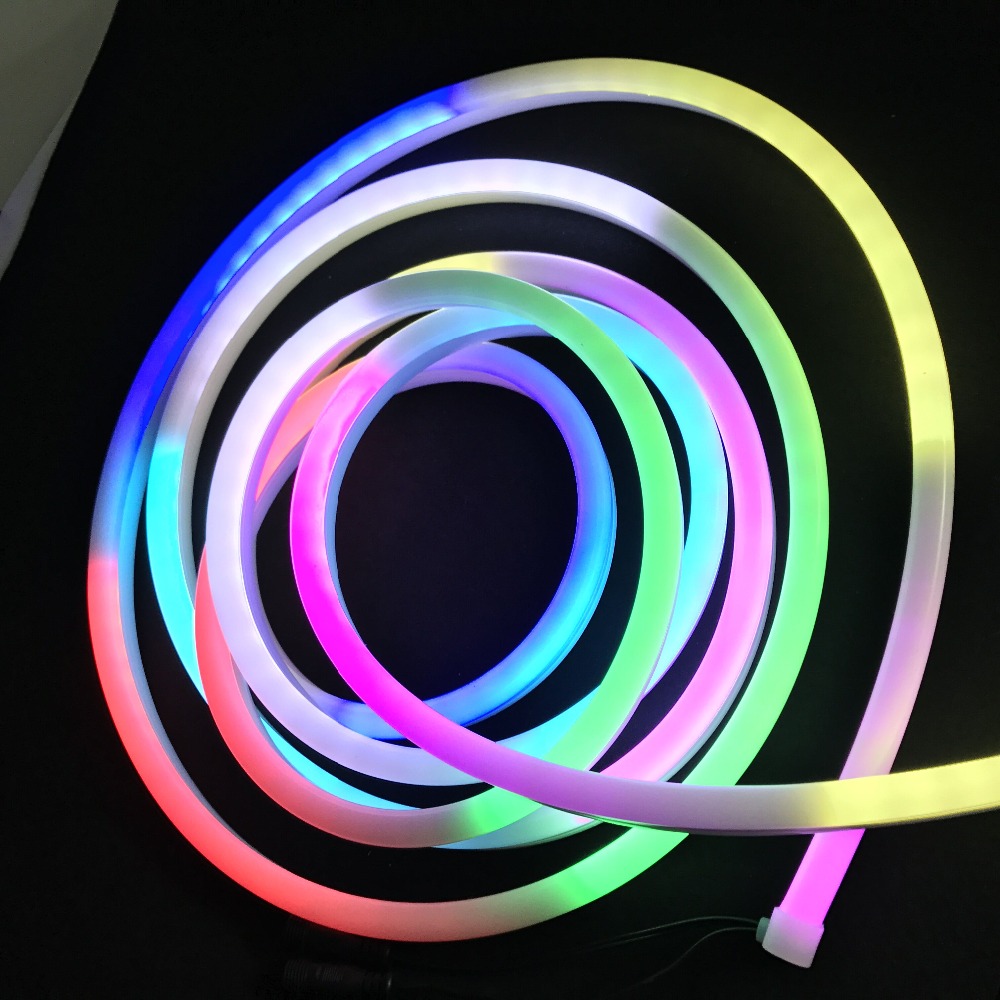

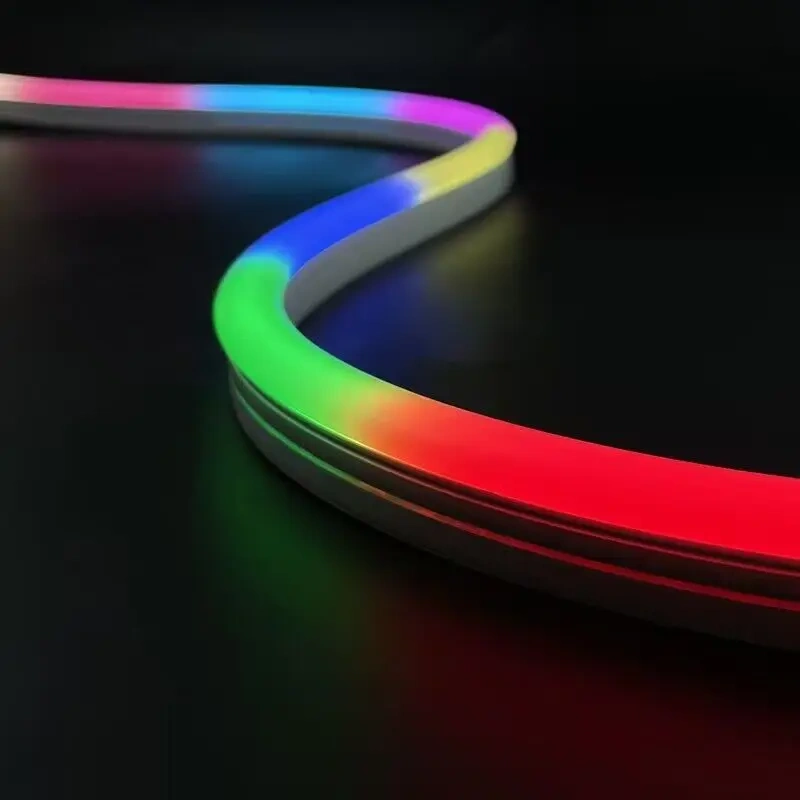

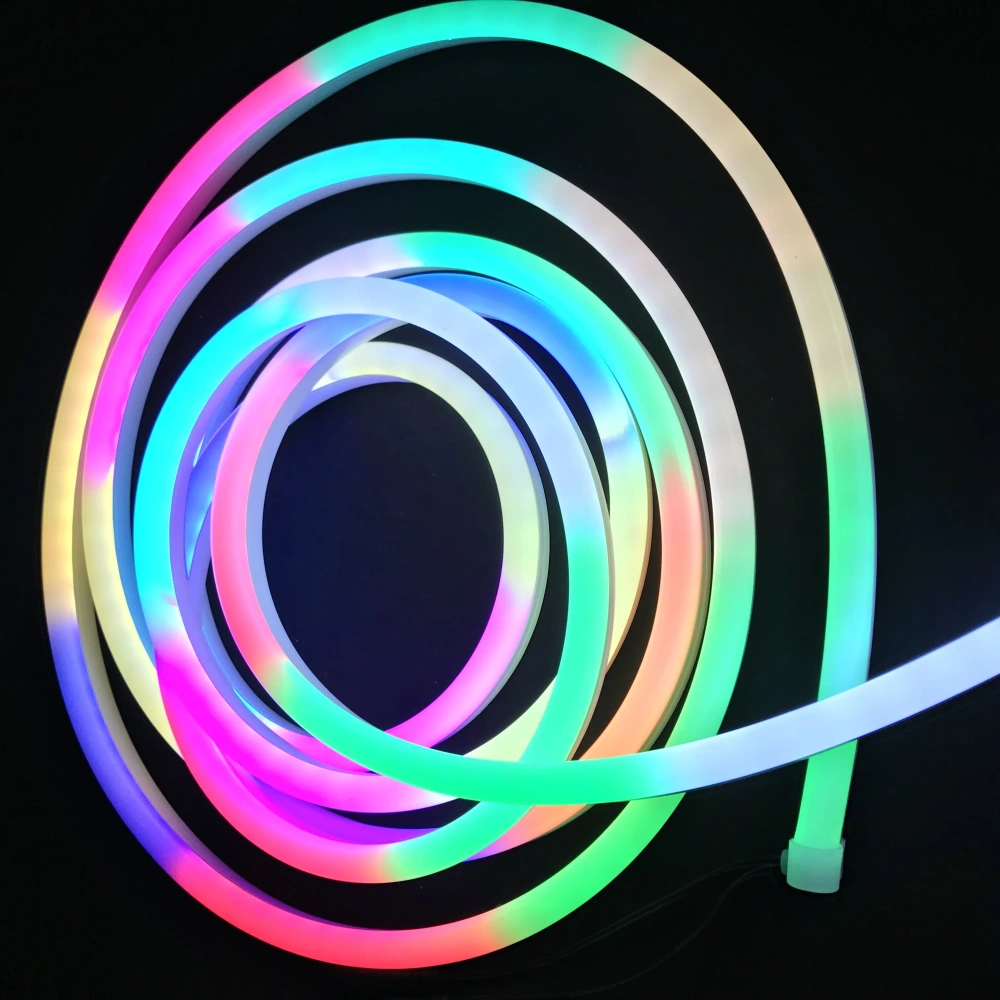

The product can generate dynamic effects including flowing colors, water-flow effects, raindrop effects, jumping and flashing effects when used with compatible control equipment.
Application
The DMX512 RGBW Neon Flex is designed for dynamic decorative and architectural lighting applications, including:
- Building facade lighting
- Architectural outline lighting
- Commercial building lighting
- Hotel exterior and interior lighting
- Retail store lighting
- Stage lighting
- Event lighting
- Entertainment venues
- Club and bar lighting
- Signage lighting
- Landscape lighting
- Decorative architectural lighting
- Exhibition lighting
- Theme park lighting
- Media facade lighting
The programmable pixel structure makes the product particularly suitable for projects where lighting sequences, color transitions or animated effects are required.
Size / Options
Neon Profile:
12mm × 25mm
Standard Roll Length:
5m
LED Density:
60 LEDs/m
Pixel Density:
10 pixels/m
Power:
14.4W/m
Total Power:
Approximately 72W per 5m roll
Voltage:
DC24V
Material:
100% flexible silicone
For project orders, configuration and customized requirements can be discussed with USKYLED.
Lighting Options
Light Source
5050 RGBW LED
The RGBW configuration combines red, green, blue and white channels for both saturated colors and white-light output.
Pixel Control
10 pixels/m
Each group of 6 LEDs operates as one RGBW pixel using four channels:
This structure allows sections of the neon to be independently controlled through DMX512-compatible systems.
Color Output
RGBW Full Color
The product supports 256 gray scale for color and brightness control.
Viewing Angle
LED viewing angle: 120°
Neon side-viewing angle: 270°
The 270° side-viewing design allows the neon profile to be viewed from a wide range of directions, making it suitable for architectural outlines and curved installation surfaces.
Installation
The DMX512 RGBW Neon Flex is designed for flexible surface installation.
The silicone neon can be bent according to the installation shape and can be cut according to the product's specified cutting requirements.

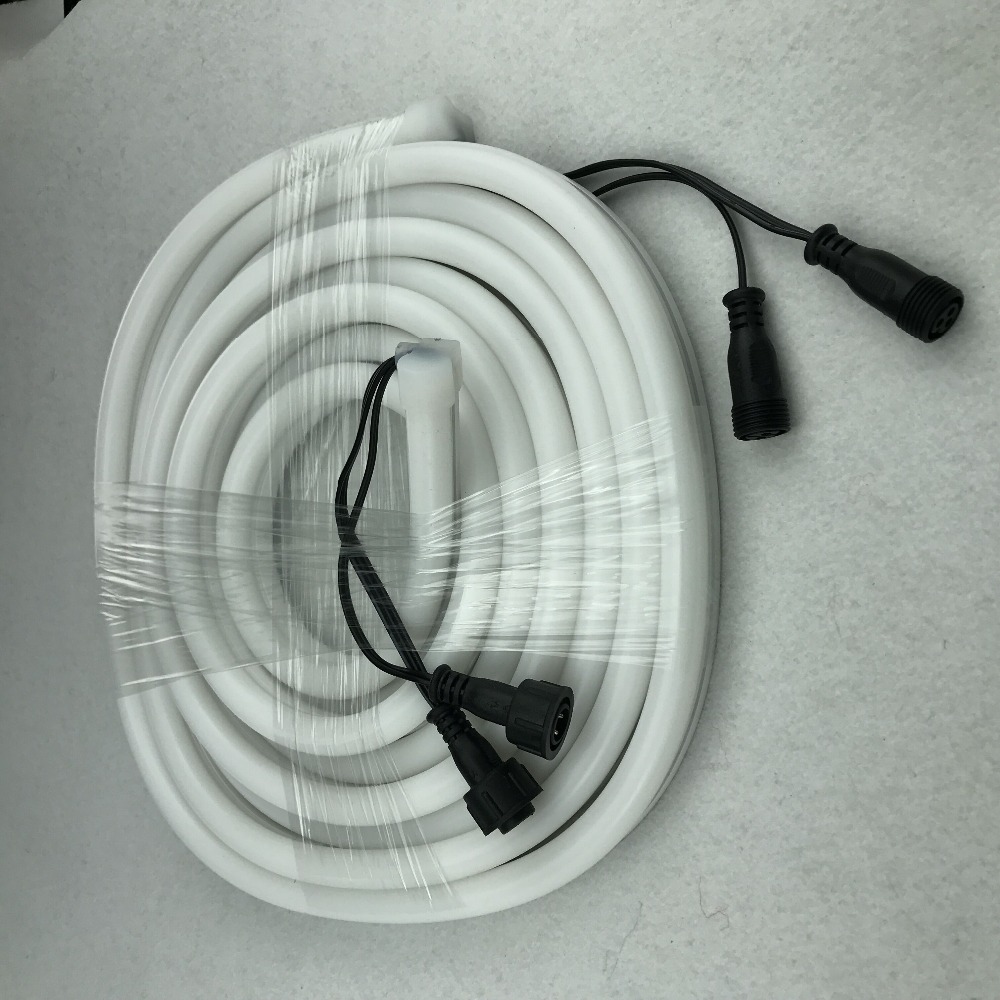

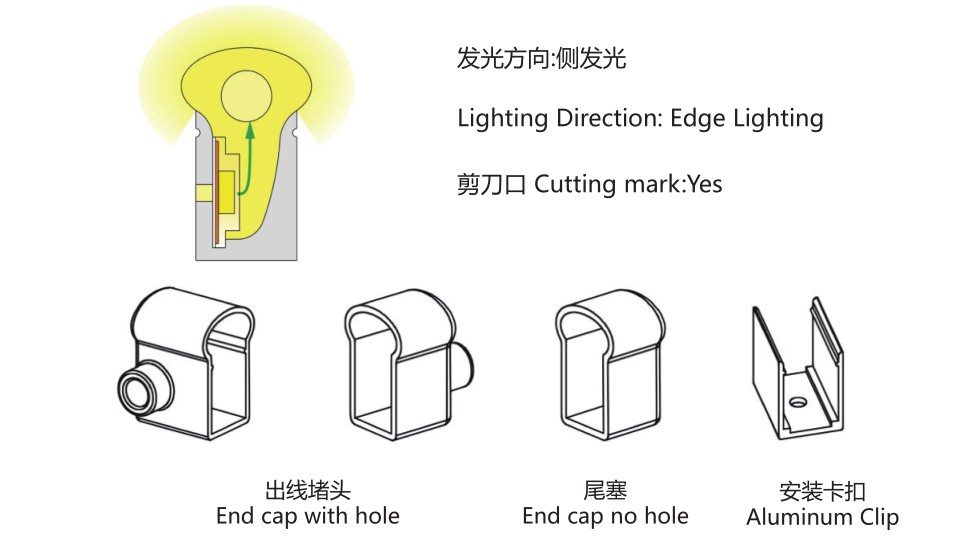

Each 5m roll is supplied with:

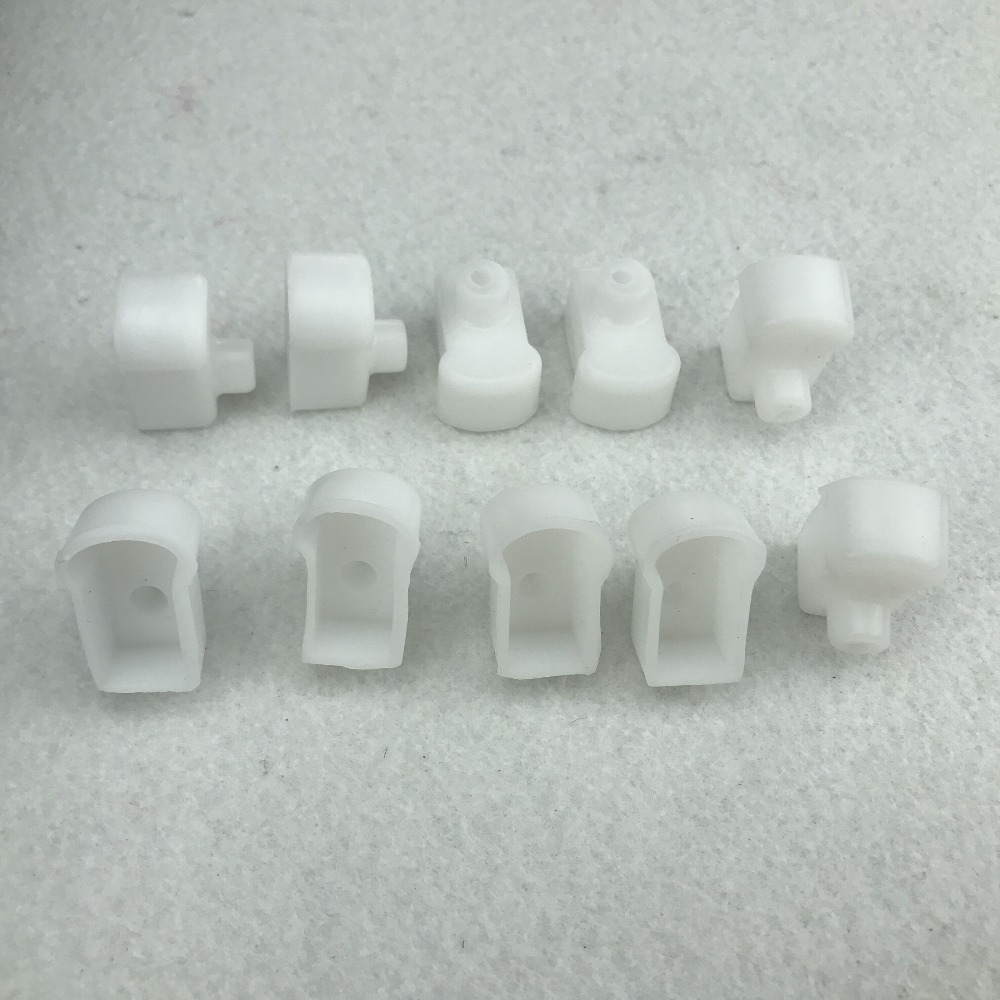

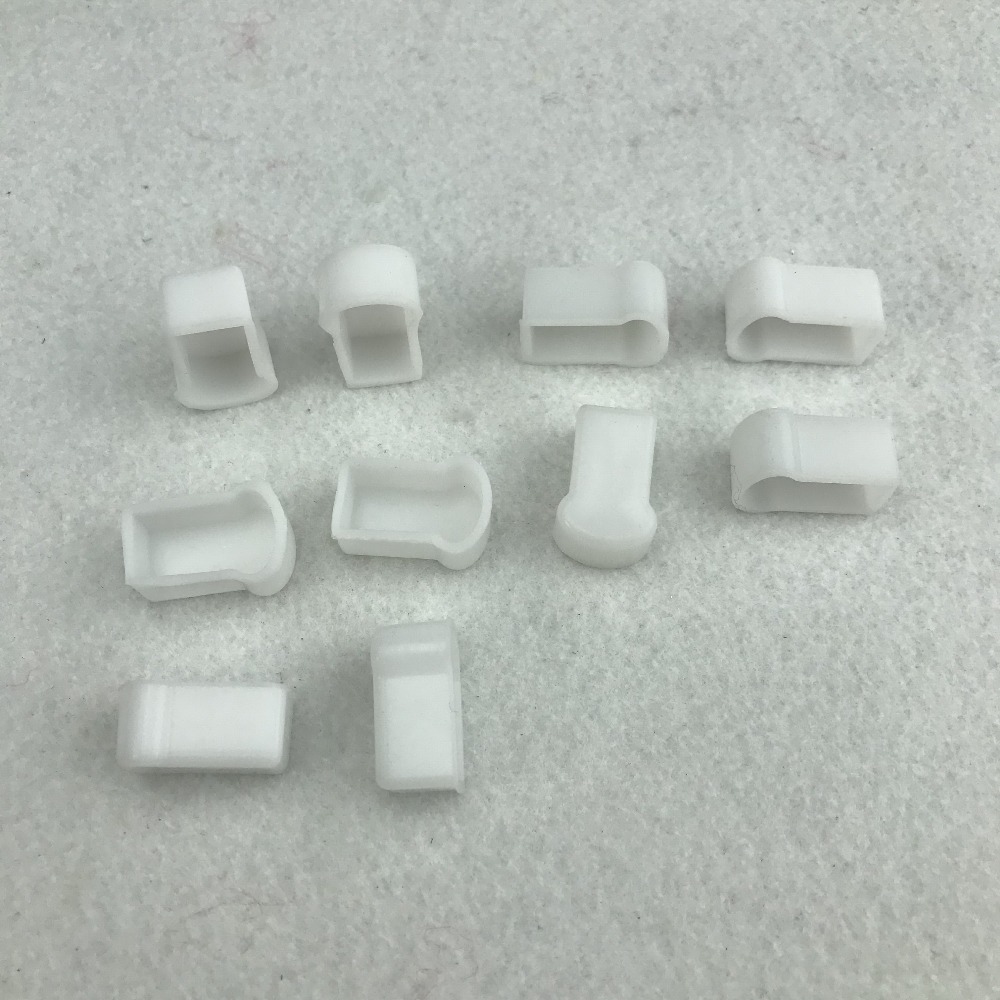

- 5 × end caps with holes
- 5 × end caps without holes

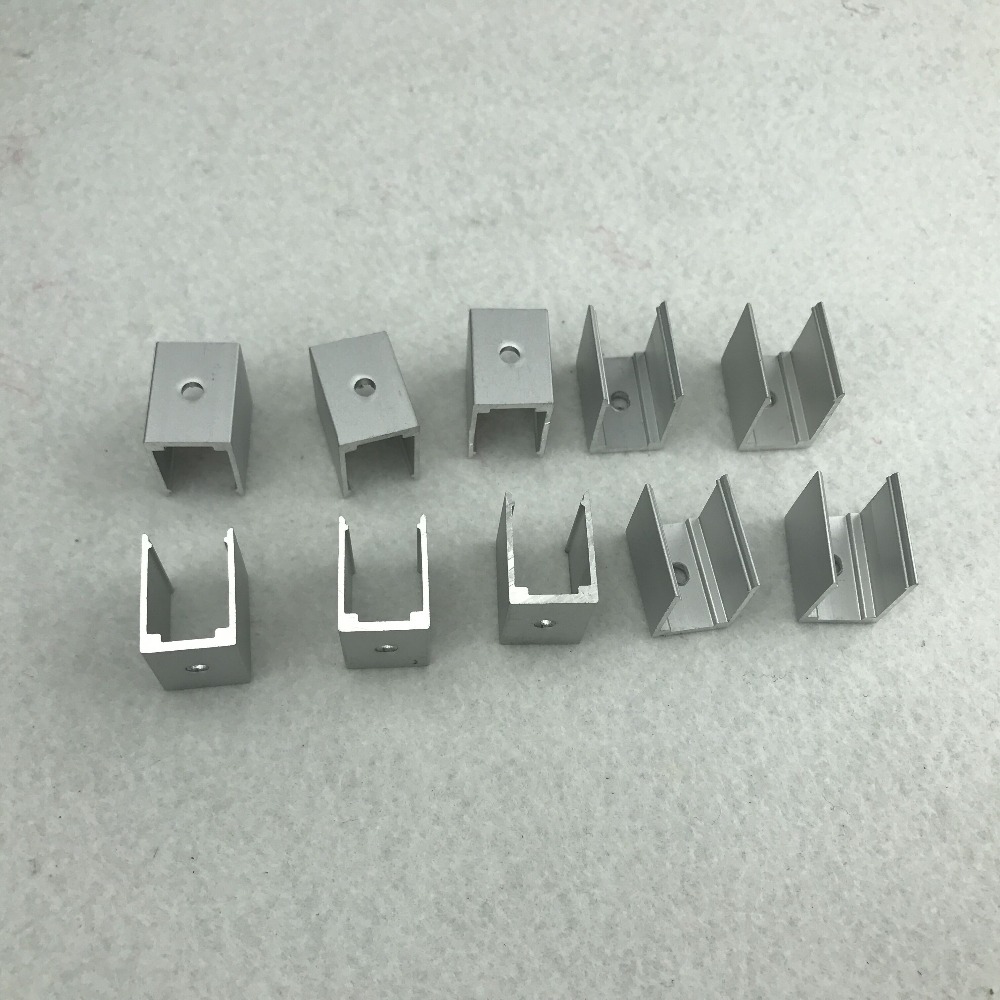

- 5 × aluminum clips
according to the current product page specification.
The product can be controlled directly by a compatible DMX512 controller, with the product page stating that a separate decoder is not required for its stated DMX512 control method.
Installation should follow the specified DC24V power requirements and appropriate waterproof sealing procedures, especially for outdoor installations.
Technical Specifications
| Specification |
Details |
| Product Type |
DMX512 RGBW Neon Flex |
| Light Source |
5050 RGBW LED |
| DMX IC |
TM512AC-SOP10 |
| Control Protocol |
DMX512 |
| Working Voltage |
DC24V |
| LED Density |
60 LEDs/m |
| Pixel Density |
10 pixels/m |
| LED Group |
6 LEDs per pixel |
| Channels per Pixel |
4 channels: R/G/B/W |
| Power Consumption |
14.4W/m |
| Power per 5m Roll |
Approx. 72W |
| Roll Length |
5m |
| Neon Size |
12 × 25mm |
| Silicone Material |
100% Silicone |
| Protection Rating |
IP67 |
| LED Viewing Angle |
120° |
| Neon Viewing Angle |
270° Side Viewing |
| Color |
RGBW Full Color |
| Gray Scale |
256 |
| Rated Life |
>50,000 hours |
| Certifications |
CE / RoHS / FCC |
| MOQ |
1 pcs |
| Sample Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |
Project Applications
The programmable DMX512 RGBW neon flex is suitable for projects where dynamic lighting effects and architectural flexibility are required.
Architectural Facade Projects
Use the flexible side-viewing neon to outline building edges, architectural features and facade structures.
Commercial Projects
Suitable for shopping centers, retail stores, restaurants, hotels and entertainment venues requiring programmable decorative lighting.
Stage & Event Projects
RGBW pixel control can be used to create dynamic color transitions, flowing effects, flashing sequences and other programmed lighting scenes.
Signage Projects
The flexible silicone profile can be used for illuminated lettering, outlines and decorative signage structures.
Landscape Projects
IP67 protection and flexible construction make the product suitable for selected outdoor landscape and architectural applications when properly installed and sealed.
Media & Entertainment Projects
Pixel-level control can be used to create animated lighting sequences for clubs, entertainment venues and themed environments.
OEM/ODM
USKYLED supports OEM and ODM cooperation for:
- Architectural lighting companies
- LED lighting distributors
- Lighting wholesalers
- Stage lighting suppliers
- Signage manufacturers
- Lighting contractors
- Commercial project suppliers
- Lighting brands
- Event lighting companies
Available OEM/ODM support may include:
- Product configuration
- LED density selection
- Pixel configuration
- Color configuration
- Customized packaging
- Logo and branding
- Project samples
- Bulk production
- Product documentation
MOQ: 1 pcs
Sample Order Lead Time: 3–7 Days
Mass Order Lead Time: 7–15 Days
Actual production lead time may vary depending on order quantity, configuration and customization requirements.
CTA
Looking for a DMX512 RGBW neon flex for your architectural or commercial lighting project?
Contact USKYLED for samples, wholesale pricing, technical specifications and OEM/ODM support.
MOQ: 1 pcs
Sample Lead Time: 3–7 Days
Mass Order Lead Time: 7–15 Days
DM us for samples, wholesale orders and project quotations.
Easy installation
Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.
Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect,
you can also edit animation effect by Coreldraw/Flash/LedEdit software.
